Factory locker install on 16 sport

Discussion in '3rd Gen. Tacomas (2016-2023)' started by fuzzydoodle, Nov 2, 2020.

  1. Nov 2, 2020 at 1:43 PM
    #1
    fuzzydoodle

    fuzzydoodle [OP] Well-Known Member

    Joined:
    Oct 31, 2017
    Member:
    #234695
    Messages:
    59
    Gender:
    Male
    First Name:
    Jordon
    Arlington WA
    Vehicle:
    2016 Inferno Double Cab TRD Sport
    I was looking into a re gear and locker for my sport, got a few quotes for 5k+ before I came across a guy selling a wrecked '17 offroad in manual.

    Figuring 4.30 gearing would be pretty good for what I need, and having a larger rear diff with a locker, I picked up the chassis for pretty cheap and figured I'd give it a shot.

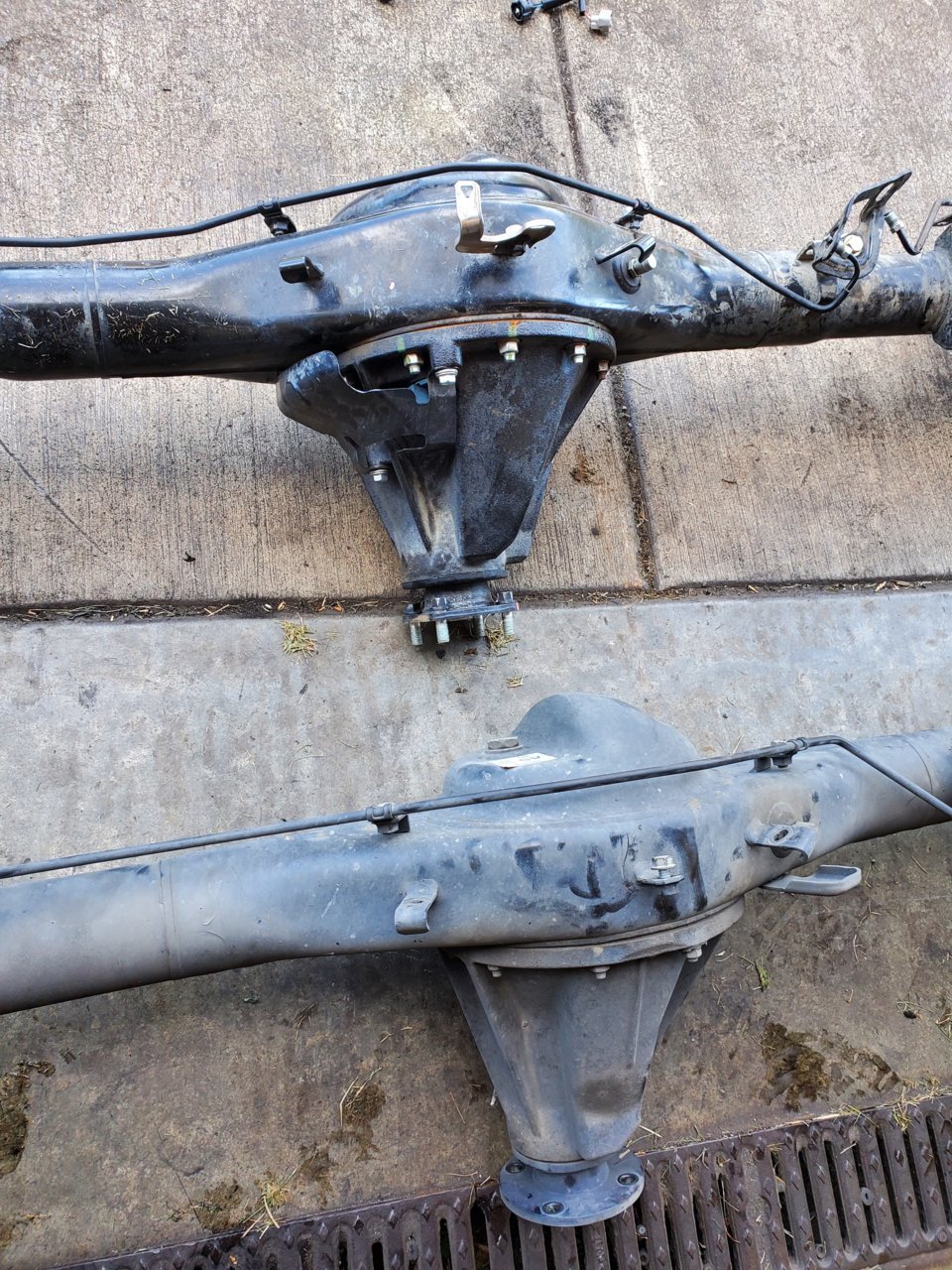

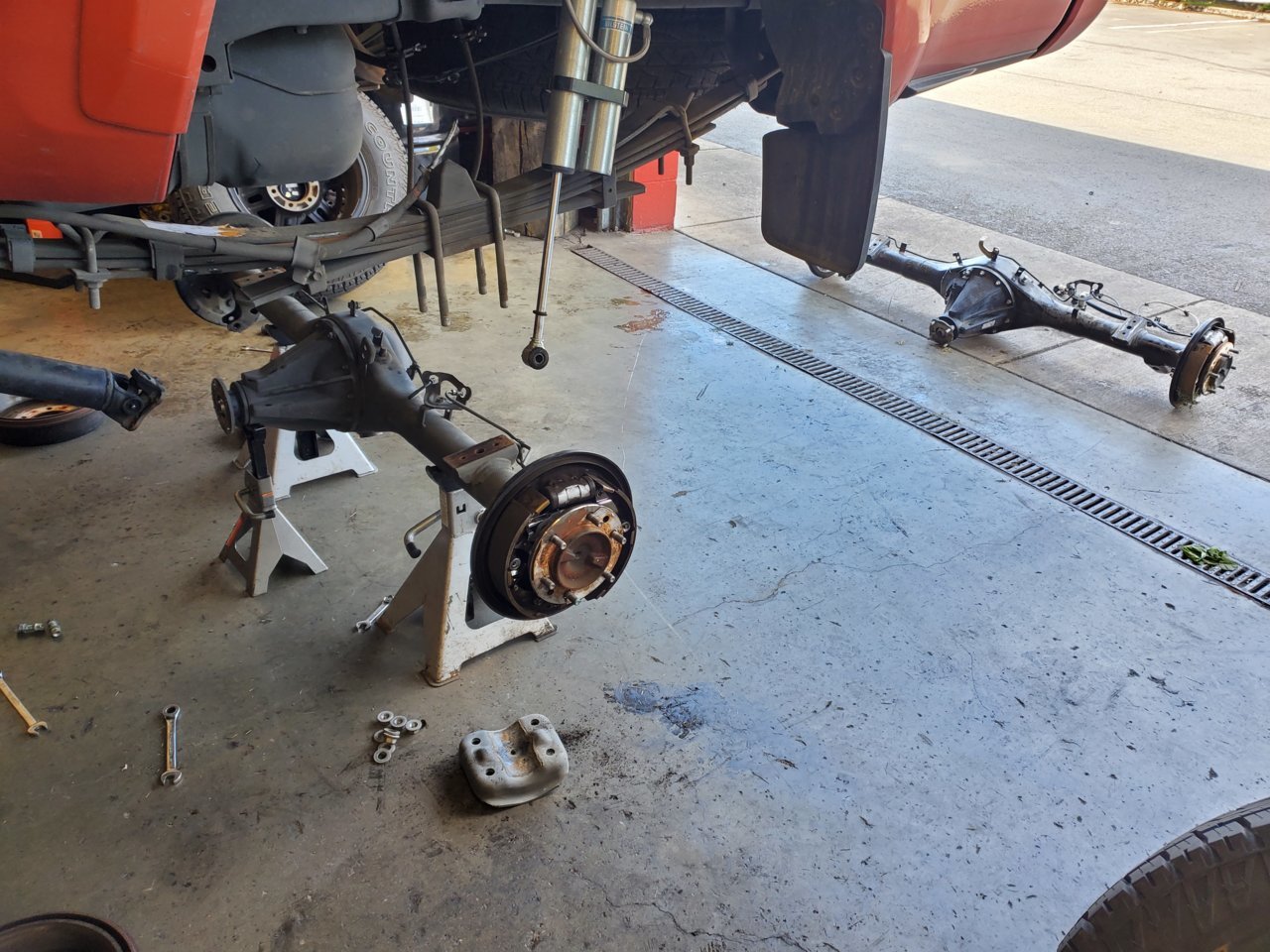

    So after swapping front and rear diffs for the re gear, and sitting off on the locker for a month or so I started looking into people that may have done it, found @traumahawk, and @BigWhiteTRD discussing just that. After bouncing quite a few questions off bigwhite, I figured I had a good handle on it, or rather, he just told me what I needed to do and I did it lol. (Pssst thanks again.)

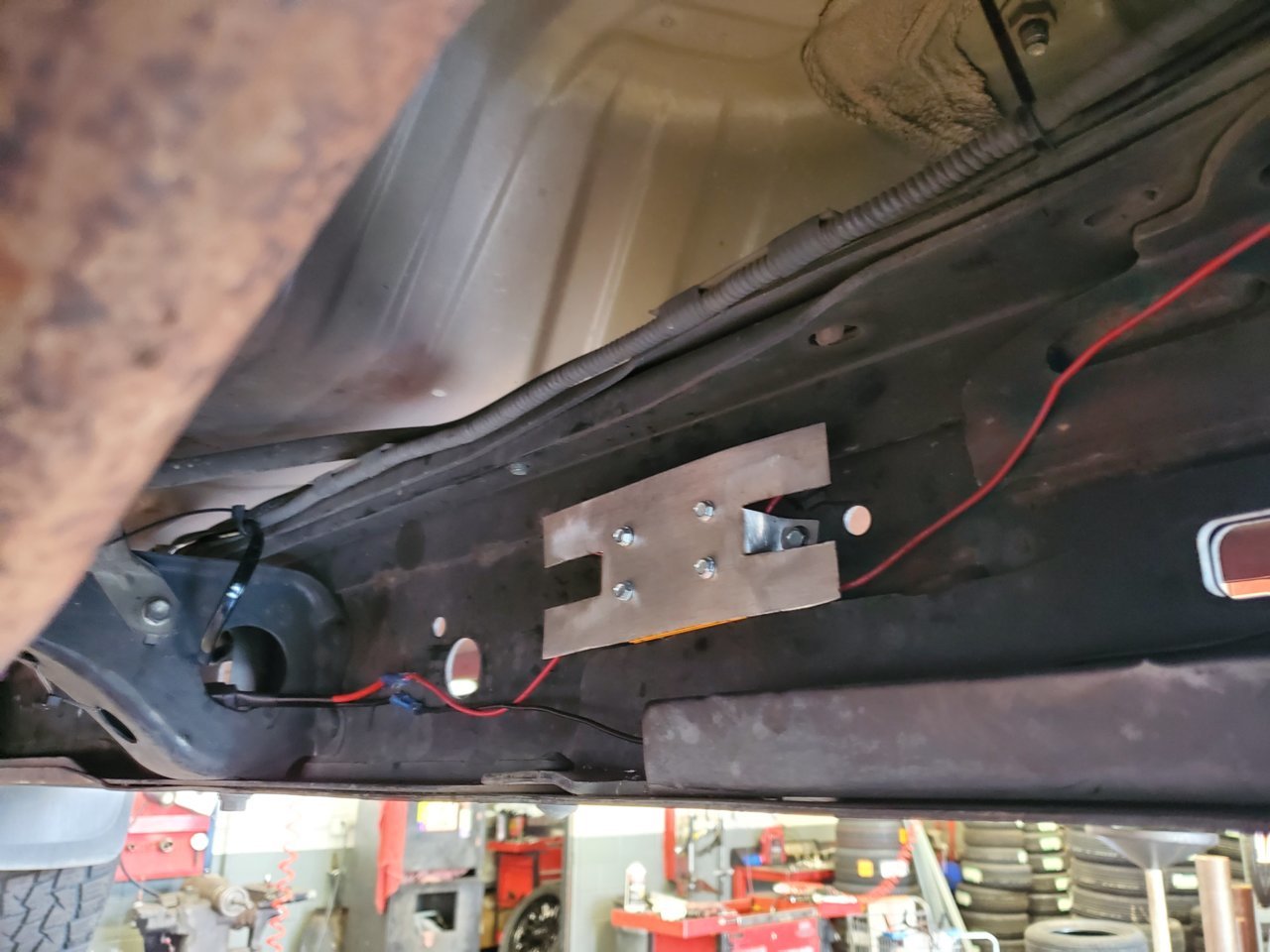

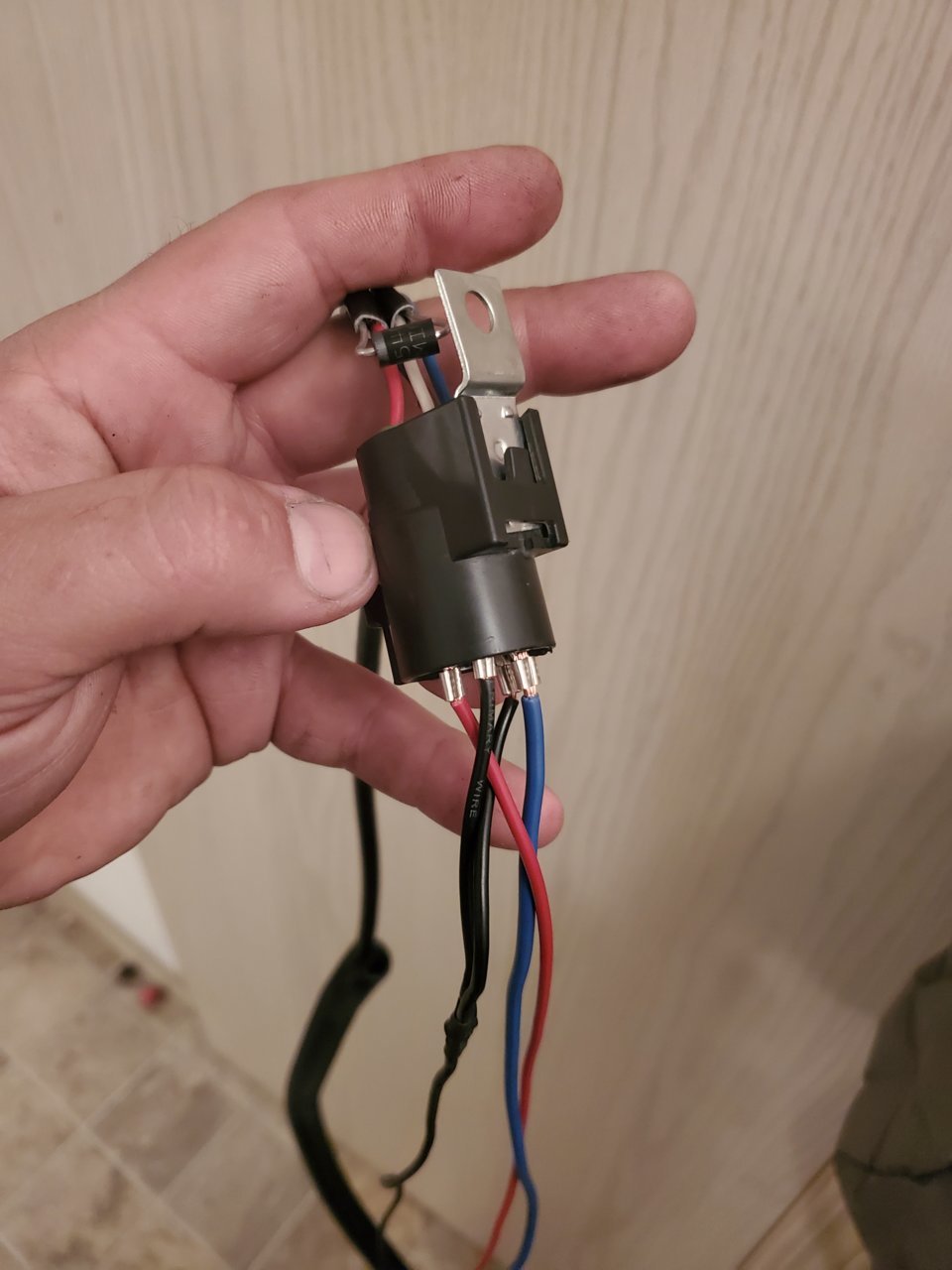

    So I ordered a harness, a few 3 ohm resistors and a pack of diodes, and a switch, and set to wiring.

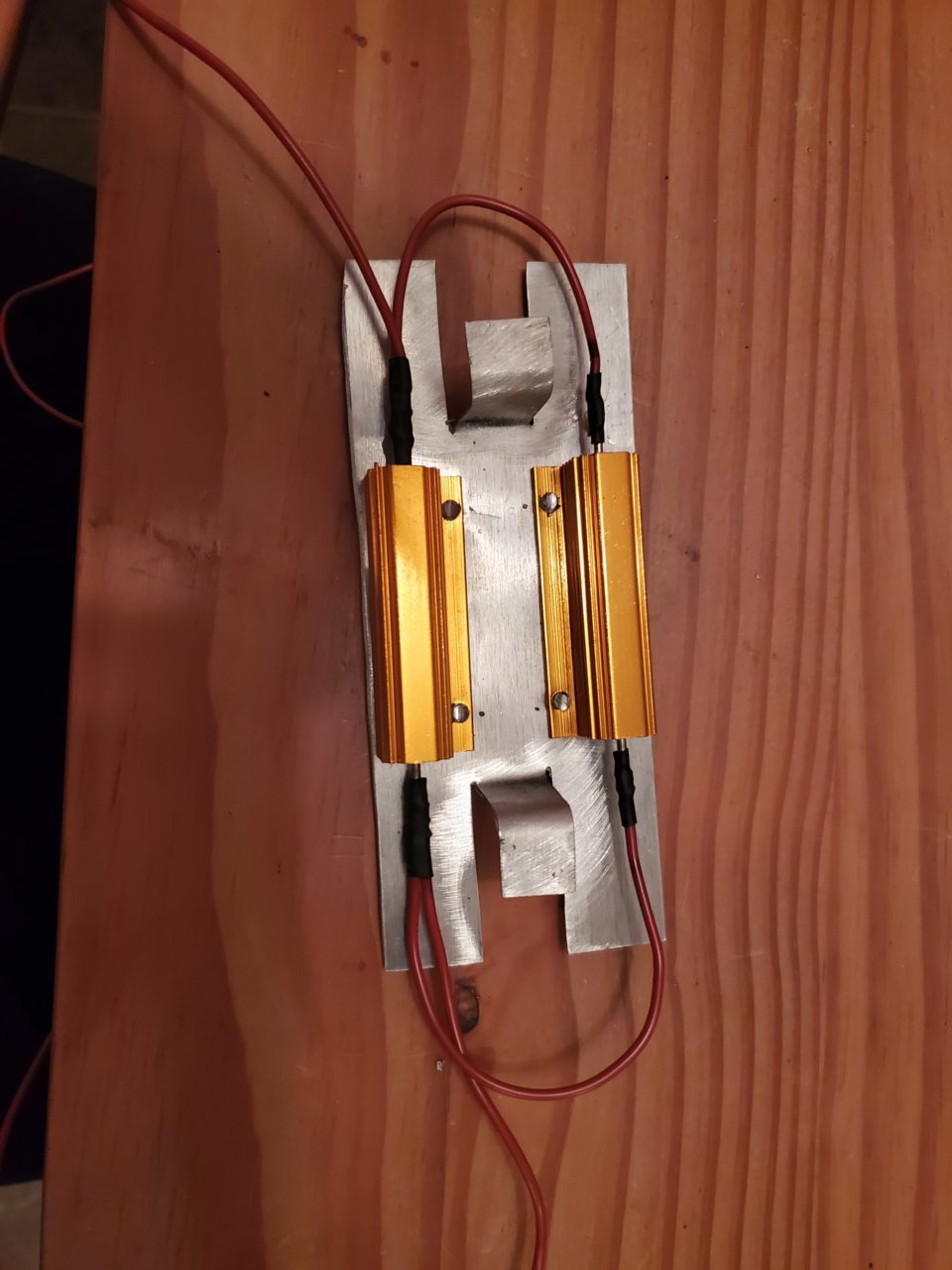

    We decided after traumahawk spearheaded the operation using one resistor that we'd try running two in parallel to minimize heat buildup, I took a small sheet of aluminum and attached the resistors and bent so I could mount in a way they'd be elevated from the frame slightly. Since I had the whole chassis i also had the wiring loom/pigtails from the axle itself, so I attached a flyback diode to the locker coil wiring courtesy of big white, cause I dont know wtf those do, (I ended up just butt connecting and silicone all the connections, for a minute I really wanted to keep the harness complete for whatever reason), and ran it through the resistors and into the harness lead. (Didn't really take pictures, I finished that on my lunch break so it was just get it done time).

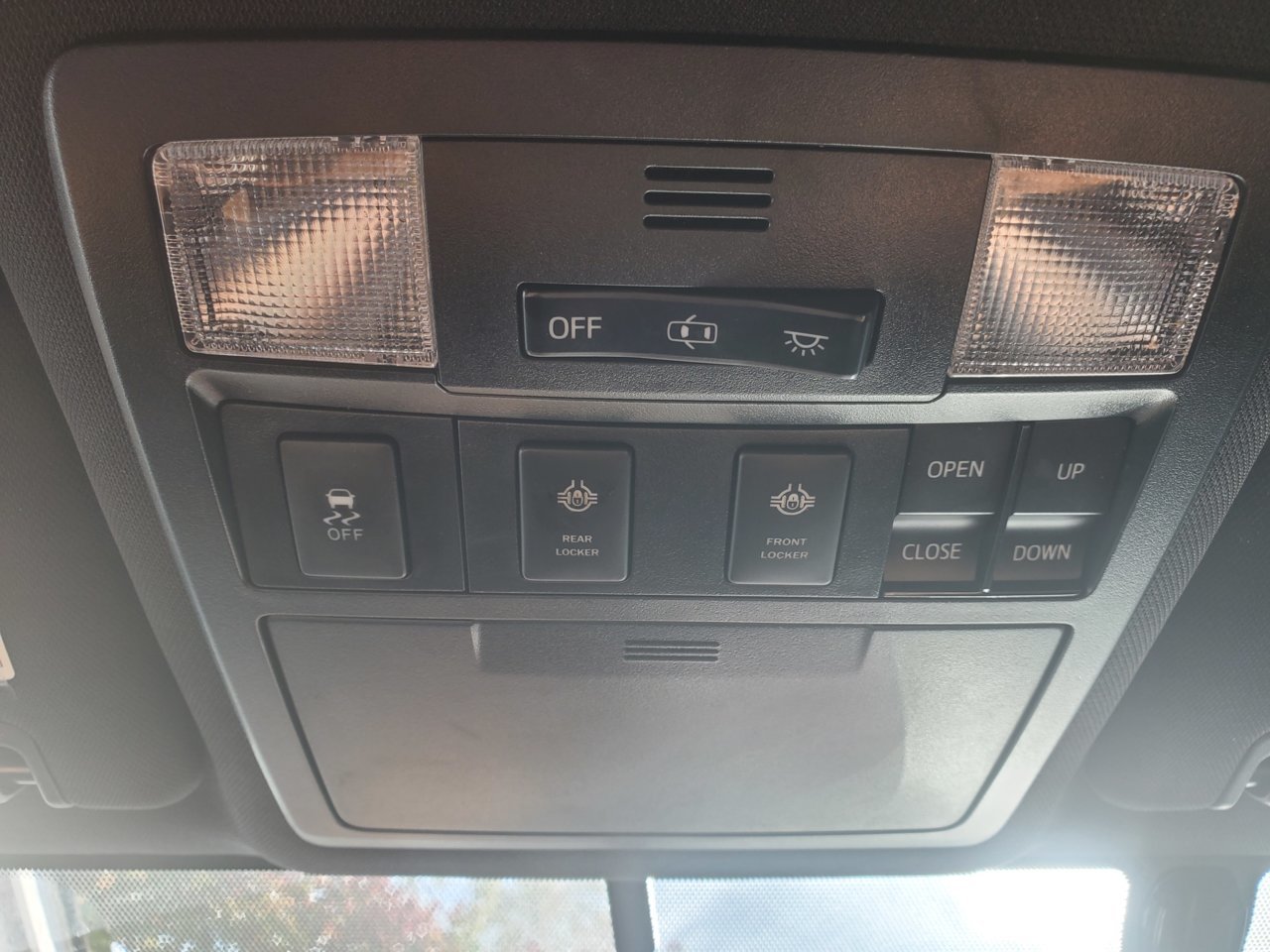

    Wired the switch to the overhead, that I'd Frankenstein'd up with a couple extra switch spots from the donor overhead. Locker seems to be working just great, gearing seems much better, also. When the locker is running, I measured the resistors at roughly 120⁰ ish after 15-20 or so minutes, haven't been able to do any real extensive testing off road, but I don't have any issue with confidence it wouldn't be just fine.

    I did run the blue signal for the locker dash indicator, in case I want to run a led light as a bright, don't forget I'm on, indicator, but, maybe some other time. Hopefully all that is discernible, created on my phone, so its difficult to make it all look pretty.

    Very much thank you to @BigWhiteTRD for all the help and patience, as I was very much Jon snow here.



    Attached Files:

  2. Nov 2, 2020 at 1:46 PM
    #2
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,648
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR
    Nice! :thumbsup:

    shakerhood likes this.
  3. Nov 2, 2020 at 2:04 PM
    #3
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    8,431
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
    Sub'd like a mf

    shakerhood, Junkhead and Skydvrr like this.
  4. Nov 2, 2020 at 3:20 PM
    #4
    BigWhiteTRD

    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,671
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    (OP) hit the majority of the electrical stuff... just some notes.

    The resistor(s) are to lower the power going into the coil to the appropriate level that toyota applied to it. Can you put 14v on it and be ok? Maybe, I really dont know and havent heard any convincing proof that it is ok. So, I recommend the resistors. If you put straight 14v on it, that is double the power that Toyota puts on it.

    The (2) 3 ohm resistors in parallel provide ~1.5 ohms.

    Partial parts list (electrical)
    (2) x 3 ohm (100w) resistors, wired in parallel
    https://www.amazon.com/Yohii-Aluminum-HeatSink-Resistor-Chassis/dp/B07CVRL2S8/

    Diode, decent sized power


    Some connectors and other helpful data (if you pick up at the axle disconnect)

    Connector I BELIEVE will attach to rear diff lock coil (if you dont have the axle harness)
    90980-11156
    low cost source = https://www.corsa-technic.com/item.php?item_id=663

    Connector I BELIEVE will attach to rear diff lock position feedback switch (if you dont have the axle harness)
    90980-11162
    low cost source = https://www.corsa-technic.com/item.php?item_id=747

    Last edited: Nov 7, 2020
  5. Nov 2, 2020 at 4:27 PM
    #5
    Junkhead

    Junkhead TRDude

    Joined:
    Feb 27, 2019
    Member:
    #284671
    Messages:
    15,336
    Gender:
    Male
    First Name:
    Serge
    Prince George, BC
    Vehicle:
    Black 4x4 Sport MT 2018
    Some Serious Tires
    :101010:

    Thats awesome man.

    fuzzydoodle[OP] likes this.
  6. Nov 2, 2020 at 4:57 PM
    #6
    jmneill

    jmneill Well-Known Member

    Joined:
    Jul 28, 2018
    Member:
    #260876
    Messages:
    2,751
    Gender:
    Male
    Dixie
    Vehicle:
    2018 Tacoma Sport ACC CB Inferno
    Sweet!

    Just a heads up on the silicone and butt connectors.
    If you're just grabbing the closest tube of silicone you have sitting around the garage, make sure it's a neutral cure silicone and not acetoxy.
    Acetoxy cure is the most common, and unfortunately gives off acetic acid during the curing process, giving corrosion a jump start on your butt connectors.
    Easy check - If it smells like vinegar, it's acetoxy.

    ^ All that said, forgive my intrusion if you were already aware.
    For all I know it may have been common knowledge to everyone but me until recently. :anonymous:

  7. Nov 2, 2020 at 5:12 PM
    #7
    mattleg

    mattleg Well-Known Member

    Joined:
    Aug 31, 2018
    Member:
    #264744
    Messages:
    922
    First Name:
    Matt
    Kansas
    Vehicle:
    2020 OR DCSB AT 4WD
  8. Nov 2, 2020 at 8:43 PM
    #8
    Fleischwagen

    Fleischwagen 2.7 > 3.5

    Joined:
    Aug 8, 2017
    Member:
    #226281
    Messages:
    329
    Gender:
    Male
    North Jersey
    Vehicle:
    2017 SR 5MT 4X4
    5.29's, ARB locker, 6112/5100, Deaver AAL, LCE Header, aFe dry-flo filter, Hurst/Core shifter, CBI T3 Front, Warn Winch, CB/UHF Radio equipment, Backrack, KC fogs and spots
    WHoaaa, nice! I think with my 5 speed 4.30 would be good for my 265/75's so before anyone regears... want to swap diffs? :thumbsup:

    fuzzydoodle[OP] likes this.
  9. Nov 2, 2020 at 8:45 PM
    #9
    tcjacado

    tcjacado Well-Known Member

    Joined:
    Aug 29, 2016
    Member:
    #195947
    Messages:
    41,596
  10. Nov 4, 2020 at 5:35 AM
    #10
    uploadadventure

    uploadadventure It’s all @ColoradoTJ’s fault

    Joined:
    Jan 30, 2019
    Member:
    #281288
    Messages:
    9,874
    Gender:
    Male
    Dixon, Mo
    Vehicle:
    2019 Cavalry Blue Tacoma TRD OR (sold) 05 Duramax
    Nice! I know that file on there! That’s me!
    I gotta get rolling on my project.

  11. Nov 4, 2020 at 12:10 PM
    #11
    fuzzydoodle

    fuzzydoodle [OP] Well-Known Member

    Joined:
    Oct 31, 2017
    Member:
    #234695
    Messages:
    59
    Gender:
    Male
    First Name:
    Jordon
    Arlington WA
    Vehicle:
    2016 Inferno Double Cab TRD Sport
    I just need a little more, the least was the 4.88's, which probably would have been great, maybe overkill even for what I ever anticipate I'll do. But saving 3k plus was awfully, awfully appealing. And it was a matter of simply swapping axles, with the added benefit of the larger rear axle.

    There's a good chance you're probably right, I just dont have the time to fix it at the moment. I appreciate it though, I was not aware of that, I may just solder them in the future or as bigwhite mentioned getting some waterproof connectors. I am really, really kicking myself in the ass for not cutting the other side of the truck, rather than just the axle side harness, but, kindsight and all that.

    Is that where?? That really made it super easy for an idiot like me. Are you in the process as well? Is it just the two of us (traumahawk), that have done this so far? If so thats super neat.

  12. Nov 7, 2020 at 5:39 AM
    #12
    BigWhiteTRD

    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,671
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    Added connectors on my post above if you DONT have the harness attached to the rear axle... (preference is to obtain that harness and the mating body side if you can, with your replacement axle)

  13. Feb 5, 2021 at 9:48 AM
    #13
    somebody

    somebody GAR-FAB.ca

    Joined:
    Feb 11, 2019
    Member:
    #282699
    Messages:
    1,091
    First Name:
    Jason
    Durham ON
    Vehicle:
    19 DCLB Sport
    are the 3rd's swappable between the Sport and the OR?

  14. Feb 5, 2021 at 9:52 AM
    #14
    ShimStack

    ShimStack Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74701
    Messages:
    1,618
    Gender:
    Male
    First Name:
    Ben
    NC
    Vehicle:
    '91 Truggy, '98 Project, '16 DC OR M/T Locked F/R
    Last edited: Feb 5, 2021
  15. Aug 21, 2021 at 3:08 PM
    #15
    k_j_souv

    k_j_souv Well-Known Member

    Joined:
    Dec 22, 2016
    Member:
    #205514
    Messages:
    263
    Gender:
    Male
    NorCal
    Vehicle:
    3G OR DCSB, Dual Case, 42s
    Can you share a link of a flyback diode that you recommend or a photo of one?

    BigWhiteTRD[QUOTED] likes this.
  16. Aug 21, 2021 at 7:43 PM
    #16
    BigWhiteTRD

    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,671
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    I am sure somebody will tell me that there are newer better parts (that are cheaper), but I think any old school power diode will work fine (as it doesnt need a real fast recovery or anything special).
    I would recommend any 1N540X diode (such as 1N5400, 1N5401, 1N5402, 1N5403, 1N5404, 1N5405).

    Just quickly glancing,
    https://www.amazon.com/BOJACK-Rectifier-DO-201AD-Electronic-Silicon/dp/B07NWJ514L


    [Edit to note, I like the 1N5400 series because they are very robust, with very high surge current capability... It cant carry that much current at 60 hz because of heat, but is quite robust for turn-off surges. The 1N5400 is a thru hole package that will require soldering, other options are available ]

    Last edited: Aug 21, 2021
    k_j_souv[QUOTED] and Skydvrr like this.
  17. Aug 21, 2021 at 11:16 PM
    #17
    oconnor

    oconnor Where am I?

    Joined:
    May 28, 2016
    Member:
    #188156
    Messages:
    2,385
    Gender:
    Male
    Midwest
    Vehicle:
    '18 TRD Sport 4x4 AC 6MT/ '04 TJ Rubicon
    Are the OR and SportMT 8.75 differentials the same other than the locker or are there other internal differences?

  18. Aug 21, 2021 at 11:20 PM
    #18
    k_j_souv

    k_j_souv Well-Known Member

    Joined:
    Dec 22, 2016
    Member:
    #205514
    Messages:
    263
    Gender:
    Male
    NorCal
    Vehicle:
    3G OR DCSB, Dual Case, 42s
    If I recall correctly I don't believe the Sport has the 8.75, only the OR and PRO

  19. Aug 21, 2021 at 11:21 PM
    #19
    oconnor

    oconnor Where am I?

    Joined:
    May 28, 2016
    Member:
    #188156
    Messages:
    2,385
    Gender:
    Male
    Midwest
    Vehicle:
    '18 TRD Sport 4x4 AC 6MT/ '04 TJ Rubicon
    The Manual Sport has the 8.75

    BigWhiteTRD likes this.
  20. Aug 21, 2021 at 11:29 PM
    #20
    k_j_souv

    k_j_souv Well-Known Member

    Joined:
    Dec 22, 2016
    Member:
    #205514
    Messages:
    263
    Gender:
    Male
    NorCal
    Vehicle:
    3G OR DCSB, Dual Case, 42s
    In that case, I would think it is exactly the same (ring, opinion, bearing etc) minus the e locker
