Factory Sub Wire Harness diagram

Discussion in 'Audio & Video' started by chaddawkins, Jul 18, 2011.

  1. Jul 18, 2011 at 1:18 PM
    #1
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    285
    Gender:
    Male
    First Name:
    Chad
    Sasebo, Japan
    Vehicle:
    PreRunner SR5
    Solved !

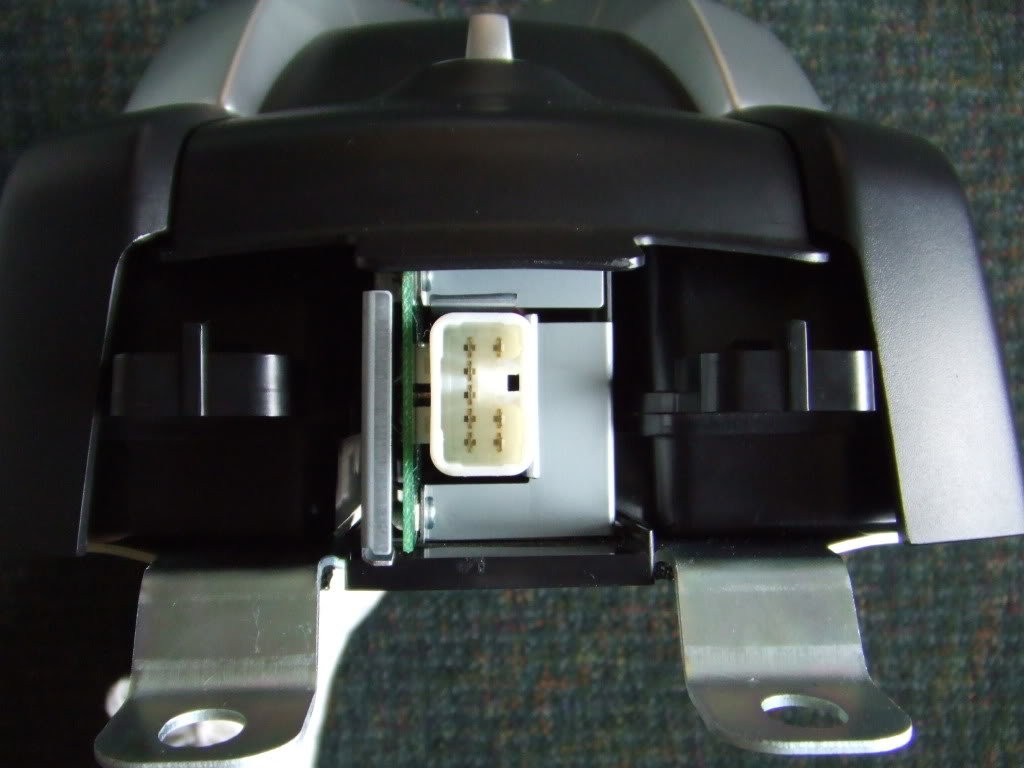

    Can anyone point me in the right direction on how to find the diagram for the wire harness to the access cab center sub woofer. I purchased one from a member and do not have the wire harness. I need to figure out how to wire this into the radio. It has 8 pins and I can't figure out why this needs 8 pins. Also, if someone could provide a part # for the harness that would be awesome.
    thanks


    [​IMG]

    [​IMG]

    [​IMG]

    EDIT: FIGURED IT OUT, THANKS fbconvert !!!

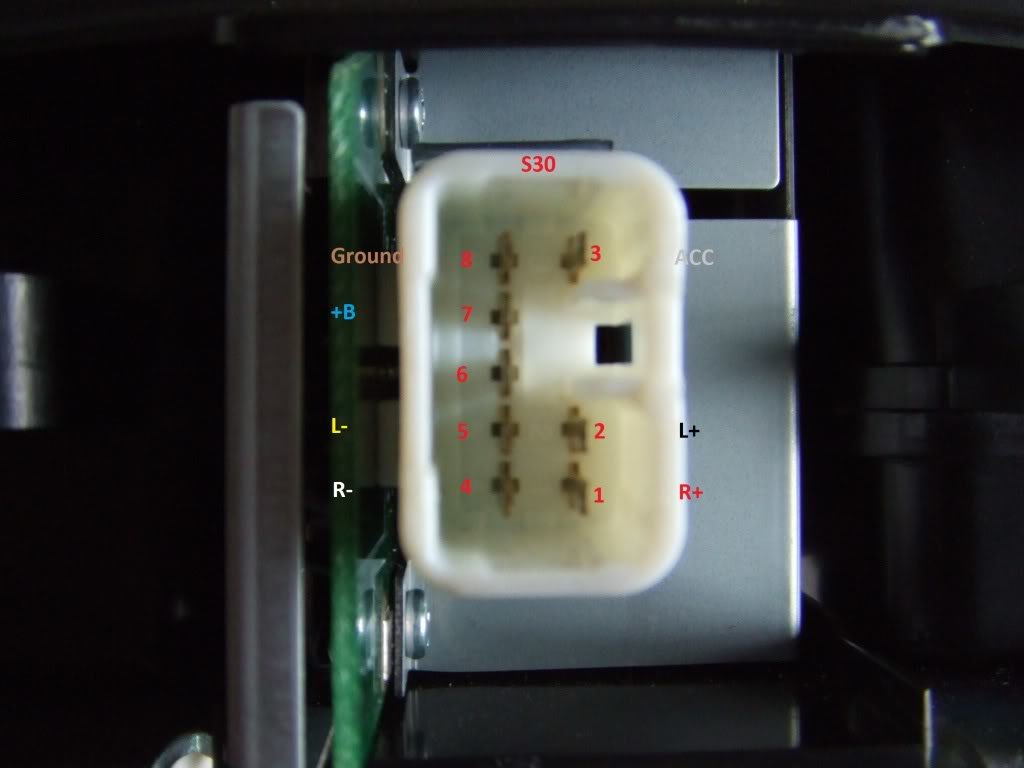

    Words color coded to original wire colors... pin 6 is a dummy

    [​IMG]

    For Reference, the back of my 2005 NON JBL radio:
    [​IMG]

  2. Jul 20, 2011 at 10:25 AM
    #2
    fbconvert

    fbconvert It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    359
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    can you be more specific on what wiring diagram you need or what you are trying to do exactly? What year of tacoma do you have, does it have the JBL audio system?

    My double cab with JBL audio came with a factory subwoofer but I thought the JBL audio was only available with double cabs :notsure:.

    Anyways almost all wiring diagrams can be found at http://www.ncttora.com/fsm/. but you won't find the diagrams for any tacoma newer than 2008 (when they put new Head units in and added the aux input, etc). If your truck is 2009 or newer let me know and I can get you the audio wiring diagram, just clarify if its JBL or not.

  3. Jul 20, 2011 at 11:14 AM
    #3
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    285
    Gender:
    Male
    First Name:
    Chad
    Sasebo, Japan
    Vehicle:
    PreRunner SR5

    thanks, i have a reg cab i am putting a sub from an access cab in, the sub piced above... a wire diagram would be awesome... the wire that plugs in the sub, and runs to the radio... NON JBL... thanks

  4. Jul 20, 2011 at 5:09 PM
    #4
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    285
    Gender:
    Male
    First Name:
    Chad
    Sasebo, Japan
    Vehicle:
    PreRunner SR5
    btw, it's a 2005 reg cab... i'm in the process of adding options that came with access/double cabs that my truck doesn't have

  5. Jul 20, 2011 at 5:21 PM
    #5
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    285
    Gender:
    Male
    First Name:
    Chad
    Sasebo, Japan
    Vehicle:
    PreRunner SR5
    Audio System for Built–in Type Amplifier
    http://www.ncttora.com/fsm/05+/data/ileaf/06toyewd/06toypdf/ewd/2006/tacoma/h/em01d44.pdf

    Audio System for Separate Type Amplifier
    http://www.ncttora.com/fsm/05+/data/ileaf/06toyewd/06toypdf/ewd/2006/tacoma/h/em01d43.pdf

    neither one shows the sub woofer i have, just the jbl one :(

    it would be nice if someone with this sub was handy with a voltmeter

  6. Jul 20, 2011 at 5:23 PM
    #6
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    The flux capacitor sub was introduced in 09 for the access cabs as on option to the non JBL stereos. Access cabs never had a JBL option.

  7. Jul 20, 2011 at 5:31 PM
    #7
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    285
    Gender:
    Male
    First Name:
    Chad
    Sasebo, Japan
    Vehicle:
    PreRunner SR5
    that's very helpful info, thanks
    so all i need now is a wiring diagram for a 09+

  8. Jul 20, 2011 at 5:33 PM
    #8
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    285
    Gender:
    Male
    First Name:
    Chad
    Sasebo, Japan
    Vehicle:
    PreRunner SR5
    yes, i'll take you up on this fine sir
    NON JBL, but both would be awesome, just to compare and have
    thanks

  9. Jul 20, 2011 at 8:51 PM
    #9
    fbconvert

    fbconvert It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    359
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    Thanks for confirming that for me.

    Let me see if I can get the diagrams. I am thinking that if your truck did not come with the subwoofer, chances are you will need an amp for it as well. but like you said I think you will need both diagrams to compare their differences. It will be enough to get you started at least.

  10. Jul 20, 2011 at 9:26 PM
    #10
    fbconvert

    fbconvert It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    359
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    Just curious is the flux capacitor the actual name of the sub or is just a nick name. Did the flux capacitor require a separte amp to power it? I had the impression that the only separate amp system were jbl which I now know only came in double cabs. If it doesn't use a separate amp I can't image it is really all that good. Especially since the JBL sub is really nothing to boast about.

  11. Jul 20, 2011 at 9:29 PM
    #11
    ninja90177

    ninja90177 Well-Known Member

    Joined:
    Jan 9, 2011
    Member:
    #49009
    Messages:
    84
    Gender:
    Male
    First Name:
    Kenney
    Las Vegas
    Vehicle:
    '09 AC 4x4 Off-Road
    Icon 2.5 C/Os, Wheeler's AAL, OME N182, 265/75-16 KM2s, Murdered Emblems
    Actually, it was in the X-Runner. I almost bought one a while back. The pin-out is the same.

    The wiring diagram for the sub in the manual @ ncttora.com is indeed correct.

    Check out xr-underground.com for some more info.

  12. Jul 20, 2011 at 9:31 PM
    #12
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    What was in what X-Runner?

  13. Jul 20, 2011 at 9:32 PM
    #13
    ninja90177

    ninja90177 Well-Known Member

    Joined:
    Jan 9, 2011
    Member:
    #49009
    Messages:
    84
    Gender:
    Male
    First Name:
    Kenney
    Las Vegas
    Vehicle:
    '09 AC 4x4 Off-Road
    Icon 2.5 C/Os, Wheeler's AAL, OME N182, 265/75-16 KM2s, Murdered Emblems
    The flux capacitor. Well, without the external amp (as the manual puts it.)

    We experimented ripping it out of my friends truck, so I didn't destroy mine when I pulled it.

  14. Jul 20, 2011 at 9:34 PM
    #14
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    Well like I said it was in optional only on the 09+ Access cabs since Toyota deleted the rear door speakers.

  15. Jul 20, 2011 at 9:37 PM
    #15
    fbconvert

    fbconvert It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    359
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    Yeah I just looked at both the diagrams for 2009 and the only one showing a sub is the separate amp (JBL) system. I am not really sure how it works but with out an amp i can't imaging it to be that impressive.

  16. Jul 20, 2011 at 9:42 PM
    #16
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    285
    Gender:
    Male
    First Name:
    Chad
    Sasebo, Japan
    Vehicle:
    PreRunner SR5
    Here it is, i'll update the first post
    [words are color coded to factory wire color]
    [​IMG]

  17. Jul 20, 2011 at 9:54 PM
    #17
    fbconvert

    fbconvert It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    359
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    I see so it just pulls power from the deleted left and right rear door speakers.

  18. Jul 22, 2011 at 1:20 PM
    #18
    rb11701

    rb11701 Oh yeah!

    Joined:
    Apr 8, 2009
    Member:
    #15708
    Messages:
    1,186
    Gender:
    Male
    First Name:
    Rob
    Vehicle:
    '09 Silver Streak TRD Off-Road
    Rear Suspension TSB, DTRL Mod, aFe Pro-Dry S,USA Spec PA15-TOY iPod Adapter, Dynolock Tailgate Lock, UltraGauge OBDII Scanner, CoverKing Neoprene Seat Covers
    It is a powered (weak) sub. I wonder how it would sound off a SQ small amp. Easy enough to make a harness to attach to an amp.

  19. Jul 22, 2011 at 1:39 PM
    #19
    MountainEarth

    MountainEarth Well-Known Member

    Joined:
    Feb 1, 2010
    Member:
    #30519
    Messages:
    2,494
    Gender:
    Male
    First Name:
    Bryan
    CO
    Vehicle:
    2010 TRD OR Access
    Leer 100XR Shell, BedRug mat - comfy sleeping, GT Covers microfiber seat covers, BFG All Terrains 265/70r16, Dashmat, Antennax 13" shorty antenna, Weathertech liners, Ultra Gauge, Avid Light Bar, PIAA 520 ATPs, one old dog
    Hey OP ... are these diagrams you can upload for us? Or are they just the pics as posted (which BTW are awesome!).

    So how is this thing hooked up anyway...
    • Is it just hooked to the L/R rear speakers (along iwith the ceiling mount exciters)?
    • Does it have it's own built in amp?
    • Anyone add an inline amp to this sub?
    • For that matter, anyone try to replace the cone in this thing?

  20. Jul 22, 2011 at 9:00 PM
    #20
    chaddawkins

    chaddawkins [OP] Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    285
    Gender:
    Male
    First Name:
    Chad
    Sasebo, Japan
    Vehicle:
    PreRunner SR5
    no diagrams to share, sorry
    amp is in the sub assembly, pulls juice from rear speaker pins in radio
