Failed Freeze plug help

Discussion in '2nd Gen. Tacomas (2005-2015)' started by xroller, Mar 11, 2012.

  1. Mar 11, 2012 at 12:16 PM
    #1
    xroller

    xroller [OP] Blowin by em sideways

    Joined:
    Apr 26, 2010
    Member:
    #36060
    Messages:
    2,356
    Gender:
    Male
    First Name:
    Ramon
    Albuquerque New Mexico
    Vehicle:
    2006 Toyota Tacoma Xrunner Speedway Blue
    1 hp mod

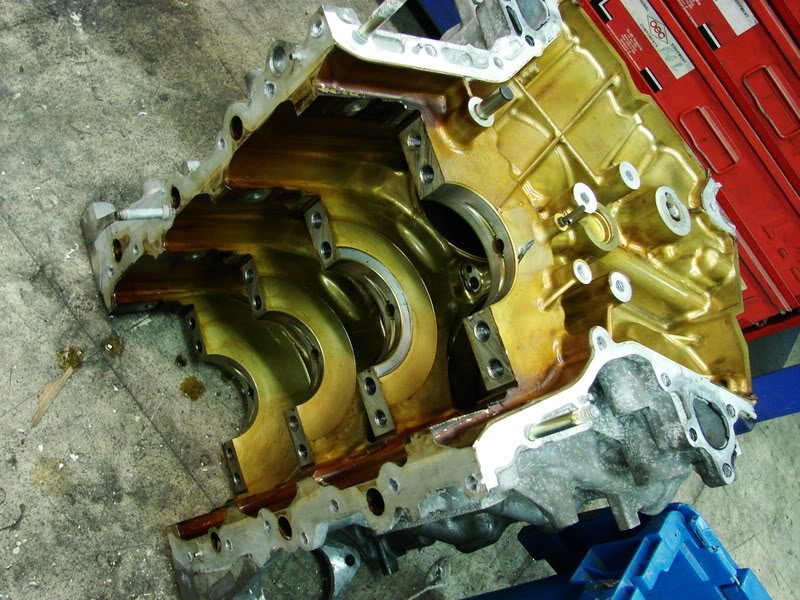

    Well truck has been running perfect until it started smoking... The header is getting splashed with oil so I realized that the oil was coming from inside the bellhousing so I pulled the transmission thinking it was the rear main seal but I found it very doubtful since I just replaced it during a recent build.... come to find out it's the freeze plug. Does anyone know where I can find that specific freeze plug? It's not the ones that are on the side of the motor... the one that failed sits behind the flywheel. If you look right above where the crank would go there is a little freeze plug (aka expansion plug and core plug) about the size of a nickel there.... does anyone know where I can find that plug?? I have looked everywhere online but no luck...

    [​IMG]

  2. Mar 11, 2012 at 12:27 PM
    #2
    xroller

    xroller [OP] Blowin by em sideways

    Joined:
    Apr 26, 2010
    Member:
    #36060
    Messages:
    2,356
    Gender:
    Male
    First Name:
    Ramon
    Albuquerque New Mexico
    Vehicle:
    2006 Toyota Tacoma Xrunner Speedway Blue
    1 hp mod
    links or any info would be greatly appreciated. even if it's a set that I have to buy...

  3. Mar 11, 2012 at 1:15 PM
    #3
    Slodgetto

    Slodgetto Über Posre

    Joined:
    Jan 18, 2011
    Member:
    #49483
    Messages:
    9,288
    First Name:
    Silas
    Vehicle:
    Dirty Terc
    Scratches, dents, and junkyard parts.
    Have you tried the dealership?

  4. Mar 11, 2012 at 1:17 PM
    #4
    fixer5000

    fixer5000 the logical one

    Joined:
    Aug 7, 2011
    Member:
    #61293
    Messages:
    651
    Gender:
    Male
    First Name:
    Steve
    massachusetts
    Vehicle:
    11 trd sport longbed
    weathertech visors,remote start,lojack, ARE z type topper, wet okole seat covers, pop n lock tailgate lock
    unless you know the size id say dealership too

  5. Mar 11, 2012 at 1:21 PM
    #5
    xroller

    xroller [OP] Blowin by em sideways

    Joined:
    Apr 26, 2010
    Member:
    #36060
    Messages:
    2,356
    Gender:
    Male
    First Name:
    Ramon
    Albuquerque New Mexico
    Vehicle:
    2006 Toyota Tacoma Xrunner Speedway Blue
    1 hp mod
    yes... they can't find a listing for it... :mad:

  6. Mar 11, 2012 at 4:24 PM
    #6
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,397
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    http://www.tacomaworld.com/forum/2n...1gr-fe-oil-gallery-leak-initial-findings.html

    It seems that toyota warranty will pay to replace the block if that happens under the warranty period. Based on that, they do not have the part separately.

    Since you are clearly off warranty, I'd advise measuring the bore and getting a new expansion plug from an auto parts supplier, they're available generically in a wide range of sizes. If you are unsure on any of the above, take the block to a good engine rebuilder machine shop and they'd be able to help you out in a heatbeat. The above thread suggests it might be a 20mm plug, but don't go off just that.

  7. Mar 11, 2012 at 4:46 PM
    #7
    grivera

    grivera Well-Known Member

    Joined:
    Sep 25, 2008
    Member:
    #9474
    Messages:
    783
    Gender:
    Male
    Hanover, MD
    Vehicle:
    '08 DC SR5 4x4, Desert Sand Mica
    Rear Suspension TSB, Bilstein 5100 on all 4 corners-fronts set at 1.75". BFG A/T's @ 265/75/16; Access LE Roll-up cover; Iron Cross Tube SS Steps; Fumoto valve; WeatherTech Liners; AFE Pro-Dry; front side windows tinted 20%; TW Decal!
    Could that be the cam plug? If so, it wouldn't be an expansion plug and it would explain why it was oil that came out...

  8. Mar 11, 2012 at 6:31 PM
    #8
    xroller

    xroller [OP] Blowin by em sideways

    Joined:
    Apr 26, 2010
    Member:
    #36060
    Messages:
    2,356
    Gender:
    Male
    First Name:
    Ramon
    Albuquerque New Mexico
    Vehicle:
    2006 Toyota Tacoma Xrunner Speedway Blue
    1 hp mod
    that sure sounds like the problem.... fml... guess i'll go hunting for one...

    ?... that's still an expansion plug... they aren't made for just coolant... I'll just swing by the local parts store and find one... i'll just have to find a universal one

  9. Mar 11, 2012 at 6:51 PM
    #9
    joes06tacoma

    joes06tacoma Well-Known Member

    Joined:
    Jan 1, 2010
    Member:
    #28588
    Messages:
    3,056
    Gender:
    Male
    First Name:
    Joe
    Central Coast, CA
    Vehicle:
    06 4x4 Off Road Access Cab v6 6spd
    LEER Shell with dome lights operated with 3 way switches, aux backup lights with relay and 3 position switch, modified wiring to compass/temp display and clock to include switch that disables dimming function (poor man's DRL solution), Scan Gauge 2
    That's lame that Toyota can't help you, but you should be able to measure the size and go to NAPA and get one ordered. Or a machine shop, as others have suggested. It's not rocket science, just a plug.

    I worked for Kragen for awhile, and for a NAPA store also. Unless things have changed NAPA can get damn near anything that the dealerships don't have an exclusive on. The counter guys just need to know where to look.:cool: Kragen had all the same books for engine parts, but we couldn't get hardly anything ordered into the store. The Kragen supply system just didn't work well.:eek: I don't know if that holds true for the other large chains like OReily and Autozone.
