Fan speed switch not working.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by kbmcmahon, Jan 17, 2010.

  1. Sep 19, 2016 at 3:23 PM
    #241
    Frito

    Frito Well-Known Member

    Joined:
    Dec 2, 2015
    Member:
    #171253
    Messages:
    1,486
    You got that right Brotha !

  2. Oct 2, 2016 at 8:47 AM
    #242
    TLYota

    TLYota Well-Known Member

    Joined:
    Sep 29, 2016
    Member:
    #198515
    Messages:
    56
    Gender:
    Male
    First Name:
    Travis
    DFW, TX
    Vehicle:
    2005 Desert Sand DCLB SR5
    IN PROGRESS
    This website is great! Just had this problem with my buddies 07. Followed the exact same lead as previously ststed and found the burnt connector.

    Gonna replace it this week!

  3. Nov 20, 2016 at 8:16 AM
    #243
    njdevil316

    njdevil316 Active Member

    Joined:
    Mar 8, 2012
    Member:
    #74479
    Messages:
    43
    Gender:
    Male
    First Name:
    Michael
    Wanaque, NJ
    Vehicle:
    2012 Tacoma Double cab SR5
    Guys,
    I have a 2012 and am seeing the opposite. Mine works on all speeds except high. Any thoughts?

  4. Dec 4, 2016 at 3:14 PM
    #244
    Kory450

    Kory450 Kory450

    Joined:
    Sep 9, 2013
    Member:
    #112145
    Messages:
    19
    Gender:
    Male
    First Name:
    Kory
    Banning CA
    Vehicle:
    2013 tacoma double cab 4x4 v6
    Icon extended travel shocks in front end with icon Uniball A-arms
    Just wanted to let you guys know I have a 2013 and it was doing the same thing so I picked up a can of electrical cleaner spray unplugged the resistor and sprayed some of that in there and sprayed it out with the air compressor and works good as new again. Save yourself the money and try this before you go buying a new one! Hope this helps

  5. Dec 11, 2016 at 10:35 PM
    #245
    JCBigler

    JCBigler Well-Known Member

    Joined:
    Sep 13, 2011
    Member:
    #63473
    Messages:
    303
    Gender:
    Male
    Chouteau, OK
    Vehicle:
    Silver 2010 4WD, SR5, DC, TRD OR w/tow
    stock, Yaesu FT-8800R with a Maldol EX-107B, rear breather mod
    Hey guys, I've been having the same problem, check my resistor plug and it is burned like, the rest. I also noticed that the 2 wire power plug that connects to the blower motor is also burned, and that the blower will start running again when you push on the plug.

    Anyone have the part number for the power plug for the blower motor? It's the small 2 wire white plug that comes off the same wiring harness that the resistor plug comes off of.

    Last edited: Dec 11, 2016
  6. Dec 12, 2016 at 1:46 AM
    #246
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    12,312
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5

    Yes this is what you need:

    Part number 90980-10916 Connector

    Part Number 82998-12380 Wire and terminal

    Not sold as a kit, sold as each.

    Connector:


    [​IMG]


    Terminals:

    [​IMG]

    davids540i likes this.
  7. Jan 7, 2017 at 12:11 AM
    #247
    pepseeguy

    pepseeguy New Member

    Joined:
    Nov 20, 2016
    Member:
    #202885
    Messages:
    3
    Gender:
    Male
    First Name:
    Randy
    Vehicle:
    2009 White Tacoma TRD Access Cab
    I ordered the new resistor and connector plug/wires. I wound up not needing the plug/wires. But, the resistor was toast (it was the one that came in my truck when I bought it new & it was the one from Slovenia!) Anyway, the blower motor was shot too! I'm keeping the wire in case I ever need it in the future (it was only $17). New resistor & blower & motor and I'm back in business! Thanks for all of you help folks!

  8. Jan 7, 2017 at 10:57 AM
    #248
    dwalbert

    dwalbert Member

    Joined:
    Apr 18, 2016
    Member:
    #184584
    Messages:
    5
    Vehicle:
    2010 Tacoma Double Cab 4x4 SR5
    I agree, great thread. I only had to replace the Resister, Blower (current part # 87138-04052) with my old one. I ended up popping the 50amp fuse in the engine compartment fuse box (#29), but after I replaced the fuse, everything worked. I had the same issue with the blower only working on high. 2010 4WD DBL Cab.

  9. Jan 10, 2017 at 7:20 AM
    #249
    badgerhoney

    badgerhoney Member

    Joined:
    Jun 1, 2016
    Member:
    #188431
    Messages:
    6
    Gender:
    Male
    First Name:
    james
    Vehicle:
    2011 tacoma V6 SR5
    Where did you buy the connector? I've called every auto store in my area and none of them carry the connector, pigtails, or the resistor! Apparently I have to go to dealership. Not looking to spend hundreds. Could you send the info on where to buy these??

  10. Jan 10, 2017 at 7:28 AM
    #250
    badgerhoney

    badgerhoney Member

    Joined:
    Jun 1, 2016
    Member:
    #188431
    Messages:
    6
    Gender:
    Male
    First Name:
    james
    Vehicle:
    2011 tacoma V6 SR5

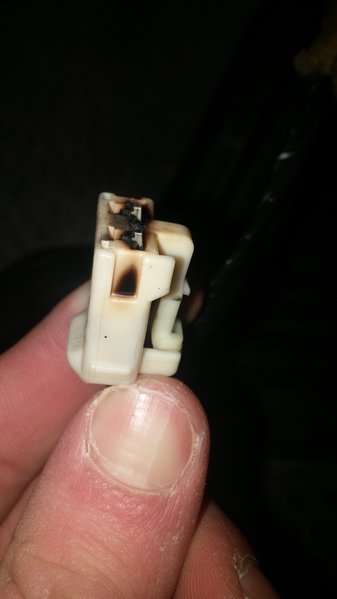

    At first I thought the fan was totally shot until I started to Wiggle wires around. Fan still works but at times I have to wiggle the connection. Going to clean this up and apply bulb grease to hopefully buy sometime before it blows my resistor. Anyone know where I can buy all these parts? Called every where. No luck.


  11. Jan 10, 2017 at 8:00 AM
    #251
    Marcus Israd

    Marcus Israd Well-Known Member

    Joined:
    Jan 5, 2013
    Member:
    #94491
    Messages:
    65
    Gender:
    Male
    Concord, CA
    Vehicle:
    09 TRD Sport SR5 4x4
    2009 Tacoma 4.0L Double Cab 4x4 Pyrite Mica Front: Bilstein 5100's/Eibach Springs Camburg Uni-Ball UCA's ECGS Bushing Marlin Crawler LCA & Frame Braces Wheel bearings/Hubs by "05taco4x4" Crown Extended SS Brake Lines Stoptech Cryo Slotted Rotors/TRD Pads Wheeler's Super Bump Stops Rear: Bilstein 5125's/All-Pro Expo Leaf Springs Ruff Stuff U-bolt Flip Crown Extended SS Brake Lines Timbren Bump Stops Intake/Exhaust: TRD CAI w/ AFE Dry-Flow Filter & TRD Exhaust (cut at axle) Lighting: Ultimate Headlight Upgrade by "crashnburn80" Osram Bulbs Fog light anytime mod Baja Designs S8 20" Light Bar Baja Designs Squadron Pro Fogs Armor: Pelfrybilt Steel Front Bumper BAMF Steel Skid Plate BAMF Weld-on Rock Sliders BAMF Front Bumper Supports Wheel/Tires: Pro Comp 17"x9" Wheels (x5) Mickey Thompson Baja MTZ p3 - 295/70/17 Recovery: Warn M8000s Winch w/ Synthetic line Misc.: SoftTopper Ultra-Gauge Hurst T-handle Shift Knob Energy Suspension Urethane Radiator Support Bushings Pro Eagle Jack Pine Tree Air Freshener Fluids: Amsoil
    Any ideas on why the opposite might occur? All settings except "high" work on mine.

  12. Jan 10, 2017 at 8:32 AM
    #252
    badgerhoney

    badgerhoney Member

    Joined:
    Jun 1, 2016
    Member:
    #188431
    Messages:
    6
    Gender:
    Male
    First Name:
    james
    Vehicle:
    2011 tacoma V6 SR5
    Have you inspected the cabin filter? Mine was disgustingly black and I'm assuming that's why my connector is fried. Check your cabin filter. If it's dirty as hell, that maybe the problem. If it is decently clean, leave it out and turn the trucks electrical system on. Don't start the engine, just turn the key to the "on" position. Turn your fan on HIGH and listen for the fans motor. If you can hear the fans motor running but the fan isn't moving, check your connector.. I'm no electrical engineer but these forums are extremely helpful! Probably better than YouTube lol

  13. Jan 10, 2017 at 3:26 PM
    #253
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    12,312
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5

    Looking at a web search for these part numbers show a price of about 6 dollars each at places like Camelback Toyota etc...

    I would order genuine parts through an online dealer or go to the locale dealer..

    They are also on ebay at a higher price.

    Last edited: Mar 23, 2018
  14. Jan 10, 2017 at 3:31 PM
    #254
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    12,312
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    There ain't no cleaning going to help with that mess.

    There is no such thing as bulb grease. What you are referring to is actually Dielectric Grease and is not intended to be applied to the contacts as it is an insulator that does not conduct current. It is intended to seal water and contaminates out of an environmentally exposed connector.

    No. That is incorrect.

    A blocked fan will pull less current than an unblocked fan because it is not doing any work.

    Your problem is the terminals are loose adding resistance and generating heat. Get the replacement connector as posted above and repair it before it damages more wiring.

    <<< Electronics And Automation Technician.

    Last edited: Jan 10, 2017
    badgerhoney likes this.
  15. Jan 11, 2017 at 6:32 AM
    #255
    Y2kbaja

    Y2kbaja Well-Known Member

    Joined:
    Jun 11, 2013
    Member:
    #106028
    Messages:
    799
    Gender:
    Male
    Sacramento
    Vehicle:
    05 Total Chaos Tacoma
    Total Chaos
    My resistor at the fan was bad for so long it burned the switch. So after doing the resistor and wire replacement I had to replace the fan switch assy. I got it from a wrecking yard and funny thing is I tried 3 different ones from the wrecker and all three my temp is now backwards but works great. So don't wait to replace the resistor at the fan...it may burn the switch too.

  16. Jan 17, 2017 at 8:33 PM
    #256
    Rabicano

    Rabicano Member

    Joined:
    Jul 29, 2016
    Member:
    #193193
    Messages:
    23
    Gender:
    Male
    Napa, CA
    Vehicle:
    2007 TRD OR, DCSB
    My '07 was only blowing on the highest speed. I was going deaf from listening to the radio so loud. Wish I had found this thread before buying a used climate control panel from a junk yard (I assumed it was the fan speed switch, it wasn't).

    Bought these two parts on Amazon for about $50 and installed them in about an hour. It works great now.

    Anyone want to buy a used climate control panel?

  17. Feb 3, 2017 at 3:08 PM
    #257
    SeafireXV

    SeafireXV Well-Known Member

    Joined:
    Aug 11, 2015
    Member:
    #161536
    Messages:
    134
    Gender:
    Male
    First Name:
    John
    Olathe, KS
    Vehicle:
    2006 Tacoma TRD Sport ACLB
    So, I've just been through this very issue. Driving around in the cold without a heater will motivate just about anyone to figure it out... and quick!

    Fan stopped working, except on high. Then it stopped working altogether.

    Checked the resistor. It was fine. Checked the plug that the resistor plugs into...it was a little discolored on one pin, but not very bad. Pulled the glove compartment to access the cabin air filter. It was clean.

    While I had the filter out, I turned the fan on low, and nudged the fan with my finger...IT WORKED! I could then turn it on all speeds and it worked great! If I let it stop completely, though, turning it back on did nothing. The fan just sat there, stationary.

    I pulled the fan motor (It's simple...there's 3 screws on the bottom of the fan housing (5.5mm or 7/16 spcket required), and it pops right down and out. Unplug, and the fan motor is free.

    I took the fan apart and then the motor rear casing. Inside was FULL of copper dust and yuck from the commutator and brushes, and it was clogging up the fan and bushings, making it hard to turn. High pressure air from my compressor and it was all clean. Reassembled the whole thing, flipped the switch, and VOILA! It works!

    Easy, cheap, and effective fix. The commutator and brushes are showing a lot of wear, so I'll have to replace the fan unit at some point in the near future, but I see they're less than a hundred bucks at all the auto parts stores.

    Hope this helps...

  18. Feb 4, 2017 at 10:14 AM
    #258
    013tacoma

    013tacoma New Member

    Joined:
    Jan 31, 2017
    Member:
    #209246
    Messages:
    2
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2013 black tacoma
    Can anyone tell me where the 4 pin connector is located and how to get to it?

  19. Feb 12, 2017 at 3:27 PM
    #259
    425

    425 Well-Known Member

    Joined:
    Feb 15, 2016
    Member:
    #178235
    Messages:
    108
    Gender:
    Male
    First Name:
    Alex
    Hillsboro, OR
    Vehicle:
    2007 DCLB Sport
    Progressive AAL Banks Exhaust Leer 100R AFE CAI & TBS Kenwood Deck
    The 4 pin connector is under the blower motor under the glove box. To give you an idea, imagine sitting in the passenger seat and the connector and resistor should be about where your left foot is.

    Mine looks pretty bad, going to be fun to clean! I did wiggle it and it still works so the resistor is good.


  20. Feb 14, 2017 at 7:17 PM
    #260
    ionyota

    ionyota Well-Known Member

    Joined:
    Dec 3, 2015
    Member:
    #171317
    Messages:
    290
    Gender:
    Male
    Vehicle:
    2012 TRDOF DCSB
    OME lift, All-Pro UCAs, BFG KM2 pizza cutters
    I changed my blower motor resistor in April when I bought the truck used, and it failed again this week. Any ideas on what might be making the resistor fail repeatedly?
