Fan speed switch not working.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by kbmcmahon, Jan 17, 2010.

Page 17 of 23
  1. Sep 29, 2018 at 1:35 PM
    #321
    cosmicfires

    #321
    cosmicfires Well-Known Member

    Joined:
    Jul 17, 2012
    Member:
    #82824
    Messages:
    3,190
    Gender:
    Male
    First Name:
    David
    Everett, WA
    Vehicle:
    2009 Regular Cab SR5 4cyl 5speed 4x4
    Snugtop cab high canopy.
    cosmicfires, Sep 29, 2018
    #321
  2. Oct 13, 2018 at 10:31 AM
    #322
    hobiesan

    #322
    hobiesan Well-Known Member

    Joined:
    Apr 26, 2009
    Member:
    #16452
    Messages:
    55
    Gender:
    Male
    Austin
    Vehicle:
    2009 TRD Sport DCLB 4x4
    ARE Cap with removable plywood bed/shelf, Bilstein 5100s, LED DTRL, Satoshi Grill, TRD Black Alloy Wheels, Goodyear Duratrac Tires
    My 2009 has had this problem for a couple of years. Now it never works at all except on hi speed. Going to tackle it this weekend.

    hobiesan, Oct 13, 2018
    #322
  3. Oct 15, 2018 at 7:19 PM
    #323
    hobiesan

    #323
    hobiesan Well-Known Member

    Joined:
    Apr 26, 2009
    Member:
    #16452
    Messages:
    55
    Gender:
    Male
    Austin
    Vehicle:
    2009 TRD Sport DCLB 4x4
    ARE Cap with removable plywood bed/shelf, Bilstein 5100s, LED DTRL, Satoshi Grill, TRD Black Alloy Wheels, Goodyear Duratrac Tires
    got the fan working again. The resistors checked ok. So I just sprayed contact cleaner in the socket contacts and plugged it back in. I'm sure it's a temporary fix. Dream/goal is to get rid of the resistor pack and 4 fan speeds and replace with a variable speed fan controller.

    hobiesan, Oct 15, 2018
    #323
    lo2hi likes this.
  4. Oct 22, 2018 at 9:55 AM
    #324
    beeesmitty

    #324
    beeesmitty Well-Known Member

    Joined:
    Sep 27, 2011
    Member:
    #64208
    Messages:
    245
    Gender:
    Male
    NC
    Vehicle:
    11' SR5 DC BSP 4X4
    265/75/16 Cooper ATP, TRD FJ Trails, 5100's @ 2.75, ReadyLift 2" Blocks
    SUBD

    beeesmitty, Oct 22, 2018
    #324
  5. Apr 8, 2019 at 12:17 PM
    #325
    dbrfan

    #325
    dbrfan Well-Known Member

    Joined:
    Oct 15, 2015
    Member:
    #166754
    Messages:
    97
    Gender:
    Male
    Vehicle:
    2015 DCSB 4x4 6SPD
    There’s a lot of info on AC only working on the high setting, but are there any experiences with AC working on all settings EXCEPT hi?

    I assume this condition eliminates the resistor being the culprit, so what are other checks? I have a 2015.

    dbrfan, Apr 8, 2019
    #325
  6. Apr 8, 2019 at 12:42 PM
    #326
    Muddinfun

    #326
    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,491
    Muddinfun, Apr 8, 2019
    #326
    dbrfan[QUOTED] likes this.
  7. Apr 8, 2019 at 7:57 PM
    #327
    Jimmyh

    #327
    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    13,807
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    Look at all the connectors for the switch and down on the resistor and motor.

    Jimmyh, Apr 8, 2019
    #327
    BillyWest12 and dbrfan like this.
  8. Apr 10, 2019 at 6:40 PM
    #328
    dbrfan

    #328
    dbrfan Well-Known Member

    Joined:
    Oct 15, 2015
    Member:
    #166754
    Messages:
    97
    Gender:
    Male
    Vehicle:
    2015 DCSB 4x4 6SPD

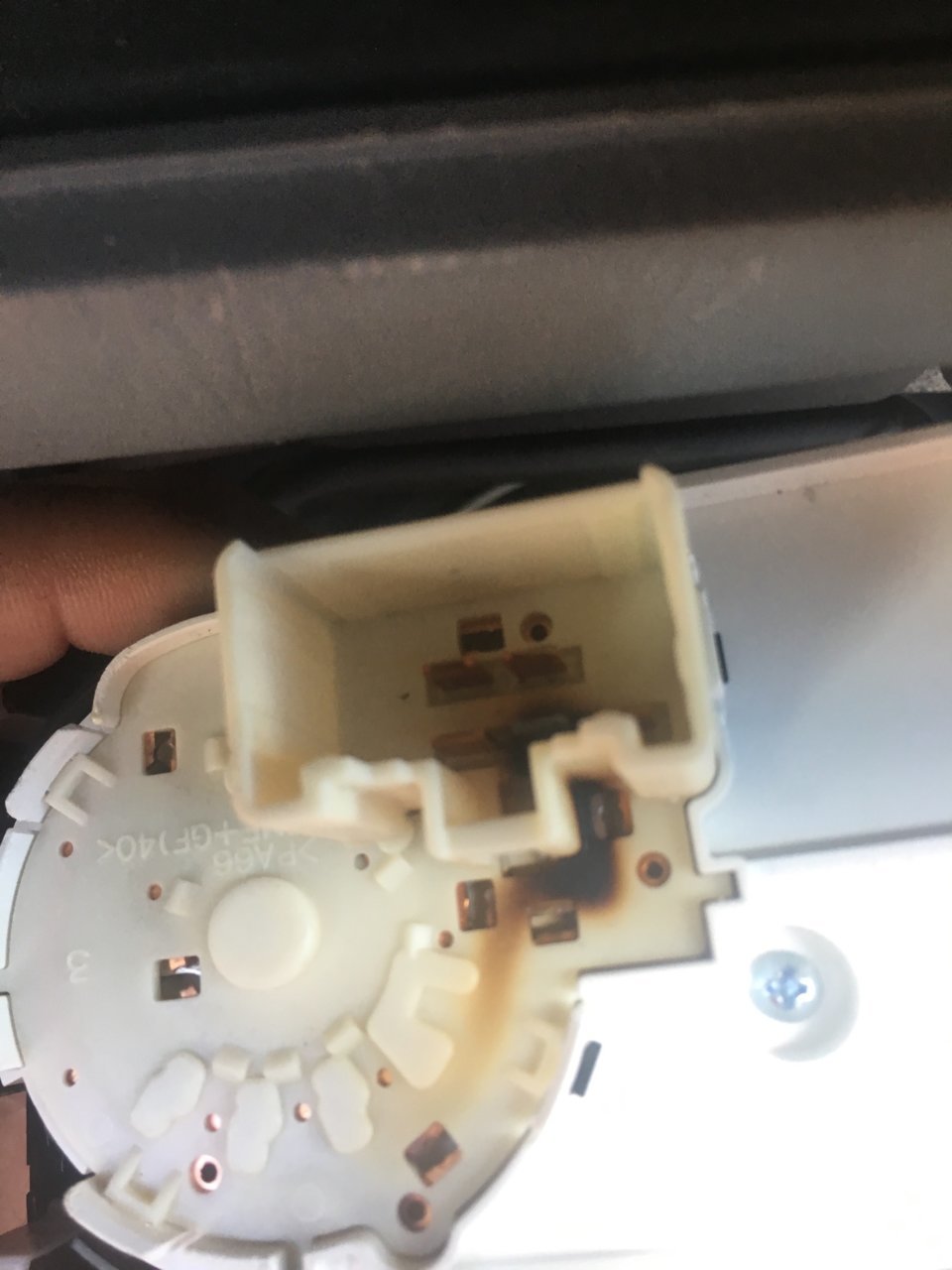

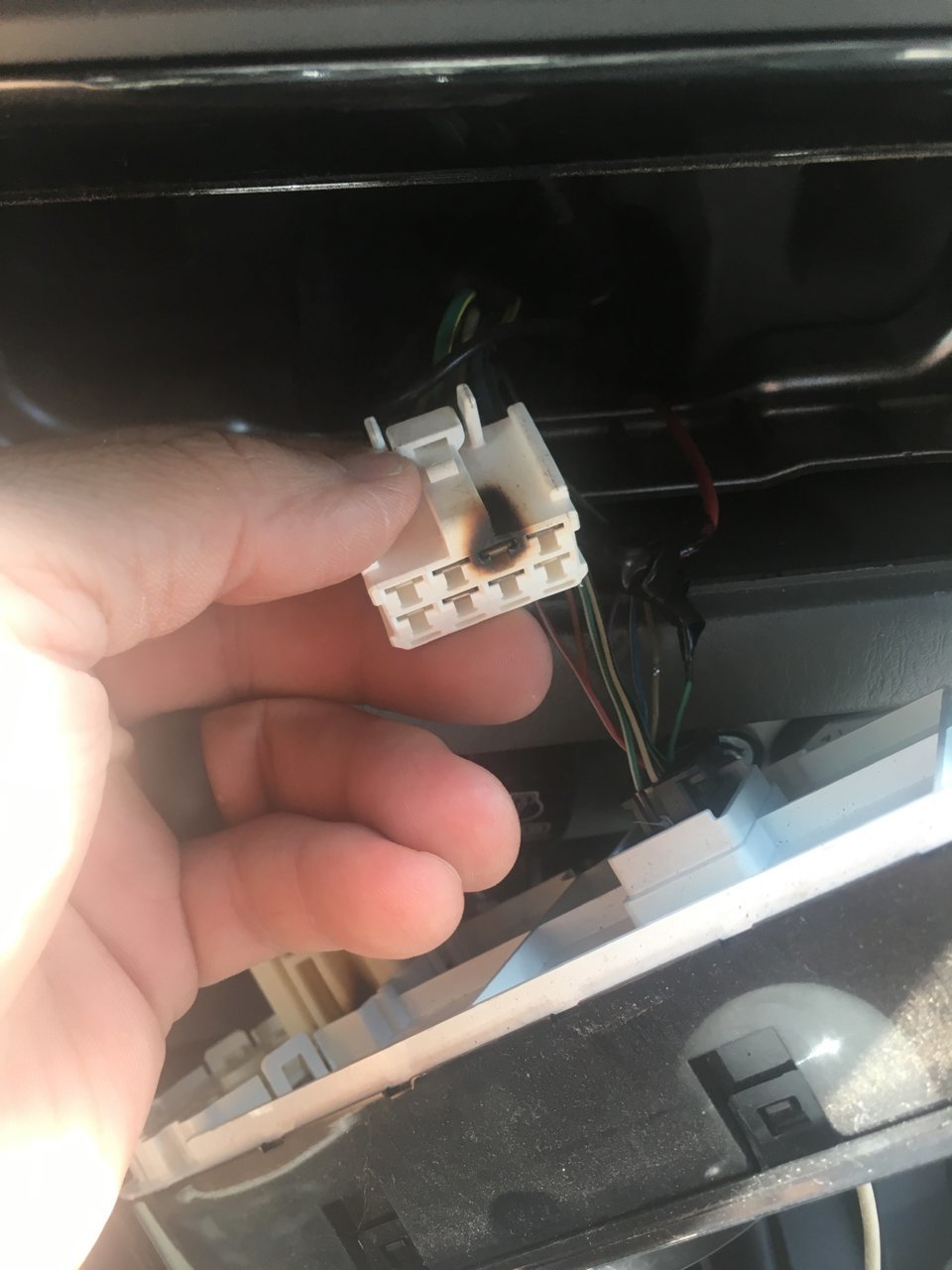

    Well...my switch has a burned pin, so I’ll be researching replacement. Thanks for the input.


    dbrfan, Apr 10, 2019
    #328
    wilcam47 and Muddinfun like this.
  9. Apr 17, 2019 at 12:34 PM
    #329
    CudaRae

    #329
    CudaRae New Member

    Joined:
    Apr 17, 2019
    Member:
    #290448
    Messages:
    4
    Vehicle:
    2012 Toyota Tacoma 4WD 6
    lift, bumper, fender flair

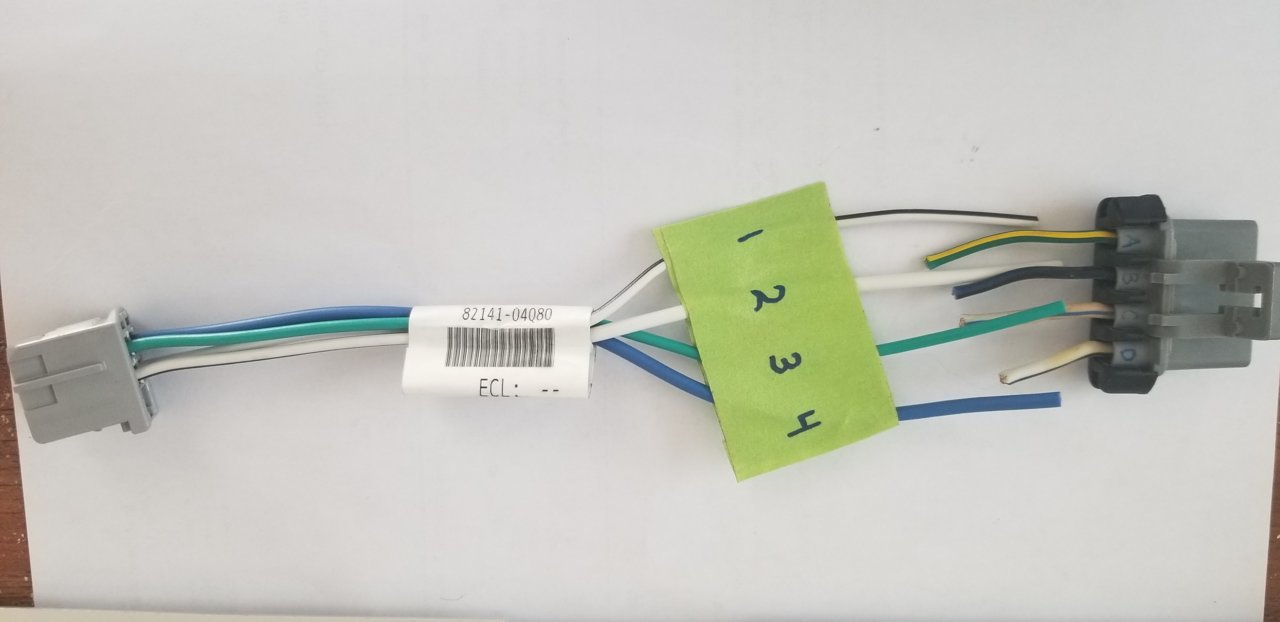

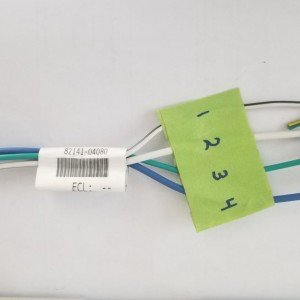

    So here is my delimma. I went and purchased the "updated" resistor from Toyota. It came with a service wiring repair kit (connector) because of the connector issues I'm sure. Now I have no idea how to wire it back. The colors are wonky and if you look at the end of the new connector it is labeled 1,2,3,4 not A,B,C,D like the old one. I spent 55 minutes on hold with the dealership and they have no idea either. I am awaiting a response from their tech's tech...


    CudaRae, Apr 17, 2019
    #329
  10. Apr 17, 2019 at 12:41 PM
    #330
    Muddinfun

    #330
    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,491
    That's the wrong connector. That won't even plug onto the resistor.

    Muddinfun, Apr 17, 2019
    #330
  11. Apr 17, 2019 at 12:43 PM
    #331
    CudaRae

    #331
    CudaRae New Member

    Joined:
    Apr 17, 2019
    Member:
    #290448
    Messages:
    4
    Vehicle:
    2012 Toyota Tacoma 4WD 6
    lift, bumper, fender flair
    its the correct connector for the new "updated" resistor - I verified this with the VIN with Toyota

    CudaRae, Apr 17, 2019
    #331
    BillyWest12 likes this.
  12. Apr 17, 2019 at 12:46 PM
    #332
    Muddinfun

    #332
    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,491
    I call BS on that. What's the part number on the resistor they sold you?

    Muddinfun, Apr 17, 2019
    #332
  13. Apr 17, 2019 at 12:52 PM
    #333
    CudaRae

    #333
    CudaRae New Member

    Joined:
    Apr 17, 2019
    Member:
    #290448
    Messages:
    4
    Vehicle:
    2012 Toyota Tacoma 4WD 6
    lift, bumper, fender flair
    87138-04070

    CudaRae, Apr 17, 2019
    #333
    BillyWest12 likes this.
  14. Apr 17, 2019 at 1:39 PM
    #334
    Muddinfun

    #334
    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,491
    I don't know what the deal is with that part number. There are 80 posts on TW with the part number that is listed in the Toyota TSB 87138-04052.

    The only post with that part number you referenced is your post. However, if you google search your number, it shows up as fitting Tacoma.

    Lots and lots of Tacos have been repaired with resistor 87138-04052 and pigtail
    $32 82141-04M40
    82141-04M40. They fit together and they work.

    What's also weird is that if you google the part number on that pigtail in your pic, it retails for over $2,000

    Muddinfun, Apr 17, 2019
    #334
    wilcam47 likes this.
  15. Apr 17, 2019 at 3:33 PM
    #335
    CudaRae

    #335
    CudaRae New Member

    Joined:
    Apr 17, 2019
    Member:
    #290448
    Messages:
    4
    Vehicle:
    2012 Toyota Tacoma 4WD 6
    lift, bumper, fender flair
    So I read all of those threads, and I know what your saying is true...however; that was not my question or what I needed help with.
    I finally got a wire diagram from Toyota. Turns out they are installing the 2018 version now because of all of the problems with the earlier version. If anyone needs the diagram and not a reiteration of the other parts numbers, let me know.
    Update: I am attaching the wiring diagram as I have been getting many requests for it.


    Attached Files:

    Last edited: Aug 13, 2019
    CudaRae, Apr 17, 2019
    #335
  16. Apr 17, 2019 at 3:50 PM
    #336
    Muddinfun

    #336
    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,491
    OK, so post the correct part numbers for the resistor and pigtail and which color harness wires go to which color pigtail wires. Obviously, the pigtail part number on the sticker in your pic is not correct.

    Also, if there is a TSB about this fix, post the TSB number.

    Muddinfun, Apr 17, 2019
    #336
    Jimmyh likes this.
  17. May 28, 2019 at 9:47 PM
    #337
    Munkyx

    #337
    Munkyx New Member

    Joined:
    May 28, 2019
    Member:
    #294686
    Messages:
    1
    Gender:
    Male

    could you please share the diagram? I got the same spare parts like you. metal resistor and different connector

    Munkyx, May 28, 2019
    #337
    BillyWest12 likes this.
  18. Jun 1, 2019 at 8:19 PM
    #338
    JimIowa

    #338
    JimIowa Well-Known Member

    Joined:
    Apr 1, 2018
    Member:
    #249066
    Messages:
    422
    Gender:
    Male
    First Name:
    Jim
    Des Moines, Iowa
    Vehicle:
    2015 TRD OR DCSB
    "Park Avenue" ACDF horns
    Just replaced my wiring harness (yes - one burnt spot) and the resistor. Easy Peasy with the parts from Dorman (Dorman - Techoice 973-582 Blower Motor Resistor Kit with Harness) via Amazon. Price was $21.68. Most difficult part is the back side screw of the resister holder. Will advise if this fix does not solve the problem for good.

    JimIowa, Jun 1, 2019
    #338
    mackw10 likes this.
  19. Jun 3, 2019 at 3:46 PM
    #339
    dsc522758

    #339
    dsc522758 Active Member

    Joined:
    Sep 21, 2010
    Member:
    #43560
    Messages:
    41
    Gender:
    Male
    First Name:
    Daniel
    Arlington, Texas
    Vehicle:
    2008 PreRunner TRD SR5 Sport Pkg. LB
    Bilstein Shocks, Billet Grille, Bull Bar, A.R.E LSII Series Tonneau Cover, OEM Daytime Running Lights Mod
    Yes. I can verify because I just replace mine. There is a 3rd redesigned blower resistor and a wire harness.

    Blower Resistor Pt.# 87138-04070
    Wire harness Pt# 82141-04Q80

    CudaRae? According to your diagram I did .....

    A3
    B4
    C2
    D1

    .........and it works but low and med low seems to have very little difference. Could just be me. At the moment, I'm happy. I live in Texas. Already getting warm!


    EDIT JUNE 4, 2019
    Ok.....I replaced both parts and must have something missed wired.

    I should have: Low, Med Low, Med High, High

    I have : Med Low, Med Low, Med High, High

    I'm sure I'll figure it out one day.

    Last edited: Jun 4, 2019
    dsc522758, Jun 3, 2019
    #339
  20. Jun 10, 2019 at 7:57 PM
    #340
    ToyotaBanjo

    #340
    ToyotaBanjo Well-Known Member

    Joined:
    Oct 2, 2017
    Member:
    #231826
    Messages:
    130
    Gender:
    Male
    Outer banks
    Vehicle:
    2006 DC 4x4 Sport
    None
    Just got an 06 ....I have seen plenty of discussion on fans only working on high.
    Mine does not do anything on the low speed, but all other speeds work fine?
    Any ideas? Is it most likely the same problem?

    ToyotaBanjo, Jun 10, 2019
    #340
