Fan speed switch not working.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by kbmcmahon, Jan 17, 2010.

  1. Dec 3, 2012 at 9:25 PM
    #121
    MT_mudflaps

    MT_mudflaps Just playin' on the runways

    Joined:
    May 25, 2008
    Member:
    #6857
    Messages:
    394
    Gender:
    Male
    First Name:
    Clint
    Bellflower, CA
    Vehicle:
    Indigo SR5 PreRunner with TRD off road
    Maybe I missed it, I tried scanning through everyone's posts, but did anyone have it where the fan speed did not work at all? :confused:
    Mine is inop regardless of whether you select heat or A.C. and it doesn't work at low, high or any speed.
    I'd sure appreciate any suggestions. :eek:

  2. Dec 4, 2012 at 6:54 AM
    #122
    Kenobe

    Kenobe Well-Known Member

    Joined:
    Apr 28, 2009
    Member:
    #16534
    Messages:
    597
    Gender:
    Male
    First Name:
    Ken
    Colorado Springs, CO
    Vehicle:
    09 Tacoma TRD Sport
    Not a fan of that - that's going to tear up the connector eventually.

    I dabbed some electrical contact grease on a Q-Tip and slathered everything up inside the resistor connector pins. Works great now :)

  3. Dec 4, 2012 at 6:55 AM
    #123
    Kenobe

    Kenobe Well-Known Member

    Joined:
    Apr 28, 2009
    Member:
    #16534
    Messages:
    597
    Gender:
    Male
    First Name:
    Ken
    Colorado Springs, CO
    Vehicle:
    09 Tacoma TRD Sport
    Fuse?
    Resistor completely blown?
    Blower motor dead?

  4. Dec 4, 2012 at 6:59 AM
    #124
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,471
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Check in that order too.

  5. Dec 9, 2012 at 12:11 PM
    #125
    Flugelhornjazz

    Flugelhornjazz '06 4.0L 4x4 6-sp MT Access

    Joined:
    Nov 29, 2009
    Member:
    #26735
    Messages:
    69
    Gender:
    Male
    New England
    Vehicle:
    06' 4.0L 4x4 6sp MT Access
    AFE CAI, all synth fluids, 2.5" exhaust w/ FlowMaster, Optima Deep Cycle battery, Fog mod, SnugTop cap, HID headlights, silicone hoses
    My 06 has just started doing the same thing. When I first start the truck, the fan runs for 30 seconds, shuts off, then starts up again. Now intermittently the fan will only run on HI. Tacorider, the purpose of the resistor is to divert voltage (and current) from the fan motor, giving the motor more than one speed.

    Tnx for the thread guys:cool. I have to get under there and replace the resistor so that the fan will be working this winter. COLD winters in New England! :cool:

  6. Dec 11, 2012 at 7:30 AM
    #126
    AnotherSilverTaco

    AnotherSilverTaco Well-Known Member

    Joined:
    Mar 14, 2011
    Member:
    #53025
    Messages:
    122
    Gender:
    Male
    South Texas
    Vehicle:
    2006 Double Cab 4x4
    CBI trailrider rear bumper, CBI Front Receiver, Warn M8000 Receiver Winch in Warn Multi-mount cradle
    My fan quit working on all but high speed around 1-2 years ago. I took it out blew ou the dust from the brushes, up a dab of grease on the bearing and put it back together. It is still working! I would try this first before the resistor.

  7. Dec 14, 2012 at 9:16 PM
    #127
    Flugelhornjazz

    Flugelhornjazz '06 4.0L 4x4 6-sp MT Access

    Joined:
    Nov 29, 2009
    Member:
    #26735
    Messages:
    69
    Gender:
    Male
    New England
    Vehicle:
    06' 4.0L 4x4 6sp MT Access
    AFE CAI, all synth fluids, 2.5" exhaust w/ FlowMaster, Optima Deep Cycle battery, Fog mod, SnugTop cap, HID headlights, silicone hoses
    Tnx AST, makes sense to try the motor first. I will be very happy if your fix works and don't have to replace the resistor. :cool:

  8. Dec 14, 2012 at 9:25 PM
    #128
    Flugelhornjazz

    Flugelhornjazz '06 4.0L 4x4 6-sp MT Access

    Joined:
    Nov 29, 2009
    Member:
    #26735
    Messages:
    69
    Gender:
    Male
    New England
    Vehicle:
    06' 4.0L 4x4 6sp MT Access
    AFE CAI, all synth fluids, 2.5" exhaust w/ FlowMaster, Optima Deep Cycle battery, Fog mod, SnugTop cap, HID headlights, silicone hoses
    I believe the resistor is switched out of the circuit on Hi speed, so you may want to check the fuse first, bad fan motor second, then pull the resistor third.

  9. Dec 26, 2012 at 8:52 PM
    #129
    Chuy

    Chuy Well-Known Member

    Joined:
    Aug 4, 2008
    Member:
    #8328
    Messages:
    1,986
    Gender:
    Male
    Lakeside, CA
    Vehicle:
    07 V6 DCLB 4X4 Sp
    2.5 inch lift; 5100's front; OME rear; Air Lift; dual batteries; Bestop bed cover; Nfab nerf steps; EBC rotors; Threadwright Claw MT tires; hood scoop LED light install.
    TRDsnb and 06DrksdeTaco like this.
  10. Dec 27, 2012 at 11:48 AM
    #130
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,471
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    TRDsnb likes this.
  11. Jan 2, 2013 at 8:41 AM
    #131
    nausetnuts

    nausetnuts New Member

    Joined:
    Jan 1, 2013
    Member:
    #94180
    Messages:
    2
    Gender:
    Male
    First Name:
    Warren
    Orleans
    Vehicle:
    07 SR5
    Based on all the previous replies/posts, I spoke to Toyota Dealer today....my blower/fan only works on high also. They gave me the TSB-0149-11 for the fix. There's a new resistor unit and a new connector that has to be crimped in. The Resistor old part number was 87138-04050, replaced by 87138-04052 and the pigtail is 82141-04M40. They have their own wire connectors with the part #82999-12030.
    I was quoted 52.53 shipped. Without connectors is 47.81 shipped.
    I've attached the TSB (hopefully)


    Attached Files:

    TRDsnb likes this.
  12. Jan 2, 2013 at 9:39 AM
    #132
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,471
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Could you take a picture of the repaired wires?

  13. Jan 3, 2013 at 2:54 PM
    #133
    jakengle

    jakengle New Member

    Joined:
    Jan 3, 2013
    Member:
    #94335
    Messages:
    1
    Gender:
    Male
    First Name:
    Jake
    Vehicle:
    06 PreRunner TRD Off Road
    Leer 100XL, debadged

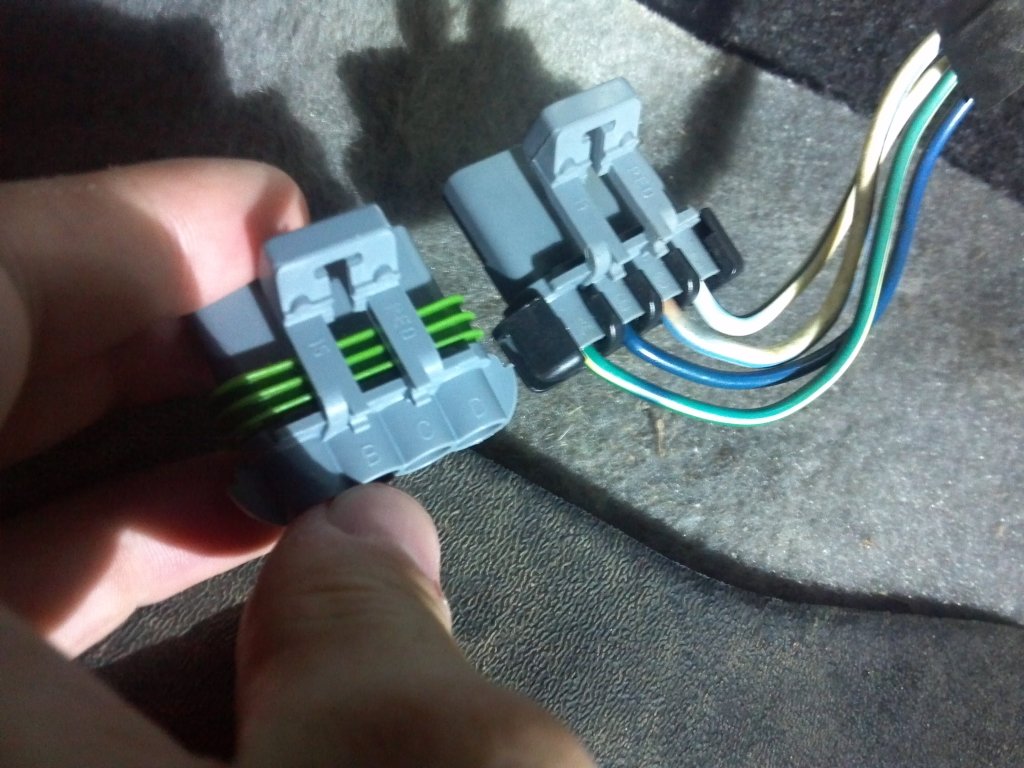

    New to the forum today and when I came home from dealership I googled the part numbers from the repair to see what the deal was and found this thread. Fan worked only on high and I did not inspect the old parts--just dropped it off for the dealer to do it under the certified used warranty.

    Parts installed were:
    87138-04052 resistor
    82141-04M40 wire, instrument

    [​IMG]

    Can't see much about the splice but you can see the difference with the plug and resistor vs. the old parts in earlier posts.

    TRDsnb likes this.
  14. Jan 15, 2013 at 10:06 AM
    #134
    Ran s Taco Stand

    Ran s Taco Stand Member

    Joined:
    Jan 15, 2013
    Member:
    #95231
    Messages:
    13
    Gender:
    Male
    First Name:
    Randy
    Kings Ferry, FL
    Vehicle:
    06 Prerunner SR5
    '06 Prerunner 2wd Access Cab 190099 miles and counting!! Stock, but still Bad-Ass!! '95 Tacoma 5speed 2wd 348,000 miles '98 4Runner SR5 Auto 2wd 329,000 miles '88 4Runner SR5 Auto 4wd 2??,??? miles on blocks for now
    Great thread! Like others, I have been plagued by the "high-or nothing" blower. Before if I wanted something other than high I would have to find the worst dirt road and drive fast thru the bumps and washboards to get it to work! If only for a few days. So I figured it was a loose connection, "somewhere", but where? Ahhh, so thats where...a stupid connection, by the passengers feet, nice!! In the winter its ok, but in the summer you sweat or freeze...at least it was blowing air! As for the fix, fortunately I have the burnt connector issue, as mentioned and illustrated above...so I followed the instructions as directed, and had success til I removed my hand from the connector, then no dice!. I had to take it 1 step further, and add a tooth pick in between the clip, so I could maintain connection. I'm sure folded cardboard would work too. Thanks so much!!

  15. Jan 15, 2013 at 11:25 AM
    #135
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,471
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    :eek:
    I have posted a chevy connector (in one of these threads) that mouser.com sells for fairly cheap.
    Plug:
    Mouser #: 829-12129565-B
    Manufacturer Part #:12129565-B

    Pins:
    Mouser Part #: 829-12162597
    Manufacturer Part #:12162597



    TRDsnb, onesojourner and Truncali82 like this.
  16. Jan 21, 2013 at 5:26 AM
    #136
    Gregman

    Gregman Well-Known Member

    Joined:
    Jan 11, 2010
    Member:
    #29166
    Messages:
    621
    Gender:
    Male
    Freddy Beach, NB
    Vehicle:
    05 DC LB 4x4 SR5

    Thanks! That's what I've been looking for. :)

  17. Jan 22, 2013 at 2:56 PM
    #137
    kirklfp

    kirklfp New Member

    Joined:
    Jan 22, 2013
    Member:
    #95833
    Messages:
    1
    Gender:
    Male
    Texas
    Vehicle:
    05 SR5 double cab
    2.7taco is right on for my situation (intermittent, and not cured by new resistor block)- the problem is in the harness at the connector to the resistor. Same as 2.7 reports -- 3rd pin. But I also noted that the resistor block has its 2 center pins intentionally shorted internally. So jumping between center 2 wires on harness side (I used a crimp on splice) provides the necessary connectivity by making the malfunctioning pin redundant.

  18. Jan 23, 2013 at 7:23 AM
    #138
    mlafferty00

    mlafferty00 Member

    Joined:
    Jan 21, 2013
    Member:
    #95709
    Messages:
    23
    Gender:
    Male
    You da man! This will be my project for this weekend. :cool:

  19. Jan 28, 2013 at 5:16 AM
    #139
    Gregman

    Gregman Well-Known Member

    Joined:
    Jan 11, 2010
    Member:
    #29166
    Messages:
    621
    Gender:
    Male
    Freddy Beach, NB
    Vehicle:
    05 DC LB 4x4 SR5
    So I finally got my new TSB blower motor resistor and pigtail installed and am happy to report that everything went great. The instal was easy and the fan now works as it should. Its nice to be done with that. Anyway, here's a few pictures for reference for anyone that needs to do this.

    This is what my defective resistor looked like. It has the typical burned look on the white with blue stripe wire. I replaced this resistor twice so this was the third one.

    new pigtail

    new resistor

    new resistor beside the old one


    Here are the old resistor pins. I had used some dielectric grease on them and you can see that there is a little bit of it remaining on them.

    The pins in the new resistor appear to be thicker so they should make a better contact.

    No turning back:

    And the new resistor is installed as per the TSB instructions. I don't like the crimps and electrical tape that they specified, it seems like a bit of a hack job. I will re-do this job when the weather is a bit nicer. I intend to solder the wires together and use heat shrink to seal it up - it will be a more secure and permanent repair. I was supprised that Toyota came up with the crimps and electrical tape as their official repair method.

  20. Jan 28, 2013 at 11:48 AM
    #140
    JasonJump

    JasonJump Well-Known Member

    Joined:
    Apr 7, 2010
    Member:
    #34799
    Messages:
    801
    Gender:
    Male
    First Name:
    Jason
    Yukon Oklahoma
    Vehicle:
    '05 Tacoma TRD Sport 4X4 D Cab Debadged
    Billy 5100's set at 2.5, iPhone innerface, TRD Sport wheels powdercoated Anthracite grey wrapped in 265/70/17 Duratracs, Custom Sliders
    I did exactly what you did for a fix, but now I am getting a humming noise like the fan is making a loud hummm when the air is running. What has happened to cause this? I did the crimps not solder
