FEND-X Tacoma Wheel Liners

USPS tracking says my splash guards are out for delivery this morning! Thanks Cody!



Delivered! Happy New Year, Bill!



What is the material is these are made of?



Hey Phillip
Yes, the Fend-X Liners are a form of UHMW



That is awesome to hear. I am guessing it is a UHMW PE fiber mix or something similar? I am looking at these for my Tacoma but also for my jet boat. Installation application is the hard part there. Not quite as easy as the inside of a wheel well, lol. Thank you for replying and do not be surprised if you get a PM from me.

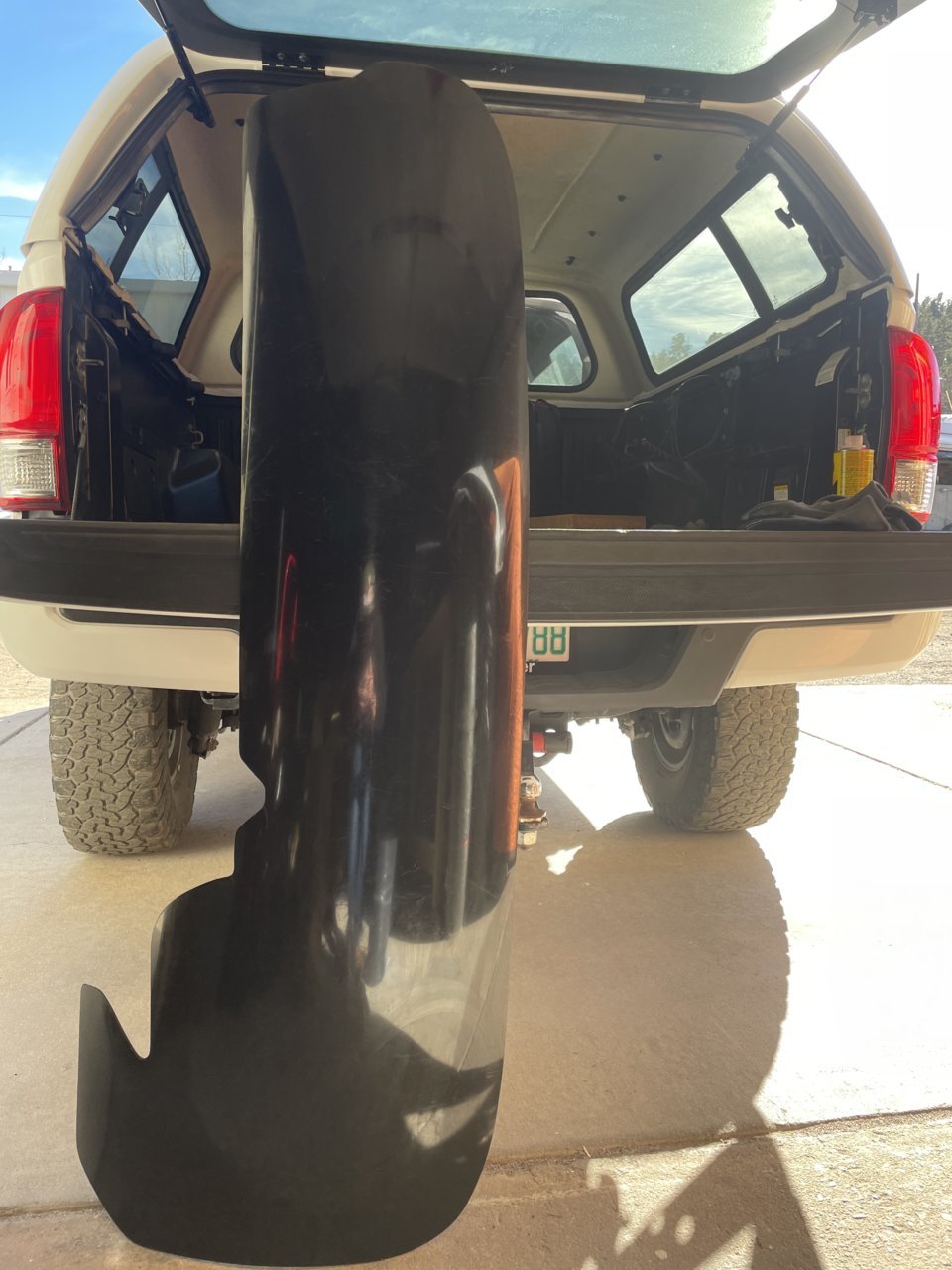

Put them on today. SO much better!! Well made too! Thanks bro for an awesome product



Awesome man, appreciate the feedback! Enjoy the new gear!!



definitely need these as I'll be trimming my fenders soon. If I order today do you have an estimate for lead times? @cnote4l



Hey Cody @cnote4l , I got a question...I'm going to be trimming my fenders and flares for more tire clearance for my 35's on my 2nd gen and I'm wondering how your fendx fender liners are attached for diy trimmed fenders. Do they attach to the flares also or just the fenders on the outer edges? I'm wondering because I've been an autobody tech for 40+ years and was going to fab a way to attach them to the fenders and flares as well to help make the flares more sturdy after trimming them. So should I order them for diy trimmed fenders and mount them your way? Or order for oem fenders and fab It myself?



I cut my fenders for my 35s and left tabs i bent up. I got the oem liners shittily zip tied for now, but likely be ordering these liners soon. I'd love to see what you fab up.



I’m about to fab something up here soon too.



Welp, same request then .

I think these liners could just be attached to my bent tabs and be fine, but the sturdier the better.



The bent tabs should be fine!!



One of my fab ideas is to trim off (in one whole piece) about 2" of the flare. Then cut the trimmed off portion into two pieces and attach them to the inner backside of the flare so as to use the original attachment tabs/holes. We have some very strong, durable adhesives available to me at the shop. I'm just trying to avoid having bolts going thru my flares around the wheel wells like this


What I'm basically asking is if this^ is how the mounting hardware kit comes for diy trimmed fenders, then should I just order the oem fender option and fab it myself to avoid having bolts thru my flares?



When cutting your fender and flares leave tabs, it takes wayyyyyyy longer but it’ll be worth it. spoke with Cody and tabs will be fine for supper. If you don’t leave tabs he sends L brackets that drill in to your fender but the head is hidden under the flare.

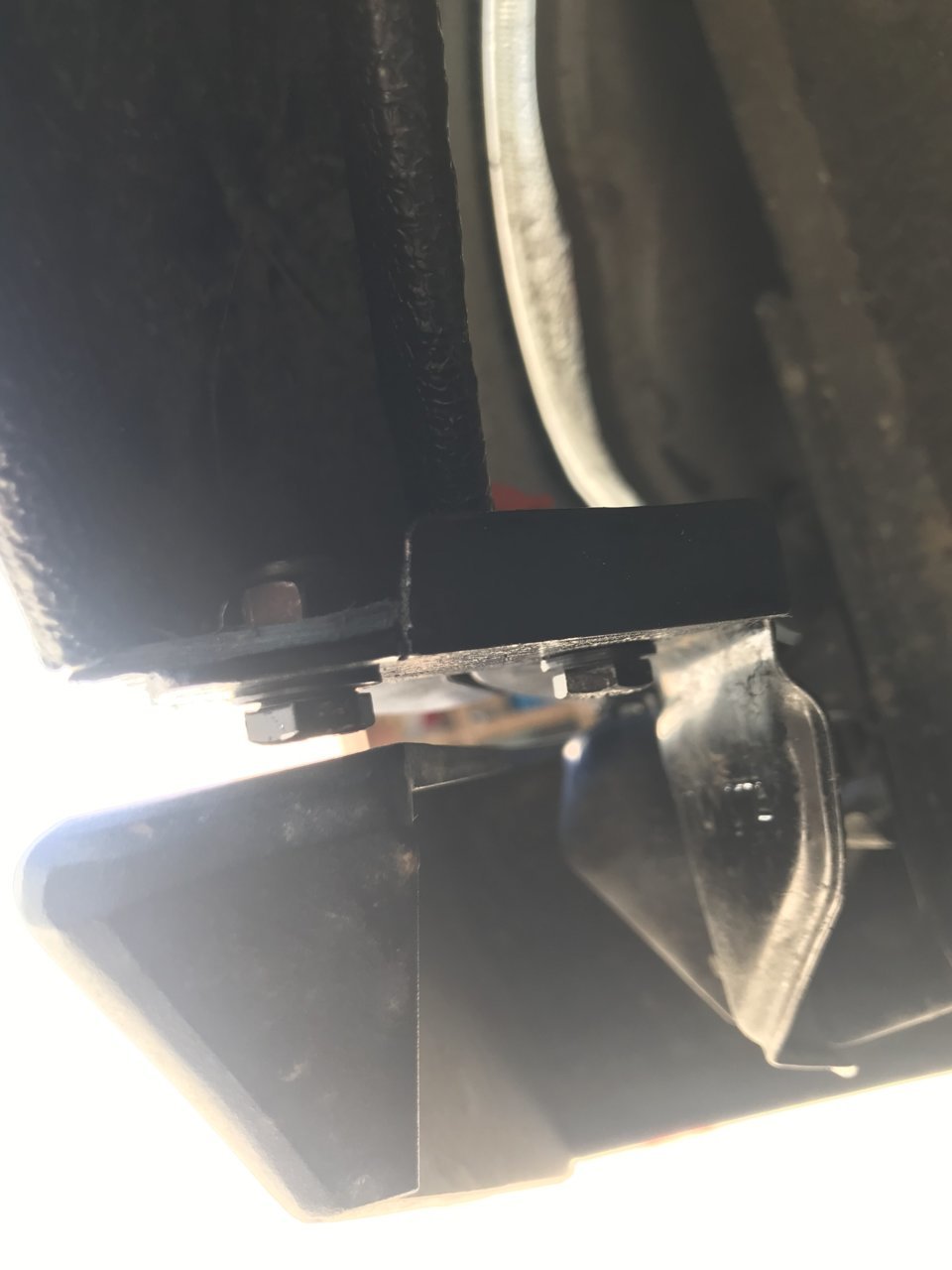

regarding flare sturdiness after trimming, I made a little aluminum plate that attaches at the front. It sandwiches/ connects the plastic flare to the body and for the read I put a bolt through the flare and fender using one of those sponges as a spacer.

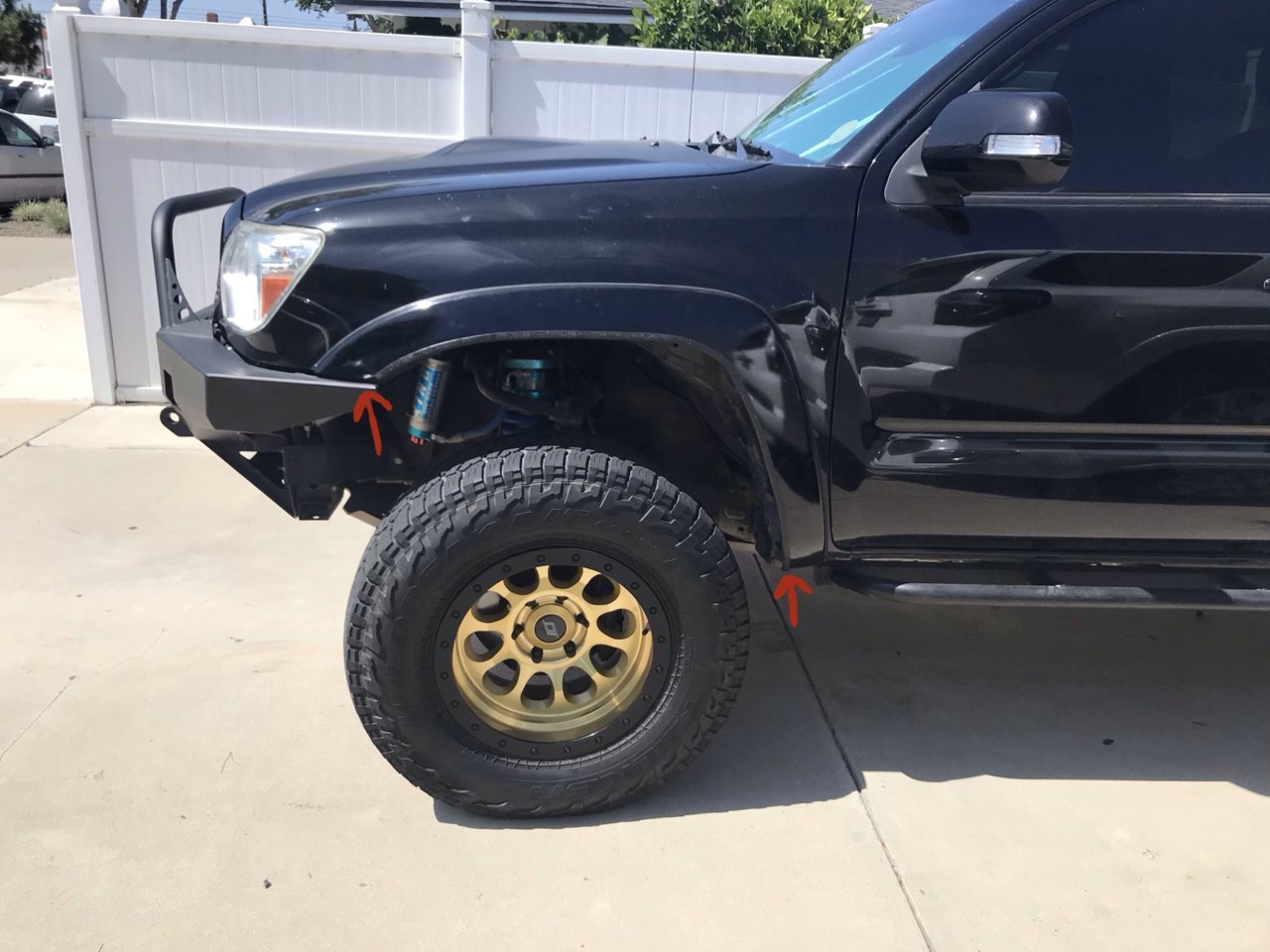

Red arrows are where I am talking about.

holding on fine. Only issue is the wind drag and had one clip snap, think it’s one that broke when I was pulling them off and maybe didn’t let the JB weld sit long enough or my buddy who’s one job was to reattach the clip holes for ones that ripped did a shitty job. Either way when I install my liners I’ll fix it and wind drag should be non factor.



Subd



The difference between the
OEM configuration VS. DIY Trimmed option is the (DIY) Fend-X Liner is wider along the fender edge and runs along the outside of the Fender VS the OEM config routes along the inside (behind the tabs). For 2nd Gens when trimming the fenders/flares you’ll naturally incur another gap between the actual fender and the flare that would cause the wind drag that @Mista_G mentioned. which is why the Fend-X Liner is wider for DIY configuration to allow for the end user to trim to spec.

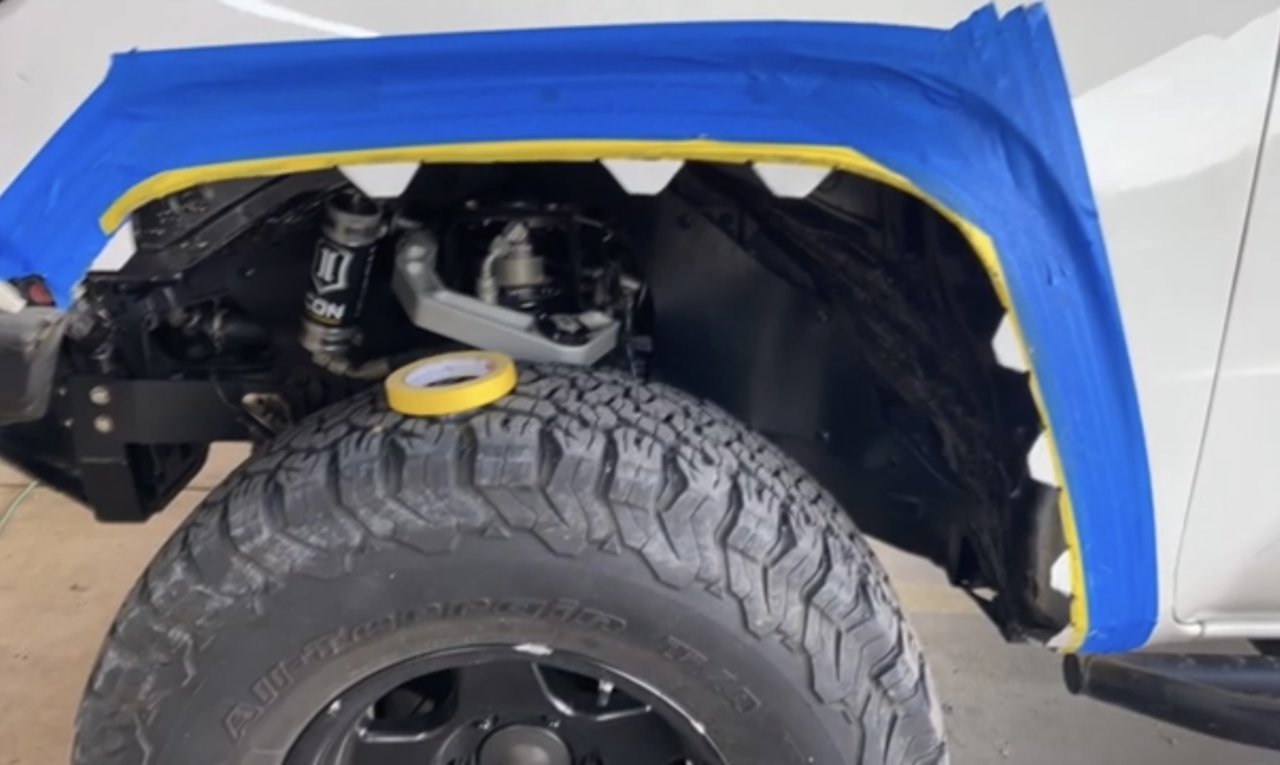

@PyritePirateBill @Taco-Obsessed As for trimming the fenders, it’s best practice to reincorporate tabs into the new cut which ultimately translates into attachment points. For example:

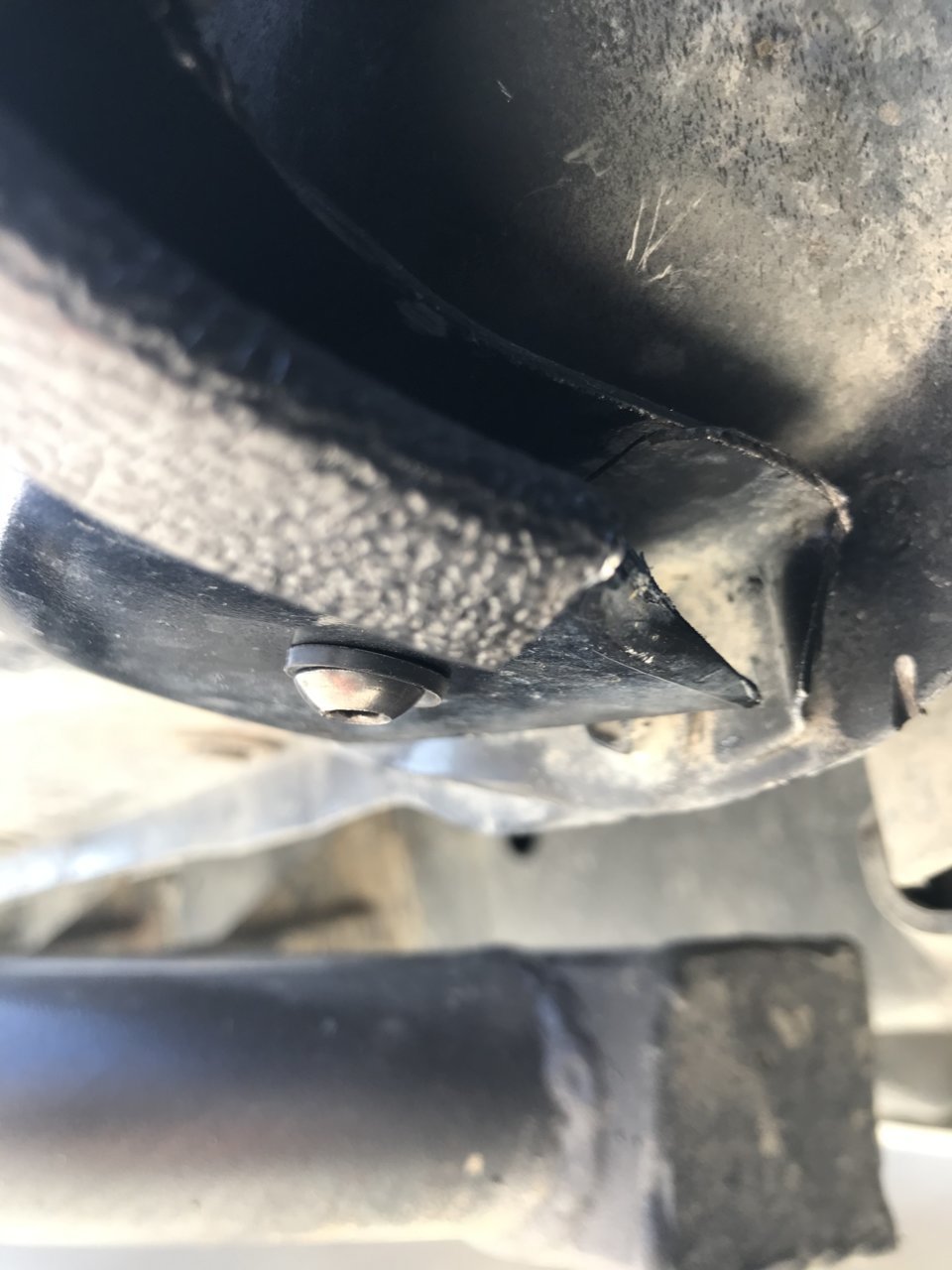

If you’ve already trimmed and didn’t reincorporate tabs, it’s definitely not the end of the world. I’ve found that using L brackets is a sure fire way to fixate those attachment points which will serve the same purpose as tabs. For Example:

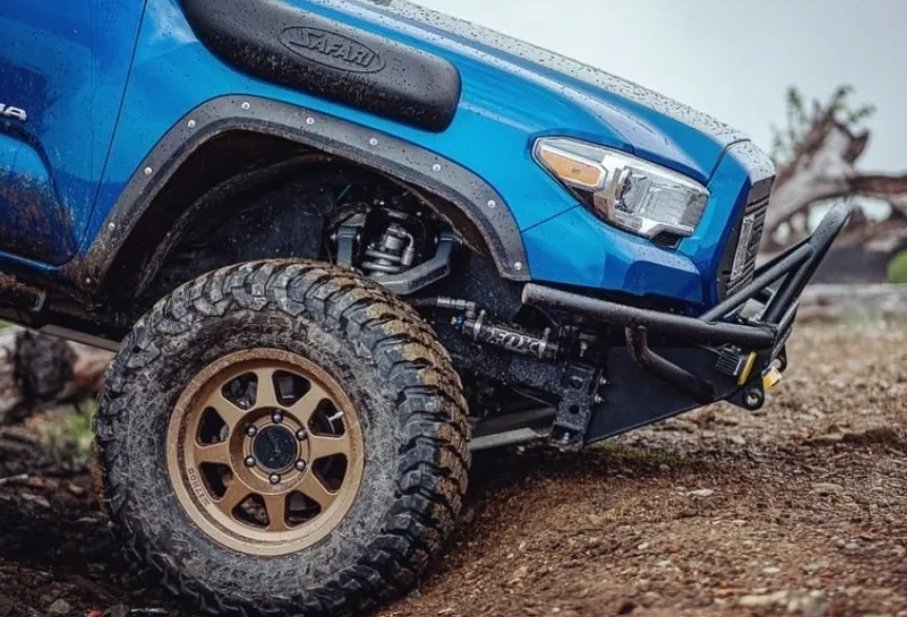

In the pic below, the owner used a similar L bracket to what’s shown above which is Tapped into the actual fender and concealed under the Flare. The hardware along the flare is just aesthetic, to resemble the pocket style fender flares. You can get a better visual of what I mean from this angle



Beautiful explanation, man!!



Mahalo brotha!! I try to keep it as concise and thorough as possible



Thanks @cnote4l for the reply. I totally understand now I'll definitely be ordering the diy trimmed style liners in the next day or two
