Figuring out my CB install

Discussion in 'Southern California' started by jdkeller, Mar 31, 2010.

  1. Mar 31, 2010 at 10:19 AM
    #1
    jdkeller

    jdkeller [OP] How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,983
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    I have one of those cheap cobra cb's. I cannot for the life of me get that and my antenna setup to function properly. I can hear people pretty well but I can't transmit. One person said the antenna has to be grounded. Another said it doesn't. This really gets on my nerves when I'm on a trail and can't communicate. My antenna is mounted to my bed bar. It does not have a tuneable tip but I guess you can still cut it to tune it.

    I will post pictures later. Or you can go look in my pictures.

    Any help would be appreciate it. Should I just pay a shop to fix it?

  2. Mar 31, 2010 at 11:56 AM
    #2
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,254
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    It sounds like you have a short in the antenna cable or connector. Do you have a multi-meter?

    If so, unplug the antenna cable from the back of the CB. Use the multi meter to test for continuity between the core (wire in the middle of the connector) and the body of the connector. There should be no continuity between the red and green in the diagram.


    [​IMG]

    When I installed a setup on a truck I forgot to install a white plastic washer in the stud assembly. That caused a short and I had the same problems you are having. Also, you should test to make sure that all green areas have continuity with a ground in your truck (frame, body, chassis...).

  3. Mar 31, 2010 at 12:03 PM
    #3
    jdkeller

    jdkeller [OP] How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,983
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    I do have a one but that all seems complicated! I'm terrible that type of stuff.

    I'll see what I can do.

    Looks very helpful.

  4. Mar 31, 2010 at 12:04 PM
    #4
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,254
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    Does your stud assembly look like one in the picture?

  5. Mar 31, 2010 at 12:07 PM
    #5
    jdkeller

    jdkeller [OP] How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,983
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    Yea on the left. An I have that plastic washer in there too.

  6. Mar 31, 2010 at 1:47 PM
    #6
    SoCalPrerunner

    SoCalPrerunner Well-Known Member

    Joined:
    Oct 13, 2008
    Member:
    #9948
    Messages:
    161
    Vehicle:
    06 DC LB w/ Front & Rear LT
    Front & Rear LT

    what type of antenna? On my setup I had the same problem and once I got a good ground everything worked great. My mount was on metal that went to the frame but I needed to sand it down to get a good contact

  7. Mar 31, 2010 at 1:58 PM
    #7
    jdkeller

    jdkeller [OP] How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,983
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    It's just a cheap $10 antenna from frys.

    My bed rail is mounted to my bed rails.

  8. Mar 31, 2010 at 1:59 PM
    #8
    SoCalPrerunner

    SoCalPrerunner Well-Known Member

    Joined:
    Oct 13, 2008
    Member:
    #9948
    Messages:
    161
    Vehicle:
    06 DC LB w/ Front & Rear LT
    Front & Rear LT

    thats not a good ground - try running a grounding strap to the frame

  9. Mar 31, 2010 at 2:01 PM
    #9
    jdkeller

    jdkeller [OP] How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,983
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    Grounding strap? From the mount to between the bed and cab to the frame?

    A 12 guage wire will not work?

  10. Mar 31, 2010 at 4:28 PM
    #10
    jdkeller

    jdkeller [OP] How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,983
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.

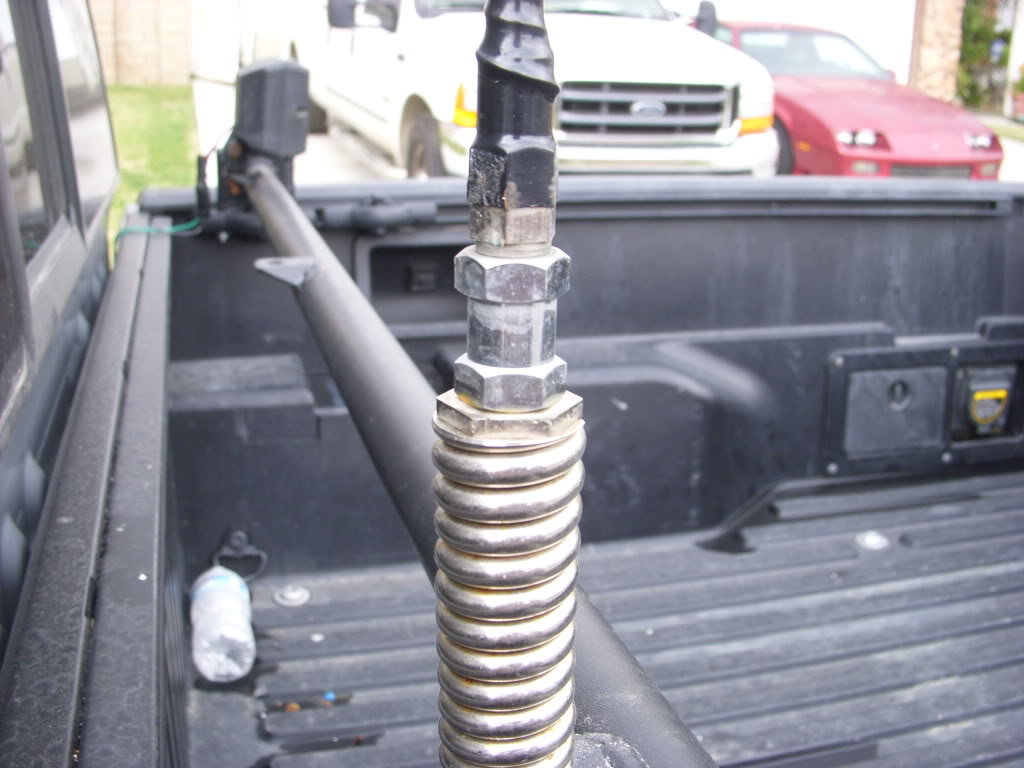

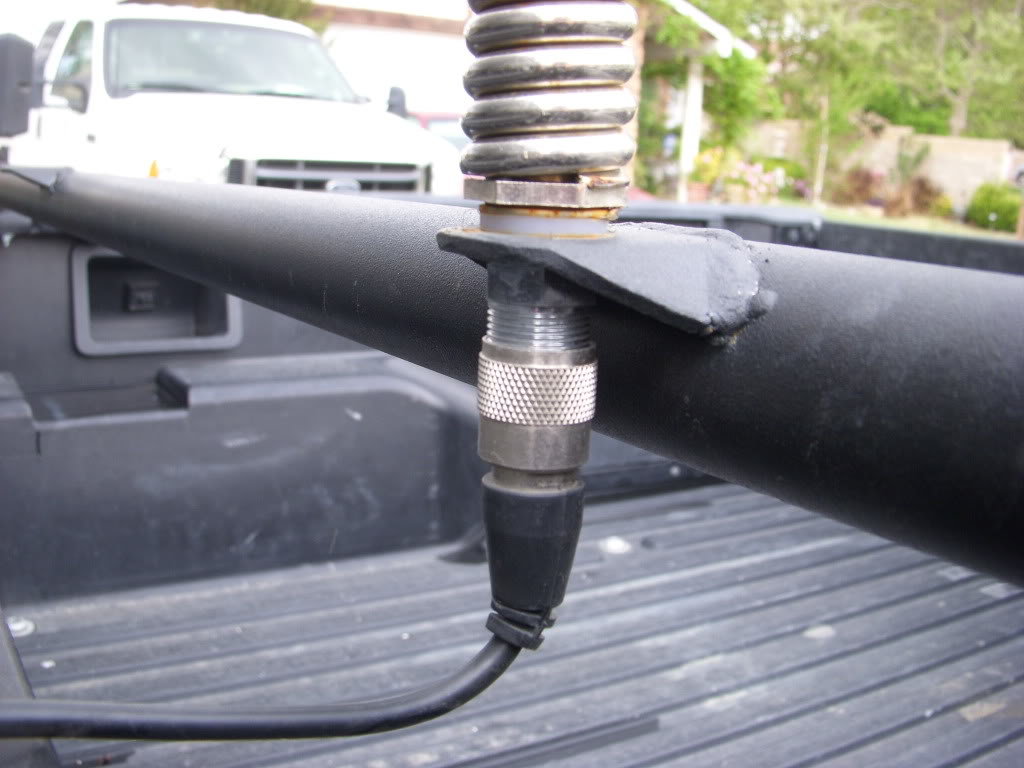

    Here is how mine looks
    [​IMG]
    [​IMG]

  11. Mar 31, 2010 at 4:32 PM
    #11
    MyToyTaco

    MyToyTaco ╒╪╕

    Joined:
    Sep 23, 2008
    Member:
    #9417
    Messages:
    4,320
    Gender:
    Male
    First Name:
    Nick
    Port Hueneme
    Vehicle:
    08 Taco
    I don't think the bed bar is enough metal...maybe?

    enough of a ground I mean..

  12. Mar 31, 2010 at 4:32 PM
    #12
    jdkeller

    jdkeller [OP] How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,983
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    Me and HBMurphy tried grounding it. It kind of worked but not really.....

  13. Mar 31, 2010 at 4:34 PM
    #13
    jdkeller

    jdkeller [OP] How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,983
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    So the threads coming up from the bottom through the mount plate are hot?...So that means if they are touching the mount plate it wont work?

  14. Mar 31, 2010 at 5:04 PM
    #14
    SoCalPrerunner

    SoCalPrerunner Well-Known Member

    Joined:
    Oct 13, 2008
    Member:
    #9948
    Messages:
    161
    Vehicle:
    06 DC LB w/ Front & Rear LT
    Front & Rear LT
    you need an actual grounding strap. a wire will help but from what I've learned doesn't properly ground RF signals. Think of a desoldering braid but bigger. Actually, a desoldering braid MIGHT work to ground it?

  15. Mar 31, 2010 at 5:05 PM
    #15
    bajamoon

    bajamoon Well-Known Member

    Joined:
    Feb 3, 2009
    Member:
    #13269
    Messages:
    5,953
    Gender:
    Male
    First Name:
    STEVE
    Whittier
    i had a problem with mine, check the ends of your coax cable and see if they are soldered. you can have a coax, the firestik fire line or whatever they call it.

  16. Mar 31, 2010 at 5:07 PM
    #16
    jdkeller

    jdkeller [OP] How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,983
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    What is a grounding strap and desoldering braid? :eek:
    Soldered where exactly?

    That sentence is confusing.

  17. Mar 31, 2010 at 5:14 PM
    #17
    ak47

    ak47 v.hey its my Avatar avatar.v

    Joined:
    Nov 9, 2009
    Member:
    #25696
    Messages:
    677
    Gender:
    Male
    First Name:
    Anthony
    Washington
    Vehicle:
    stock 2nd owner
    the screw part of the coax is your ground to the mount from what it looks like the inside threaded part is whats powering your antenna. not sure how those are designed to keep the two seperated but if i were to guess i think that your grounding your antenna out. i would make sure that the stud isnt touching the mount.

  18. Mar 31, 2010 at 5:19 PM
    #18
    bajamoon

    bajamoon Well-Known Member

    Joined:
    Feb 3, 2009
    Member:
    #13269
    Messages:
    5,953
    Gender:
    Male
    First Name:
    STEVE
    Whittier
    my coax that i bought first kept pulling out of the antenna, so i bought a coax cable from firestix called fireline or something like that.

    And i mean check your solder the on the end of the coax that goes into the cb. undo the cable that goes into the cb, look at the wire that goes through the metal piece and see if the wire is loose.

  19. Mar 31, 2010 at 5:22 PM
    #19
    jdkeller

    jdkeller [OP] How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,983
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    So drill the hole out?
    Ok I will look.

  20. Mar 31, 2010 at 5:22 PM
    #20
    BradleyScottETC

    BradleyScottETC Class IV Category 8 Elite VIP Member (Only)

    Joined:
    Aug 2, 2009
    Member:
    #20521
    Messages:
    1,754
    Gender:
    Male
    First Name:
    Bradley
    Lake County, FL
    Vehicle:
    10 4.0 AC 4x4
    The BEST way is to run a ground wire from the ANT directly to the frame, there should be a ground wire in your driver's side wheel well on top of the frame already, you can hop onto that bolt. Use #16 or #12 wire.
