Finally started my bed light mod

Discussion in '2nd Gen. Tacomas (2005-2015)' started by hookedontronics, Nov 4, 2010.

  1. Nov 4, 2010 at 10:04 AM
    #1
    hookedontronics

    hookedontronics [OP] Well-Known Member

    Joined:
    Jan 6, 2010
    Member:
    #28863
    Messages:
    2,791
    Gender:
    Male
    First Name:
    Jake
    Glenville, NY
    Vehicle:
    2010 DC Off Road 4x4
    Icon extended travel 3.5" front coilovers, DSM UCAs, TSB leaf pack w/ wheelers AAL, All Pro U-bolt flip kit, Walker Evans 2.0 rear shocks, 18" XD Monster rims, Nitto trail grappler 285/65R18 Tires, Color matched grill, Grillcraft, Kragen HIDs, Carling switches, my bed light mod, diff drop, Alpine IVA-W505, JL Audio C5 componets and coaxials, JL 300/4 and 250/1 amps and JL stealthbox, wheathertechs, avs vent visors, toyota bed x-tender, alcantara center console cover and door pocket covers, console vault, color matched mirrors, heated mirrors, etc etc etc
    So i finally started working on my bed light mods. Been looking at different alternatives for a while and i've read a lot of write ups but i haven't liked any of them. I decided to come up with my own. I found a carling bedlight switch on carlings website and after about a month of searching for it on-line Mud-UK was able to get one for me in red like i had wanted. So then it was on to bed lights...I looked around for about a week straight and finally found some flush mount 12v reverse/back-up lights that i thought would work perfect.

    Next i took a hard piece of plastic about 1/8" tick and jut it up with the jigsaw to fit the side bed pockets. I tried using 1/4" wood but it just kept breaking as the one end had to be very thin for the way i wanted them mounted. I used lock-tite 5min epoxy to glue the plastic pieces in place.

    So then i sanded it all down and dropped them off at line-x and that is where they sit until tomorrow evening. I also mounted a carling 3 switch blank in my center console that i will use for bed lights, off road lights, and a cb radio. I dropped the center console off at line-x as well to get sprayed. I think it will give it a nice look for the rest of the cab, too much silver in there for me.

    Here is a teaser pic, finished pics on page 2:
    [​IMG]

    Here's some pics:

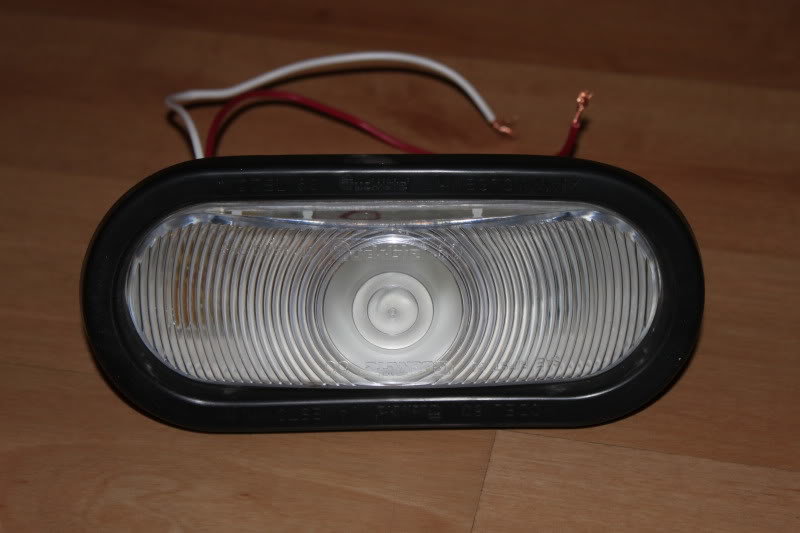

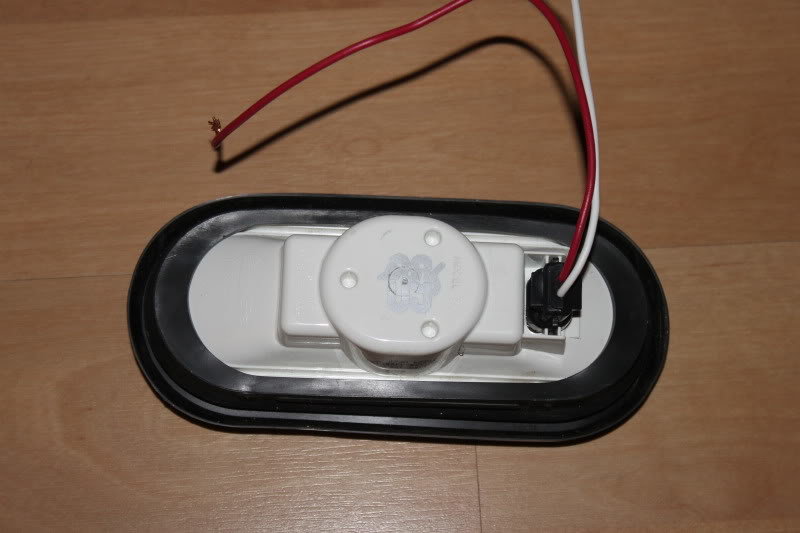

    The light, gromet and wiring plug
    [​IMG]
    [​IMG]

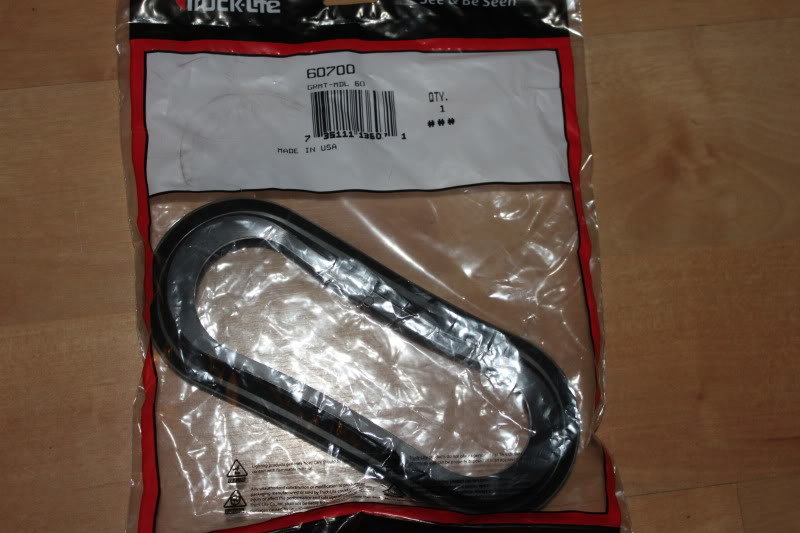

    Here they are for part numbers and brand
    [​IMG]
    [​IMG]
    [​IMG]

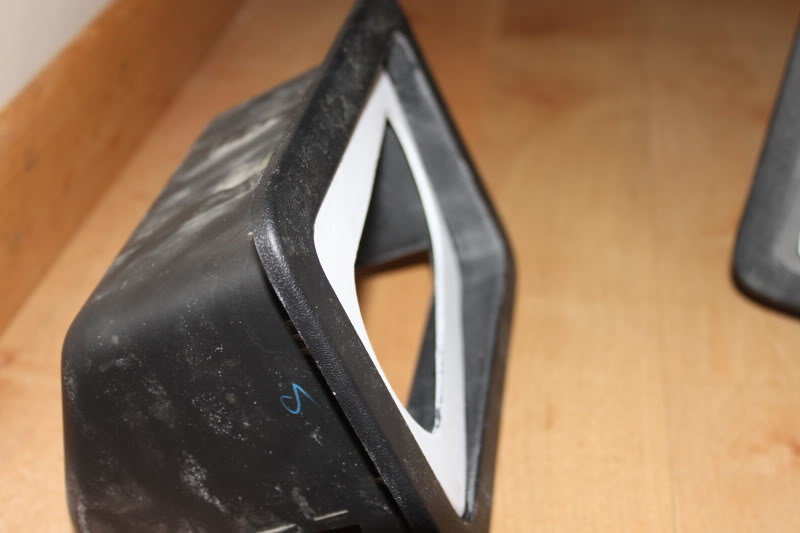

    My bed pockets modded, before line-x. You can see that i angled the lights both back and down to illuminate the entire bed.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    The best part of these lights was the total. Everywhere i found these lights on-line they were 30 bucks a piece + the plug and + shipping
    [​IMG]

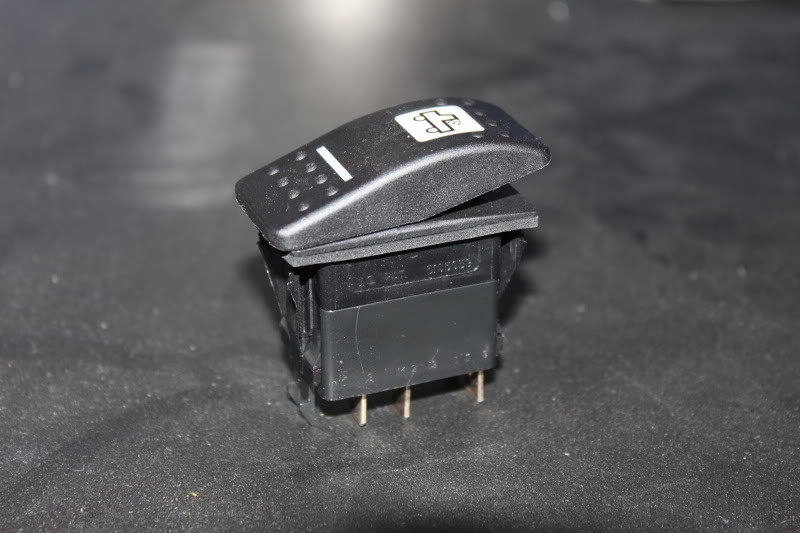

    My carling bed light switch
    [​IMG]
    [​IMG]

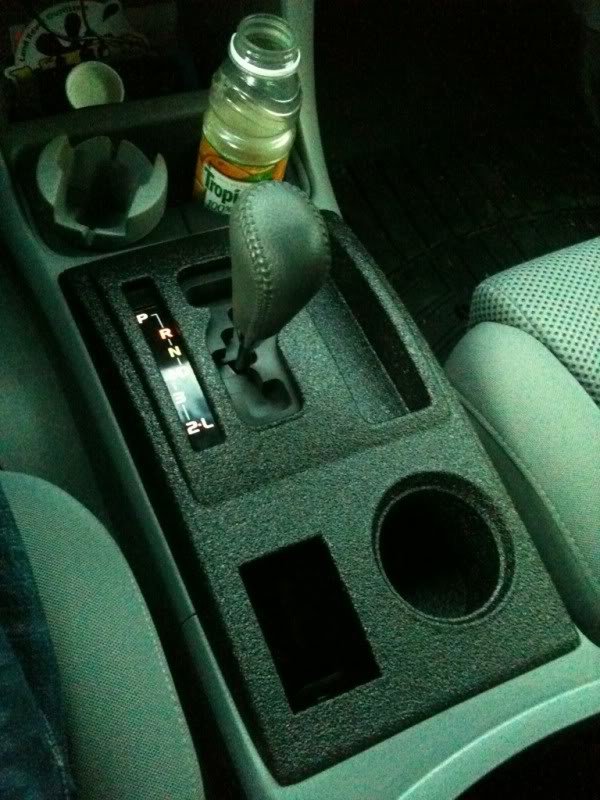

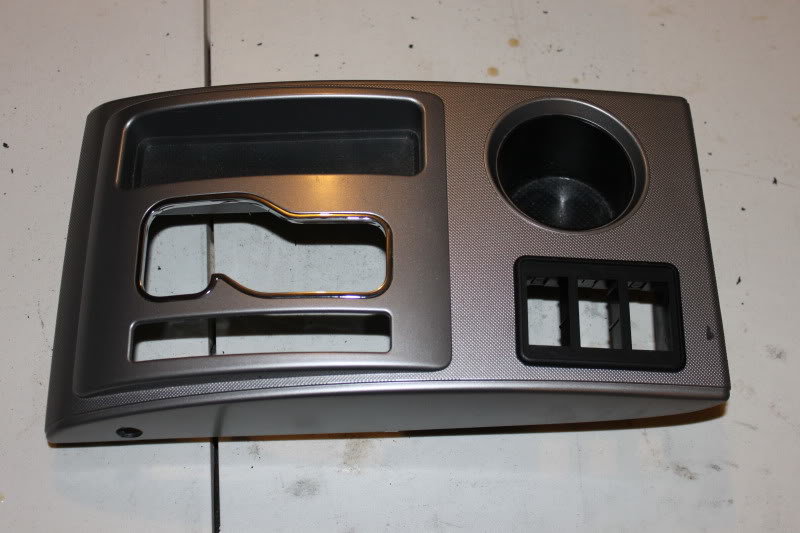

    Here is the 3 switch panel i installed in my center console as well
    [​IMG]
    [​IMG]

    So, the center console and bed pockets are at line-x right now and i'll have them back tomorrow. I'll take pics when i get them back and install them.
