First gen vs 3rd gen bed rail dimensions?

Discussion in '1st Gen. Tacomas (1995-2004)' started by rtwbound, Mar 20, 2022.

  1. Mar 20, 2022 at 1:29 PM
    #1
    rtwbound

    #1
    rtwbound [OP] Well-Known Member

    Joined:
    Apr 10, 2020
    Member:
    #324306
    Messages:
    229
    .

    Last edited: Apr 2, 2022
    rtwbound, Mar 20, 2022
    #1
  2. Mar 20, 2022 at 11:00 PM
    #2
    TRD493

    #2
    TRD493 Well-Known Member

    Joined:
    Dec 27, 2015
    Member:
    #173269
    Messages:
    1,718
    Gender:
    Male
    First Name:
    Dave
    Texas (DFW)
    Vehicle:
    17 TRD Sport DCLB 4x4 / 01 4x4 V6 Extra Cab TRD SR5
    TRD493, Mar 20, 2022
    #2
    rtwbound[OP] likes this.
  3. Mar 21, 2022 at 3:21 AM
    #3
    Black DOG Lila

    #3
    Black DOG Lila Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296344
    Messages:
    9,116
    Virginia
    Vehicle:
    2003 Tacoma SR5 2.7 5 speed 4WD
    Stock. EZ pass.Dump pass.Inspection sticker.Convict printed lic.plates.FG cap.
    1st gen

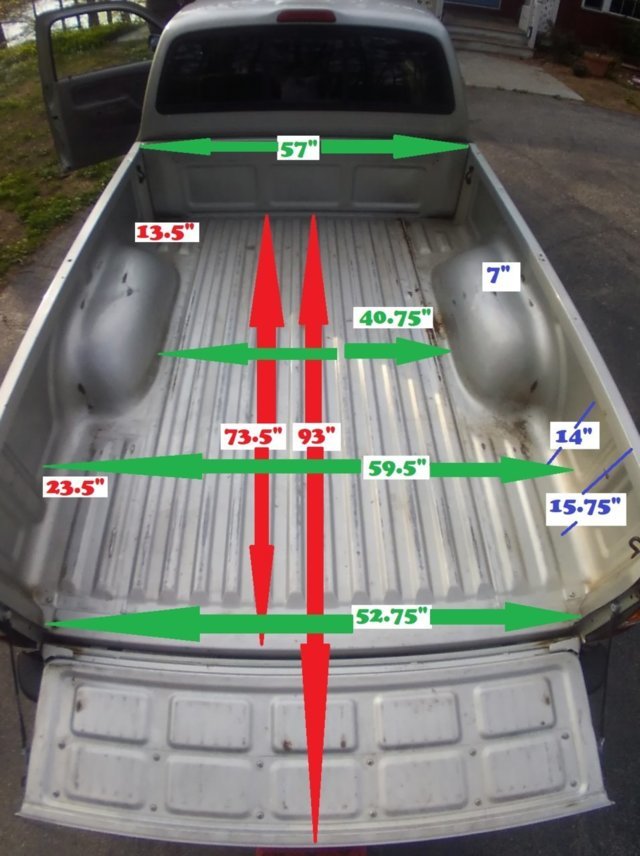

    bed dimensions.jpg

    2nd gen

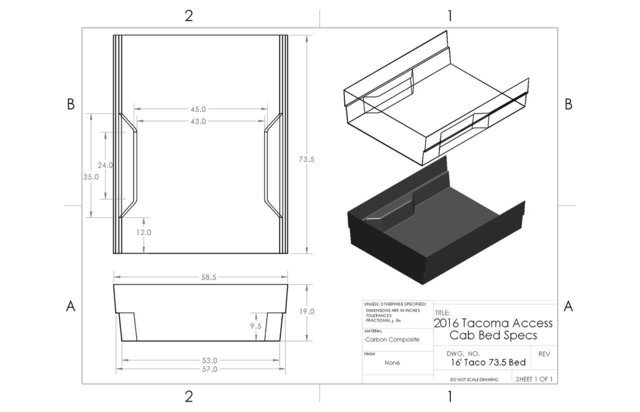

    16' Taco 73.5 Bed.jpg

    Black DOG Lila, Mar 21, 2022
    #3
    BrennMan and rtwbound[OP] like this.
