FLYZEYE Designs V2W Installation Procedure (preliminary)

Discussion in 'Lighting' started by flyzeye designs, Nov 20, 2011.

  1. Nov 20, 2011 at 1:43 PM
    #1
    flyzeye designs

    flyzeye designs [OP] Well-Known Member

    Joined:
    Feb 26, 2011
    Member:
    #51913
    Messages:
    1,579
    Gender:
    Male
    First Name:
    Darren
    San Tan Valley, AZ
    Vehicle:
    double-cab long-bed 4X4 debadged TRD Sport
    6 inch lift, tinted windows, custom tail lights, custom Red/White/Red-Black FLYZEYE Designs TCMA-0513 V2W interior light Custom Powder-Coated Devil Horns by Andres
    WARNING: Installtion of the V2W requires minor cutting and tapping into the Tacoma OEM harness for power/control. By purchasing a V2W, you the user, assume ALL liability for the quality of the installation. You, the user, assume ALL responsibility for ANY damage that may occur to your vehicle. You, the user, further assume ALL TOYOTA factory warranty consequences that may be incurred. You recognize that by installing a FLYZEYE Designs, LLC. TCMA-0511 V2W LED light, you may inadvertently void factory warranties and do so at your own risk. You also agree NOT to hold FLYZEYE Designs, LLC. responsible for ANY damages you may cause to your vehicle for ANY reason. By performing this or any updated future procedure from FLYZEYE Designs, LLC., you agree to assume ALL responsibility and liability for the proper installation as described herein.

    Installing the V2W is reasonably straight forward and should take less than 30 minutes.

    You will need: Businss Card (provided), a marking tool (such as a pen, pencil, etc.), side cutters, X-acto knife or similar cutting tool, safety glasses, pliers, and a digital volt meter (DVM). PLEASE use safety glasses during this installation primarily during the cutting steps to prevent eye injury. PLEASE read through and understand the entire procedure BEFORE attempting to perform. IF there are any questions, please contact us for clarification.

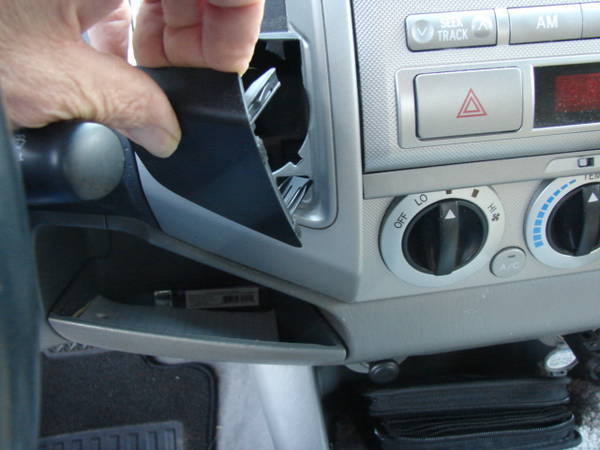

    Step 1. Remove the trim panel(s) below the A/C vents.

    [​IMG]

    [​IMG]

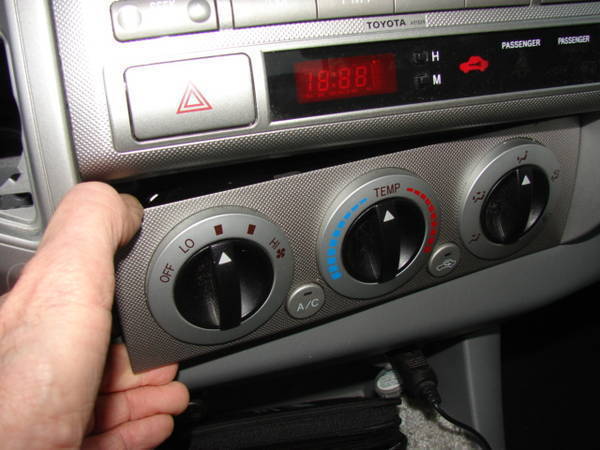

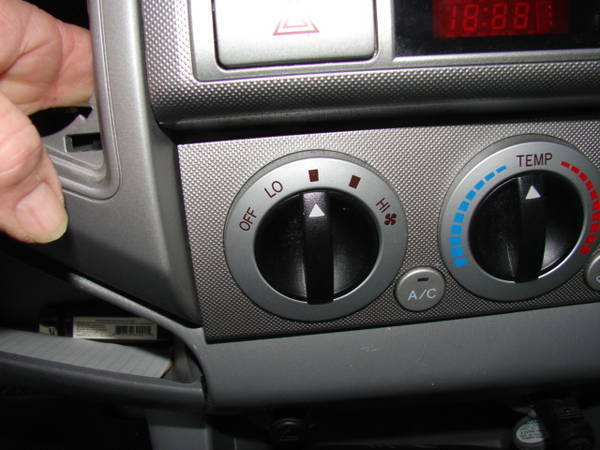

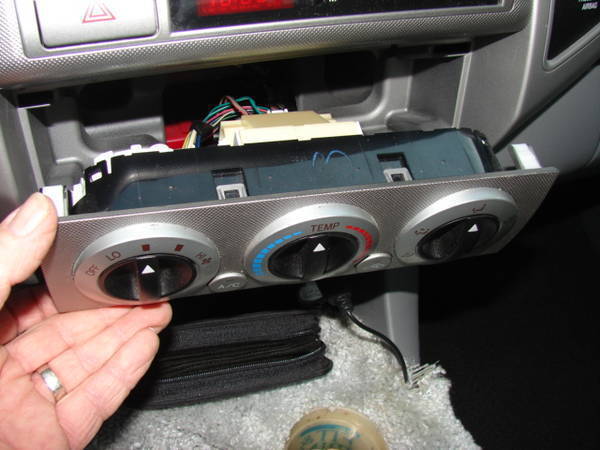

    Step 2. Carefully remove the HVAC control module.

    [​IMG]

    [​IMG]

    [​IMG]

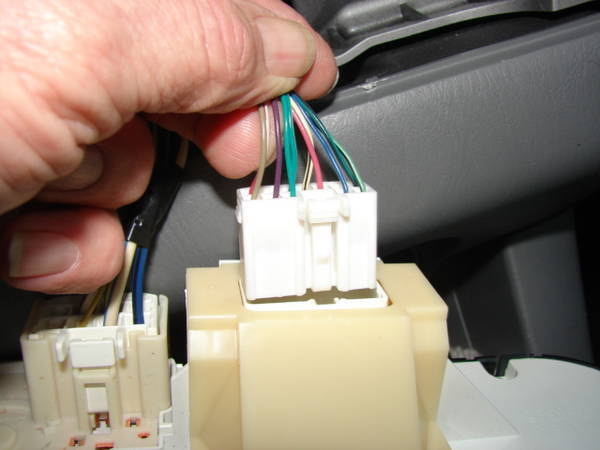

    Step 3. Disconnect the OEM harness plugs from the HVAC control module.

    [​IMG]

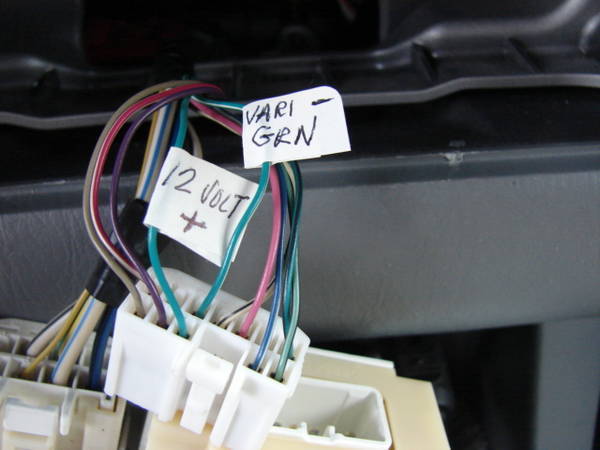

    Step 4. Identify and confirm the dimmer circuit using a DVM. On the 2007-2008 models, the solid GREEN and GREEN with WHITE striped wires are used. Please confirm this color code on other year models BEFORE continuing.

    [​IMG]

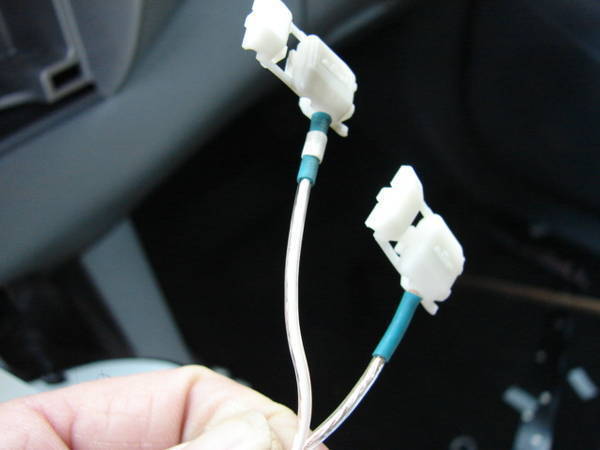

    Step 5. Prepare the V2W mounting plate as shown here. Note the color coding on the wires (GREEN & GREEN w/WHITE).

    [​IMG]

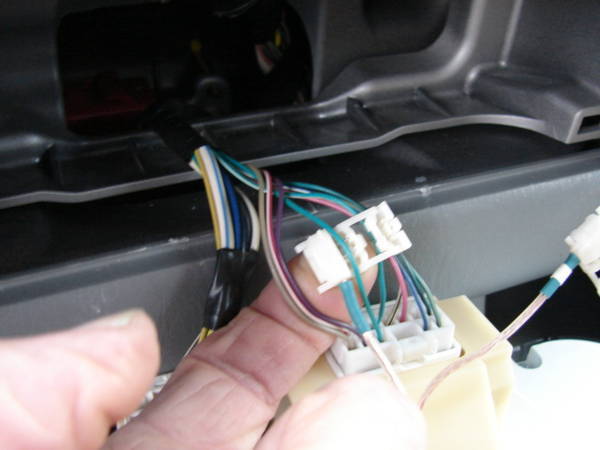

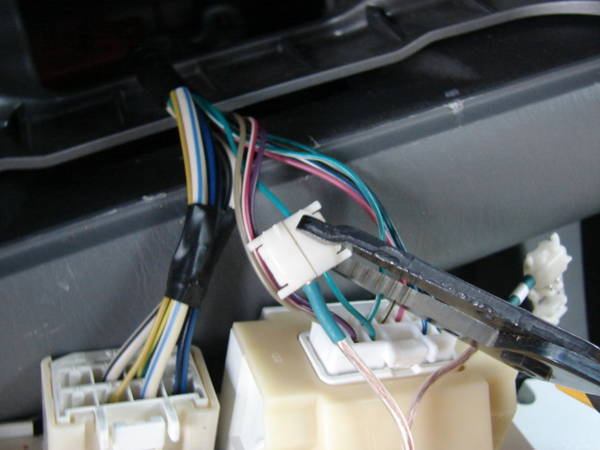

    Step 6. Crimp the AMP connectors to the OEM harness dimmer circuit. Match the colors on the mouting plate to the OEM harness.

    [​IMG]

    Note: Ensure a complete crimp for trouble-free connection. Do NOT cut the wires during the crimping process. Take your time.

    [​IMG]

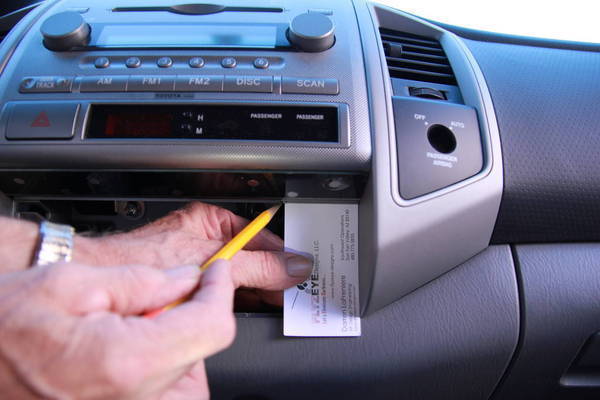

    Step 7. Mark the OEM stereo plastic panel as shown using an ordinary business card.

    [​IMG]

    Step 8. Make a small notch using side cutters, a sharp X-acto knife, or similar tool. Cut ONLY the lower edge to ensure a clean installation. Please be careful during this step.

    [​IMG]

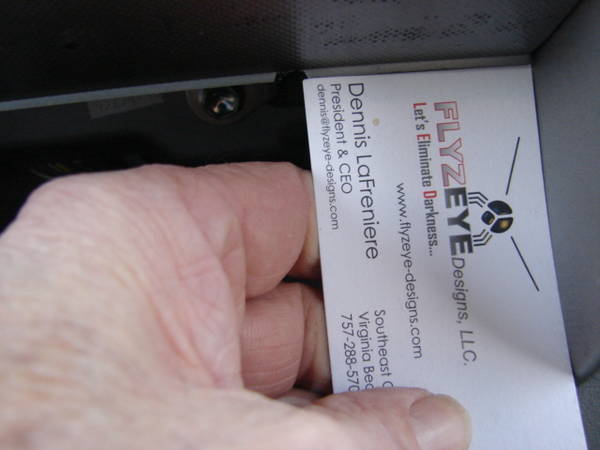

    Step 9. Confirm the notch is slightly to the left of the business card as shown. Ensure a large enough notch for the wire pair to pass.

    [​IMG]

    Step 10. Reconnect the HVAC control module and begin re-assembly.

    [​IMG]

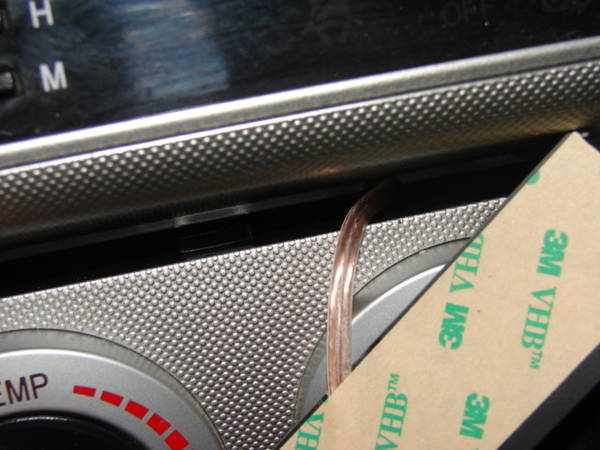

    Step 11. Gently feed the wired mounting plate into the dash ensuring no wires are strained or twisted. DO NOT peel the 3M liner at this time!

    [​IMG]

    Step 12. Install the HVAC control module completely ensuring the mouting plate is NOT obstructing the installation. DO NOT peel the 3M liner at this time!

    [​IMG]

    Step 13. Gently pull the mounting plate away from the HVAC control module enough to magnetically mount the LED assembly.

    [​IMG]

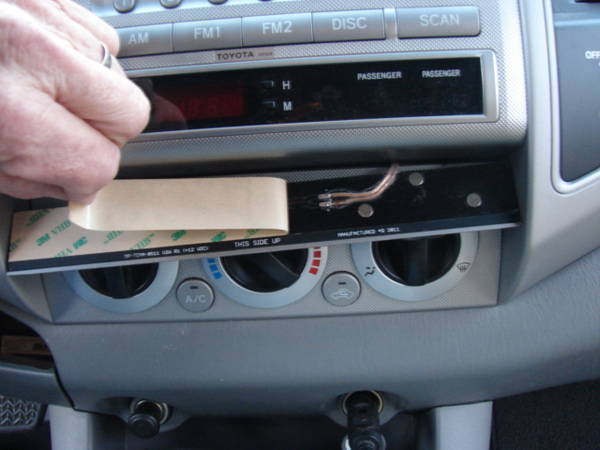

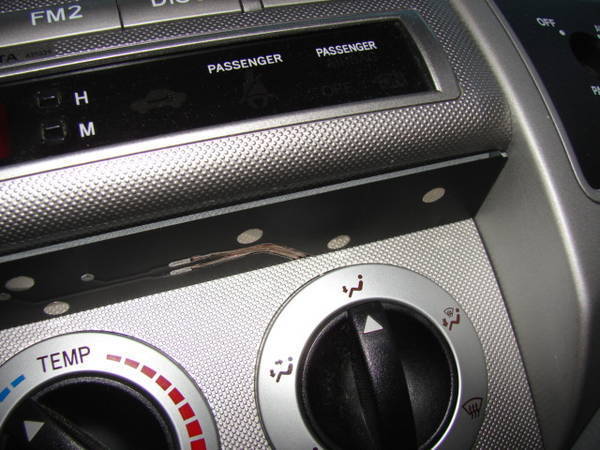

    Step 14. Mount the LED assembly to the mounting plate at this time and peel the 3M liner.

    [​IMG]

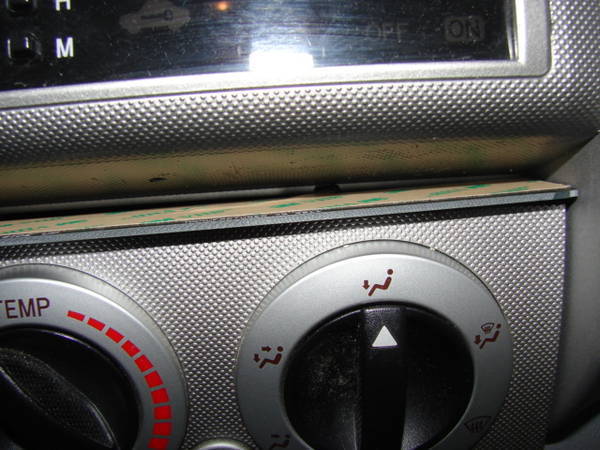

    Step 15. Carefully position the LED assmbly and mounting plate as far back as it will fit. Press firmly for a few seconds.

    [​IMG]

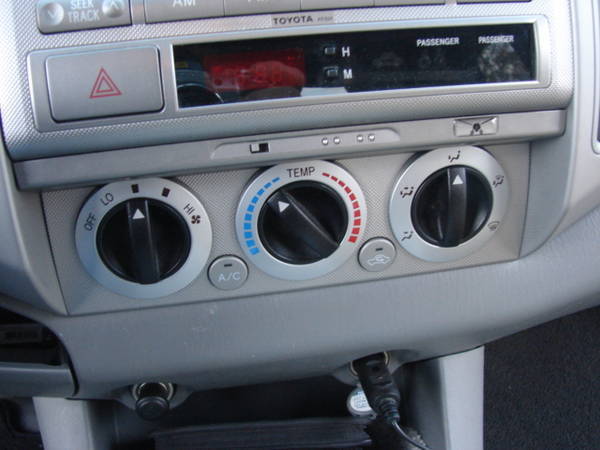

    Step 16. Confirm the position.

    [​IMG]

    Step 17. Test the unit: Turn ON the Tacoma Parking lights.
    a. Move the 3-position slide switch to either the Primary (middle) or secondary (right) positions.
    b. Adjust the TSDC contacts to full brightness.
    c. Adjust the Tacoma dimmer circuit to confirm a proper wiring connection has been made.
    d. Magnetically dismount the LED light from the mounting plate. It should still be on for remote lighting needs.

    Step 18. Enjoy!

  2. Nov 21, 2011 at 3:07 PM
    #2
    supralight

    supralight Well-Known Member

    Joined:
    Aug 20, 2009
    Member:
    #21479
    Messages:
    674
    Gender:
    Male
    First Name:
    Dan
    Earth
    Vehicle:
    2013 4Runner limited
    Seems Pretty easy. Nice to know we will have a working dimmer on the halos. Any news on the release date?

  3. Nov 21, 2011 at 3:27 PM
    #3
    flyzeye designs

    flyzeye designs [OP] Well-Known Member

    Joined:
    Feb 26, 2011
    Member:
    #51913
    Messages:
    1,579
    Gender:
    Male
    First Name:
    Darren
    San Tan Valley, AZ
    Vehicle:
    double-cab long-bed 4X4 debadged TRD Sport
    6 inch lift, tinted windows, custom tail lights, custom Red/White/Red-Black FLYZEYE Designs TCMA-0513 V2W interior light Custom Powder-Coated Devil Horns by Andres
    Expecting a formal release on 1 December. Please keep an eye on ourwebsite as we may end up selling the V2W sooner. :)

  4. Nov 21, 2011 at 4:54 PM
    #4
    USAFVol

    USAFVol Well-Known Member

    Joined:
    Jul 28, 2011
    Member:
    #60730
    Messages:
    57
    Gender:
    Male
    Vehicle:
    07 TRD Sport
    OK, forgive my ignorance on this. But I don't have much electrical experience and have a question.

    After you identify the wiring, you will crimp the Grn&Wht on you light to the Grn&Wht on the harness and the same for the solid green?

    And there is no cutting of the wire, just put the wire in and crimp it down thus causing the connection (Power?)

    If it helps answer, I have a 2007. TIA

    Saw your product as a battery powered unit and thought they were great, hoped to have a wired version.

  5. Nov 21, 2011 at 5:07 PM
    #5
    AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,357
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    nice, i should check to see if the HVAC wirings are the same for my 2011..

  6. Nov 21, 2011 at 5:10 PM
    #6
    RJALLDAY702

    RJALLDAY702 U MAD? OH U MAD

    Joined:
    Sep 12, 2011
    Member:
    #63360
    Messages:
    14,163
    Gender:
    Male
    First Name:
    RJ
    Hermosa Beach
    Vehicle:
    08'
    6" Ruff Country DBL
    Im sorry, really stupid question. But what exactly does it do?

    From what ive gathered its something with headlights?
    be gentle..

  7. Nov 21, 2011 at 5:13 PM
    #7
    AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,357
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    RJ, its interior lighting at its finest

  8. Nov 21, 2011 at 5:14 PM
    #8
    RJALLDAY702

    RJALLDAY702 U MAD? OH U MAD

    Joined:
    Sep 12, 2011
    Member:
    #63360
    Messages:
    14,163
    Gender:
    Male
    First Name:
    RJ
    Hermosa Beach
    Vehicle:
    08'
    6" Ruff Country DBL
    Oh! Gotchyaaa!

  9. Nov 21, 2011 at 5:16 PM
    #9
    rcbs204

    rcbs204 Well-Known Member Vendor

    Joined:
    Oct 2, 2009
    Member:
    #23681
    Messages:
    3,703
    Gender:
    Male
    You know i got to say you guys (Flyzeye) do a fine job with your hardware!!
    I wouldn't mind buying one of these just to see your design.
    Very nice looking product.

  10. Nov 21, 2011 at 5:24 PM
    #10
    flyzeye designs

    flyzeye designs [OP] Well-Known Member

    Joined:
    Feb 26, 2011
    Member:
    #51913
    Messages:
    1,579
    Gender:
    Male
    First Name:
    Darren
    San Tan Valley, AZ
    Vehicle:
    double-cab long-bed 4X4 debadged TRD Sport
    6 inch lift, tinted windows, custom tail lights, custom Red/White/Red-Black FLYZEYE Designs TCMA-0513 V2W interior light Custom Powder-Coated Devil Horns by Andres
    Thanks for checking us out and throwing the compliment! We sincerely do appreciate every single customer and potential customer. You guys are what make doing this worth it! :thumbsup:

  11. Nov 21, 2011 at 5:25 PM
    #11
    flyzeye designs

    flyzeye designs [OP] Well-Known Member

    Joined:
    Feb 26, 2011
    Member:
    #51913
    Messages:
    1,579
    Gender:
    Male
    First Name:
    Darren
    San Tan Valley, AZ
    Vehicle:
    double-cab long-bed 4X4 debadged TRD Sport
    6 inch lift, tinted windows, custom tail lights, custom Red/White/Red-Black FLYZEYE Designs TCMA-0513 V2W interior light Custom Powder-Coated Devil Horns by Andres
    Please do. If the color coding is the same, we'll expand our confirmations. We think the 2005-2011 are the same, but aren't 100% - yet. :)

  12. Nov 21, 2011 at 5:26 PM
    #12
    Joben7726

    Joben7726 wes mantooth ™

    Joined:
    Oct 26, 2010
    Member:
    #45285
    Messages:
    6,383
    Gender:
    Male
    First Name:
    Joben
    Western PA/Va Beach
    Vehicle:
    Trail limo
    more than list-able
    I just got the model prior to this, that does not hook up to power, but I think I may try to wire it up.

  13. Nov 21, 2011 at 5:44 PM
    #13
    flyzeye designs

    flyzeye designs [OP] Well-Known Member

    Joined:
    Feb 26, 2011
    Member:
    #51913
    Messages:
    1,579
    Gender:
    Male
    First Name:
    Darren
    San Tan Valley, AZ
    Vehicle:
    double-cab long-bed 4X4 debadged TRD Sport
    6 inch lift, tinted windows, custom tail lights, custom Red/White/Red-Black FLYZEYE Designs TCMA-0513 V2W interior light Custom Powder-Coated Devil Horns by Andres
    We do NOT recommend this ONLY b/c it's a 6V system. :eek: The V2W is a 12V system.

    You are however, welcome to try but know that doing so will void all warranties. You might consider purchasing a V2W (as a repeat customer, you'll receive a loyalty discount of $10.00 off your order. No pressure here. Just FYI. Please contact me if you have any questions.

    IF you do attempt to hardwire the V1, you will VERY likely need a new Graphic Overlay (we can get you one for a very reasonable price.

    Additionally, the V1 will mount and function on the V2W mounting plate but not vice versa.

  14. Nov 21, 2011 at 5:49 PM
    #14
    Shiftin2Sixth

    Shiftin2Sixth I'm crackin eggs of wisdom

    Joined:
    Oct 31, 2007
    Member:
    #3316
    Messages:
    507
    Gender:
    Male
    First Name:
    Curt (kûrt)
    Rialto, Ca
    Vehicle:
    07 4Runner Sport V8 BLK 4WD
    :yay:

  15. Nov 21, 2011 at 5:51 PM
    #15
    Joben7726

    Joben7726 wes mantooth ™

    Joined:
    Oct 26, 2010
    Member:
    #45285
    Messages:
    6,383
    Gender:
    Male
    First Name:
    Joben
    Western PA/Va Beach
    Vehicle:
    Trail limo
    more than list-able

    There are not too many upgrades to do there, might look into in :spy:

  16. Nov 21, 2011 at 5:52 PM
    #16
    flyzeye designs

    flyzeye designs [OP] Well-Known Member

    Joined:
    Feb 26, 2011
    Member:
    #51913
    Messages:
    1,579
    Gender:
    Male
    First Name:
    Darren
    San Tan Valley, AZ
    Vehicle:
    double-cab long-bed 4X4 debadged TRD Sport
    6 inch lift, tinted windows, custom tail lights, custom Red/White/Red-Black FLYZEYE Designs TCMA-0513 V2W interior light Custom Powder-Coated Devil Horns by Andres
    In short, yes. Match the solid GREEN to the solid GREEN and GREEN-w/WHITE stripe to GREEN-w/WHITE stripe.

    Caution: We have NOT confirmed this coding on ALL models. You may consider having a friend assist if you do not feel comfortable with the install.

    Also, the V1 (battery operated model) was designed for those who do NOT want to cut, trim, crimp, or wire into their vehicle. No cutting or soldering of wires is needed - crimp only.

    Something to consider as the V1 installs in seconds and lasts 6 months + depending on useage. ;)

  17. Nov 21, 2011 at 5:56 PM
    #17
    LBtaco

    LBtaco Thread killer

    Joined:
    Jan 23, 2009
    Member:
    #12893
    Messages:
    1,249
    Gender:
    Male
    Long Beach , CA
    Vehicle:
    15 Nissan Leaf
    Jetsons mod

    maybe I missed something...
    what's it do? not having any luck searching

  18. Nov 21, 2011 at 5:59 PM
    #18
    flyzeye designs

    flyzeye designs [OP] Well-Known Member

    Joined:
    Feb 26, 2011
    Member:
    #51913
    Messages:
    1,579
    Gender:
    Male
    First Name:
    Darren
    San Tan Valley, AZ
    Vehicle:
    double-cab long-bed 4X4 debadged TRD Sport
    6 inch lift, tinted windows, custom tail lights, custom Red/White/Red-Black FLYZEYE Designs TCMA-0513 V2W interior light Custom Powder-Coated Devil Horns by Andres

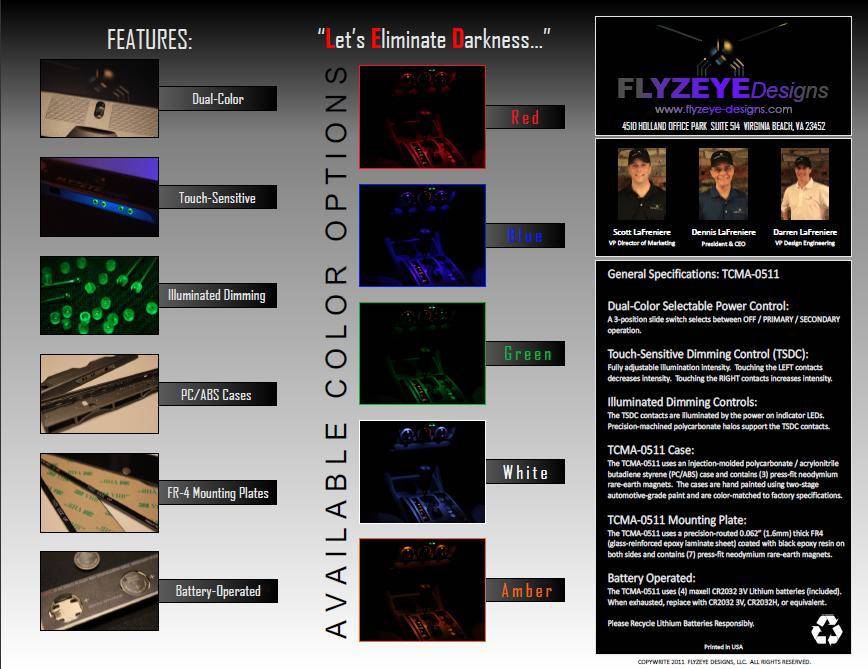

    Both the V1 and V2W are designed as Dual-Color, Touch-Sensitively Dimmable, Accent lighting for the Tacoma Center Console area. :)

    [​IMG]

    [​IMG]

  19. Nov 21, 2011 at 6:01 PM
    #19
    flyzeye designs

    flyzeye designs [OP] Well-Known Member

    Joined:
    Feb 26, 2011
    Member:
    #51913
    Messages:
    1,579
    Gender:
    Male
    First Name:
    Darren
    San Tan Valley, AZ
    Vehicle:
    double-cab long-bed 4X4 debadged TRD Sport
    6 inch lift, tinted windows, custom tail lights, custom Red/White/Red-Black FLYZEYE Designs TCMA-0513 V2W interior light Custom Powder-Coated Devil Horns by Andres
  20. Nov 21, 2011 at 6:04 PM
    #20
    fletch aka

    fletch aka www.BeLikeBrit.org

    Joined:
    Jan 4, 2009
    Member:
    #12223
    Messages:
    7,122
    Gender:
    Male
    First Name:
    Gary
    Left Coast
    Vehicle:
    09 Magnetic Gray TRD OffRoad
    TRD cat back exhaust, TRD Cold Air Intake, differential breather mod' Hellwig rear sway bar, 16x8 TRD Ivan Stewart's, Michelin LTX A/T2, DTRL Stealth Mode Mod, custom "Texas Edition" shift knob, Sock's "Classic" bedside decals, MetalMiller custom grill emblem, 20% front tinted windows, tinted taillights, Viper alarm, ScanGauge II, Flyzeye Designs V2W Tacoma Interior LED lighting, de-mud flapped, de-badged, extra D-rings under bed bolts, WeatherTech ED floor mats, G4 Elite Fold a Cover ,Toyota bed mat, tailgate theft deterrent device and absolutely no plasti-dip!
    You make a great product. I thought about holding out for the 12 volt unit but I'm glad I didn't. I'm still using the batteries that came with the light.
