Fog Light Switch Wireing Help

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Healyj7, Nov 9, 2017.

Post Reply

Nov 9, 2017 at 3:37 PM

#1

#1
Healyj7 [OP] 2010TRD Cape Cod

Joined:

Oct 7, 2015

Member:

#166015

Messages:

305

Gender:

Male

First Name:

Jason

Cape cod MA

Vehicle:

2010 Tacoma 4x4 crew cab...

Led third brake light All bulbs changed to LED Blue... Bed cover Extra tie downs in bed Borla 3' aftermarket excuast Blacked out front grill Smoked front lights White turn/running lights Bed security Mod 2 inch front lift and level with bilstein front and rear shocks... 1 Inch wheel spacers BF Goodrich AT tires 270/75/17

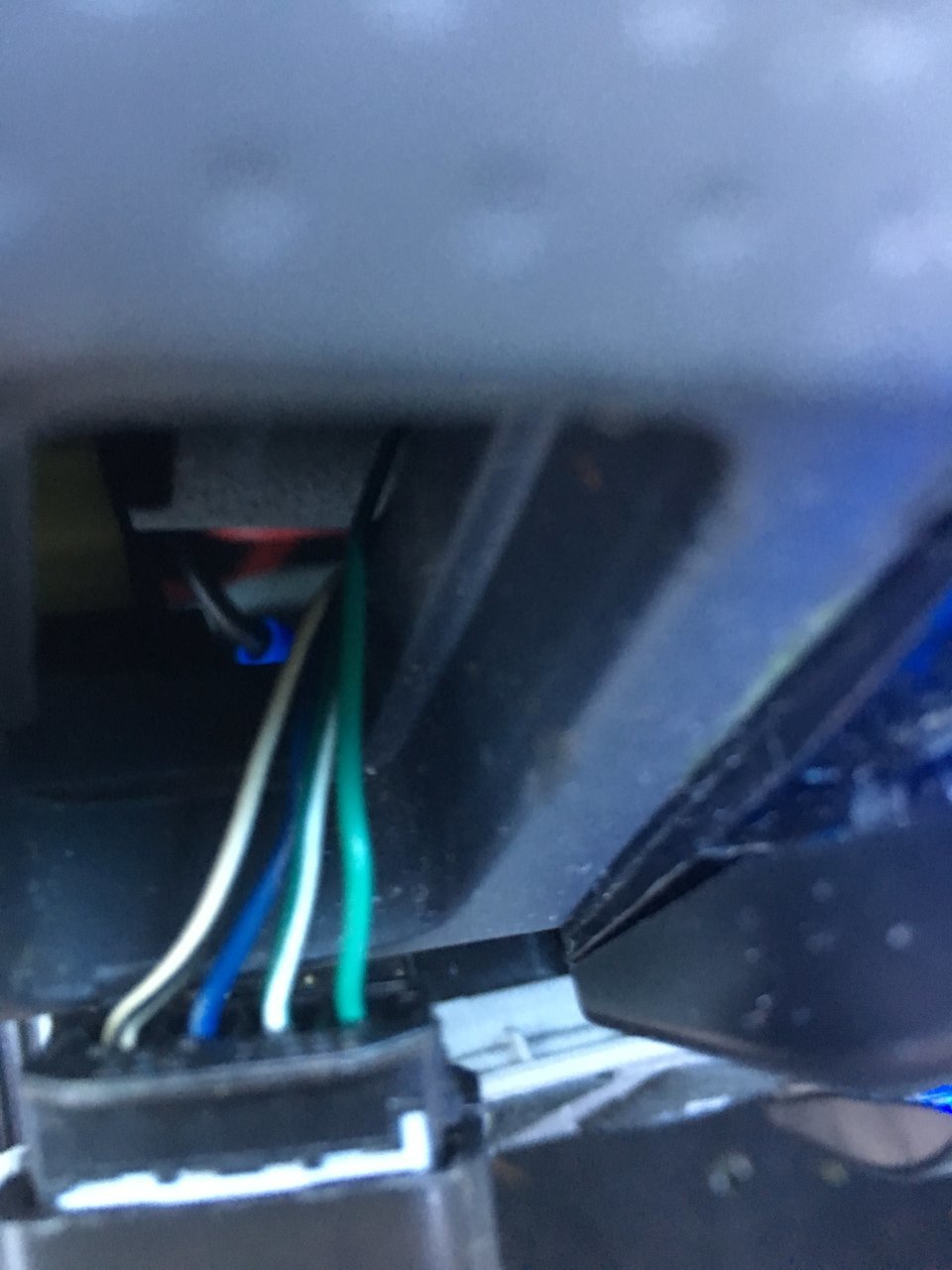

With no help from Fave book I am asking everyone here. The first two pictures are of the wiring that came with the Foglight switch when I got the truck. I got a new switch and the diagram has different wires. Any clue what wires from the two pictures attach to what wires in the diagram?

Healyj7, Nov 9, 2017

#1
