Fog Lights "a la Caribe Style"

Discussion in 'Lighting' started by caribe makaira, Feb 14, 2011.

  1. May 2, 2011 at 6:33 AM
    #21
    supralight

    supralight Well-Known Member

    Joined:
    Aug 20, 2009
    Member:
    #21479
    Messages:
    672
    Gender:
    Male
    First Name:
    Dan
    Earth
    Vehicle:
    2013 4Runner limited
    This a very good good option of the fog light always on mod If you are under warranty and worry about altering your truck. 99.9% of chances your dealer won't notice.

  2. May 4, 2011 at 4:23 PM
    #22
    cartage1

    cartage1 Well-Known Member

    Joined:
    Jan 9, 2010
    Member:
    #29057
    Messages:
    84
    Gender:
    Male
    Cleveland, Oh
    Vehicle:
    TRD, Sport
    Great OP, nice and clean.... Carib & rendog.., so I don't have to demonstrate my proficiency in the use of colorful adjectives.., is there a trick to separating that panel with ease? Also, 30 minutes about right?? -> seemed like it should be quicker.

    Thanks to Crom too for pointing out the two 'clean' versions for this mod.

    Thanks in advance!

  3. May 4, 2011 at 4:39 PM
    #23
    xJuice

    xJuice My spoon is too Big!

    Joined:
    Oct 24, 2007
    Member:
    #3208
    Messages:
    9,698
    Gender:
    Male
    First Name:
    Josh
    North DFW
    Vehicle:
    19 Tundra MGM
    TRD Rear Sway Bar, Undercover SE, Rear diff. Relocate, console organizer, debadged, color matched handles and mirror caps
    Dang, had I not already done another method I'd be all over this. Guess I could always revert to this method :p

  4. May 4, 2011 at 6:33 PM
    #24
    rendog

    rendog i miss my 04

    Joined:
    Jun 30, 2009
    Member:
    #19097
    Messages:
    392
    Gender:
    Male
    Hawaii
    Vehicle:
    2011 4x4 TRD Sport
    [​IMG]

    first i released the 2 tabs closest to the fender then pull up slightly. i stuck some "wedges" (i used a thin paperclip wire) in the 2 tabs to hold it in place & keep em from slipping back in. then starting in the top left corner released each tab moving clockwise & shimmy the panel up after each tab.

    after all the colorful language, the "wedges" finally did the trick. hope that helps

  5. May 6, 2011 at 4:30 PM
    #25
    blacktaco07

    blacktaco07 Active Member

    Joined:
    Apr 5, 2011
    Member:
    #54405
    Messages:
    34
    Gender:
    Male
    Canada
    Vehicle:
    2007 4DR Tacoma TRD
    Did this mod today.....nice and clean....took about 30 minutes especially once you figure out how to remove the wire from harness. Out of all the ways to do "Fog Lights Anytime" This is the best!! IMO

    Thanks:)

  6. May 7, 2011 at 9:47 AM
    #26
    blacktaco07

    blacktaco07 Active Member

    Joined:
    Apr 5, 2011
    Member:
    #54405
    Messages:
    34
    Gender:
    Male
    Canada
    Vehicle:
    2007 4DR Tacoma TRD
    I wasn't sure where/how the locking mechanism was on the wire.....soooo after closer examination, I realized that my screw driver was a bit too big to pry the lock. As a result, I used a safety pin and unlokced it in that fashion....very easy mod once I had this done and I think the front end looks way better with only the fog lights on!!:thumbsup::thumbsup:

  7. May 8, 2011 at 11:00 AM
    #27
    cartage1

    cartage1 Well-Known Member

    Joined:
    Jan 9, 2010
    Member:
    #29057
    Messages:
    84
    Gender:
    Male
    Cleveland, Oh
    Vehicle:
    TRD, Sport
    How did you guys get the pin to release?

    I cannot get that little guy out?

    Thanks in advance.

  8. May 8, 2011 at 11:23 AM
    #28
    blacktaco07

    blacktaco07 Active Member

    Joined:
    Apr 5, 2011
    Member:
    #54405
    Messages:
    34
    Gender:
    Male
    Canada
    Vehicle:
    2007 4DR Tacoma TRD
    Use a needle or safety pin and at the front of the slot that you want the wire remove....add pressure down and bend it towards the front.......As this is happening, use a very small screwdriver and press down on the metal pin you wish to remove.

    Look at an empty slot and you will see what I mean...the plastic tab is on the fuse box itself and not the wire...

    Hope this helps

  9. May 8, 2011 at 12:03 PM
    #29
    cartage1

    cartage1 Well-Known Member

    Joined:
    Jan 9, 2010
    Member:
    #29057
    Messages:
    84
    Gender:
    Male
    Cleveland, Oh
    Vehicle:
    TRD, Sport
    Cool, I'll give it a shot.., thanks for the help!

    Buttoned it back up for the day, but will try again soon.

    Oddly enough.. I initially struggled separating the panel, but just ended up pulling with steady pressure upwards and hitting the clips one by one.., popped right out.

    Anyone else considering this mod..don't over think this part..., just pull upward while releasing the clips....

  10. May 8, 2011 at 5:55 PM
    #30
    pgiroua

    pgiroua Geaux Tigers

    Joined:
    May 6, 2011
    Member:
    #56210
    Messages:
    520
    Gender:
    Male
    First Name:
    Royce
    Cypress, TX
    Vehicle:
    07 PreRunner SR5
    Fog Lights "a la Caribe Style", 20% Tint, csjumper2003's LED's (dome, map lights, park lights), Sylvania ZXE headlights and fog lights, Tonnopro Bed Cover, DTRL on any time mod by piercedtiger, Maxtrac Spindles, Bilstein 5100's (front and back), OME 883 Coils, All Pro Standard Leaf Pack
    When you say "remove the wire from harness" are you talking about when you remove the slot 21 pin?

    This is the spot that I am stuck at. I can't figure out how to remove that pin from its slot.:confused:

    -Royce

  11. May 8, 2011 at 6:26 PM
    #31
    pgiroua

    pgiroua Geaux Tigers

    Joined:
    May 6, 2011
    Member:
    #56210
    Messages:
    520
    Gender:
    Male
    First Name:
    Royce
    Cypress, TX
    Vehicle:
    07 PreRunner SR5
    Fog Lights "a la Caribe Style", 20% Tint, csjumper2003's LED's (dome, map lights, park lights), Sylvania ZXE headlights and fog lights, Tonnopro Bed Cover, DTRL on any time mod by piercedtiger, Maxtrac Spindles, Bilstein 5100's (front and back), OME 883 Coils, All Pro Standard Leaf Pack
    Thanks for the quick reply caribe. :cheers:

    So once you hold down the retaining tab and put the screwdriver into the female pin, it will just come right out (sticking to the screwdriver)?

  12. May 8, 2011 at 6:56 PM
    #32
    pgiroua

    pgiroua Geaux Tigers

    Joined:
    May 6, 2011
    Member:
    #56210
    Messages:
    520
    Gender:
    Male
    First Name:
    Royce
    Cypress, TX
    Vehicle:
    07 PreRunner SR5
    Fog Lights "a la Caribe Style", 20% Tint, csjumper2003's LED's (dome, map lights, park lights), Sylvania ZXE headlights and fog lights, Tonnopro Bed Cover, DTRL on any time mod by piercedtiger, Maxtrac Spindles, Bilstein 5100's (front and back), OME 883 Coils, All Pro Standard Leaf Pack
    Ahaaaa! Now it makes sense!

    Sorry for my ignorance and thanks so much for the help!

  13. May 9, 2011 at 1:23 PM
    #33
    pgiroua

    pgiroua Geaux Tigers

    Joined:
    May 6, 2011
    Member:
    #56210
    Messages:
    520
    Gender:
    Male
    First Name:
    Royce
    Cypress, TX
    Vehicle:
    07 PreRunner SR5
    Fog Lights "a la Caribe Style", 20% Tint, csjumper2003's LED's (dome, map lights, park lights), Sylvania ZXE headlights and fog lights, Tonnopro Bed Cover, DTRL on any time mod by piercedtiger, Maxtrac Spindles, Bilstein 5100's (front and back), OME 883 Coils, All Pro Standard Leaf Pack
    Just finished my first mod to my truck! Much thanks to caribe for putting this together and replying to my questions on this thread ASAP! :cheers:

    I am curious though why the fog light indicator on the dash comes on only when the headlights are switched on? Not a big deal to me in the grand scheme of things but just curious.

    Brawny likes this.
  14. May 9, 2011 at 1:31 PM
    #34
    xJuice

    xJuice My spoon is too Big!

    Joined:
    Oct 24, 2007
    Member:
    #3208
    Messages:
    9,698
    Gender:
    Male
    First Name:
    Josh
    North DFW
    Vehicle:
    19 Tundra MGM
    TRD Rear Sway Bar, Undercover SE, Rear diff. Relocate, console organizer, debadged, color matched handles and mirror caps
    There isn't a fog light indicator. That's either the headlight indicator or the brights indicator you're seeing.

  15. May 9, 2011 at 1:48 PM
    #35
    pgiroua

    pgiroua Geaux Tigers

    Joined:
    May 6, 2011
    Member:
    #56210
    Messages:
    520
    Gender:
    Male
    First Name:
    Royce
    Cypress, TX
    Vehicle:
    07 PreRunner SR5
    Fog Lights "a la Caribe Style", 20% Tint, csjumper2003's LED's (dome, map lights, park lights), Sylvania ZXE headlights and fog lights, Tonnopro Bed Cover, DTRL on any time mod by piercedtiger, Maxtrac Spindles, Bilstein 5100's (front and back), OME 883 Coils, All Pro Standard Leaf Pack
    Aaahh. I will have to pay attention to that. I could have swore that when I had the lights turned on the only time that I saw that light was when I put the fogs on. I am more than likely wrong though since I have only driven the truck a couple of times with the lights on...

  16. May 20, 2011 at 4:47 PM
    #36
    KalamaKid

    KalamaKid Well-Known Member

    Joined:
    Aug 3, 2008
    Member:
    #8323
    Messages:
    5,693
    Gender:
    Male
    First Name:
    Jason
    Oregon
    same shit as everyone else
    Just did this MOD! I took a ton of PICs and will update my Build tonight! Thanks! Took 30 minutes and was super easy. I found a couple work arounds to getting the fuse box apart! Thanks for the write up!

  17. May 20, 2011 at 6:49 PM
    #37
    KalamaKid

    KalamaKid Well-Known Member

    Joined:
    Aug 3, 2008
    Member:
    #8323
    Messages:
    5,693
    Gender:
    Male
    First Name:
    Jason
    Oregon
    same shit as everyone else
  18. May 28, 2011 at 4:47 PM
    #38
    Murphy1

    Murphy1 Blaggard

    Joined:
    May 20, 2011
    Member:
    #56972
    Messages:
    142
    Gender:
    Male
    First Name:
    Scott
    East Tennessee
    Vehicle:
    10 4x4 TRD Off Road
    Fog Lights "a la Caribe Style", seat belt chime off, 20% tint up front. Undercover classic tonneau cover
    I have only had my truck 6 days and this is one of the first mods I did. People are making way to much about the difficulty of this mod. Follow this with the addition of Jasonleblond's follow up (toothpics were a killer idea)
    http://www.tacomaworld.com/forum/2nd-gen-builds/129315-building-my-other-girlfriend-3.html
    Caribe, Thank you so much for this info. Very well explained.
    the only thing I didn't expect was to not be able to flip over the lower unit. I used a mirror to locate the wire from 21 and again to put into 12.
    Go slow, be patient and don't skip ahead. It took me 40 minutes and I was only on my second Gin and Tonic.

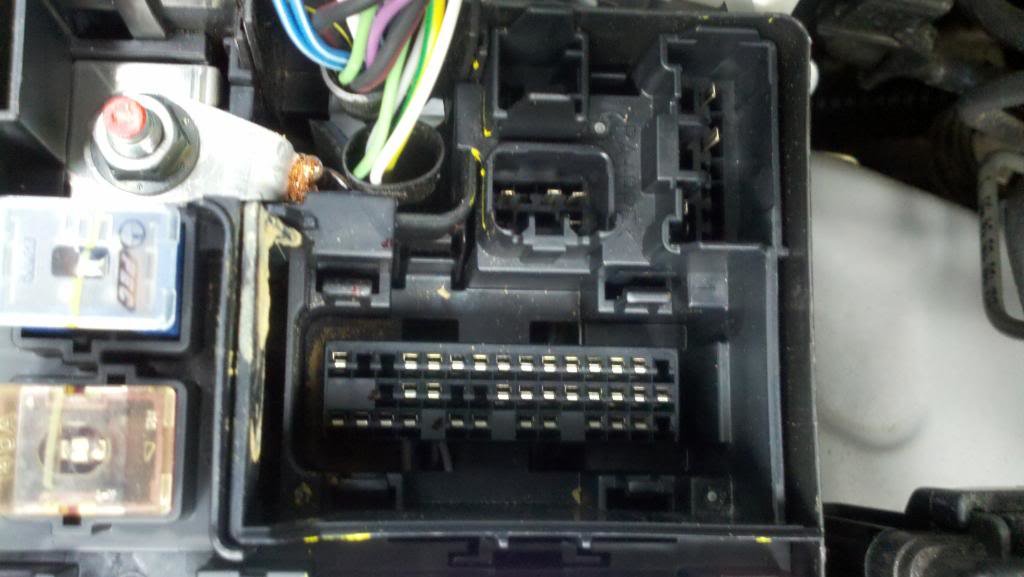

    Getting started

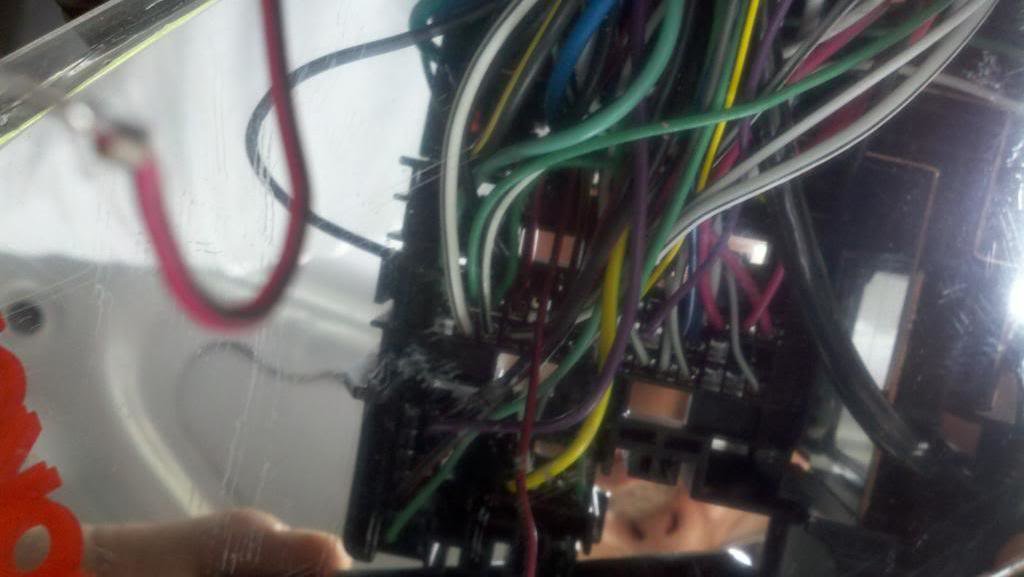

    using the mirror to remove the wire

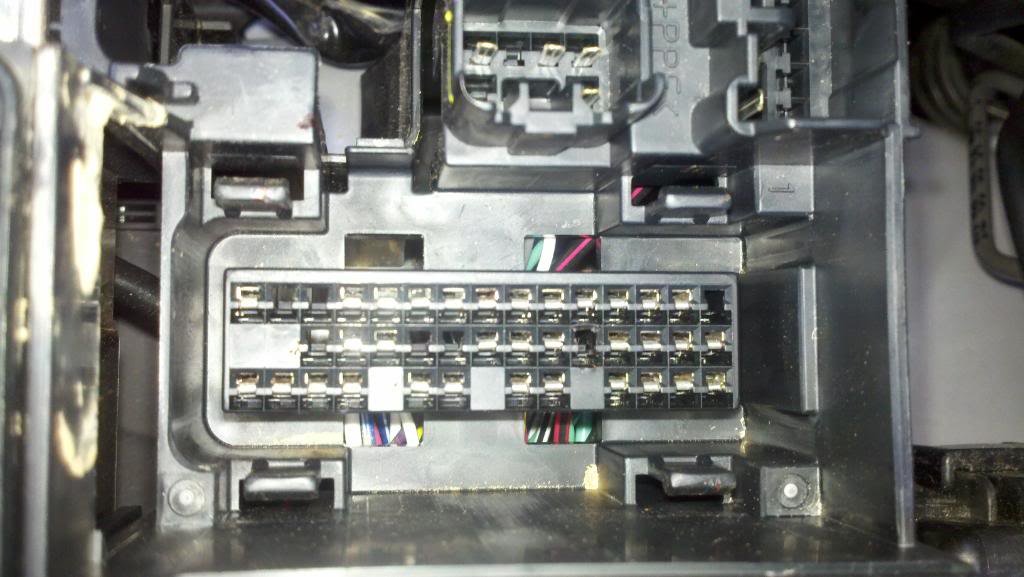

    Changed - starting to put back together

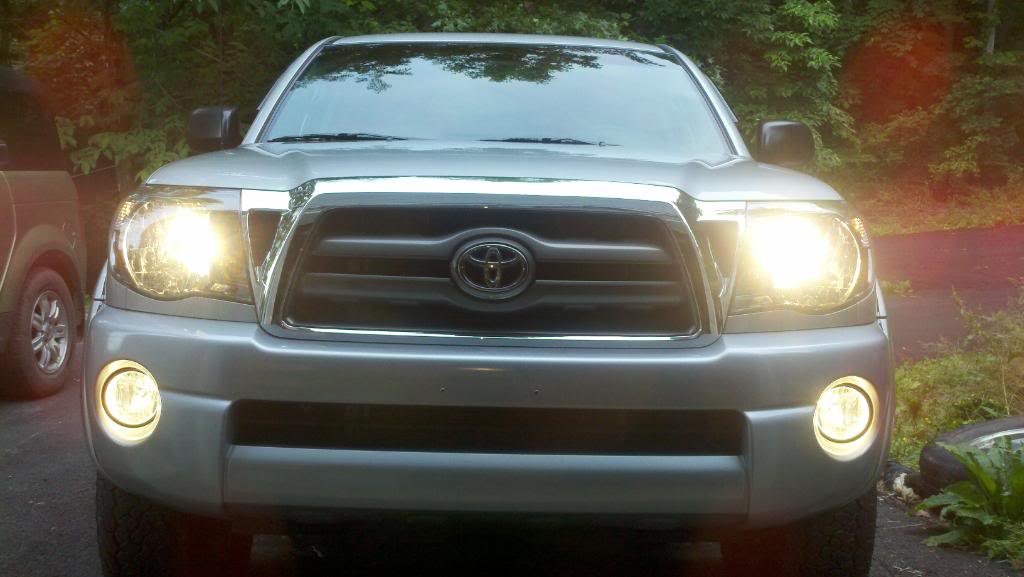

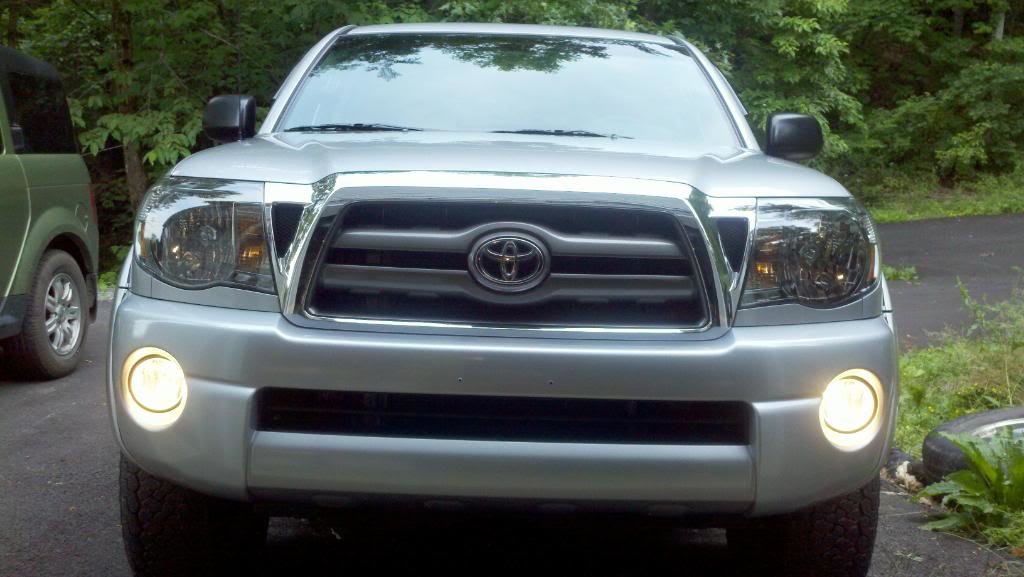

    Fogs only
    Fogs and low beams

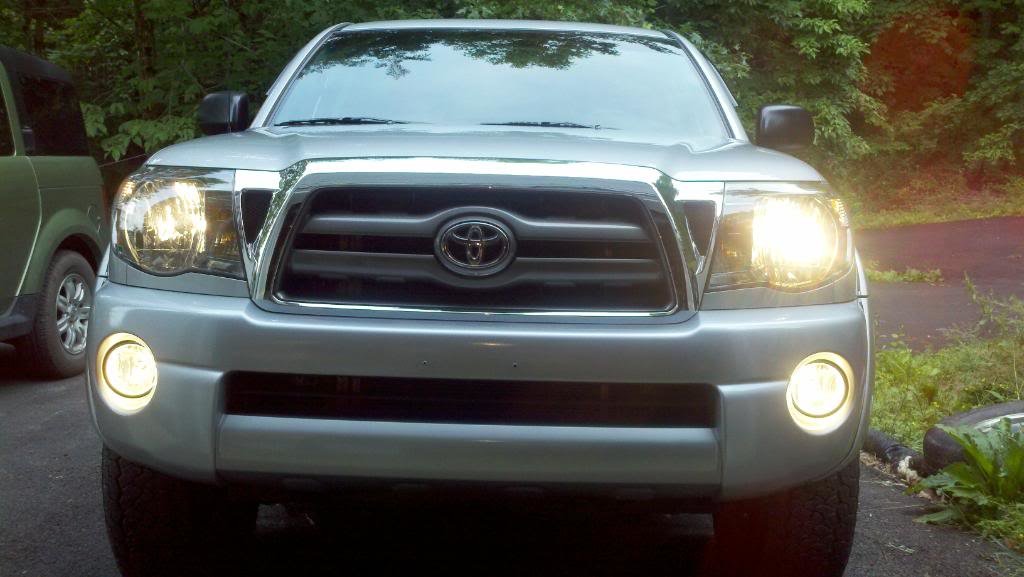

    Fogs and high beams

    Thanks again to Caribe and Jasonleblond for all the work and knowledge to make this easy.

  19. May 29, 2011 at 3:33 AM
    #39
    KalamaKid

    KalamaKid Well-Known Member

    Joined:
    Aug 3, 2008
    Member:
    #8323
    Messages:
    5,693
    Gender:
    Male
    First Name:
    Jason
    Oregon
    same shit as everyone else
    No problem bro! I changed out my fog lights and put some ricer super whites in there. I like em!

  20. May 29, 2011 at 5:05 AM
    #40
    pgiroua

    pgiroua Geaux Tigers

    Joined:
    May 6, 2011
    Member:
    #56210
    Messages:
    520
    Gender:
    Male
    First Name:
    Royce
    Cypress, TX
    Vehicle:
    07 PreRunner SR5
    Fog Lights "a la Caribe Style", 20% Tint, csjumper2003's LED's (dome, map lights, park lights), Sylvania ZXE headlights and fog lights, Tonnopro Bed Cover, DTRL on any time mod by piercedtiger, Maxtrac Spindles, Bilstein 5100's (front and back), OME 883 Coils, All Pro Standard Leaf Pack
    Do you have a pic of that Jason?
