Fog lights and light bar not working

Discussion in '2nd Gen. Tacomas (2005-2015)' started by axeman26, Jul 7, 2021.

  1. Jul 7, 2021 at 9:50 PM
    #1
    axeman26

    axeman26 [OP] Well-Known Member

    Joined:
    Jul 26, 2015
    Member:
    #160385
    Messages:
    199
    Gender:
    Male
    First Name:
    Will
    Bay Area
    Vehicle:
    2015 Tacoma 2wd 4cyl 4door
    Fatbob’s aal/front spacer/KO2’s/Curt trailer hitch
    Working on a 2015 Tacoma 4cyl

    alright I am out of ideas. I have two aftermarket kits installed on my Tacoma. One for foglights, the other for light bar and ditch lights. Everything was working and over time the light bar stopped working and then later the fog lights stopped as well. I have tried to isolate the issue but I ended up getting all new kits and installing them both all over again.
    The kicker is, the lights still don’t work. I’ve checked fuses grounds shorts splice points ect. At my wits end here. I am trying to regroup and figure out what I’ve missed. Please help.

  2. Jul 7, 2021 at 9:53 PM
    #2
    axeman26

    axeman26 [OP] Well-Known Member

    Joined:
    Jul 26, 2015
    Member:
    #160385
    Messages:
    199
    Gender:
    Male
    First Name:
    Will
    Bay Area
    Vehicle:
    2015 Tacoma 2wd 4cyl 4door
    Fatbob’s aal/front spacer/KO2’s/Curt trailer hitch
    Pics


    baldy54 likes this.
  3. Jul 7, 2021 at 9:54 PM
    #3
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,772
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Check the relays?

    Philrab and memario1214 like this.
  4. Jul 7, 2021 at 9:56 PM
    #4
    Smokinnuts

    Smokinnuts Well-Known Member

    Joined:
    Jul 20, 2019
    Member:
    #299835
    Messages:
    336
    Gender:
    Male
    First Name:
    HD
    Vehicle:
    2019 TRD Pro MT
    LED lights, Decked box
    Ditto on check the relays. Ive used that switch before too, and sometimes it crap right out of the box

    Philrab likes this.
  5. Jul 7, 2021 at 9:59 PM
    #5
    axeman26

    axeman26 [OP] Well-Known Member

    Joined:
    Jul 26, 2015
    Member:
    #160385
    Messages:
    199
    Gender:
    Male
    First Name:
    Will
    Bay Area
    Vehicle:
    2015 Tacoma 2wd 4cyl 4door
    Fatbob’s aal/front spacer/KO2’s/Curt trailer hitch

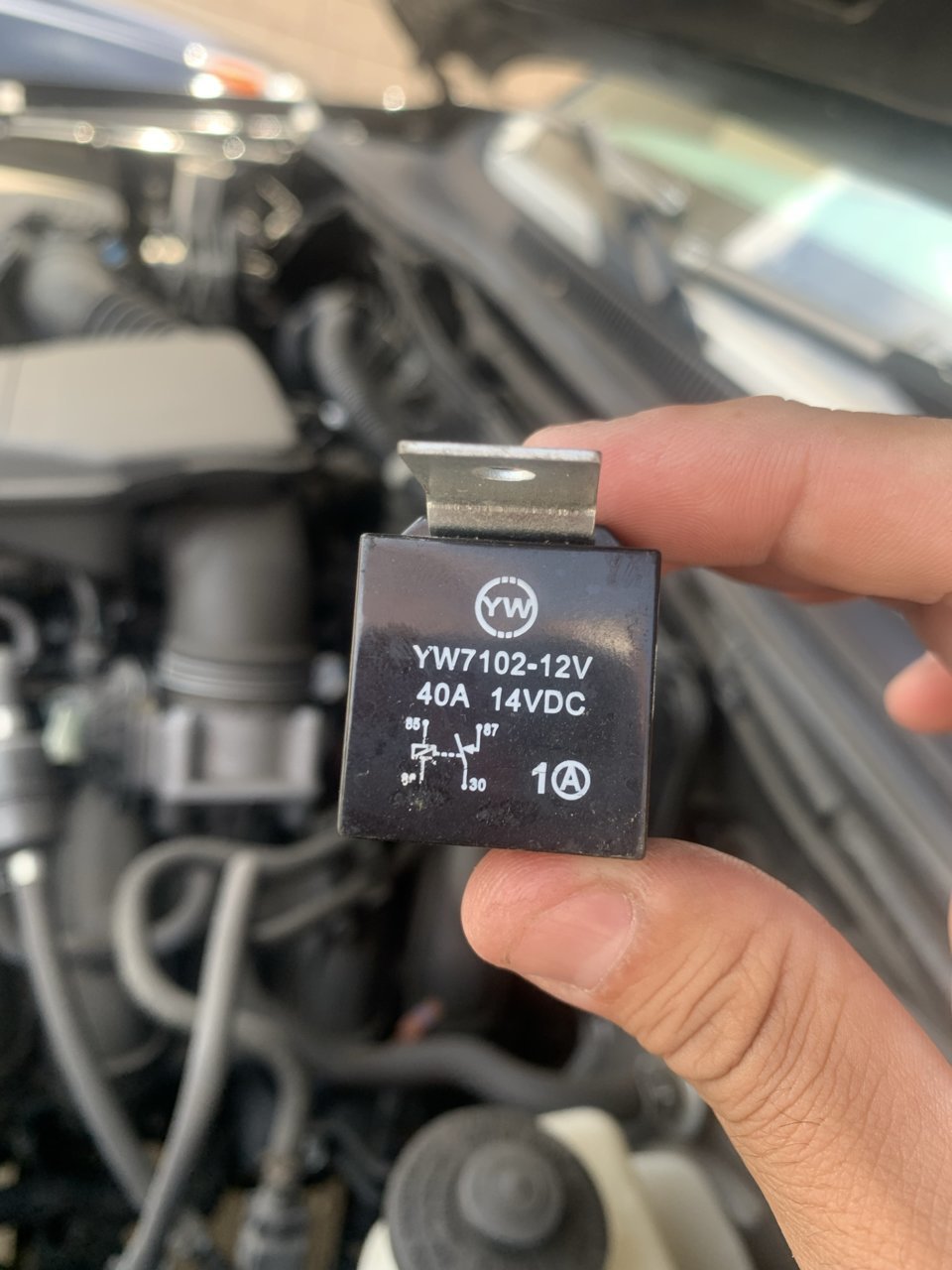

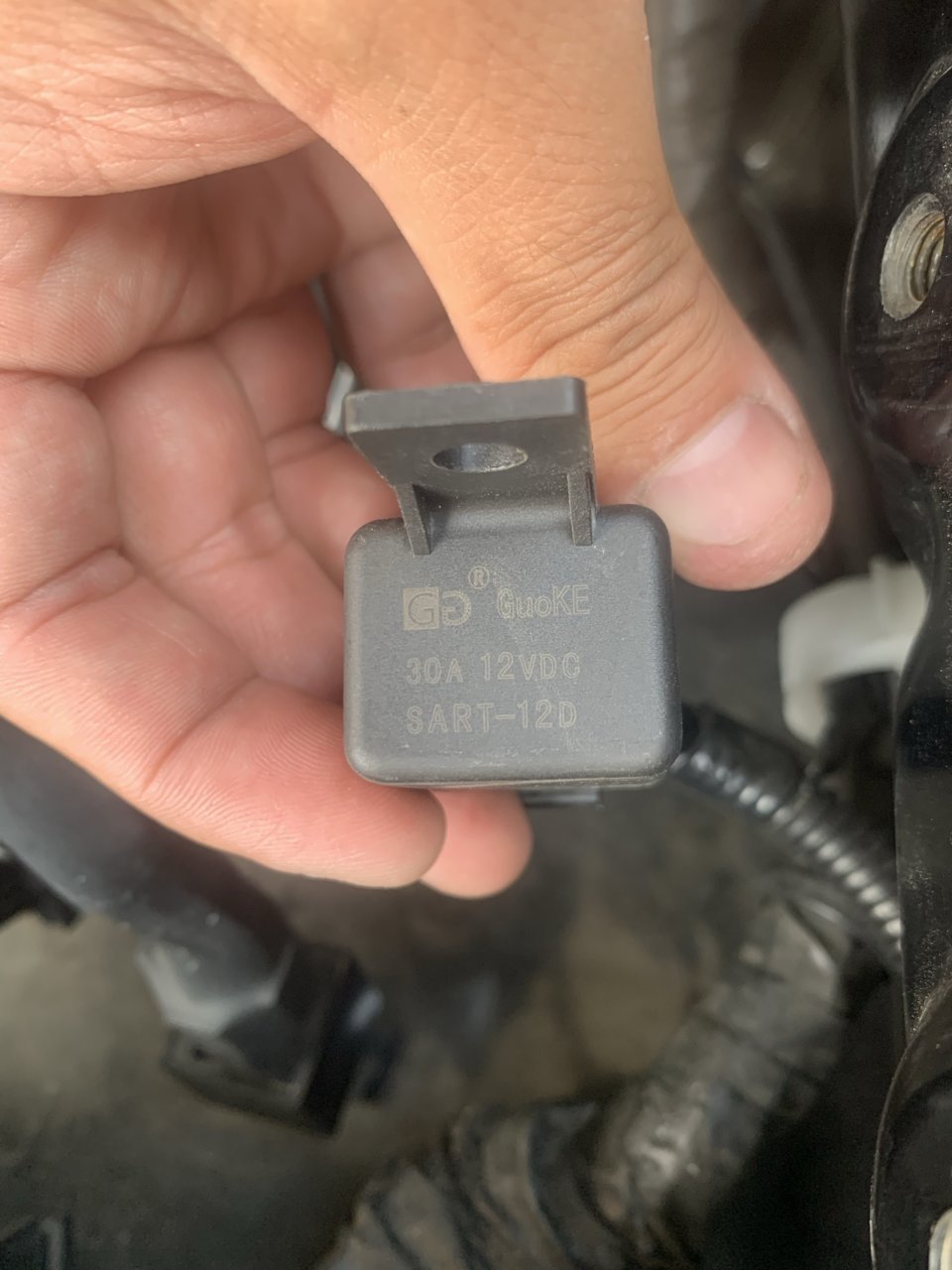

    You mean these guys?? I’m not quite sure how to tell if they’re bad but if that was my problem on the old kits and the brand new kits are bad out of the box that’s quite a coincidence.


  6. Jul 7, 2021 at 10:04 PM
    #6
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,772
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    They should have an audible click when powered if working. Have someone hold it while switching it on and see if they feel the relay engage. Are the fogs LED? Did you try switching the polarity? Do you have a multi-meter to try and trace the problem?

    Dm93 and 6 gearT444E like this.
  7. Jul 7, 2021 at 10:06 PM
    #7
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,798
    Deep South
    Herculiner Hootus
    A click will tell you the coil is getting power, but the contacts could still be failed. Best to pull the relay and bench check all the connection points.

    Dm93 and crashnburn80[QUOTED] like this.
  8. Jul 7, 2021 at 10:11 PM
    #8
    axeman26

    axeman26 [OP] Well-Known Member

    Joined:
    Jul 26, 2015
    Member:
    #160385
    Messages:
    199
    Gender:
    Male
    First Name:
    Will
    Bay Area
    Vehicle:
    2015 Tacoma 2wd 4cyl 4door
    Fatbob’s aal/front spacer/KO2’s/Curt trailer hitch
    As for the fog lights I am hearing an audible click when turning on and off the switch.
    As for the light bar I get nothing no audible sound when using the switch.

  9. Jul 7, 2021 at 10:12 PM
    #9
    axeman26

    axeman26 [OP] Well-Known Member

    Joined:
    Jul 26, 2015
    Member:
    #160385
    Messages:
    199
    Gender:
    Male
    First Name:
    Will
    Bay Area
    Vehicle:
    2015 Tacoma 2wd 4cyl 4door
    Fatbob’s aal/front spacer/KO2’s/Curt trailer hitch
    Yes fog lights are LED’s

  10. Jul 7, 2021 at 10:17 PM
    #10
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,772
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Try reversing the positive and negative connections for the fogs, it may be a polarity issue.

    As for the light bar, try swapping the relay with another one to see if you get the click.

  11. Jul 7, 2021 at 10:23 PM
    #11
    GHOST SHIP

    GHOST SHIP hates you.

    Joined:
    Mar 9, 2015
    Member:
    #150537
    Messages:
    22,399
    First Name:
    GHOST
    Starting with the easiest possible solution, have you checked the connection at the light to the harness? Sometimes the “waterproof” connectors aren’t as waterproof and can get moisture inside and start to corrode. If it’s suspect, I’d just replace the plug/connection.
    You could also test the lights by connecting them directly to +/- at the battery and bypass the harness. That’ll narrow down your problem at the light or the harness.

    you have two very knowledgeable guys that already posted above but I always start at the light and work my way back.

    Hardscrabble and crashnburn80 like this.
  12. Jul 7, 2021 at 11:02 PM
    #12
    axeman26

    axeman26 [OP] Well-Known Member

    Joined:
    Jul 26, 2015
    Member:
    #160385
    Messages:
    199
    Gender:
    Male
    First Name:
    Will
    Bay Area
    Vehicle:
    2015 Tacoma 2wd 4cyl 4door
    Fatbob’s aal/front spacer/KO2’s/Curt trailer hitch
    Thanks guys I’ll try that and get back to you.

  13. Jul 8, 2021 at 1:50 PM
    #13
    axeman26

    axeman26 [OP] Well-Known Member

    Joined:
    Jul 26, 2015
    Member:
    #160385
    Messages:
    199
    Gender:
    Male
    First Name:
    Will
    Bay Area
    Vehicle:
    2015 Tacoma 2wd 4cyl 4door
    Fatbob’s aal/front spacer/KO2’s/Curt trailer hitch
    I ordered new relays today. I checked connection points for corrosion and polarity issues with the fog lights. The wire harnesses are brand new as of a day ago. I switched the polarity at the fog lights and nothing changed.
    can someone give me a crash course on bench testing the current relays?
    Thanks!

  14. Jul 8, 2021 at 3:33 PM
    #14
    Daves300

    Daves300 TTC#0333

    Joined:
    Mar 20, 2020
    Member:
    #322554
    Messages:
    300
    Texas
    Vehicle:
    2007 FJ
  15. Jul 8, 2021 at 4:01 PM
    #15
    axeman26

    axeman26 [OP] Well-Known Member

    Joined:
    Jul 26, 2015
    Member:
    #160385
    Messages:
    199
    Gender:
    Male
    First Name:
    Will
    Bay Area
    Vehicle:
    2015 Tacoma 2wd 4cyl 4door
    Fatbob’s aal/front spacer/KO2’s/Curt trailer hitch
    Video is great. Thanks!

    Daves300 likes this.
  16. Jul 9, 2021 at 5:52 PM
    #16
    axeman26

    axeman26 [OP] Well-Known Member

    Joined:
    Jul 26, 2015
    Member:
    #160385
    Messages:
    199
    Gender:
    Male
    First Name:
    Will
    Bay Area
    Vehicle:
    2015 Tacoma 2wd 4cyl 4door
    Fatbob’s aal/front spacer/KO2’s/Curt trailer hitch
    So, it’s not the relays. Replaced them both no changes. I will keep searching.

  17. Jul 9, 2021 at 6:12 PM
    #17
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,772
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Did you check the OEM relay? Edit: In the fuse box.

    axeman26[QUOTED][OP] likes this.
  18. Jul 9, 2021 at 7:35 PM
    #18
    axeman26

    axeman26 [OP] Well-Known Member

    Joined:
    Jul 26, 2015
    Member:
    #160385
    Messages:
    199
    Gender:
    Male
    First Name:
    Will
    Bay Area
    Vehicle:
    2015 Tacoma 2wd 4cyl 4door
    Fatbob’s aal/front spacer/KO2’s/Curt trailer hitch
    I did not check any oem relays. I thought the circuit bypassed the oem wiring? I’m probably wrong though.

  19. Jul 9, 2021 at 7:51 PM
    #19
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,291
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    Have you checked for voltage at the lights with a meter? I didn't see where you have looked at voltage anywhere.

    Start at the lamp sockets and go back until you have voltage. Then you will know where the circuit is failing.


    Power Source >> Fuse >> Switch>> Relay Coil.

    Power Source >> Fuse >> Relay Contact >> Lamp.

    daveeasa, crashnburn80 and TnShooter like this.
  20. Jul 9, 2021 at 8:02 PM
    #20
    daveeasa

    daveeasa FBC Harness Solutions

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    7,482
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2005 RC 5MT PreRunner, 2002 Tundra SR5 RCLB 4x4
    I would buy a multi-meter. Set to voltage and test the battery + and chassis ground to confirm the meter works.

    then probe the relay coil with the switch off and on. Pins are labeled 85 and 86. Doesn’t matter which is + and which is negative so try both ways. That’s ruling out problems with the switch.

    Also test input to the relay, labeled pin 30. Typically that is wired to fused power. If blown, troubleshoot that.

    pin 87 is switched output. If it goes to 12v with the switch on you just need to troubleshoot that to the lights.

    if the lights are toast, confirm by direct touch to the battery. LED’s can die catastrophically.

    you can really start anywhere, at the light, at the relay, or at the switch. Just rule out problems one at a time.

    Last edited: Jul 9, 2021
    Jimmyh and crashnburn80 like this.
