Fog switch replacement

2015 tacoma.

Replacing the stock fog light switch with an oem one. I have headlights with a light bar on the inside and grill lights that are tapped into the running lights. We replaced the fog light switch and re wired the new harness. Now the grill lights and light bar inside the high lights won't energize.

Tested all the fuses and relays and everything has power.

Anyone have ideas?



light bar probably pulled to much current and fried your electrical system



Fog lights are a very simple circuit.

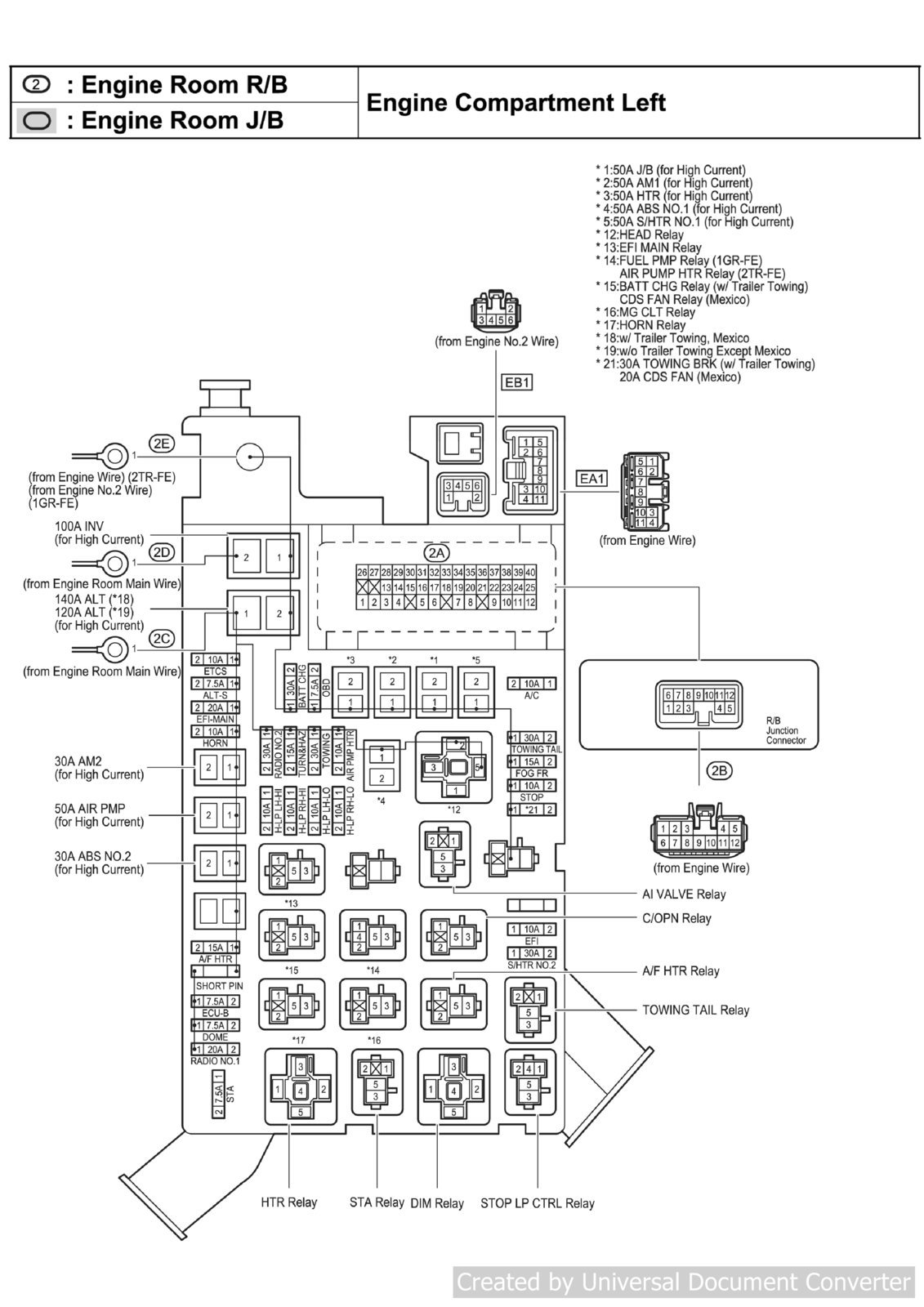

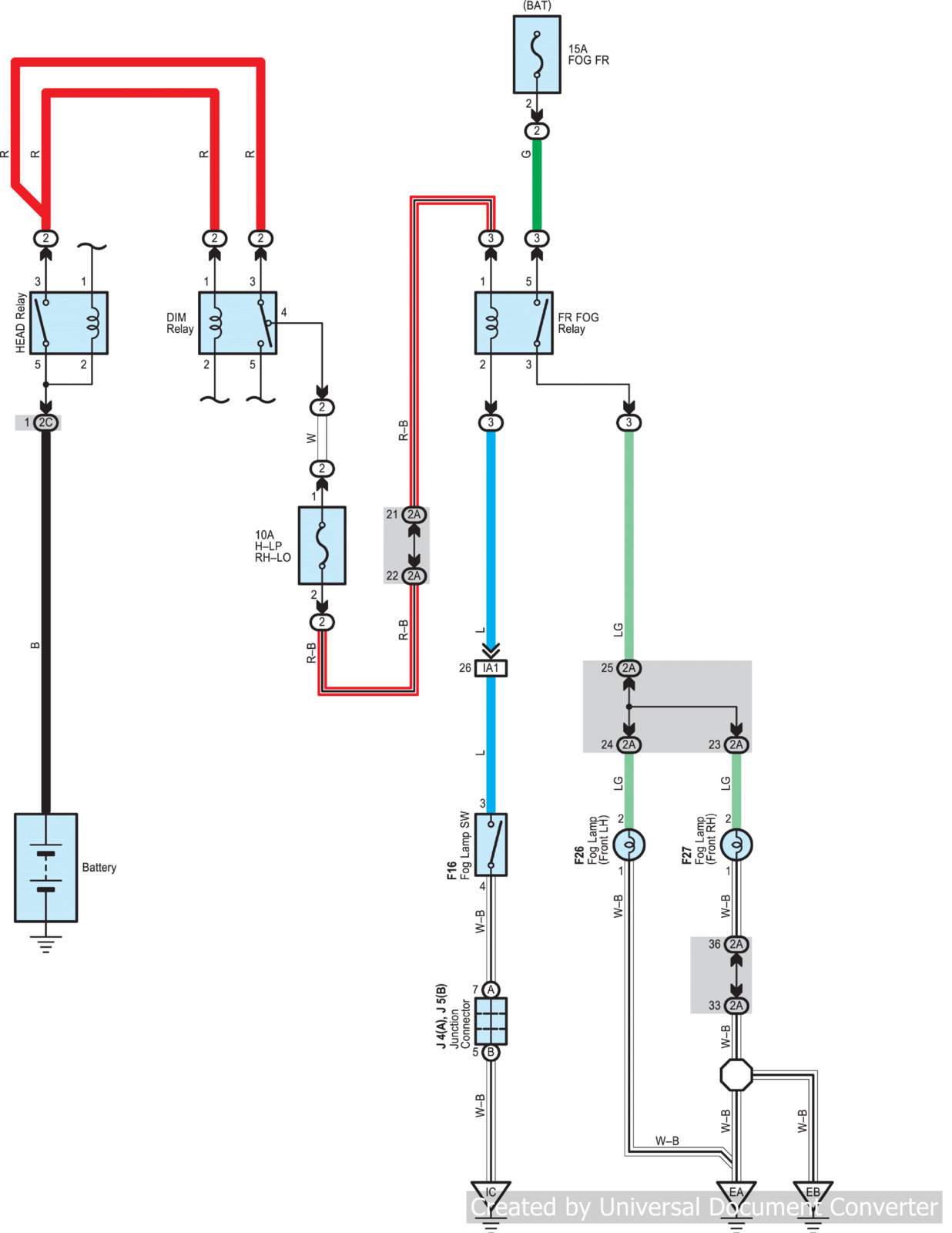

Control Power is supplied to Pin 1 (Red/Black) of FR FOG Relay in the underhood auxiliary fuse box from the H-LP RH-LO (Right Low Beam Headlight) Fuse (10A) in the underhood main fuse box.
Control Ground comes from Pin (Blue) of the Fog Light Switch to Pin 2 (Blue) of the FR FOG Relay
Load Power comes from the FR FOG Fuse (15A) in the underhood main fuse box to Pin 5 (Green) of the FR FOG Relay
The FR FOG Relay outputs Power on Pin 3 (Light Green) to Pin 25 (Light Green) of Junction Connector 2A under the underhood main fuse box and is output on Pins 23 & 24 (Light Green) to Pin 2 (Light Green) of the Fog Light Connectors.

Ground to the Fog Light connectors comes from Ground Points EA and EB under the hood to Pin 1 (White/Black) of the Fog Light connectors.



If there is power and the relay works, then you have wired something incorrectly. Load up a sketch of how you wired it.



Light bar is independent switch. The light bar inside of The headlight is just for the DRL. nothing got fried and everything works
