Foglights Anytime for 2012... Its a bit different!

Discussion in 'Lighting' started by Johnny E, Mar 10, 2012.

  1. Mar 10, 2012 at 3:12 PM
    #1
    Johnny E

    Johnny E [OP] Active Member

    Joined:
    Mar 10, 2012
    Member:
    #74638
    Messages:
    39
    Gender:
    Male
    Langley, BC Canada
    Vehicle:
    2012 Taco TRD DCSB 6MT
    Anytime Fog Light Mod, 3 Ball Shifter,Custom Behind the Grill Light Mount and PIAA 4" ATP's, Custom Quick Release Bed Divider, Headache Rack, Trimmed front Mud Flaps, Firestone RideRite Air Bags
    Below is my post from the original thread, i figured it might no be seen there and the changes for 2012 are minor but got me messed up. check out the original thread for more details for other years and to thank the creators of this mod. I only modded the mod....yah sure

    http://www.tacomaworld.com/forum/showthread.php?t=64026




    2012 Update

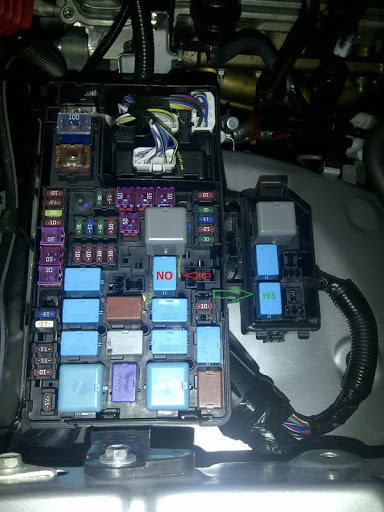

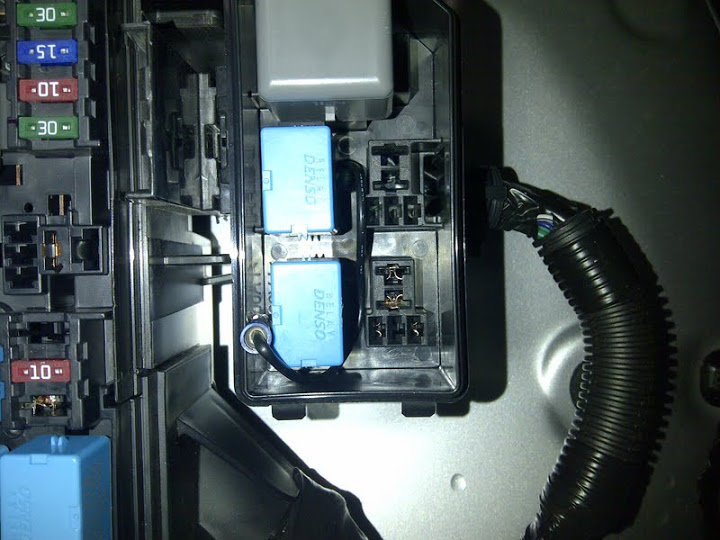

    With 663 kms on my Taco its was about 662kms overdue for me to mess with something so I figured the easiest mod ever was a good pace to start. Turns out Master Yota made a mod of his own and shuffled around a relay or two. The fog relay is no in the sub panel mounted to the right side of the main panel.
    [​IMG]

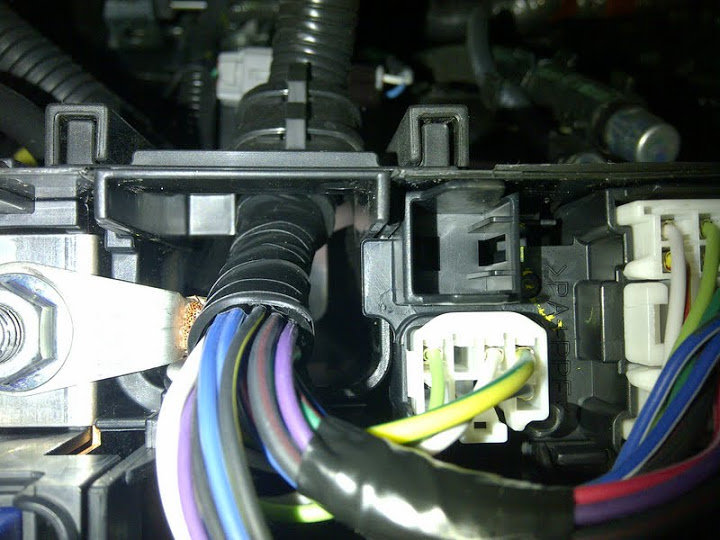

    This isn't such a bad thing as there is an easy way to get from one to the other with our little jumper. Just fead the lead down here

    [​IMG]

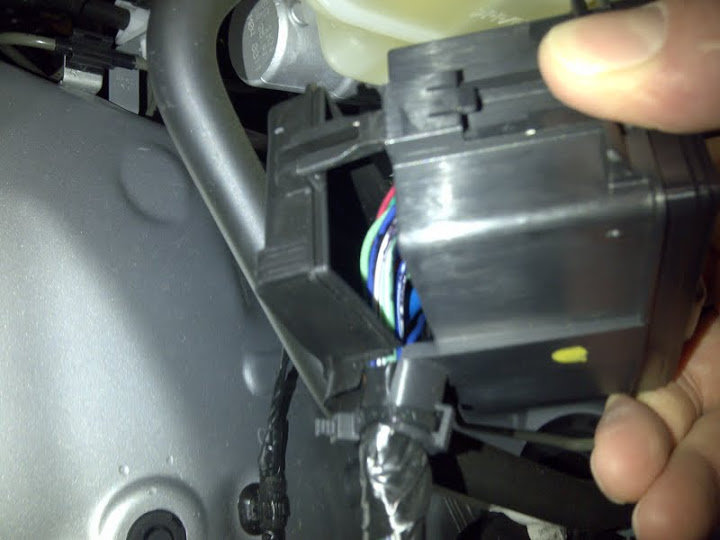

    Then you can unclip the sub panel from the main and remove the bottom cover
    [​IMG]

    Now if you wanna realy keep things stealthy at this point you would splice into that little red/black wire in the top right. I close the bent tab route as I just couldn't bring myself to start cutting wires. So feed the lead up thru the block, that it the skinny black one over the blue

    [​IMG]

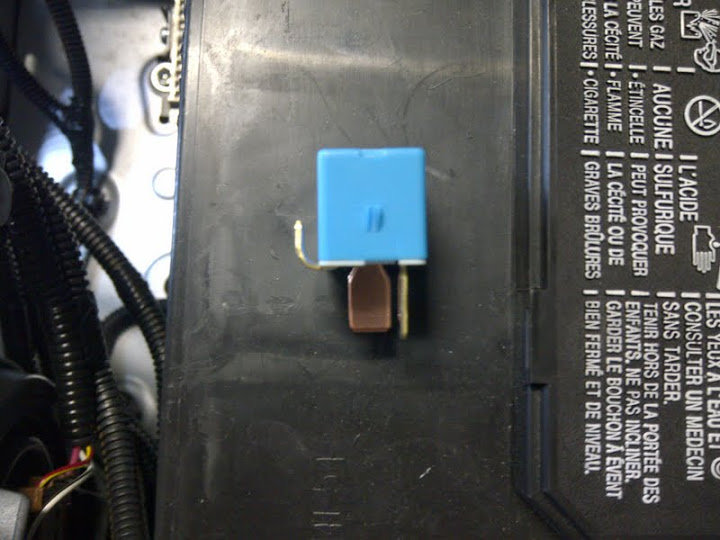

    Now you have to bend the tab carefully, we need a U shape bend as the space in the panel is very tight
    [​IMG]

    Almost done! Clip the subpanel back together and onto the main, replace the relay and connect your lead

    [​IMG]

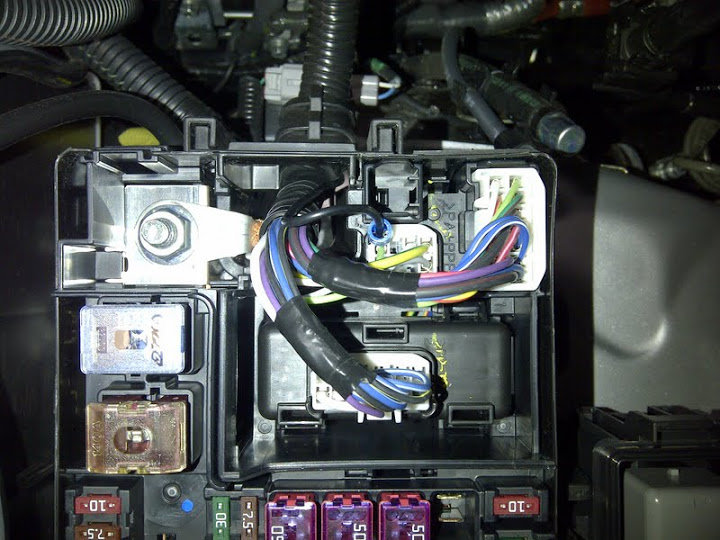

    No connect your jumper to the same place as always in the main panel

    [​IMG]

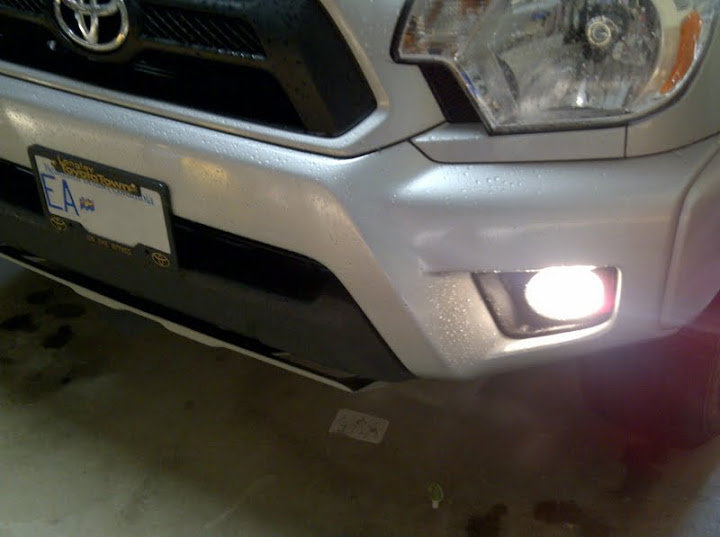

    And there it is your done and your new 2012 Taco has fogs available anytime you like!

    [​IMG]
    [​IMG][​IMG]
    [​IMG] [​IMG][​IMG][​IMG][​IMG][​IMG]Johnny EView Public ProfileSend a private message to Johnny EFind More Posts by Johnny EAdd Johnny E to Your Contacts


    [​IMG]
    Page 7 of 7« First<56 7 [​IMG]

    Home> Tacoma Garage> Lighting
    Message Cancel Changes[​IMG] Quick Reply ​

  2. Mar 10, 2012 at 3:19 PM
    #2
    gsxrdoug

    gsxrdoug 2012 DCLB

    Joined:
    Mar 3, 2011
    Member:
    #52284
    Messages:
    218
    Gender:
    Male
    First Name:
    Douglas
    Hawaii
    Vehicle:
    12 Prerunner DCLB SR5 no stinking badges
    Mr. Marv Sub, TRD wheels, Tint, Carbon Fiber wrap roof,
    Thank you, I was getting ready to do this mod and would have plugged into the wrong relay.

  3. Mar 10, 2012 at 3:31 PM
    #3
    tbturner47

    tbturner47 Well-Known Member

    Joined:
    Apr 17, 2010
    Member:
    #35484
    Messages:
    1,135
    Gender:
    Male
    First Name:
    Travis
    Lenoir, NC
    Vehicle:
    '07 Indigo Ink Off Road
    Supercharger
  4. Mar 10, 2012 at 3:48 PM
    #4
    Johnny E

    Johnny E [OP] Active Member

    Joined:
    Mar 10, 2012
    Member:
    #74638
    Messages:
    39
    Gender:
    Male
    Langley, BC Canada
    Vehicle:
    2012 Taco TRD DCSB 6MT
    Anytime Fog Light Mod, 3 Ball Shifter,Custom Behind the Grill Light Mount and PIAA 4" ATP's, Custom Quick Release Bed Divider, Headache Rack, Trimmed front Mud Flaps, Firestone RideRite Air Bags
    I removed the wrong relay and worse still I did it while the ignition was on......dont do that. It popped the engine and TRAC OFF lights. There is a post in the original thread on how to reset the light

  5. Mar 10, 2012 at 5:44 PM
    #5
    cintocrunch

    cintocrunch Special Substitute Guest Member

    Joined:
    Dec 20, 2011
    Member:
    #69090
    Messages:
    771
    Gender:
    Male
    First Name:
    Mike
    MD
    Vehicle:
    2012 DCSB TRD Sport MGM 6MT
    Anytime fogs, Leer Tonneau

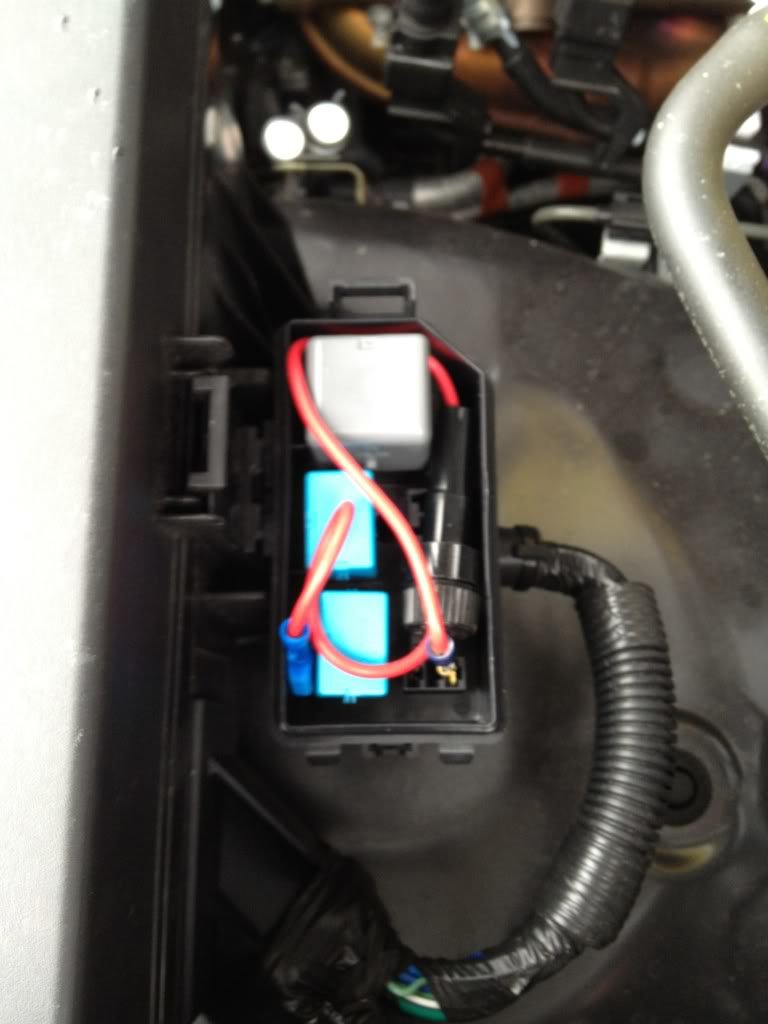

    This is the "hard" way to do it, feed the wire to the seat warmer relay as shown in the picture below:

    [​IMG]

  6. Mar 10, 2012 at 7:10 PM
    #6
    Johnny E

    Johnny E [OP] Active Member

    Joined:
    Mar 10, 2012
    Member:
    #74638
    Messages:
    39
    Gender:
    Male
    Langley, BC Canada
    Vehicle:
    2012 Taco TRD DCSB 6MT
    Anytime Fog Light Mod, 3 Ball Shifter,Custom Behind the Grill Light Mount and PIAA 4" ATP's, Custom Quick Release Bed Divider, Headache Rack, Trimmed front Mud Flaps, Firestone RideRite Air Bags
    The only issue I had that system is they can be left on. The lead in that slot is always hot. Using the jump point jivewalker chose releases the relay whenever the ignition os off, it's a switched source. For me it's good insurance against a dead battery.

    Update, I was wrong! That is a switched lead I am not sure how I missed it. Super#1 props to cintocrunch

  7. Mar 10, 2012 at 9:14 PM
    #7
    Johnny E

    Johnny E [OP] Active Member

    Joined:
    Mar 10, 2012
    Member:
    #74638
    Messages:
    39
    Gender:
    Male
    Langley, BC Canada
    Vehicle:
    2012 Taco TRD DCSB 6MT
    Anytime Fog Light Mod, 3 Ball Shifter,Custom Behind the Grill Light Mount and PIAA 4" ATP's, Custom Quick Release Bed Divider, Headache Rack, Trimmed front Mud Flaps, Firestone RideRite Air Bags
    Ultra Stealth Mod on 2012

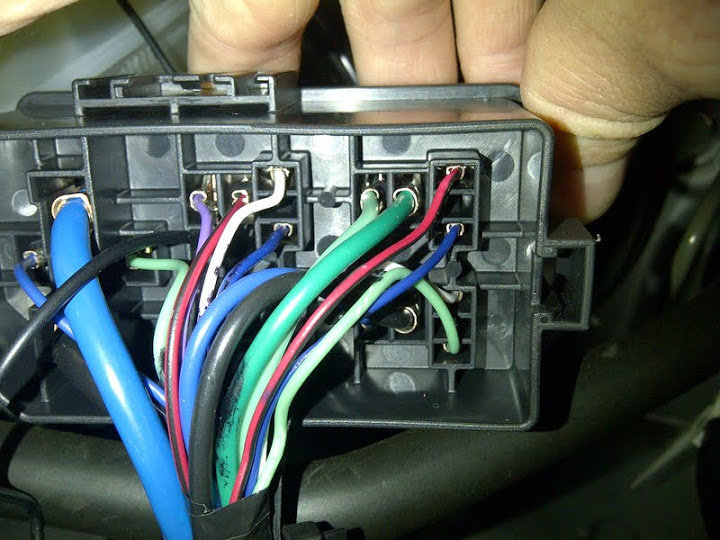

    After cintocrunch showed me the super easy way it occured to me this could be done even cleaner. The image below is the underside of the sub panel. If you were to swap the red/black wire in the upper right corner with the pale green wire in the lower right you would not need the jumper wire or to mess with the relay. Note if you have heated seat the this would be bad as now they would only work with the headlights on lowbeam [​IMG]

    I took a look at this tonight and it seems there is a small clip holding the witing connector in the panel. If anyone know how to release the clipthis would be a super clean mod, heck it would even be fused as it is a factory wire [​IMG]

    [​IMG]

  8. Mar 10, 2012 at 11:22 PM
    #8
    Fractured

    Fractured FPS-a-holic

    Joined:
    Dec 23, 2011
    Member:
    #69293
    Messages:
    828
    Gender:
    Male
    First Name:
    Corey
    NOR*Cal
    Vehicle:
    2012 MGM DCSB 4x4
    TRD wheels, TRD cat back exhaust, ScanGauge 2, Debadged, Avid sliders, UWS bed box w/automatic LED light, Led Interior/Reverse/Lic. Plate lights, Yellow Fogs, Flyzeye Light, Color matched grill, Rearview mirror relocate bracket, Power Sliding rear window, Plasti-dipped bumper/"T" emblem
    My 2012 doesnt have any harness for the seat heater. I will post a link to the thread i made tomorrow.

  9. Mar 11, 2012 at 10:04 AM
    #9
    Johnny E

    Johnny E [OP] Active Member

    Joined:
    Mar 10, 2012
    Member:
    #74638
    Messages:
    39
    Gender:
    Male
    Langley, BC Canada
    Vehicle:
    2012 Taco TRD DCSB 6MT
    Anytime Fog Light Mod, 3 Ball Shifter,Custom Behind the Grill Light Mount and PIAA 4" ATP's, Custom Quick Release Bed Divider, Headache Rack, Trimmed front Mud Flaps, Firestone RideRite Air Bags
    You could then do it the way I originally did

  10. Mar 22, 2012 at 11:34 PM
    #10
    gsxrdoug

    gsxrdoug 2012 DCLB

    Joined:
    Mar 3, 2011
    Member:
    #52284
    Messages:
    218
    Gender:
    Male
    First Name:
    Douglas
    Hawaii
    Vehicle:
    12 Prerunner DCLB SR5 no stinking badges
    Mr. Marv Sub, TRD wheels, Tint, Carbon Fiber wrap roof,
    Now I have to go look to see how mine is set up so I can do this mod.

  11. Mar 23, 2012 at 6:18 PM
    #11
    gsxrdoug

    gsxrdoug 2012 DCLB

    Joined:
    Mar 3, 2011
    Member:
    #52284
    Messages:
    218
    Gender:
    Male
    First Name:
    Douglas
    Hawaii
    Vehicle:
    12 Prerunner DCLB SR5 no stinking badges
    Mr. Marv Sub, TRD wheels, Tint, Carbon Fiber wrap roof,
    Thank you for the update on the 2012 models, just did mine. Easy day. Just like the pre-12 just a bit different. Great easy mod.

  12. Mar 27, 2012 at 5:40 AM
    #12
    CantSitStill

    CantSitStill Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,037
    Gender:
    Male
    First Name:
    FTR
    CNY
    I took a look at this tonight and it seems there is a small clip holding the witing connector in the panel. If anyone know how to release the clipthis would be a super clean mod, heck it would even be fused as it is a factory wire [​IMG]

    [​IMG][/QUOTE]

    I had to rewire a VW before and swap out fuse blocks.. I found a small prick punch inserted in the top hole (damn that sounds dirty) could be used to release the connector from the panel. Maybe the Toyota is the same. Sorta required holding the block and jiggling the wire in and out while fiddling for the clip with the prick punch.
    I have a nice package coming from Crutchfield so I will be spending some time with the Taco this weekend. I want to do the fog mod so I'll give it a try and post if it works...

  13. Apr 2, 2012 at 4:04 PM
    #13
    CantSitStill

    CantSitStill Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,037
    Gender:
    Male
    First Name:
    FTR
    CNY

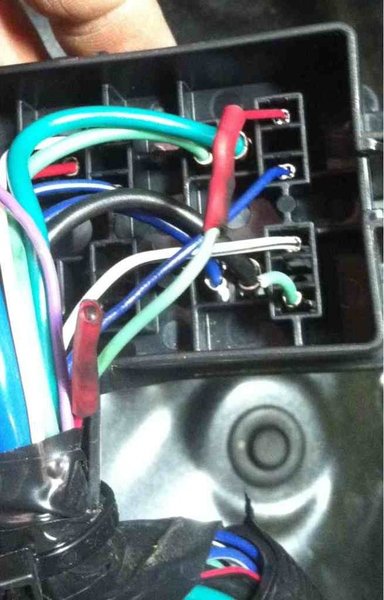

    I tried for about 15 minutes and couldn't release the connectors. I ended up soldering the heated seat wire to the relay. ImageUploadedByTapatalk1333407848.032382.jpg

  14. Apr 11, 2012 at 5:29 PM
    #14
    big sky

    big sky Well-Known Member

    Joined:
    Feb 22, 2012
    Member:
    #73387
    Messages:
    494
    Gender:
    Male
    First Name:
    Mike
    Montana
    Vehicle:
    2012 TRD Sport DCSB 4x4
    the connectors are likely Molex, they sell extracting tools to remove the wires http://www.frozencpu.com/too-05.html

    - some folks make their own- I've read a lot of folks use part of an old wiper blade or even a large paperclip

  15. Apr 11, 2012 at 6:45 PM
    #15
    CantSitStill

    CantSitStill Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,037
    Gender:
    Male
    First Name:
    FTR
    CNY
    Slick tool!!

  16. Oct 4, 2012 at 3:34 PM
    #16
    nickberg

    nickberg Member

    Joined:
    Feb 12, 2012
    Member:
    #72703
    Messages:
    19
    Gender:
    Male
    First Name:
    Nick
    CA
    Vehicle:
    2012 MGM DCSB 4X4 TRD Off-Road
    I just ran into the same issue, and could not find the fix for it on the original thread. What worked for you?

  17. Oct 17, 2012 at 8:56 PM
    #17
    Zonktified

    Zonktified Well-Known Member

    Joined:
    Sep 4, 2012
    Member:
    #86213
    Messages:
    106
    Gender:
    Male
    First Name:
    Rob
    Wisconsin
    Vehicle:
    Tacoma TRD Sport
    subd...sounds like a winner mod!

  18. Oct 22, 2012 at 12:12 AM
    #18
    CLynch

    CLynch Well-Known Member

    Joined:
    Sep 26, 2012
    Member:
    #87752
    Messages:
    227
    Gender:
    Male
    First Name:
    Charlie
    Upstate New York
    None
    Sub'd

  19. Sep 19, 2014 at 7:34 AM
    #19
    mmadej87

    mmadej87 Mayday

    Joined:
    Sep 1, 2009
    Member:
    #22109
    Messages:
    755
    Gender:
    Male
    First Name:
    Mike
    NMB, FL
    Vehicle:
    98 Xcab Prerunner
    Does anybody know if the light green wire for the relay all the way to the left in this image has the same function as the light green for the seat warmers? I have a 2015 sport and there is no sweat warmer wiring. Would I be able to quick splice into that other light green?
