FOR SALE: Cowl Intake (Snorkel) Kits and HVAC Screens

FOR SALE: Cowl Intake (Snorkel) Kits and HVAC Screens
(this post will be continuously updated)​

peleprints3d@gmail.com​

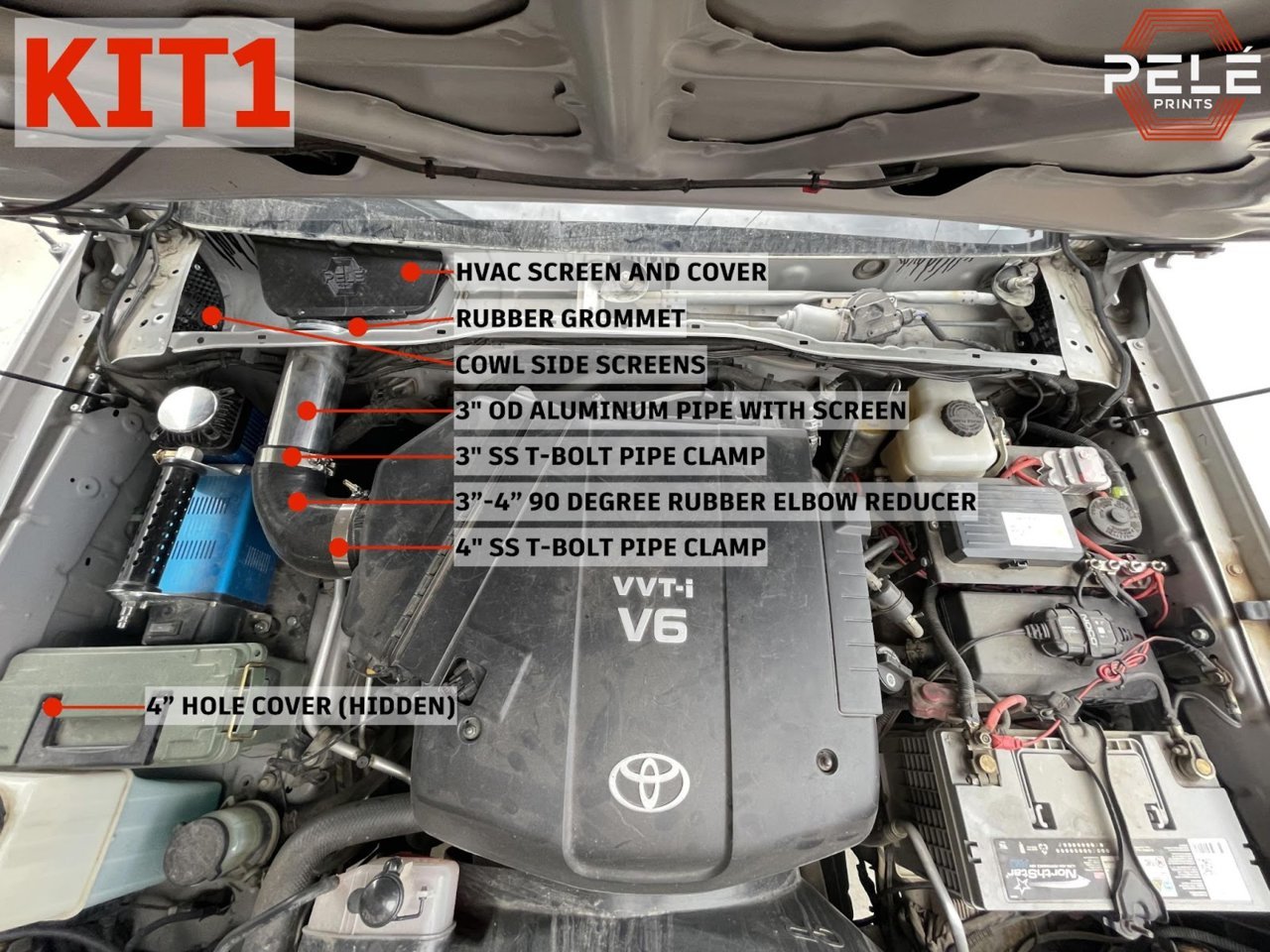

KIT1 (Cowl Intake full kit) - For Sale​

Cost: CAD$200.00
Shipping included (see shipping information below)
Applicable taxes apply.

​

Includes:

• 3”-4” 90 degree silicone rubber elbow reducer (black)
• 3” OD aluminum intake pipe with screen (no paint)
• 3” and 4” stainless steel T-bolt pipe clamps
• 3” hole rubber grommet

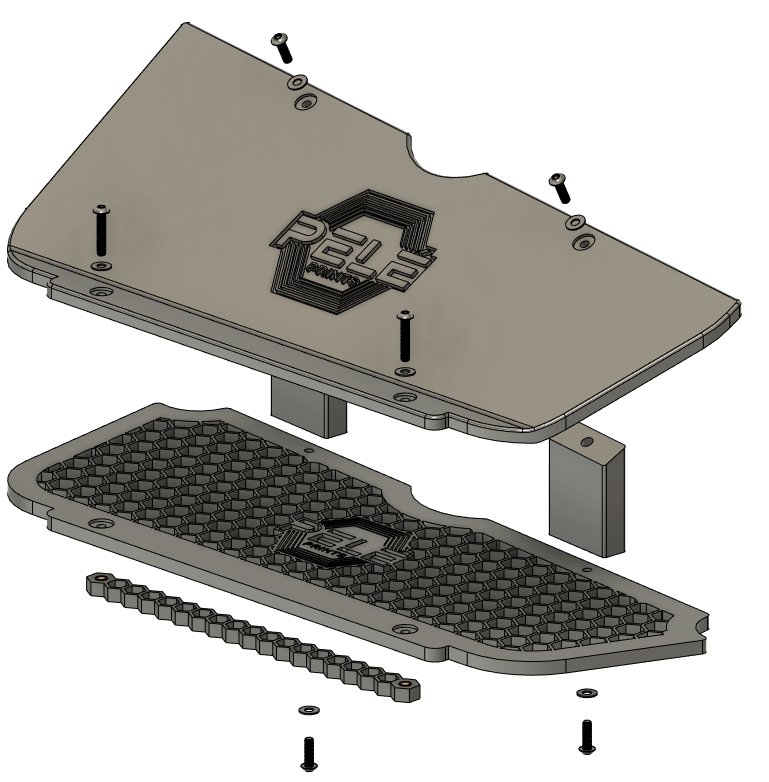

• HVAC screen (3D printed)
• HVAC cover (3D printed)
• 4” hole cover (3D printed)
• Cowl side screens (3D printed)
• 2x replacement cowl cover screw push pins
• Installation instructions

All installation hardware included.
All 3D printed material is black PETG.
Tools and drill bits/hole saw required.
4” hole cover can be customized (extra charge).​

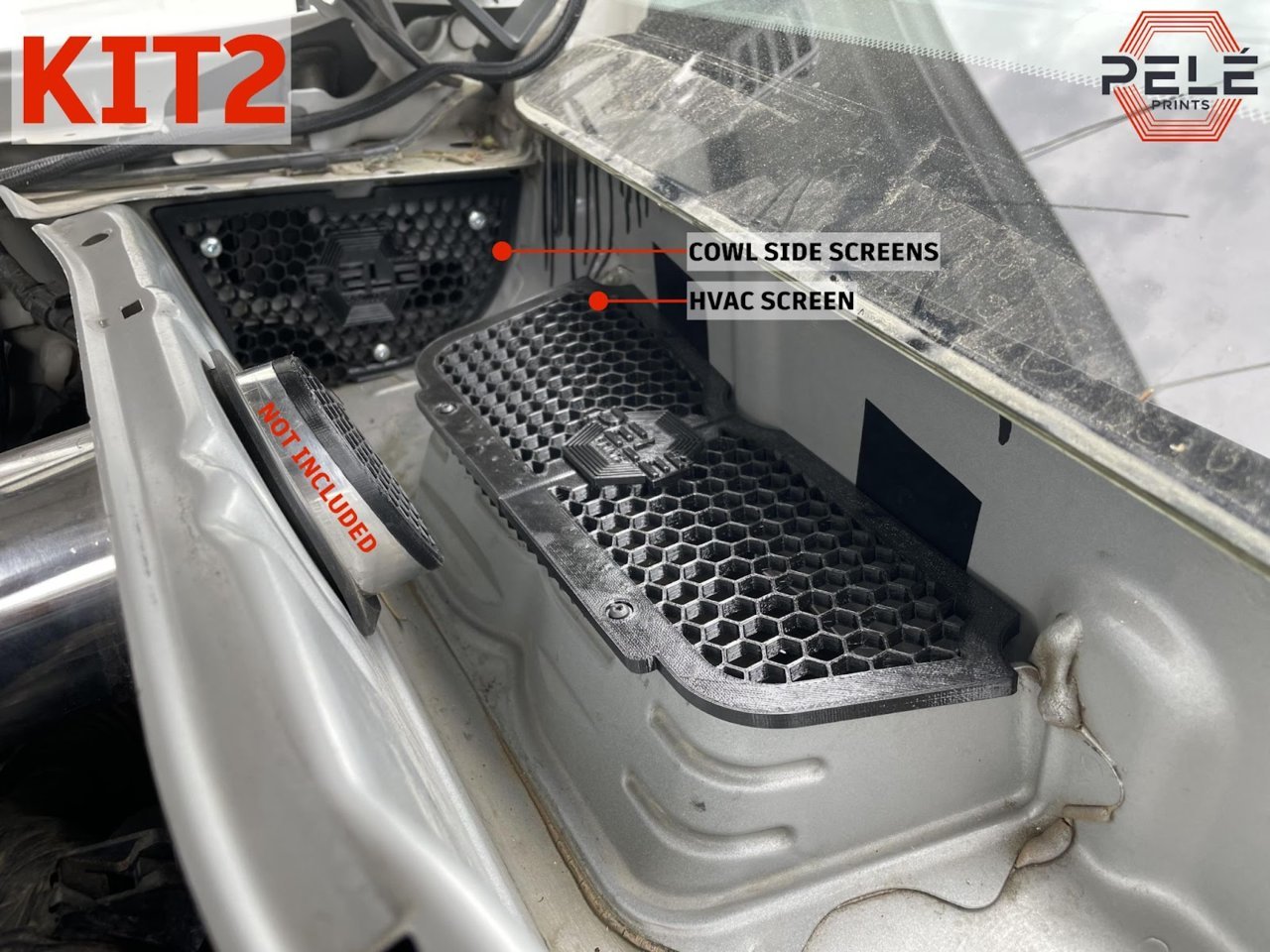

KIT2 (HVAC Screen and Side Screens) - For Sale​

Cost: CAD$80.00
Shipping included (see shipping information below)
Applicable taxes apply.

​

Includes:

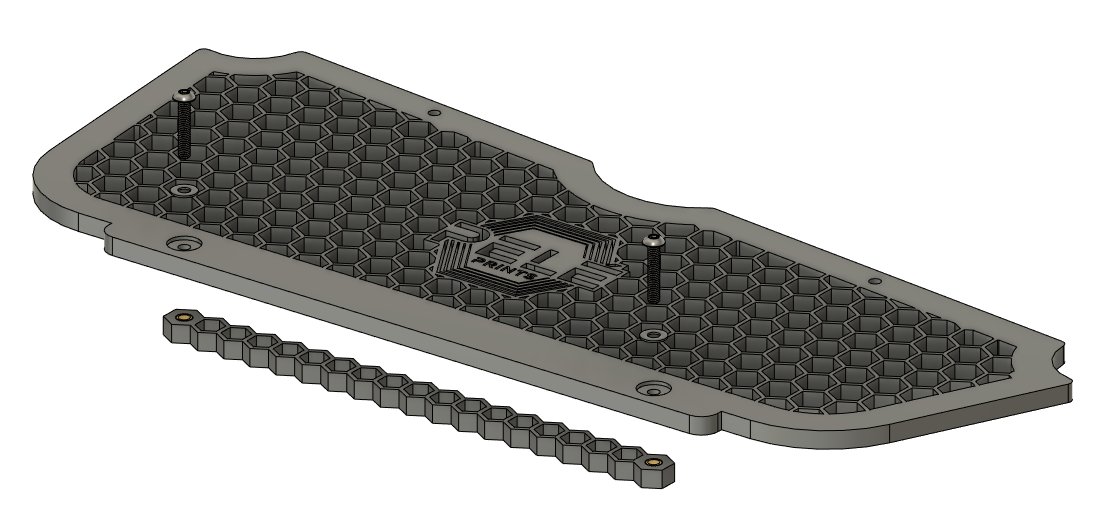

• HVAC screen (3D printed) *Cover not included*
• Cowl side screens (3D printed)
• 2x replacement cowl cover screw push pins
• Installation instructions

All installation hardware included.
All 3D printed material is black PETG.
Tools and drill bits required.​

KIT3 (All 3D printed parts for Cowl Intake Pipe and HVAC) - For Sale​

Cost: CAD$115.00
Shipping included (see shipping information below)
Applicable taxes apply.

Includes:

• 3” OD (2-¾” ID) intake pipe screen for 15 degree cut (3D printed) *Pipe not included*
• HVAC screen (3D printed)
• HVAC cover (3D printed)
• 4” hole cover (3D printed)
• Cowl side screens (3D printed)
• 2x replacement cowl cover screw push pins
• Installation instructions

All installation hardware included.
All 3D printed material is black PETG.
Tools and drill bits required.
4” hole cover can be customized (extra charge).



KIT4 (Retrofit Kit for Existing Cowl Intake) - For Sale​

Cost: CAD$110.00
Shipping included (see shipping information below)
Applicable taxes apply.

Includes:

• HVAC screen (3D printed)
• HVAC cover (3D printed)
• Cowl side screens (3D printed)
• 4” hole cover (3D printed)
• 2x replacement cowl cover screw push pins
• Installation instructions

All installation hardware included.
All 3D printed material is black PETG.
Tools and drill bits required.
4” hole cover can be customized (extra charge).​

Individual Parts - For Sale​

• All parts listed above can be sold separately.
• Pricing will be provided upon request.
• Delivery not included in pricing.
• Save $$ when you purchase a bundle.

What is a Cowl Intake?​

The Cowl Intake/Cowl Induction kit draws air from the high-pressure area at the base of the windshield which is also cleaner, colder, and denser. In addition to clearing room in a cramped engine compartment for additional batteries, compressors, air systems etc. it also raises the intake/inlet substantially higher than factory without adding a cumbersome snorkel.
​

Method of Payment​

I will be accepting payment through PayPal. An invoice will be sent to your email from peleprints3d@gmail.com. Do not accept requests for payment from any other email or account.​

Please note that TacomaWorld recommends PayPal since the customer can make a claim if Pelé Prints does not follow through with providing the order or a refund. Pelé Prints will not allow “Friends and Family” payments; we pay the price to make things right.

Buy|Sell|Trade rules // Payment/Scam Protections ​

Order Lead Times​

• Current lead times will be provided prior to your order payment.
• Orders will be fulfilled as soon as possible.
• Longer lead times may be due to:
  • Large volume of orders.
  • 3D printing time (34h for KIT1 and 23h for KIT2… WOW!).
  • Parts inventory restock.

Shipping​

• Shipping is included in most of the prices provided for Canada and Continental United States.
• All items shipped will include a tracking number.
• Canada Post standard delivery (2 - 7 days in Canada) is used.
• Express delivery can be arranged at an additional cost. Cost to be determined at the time of request.
• See shipping policy for all other information.

Local Pickup ​

• Local pickup is available in Edmonton, AB. Arrangements will be made when the order is ready.
• Local pickup will receive a discount (amount depends on total order).

For custom design and printing, please email me.


PLEASE REVIEW DISCLAIMER AND SHIPPING POLICY.​



Current Orders
​

If you are interested in purchasing any of my items, please respond to the thread below, DM, or email me. I will respond to you as soon as possible with order details and current lead time (thread replies will be contacted through DM).

I do my best to keep stock of all items for quick turnaround.

Orders will be fulfilled ASAP.

All orders are shipped with a tracking number and a signature will be required upon receiving.

ALL SALES ARE FINAL

​

Current Orders:

1. All items in stock and ready to ship! Currently no wait time.



COMING SOON!
​

Other 3D printed parts - For Sale



FAQs​

Q: Will you share the STL or 3MF files?
A: Absolutely not. I have many many hours investing in these files and this is my little side hustle. Sorry!

Q: What is a cowl intake?
A: The Cowl Intake/Cowl Induction kit draws air from the high-pressure area at the base of the windshield which is also cleaner, colder, and denser. In addition to clearing room in a cramped engine compartment for additional batteries, compressors, air systems etc. it also raises the intake/inlet substantially higher than factory without adding a cumbersome snorkel.

Q: How is this any different than a snorkel?
A: A cowl intake, as an alternative to a snorkel, refers to a modified air intake system that draws in fresh air for the engine from a high point on the vehicle's cowl or near the windshield, rather than using a traditional snorkel mounted on the side of the vehicle.

Q: Does this pass the Smog Test in California?
A: Probably not… BUT I would recommend keeping you stock intake pipe and reinstall it prior to the inspection. Swapping these parts wouldn’t take long at all!

Q: Is it loud (or can you hear it) in the cabin?
A: Is it not loud whatsoever but there is a slight noise when stepping on it. I personally like it!



Disclaimer
REV: A
SEPTEMBER 8, 2023​

ATTENTION
USE OF THESE PRODUCTS IS AT YOUR OWN RISK. YOU ASSUME ALL LIABILITY.

WARNINGS
MOTORSPORTS, RACING, OFF-ROADING, AND VEHICLE MODIFICATION ARE INHERENTLY DANGEROUS ACTIVITIES THAT CAN RESULT IN DEATH, BRAIN DAMAGE, PARALYSIS OR SERIOUS PERSONAL INJURY. YOU ASSUME THE RISK OF INJURY OR DEATH WHENEVER PARTICIPATING IN MOTORSPORTS, RACING, OFF-ROADING, AND VEHICLE MODIFICATION.

IF YOU DO NOT UNDERSTAND OR APPRECIATE THE DANGER OF THESE ACTIVITIES, PLEASE REFRAIN FROM ALL MOTORSPORTS ACTIVITY AND FURTHER USE OF PELÉ PRINTS PRODUCTS.

NO WARRANTIES
ALL PRODUCTS AND PARTS ARE SOLD "AS IS" WITHOUT ANY WARRANTY WHATSOEVER. EXPRESS WARRANTIES, IMPLIED WARRANTIES, WARRANTIES OF MERCHANTABILITY AND WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE ARE EXCLUDED. THE ENTIRE RISK OF QUALITY AND PERFORMANCE OF SUCH PRODUCTS AND PARTS IS WITH THE BUYER, USER, SUBSEQUENT USER, OR AGENT THEREOF (HEREIN "USER"). SHOULD SUCH PRODUCTS OR PARTS PROVE DEFECTIVE FOLLOWING THEIR PURCHASE, THE BUYER AND NOT THE MANUFACTURER(S), DISTRIBUTOR(S), OR RETAILER(S), ASSUME THE ENTIRE COST OF ALL NECESSARY SERVICES OR REPAIR AS RESULT OF ANY PART(S) FAILING.

NOT LIABLE FOR DAMAGES
In no event will Pelé Prints, or its affiliates be liable for any special, direct, incidental or consequential damages, or any damages whatsoever, including, without limitation, the loss of life or limb, or damages due to bodily or personal injury, which may arise or result from the sale, installation, or use of any of its products and parts.

BUYER’S/USER’S RESPONSIBILITIES

It is the BUYER’S/user's responsibility to inspect and verify the dimensions, specifications, and performance of all products and parts as being appropriate for the use to which the BUYER/user will USE them prior to any actual installation and/or use of said products and parts. ALL products and parts are to be inspected by the user before each use for evidence of damage, defect or wear. Any deviation by the user from the manufacturer's specifications concerning use, maintenance, repair, alterations and modifications constitutes willful negligence.

VEHICLE MODIFICATIONS
Vehicle modifications can potentially affect safety, handling, stability and emissions compliance. Suspension modifications can negatively affect stability and increase the chance of rollover. The consumer accepts all responsibility for all resulting changes and modifications to said vehicle(s) and all potential risks AND FINES/IMPRISONMENT FOR NON-COMPLIANCE WITH PROVINCIAL/STATE AND FEDERAL LAWS.

The installation of PELÉ PRINTS’ products or parts may adversely affect other vehicle components, safety equipment or manufactured goods (collectively "goods"). PELÉ PRINTS assumes no responsibility for any damage to other goods, or bodily injury that may arise due to failure of other goods, due to installation and/or use, either proper or improper, of its products or parts.

SEVERANCE OF DISCLAIMER PROVISIONS
By purchasing or using this product, the BUYER/user agrees that if any provision of this Disclaimer is held to be illegal, invalid or unenforceable under present or future law, such provision shall be fully severed from the Disclaimer and this Disclaimer shall be construed and enforced as if such illegal, invalid or unenforceable provision never comprised a part hereof, and the remaining provisions hereof shall remain in full force and effect and shall not be affected by the illegal, invalid or unenforceable provision. There shall be added automatically as part of this Disclaimer a provision as similar in its terms to such illegal, invalid or unenforceable provision as may be possible and be legal, valid and enforceable.

3D PRINTING QUALITY
At Pelé Prints, we are committed to providing high-quality 3D printing services to our clients. However, it is important to note that 3D printing is not always perfect and may produce prints with imperfections. While we use high-quality equipment and materials and make sure the printer is calibrated correctly, there may still be some potential issues with the final print quality. We want to be transparent with our clients about these potential issues, and we will do our best to minimize them and provide the highest quality prints possible. If there are any issues, we will work with you to find a solution that meets your needs and ensures your satisfaction.



Shipping Policy
REV: A
SEPTEMBER 8, 2023​

SHIPMENT PROCESSING TIME
All orders are processed within one, to two, business days. Orders are not shipped or delivered on weekends or holidays.
If we are experiencing a high volume of orders, shipments may be delayed. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.

INCORRECT SHIPPING ADDRESS OR ADDRESS CHANGES
Items shall be shipped to the address the Customer has provided to Pelé Prints. If customer’s address, for any reason, changes, or is invalid, and the product is lost as a result, or delivered to an address from which Customer cannot retrieve it, Customer is solely responsible for said loss, if Pelé Prints shipped the product to the address supplied by the Customer during purchase. Upon delivery to the address, the Customer supplies when ordering, Pelé Prints is considered to have completed delivery of the product, and no further liability is assumed by Pelé Prints, for customer’s actual receipt of item. If for some reason your package gets "returned to sender" you will be responsible for the cost of shipping the package back to you.

LOST OR STOLEN PACKAGES
If for some reason your package becomes lost, please contact Pelé Prints so a claim with the courier can be filed. Pelé Prints will NOT ship another item until the courier contacts Pelé Prints about the claim. If you are concerned about theft, please use a shipping address to a business or other safe place. Pelé Prints is not responsible for stolen or misdelivered packages.

SHIPPING RATES
Shipping charges for your order have been included in some of the items for sale. If the item does not specifically state that the shipping is included, shipping will be calculated prior to completing your order and receiving payment. The included shipping costs are only subject to addresses in Canada and Continental United States. Please note that additional charges may apply for any order shipping to Hawaii, Guam, Puerto Rico, or international destinations.

SHIPMENT TO P.O. BOXES OR APO/FPO ADDRESSES
Pelé Prints ships throughout Canada and to the Continental United States. We also accept special orders for many international locations. We do not ship to APO/FPO/DPO addresses. If an order is received with a P.O. Box address, a physical address will be required.

CUSTOMS, DUTIES AND TAXES
Pelé Prints is not responsible for any customs and taxes applied to your order. All fees imposed during or after shipping are the responsibility of the customer (tariffs, taxes, etc.).

DAMAGED GOODS POLICY
While we make every attempt to make sure packages arrive in perfect condition, on occasion a product does get damaged. If this happens with your package, please CONTACT US IMMEDIATELY!
In order to file a damaged goods claim, customer must contact Pelé Prints no later than 3 days after receiving the product. After 3 days, Pelé Prints is unable to accept damaged goods claims. If your item arrives damaged, please contact us immediately upon receipt.
Pelé Prints cannot be held responsible for any product damages incurred during transit.
If you can see damage upon delivery, DO NOT SIGN for the item and REFUSE THE DELIVERY.
If item is delivered with damages, please document all issues with pictures and contact us right away with the delivery slip and photos so we can assist you.



This is gonna be a major stretch --- but has anyone done any comparison dyno testing with this cowl-induction setup? Wonder if there could be a few HP loss or gain either way.



I don’t know of anyone that has dyno tested before and after. The cowl below the windshield is a high pressure area so it should have slightly better performance. I’ve been running my cowl intake for over a year and definitely haven’t noticed any draw backs!



Cool product! .

PM incoming



One other benefit for dirt road / off-road use is that there's probably a lot less road dust getting drawn into the air intake at cowl/hood level than there is down in the front-tire wheel well. I'm strongly considering this mod, doing it with your kit/parts.



Yes, my engine air filter is definitely much cleaner now!
Looking forward to getting you a kit!



Thank you very much!



id be interested in the hvac screen, cover, and side cover. any price/install details?



Great, thank you! The prices are listed in the first post above with all the kit details.
I have a detailed installation instructions that is included. The main part is removing the large black plastic cowl cover that is where your windshield wipers are. I will add KIT4 to the list.



@dpele pm sent



Very cool all in one kit!



What purpose does the HVAC Cover serve?



I believe it serves a few functions. But do correct me if I’m wrong.

1 - To reduce the engine noise from having the intake there.
2 - Reduce the fighting with airflow between the HVAC and the Air intake (sorry I don’t know the terminology)
I’m no aerodynamic scientist / engineer, but I have my imagination.
3 - Eliminates some FOD / contaminants such as leaf’s, pebbles, and other FOD.
4 - Restricts the fuckin mice and other animals from nesting and eventually dying there.



did you get your 5th order? if not, then i'm down for kit 2



@BluberryBCtaco hit it on the head! Those are the main benefits.
