Fork Mount for MTB on Toolbox

Discussion in 'Sports, Hobbies & Interests' started by jpneely, Jan 16, 2012.

  1. Jan 16, 2012 at 2:09 PM
    #1
    jpneely

    jpneely [OP] Well-Known Member

    Joined:
    Jan 16, 2011
    Member:
    #49361
    Messages:
    1,052
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2011 PreRunner SR5
    Secondary Filter mod, Always on Reverse Camera, Upgraded HU, LED Bed lights
    Ok well this is the write up of any kind so be easy on me haha and i really have no idea how to get the pictures to go upright. ive tried and none of them work so yea you have been warned

    ok so i wanted a better way to transport my bike/s. i used to just pile them on top of one another and i never really liked it very much. I also didnt want to spend a shit ton of money on something simple that midget with one leg and one arm could do while asleep.

    so i went out and found a couple of cheap locking fork mounts to put some where. after looking around on here everyone always found awesome ways to mount them up to the rail system such as http://www.tacomaworld.com/forum/2nd-gen-tacomas/198157-make-your-own-bed-bike-mount.html
    and
    http://www.tacomaworld.com/forum/2nd-gen-tacomas/43852-bike-mount-bed-rail-system-accessory.html

    but i dont want to remove my toolbox everytime i want to take them somewhere and never really found any thread on mounting them to the actual toolbox. so yea there are probably a few out there that i didnt see (dont really care). this is how i put it together.

    so first i started out by seeing how far to one side i could put the bike. then i marked where the holes were on the mount and did a little drilling (my favorite thing haha)
    [​IMG]

    then i proceeded to just mount it up with a couple of screws and rubber grommet-nuts. but make sure you also put some sealant down in there to keep the weather out of the toolbox.

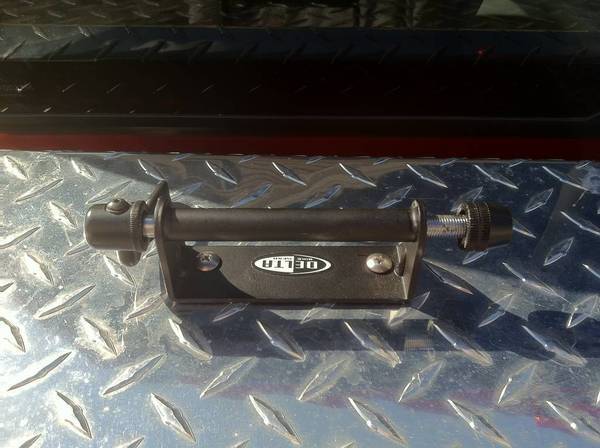

    heres the rubber grommet things
    [​IMG]
    and some more pictures.
    [​IMG]

    this is her mounted up and chillaxin
    [​IMG]

    eventually (maybe tomorrow) ill do up the other 2 mounts. so after its all said and done ill be able to transport 3 bikes upright.

    Enjoy! and go ride! and if you have any questions feel free to ask!

  2. Feb 15, 2012 at 8:11 AM
    #2
    bmc52

    bmc52 .

    Joined:
    Dec 24, 2010
    Member:
    #48177
    Messages:
    47
    Gender:
    Male
    First Name:
    Brett
    San Antonio,TX
    Vehicle:
    2007 4x4
    Stock
    very nice

  3. Apr 25, 2012 at 6:05 PM
    #3
    cjcarner

    cjcarner Well-Known Member

    Joined:
    Oct 20, 2011
    Member:
    #65549
    Messages:
    144
    Gender:
    Male
    First Name:
    Colin
    Savannah, GA
    Vehicle:
    2011 TRD Sport 6MT DCSB
    Rhino Rack roof rack with an Inno fairing, Snugtop Rebel cap
    Hey have you finished the other two? Did you have to put the rear tires of the bikes on the ends of the toolbox over the wheel wells? Or do they sit flat in the bed?

  4. Apr 27, 2012 at 7:09 AM
    #4
    jpneely

    jpneely [OP] Well-Known Member

    Joined:
    Jan 16, 2011
    Member:
    #49361
    Messages:
    1,052
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2011 PreRunner SR5
    Secondary Filter mod, Always on Reverse Camera, Upgraded HU, LED Bed lights
    they sit in the bed. i had to go back and put a little backplate under the fork mounts because the aluminum on the toolbox wasnt exactly "strong" but now its solid.

    i didnt end up doing the other two. i dont have enough bikes to fit the need so i nixed the idea. but overall im happy with it.

  5. Apr 27, 2012 at 7:10 AM
    #5
    NumNutz

    NumNutz One of the original 7928

    Joined:
    Jul 14, 2008
    Member:
    #7928
    Messages:
    4,775
    Gender:
    Male
    First Name:
    Nick
    Meridian, MS
    Vehicle:
    Big Pimpin
    Lots.
    Just be mindful of your back glass

  6. Apr 27, 2012 at 12:34 PM
    #6
    jpneely

    jpneely [OP] Well-Known Member

    Joined:
    Jan 16, 2011
    Member:
    #49361
    Messages:
    1,052
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2011 PreRunner SR5
    Secondary Filter mod, Always on Reverse Camera, Upgraded HU, LED Bed lights
    if your talking about the fork mounts hitting, they happen to just clear the glass by about an inch (mine do at least).

    but if your referring to the bike hitting, i havent really had to much of a problem with that.

    but yea make sure theres no contact when the box is open or you may just crack or chip it.

  7. Apr 27, 2012 at 12:56 PM
    #7
    cjcarner

    cjcarner Well-Known Member

    Joined:
    Oct 20, 2011
    Member:
    #65549
    Messages:
    144
    Gender:
    Male
    First Name:
    Colin
    Savannah, GA
    Vehicle:
    2011 TRD Sport 6MT DCSB
    Rhino Rack roof rack with an Inno fairing, Snugtop Rebel cap
    Awesome. Thanks. And good write up BTW I'll be doing it on my new UWS low pro shortly

  8. Apr 27, 2012 at 5:59 PM
    #8
    jpneely

    jpneely [OP] Well-Known Member

    Joined:
    Jan 16, 2011
    Member:
    #49361
    Messages:
    1,052
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2011 PreRunner SR5
    Secondary Filter mod, Always on Reverse Camera, Upgraded HU, LED Bed lights

    good luck man. i think the UWS boxes are a little thisker and stronger than the cheap kobalt ones so you may or may not need a backplate. but let us know if you do or not. im curious.

  9. Apr 27, 2012 at 6:07 PM
    #9
    GAmtber23

    GAmtber23 Well-Known Member

    Joined:
    May 31, 2010
    Member:
    #38104
    Messages:
    163
    Gender:
    Male
    Georgia
    Vehicle:
    '10 Tacoma Access cab 4x4
    Window tint, debadged, fog-lite anytime mod, aftermarket taillights, low profile toolbox modded with three mountain bike mounts, JVC dvd headunit, Kicker hideaway, Fox 2.5" IFP with DSM UCA's, Allpro standard (soon to be expedition) leaf pack, 255/85r16 BFG KM2's, 1.25" spidertrax wheel spacers, powdercoated gloss black TRD offroad rims with color matched center caps.
    That's steel tho correct? I have the USW lowpro aluminum and it has a top layer and an inside layer.. it buckles with the bikes attatched and bounces all around. Any suggestions to beef it up? I was thinking about cutting the inside layer out and adding a piece of wood to give it some backing.. Thoughts, opinions?

  10. Apr 27, 2012 at 6:10 PM
    #10
    GAmtber23

    GAmtber23 Well-Known Member

    Joined:
    May 31, 2010
    Member:
    #38104
    Messages:
    163
    Gender:
    Male
    Georgia
    Vehicle:
    '10 Tacoma Access cab 4x4
    Window tint, debadged, fog-lite anytime mod, aftermarket taillights, low profile toolbox modded with three mountain bike mounts, JVC dvd headunit, Kicker hideaway, Fox 2.5" IFP with DSM UCA's, Allpro standard (soon to be expedition) leaf pack, 255/85r16 BFG KM2's, 1.25" spidertrax wheel spacers, powdercoated gloss black TRD offroad rims with color matched center caps.
    Woops sorry didn't read the rest of thread. Can you take a picture of the plate you used?

  11. Apr 27, 2012 at 6:11 PM
    #11
    jpneely

    jpneely [OP] Well-Known Member

    Joined:
    Jan 16, 2011
    Member:
    #49361
    Messages:
    1,052
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2011 PreRunner SR5
    Secondary Filter mod, Always on Reverse Camera, Upgraded HU, LED Bed lights
    i just added a little piece of steel plate cut to fit the corner it was going in. yea they still sway a tiny bit but not near as much and i feel much better about it.

    the wood may help a tad bit. hell do it and post back? then we'll really know what works and doesnt

  12. Apr 27, 2012 at 6:13 PM
    #12
    jpneely

    jpneely [OP] Well-Known Member

    Joined:
    Jan 16, 2011
    Member:
    #49361
    Messages:
    1,052
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2011 PreRunner SR5
    Secondary Filter mod, Always on Reverse Camera, Upgraded HU, LED Bed lights
    i will eventually its dark out and i have a good bit of work to do in the next week or so but ill try.

    but it was just some light 3/16 (i think) plate i do believe. the boss just had some spare pieces laying around and i picked it up. but lowes or home depot would probly have it but i havent checked.

    good luck man! its really pretty straight foward

  13. Apr 27, 2012 at 8:22 PM
    #13
    NumNutz

    NumNutz One of the original 7928

    Joined:
    Jul 14, 2008
    Member:
    #7928
    Messages:
    4,775
    Gender:
    Male
    First Name:
    Nick
    Meridian, MS
    Vehicle:
    Big Pimpin
    Lots.
    Yea I was talking about the fork mount. If they don't hit that's awesome. It looks great.

  14. Apr 28, 2012 at 12:37 PM
    #14
    jpneely

    jpneely [OP] Well-Known Member

    Joined:
    Jan 16, 2011
    Member:
    #49361
    Messages:
    1,052
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2011 PreRunner SR5
    Secondary Filter mod, Always on Reverse Camera, Upgraded HU, LED Bed lights
    thanks man! i like them.
