Fox 2.5 Coilovers ****SOLD****

Discussion in '2nd Gen Tacoma Parts Marketplace (2005-2015)' started by badger, Sep 7, 2017.

  1. Sep 7, 2017 at 5:24 PM
    #1
    badger

    badger [OP] Well-Known Member

    Joined:
    Jan 6, 2012
    Member:
    #70102
    Messages:
    2,149
    Gender:
    Male
    Vehicle:
    07 SR5

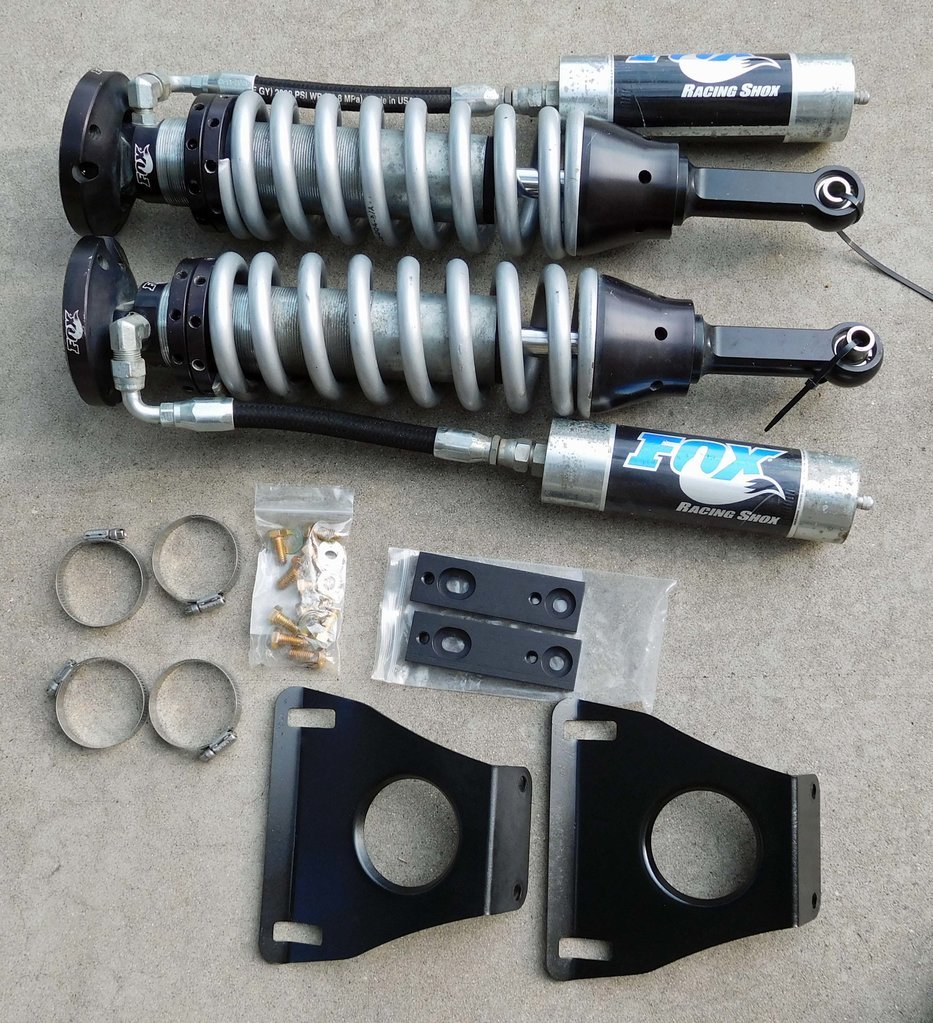

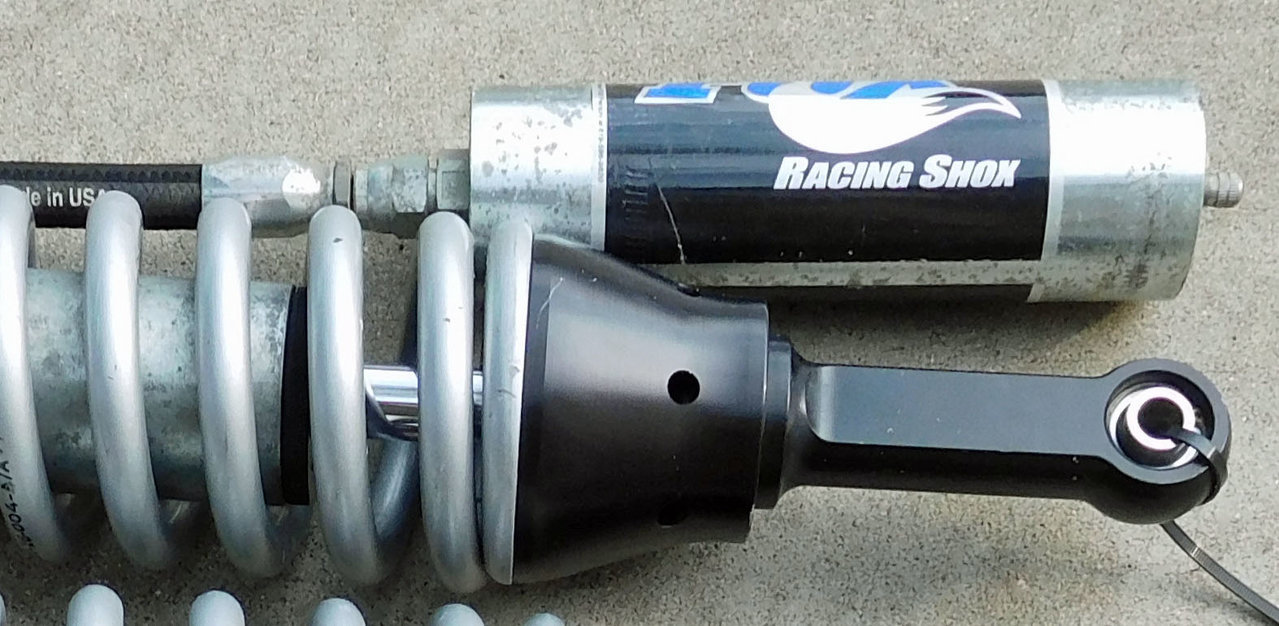

    ****SOLD**** These are Fox part number 039-26-004-A/A. They are standard length units, 600 lb springs. They have been completely rebuilt, including new heim joints. I will supply a copy of the paperwork. The shafts are in perfect condition. I have new mounting hardware (shock relocation brackets, bolts, clamps) The reservoir mounts have been sand blasted and painted with wheel paint.
    There is some minor corrosion on the shock body and res body, but aside from that, these are as good as new. I have the original shipping box to package them in, and the manual. $1,000 + shipping from Prescott, AZ.

    These shocks performed great on my truck until a seal started leaking. It was over Christmas holiday, so I was looking at being without a truck for 6 weeks. I ended up having to buy a whole new set of shocks to get back on the road. I debated keeping these for spares, but I have too much stuff just sitting around. Great deal and a great upgrade!
    fox shocks 1.jpg fox shocks 2.jpg

    Last edited: Sep 9, 2017
  2. Sep 7, 2017 at 7:00 PM
    #2
    ERod87

    ERod87 Well-Known Member

    Joined:
    Aug 14, 2014
    Member:
    #136164
    Messages:
    119
    Gender:
    Male
    First Name:
    Edgar
    Pacoima, CA
    Vehicle:
    2013 Black TRD Baja
    How much lift do these give?

  3. Sep 7, 2017 at 7:06 PM
    #3
    eon_blue

    eon_blue If I would, could you

    Joined:
    Mar 4, 2016
    Member:
    #180213
    Messages:
    70,018
    Gender:
    Male
    First Name:
    Ryan
    Azusa, CA
    Vehicle:
    '04 TRD 3.4l 4x4 5sp manual Xtraca & '96 4runner 4x4 5spd manual
    Great deal right here, wish they were 1st gen coilovers lol. GLWS

  4. Sep 7, 2017 at 7:07 PM
    #4
    eon_blue

    eon_blue If I would, could you

    Joined:
    Mar 4, 2016
    Member:
    #180213
    Messages:
    70,018
    Gender:
    Male
    First Name:
    Ryan
    Azusa, CA
    Vehicle:
    '04 TRD 3.4l 4x4 5sp manual Xtraca & '96 4runner 4x4 5spd manual
    If I'm not mistaken, these are adjustable from 0 ~ 3" of lift

  5. Sep 7, 2017 at 7:09 PM
    #5
    badger

    badger [OP] Well-Known Member

    Joined:
    Jan 6, 2012
    Member:
    #70102
    Messages:
    2,149
    Gender:
    Male
    Vehicle:
    07 SR5
    When I bought these I was told 0-3", but here is the deal. On a mostly street driven truck, 3" would be fine. On a truck that gets 4 wheeled, I would limit it to 0-2". The reason is that for every inch of lift that you dial in, you gain an inch of compression travel, and lose an inch of rebound travel. That limited rebound won't matter unless you are working the suspension over offroad obstacles.

    So yes, the official word is 0-3,...

  6. Sep 8, 2017 at 12:08 AM
    #6
    chasecamper

    chasecamper Well-Known Member

    Joined:
    Feb 8, 2016
    Member:
    #177586
    Messages:
    373
    Gender:
    Male
    First Name:
    Sawyer
    Orange county
    Dang if only they were extended travel

    raco.the.taco likes this.
  7. Sep 8, 2017 at 5:34 AM
    #7
    desertjunkie760

    desertjunkie760 @DesertJunkie760 (IG)

    Joined:
    Apr 11, 2016
    Member:
    #183963
    Messages:
    9,152
    Gender:
    Male
    First Name:
    Shane
    Vehicle:
    2011 MGM DCSB TRD Sport 4x4
    Check My Sig.
    You don't gain but .4 of an inch +/-between the two. Not saying that it's not worth it, but the more you know! :boink:

    From my understanding, you can also make a non ext into and extended when torn apart.

  8. Sep 8, 2017 at 7:28 AM
    #8
    Slvr14tacoma

    Slvr14tacoma Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222390
    Messages:
    626
    Gender:
    Male
    Mid travel
    Less than half an inch? Thought it was closer to 1"

  9. Sep 8, 2017 at 8:08 AM
    #9
    chasecamper

    chasecamper Well-Known Member

    Joined:
    Feb 8, 2016
    Member:
    #177586
    Messages:
    373
    Gender:
    Male
    First Name:
    Sawyer
    Orange county
    Not saying you're wrong because I don't know the exact specs, but why is it then if it's only .4" longer that you, according to the companies that sell king, must have uniball uppers so that your balljoints don't bind?

  10. Sep 8, 2017 at 8:46 AM
    #10
    desertjunkie760

    desertjunkie760 @DesertJunkie760 (IG)

    Joined:
    Apr 11, 2016
    Member:
    #183963
    Messages:
    9,152
    Gender:
    Male
    First Name:
    Shane
    Vehicle:
    2011 MGM DCSB TRD Sport 4x4
    Check My Sig.
    I'm not going to lie and act like I know the correct answer. Let's pull the specs. This is information I have gathered from a previous shock rebuild and I could be off.

    My point is that dont miss a great deal for an extra (possible) inch of travel. Everyone has their own desires though so by all means, you fill yours.

  11. Sep 8, 2017 at 8:56 AM
    #11
    desertjunkie760

    desertjunkie760 @DesertJunkie760 (IG)

    Joined:
    Apr 11, 2016
    Member:
    #183963
    Messages:
    9,152
    Gender:
    Male
    First Name:
    Shane
    Vehicle:
    2011 MGM DCSB TRD Sport 4x4
    Check My Sig.

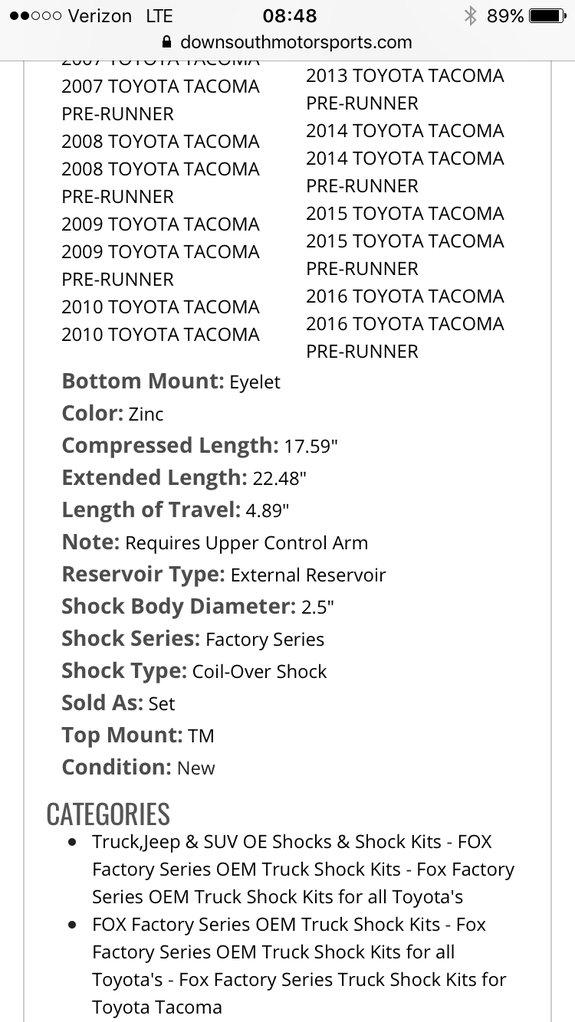

    From @Downsouth Motorsports website. Assuming I choose the correct shocks and did a proper comparison.

    Non-ext

    Ext

  12. Sep 8, 2017 at 9:49 AM
    #12
    RangerComa

    RangerComa 58008

    Joined:
    Mar 14, 2017
    Member:
    #213317
    Messages:
    2,829
    Gender:
    Male
    First Name:
    Adam
    Marin, CA
    Vehicle:
    17 DCLB
    list is growing fast
    .35"... interesting.

  13. Sep 8, 2017 at 10:48 AM
    #13
    theREDwonder

    theREDwonder Well-Known Member

    Joined:
    Mar 15, 2015
    Member:
    #150998
    Messages:
    222
    Gender:
    Male
    First Name:
    Corey
    Huntington Beach
    Vehicle:
    2011 DCLB Sport 4x4
    Kings + Flippac
    @desertjunkie760
    Shock travel =/= wheel travel. Think back to basic trigonometry. The shock is mounted closer to the pivot point on the lower control arm than the wheel and will travel less compared to the wheel. The extra 1" of droop is at the wheel, not the shock. Its the same reason the shock is only listed as having 4.89" of travel, while these trucks are known to have around 10" of wheel travel.
    Not all "extended travel" shocks are created equal though. The kings have more "extended" travel than the Fox shocks do.

    More info here: https://www.tacomaworld.com/threads/coilover-lengths.403450/

    chasecamper and desertjunkie760 like this.
  14. Sep 8, 2017 at 12:20 PM
    #14
    Downsouth Motorsports

    Downsouth Motorsports Downsouth Motorsport Vendor

    Joined:
    Nov 28, 2008
    Member:
    #11116
    Messages:
    2,106
    Gender:
    Male
    Lakeside, Ca. 92040
    2017 4-Runner Dirt King Long Travel King 2.5 Coil-Over / 2.5 Bypass Front and Rear ICON Rear Upper and Lower Arms ICON Rear 2" Springs 34" x 10.50" x 17 Toyo Tires on 17" x 9" RaceLine Wheels
    the only difference in standard and extended is typically a internal droop limiting spacer that is removed. the spacer is typically around .375.
    as stated above, shock travel and wheel travel are not the same.
    the spacer can be removed to make it extended travel. the reason aftermarket upper arms are required is the added wheel travel that is too much for a stock ball joint.

    Bentrodder and desertjunkie760 like this.
  15. Sep 8, 2017 at 1:39 PM
    #15
    desertjunkie760

    desertjunkie760 @DesertJunkie760 (IG)

    Joined:
    Apr 11, 2016
    Member:
    #183963
    Messages:
    9,152
    Gender:
    Male
    First Name:
    Shane
    Vehicle:
    2011 MGM DCSB TRD Sport 4x4
    Check My Sig.
    This makes a lot more sense. Thank you for clarifying. I have read similar information before and helps clear up my confusion. GLWS

  16. Sep 9, 2017 at 12:05 PM
    #16
    badger

    badger [OP] Well-Known Member

    Joined:
    Jan 6, 2012
    Member:
    #70102
    Messages:
    2,149
    Gender:
    Male
    Vehicle:
    07 SR5
    *****SOLD*****
