Fox Life!!! Anything Related to Fox Suspension

Discussion in 'Suspension' started by ThaiChillyTaco, Feb 25, 2018.

  1. Dec 24, 2019 at 2:18 PM
    #2041
    KeithB

    KeithB Well-Known Member

    Joined:
    Jan 6, 2009
    Member:
    #12299
    Messages:
    1,434
    Gender:
    Male
    First Name:
    Keith
    Cheshire, CT
    Vehicle:
    SWB '09 Tacoma DCSB Sport 4x4
    Wheels and Tires: 17x8" Ultra Goliath wheels with P285/70R17 Falken Wildpeak AT3/W tires, Suspension: Fox coilovers set at 2", TC UCA's, 1.5" lift 3 leaf pack with overload left in Other: TRD SS exhaust, Pioneer AVIC 4100 H/U with Android Auto (awesomeness), sat radio bluetooth, Accessories: Toyota roof rack, black Toyota running board steps, cargo divider, weathertech floor liners, Literider roll up soft tonneau, thule bars over tonneau, USB ports front and rear, seat heaters, birddawg mirror riser Cosmetic: window tint, grillcraft black mesh upper/lower grill, vinyl armrest in doors, Clazzio black seat covers with blue stitch, Redline steering wheel wrap Lighting: fogs only mod, back up lights, amber interior accent lighting, amber 10" LED light bar in hood scoop, 33" LED bar behind the lower grill, amber lamin-x on fog lights, Tacomabeast headlights and matching tails.
    That 28 3/4 cant be right. Maybe 22 3/4.

  2. Dec 24, 2019 at 3:11 PM
    #2042
    cdex8357

    cdex8357 “Going Soft til I Go Hard”

    Joined:
    Apr 7, 2018
    Member:
    #249677
    Messages:
    678
    Gender:
    Male
    First Name:
    Charles
    H-Town
    Vehicle:
    2013 Taco OR
    Mid travel FOX 2.5 Coilovers FOX 2.5 secondary bypass FOX 12” Triple Bypass

    Yes typo.. 28 would be bad ass

    Sweston and RangerComa like this.
  3. Dec 24, 2019 at 9:52 PM
    #2043
    cdex8357

    cdex8357 “Going Soft til I Go Hard”

    Joined:
    Apr 7, 2018
    Member:
    #249677
    Messages:
    678
    Gender:
    Male
    First Name:
    Charles
    H-Town
    Vehicle:
    2013 Taco OR
    Mid travel FOX 2.5 Coilovers FOX 2.5 secondary bypass FOX 12” Triple Bypass
    I dunno if my coil is moving but measured again and I’m at 21.75 driver and 22 passenger..

    measured same place and only drove about a mile to get cheap beer for padre in law.

    This is driving me nuts..

    waiting for midnight for these kids to open these damn presents and I can hit the sack.

  4. Dec 26, 2019 at 7:55 AM
    #2044
    AccuTune Offroad

    AccuTune Offroad Well-Known Member Vendor

    Joined:
    Jan 28, 2019
    Member:
    #281012
    Messages:
    678
    This is not correct. cdex8357 stated he has no addition weight up front. The coilover as it currently sits, based on the measurements provided, is just about as tall as it can go. Swapping to a heavier, longer spring will not change this fact. A longer or heavier spring will just require less preload to get the height needed. Heavier spring is not ideal at its current stage.

  5. Dec 26, 2019 at 5:49 PM
    #2045
    RangerComa

    RangerComa 58008

    Joined:
    Mar 14, 2017
    Member:
    #213317
    Messages:
    2,574
    Gender:
    Male
    First Name:
    Adam
    Bay Area, CA
    Vehicle:
    17 DCLB
    list is growing fast
    You’re right. :cheers: I was quoting him based on previous info he posted. As it turns out he wasn’t providing accurate info and didn't know how to measure from the hub to fender correctly. Your method of measuring from bottom eyelet to top of top hat is much more accurate for overall shock performance and health. He still needs to be on level ground tho.

    AccuTune Offroad likes this.
  6. Dec 26, 2019 at 6:04 PM
    #2046
    cdex8357

    cdex8357 “Going Soft til I Go Hard”

    Joined:
    Apr 7, 2018
    Member:
    #249677
    Messages:
    678
    Gender:
    Male
    First Name:
    Charles
    H-Town
    Vehicle:
    2013 Taco OR
    Mid travel FOX 2.5 Coilovers FOX 2.5 secondary bypass FOX 12” Triple Bypass

    Thanks again for the help..

    AccuTune Offroad likes this.
  7. Dec 26, 2019 at 6:29 PM
    #2047
    RangerComa

    RangerComa 58008

    Joined:
    Mar 14, 2017
    Member:
    #213317
    Messages:
    2,574
    Gender:
    Male
    First Name:
    Adam
    Bay Area, CA
    Vehicle:
    17 DCLB
    list is growing fast
    It’s a wealth of knowledge here. :cheers: Did you figure out true ride height and if you’re sitting where you want to be?

  8. Dec 26, 2019 at 6:30 PM
    #2048
    cdex8357

    cdex8357 “Going Soft til I Go Hard”

    Joined:
    Apr 7, 2018
    Member:
    #249677
    Messages:
    678
    Gender:
    Male
    First Name:
    Charles
    H-Town
    Vehicle:
    2013 Taco OR
    Mid travel FOX 2.5 Coilovers FOX 2.5 secondary bypass FOX 12” Triple Bypass
    Yes with y’all help and fox I was able to figure it out

  9. Dec 26, 2019 at 6:33 PM
    #2049
    Jpiskura

    Jpiskura Well-Known Member

    Joined:
    May 23, 2013
    Member:
    #104773
    Messages:
    507
    Gender:
    Male
    Just a quick shout out to @AccuTune Offroad, you guys really hooked it up with my tune on my new 2.5dscs... never thought my truck would ride like this. So comfy!!!

  10. Dec 27, 2019 at 8:52 AM
    #2050
    AccuTune Offroad

    AccuTune Offroad Well-Known Member Vendor

    Joined:
    Jan 28, 2019
    Member:
    #281012
    Messages:
    678
    Right on! Thats what we like to hear, much appreciated!

    Jpiskura likes this.
  11. Dec 28, 2019 at 12:14 PM
    #2051
    Withoutapaddle

    Withoutapaddle Active Member

    Joined:
    Dec 31, 2015
    Member:
    #173658
    Messages:
    31
    Gender:
    Male
    Vehicle:
    2014 Spruce Mica AC TRD OR
    CBI Off-road Moab 2.0 front, CBI high clearance rear, CBI DOM bolt on sliders, Victory 4x4 front skid. Fox extended travel 2.5 coilovers with DSC and SPC upper control arms. Front diff drop. Icon RXT leaf pack set to Stage 2 with Fox 2.0 DSC 12" travel rear shocks. BAMF rear shock relocation kit. S-pod running 30" Baja Designs S8 lightbar, Baja designs squadron pro ditch lights and ARB single Air compressor out back. 285/75R17 Nitto Ridge Grapplers. Method Roost wheels 4.5 BS.
    Where exactly are you measuring preload? Just top of shock body to the top of the preload ring? I am also swapping to a 14" 650LB spring on the 2.5 ext dsc. I am access cab with steel bumper, sliders and skids and will be adding winch soon. I'm currently on bilstein 6112s at 21.5" DR from center hub to bottom fender and 22" Passenger. Since your a 3rd gen, would this preload put me at 3"? Just trying to figure out a starting point. My end goal is to be at 22.5" hub to bottom fender on both sides. I have the SPC UCA right at 4 degrees of caster. Any suggestions of similar setups would be much appreciated.

    One last question, does P/N 880-06-418 no longer come with a locking ring on top of the preload rings? I recieved mine with only preload rings and all of the pics I've seen have both rings.

  12. Dec 28, 2019 at 3:35 PM
    #2052
    RangerComa

    RangerComa 58008

    Joined:
    Mar 14, 2017
    Member:
    #213317
    Messages:
    2,574
    Gender:
    Male
    First Name:
    Adam
    Bay Area, CA
    Vehicle:
    17 DCLB
    list is growing fast
    I’m measuring exposed threads above the preload collar. And yes that’s basically 3” lift over stock second gen. It’s settled slightly over the past month to 22.5”.

    Honestly, I have no clue what to tell you. My buddies dclb 3rd gen with same shocks and coils, but no extra weight of bumper and winch, and he had to crank down preload significantly further than me. So there’s variance between truck, coils and definitely between gens. Maaaaaybe as a guesstimate, start with no preload on passenger and 1/4” on driver. 22.5” hub to fender is perfect imo.

    @AccuTune Offroad likes to measure bottom eyelet to top of tophat and says max should be 21”. This should be 23” hub to fender (for both 2nd and 3rd gen). But again, YMMV.

    go for it. Good luck and no big deal to make fine tune adjustments while on truck. You can use these coil compressors to make life easier when you do: https://www.amazon.com/gp/aw/d/B071DQJG24/ref=sspa_mw_detail_0?ie=UTF8&psc=1

    And a 5/16” punch.

  13. Dec 29, 2019 at 8:47 PM
    #2053
    Duffman76

    Duffman76 Member

    Joined:
    Jul 9, 2019
    Member:
    #298715
    Messages:
    15
    Gender:
    Male
    I made 2, 5/16” punches out of cold rolled steel, a liberal dousing of PB Blaster, and even more elbow grease to adjust mine once they were installed. Worked up a sweat but got them where I need it to be. Just under 2” of thread showing on the driver side and 1/4” less on the passenger to account for the taco lean. Measures just under 21” eyelet to top hat on the driver side and the ride is awesome. 2.25” of lift on my 3rd gen for a hub to fender measurement of 23.25”

    AccuTune Offroad likes this.
  14. Dec 30, 2019 at 8:07 AM
    #2054
    AccuTune Offroad

    AccuTune Offroad Well-Known Member Vendor

    Joined:
    Jan 28, 2019
    Member:
    #281012
    Messages:
    678
    Just to be clear, the amount of threads showing on the coilover is NOT your preload. Like mentioned above, every truck is different and will require a X amount of preload to get you X lift height.
    [​IMG]

  15. Dec 30, 2019 at 5:05 PM
    #2055
    Withoutapaddle

    Withoutapaddle Active Member

    Joined:
    Dec 31, 2015
    Member:
    #173658
    Messages:
    31
    Gender:
    Male
    Vehicle:
    2014 Spruce Mica AC TRD OR
    CBI Off-road Moab 2.0 front, CBI high clearance rear, CBI DOM bolt on sliders, Victory 4x4 front skid. Fox extended travel 2.5 coilovers with DSC and SPC upper control arms. Front diff drop. Icon RXT leaf pack set to Stage 2 with Fox 2.0 DSC 12" travel rear shocks. BAMF rear shock relocation kit. S-pod running 30" Baja Designs S8 lightbar, Baja designs squadron pro ditch lights and ARB single Air compressor out back. 285/75R17 Nitto Ridge Grapplers. Method Roost wheels 4.5 BS.
    Does anyone have a link to a good video on how to replace the springs or any pointers if you've done it yourself? From what I can tell: secure the coilover, compress spring with spring compressor, back off preload ring if needed, remove lower coil seat and snap ring, release spring compressor and repeat in reverse for new spring. I am really having a hard time justifying spending $200 in labor when I could just buy the tools and do it myself. Any feedback would be greatly appreciated.

    lamjam likes this.
  16. Dec 30, 2019 at 7:17 PM
    #2056
    outxider

    outxider Never stop exploring.

    Joined:
    May 9, 2010
    Member:
    #36858
    Messages:
    1,879
    Gender:
    Male
    First Name:
    Sang
    East Bay, CA
    Vehicle:
    06 DCSB 4x4
    A few mods here and there and counting....
    It is that easy with a proper spring compressor. I nearly shelled out $200, but a local member had a spring compressor and was willing to lend his time to help. 30 minutes and it was done.


    Withoutapaddle likes this.
  17. Dec 30, 2019 at 7:23 PM
    #2057
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    1,122
    Gender:
    Male
    Vehicle:
    2018 OR DCLB BarRed
    The question is: what is a proper compressor for these coils? There are 2 listed in the product section below; are either of those suitable for this job?

  18. Dec 30, 2019 at 7:30 PM
    #2058
    Withoutapaddle

    Withoutapaddle Active Member

    Joined:
    Dec 31, 2015
    Member:
    #173658
    Messages:
    31
    Gender:
    Male
    Vehicle:
    2014 Spruce Mica AC TRD OR
    CBI Off-road Moab 2.0 front, CBI high clearance rear, CBI DOM bolt on sliders, Victory 4x4 front skid. Fox extended travel 2.5 coilovers with DSC and SPC upper control arms. Front diff drop. Icon RXT leaf pack set to Stage 2 with Fox 2.0 DSC 12" travel rear shocks. BAMF rear shock relocation kit. S-pod running 30" Baja Designs S8 lightbar, Baja designs squadron pro ditch lights and ARB single Air compressor out back. 285/75R17 Nitto Ridge Grapplers. Method Roost wheels 4.5 BS.

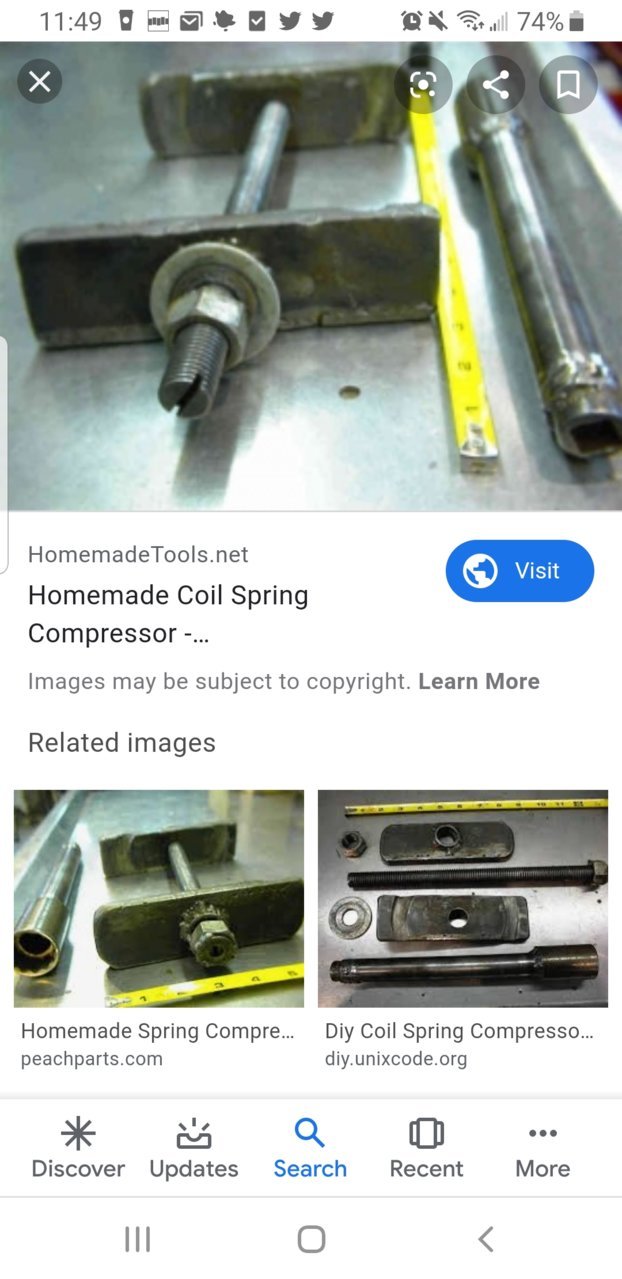

    Both in the product listings look better than the typical auto parts store rental or the sweet device pictured below. As long as you use common sense and apply a little patience I'm pretty sure it will be fine. Screenshot_20191228-114919_Google.jpg

  19. Dec 30, 2019 at 7:42 PM
    #2059
    desertjunkie760

    desertjunkie760 @DesertJunkie760 (IG)

    Joined:
    Apr 11, 2016
    Member:
    #183963
    Messages:
    7,349
    Gender:
    Male
    First Name:
    Shane
    Vehicle:
    2011 MGM DCSB TRD Sport 4x4
    Check My Sig.
    Pay someone with the proper equipment. It’s not worth the risk to use one of the cheapy compressors on these shocks. It’ll work on 5100s but not a 600+ lb spring with the amount of preload these have.

    Where are you located? It is NOT a $200 job. That’s outrageous.

    AccuTune Offroad and outxider like this.
  20. Dec 30, 2019 at 7:48 PM
    #2060
    Withoutapaddle

    Withoutapaddle Active Member

    Joined:
    Dec 31, 2015
    Member:
    #173658
    Messages:
    31
    Gender:
    Male
    Vehicle:
    2014 Spruce Mica AC TRD OR
    CBI Off-road Moab 2.0 front, CBI high clearance rear, CBI DOM bolt on sliders, Victory 4x4 front skid. Fox extended travel 2.5 coilovers with DSC and SPC upper control arms. Front diff drop. Icon RXT leaf pack set to Stage 2 with Fox 2.0 DSC 12" travel rear shocks. BAMF rear shock relocation kit. S-pod running 30" Baja Designs S8 lightbar, Baja designs squadron pro ditch lights and ARB single Air compressor out back. 285/75R17 Nitto Ridge Grapplers. Method Roost wheels 4.5 BS.
    Weatherford, TX (by DFW). 3 shops have quoted me at that so far.
