Fox Life!!! Anything Related to Fox Suspension

Discussion in 'Suspension' started by ThaiChillyTaco, Feb 25, 2018.

  1. Mar 12, 2018 at 12:31 AM
    #81
    MolonLabeTaco

    MolonLabeTaco Well-Known Member

    Joined:
    Jan 30, 2018
    Member:
    #242953
    Messages:
    2,786
    Gender:
    Male
    First Name:
    Dude
    N. Texas
    Vehicle:
    '12 DC 4x4 OR
    Supposed to equal 2" on 3rd gen and 3" on 2nd gen. on trucks with no armor/extra weight.

  2. Mar 12, 2018 at 12:50 AM
    #82
    m603holden

    m603holden @Koditten Pirate Radio member #063

    Joined:
    Oct 18, 2014
    Member:
    #140581
    Messages:
    11,458
    Gender:
    Male
    First Name:
    Marteeen
    New England
    Vehicle:
    2017 Tacoma DCSB OR MT
    Lots of sail boat fuel
    Taking shipment this morning. Any pro tips for dialing in DSC? I come from the mountain bike world so I understand the basics.

  3. Mar 12, 2018 at 9:41 AM
    #83
    Broheim

    Broheim Well-Known Member

    Joined:
    Feb 16, 2016
    Member:
    #178360
    Messages:
    576
    Gender:
    Male
    First Name:
    John
    San Antonio, TX
    Vehicle:
    2016 TRD Off-Road

    No I didn't get that pic actually.
    That 1.9" of thread showing will not net a 3rd gen very much lift or any.
    I'm at 2.9" of threads showing and it rides 100% perfect. Though I haven't tried to max out my suspension yet either.
    On a 3rd gen when you get the AAL and leave the overload in, you need to crank these foxes up plenty to level it out. 2.9" of threads is where you'll be. No way a round it but buying taller springs. Would be nice if fox sold that particular application. Swapping out equipment on new coilovers just doesn't compute with me.

  4. Mar 12, 2018 at 9:52 AM
    #84
    MolonLabeTaco

    MolonLabeTaco Well-Known Member

    Joined:
    Jan 30, 2018
    Member:
    #242953
    Messages:
    2,786
    Gender:
    Male
    First Name:
    Dude
    N. Texas
    Vehicle:
    '12 DC 4x4 OR
    I completely agree on that!

    You said you & others got different info. from Fox. What info.did Fox give or tell you?
    Do you have any armor?
    How much down travel do you have w/it cranked to 2.9? (I'm guessing ~1")
    Do you get coil bind?
    Do you ever bottom out the shock?

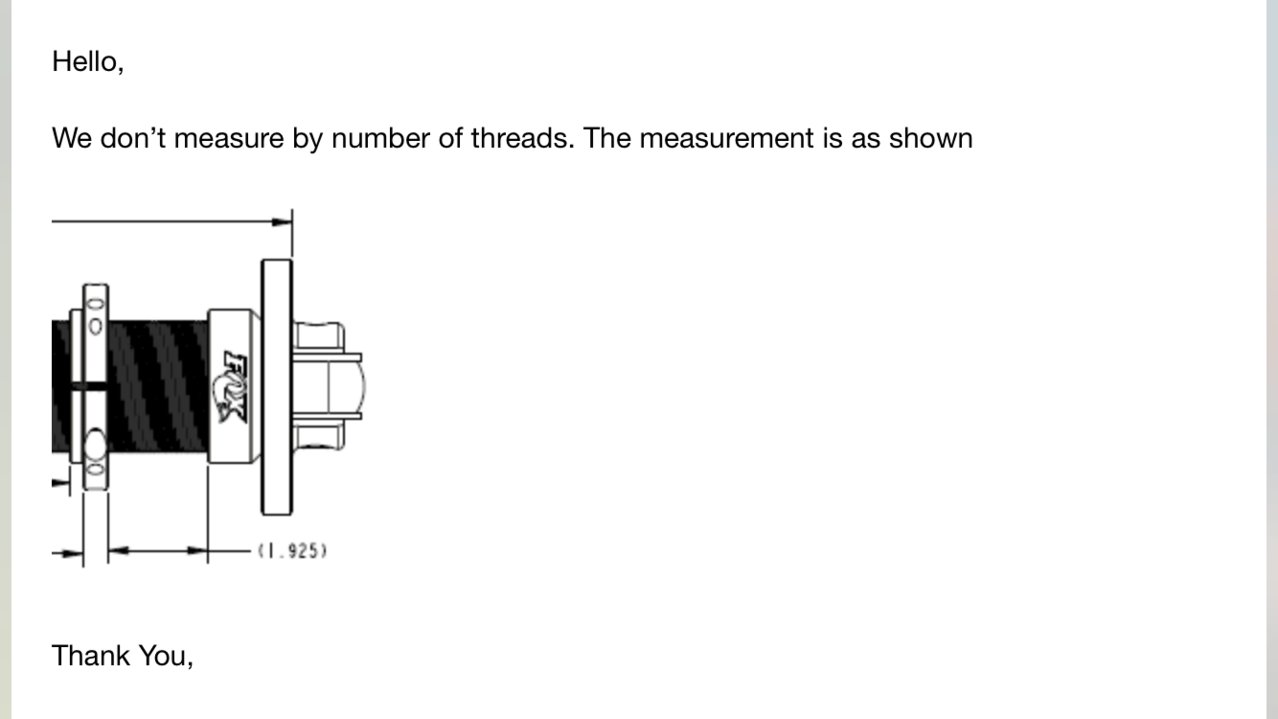

    I'd like to lift mine a little to get closer to level but I'm @ their max recommended height (1.925" exposed threads) & don't want to screw them up.
    You say you had to crank them that high to get it level. What if you put taller springs on the rear, would you keep cranking it to get level?
    Did Fox tell you to crank it as high as you need to to make it level with your rear lift, regardless of how tall your rear lift is?
    Thanks!

  5. Mar 12, 2018 at 11:11 AM
    #85
    TB135k

    TB135k Well-Known Member

    Joined:
    Dec 14, 2017
    Member:
    #238525
    Messages:
    73
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    2018 TRD OR
    @MolonLabeTaco are you talking about wheel travel or shock travel when you say it’s probably around 1” of downtravel?
    Also curious if @Broheim has any added weight, and how the CV boots look at that setting

  6. Mar 12, 2018 at 12:55 PM
    #86
    MolonLabeTaco

    MolonLabeTaco Well-Known Member

    Joined:
    Jan 30, 2018
    Member:
    #242953
    Messages:
    2,786
    Gender:
    Male
    First Name:
    Dude
    N. Texas
    Vehicle:
    '12 DC 4x4 OR
    The Fox ext. travel 2.5 C/O's have a max travel of just less than 5". If it's cranked down that hard, a bunch on the travel is used up at resting/ride height, I'd assume. So if you hit a whoop, even on the highway, I'd think the front would bang as the truck tops out going upwards due to there being no more travel left in the suspension (not enough droop/down travel of the shock/wheel).
    Does that make sense?
    (I'm not very good at explaining myself via internet/text/email)
    Thanks.

  7. Mar 12, 2018 at 2:36 PM
    #87
    Broheim

    Broheim Well-Known Member

    Joined:
    Feb 16, 2016
    Member:
    #178360
    Messages:
    576
    Gender:
    Male
    First Name:
    John
    San Antonio, TX
    Vehicle:
    2016 TRD Off-Road

    Fox stated that we were at max lift on those coilovers and said it would be fine w/o issue. I have no armor or weight on the truck at all. It is completely stock except the suspension. There is absolutely no bind and the cv's look perfect. I run these every day and purposely hit speedbumps among other things to test the front coilovers. Like butter.
    I would not go any higher on the front or rear. I do think i am at max lift though. Like i said, working perfect.

    MolonLabeTaco likes this.
  8. Mar 12, 2018 at 3:53 PM
    #88
    MandosTaco

    MandosTaco Well-Known Member

    Joined:
    Sep 5, 2017
    Member:
    #229170
    Messages:
    523
    Gender:
    Male
    First Name:
    Armando
    Redding, CA
    Vehicle:
    2017 Tacoma TRD Off Road DCLB - Blue Pearl
    265/75/16 Duratracs; TacomaGrilles; OEM bed mat; tailgate vinyl decals; recovery hitch receiver; Subaru Tweeters and Kicker speaker upgrade; derped badges; CoverKing neoprene seat covers; cool stickers and rad patches!
    How much lift do you have with 2.9" of threads showing??

  9. Mar 12, 2018 at 6:02 PM
    #89
    Broheim

    Broheim Well-Known Member

    Joined:
    Feb 16, 2016
    Member:
    #178360
    Messages:
    576
    Gender:
    Male
    First Name:
    John
    San Antonio, TX
    Vehicle:
    2016 TRD Off-Road
    I'm at 23.5" hub to fender. Truck is 100% level.

  10. Mar 13, 2018 at 9:42 AM
    #90
    ThaiChillyTaco

    ThaiChillyTaco [OP] David aka Chilly aka Booty Freak

    Joined:
    Apr 13, 2016
    Member:
    #184216
    Messages:
    3,695
    Gender:
    Male
    First Name:
    David
    The Ville, South Carolina
    Vehicle:
    2012 Silver Tacoma TRD 4x4 Longbed
    Fox’s 2.5’s extended SCS Gun Metal SR8’s Falken Wildpeaks
    So I just parked next to a completely stock 2nd and did some measurements. I got 20 inches from the front hub to the fender on the stock Tacoma. My Tacoma was 23” inches from center hub to the fender. And this is with the Fox 2.5 extended coilovers right out the box. I have like 2 inches of thread on my shocks from the factory.

    MolonLabeTaco likes this.
  11. Mar 13, 2018 at 10:55 AM
    #91
    MolonLabeTaco

    MolonLabeTaco Well-Known Member

    Joined:
    Jan 30, 2018
    Member:
    #242953
    Messages:
    2,786
    Gender:
    Male
    First Name:
    Dude
    N. Texas
    Vehicle:
    '12 DC 4x4 OR
    That sounds like it worked out exactly as Fox described to me. I wonder why some get 3" (2nd gen) or 2" (3rd gen) then some get just 1" or almost no lift? Weird.

    Thank you for your service! :oldglory:

  12. Mar 14, 2018 at 5:42 AM
    #92
    Taco Addiction

    Taco Addiction We found Jimmy

    Joined:
    Apr 10, 2016
    Member:
    #185387
    Messages:
    3,017
    Gender:
    Male
    Houston, TX
    Vehicle:
    2004 Black TRD Offroad
    Kings, SCS Wheels and other mall crawling crap

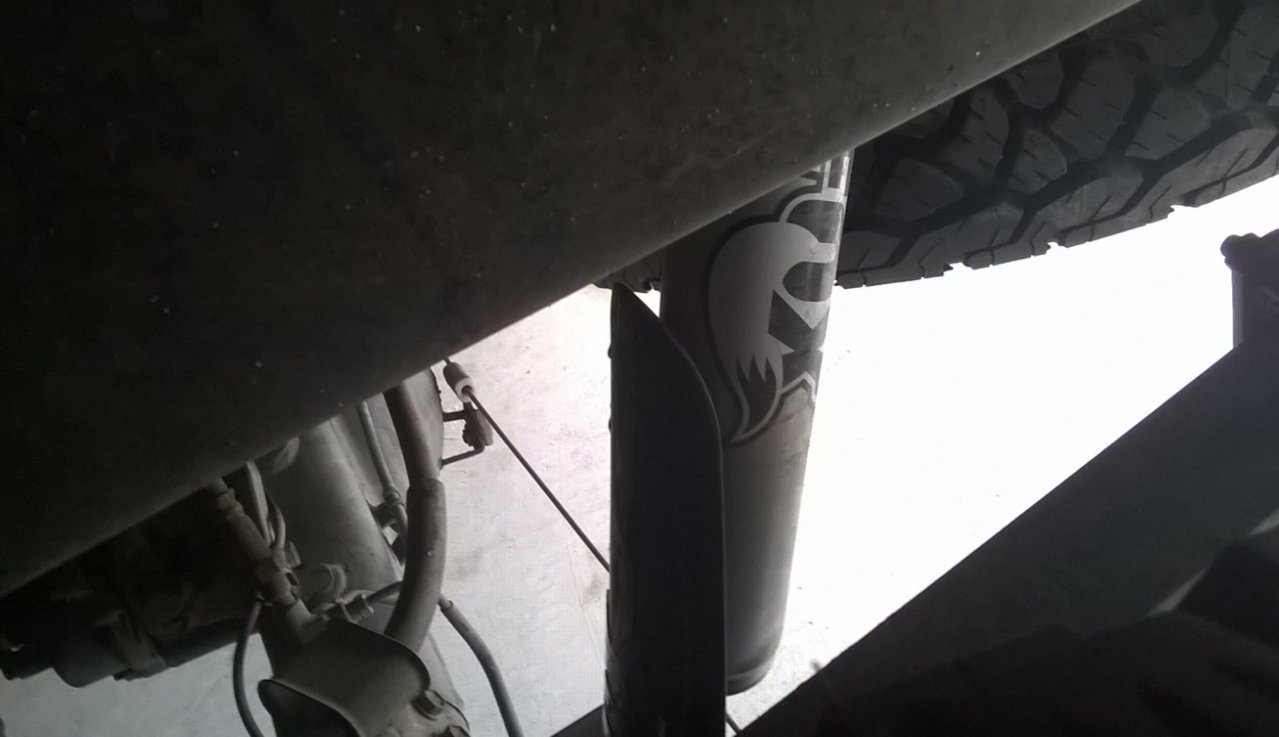

    Lovin my rear Fox shocks on the 1st Gen! Went Kings up front but these Foxs have meant all the difference in the rear after having Billys back there, King 1st Gen rears are like unicorns. (Rock guards for bonus points :thumbsup:)



    MMoreno16 likes this.
  13. Mar 16, 2018 at 8:02 PM
    #93
    Tacomamike mike

    Tacomamike mike Just that, nothing more.

    Joined:
    Sep 6, 2016
    Member:
    #196650
    Messages:
    3,962
    Gender:
    Male
    First Name:
    Michael
    Vehicle:
    2017 DCLB TRD OFFROAD 4x4
    Working on it, dissent offroad racks, shift sense pro, pedal commander , ARB twin, rigid SS dually's , dual batteries, ARB fridge , 2.5 Fox coil overs wResi , 2.5 Fox rears w resi Total chaos UCA , deaver packs , Nitto trail grappler's 33" .
  14. Mar 18, 2018 at 8:44 AM
    #94
    MGMGEN3

    MGMGEN3 Well-Known Member

    Joined:
    Mar 13, 2017
    Member:
    #213128
    Messages:
    55
    Gender:
    Male
    First Name:
    Ken
    SoCal
    Vehicle:
    2017 MGM Tacoma 4x4 TRD OR
    Looks great. I'm looking at going with the same shock setup. How do you like the Fox's? Are you running the 2.0 or the 2.5 in the rear?

    Tacomamike mike likes this.
  15. Mar 18, 2018 at 8:57 AM
    #95
    Tacomamike mike

    Tacomamike mike Just that, nothing more.

    Joined:
    Sep 6, 2016
    Member:
    #196650
    Messages:
    3,962
    Gender:
    Male
    First Name:
    Michael
    Vehicle:
    2017 DCLB TRD OFFROAD 4x4
    Working on it, dissent offroad racks, shift sense pro, pedal commander , ARB twin, rigid SS dually's , dual batteries, ARB fridge , 2.5 Fox coil overs wResi , 2.5 Fox rears w resi Total chaos UCA , deaver packs , Nitto trail grappler's 33" .

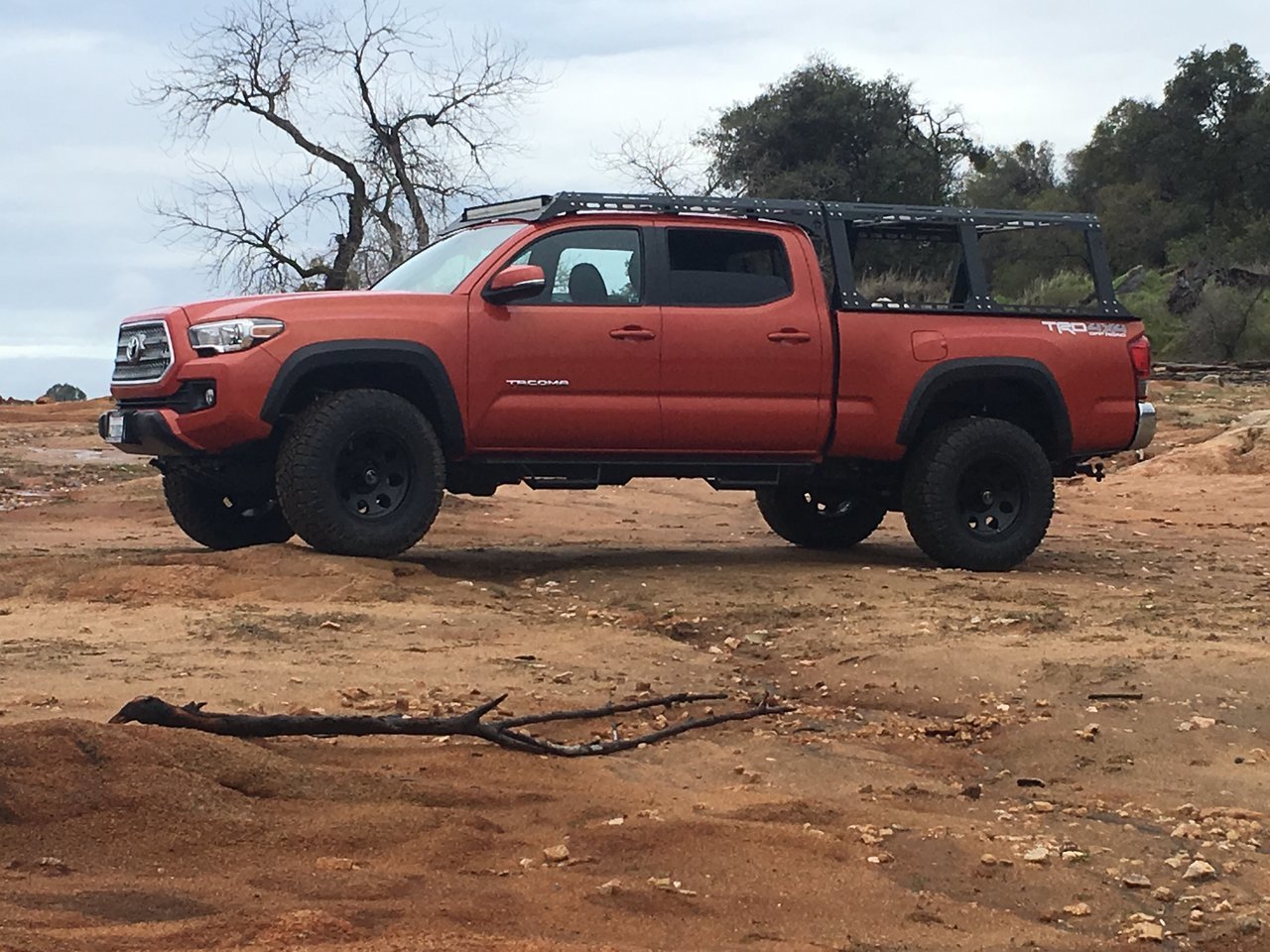

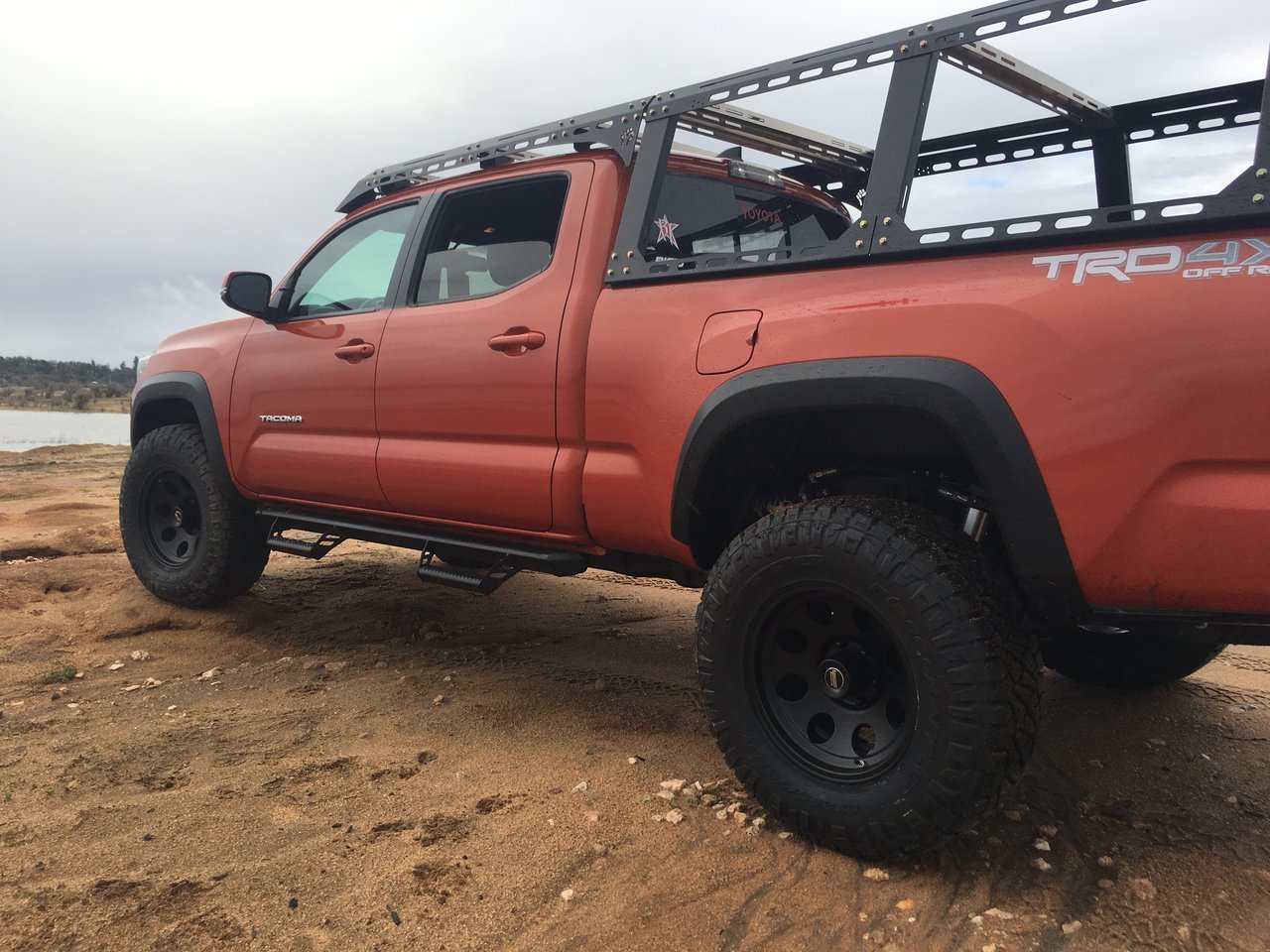

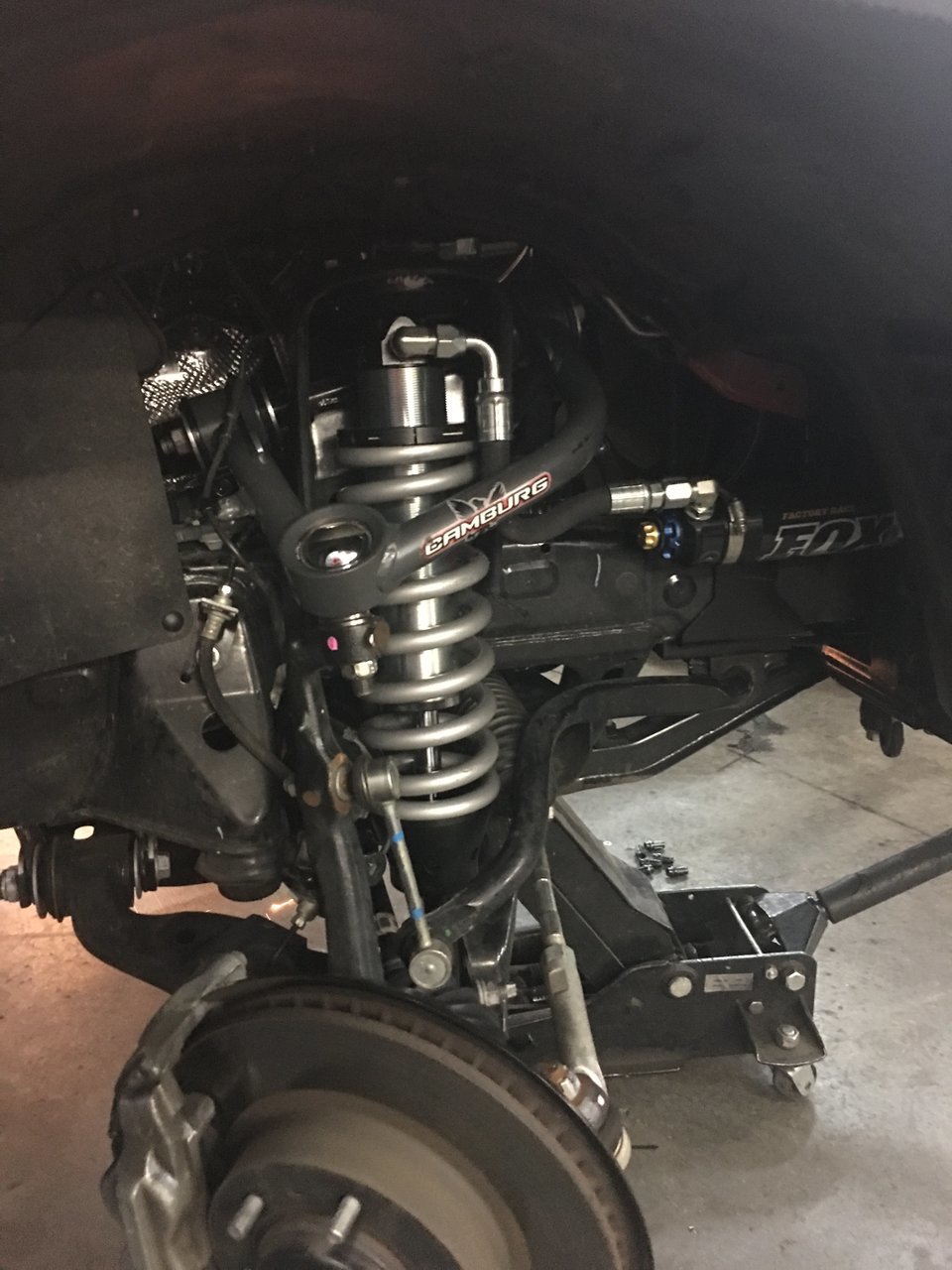

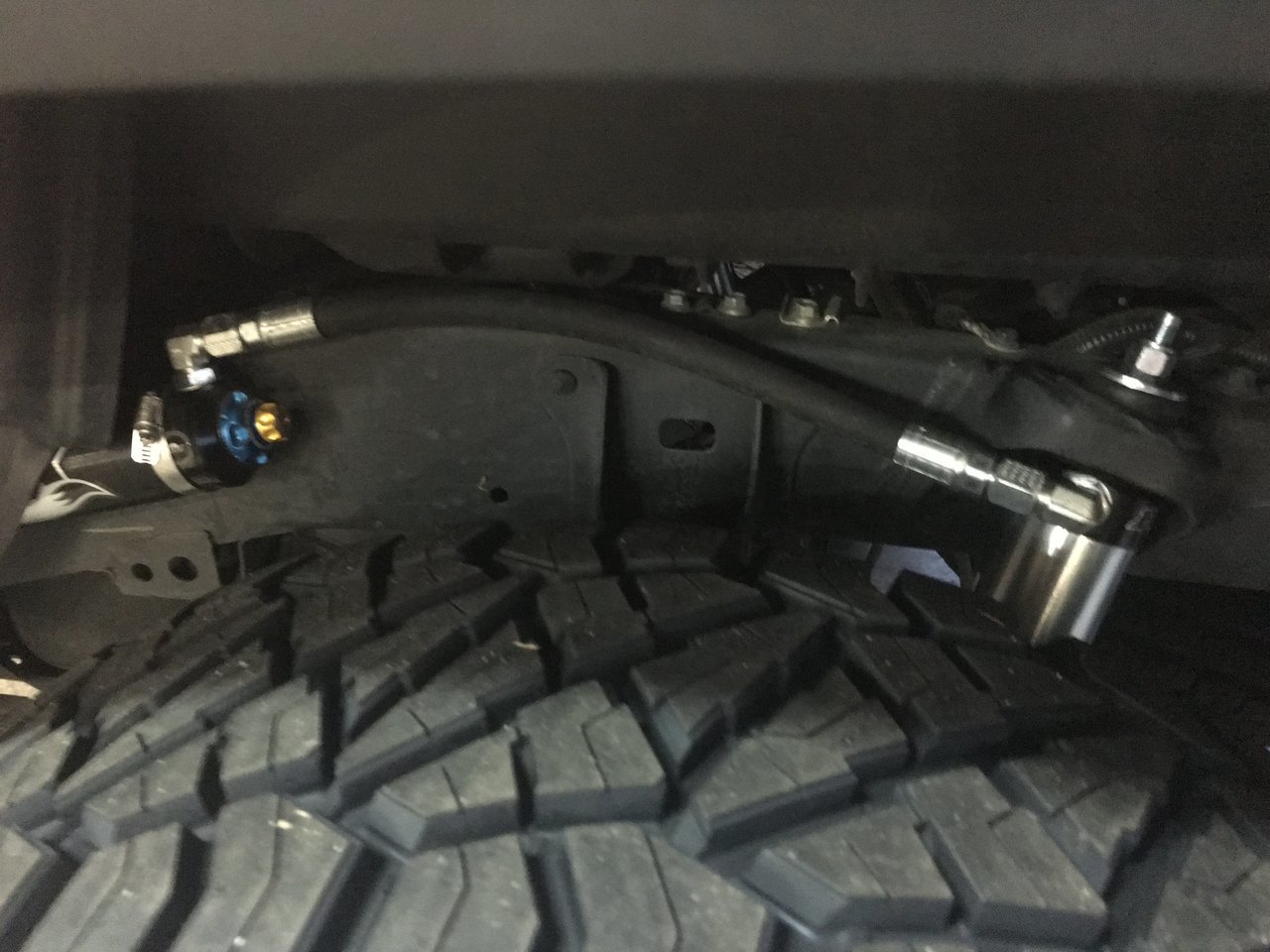

    2.5 F6B93AC1-2FA7-403A-B9EC-062B6976C211.jpg77A6C510-2AC1-4DCF-8C79-B198BCF2A2D5.jpg

  16. Mar 18, 2018 at 9:06 AM
    #96
    Mavrick

    Mavrick Well-Known Member

    Joined:
    Jul 31, 2015
    Member:
    #160721
    Messages:
    358
    Gender:
    Male
    Vehicle:
    2015 DCSBOR
    This might seem like a stupid question to most of you since your all looking for more lift but if I get the standard length Fox 2.5 or 2.0's can I lower it a bit if I get too much lift. I'm only looking for around an inch or less so I don't have to lift the rear and am concerned I will get too much lift on my 15 DCOR.

  17. Mar 18, 2018 at 9:14 AM
    #97
    Tacomamike mike

    Tacomamike mike Just that, nothing more.

    Joined:
    Sep 6, 2016
    Member:
    #196650
    Messages:
    3,962
    Gender:
    Male
    First Name:
    Michael
    Vehicle:
    2017 DCLB TRD OFFROAD 4x4
    Working on it, dissent offroad racks, shift sense pro, pedal commander , ARB twin, rigid SS dually's , dual batteries, ARB fridge , 2.5 Fox coil overs wResi , 2.5 Fox rears w resi Total chaos UCA , deaver packs , Nitto trail grappler's 33" .
    I only wanted more lift to stuff the 295/70/17 tires under it.
    I would think if you doing the coilovers in standard length they will probably end up leveling you out . If not dial it down.

  18. Mar 18, 2018 at 1:32 PM
    #98
    Sub_Par

    Sub_Par Well-Known Member

    Joined:
    Nov 17, 2015
    Member:
    #169939
    Messages:
    3,867
    Gender:
    Male
    First Name:
    Steve
    Buffalo NY
    Vehicle:
    2019 TRD Pro
    The standard travel version should come set around 2” of lift for your second gen. You can move the collar up and have no lift if you choose. They are adjustable from 0-2” of lift. So you can adjust them to match the rear or even slightly lower for some rake, unless you never use the bed of the truck.

  19. Mar 18, 2018 at 2:53 PM
    #99
    MCDavis

    MCDavis Taco life is over. Full time 4wd for the win.

    Joined:
    Nov 24, 2017
    Member:
    #236768
    Messages:
    664
    Gender:
    Male
    RIC, VA
    Vehicle:
    2017 TRD Sport 4wd (SOLD) - Currently in a 2016 GX460

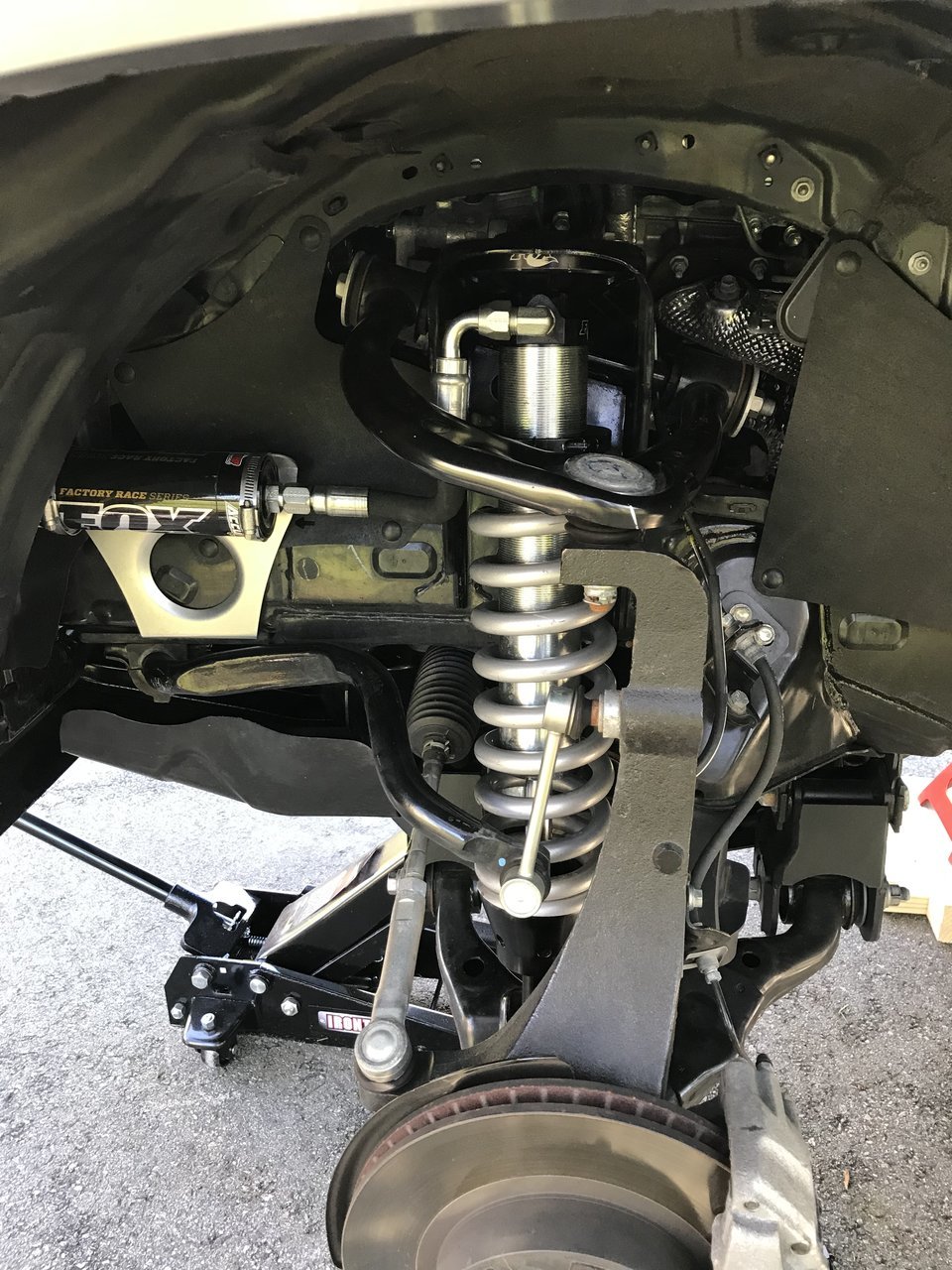

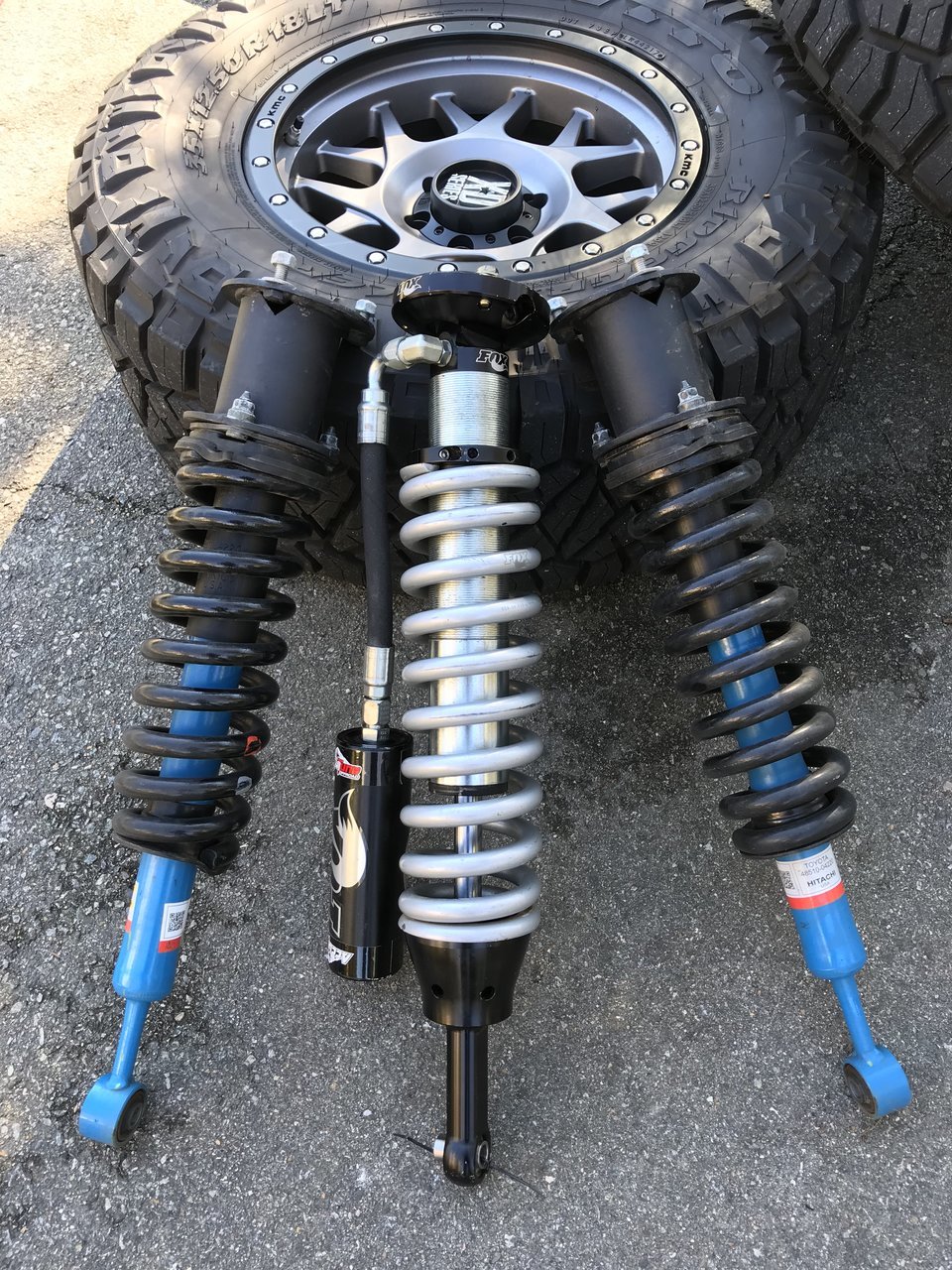

    Stepped up my drop bracket game today.

    CFAE1A04-E805-4C83-8A14-74B9A1464C84.jpg CE9D31F9-9165-4DB2-A249-1FDC0B23FC9A.jpg

    FinnJ, Biscuits, scottalot and 3 others like this.
  20. Mar 18, 2018 at 7:30 PM
    #100
    Broheim

    Broheim Well-Known Member

    Joined:
    Feb 16, 2016
    Member:
    #178360
    Messages:
    576
    Gender:
    Male
    First Name:
    John
    San Antonio, TX
    Vehicle:
    2016 TRD Off-Road
    Peeps will say that is a lot of "preload". Looks normal to me on a set of foxes. My threads are just like that and my truck rides dreamy. Ive even seen ford f150's with fox set ups and theirs are just as jacked up.

    Biscuits likes this.
