Fox Life!!! Anything Related to Fox Suspension

Discussion in 'Suspension' started by ThaiChillyTaco, Feb 25, 2018.

  1. Mar 18, 2018 at 7:33 PM
    #101
    MMoreno16

    MMoreno16 Cupcake Forest Ranger

    Joined:
    Jan 30, 2018
    Member:
    #242895
    Messages:
    2,637
    Gender:
    Male
    First Name:
    Mike
    Los Angeles
    Vehicle:
    2018 TRD OR DCSB

    Dreamy as well!

    Biscuits and MandosTaco like this.
  2. Mar 19, 2018 at 3:41 AM
    #102
    MCDavis

    MCDavis Taco life is over. Full time 4wd for the win.

    Joined:
    Nov 24, 2017
    Member:
    #236768
    Messages:
    664
    Gender:
    Male
    RIC, VA
    Vehicle:
    2017 TRD Sport 4wd (SOLD) - Currently in a 2016 GX460
    I consulted with Fox on the exposed threads. Out of the box they want 2.08” above the collar for the 6” lift application. I’m at 2.25” driver and 2.15” passenger.

    Biscuits and MolonLabeTaco like this.
  3. Mar 19, 2018 at 3:55 AM
    #103
    MolonLabeTaco

    MolonLabeTaco Well-Known Member

    Joined:
    Jan 30, 2018
    Member:
    #242953
    Messages:
    2,786
    Gender:
    Male
    First Name:
    Dude
    N. Texas
    Vehicle:
    '12 DC 4x4 OR
    He's running a lot taller lift than you/we are.

    MCDavis likes this.
  4. Mar 19, 2018 at 4:37 AM
    #104
    MCDavis

    MCDavis Taco life is over. Full time 4wd for the win.

    Joined:
    Nov 24, 2017
    Member:
    #236768
    Messages:
    664
    Gender:
    Male
    RIC, VA
    Vehicle:
    2017 TRD Sport 4wd (SOLD) - Currently in a 2016 GX460
    These are also a lot longer than a non drop bracket application to make up the 6" created there. They are heavy as heck too, roughly 32lbs a piece.

    MolonLabeTaco likes this.
  5. Mar 19, 2018 at 4:41 AM
    #105
    Tacomamike mike

    Tacomamike mike Just that, nothing more.

    Joined:
    Sep 6, 2016
    Member:
    #196650
    Messages:
    3,962
    Gender:
    Male
    First Name:
    Michael
    Vehicle:
    2017 DCLB TRD OFFROAD 4x4
    Working on it, dissent offroad racks, shift sense pro, pedal commander , ARB twin, rigid SS dually's , dual batteries, ARB fridge , 2.5 Fox coil overs wResi , 2.5 Fox rears w resi Total chaos UCA , deaver packs , Nitto trail grappler's 33" .
    Ya know who cares what “peeps” will say! Most of the time the peeps who knock ya, don’t have your setup.
    Mine, back a page is a bit less preload as I wanted just enough to put the 295/70/17’s under. It worked after a CMC some grinding and trimming :). It gives me enough travel to do what I want. You have to remember a couple of key words when building your truck.

    It’s definitely a “what I want” thing.
    Those setups all look great !!

    MCDavis likes this.
  6. Mar 19, 2018 at 5:31 AM
    #106
    Mavrick

    Mavrick Well-Known Member

    Joined:
    Jul 31, 2015
    Member:
    #160721
    Messages:
    358
    Gender:
    Male
    Vehicle:
    2015 DCSBOR
    Do you have to drill holes for the resi brackets

  7. Mar 19, 2018 at 6:27 AM
    #107
    MCDavis

    MCDavis Taco life is over. Full time 4wd for the win.

    Joined:
    Nov 24, 2017
    Member:
    #236768
    Messages:
    664
    Gender:
    Male
    RIC, VA
    Vehicle:
    2017 TRD Sport 4wd (SOLD) - Currently in a 2016 GX460
    No. They bolt in place between the sway bar bracket and the frame.

  8. Mar 20, 2018 at 5:27 PM
    #108
    Stihlgoin

    Stihlgoin Member

    Joined:
    Mar 19, 2018
    Member:
    #247723
    Messages:
    13
    Gender:
    Male
    First Name:
    Chris
    Peoples' Republic of Cuomo
    Vehicle:
    2011 Regular Cab 4x4
    Ride Rites w/ Daystar cradles, Fox 2.0 front coilovers, Fox 2.0 rear shocks w/ reservoirs
    So my Fox setup won't hold a candle to most in this thread, but it's still Fox. I'm attempting to update and upgrade the suspension on my '11 reg. cab, which presents its own challenges. I scored some 2.0 coilovers for just under $650, and am now looking to replace my s-shaped leaf springs with something that won't lift the rear too much and cause driveline issues. I already installed Firestone Ride Rites w/ Daystar cradles, so there's a little lift there, already. I'm leaning toward Icon rxt leaf springs and Fox 2.0 performance non-resi shocks. My off-roading is slow northeast cross axle stuff when I go into our woods for firewood. (It's a fun drive). I know the shocks will limit rear travel, but I can't lift the truck enough for a longer travel shock. If I'm missing something, please let me know. Again, sweet setups throughout this thread. If only I lived out west....

  9. Mar 20, 2018 at 5:38 PM
    #109
    kbp810

    kbp810 Well-Known Member

    Joined:
    Jul 9, 2017
    Member:
    #223604
    Messages:
    565
    Gender:
    Male
    Auburn Hills, MI
    Vehicle:
    2016 Tacoma TRD OR
    I only have about a month on my Icon Rxt pack so far... so take my feedback with a grain of salt. I have them on the lowest setting (didn't swap the leafs around), and they do sit a little higher than I thought they would, but there's still time for them to settle, and I also don't currently have any weight in the back. They do ride great though (especially compared to the all poo pack that they replaced); I'm sure it will continue to improve as they settle, and as I start putting stuff in the back. I would consider doing extended travel rear shocks with them, they seem to have quite a bit of potential down travel.

  10. Mar 21, 2018 at 1:56 AM
    #110
    Stihlgoin

    Stihlgoin Member

    Joined:
    Mar 19, 2018
    Member:
    #247723
    Messages:
    13
    Gender:
    Male
    First Name:
    Chris
    Peoples' Republic of Cuomo
    Vehicle:
    2011 Regular Cab 4x4
    Ride Rites w/ Daystar cradles, Fox 2.0 front coilovers, Fox 2.0 rear shocks w/ reservoirs
    Thanks for the info. I do have a Leer topper that adds a couple hundred pounds. I do not have aftermarket bumpers yet, but a rear bumper will be first in line. I'm trying to find a shock with a relatively short compressed length that would have slightly longer extended length than the 2.0 performance non resi. Finding specs online is a fun task. Even then, I'm still guessing a bit. Thankfully, there's no huge rush. The truck is in getting a catalytic converter recall done, and we still have snow on the ground. Moving icy firewood stinks.

  11. Mar 21, 2018 at 9:20 AM
    #111
    Mavrick

    Mavrick Well-Known Member

    Joined:
    Jul 31, 2015
    Member:
    #160721
    Messages:
    358
    Gender:
    Male
    Vehicle:
    2015 DCSBOR
    It looks like I'm going with the Icon RTX leaf pack as well. How hard is it to add or remove a leaf after its installed, do you have to take the entire stack off and take it all apart?

  12. Mar 21, 2018 at 9:21 AM
    #112
    TXTaco13

    TXTaco13 Taco/CJ7 Enthusiast

    Joined:
    Aug 25, 2013
    Member:
    #111175
    Messages:
    6,797
    Gender:
    Male
    Dallas, Texas
    Vehicle:
    3RD GEN AIN’T CARE 4x4
    '83 CJ7 '19 MT 07
    Yes

    1truckdriver likes this.
  13. Mar 21, 2018 at 1:35 PM
    #113
    MolonLabeTaco

    MolonLabeTaco Well-Known Member

    Joined:
    Jan 30, 2018
    Member:
    #242953
    Messages:
    2,786
    Gender:
    Male
    First Name:
    Dude
    N. Texas
    Vehicle:
    '12 DC 4x4 OR
    Thinking of flipping the top hat over on my non-resi 2.5's to get lift & so I can lower the pre-load. The top hat on the resi 2.5's is flipped 180° compared to the non-resi's & this may be part of the reason some are saying their extended 2.5's come @ one measurement & others are saying their's are @ 1.925"/ 27 exposed threads.

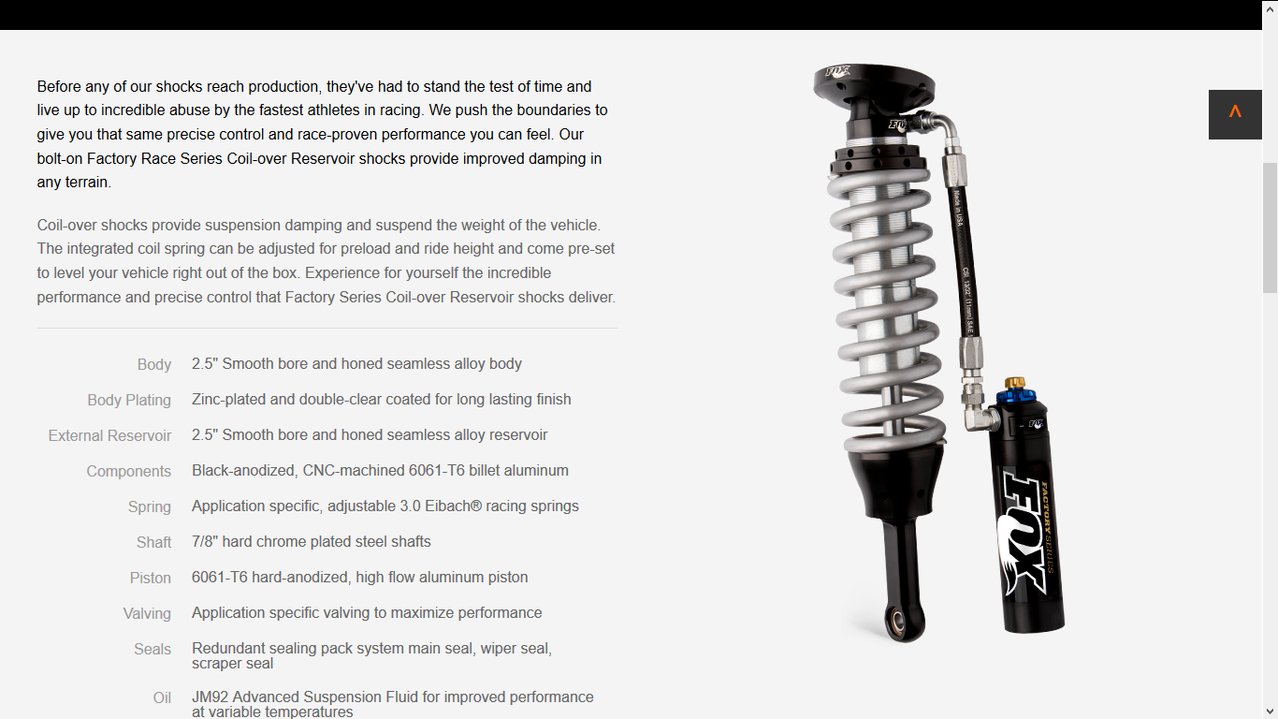

    On Fox's website they actullay have a picture of the non-resi w/the top hat flipped, like I'm saying, but it has the dual collar so it's the old style.
    Thoughts?

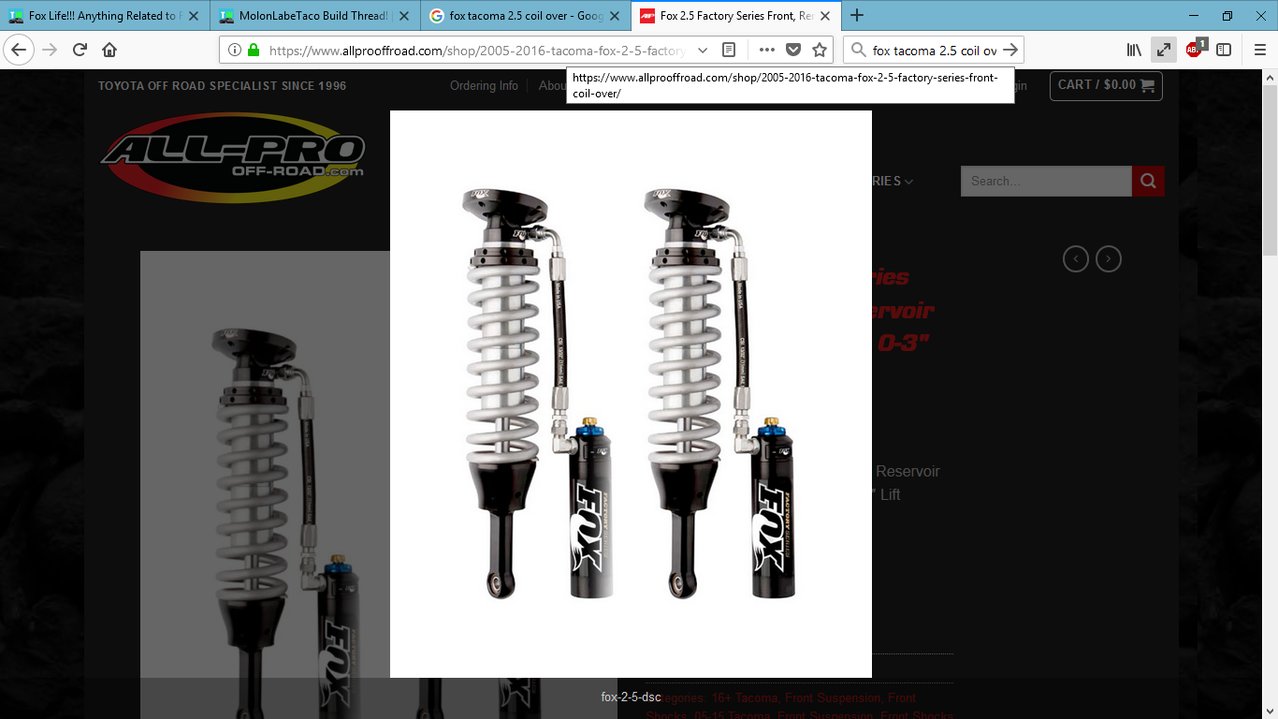

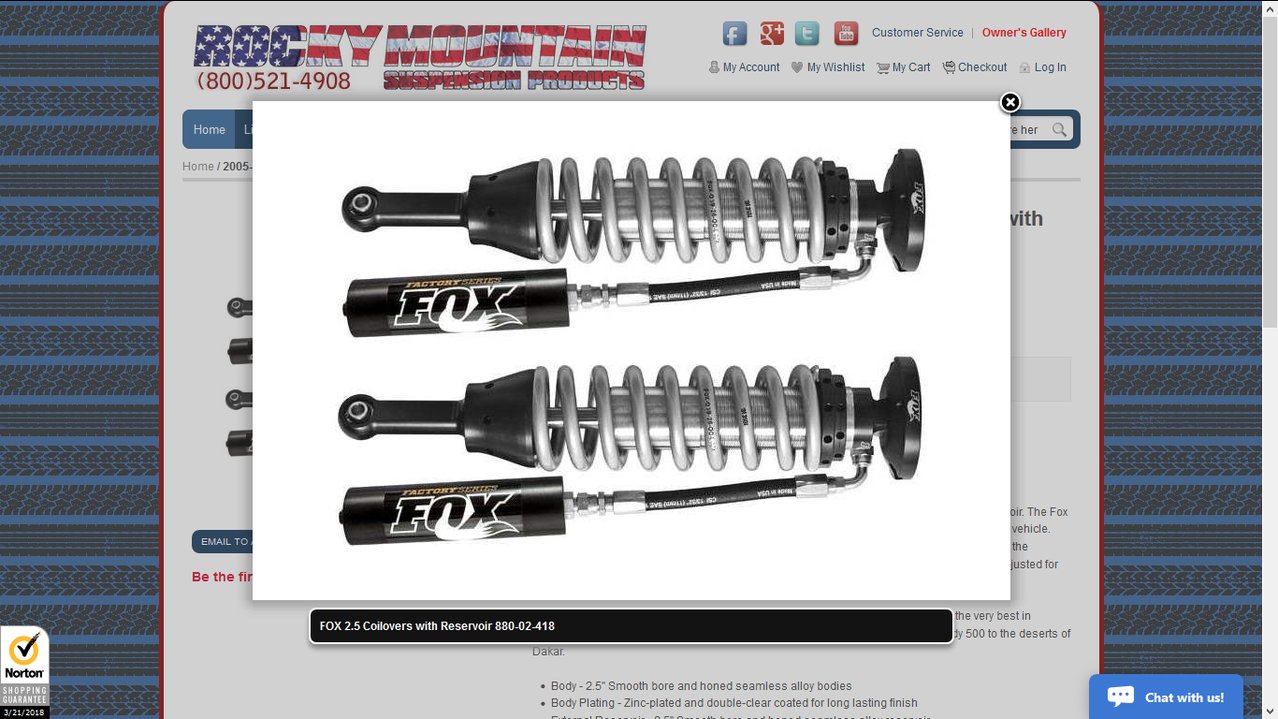

    The way resi's top hat is mounted:

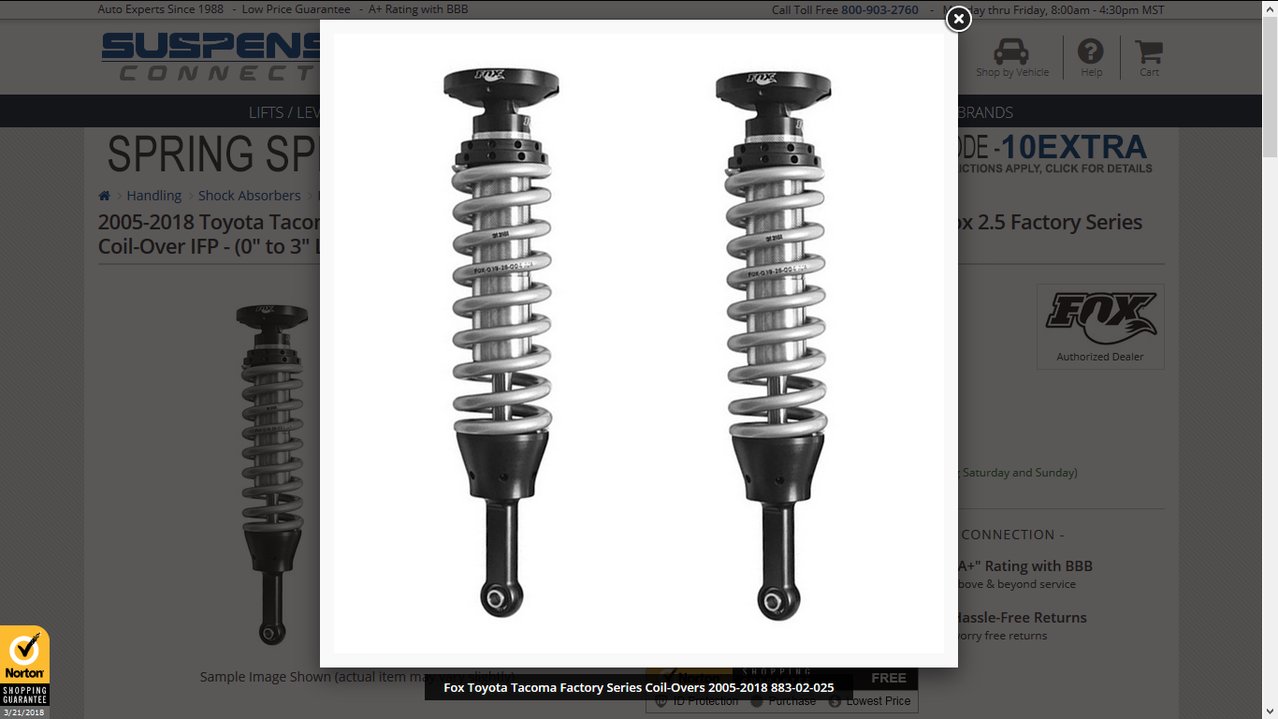

    And the way the old non-resi's top hat is:

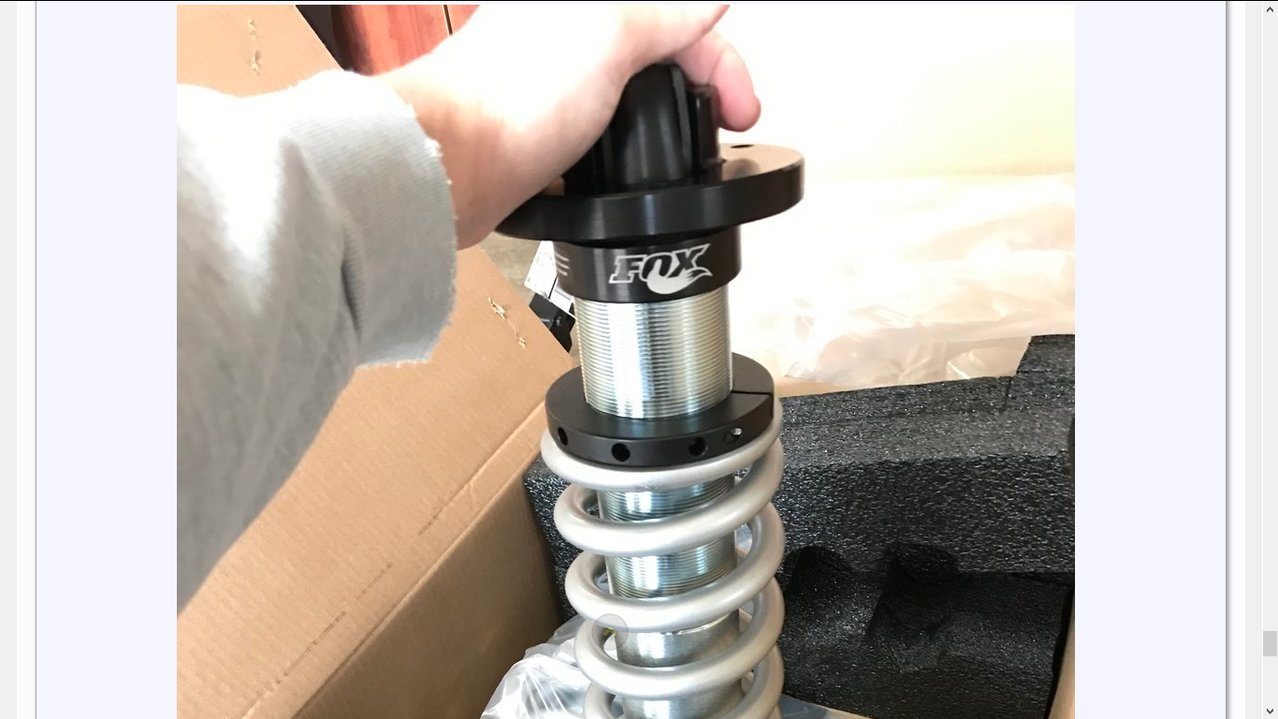

    Compared to mine:


    Attached Files:

    Recon likes this.
  14. Mar 21, 2018 at 5:28 PM
    #114
    Stihlgoin

    Stihlgoin Member

    Joined:
    Mar 19, 2018
    Member:
    #247723
    Messages:
    13
    Gender:
    Male
    First Name:
    Chris
    Peoples' Republic of Cuomo
    Vehicle:
    2011 Regular Cab 4x4
    Ride Rites w/ Daystar cradles, Fox 2.0 front coilovers, Fox 2.0 rear shocks w/ reservoirs
    Found these with a bit more research:
    SKU: FOX-980-24-679
    Should give a little more droop.
    Are the Fox roost shields (I would get one only) worth getting, or do they just collect debris?
    I will eventually get around to getting a quote from Wheeler's for the whole rear setup.

  15. Mar 21, 2018 at 5:46 PM
    #115
    MolonLabeTaco

    MolonLabeTaco Well-Known Member

    Joined:
    Jan 30, 2018
    Member:
    #242953
    Messages:
    2,786
    Gender:
    Male
    First Name:
    Dude
    N. Texas
    Vehicle:
    '12 DC 4x4 OR
    I bought them but haven't installed yet. There needs to be SOME sort of protection on the rear shock shafts. Knicks in the shafts lead to leaks.
    (That's what she said!)

  16. Mar 22, 2018 at 6:26 AM
    #116
    Mavrick

    Mavrick Well-Known Member

    Joined:
    Jul 31, 2015
    Member:
    #160721
    Messages:
    358
    Gender:
    Male
    Vehicle:
    2015 DCSBOR
    I have a question about the standard and extended length front 2.5's. The description says the extended version is good for 0 to 3 inch lift, the standard is 0 to 2 inch lift. I'm only planning on lifting the front an inch or two at the most so the standard should work but why would I not buy the extended version and dial it down and put UCA for more travel?

  17. Mar 22, 2018 at 6:28 AM
    #117
    08pretaco

    08pretaco Well-Known Member

    Joined:
    Sep 26, 2008
    Member:
    #9502
    Messages:
    9,274
    Gender:
    Male
    az
    Vehicle:
    2014 Tundra 4x4 CM 5.7L SR5
    @ADSracingshocks - F 3 point ohh / R 2.5 - w/clickers @camburgracing - uniball UCA @rigidindustries - 40" amber/white split, Dually XL, D2 @coopertires - 35/12.5/17 STT MAXX @bayareametalfab - low pro bed rack @toyotausa - 17" rock warrior @sdhqoffroad - rock sliders, a-pillar @hondogarage / @apple / @gaiagps / @dualgps- navigation @wheelersoffroadinc - superbumps
    I figured this is as good of a place as any to drop this..


    Attached Files:

    gadogad and MolonLabeTaco like this.
  18. Mar 22, 2018 at 7:37 AM
    #118
    Sub_Par

    Sub_Par Well-Known Member

    Joined:
    Nov 17, 2015
    Member:
    #169939
    Messages:
    3,867
    Gender:
    Male
    First Name:
    Steve
    Buffalo NY
    Vehicle:
    2019 TRD Pro
    Your right you should do that and have more travel. And also correct you would need new UCAs. Some people go the non extended route to save money and not have to buy UCAs. Even if you bought the non extended you can convert them for not much money later on when they need a rebuild. It’s just a spacer change which allows the shaft to travel a little more, otherwise the shocks are identical.

  19. Mar 22, 2018 at 8:51 AM
    #119
    MolonLabeTaco

    MolonLabeTaco Well-Known Member

    Joined:
    Jan 30, 2018
    Member:
    #242953
    Messages:
    2,786
    Gender:
    Male
    First Name:
    Dude
    N. Texas
    Vehicle:
    '12 DC 4x4 OR
    No reason not too!

  20. Mar 22, 2018 at 8:52 AM
    #120
    MolonLabeTaco

    MolonLabeTaco Well-Known Member

    Joined:
    Jan 30, 2018
    Member:
    #242953
    Messages:
    2,786
    Gender:
    Male
    First Name:
    Dude
    N. Texas
    Vehicle:
    '12 DC 4x4 OR
    For some reason I can't find a program to open your file.
