Front axle between diff and right front wheel 1st CV assy?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Kevlarster, Aug 10, 2022.

  1. Aug 10, 2022 at 9:54 AM
    #1
    Kevlarster

    Kevlarster [OP] Member

    Joined:
    Aug 8, 2022
    Member:
    #403138
    Messages:
    17
    Gender:
    Male
    First Name:
    Kevin Shanahan
    Vehicle:
    2015 Taco 4WD 4L
    None
    The black squarish tube is where the problem is. It seems like it should be sealed into the part to its left but it is not connected and is just banging around. The black tube rotates with the wheel.

    Does anyone know how much of the front axle I would need to replace?

    FYI, this 2015 4.0L V6 4WD seemed to be "sticking" in 4WD after I tried to disengage, that seems like a common issue.

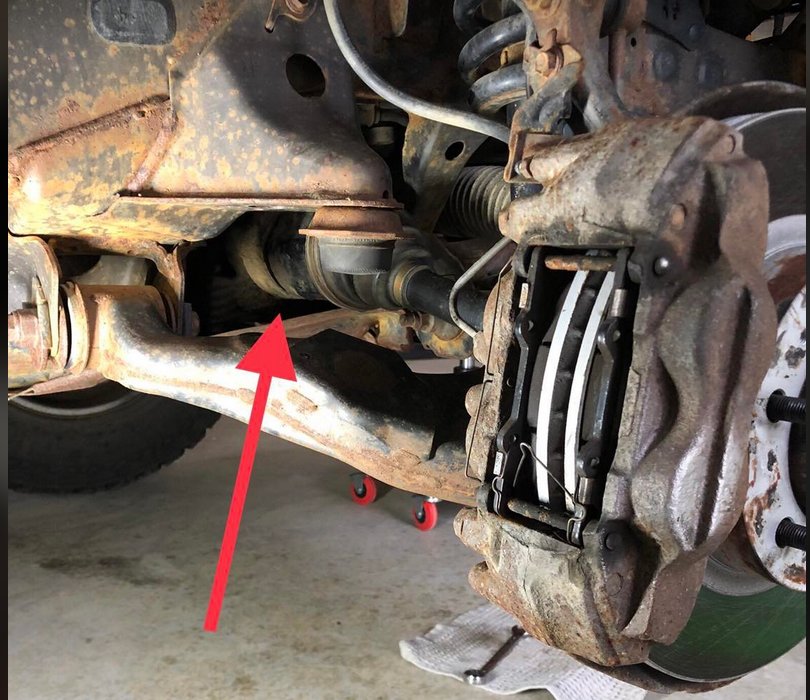

    full photo.jpg

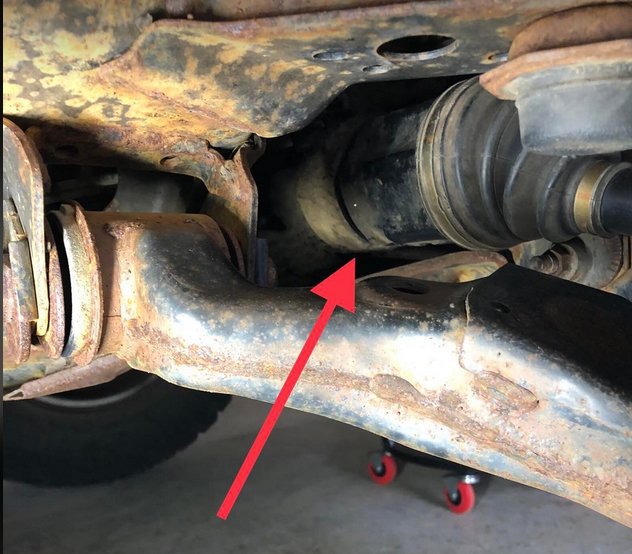

    partial photo 1.jpg

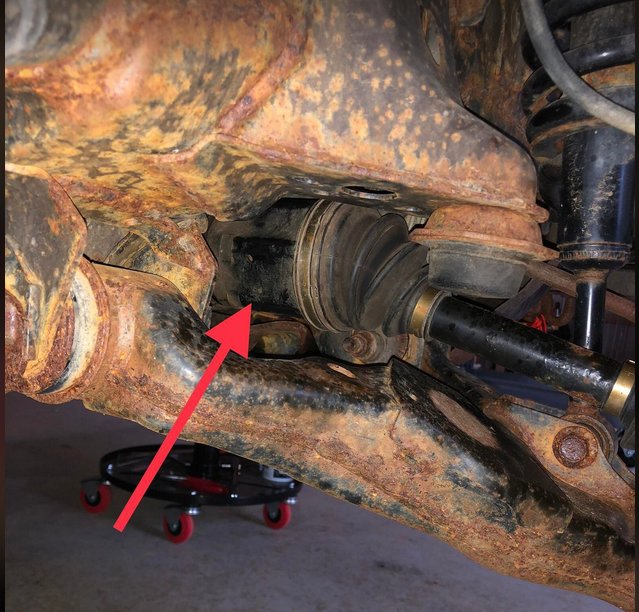

    partial photo 2 closer.jpg

    Last edited: Aug 13, 2022
  2. Aug 10, 2022 at 10:01 AM
    #2
    Squeaky Penguin

    Squeaky Penguin Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,865
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    Hate to be that guy, but have you tried tightening the 4 bolts that hold it to the clamshell?

    Also, if it's that loose, it's probably been leaking gear oil.

    6 gearT444E, winkel, Dm93 and 2 others like this.
  3. Aug 13, 2022 at 4:30 PM
    #3
    Kevlarster

    Kevlarster [OP] Member

    Joined:
    Aug 8, 2022
    Member:
    #403138
    Messages:
    17
    Gender:
    Male
    First Name:
    Kevin Shanahan
    Vehicle:
    2015 Taco 4WD 4L
    None
    Thanks for the advice SP, it turns out that I was fed bad info from someone. Please see updated post.

  4. Aug 13, 2022 at 7:23 PM
    #4
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    18,122
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    The thing to the left should be the axle tube. If the “black thing” which is part of the CV, is loose and banging around. You need to remove the CV and inspect it and the bearing the axle rides in.

    skeletron likes this.
  5. Aug 14, 2022 at 6:09 AM
    #5
    Kevlarster

    Kevlarster [OP] Member

    Joined:
    Aug 8, 2022
    Member:
    #403138
    Messages:
    17
    Gender:
    Male
    First Name:
    Kevin Shanahan
    Vehicle:
    2015 Taco 4WD 4L
    None
    Thank you so much TnShooter, I will do that.

    Ricardo13x likes this.
  6. Aug 14, 2022 at 6:19 AM
    #6
    ZColorado

    ZColorado Well-Known Member

    Joined:
    Nov 6, 2020
    Member:
    #345998
    Messages:
    883
    Gender:
    Male
    Near Boulder Colorado
    Vehicle:
    13 DCSB OR 6MT
    35's,Kings, NWF, 488, Harrop, SPC, Archive, Method, RCI, C4
    There is about 1/8" or so of up and down play in that shaft typically. At least slightly more so then one would expect. There is a common upgrade to the bearing on the drivers side (only the driver side) called an "ECGS bushing" the common test to see if it's a problem is to drive down the highway, if the vibration and noise goes away with you engage 4wd then the bushing is a likely culprit.

    That "black squarish thing" is a part of the CV shaft. You typically replace the entire thing. New ones are $75-150 aftermarket. Very common wear part. https://www.amazon.com/Cardone-66-5235-New-CV-Axle/dp/B002JT0UPA

    This is roughly normal https://www.youtube.com/watch?v=2WN5svIWn2s

    Kevlarster[OP] likes this.
  7. Aug 15, 2022 at 12:29 PM
    #7
    Kevlarster

    Kevlarster [OP] Member

    Joined:
    Aug 8, 2022
    Member:
    #403138
    Messages:
    17
    Gender:
    Male
    First Name:
    Kevin Shanahan
    Vehicle:
    2015 Taco 4WD 4L
    None
    ZColorado, thanks so much for this advice. Yea, the black thing I now know if the CV joint assy. I managed to remove the passenger side assy but pulled the spider? bearing out of the black housing. That part of the CV just isn't coming out for us. I'm going to try and remove the whole axle now. Thanks so much for the links and video.

  8. Aug 15, 2022 at 12:37 PM
    #8
    $yoda$

    $yoda$ Well-Known Member

    Joined:
    Jun 11, 2019
    Member:
    #296087
    Messages:
    1,948
    Gender:
    Male
    First Name:
    Tom
    Vehicle:
    2007 Tacoma 4.0
    2.5 inch lift, 285/75r16s, upgraded stereo system, Magnuson mp90 supercharger system.
    Need a few more pics.

  9. Aug 15, 2022 at 12:49 PM
    #9
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    18,122
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    I use a pry bar between the axle tube and black part of the axle. Yes, you bend the metal dust shield doing it this way. But it can easily be bent back. In your case, it doesn’t matter. The axle boot has been pulled off. I’d replace the axle at this point.

    When prying it out. Hold up on the black part of the axle to keep the weight off of it. You want the axle to come straight out.

    If that doesn’t work you can try the BFH method. I’ve never had to use this method. But others have. :thumbsup:
    https://www.tacomaworld.com/threads/cv-axle-removal.595817/#post-25612532

    Kevlarster[OP] likes this.
  10. Aug 15, 2022 at 7:11 PM
    #10
    ZColorado

    ZColorado Well-Known Member

    Joined:
    Nov 6, 2020
    Member:
    #345998
    Messages:
    883
    Gender:
    Male
    Near Boulder Colorado
    Vehicle:
    13 DCSB OR 6MT
    35's,Kings, NWF, 488, Harrop, SPC, Archive, Method, RCI, C4
    The snap ring that retains the shaft is tricky to get to seat all the way so you can remove the shaft. It's all internal and impossible to see.

    My trick is try some good meavy/medium heavy wacks or whatever with a prybar, punch or whatever then rotate the shaft 1/4 turn and keep trying. You need the snap ring gap to be at the bottom so it will fold in when pulled. it usually takes me a few full rotations before it comes out if it's tricky.

    Thats really hard to describe until you see the snap ring on the end of the shaft.

    Edit: here is a picture - An interesting removal technique
    https://www.youtube.com/watch?v=dHQDIml4CyM

    Last edited: Aug 15, 2022
    Kevlarster[OP] likes this.
  11. Aug 16, 2022 at 12:26 AM
    #11
    muddog321

    muddog321 Well-Known Member

    Joined:
    Dec 22, 2009
    Member:
    #27973
    Messages:
    1,098
    Gender:
    Male
    FL
    Vehicle:
    09 Tacoma DCSB 4wd TRD Off-Road w/e-locker Pyrite Mica
    TW 1-piece driveshaft with 1310 u-joints All Pro and Budbuilt skid plates OME Dakar rear springs 3" with 5100 5100 front set at 1.75" (3rd groove up) with stock springs Falken Wildpeak A/T3W 265/70R16 2018 TRD Offroad wheels 16x7J with +25mm offset Powerstop rotors with Z36 pads and rebuilt with OEM caliper kit Complete rebuilt rear brakes drums, shoes, springs, wheel cylinders Rebuilt rear diff with Yukon 3.73 ring/pinion Denso 130A rebuilt alternator AGM 24F Battery New OEM idlers and tensioner assembly New AC compressor New PS hose and flushed Walker SS Quiet Flow muffler Denso Iridium long life plugs #3421 (SK20HR11) OEM coolant, cap, and thermostat NAPA CV axles and new seals ECGS bushing Rhino front guard Shortened mud flaps Alziria Black Tail Lights Nilight Headlights X-Bull Traction Boards Maaco full single stage paint job 2023 Nat CV to Knuckle seals 710573 New SKF wheel bearings/hubs BR930978 New Moog stabilizer links K80946 & 948 New Dorman rear wheel bearings using complete axles 926-139 & 140
    If stock CV the inner metal "can" has spots to use a heavy punch or piece of wood and a hammer to tap/hit them out (aftermarkets mainly do not). You have to pull the wheel off and unbolt the CV and lots of info on site showing that procedure.
    ECGS video:
    https://youtu.be/BOvoM5irtEc?list=PLaX0YktJvGQuk-Xge30aZX-EXwvlKNUVK
    Drivers side has a roller bearing that is sloppy and ECGS bushing replacement solves that - did mine and most of the play gone.
    Easy to do with their special tools listed on the site. Do the seals too while CVs out.
    Pass side has a larger regular type bearing in the extended black tube so does not have the same issue, but again if CV out replace the axle seal.
    OEM axles are costly and mostly not available so look at the NAPA new ones about $120 each and both sides same part #NCV944082.
    Then drain and refill the diff also at this point.

    Kevlarster[OP] likes this.
  12. Aug 20, 2022 at 10:33 AM
    #12
    Kevlarster

    Kevlarster [OP] Member

    Joined:
    Aug 8, 2022
    Member:
    #403138
    Messages:
    17
    Gender:
    Male
    First Name:
    Kevin Shanahan
    Vehicle:
    2015 Taco 4WD 4L
    None
    Thank you guys so much, after having wrestled with this for a few days and having tried all that was suggested (including having someone stronger than me try to beat it out using the flats, and prying) it doesn't seem to want to come out. I understand a lot more of what is needed and have moved on to removing the entire front drive train.

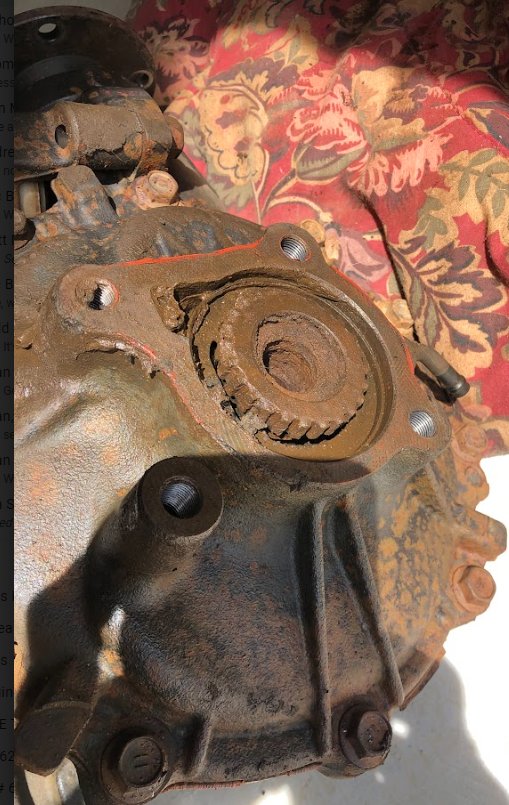

    When I removed the carrier/diff tube from the diff, only a Tbs of rusty water came out, I'm going to replace the entire thing, wheel-to-wheel.
    If I could offer one bit of advice, I didn't need to remove either tie rod, just the 2 lower ball joint bolts to get both CVs out.

  13. Aug 20, 2022 at 10:35 AM
    #13
    digitalzombie

    digitalzombie Well-Known Member

    Joined:
    Oct 30, 2020
    Member:
    #345341
    Messages:
    47
    oh man that does not look great tbh

    Kevlarster[OP] likes this.
  14. Aug 20, 2022 at 1:42 PM
    #14
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    18,122
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Was there any fluid in the differential?
    You definitely had water intrusion at some point.

    Kevlarster[OP] likes this.
  15. Aug 20, 2022 at 1:56 PM
    #15
    Kevlarster

    Kevlarster [OP] Member

    Joined:
    Aug 8, 2022
    Member:
    #403138
    Messages:
    17
    Gender:
    Male
    First Name:
    Kevin Shanahan
    Vehicle:
    2015 Taco 4WD 4L
    None
    After I got it off the truck and set down, I tipped it over and some oily, rusty liquid leaked out of the driver side gear (pictured above). The carrier/diff tube side only released about of tablespoon of visible water.
    I hunted arond for aftermarket, junk yard, etc and just went to the local Toyota dealer for replacement parts for the entire front drive train. Buy once cry once or so they say...

  16. Aug 20, 2022 at 4:47 PM
    #16
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    18,122
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Wow, I bet that was expensive?
    Did you take a look at ECGS?

    I’m not sure what shape yours would be considered?
    But if it was a good rebuildable core, you might save some money.

    But buying new OEM is bad, at least you know it’s OE and good.

    Sorry to see it thought, I know how unforeseen expenses can be.
    No fun, no fun at all. And to beat it all I don’t like working on mechanical stuff.
    I’d rather cut lawn, tress and landscape than turn a wrench.
    I just do it because I don’t want to pay someone else to do it.

  17. Aug 20, 2022 at 5:33 PM
    #17
    ZColorado

    ZColorado Well-Known Member

    Joined:
    Nov 6, 2020
    Member:
    #345998
    Messages:
    883
    Gender:
    Male
    Near Boulder Colorado
    Vehicle:
    13 DCSB OR 6MT
    35's,Kings, NWF, 488, Harrop, SPC, Archive, Method, RCI, C4
    Looks like OEM is 41110-35A11 ~$1,700 from online dealers. So the dealer probably charged $2500

    ECGS is $1300 with the core charge

  18. Aug 21, 2022 at 7:12 PM
    #18
    Ricardo13x

    Ricardo13x YT: @UrbanOpsOffRoad IG: @urban.ops.offroad

    Joined:
    Feb 9, 2020
    Member:
    #318785
    Messages:
    2,454
    Gender:
    Male
    Upland, CA.
    Vehicle:
    05 OR DCSB ProRunner(4x4 conv.), Chevy 63”s
    random stuff. Oh! and converted to non ADD 4x4.
    I’ll say grab a manual transfer case, a non add diff and some beers. Enjoy!

  19. Aug 25, 2022 at 9:43 AM
    #19
    Kevlarster

    Kevlarster [OP] Member

    Joined:
    Aug 8, 2022
    Member:
    #403138
    Messages:
    17
    Gender:
    Male
    First Name:
    Kevin Shanahan
    Vehicle:
    2015 Taco 4WD 4L
    None
    @ZColorado, yep, that's how much it was and I'm ok with that. Thing is, we couldn't get it past the front frame rail and had to grind off about 1/2" of the rim where the 2 clamshells came together. I'll put the CV axles in tonight and take it for a spin.
    Update: The factory front diff had the threaded hole for the diff & ADD breather tubes assembly in the wrong place. The hard pipe section and mounting bracket would NOT fit on the diff. I ended pulling the breather tubes off the hard pipe section and ran them directly to the breather nipples on the diff & ADD. Luckily there were clamps halfway up the drvr side wheel well (engine compartment) that I was able to attach them to. I don't plan on taking this truck into deep water so I think I'm good.


    Attached Files:

    Last edited: Aug 30, 2022
