Front bumper camera?

Discussion in '3rd Gen. Tacomas (2016+)' started by rideawalrus, Oct 31, 2015.

  1. May 25, 2016 at 9:13 AM
    #21
    dak2007

    dak2007 Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186832
    Messages:
    68
    Gender:
    Male
    Vehicle:
    2016 Blue SR5
    I saw the one harness that got made for the 2nd gen that was about 250 and that seems outrageous. For that much money I would expect a sensor on the bumper to automatically switch to front camera mode while parking. I might be oversimplifying this but, shouldn't it just take a three position switch? Is there a way to splice in to the wiring where one position is always on, one is normal, and then the other turns on the front camera? It would be nice if there was a wiring harness to make this easier, but this seems like something that could be done fairly easy already.

  2. May 25, 2016 at 9:52 AM
    #22
    dak2007

    dak2007 Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186832
    Messages:
    68
    Gender:
    Male
    Vehicle:
    2016 Blue SR5
  3. May 25, 2016 at 10:18 AM
    #23
    redz80

    redz80 Well-Known Member

    Joined:
    Mar 21, 2010
    Member:
    #33649
    Messages:
    294
    Gender:
    Male
    Brampton, ON
    Vehicle:
    Tacoma SR5 TRD 4x4 SWB

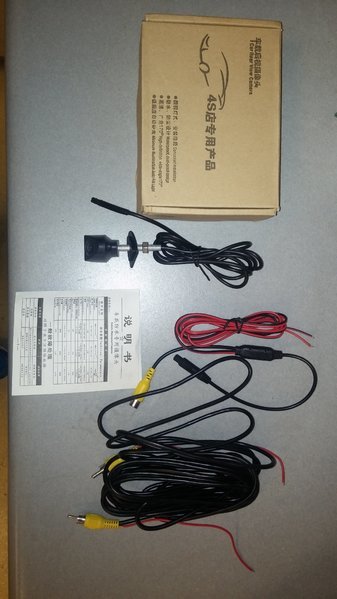

    CAM00220.jpg I order this kit from dhgate.com. As you can see on the box it is labeled as a back up camera and the instruction pamflet is all in Chinese and also for a back up camera. After bunch of emails with the seller they finally put together a half assed picture of the kit with English labels which I'm going to try to follow....... wish me luck...lol. I'll post an up date when I get around to doing the install.

    Arkie-Marty likes this.
  4. May 25, 2016 at 10:26 AM
    #24
    dak2007

    dak2007 Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186832
    Messages:
    68
    Gender:
    Male
    Vehicle:
    2016 Blue SR5
    Do you already have a rear camera and factory head unit?

  5. May 25, 2016 at 10:31 AM
    #25
    vuTron

    vuTron Well-Known Member

    Joined:
    Sep 9, 2015
    Member:
    #163855
    Messages:
    1,091
    Gender:
    Male
    SF Bay Area
    Vehicle:
    2016 Quicksand TRD O/R DCSB AT
  6. May 25, 2016 at 10:38 AM
    #26
    SimpleSimon

    SimpleSimon Active Member

    Joined:
    Mar 2, 2016
    Member:
    #180047
    Messages:
    27
    Gender:
    Male
    First Name:
    Sean
    Vehicle:
    2016 Blue TRD Off Road Double-Cab w JBL/Nav
    My wife has this on her new 2016 Rav4 Hybrid. I would love to be able to add the same functionality to my 2016 Tacoma! I'm watching this one. Being able to switch between rear and front or split-sreen would be awesome.

  7. May 25, 2016 at 10:42 AM
    #27
    SOSHeloPilot

    SOSHeloPilot My 1st Muscle Car

    Joined:
    Mar 31, 2009
    Member:
    #15422
    Messages:
    6,466
    Gender:
    Male
    U.S.A.
    Vehicle:
    2021 RAV4, XLE & 2020 C-HR
    Missing My Last Tacoma --- Had 12 Toyota trucks in the past and many other Toyota cars too.
  8. May 25, 2016 at 12:17 PM
    #28
    dak2007

    dak2007 Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186832
    Messages:
    68
    Gender:
    Male
    Vehicle:
    2016 Blue SR5
    So I think we're in a holding pattern until someone gets the courage to actually start splicing into some wires.

  9. May 25, 2016 at 12:31 PM
    #29
    Mike330R

    Mike330R Well-Known Member

    Joined:
    Jun 23, 2011
    Member:
    #58757
    Messages:
    4,087
    Far West Phoenix
    Vehicle:
    '16 DC Offroad w/ stuff
    If the RAV4 has the same radio and has a front camera is think all we would need would be the harness and camera.

    16trd4x4 likes this.
  10. May 25, 2016 at 12:35 PM
    #30
    dak2007

    dak2007 Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186832
    Messages:
    68
    Gender:
    Male
    Vehicle:
    2016 Blue SR5
    How does the RAV4 switch between front and rear camera?

  11. May 25, 2016 at 2:59 PM
    #31
    dak2007

    dak2007 Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186832
    Messages:
    68
    Gender:
    Male
    Vehicle:
    2016 Blue SR5
    That's for 2nd gen. I was wondering if anyone had any insight into the 3rd gen before I go screwing things up.

  12. May 25, 2016 at 3:15 PM
    #32
    CountryDan

    CountryDan Well-Known Member

    Joined:
    Mar 28, 2015
    Member:
    #151974
    Messages:
    2,406
    Gender:
    Male
    First Name:
    Daniel
    Rock Spring GA/Chattanooga TN
    Vehicle:
    15 TRD PRO DCSB 6 spd
    a lot of bad ass stuff
  13. May 26, 2016 at 10:40 AM
    #33
    Mike330R

    Mike330R Well-Known Member

    Joined:
    Jun 23, 2011
    Member:
    #58757
    Messages:
    4,087
    Far West Phoenix
    Vehicle:
    '16 DC Offroad w/ stuff
    I called Camera Source.
    THIS KIT they say is plug and play and can run up to 4 camera's and can all be viewed from the OEM screen. For a front camera it activates at speeds 1-8 MPH or he said you could run an inline switch to turn it off and on. If you want side view camera's they are activated using the turn signal. Seems pretty trick but is pricey!
    Has anyone bought the one from Camera Source?

    Has anyone tried a 12 volt blue tooth enabled camera and used a phone or iPad to view the image?

  14. May 26, 2016 at 11:09 AM
    #34
    Mike330R

    Mike330R Well-Known Member

    Joined:
    Jun 23, 2011
    Member:
    #58757
    Messages:
    4,087
    Far West Phoenix
    Vehicle:
    '16 DC Offroad w/ stuff
    Another option if this WiFi camera. Either the traditional license plate type or their smaller camera. It got mixed reviews on Amazon for having a delay. A video on the 4ucam web site shows they changed the software and now there is only a .1 second delay which would be fine for an offroad use camera.

  15. May 26, 2016 at 11:15 AM
    #35
    Mike330R

    Mike330R Well-Known Member

    Joined:
    Jun 23, 2011
    Member:
    #58757
    Messages:
    4,087
    Far West Phoenix
    Vehicle:
    '16 DC Offroad w/ stuff
  16. May 26, 2016 at 11:29 AM
    #36
    rrentrop

    rrentrop TVDvinyldecals.com Vendor

    Joined:
    Sep 11, 2015
    Member:
    #163975
    Messages:
    1,694
    Gender:
    Male
    First Name:
    Rich
    Orange County, CA
    Vehicle:
    2016 Tacoma 4x2 Limited MGM
    T-Rex Billet Grille, N-Fab Steps, Tailgate decals, Bed Lights, Power Tailgate Lock
    Not sure if it's been mentioned here already but this company makes plug and play interfaces for the 3rd gen Entune systems.

    http://www.cruxinterfacing.com/search/index.php?make=Toyota&model=Tacoma&year=2016&search=Search

    The VIMITY-05 allows you to plug in any video source and display it on the Entune system via a dedicated input selection. This would work for a front camera and is less than $100 on Amazon.
    The AVITY-01 is the same as above but includes the cable to interface and mirror your mobile device.
    The WVITY-01 allows mirroring via WIFI.

    PJTACO, dimead0zen, vuTron and 2 others like this.
  17. May 26, 2016 at 1:16 PM
    #37
    dak2007

    dak2007 Well-Known Member

    Joined:
    May 13, 2016
    Member:
    #186832
    Messages:
    68
    Gender:
    Male
    Vehicle:
    2016 Blue SR5
    I really like the idea of vehicle in motion eliminator. I think I'm going to take the radio out this weekend and examine the inputs and everything. The price of those harnesses are just too much for my budget.

    sdsmtengineer likes this.
  18. May 30, 2016 at 4:28 PM
    #38
    redz80

    redz80 Well-Known Member

    Joined:
    Mar 21, 2010
    Member:
    #33649
    Messages:
    294
    Gender:
    Male
    Brampton, ON
    Vehicle:
    Tacoma SR5 TRD 4x4 SWB
    I do have the back up camera in the rear view mirror. I am going to add a switch to allow me to use either camera at any time...... I just need to figure out how to splice front camera into the mirrors display.

  19. May 31, 2016 at 10:06 AM
    #39
    vuTron

    vuTron Well-Known Member

    Joined:
    Sep 9, 2015
    Member:
    #163855
    Messages:
    1,091
    Gender:
    Male
    SF Bay Area
    Vehicle:
    2016 Quicksand TRD O/R DCSB AT
    I couple of posts on this thread mention "WIFI".... am I missing something? What good is WIFI if you are not sitting in your garage?

  20. May 31, 2016 at 10:11 AM
    #40
    StG

    StG Well-Known Member

    Joined:
    Feb 19, 2015
    Member:
    #149095
    Messages:
    111
    Gender:
    Male
    Valley of the Sun, AZ
    Vehicle:
    15 DCSB TRD
    If it's labeled as a backup camera, my guess is that the image will be reversed if you try & use it as a front camera...
