Front bumper mounting dimensions

Building a front bumper for someone got all the measurements, except for mounting dimensions. Anyone know the dimensions for the bolt holes and how far apart. Stopped at a dealership to try and get them but couldn’t get behind the bumper enough to get and accurate measurement. Thanks!

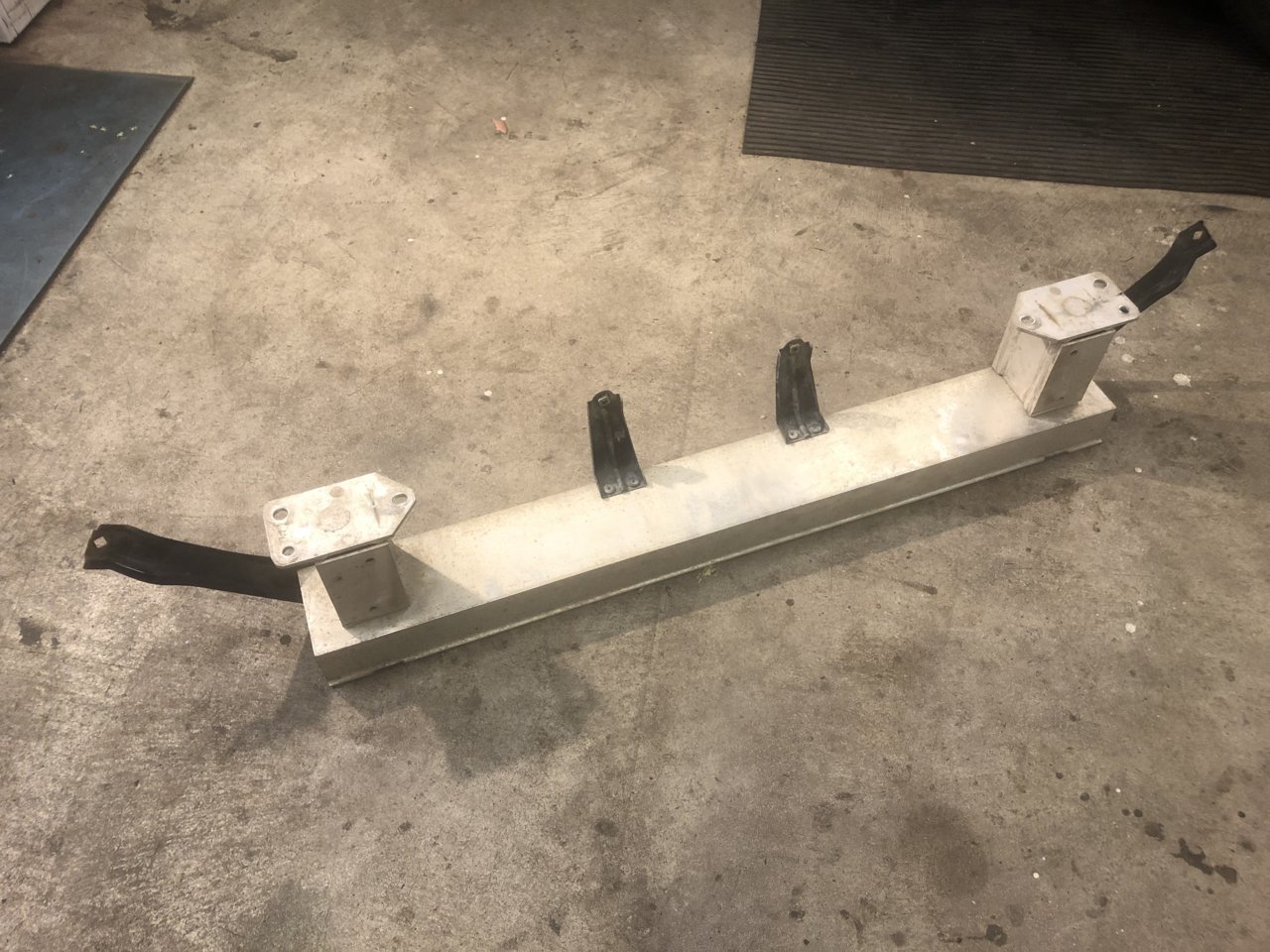

Incoming (have patience). Please ignore/forgive upside down tape measure. It’s how it worked out. Bumper is shown with bottom of bumper, with black brackets on top of photos.

All photos in same orientation

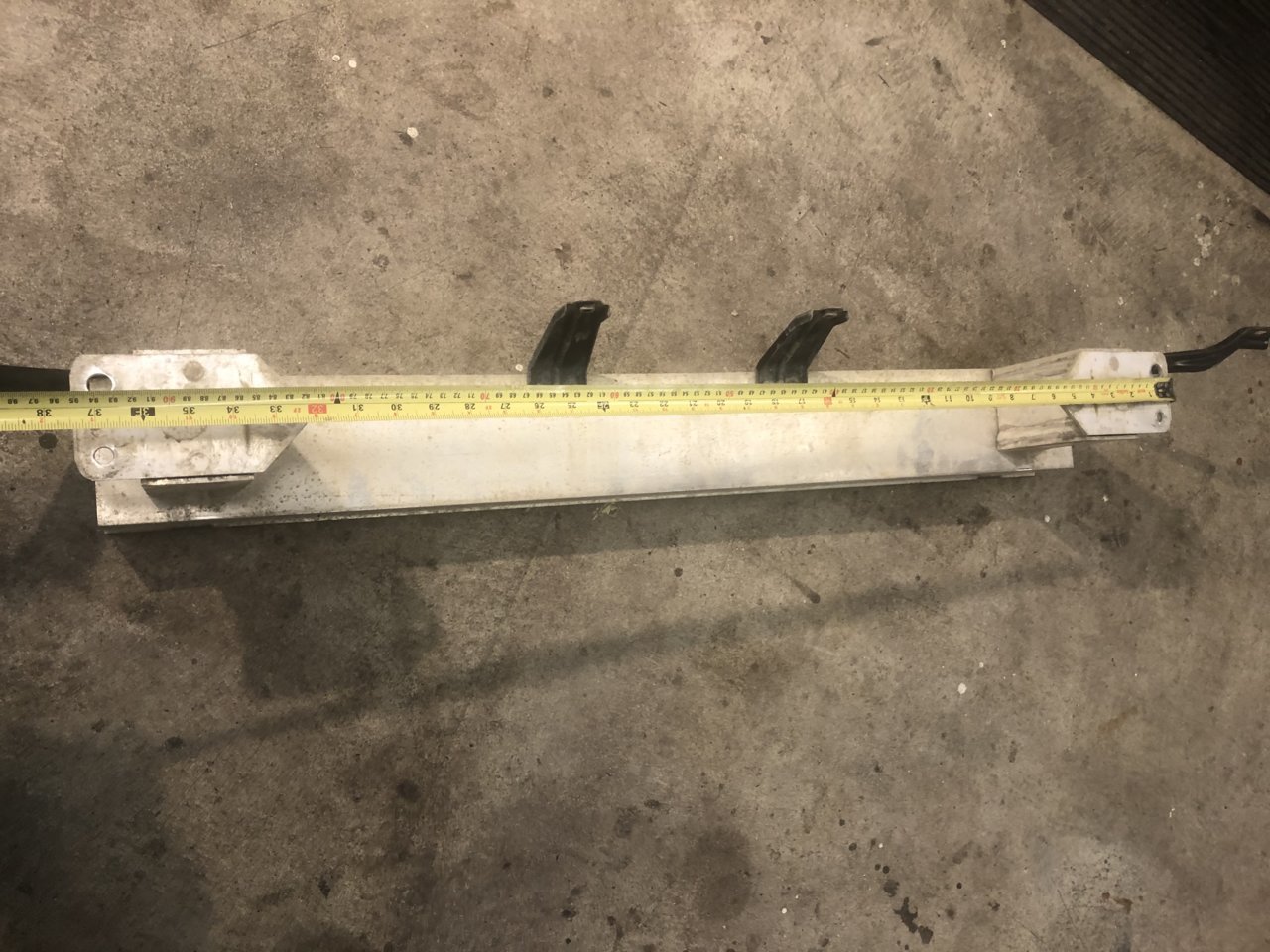

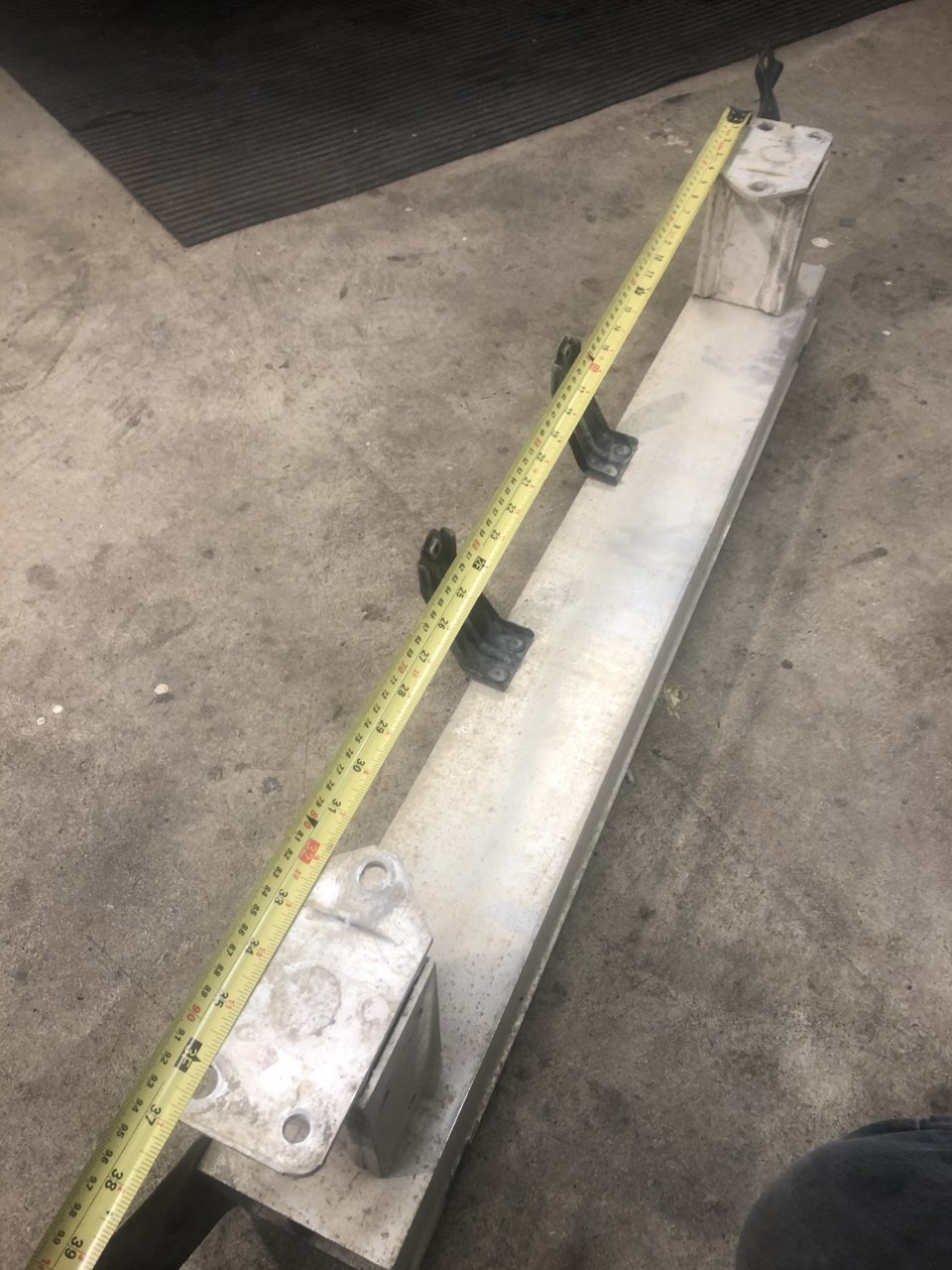

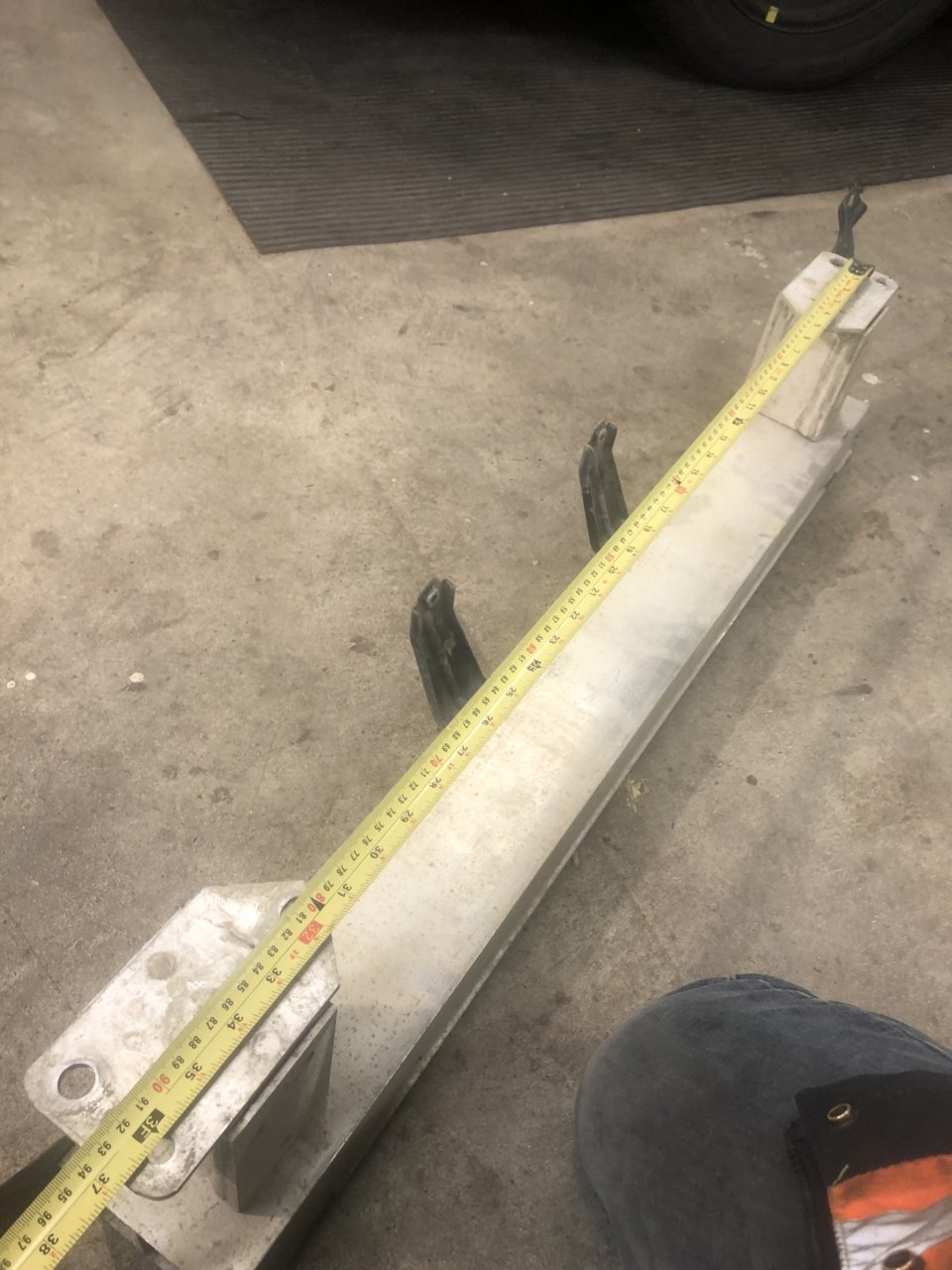

first photo set: overall dimension.



2nd photo set,

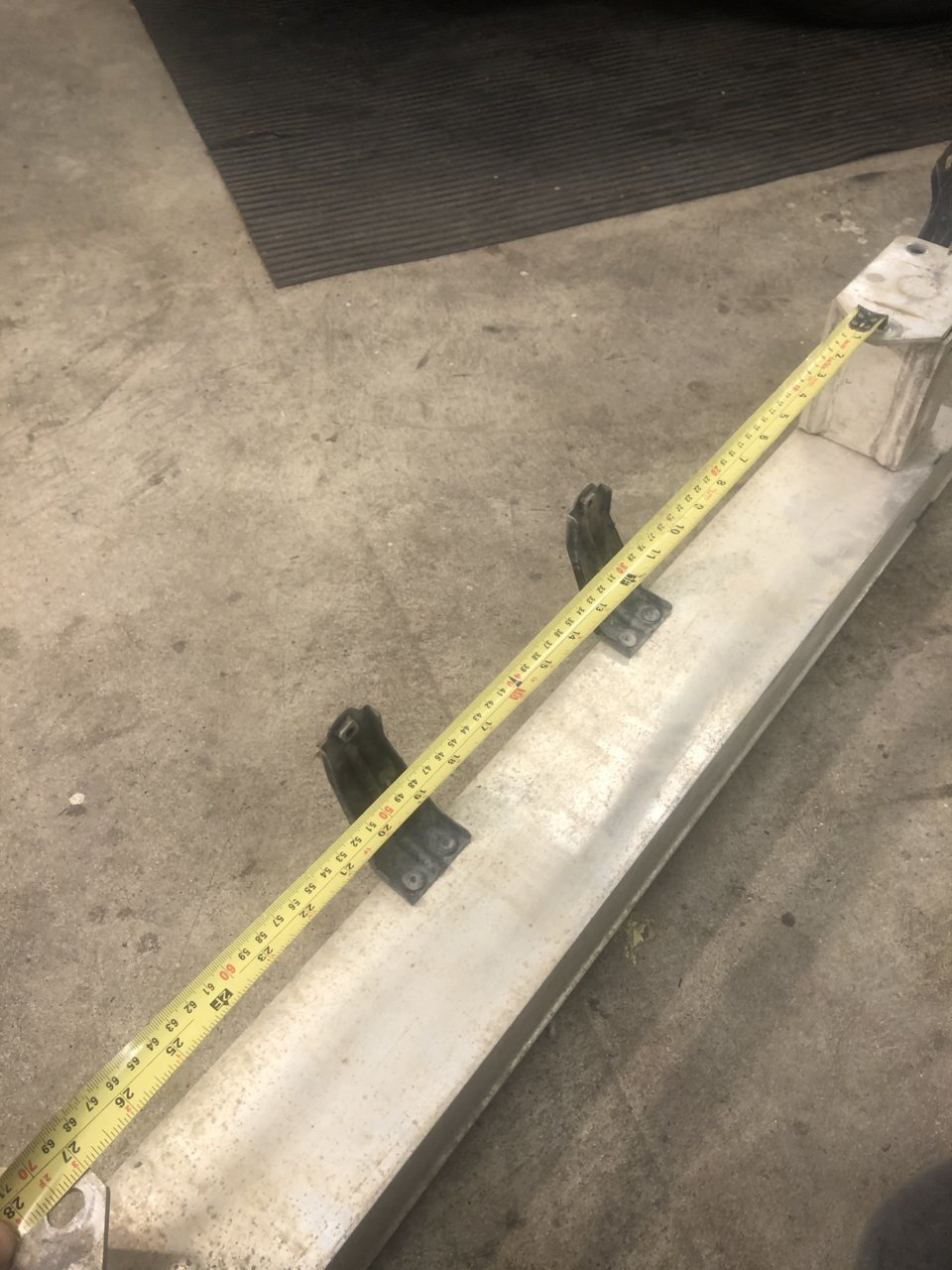

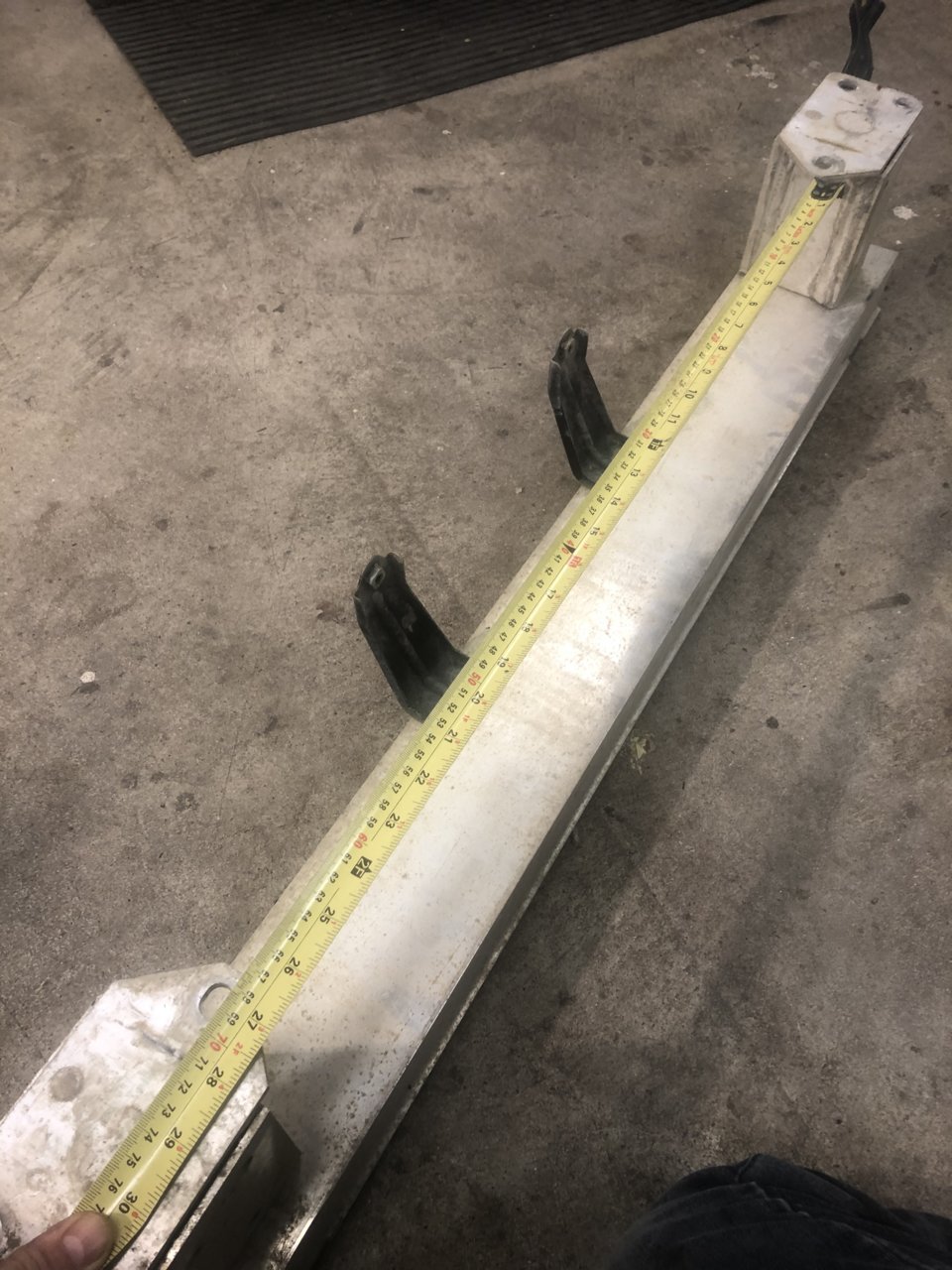

Inner dimensions:

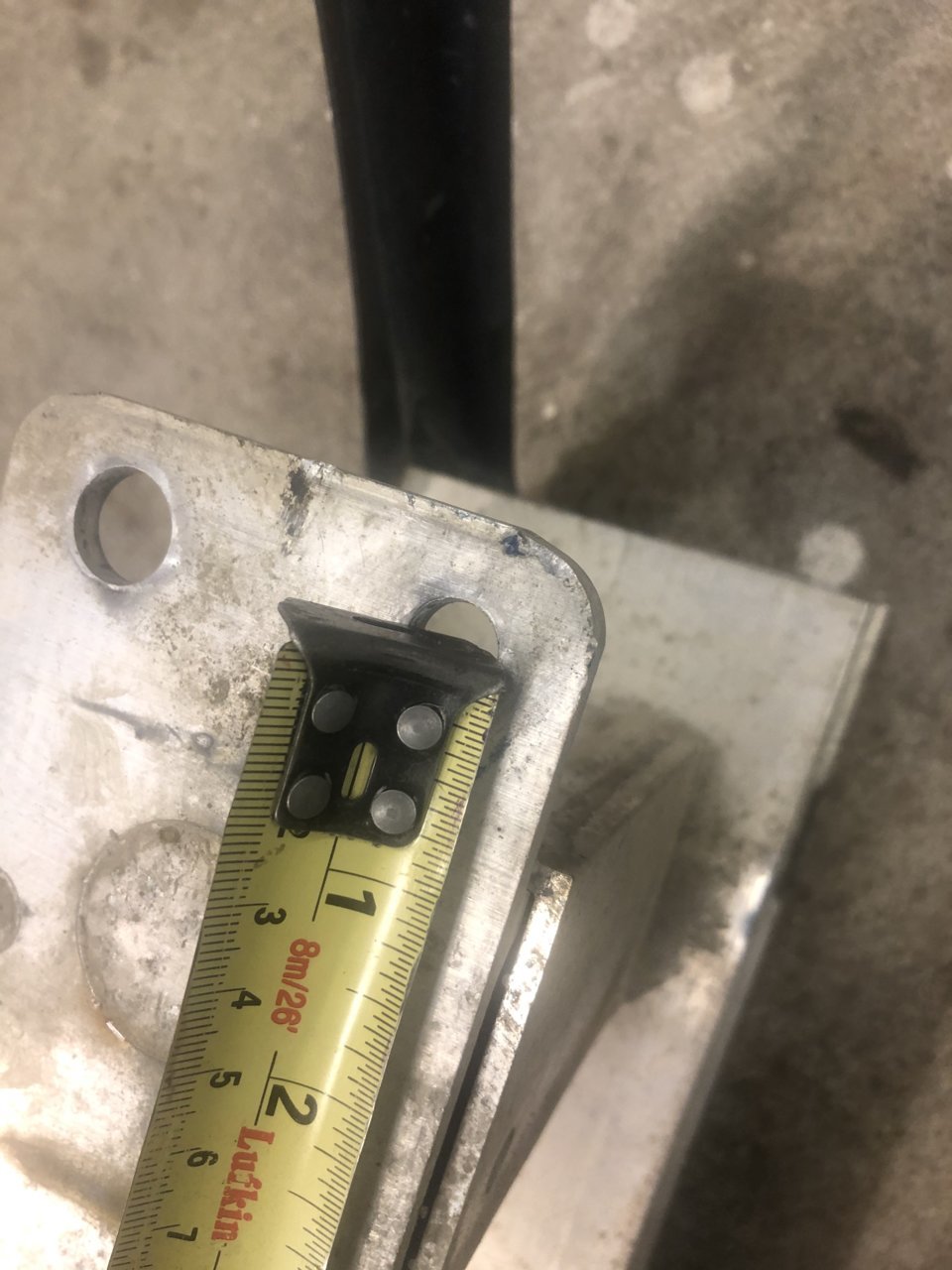

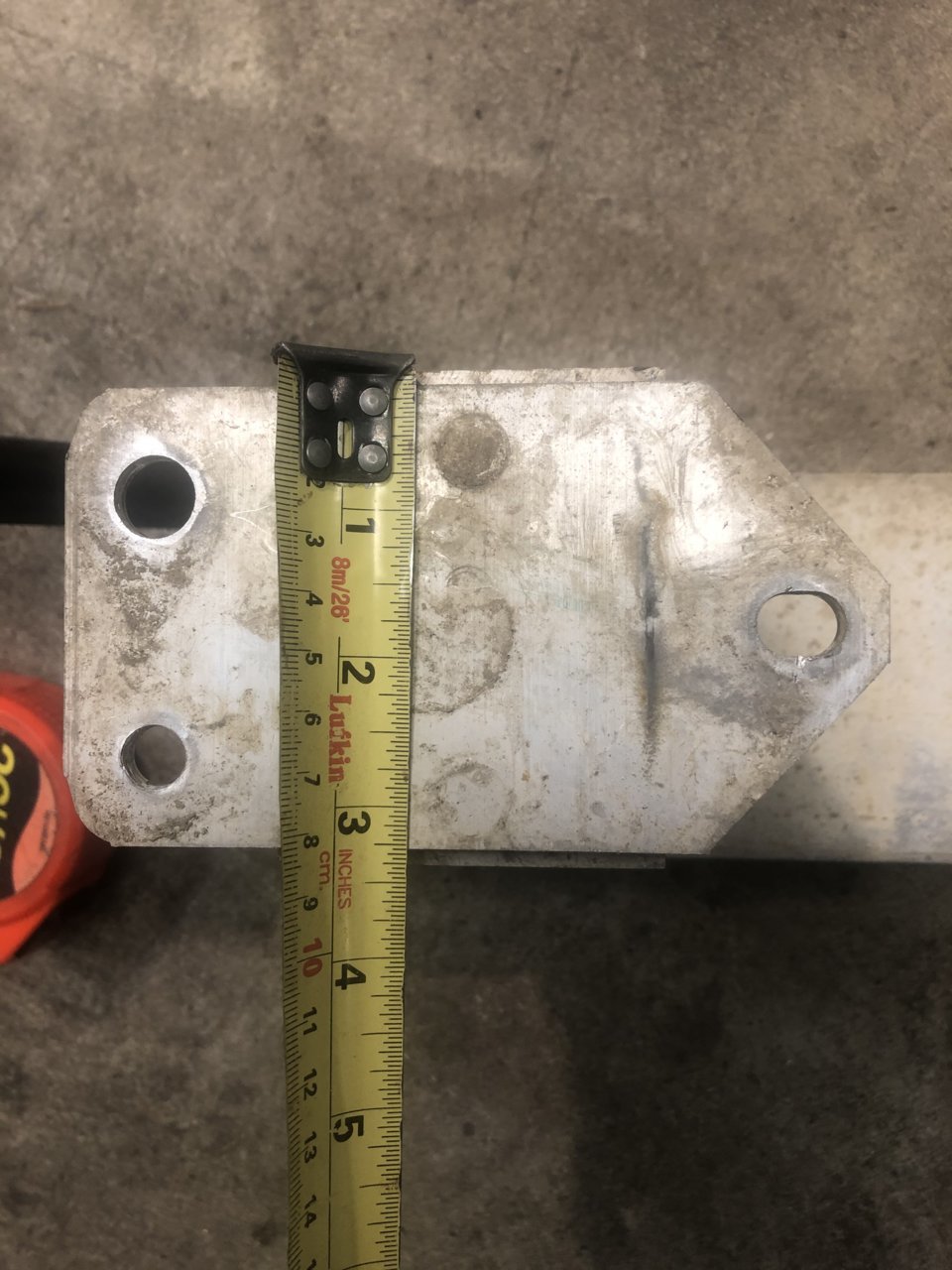

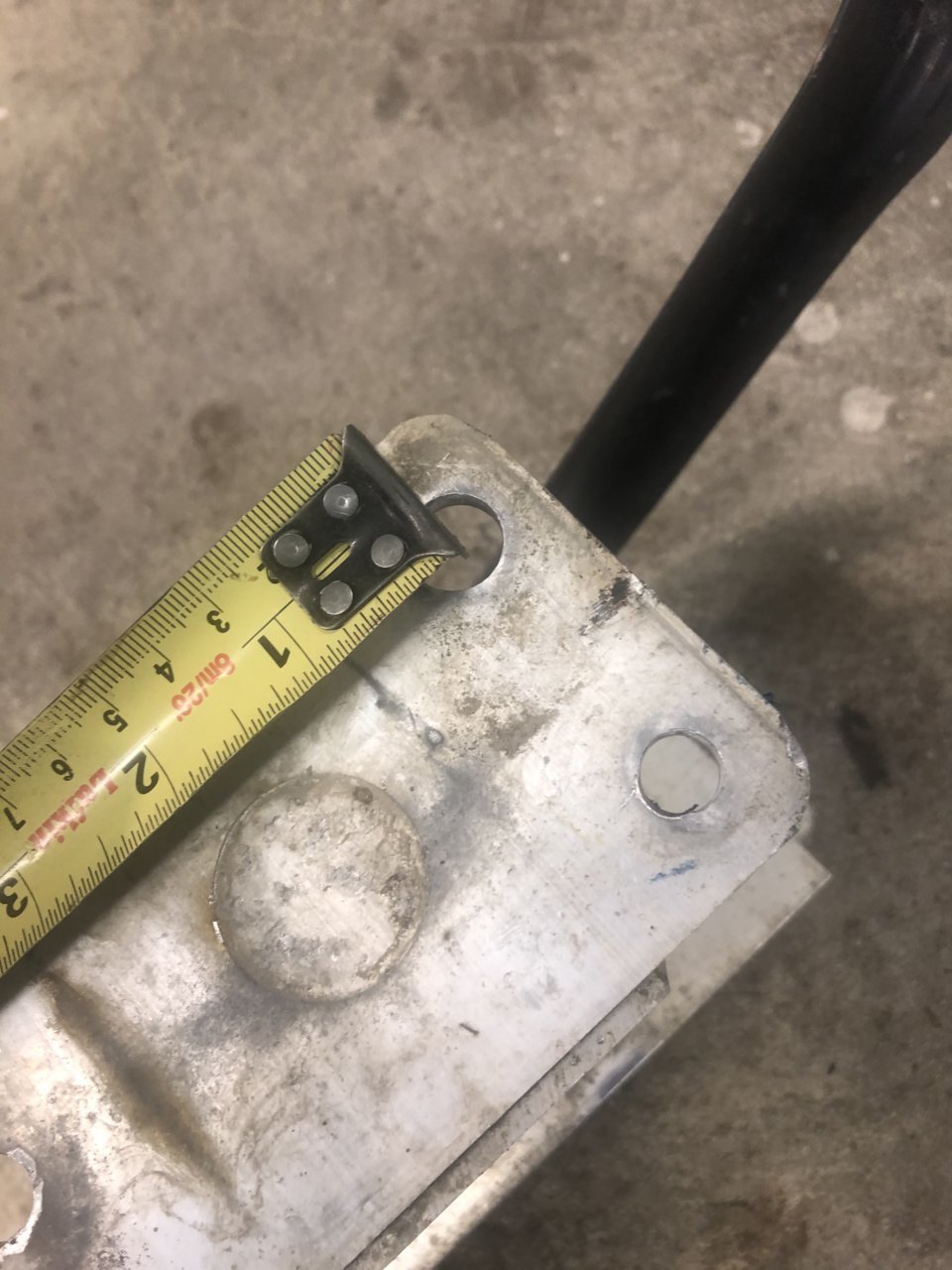

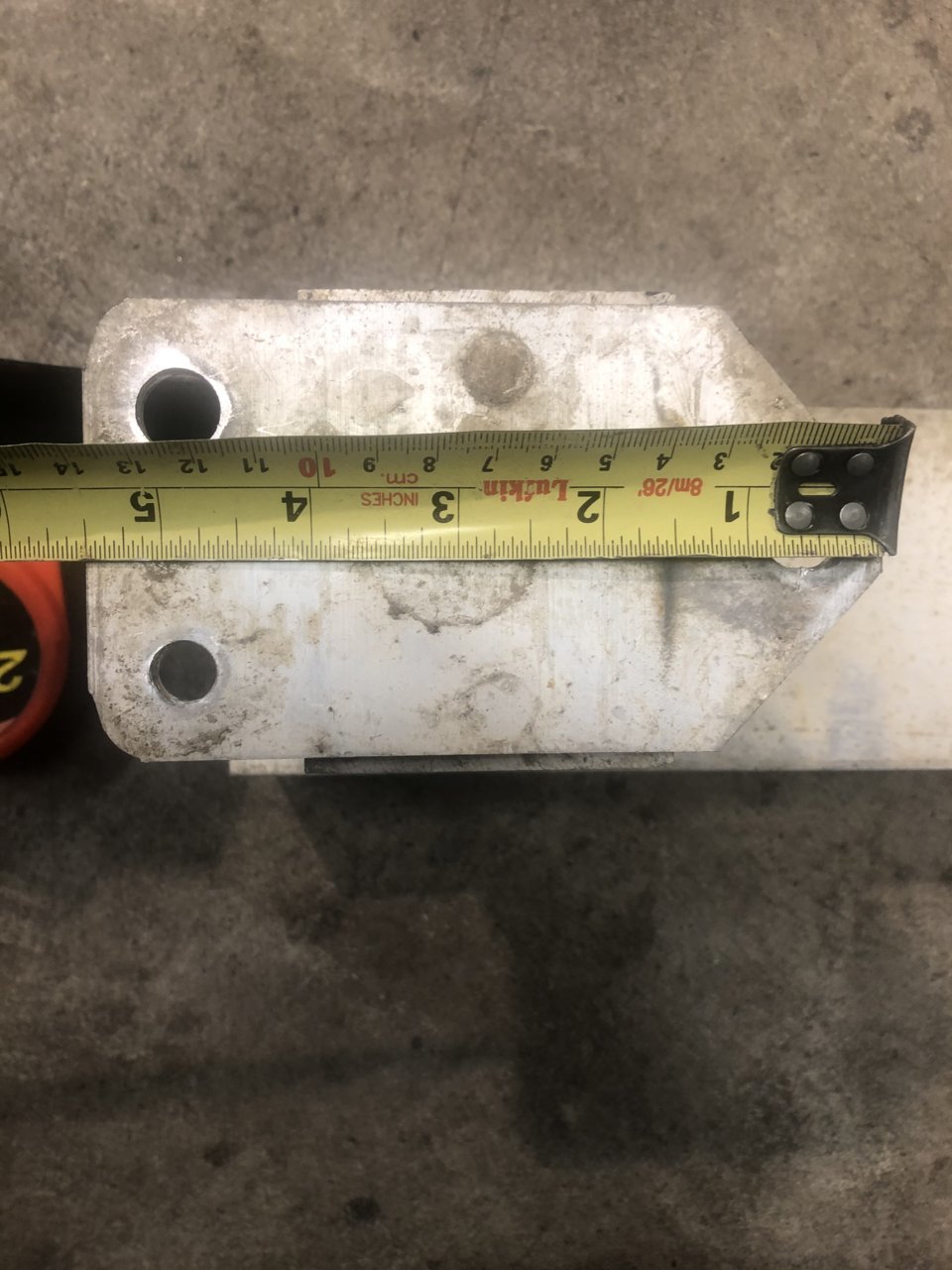

Third photo set: size of mounting pads

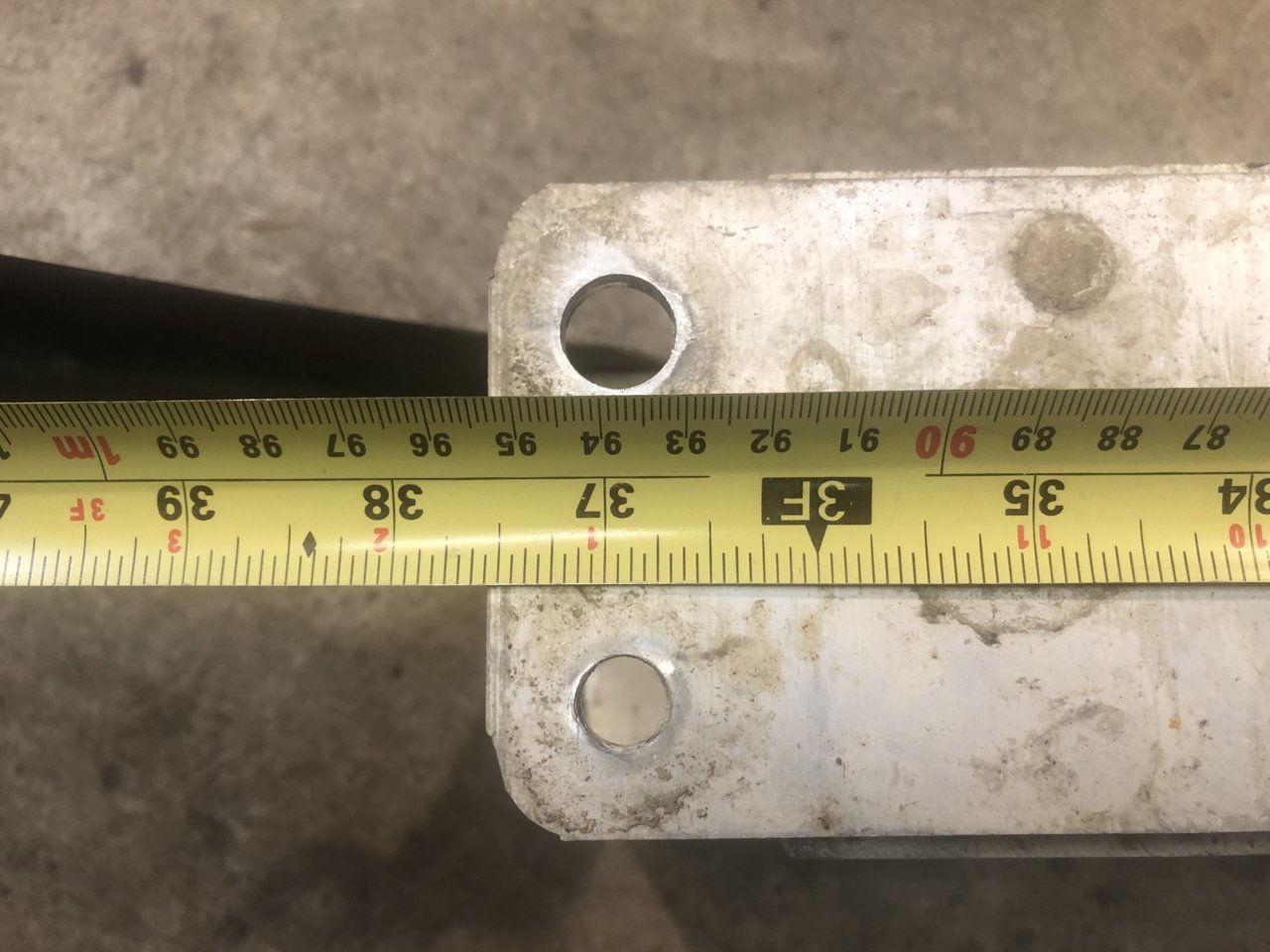

fourth photo set. Inner bolt hole center-to-center (black brackets are on bottom of bumper)

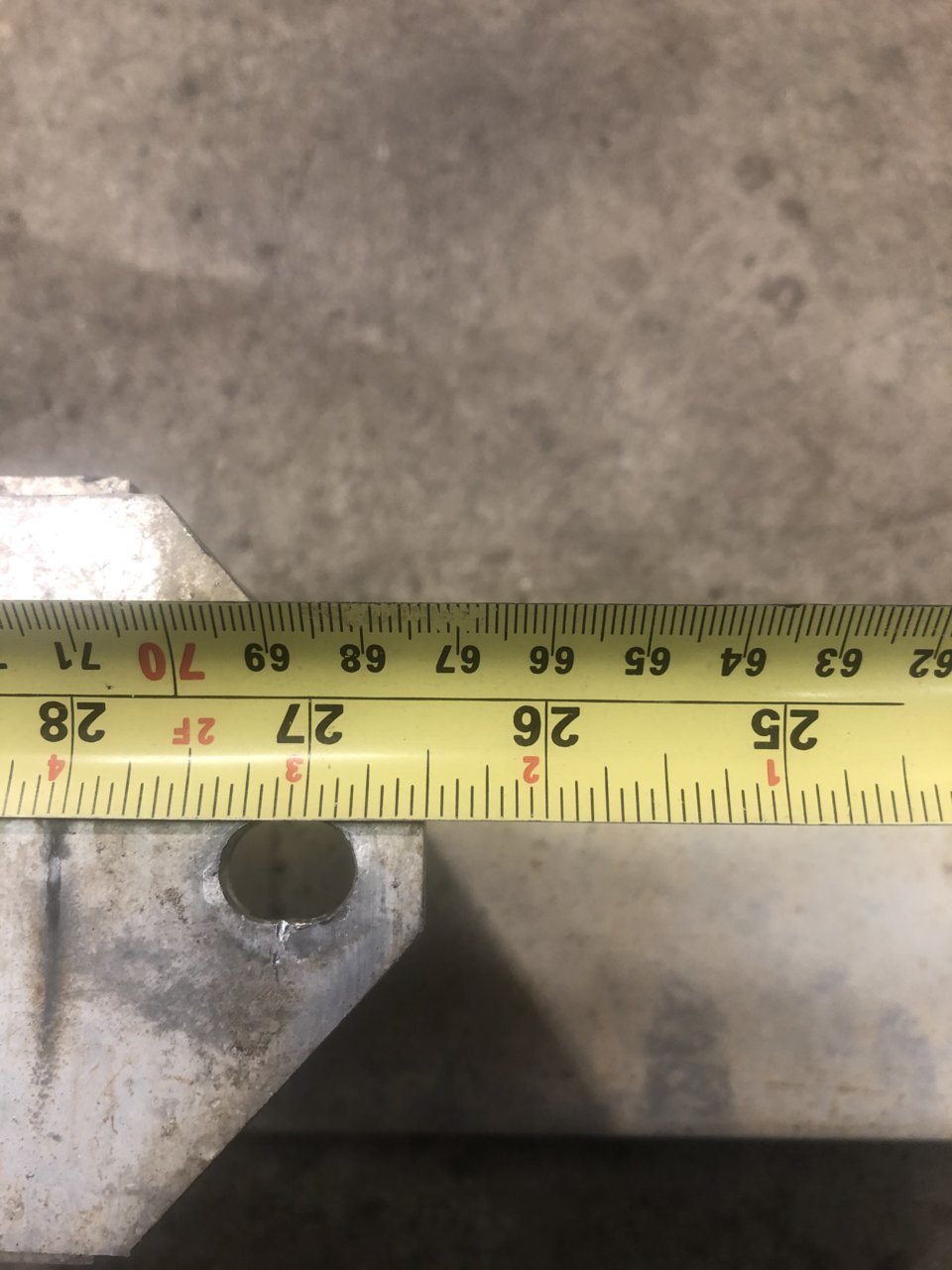

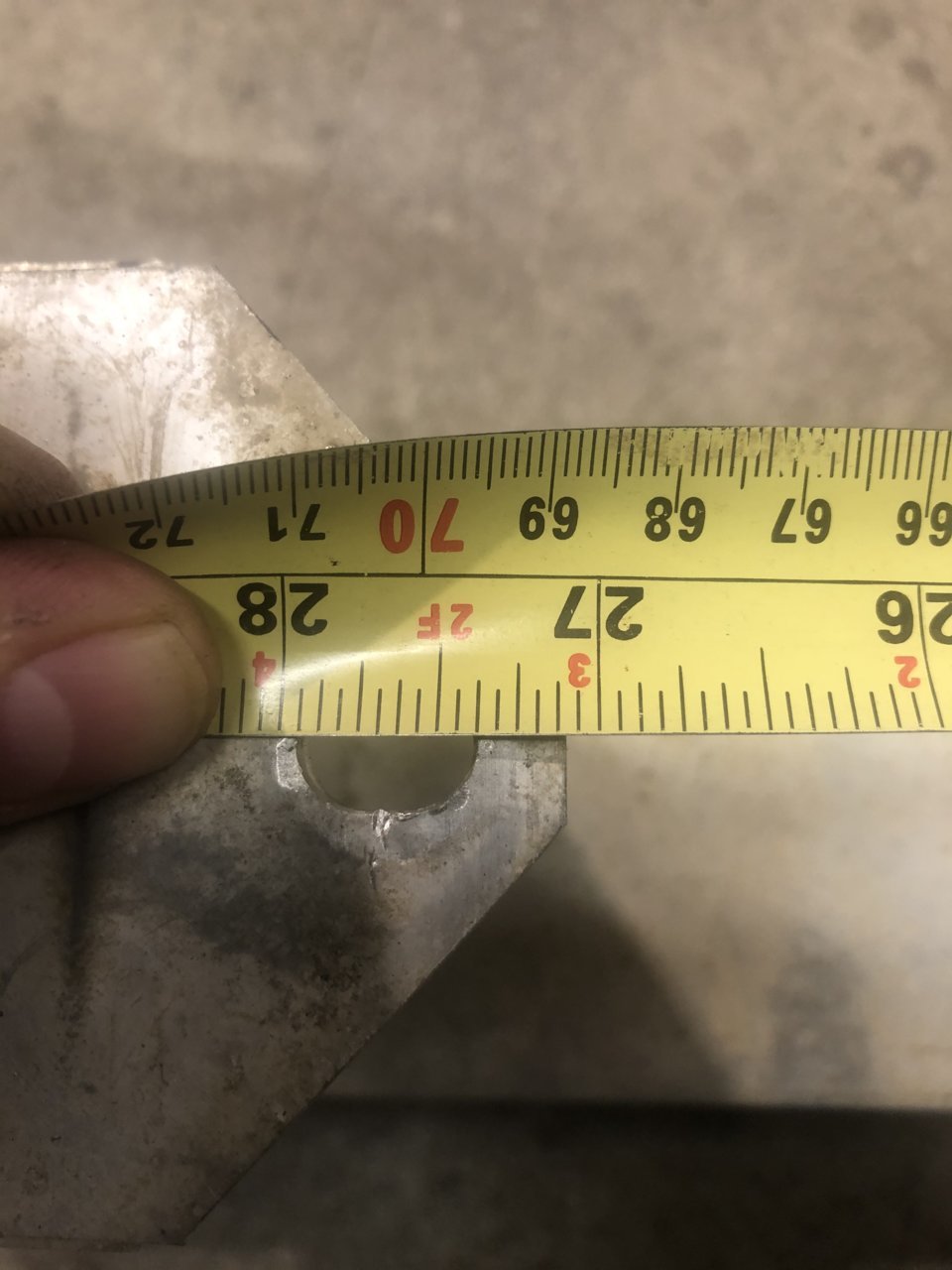

5th photo set: lower bolt hole center to center

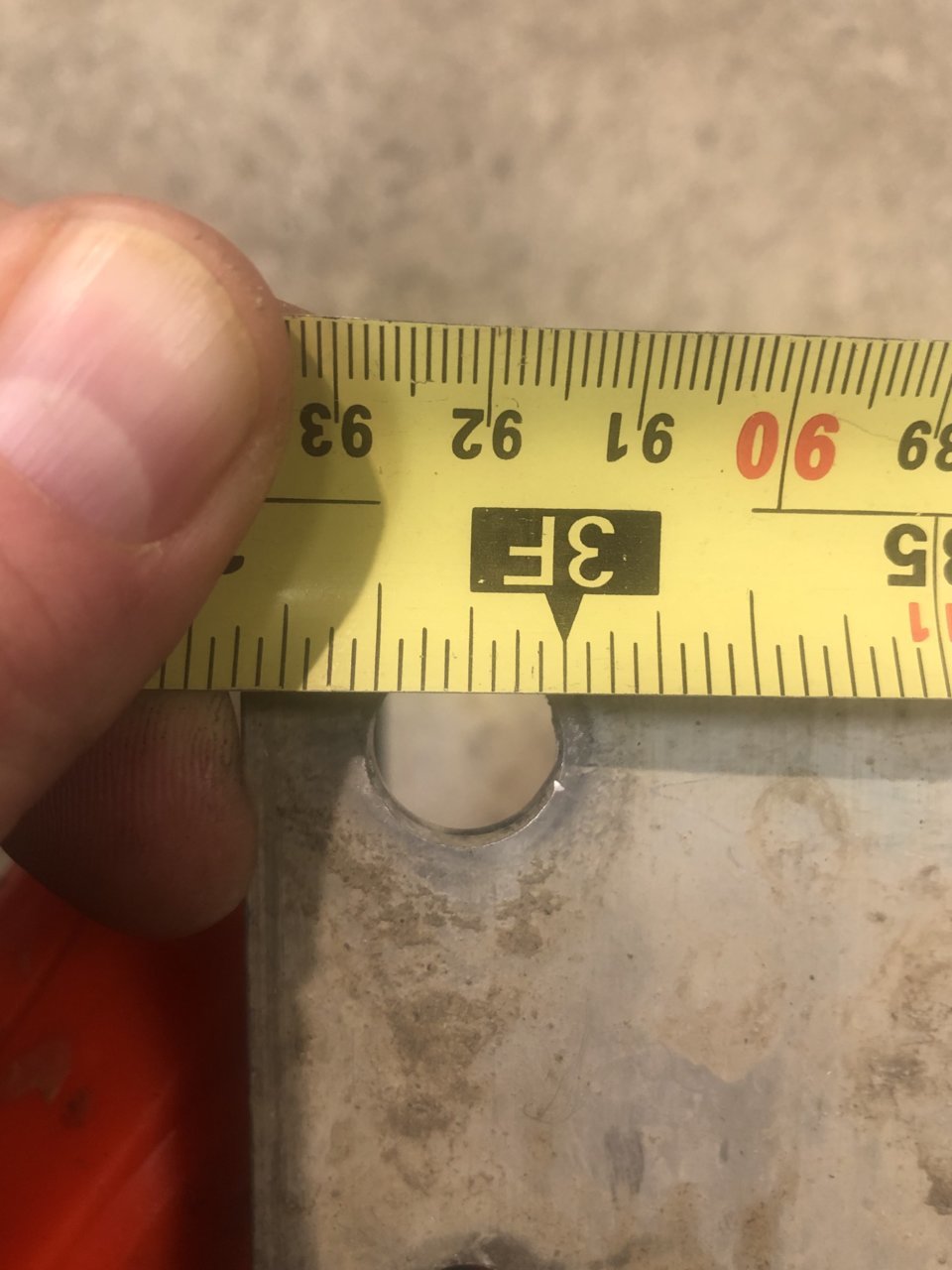

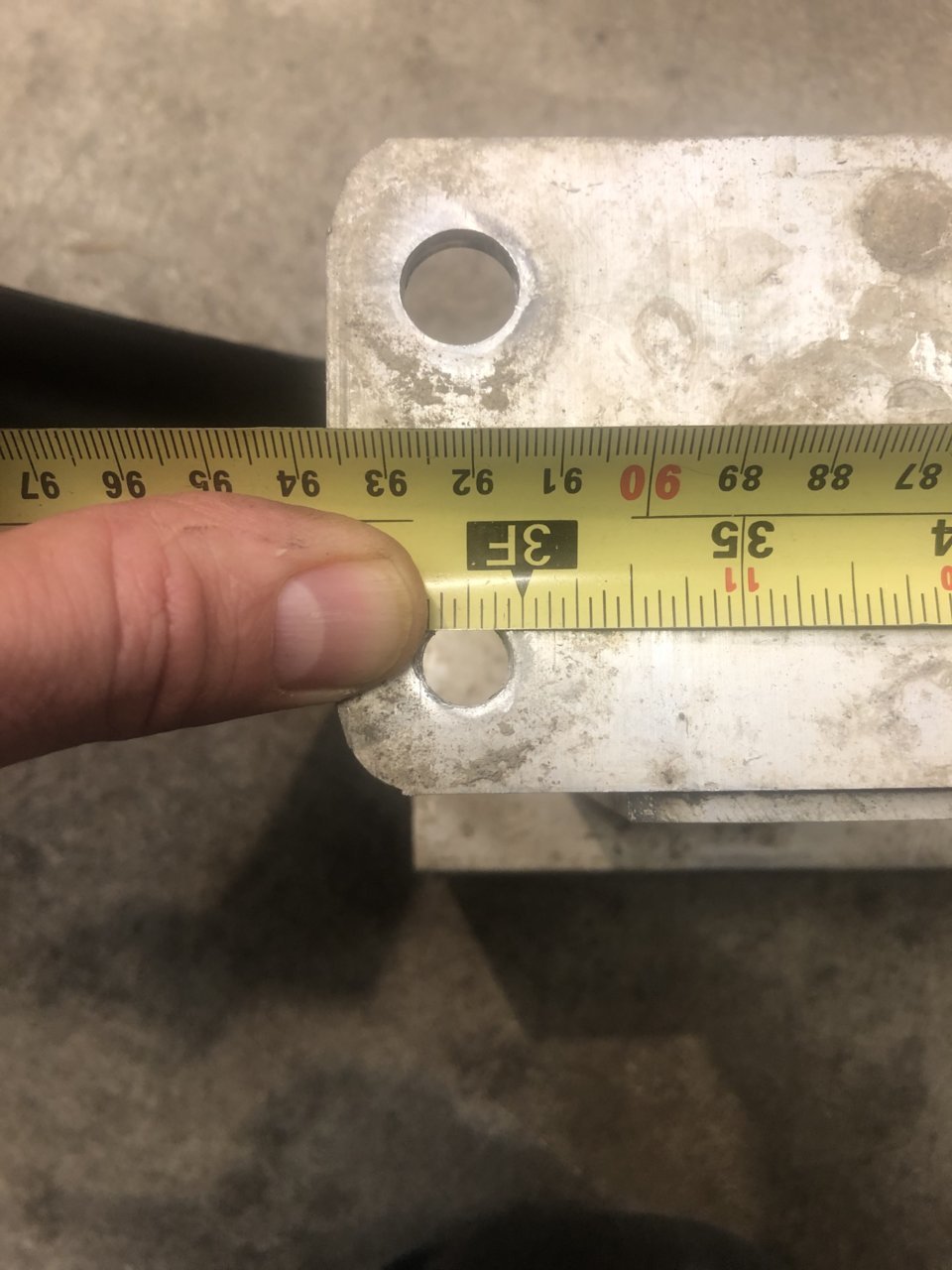

6th photo set: upper mounting holes, center to center:

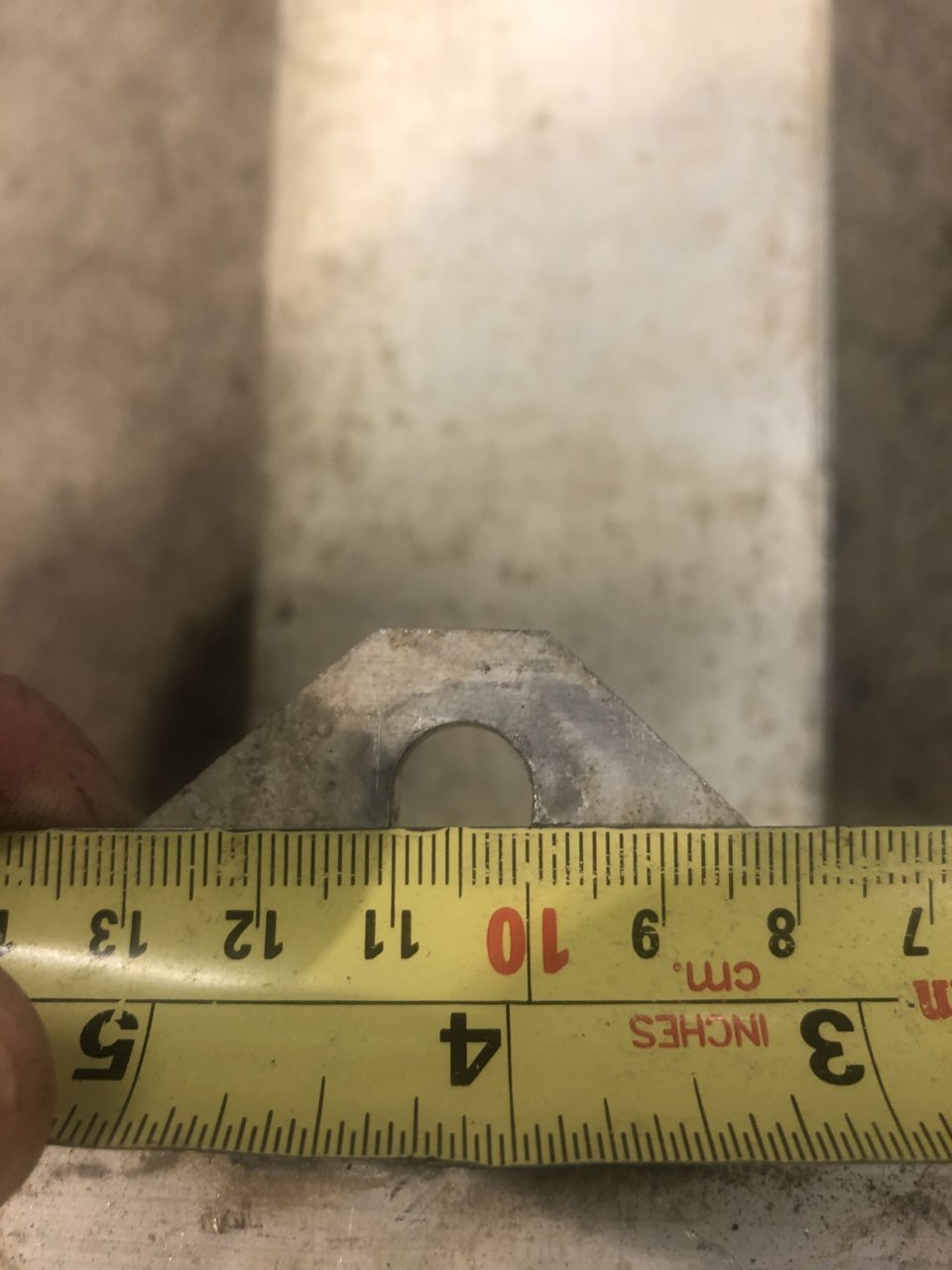

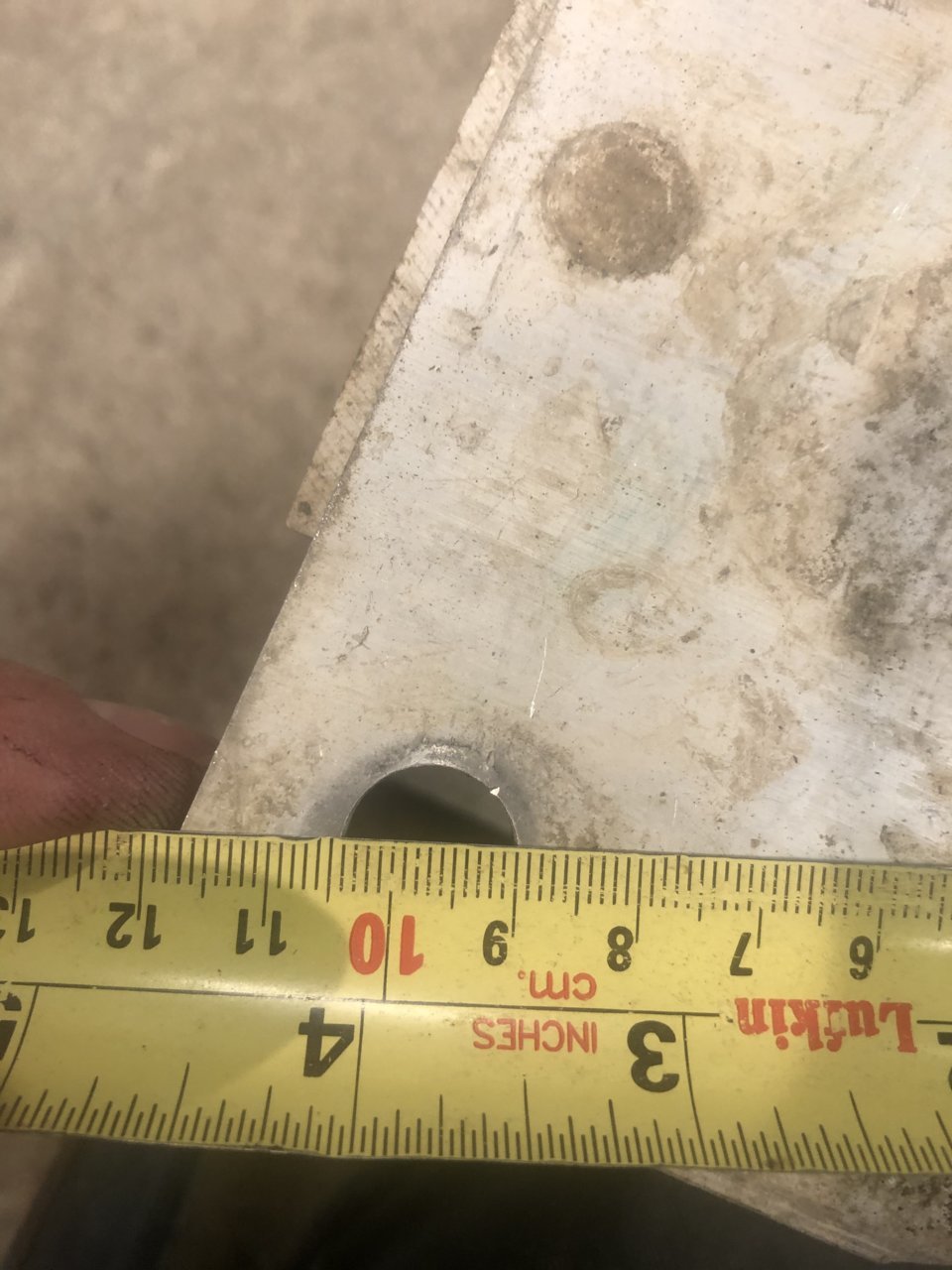

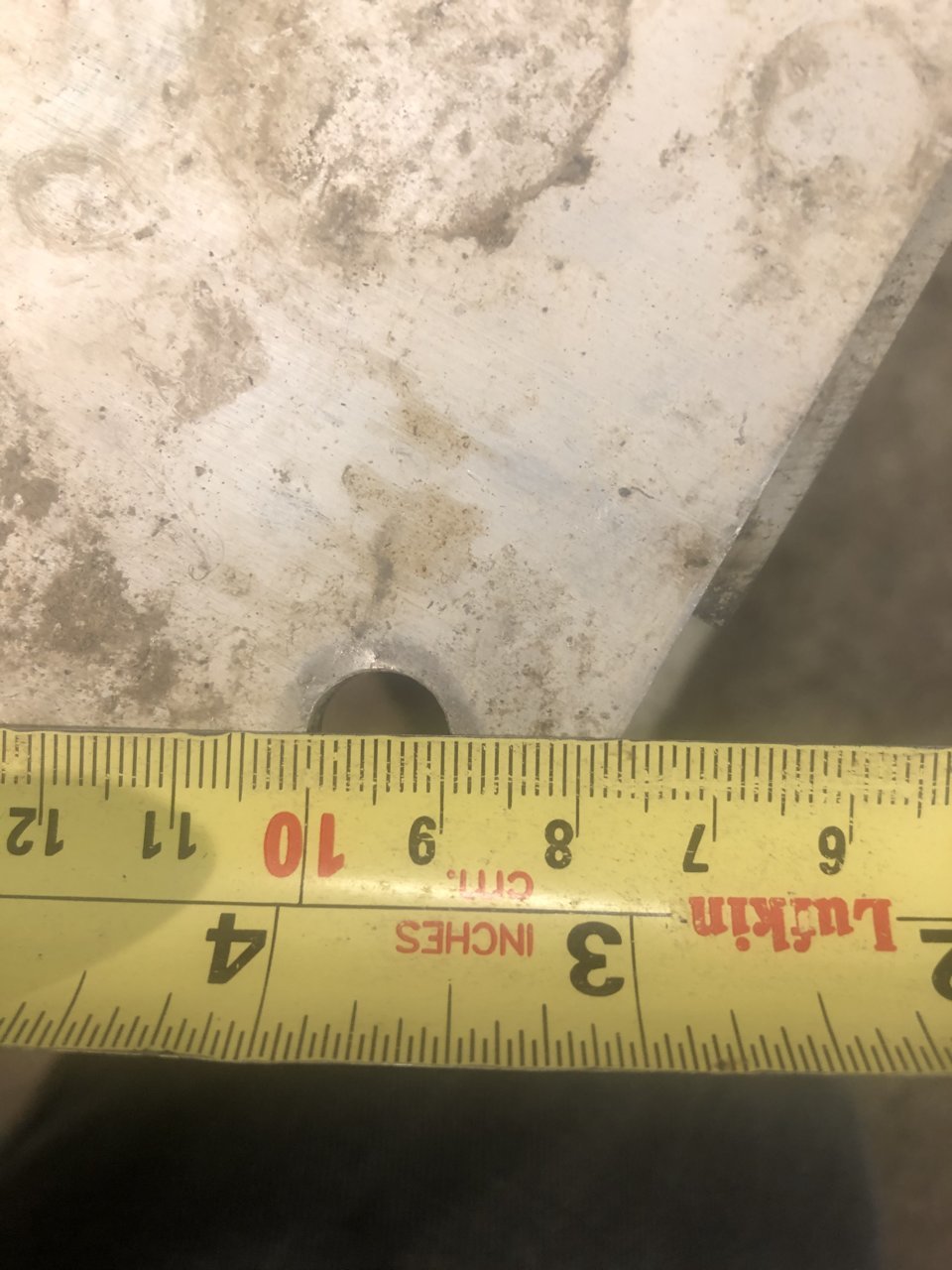

7th photo set. Stud hole size. Upper and inner holes are 10mm, lower hole is 14mm



Way to go @Stocklocker! Great job.



Thank you!!



Thank you @Stocklocker this is a great set of pictures and information.



Thorough @Stocklocker
