Front camera hookup

Discussion in '3rd Gen. Tacomas (2016-2023)' started by TRDitalia, Jul 27, 2020.

  1. Jul 27, 2020 at 4:54 AM
    #1
    TRDitalia

    TRDitalia [OP] Active Member

    Joined:
    Jul 18, 2020
    Member:
    #334847
    Messages:
    25
    Gender:
    Male
    Vehicle:
    2020 TRD Sport DCSB
    Can anyone supply a picture of where the 2020 OEM front camera wire harness hooks into? Trying to figure out if my sport is wired up for a front camera or not. I have a hookup with a plug in it across from where the camera would mount and am thinking this may be the hookup for the front camera.

  2. Jul 27, 2020 at 5:04 AM
    #2
    DES2009

    DES2009 Minister of Truth

    Joined:
    Jul 22, 2014
    Member:
    #134426
    Messages:
    1,000,542
    Gender:
    Male
    Southeast Louisiana
    Vehicle:
    2017 MGM Limited
    I'm a Millionaire! One Million Posts!!
    Can you provide a picture of the connector you see?

  3. Jul 27, 2020 at 6:16 AM
    #3
    TRDitalia

    TRDitalia [OP] Active Member

    Joined:
    Jul 18, 2020
    Member:
    #334847
    Messages:
    25
    Gender:
    Male
    Vehicle:
    2020 TRD Sport DCSB

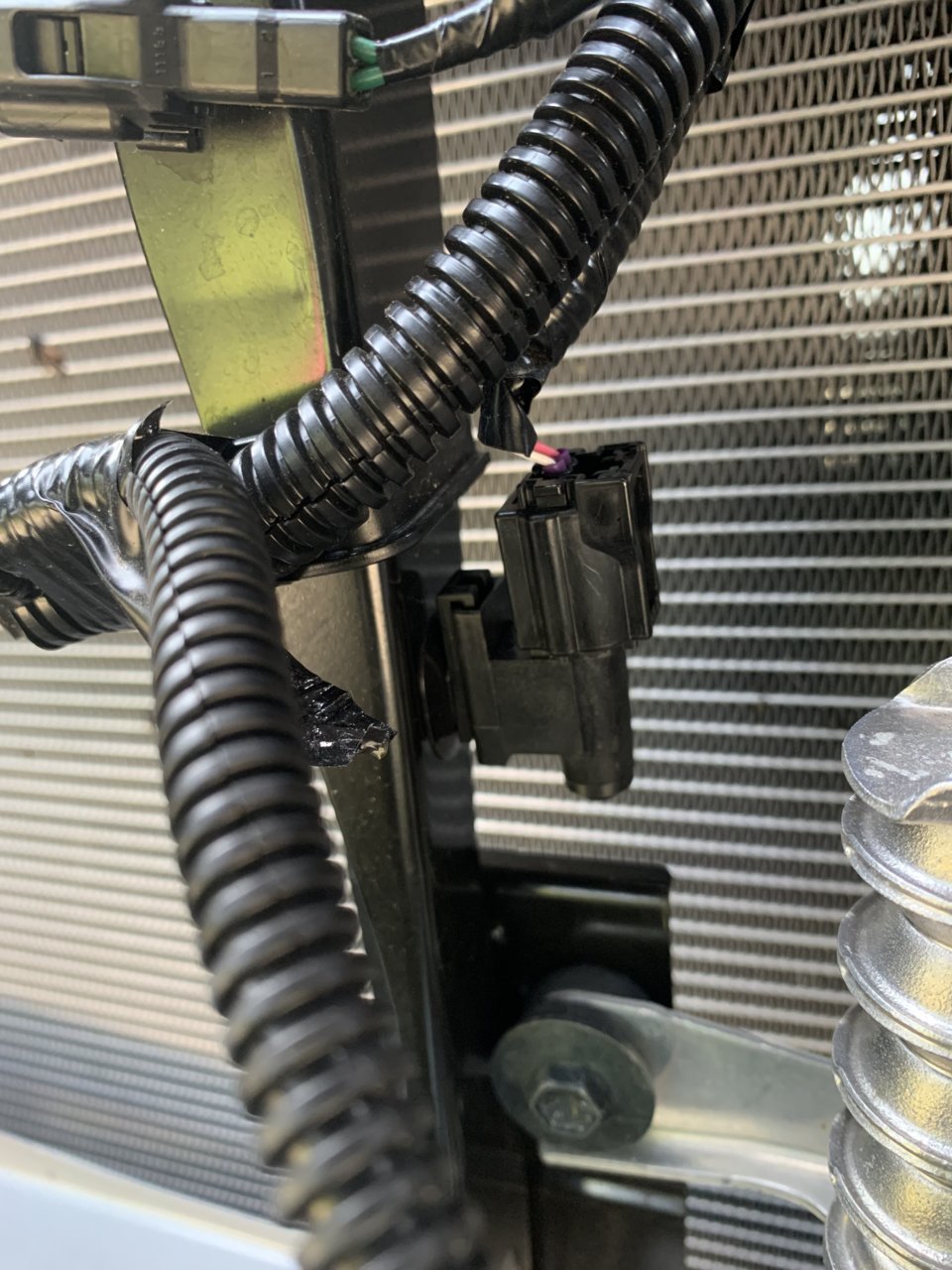

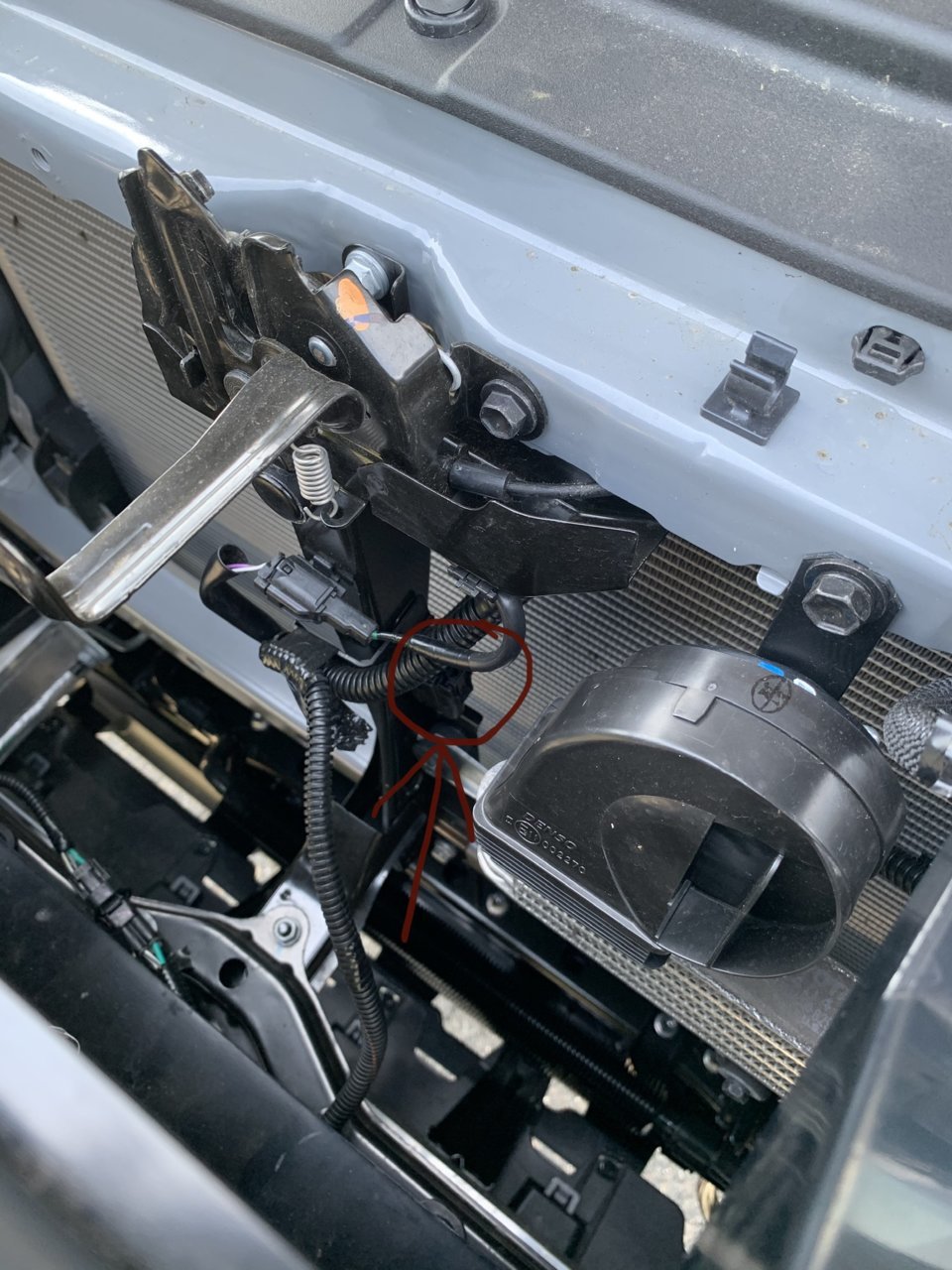

    Here is the hookup I was talking about but after watching a video of someone installing a 2020 pro grill with the camera I’m pretty sure the wire harness for the front camera replaces the tss harness and both hook into where the tss currently plugs into. If that’s the case I would just have to hope my sport is wired up from the factory for the front camera.
    But this is just an assumption still not 100% sure.


  4. Jul 27, 2020 at 6:30 AM
    #4
    DES2009

    DES2009 Minister of Truth

    Joined:
    Jul 22, 2014
    Member:
    #134426
    Messages:
    1,000,542
    Gender:
    Male
    Southeast Louisiana
    Vehicle:
    2017 MGM Limited
    I'm a Millionaire! One Million Posts!!
    It looks like the connector in your picture may only have two wires. The front camera would need at least three... power, ground, and signal.

    TRDitalia[OP] likes this.
  5. Jul 27, 2020 at 6:34 AM
    #5
    TRDitalia

    TRDitalia [OP] Active Member

    Joined:
    Jul 18, 2020
    Member:
    #334847
    Messages:
    25
    Gender:
    Male
    Vehicle:
    2020 TRD Sport DCSB
    thanks, I appreciate the help.

    DES2009[QUOTED] likes this.
