FRS seats in 2013 Tacoma

Discussion in '2nd Gen. Tacomas (2005-2015)' started by JdevTac, Apr 28, 2017.

  1. Aug 10, 2017 at 8:55 PM
    #41
    JdevTac

    JdevTac [OP] Well-Known Member

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    6,312
    Gender:
    Male
    First Name:
    Josh
    MD/GA
    Vehicle:
    2nd gen
    Yeah Planted brackets.

    I've currently got the passenger side on hold. Bracket is in my garage I still just need to acquire a seat when I have the time.

  2. Sep 16, 2017 at 2:23 PM
    #42
    JdevTac

    JdevTac [OP] Well-Known Member

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    6,312
    Gender:
    Male
    First Name:
    Josh
    MD/GA
    Vehicle:
    2nd gen
    Passenger FRS seat will be here in 2 weeks so I can finish this mod!

    G.T., boogie3478 and Key-Rei like this.
  3. Sep 16, 2017 at 3:49 PM
    #43
    Barnburner

    Barnburner Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225319
    Messages:
    193
    Gender:
    Male
    Vehicle:
    2015 Tacoma SR
    Excited to see how this shapes up! You mentioned the passenger side will be trickier, is that just because of the occupancy sensor?

  4. Sep 16, 2017 at 3:53 PM
    #44
    JdevTac

    JdevTac [OP] Well-Known Member

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    6,312
    Gender:
    Male
    First Name:
    Josh
    MD/GA
    Vehicle:
    2nd gen
    Yeah it's just a matter of plugging the OCS bypass I got to the OEM sensor harness, installing the seat, swapping Tacoma connector to FRS airbag wiring and done. Really is actually easier than the driver side.

  5. Sep 16, 2017 at 3:55 PM
    #45
    Barnburner

    Barnburner Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225319
    Messages:
    193
    Gender:
    Male
    Vehicle:
    2015 Tacoma SR
    Just thought about this.. if the FRS seat comes with an occupant sensor, would swapping the pins (like you did with the airbag) work?

  6. Sep 16, 2017 at 4:39 PM
    #46
    JdevTac

    JdevTac [OP] Well-Known Member

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    6,312
    Gender:
    Male
    First Name:
    Josh
    MD/GA
    Vehicle:
    2nd gen
    Ah yes one would think so HOWEVER, 2nd gen Tacomas use a pressure sensor system to ID someone is in the seat. The FRS uses an electronic field system or whatever to sense the passenger, so they don't operate the same and the harness plugs are different/wiring diagram is totally different.

    The 3rd gen Tacomas incorporate this same new tech as the FRS though.

    Which is why if I leave a heavy backpack or whatever in pass seat the truck thinks someone is there, but if a 3rd genner leaves a phone or similar electronic device in the seat the truck will think someone is there.

  7. Sep 17, 2017 at 7:40 AM
    #47
    Barnburner

    Barnburner Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225319
    Messages:
    193
    Gender:
    Male
    Vehicle:
    2015 Tacoma SR
    Gotcha. I've seen guys in the Audi world swap seats with a similar pressure sensor system. I think it uses an air bladder. Is that our case with the tacoma? (i haven't done much research there). If so (and this is probably a pain the butt) could the stock occupancy system be swapped into the FRS seat?

  8. Sep 17, 2017 at 2:24 PM
    #48
    JdevTac

    JdevTac [OP] Well-Known Member

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    6,312
    Gender:
    Male
    First Name:
    Josh
    MD/GA
    Vehicle:
    2nd gen
    Tacoma had like a gel filled setup if I recall correct based on pics I've seen of the reg cab guys swapping to buckets.

    You could probably swap the whole deal over but I have no patience for that lol. And my main goal is to keep the OEM seats untouched so I can always sell them or go back to stock for whatever reason if need be.

    G.T. likes this.
  9. Sep 25, 2017 at 5:26 PM
    #49
    JdevTac

    JdevTac [OP] Well-Known Member

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    6,312
    Gender:
    Male
    First Name:
    Josh
    MD/GA
    Vehicle:
    2nd gen

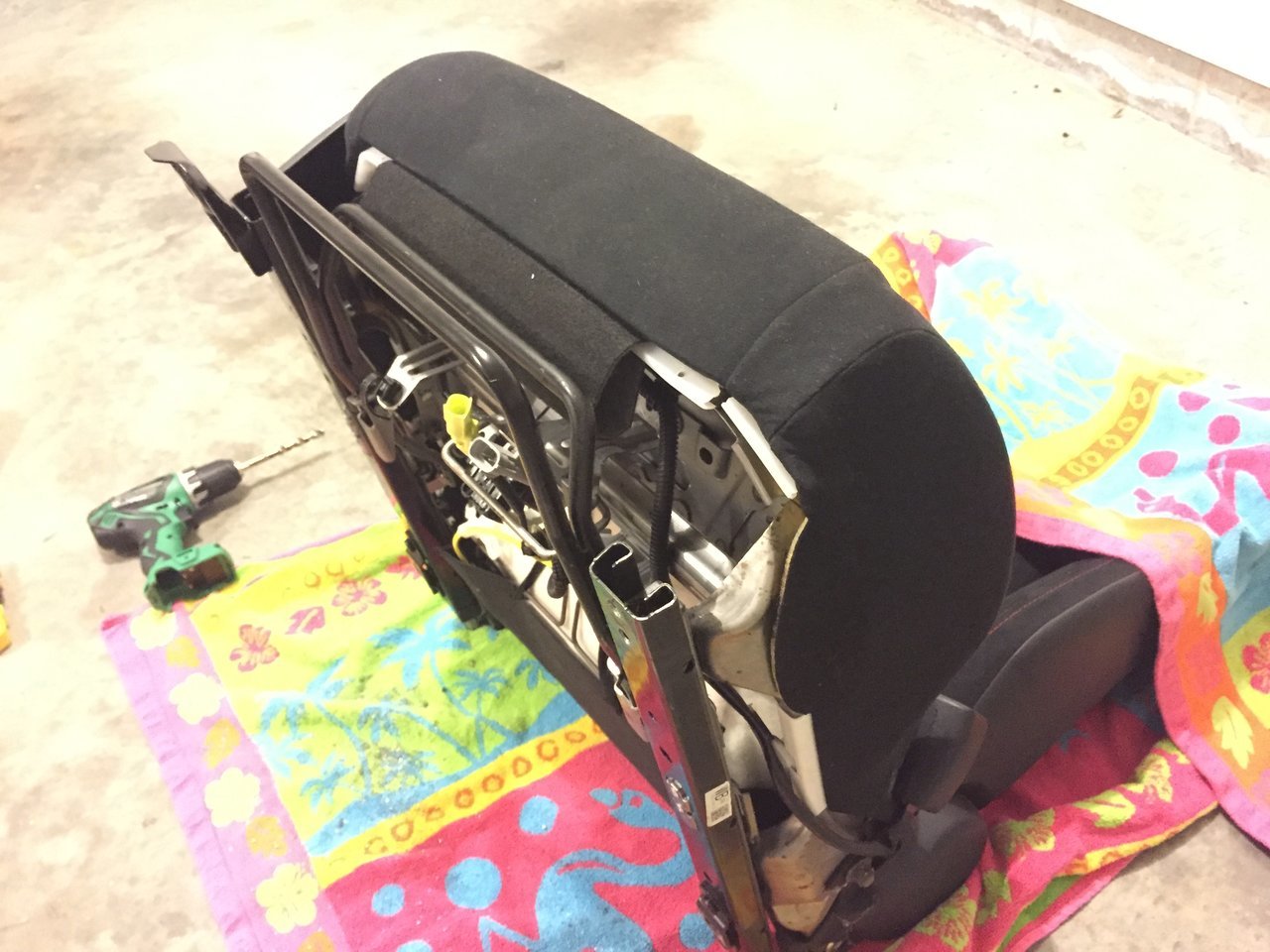

    Surgery begins...


    TegoTaco and boogie3478 like this.
  10. Sep 25, 2017 at 5:55 PM
    #50
    mikalcarbine

    mikalcarbine Well-Known Member

    Joined:
    May 5, 2017
    Member:
    #218236
    Messages:
    499
    Gender:
    Male
    First Name:
    Mike
    Phoenix, AZ
    Vehicle:
    2015 AC TRD OR
    :popcorn: curious how this works out, I've been holding off for a TRD trim since the seats are supposedly more comfortable but this could help steer me towards an SR5

  11. Sep 26, 2017 at 10:04 AM
    #51
    JdevTac

    JdevTac [OP] Well-Known Member

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    6,312
    Gender:
    Male
    First Name:
    Josh
    MD/GA
    Vehicle:
    2nd gen

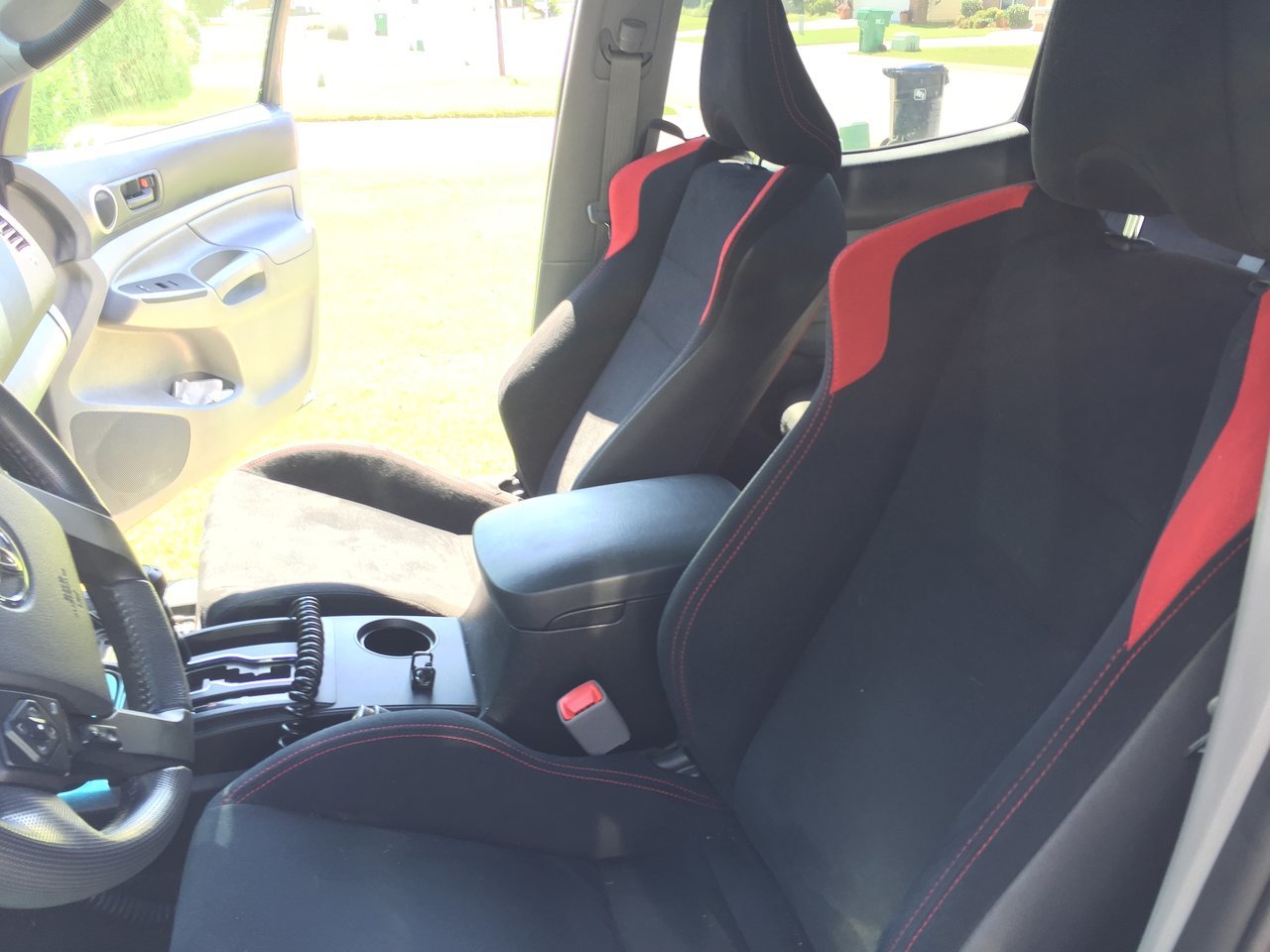

    Last edited: Sep 26, 2017
  12. Sep 26, 2017 at 10:22 AM
    #52
    boogie3478

    boogie3478 Well-Known Member

    Joined:
    Oct 12, 2014
    Member:
    #140179
    Messages:
    26,396
    Gender:
    Male
    Vehicle:
    14 TRD Off-Road V6
    All the mods
    Sweet! Now I want some.

  13. Sep 26, 2017 at 10:32 AM
    #53
    Oreo Cat

    Oreo Cat Worst Member

    Joined:
    Sep 19, 2016
    Member:
    #197755
    Messages:
    5,366
    Coeur d’Alene, Idaho
    i need to stop coming to this site.

    outxider, Biscuits and G.T. like this.
  14. Sep 27, 2017 at 10:25 AM
    #54
    JdevTac

    JdevTac [OP] Well-Known Member

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    6,312
    Gender:
    Male
    First Name:
    Josh
    MD/GA
    Vehicle:
    2nd gen

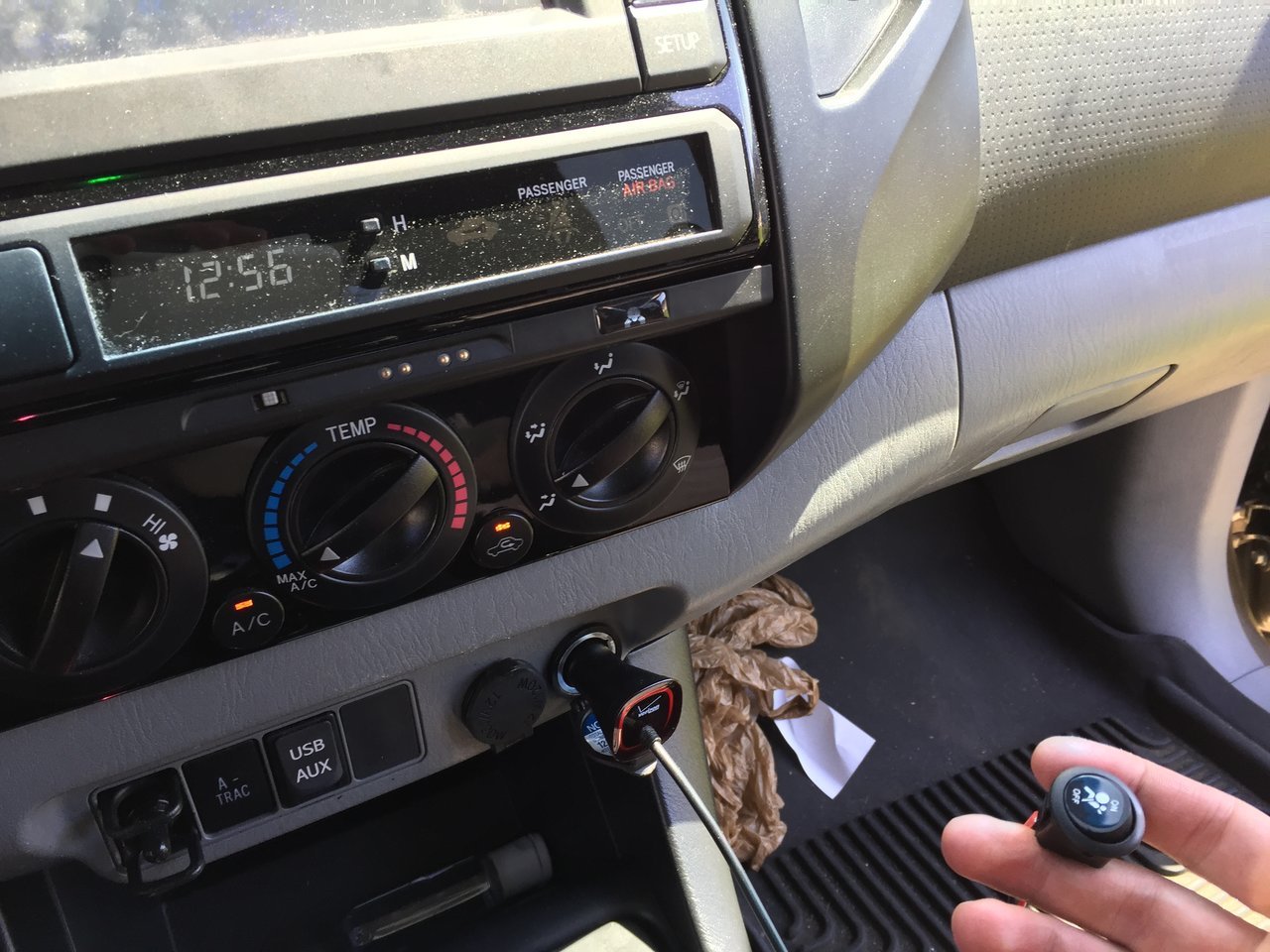

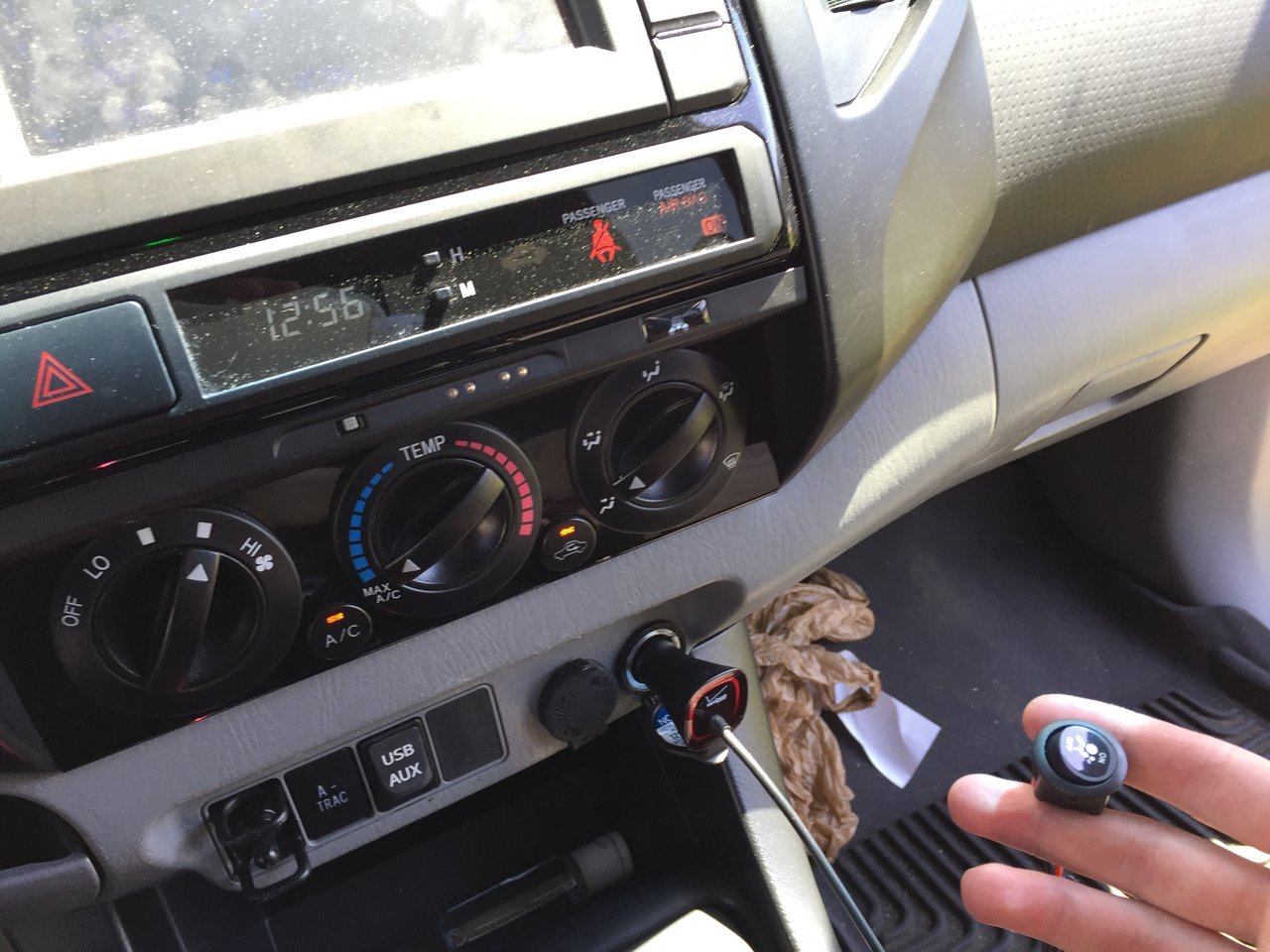

    Just a note for the bypass. You have to have it flipped to ON, prior to buckling up or the airbag won’t turn on.

  15. Sep 27, 2017 at 10:51 AM
    #55
    brah.coma

    brah.coma Well-Known Member

    Joined:
    Oct 12, 2016
    Member:
    #199626
    Messages:
    208
    Gender:
    Male
    Vehicle:
    06 2.7l 5spd 4x4 Reg Cab
  16. Sep 29, 2017 at 5:48 PM
    #56
    Barnburner

    Barnburner Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225319
    Messages:
    193
    Gender:
    Male
    Vehicle:
    2015 Tacoma SR
    nice work!!

  17. Oct 11, 2017 at 12:34 PM
    #57
    JdevTac

    JdevTac [OP] Well-Known Member

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    6,312
    Gender:
    Male
    First Name:
    Josh
    MD/GA
    Vehicle:
    2nd gen

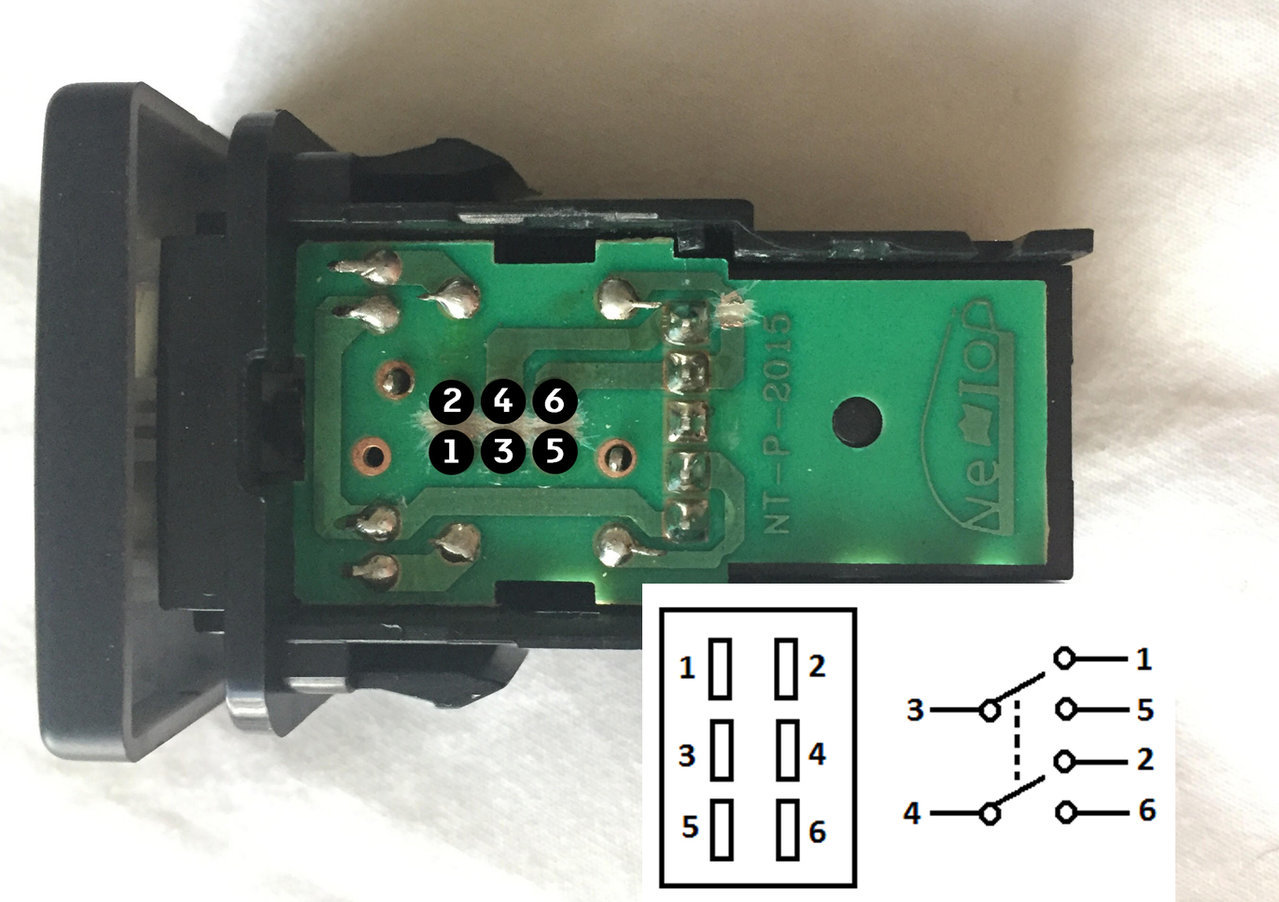

    I received my Aironboard airbag switch and learned I need to do some modifications to get it to illuminate how I want it, without compromising the OCS bypass circuit. I talked with user "CTscott" over on yarisworld. He is the originator of the bypass and who MetalTech4x4 buys them from, from what I understand. He told me the LEDs for the switch need to be on an entirely different circuit so as not to damage the OCS module. SO after searching through some of his posts as he suggested, I found one of his switch diagrams on how to modify the switch so the LEDs operate independently. Thread on yaris world: www.yarisworld.com/forums/showpost.php?p=299907&postcount=39

    I'm not 100% why his diagram shows the + jumper from the center lead bypassing the LED resistor. I don't plan to.

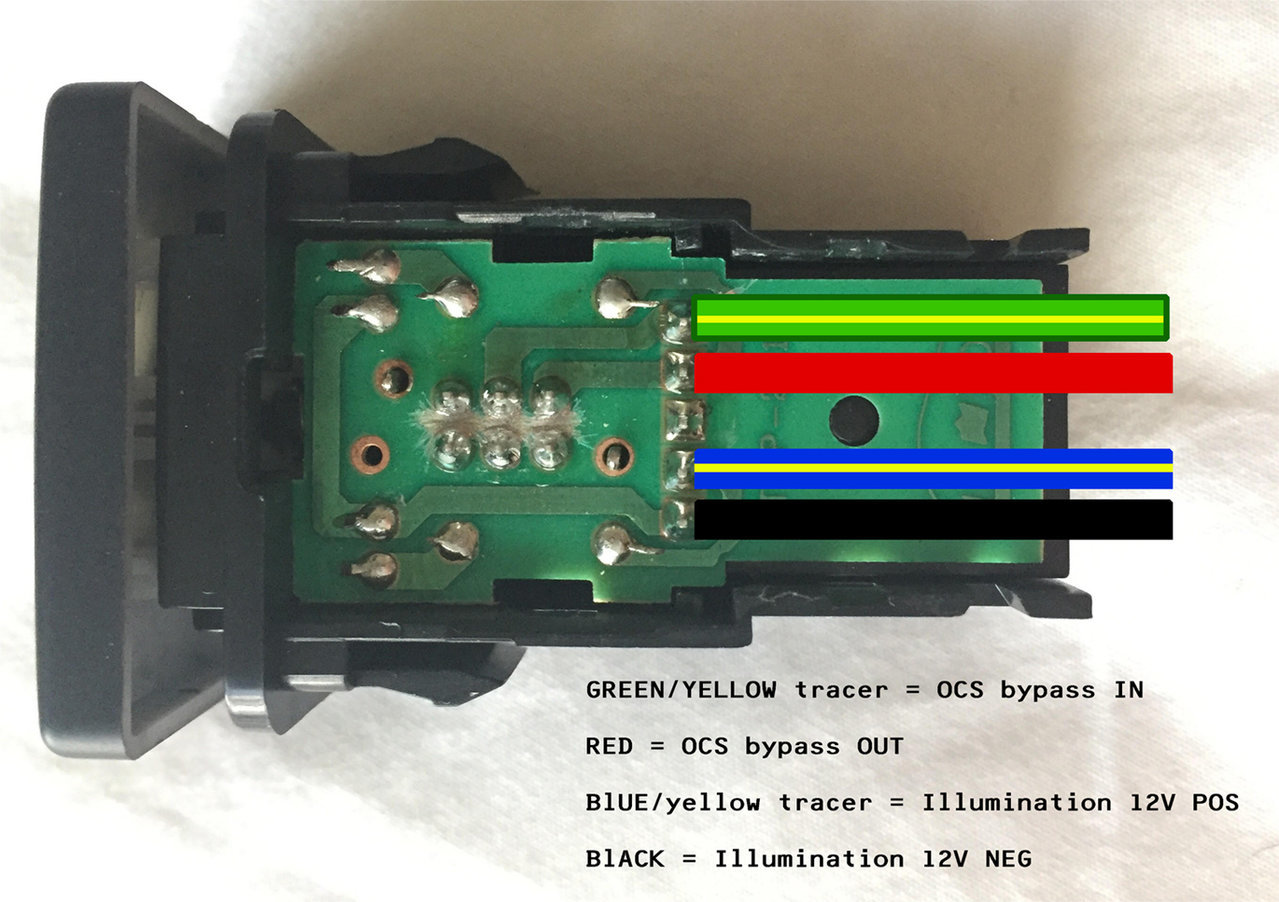

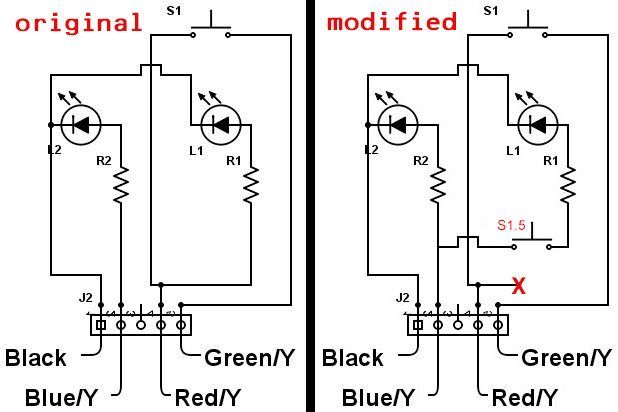

    Below are the diagrams I intend to use.

    Also thanks to @Sandman614 for answering a few other questions I had. His thread on his fog switch modification using an AOB switch and pics of the internals were very helpful. His thread is here: https://www.tacomaworld.com/threads...n-switch-for-fog-light-factory-wiring.407092/

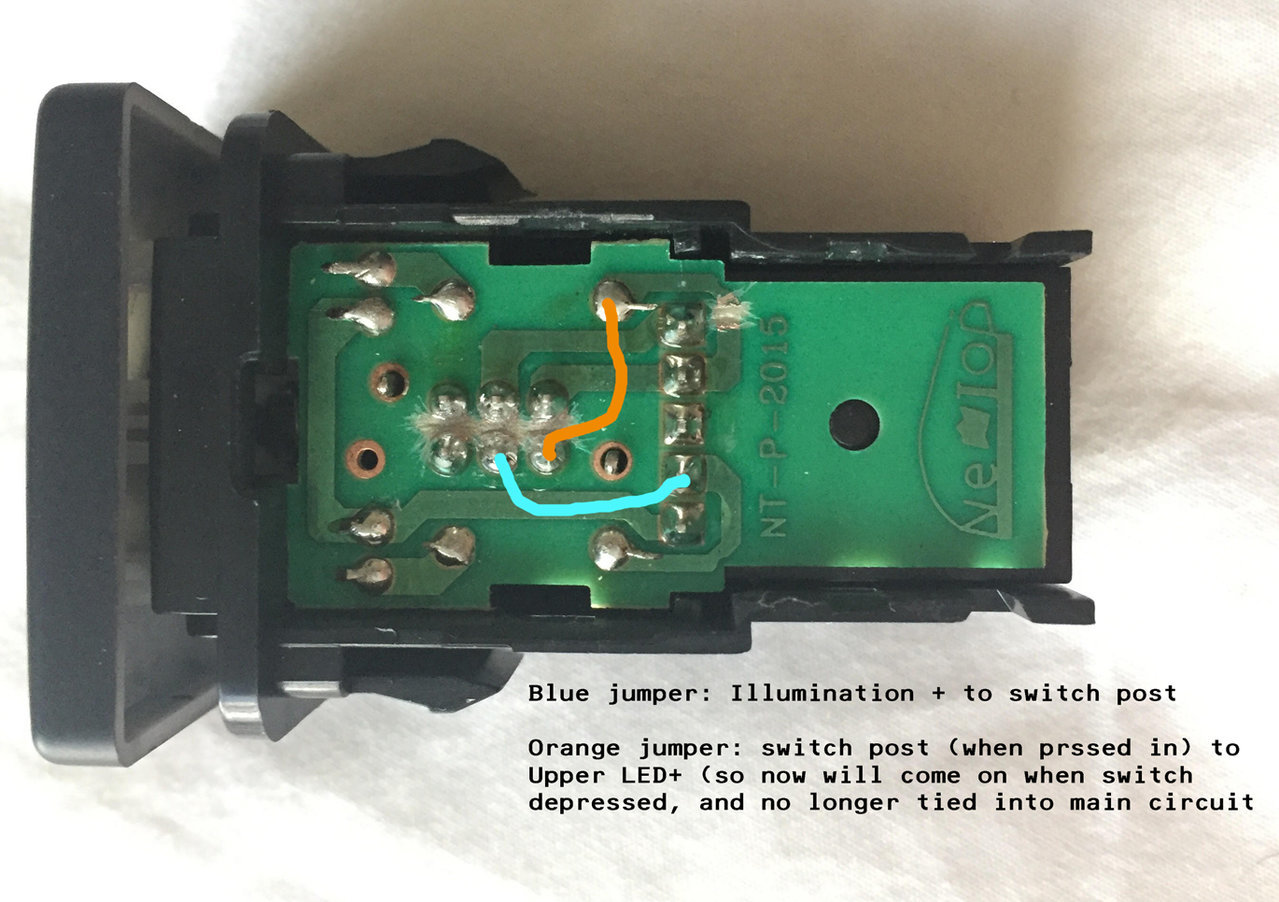

    On this diagram above (altered from @Sandman614 's thread) basically on the modified version with jumpers, switch 1 and switch 1.5 are the same switch, and will "turn on" simulatenously when switch is depressed in ON position. So you light up your upper LED, and also give continuity between OCS wire IN and OCS wire OUT, just on separate circuits. Fun!

    And of course, the lower independent LED will light up whenever dash lights are on.

    I guess the only potential issue is that the upper LED will only light if dash is on. I don't really have much recourse to fix that. The dash airbag indicator next to the clock will let me know if the switch is on anyway. I could add another pin to the blank terminal like Sandman did in his thread and do a little tweaking to my diagram.

    Last edited: Oct 11, 2017
    Torspd and Sandman614 like this.
  18. Oct 11, 2017 at 5:29 PM
    #58
    tacotime1

    tacotime1 Well-Known Member

    Joined:
    Apr 8, 2010
    Member:
    #34849
    Messages:
    577
    Gender:
    Male
    Nice work!! Sell the Tacoma seats?

  19. Oct 12, 2017 at 4:36 PM
    #59
    JdevTac

    JdevTac [OP] Well-Known Member

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    6,312
    Gender:
    Male
    First Name:
    Josh
    MD/GA
    Vehicle:
    2nd gen
    I’m going to hang on to them. Especially since some of the electronics/seat buckles have been transferred to my FRS seats. If I ever want to go back to stock or sell the truck I’ll have them to put back in.

  20. Oct 12, 2017 at 4:37 PM
    #60
    JdevTac

    JdevTac [OP] Well-Known Member

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    6,312
    Gender:
    Male
    First Name:
    Josh
    MD/GA
    Vehicle:
    2nd gen

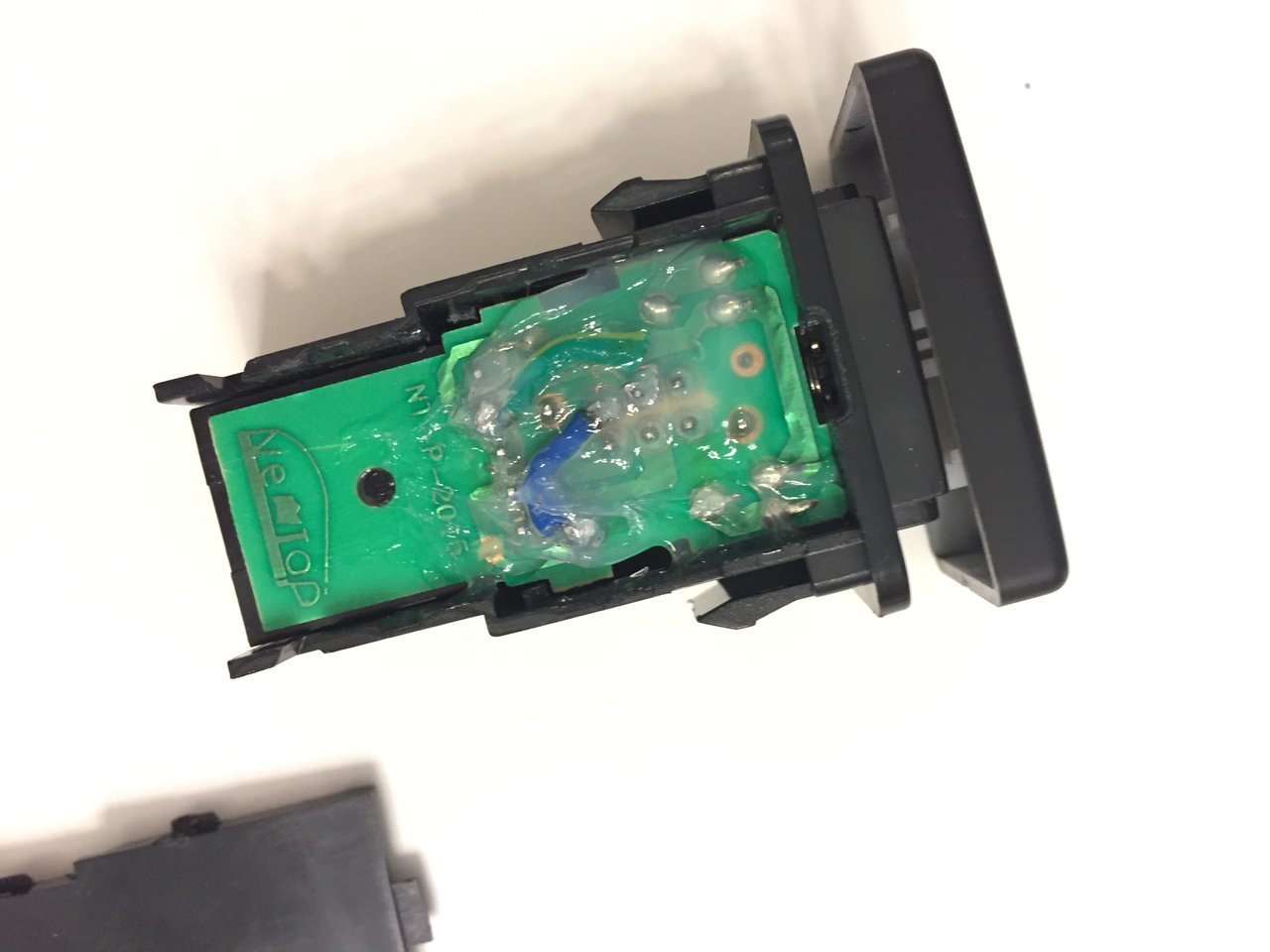

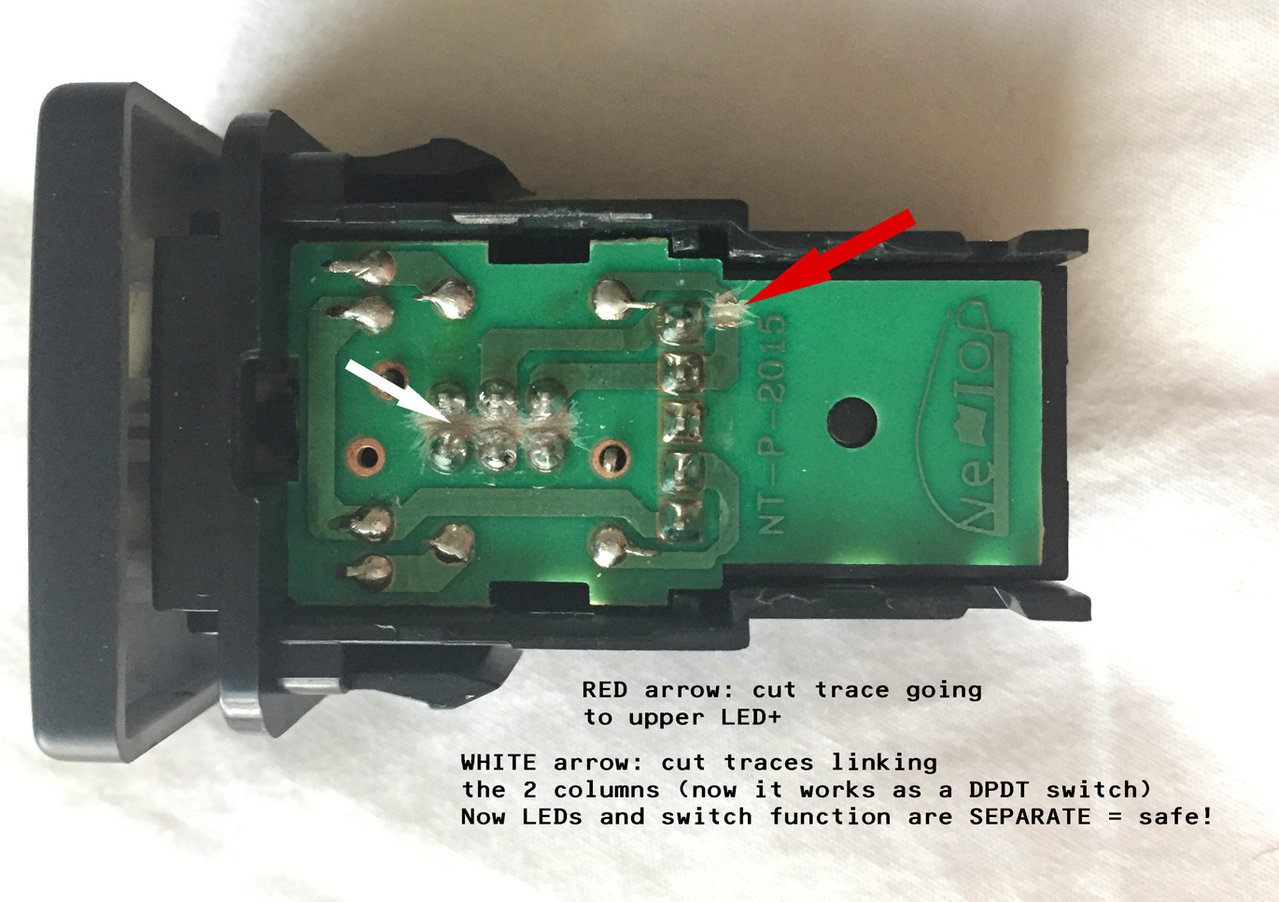

    Soldered the jumper wires and semi-potted the circuit board with neutral cure silicone. Will let it cure for the 24hr then finish the install tomorrow.
