FS: New ported 5VZ-FE cylinder heads

Discussion in '1st Gen Tacoma Marketplace (1995-2004)' started by Strong Bad, Apr 8, 2009.

  1. Apr 8, 2009 at 1:18 PM
    #1
    Strong Bad

    Strong Bad [OP] Member

    Joined:
    Apr 8, 2009
    Member:
    #15725
    Messages:
    6
    Gender:
    Male

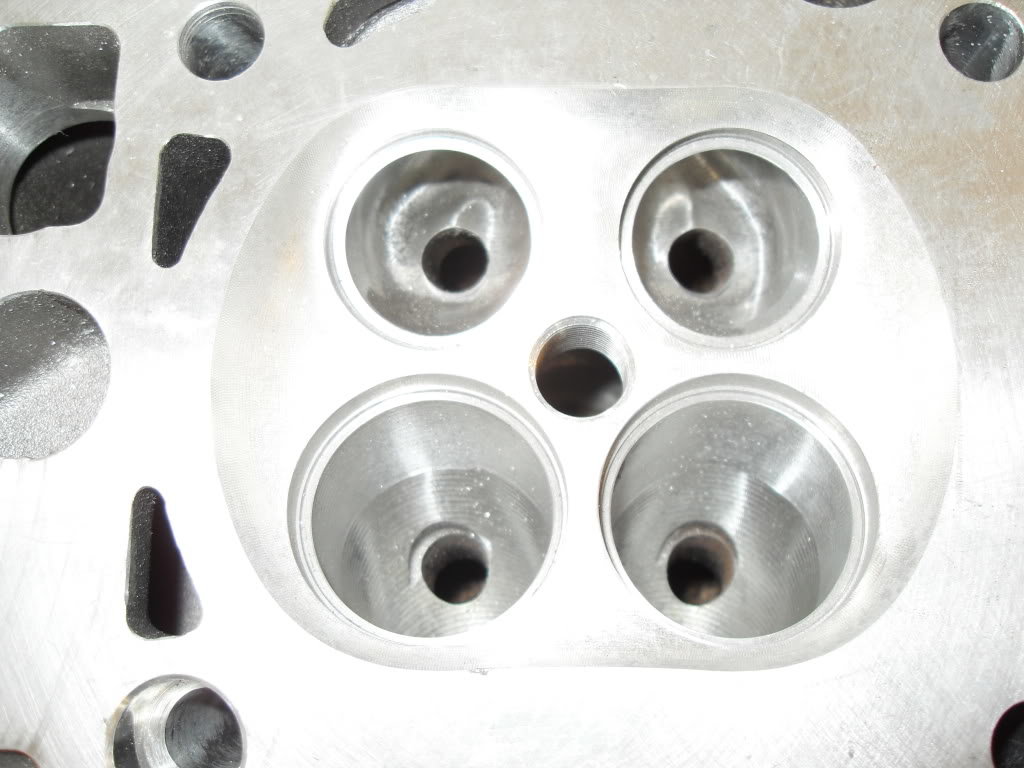

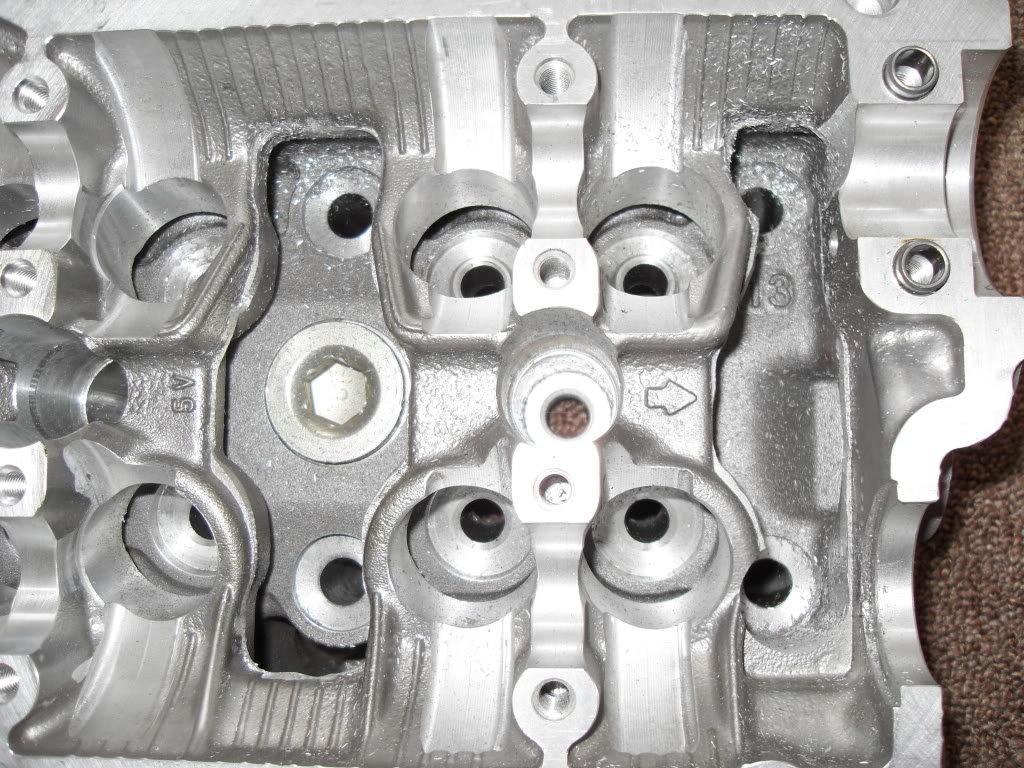

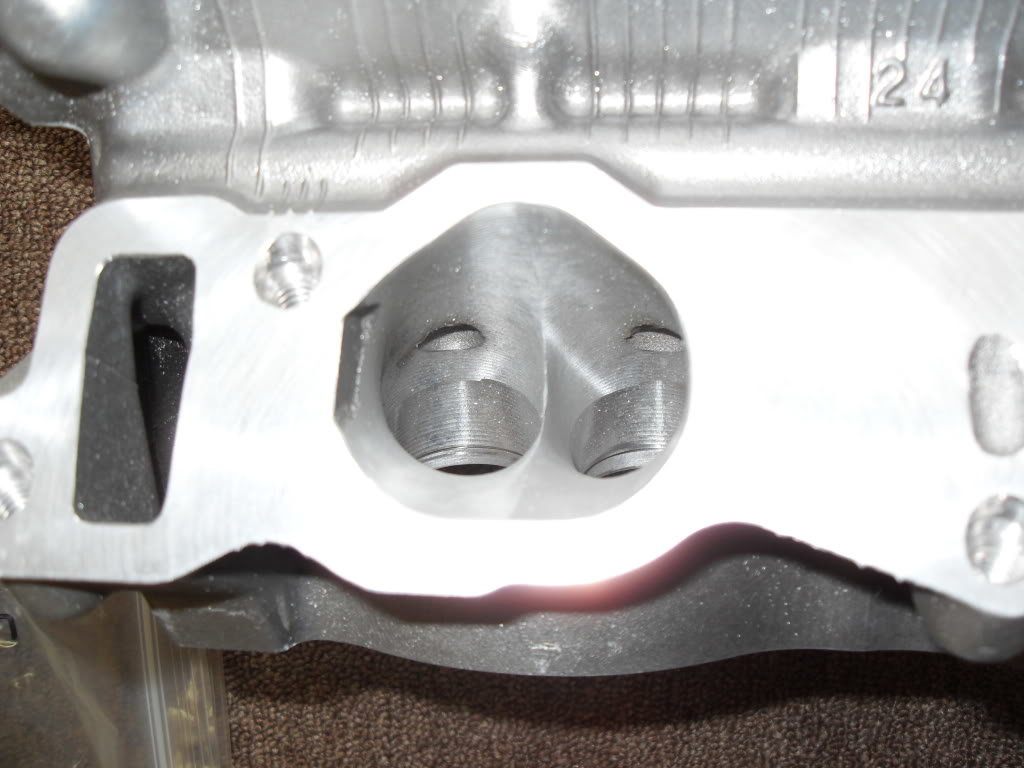

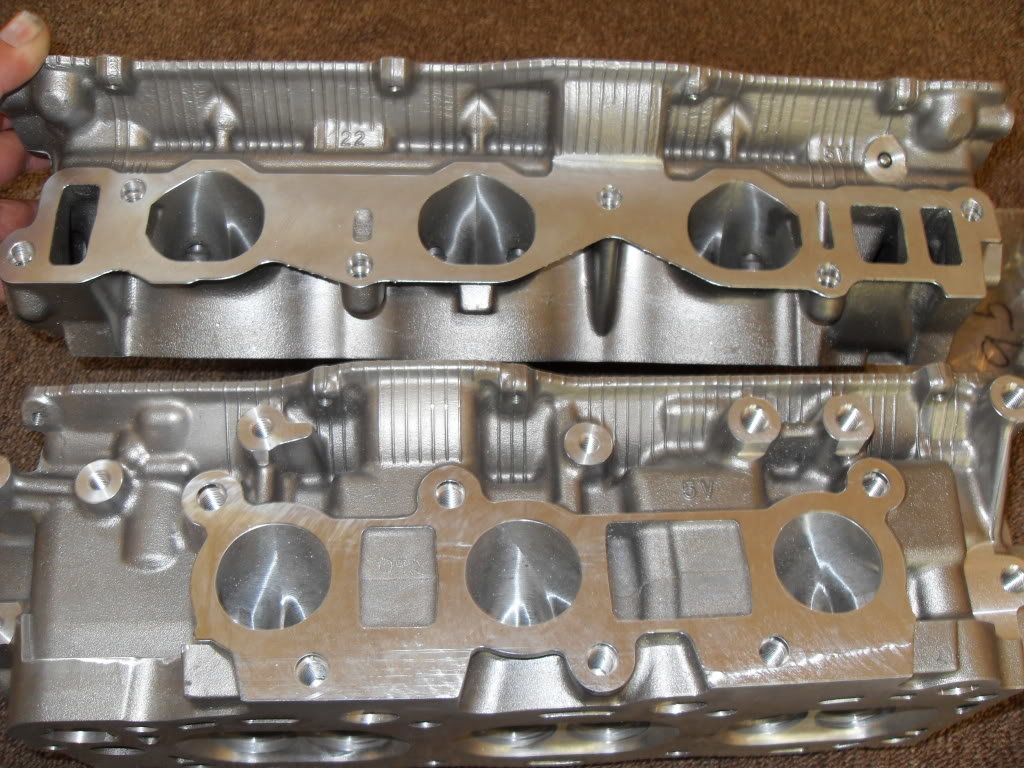

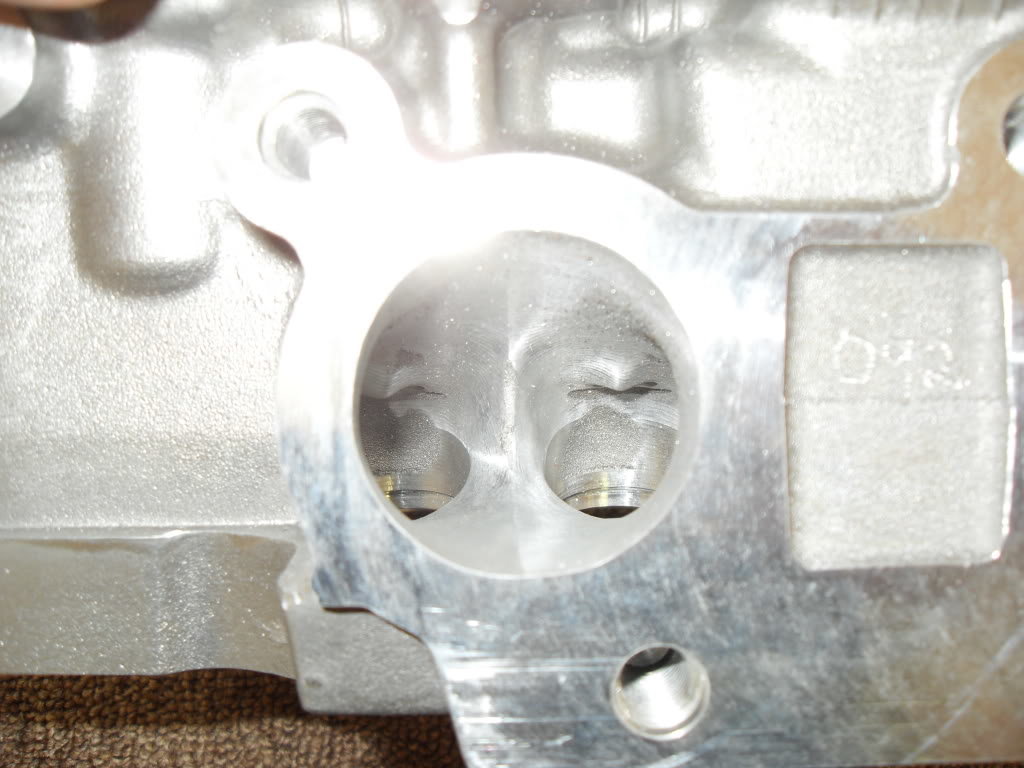

    I have for sale 2 sets of new 5VZ-FE cylinder heads. The heads have been professionally ported, but not finished so further work will be required before they are ready to be used (see pictures below). They have been sitting in my garage for a few years now and I have another set of spares for my completed supercharged 5VZ so I have no use for these. The heads have been ported on both the intake and exhause sides with further machining for oversize valves and clearance of higher lift cams . These are bare heads with only their matching bearing caps, ready for your choice of valves, valve seats, final machining and clean up. Part #s are 11101-69136 for reference. These are race parts so they are sold as is, no warranty. If you have any questions feel free to ask. Price is 500$ per set plus shipping. I am located in Socal and will deliver if local.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  2. Oct 12, 2011 at 6:34 PM
    #2
    Toyatlast

    Toyatlast Member

    Joined:
    Oct 11, 2011
    Member:
    #65067
    Messages:
    5
    Gender:
    Male
    LA Ca
    Vehicle:
    1996 Tacoma 4x4
    Still got these

  3. Oct 12, 2011 at 6:36 PM
    #3
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    Thread date of: 04-08-2009, 01:18 PM

    Last Activity: 04-10-2009 10:57 AM

  4. Oct 12, 2011 at 6:39 PM
    #4
    Hiatt1991

    Hiatt1991 Well-Known Member

    Joined:
    Aug 19, 2010
    Member:
    #41917
    Messages:
    8,228
    Gender:
    Male
    First Name:
    Hiatt
    Flagstaff, AZ
    Vehicle:
    2005 Tacoma Prerunner SR5 TRD offroad
    4" Bodylift 12" Offroad shock spacers Turbo Encabulator
    THREAD REVIVAL!!!!

  5. Oct 12, 2011 at 7:23 PM
    #5
    Strong Bad

    Strong Bad [OP] Member

    Joined:
    Apr 8, 2009
    Member:
    #15725
    Messages:
    6
    Gender:
    Male
    Wow, never expected a response after all this time. In fact yeah I still have i think 2 sets. Let me know if you're interested.

  6. Oct 13, 2011 at 9:13 AM
    #6
    Toyatlast

    Toyatlast Member

    Joined:
    Oct 11, 2011
    Member:
    #65067
    Messages:
    5
    Gender:
    Male
    LA Ca
    Vehicle:
    1996 Tacoma 4x4
    What needs to be done to these. I have torn apart engines and rebuilt them but never rebuilt the heads myself.
    Looks like just insert value guides, values and camshaft.
    Are valve seats easy to press in? Is there other machining needed?

    Also you said they are oversized? By how much and would you know which valve (sizes, years, make) I would need?

    Thanks

  7. Oct 13, 2011 at 10:22 AM
    #7
    magikbean562

    magikbean562 once flirted with danger, danger got clingy

    Joined:
    Dec 17, 2008
    Member:
    #11681
    Messages:
    8,036
    Gender:
    Male
    First Name:
    greg
    socal
    Vehicle:
    02 4runner 04 solara
    4runner-32x11.5x15 falken rocky mt, tundra king 2.5 coilovers with taco perch, TC UCA, OME rear springs and procomp es9000's, thule roof rack.
    damn chris, you got moted. hahaha moted fuck yeah:D

  8. Oct 13, 2011 at 10:25 AM
    #8
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    That's a first. I never see the OP respond on old ass threads like these.

  9. Oct 13, 2011 at 10:27 AM
    #9
    98tacoma27

    98tacoma27 :POOPCORN: Staff Member

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,163
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
    ...let alone still have the item.........:laughing:

  10. Oct 13, 2011 at 8:02 PM
    #10
    Strong Bad

    Strong Bad [OP] Member

    Joined:
    Apr 8, 2009
    Member:
    #15725
    Messages:
    6
    Gender:
    Male
    None more suprised than as me! I have never needed to sell them, I just have no use for them but none the less I in fact 1 spare set left to get rid of.....

    For whoever is interested in these heads I would highly recommend they work a with a professional engine builder to make sure everything goes right.

    A little history if I may and because I know the question will come up about who did the work.....

    These heads were done in house at TRD for a number of 5VZ drag programs, most notably Matt Scranton. I became involved when TRD built a specially supercharged 5VZ for testing the viabilty of using modified 3VZ-FE (92-93 Camry V6) cranks. The idea was instead of the custom forged units they were having made for considerably more $$$ you take the already forged 3VZ crank, offset grind the rod journals and run Chevy small block style rods thus increasing stroke. The motor was built, tuned and turned over to me for my 5VZ powered SCCA Solo2 car. As it would turn out for when the engine was delivered the whole 5VZ drag program was scrapped so they I ended up with a number of spares including the leftover heads.

    The reason I say it would be best to speak to a engine builder as the heads themselves were done on a computerized CNC so they will need finishing. As for the valve seats, TRD used copper beryllium units they machined in-house, matched to the valves. As for those you will most likely be looking at something aftermarket. I believe the intakes were 2mm oversize and the exhaust are 1mm. The material is up to you. These heads were designed to flow way more air so a matching camshaft setup will be advisable. Notice the machined area so high lift cams will clear. The shim and bucket configuration will need to be changed to a shim under setup at that point. All the more reason to speak to someone who builds Toyota heads. Unfortunatly all the builders at TRD are either gone or unavailable to the public sector. Fat Performance has done alot with Toyota V6's over the years and if you can get ahold of Rick Kemph he would be a great person to start with as he was at TRD around those years. He is constantly busy so he may not be available to actually build them but he could send you on the right path. For example he gave us a 6 month time frame to build a 2ZZ head for SCCA use.

    I know the post was long but I hope it answers all your questions. If you have any more feel free to ask. The only issue is this program was 7+ years ago and my motor and build book are in storage awaiting the day that rennovating my house is complete.

  11. Oct 14, 2011 at 1:40 PM
    #11
    Toyatlast

    Toyatlast Member

    Joined:
    Oct 11, 2011
    Member:
    #65067
    Messages:
    5
    Gender:
    Male
    LA Ca
    Vehicle:
    1996 Tacoma 4x4
    Strong bad
    Thanks for the history. It seems these are a bit more than standard heads. Can't see myself building them up the way they should be. Will have to pass but thanks again.

  12. Mar 26, 2012 at 7:39 PM
    #12
    Talbotman

    Talbotman Well-Known Member

    Joined:
    Apr 27, 2009
    Member:
    #16472
    Messages:
    171
    Gender:
    Male
    First Name:
    Joel
    Ripon, California
    Vehicle:
    2002 "Toy Taco"
    3" custom lift kit, 285/75/r16 toyo open country AT's, Billy 5100's in front and 5150's in back, Weld 16x10 rims, Flowmaster 2 chamber, 6000k bi-xenon hid kit, grey wire mod, and smoked tail lights
    Ok so this is totally wild but you wouldnt still have a set of these or maybe a high lift cam??

  13. Mar 27, 2012 at 10:00 AM
    #13
    Strong Bad

    Strong Bad [OP] Member

    Joined:
    Apr 8, 2009
    Member:
    #15725
    Messages:
    6
    Gender:
    Male
    haha, thread that won't die it seems......

    The heads, yes I still have one set. Cams, unfortunately no, the only set I have are in my motor. If you have any further questions feel free to ask.

  14. Mar 27, 2012 at 10:53 AM
    #14
    Yamaha Dave

    Yamaha Dave Well-Known Member

    Joined:
    Mar 27, 2010
    Member:
    #34080
    Messages:
    2,661
    Gender:
    Male
    Wow... all I can say.

  15. Mar 27, 2012 at 9:18 PM
    #15
    Talbotman

    Talbotman Well-Known Member

    Joined:
    Apr 27, 2009
    Member:
    #16472
    Messages:
    171
    Gender:
    Male
    First Name:
    Joel
    Ripon, California
    Vehicle:
    2002 "Toy Taco"
    3" custom lift kit, 285/75/r16 toyo open country AT's, Billy 5100's in front and 5150's in back, Weld 16x10 rims, Flowmaster 2 chamber, 6000k bi-xenon hid kit, grey wire mod, and smoked tail lights
    I just might be interested in that set if you still have them by this summer when i go back to work and have some green to spend as im away at college right now. but seeing as this thread is three years old and you still have them im sure you will by this summer lol

    how much work would it take to get these heads ready for a cam and put onto the motor would you estimate in $?

  16. Mar 27, 2012 at 10:10 PM
    #16
    Strong Bad

    Strong Bad [OP] Member

    Joined:
    Apr 8, 2009
    Member:
    #15725
    Messages:
    6
    Gender:
    Male
    Who knows, probably. They are just sitting in their boxes in my attic along with half the other parts and the actual TRD built 5VZ that actually goes into my Solo2 Corolla. 8 years of delays are starting to wear on me. Between an SCCA Prius that delayed the whole program in 05' to home rennovation and now a potential Scion FR-S Solo2 car, I may never get around to finishing the Corolla and I might just sell everything.

    As far as how much $$$ to do this.....

    This would be REALLY tough to estimate as there are so many variables. At minimum you're in it for cams, shims (any sort of high lift cam will necessitate going to a shim under setup), buckets, retainers, springs, valves (you plan on forced induction then sodium filled exhaust valves might be a good idea) and seats. The heads themselves will need finishing and then your starting to down the path of intake and exhaust manifolds, ECUs, tuning, etc. To be be completely honest these heads are best if your plans are to make a real screamer 5VZ. I don't mean to shy you away but if you (or anyone who wants them) is going to put them to use building the rest of the motor will be just as important as getting these heads right. Call up some reputable engine builders and get an idea from them. There is alot of potential in these motors, you just have to be ready to be crafty to get it out.

    I would love to see someone put them to use. I kinda have a soft spot for 5VZs and love seeing them go fast so I'll sit on them till someone wants them. I have 2 other sets I'll keep around should my current motor scatter parts (if I ever finish the car it goes in!). I get email notifications on this thread so if you interested then just post it. Good luck in school!

  17. Mar 27, 2012 at 10:26 PM
    #17
    x2468

    x2468 Well-Known Member

    Joined:
    Jul 19, 2009
    Member:
    #19879
    Messages:
    1,637
    Gender:
    Male
    Tallahassee
    Vehicle:
    '02 TRD 4wd V6 Xcab Sr5
    Fascinating. I would love something like this plus cams and high comp pistons. What car would you put the 5czplant engine in?

  18. Mar 28, 2012 at 12:11 AM
    #18
    Strong Bad

    Strong Bad [OP] Member

    Joined:
    Apr 8, 2009
    Member:
    #15725
    Messages:
    6
    Gender:
    Male
    Long and funny story but I built a 5VZ-FE powered 1978 Toyota Corolla liftback way back in 1997-1999. I completed it in late 98' running a modifed TRD supercharger kit and some other trick bits from an SCCA GT-4 Corolla and it ended up as my autocross and track car. I know somebody will call BS but it was featured in the Feb 99 issue of Sport Compact car. My 5VZ was built both as a thank you from TRD for some rather barnyard/ parts bin engineering my father and I did for TRD in the early days of their 5VZ supercharger program and as a testbed for using offset ground 3VZ-FE crankshafts (92-93 Camry) instead of the custom stroker units they were getting made for alot more $$$. A pic from the magazine:
    [​IMG]
    Uploaded with ImageShack.us

  19. Mar 28, 2012 at 11:53 AM
    #19
    Talbotman

    Talbotman Well-Known Member

    Joined:
    Apr 27, 2009
    Member:
    #16472
    Messages:
    171
    Gender:
    Male
    First Name:
    Joel
    Ripon, California
    Vehicle:
    2002 "Toy Taco"
    3" custom lift kit, 285/75/r16 toyo open country AT's, Billy 5100's in front and 5150's in back, Weld 16x10 rims, Flowmaster 2 chamber, 6000k bi-xenon hid kit, grey wire mod, and smoked tail lights
    Wow well that's a lot more in depth than I was planning on going lol. Honestly I was thinking of getting a cam and shims and buckets and valves and then I knew I would have to mess with the ecu but I wasn't planning on doing a forced induction system..at least just yet because I have no where near the kind of money to add a forced induction system on top of a top end rebuild

  20. Feb 14, 2013 at 7:51 PM
    #20
    Gavin

    Gavin New Member

    Joined:
    Feb 14, 2013
    Member:
    #97542
    Messages:
    1
    Gender:
    Male
    Vehicle:
    2001 Tacoma S Runner
    Just checking to see if by chance you still have the set of cylinder heads.
