Fuel filter relocation under hood

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Blackfreighter, Aug 25, 2021.

  1. Aug 25, 2021 at 9:19 PM
    #1
    Blackfreighter

    Blackfreighter [OP] Member

    Joined:
    Sep 26, 2018
    Member:
    #267463
    Messages:
    14
    Gender:
    Male
    First Name:
    Ben
    Vehicle:
    2006 4cyl Tacoma AWD extended cab

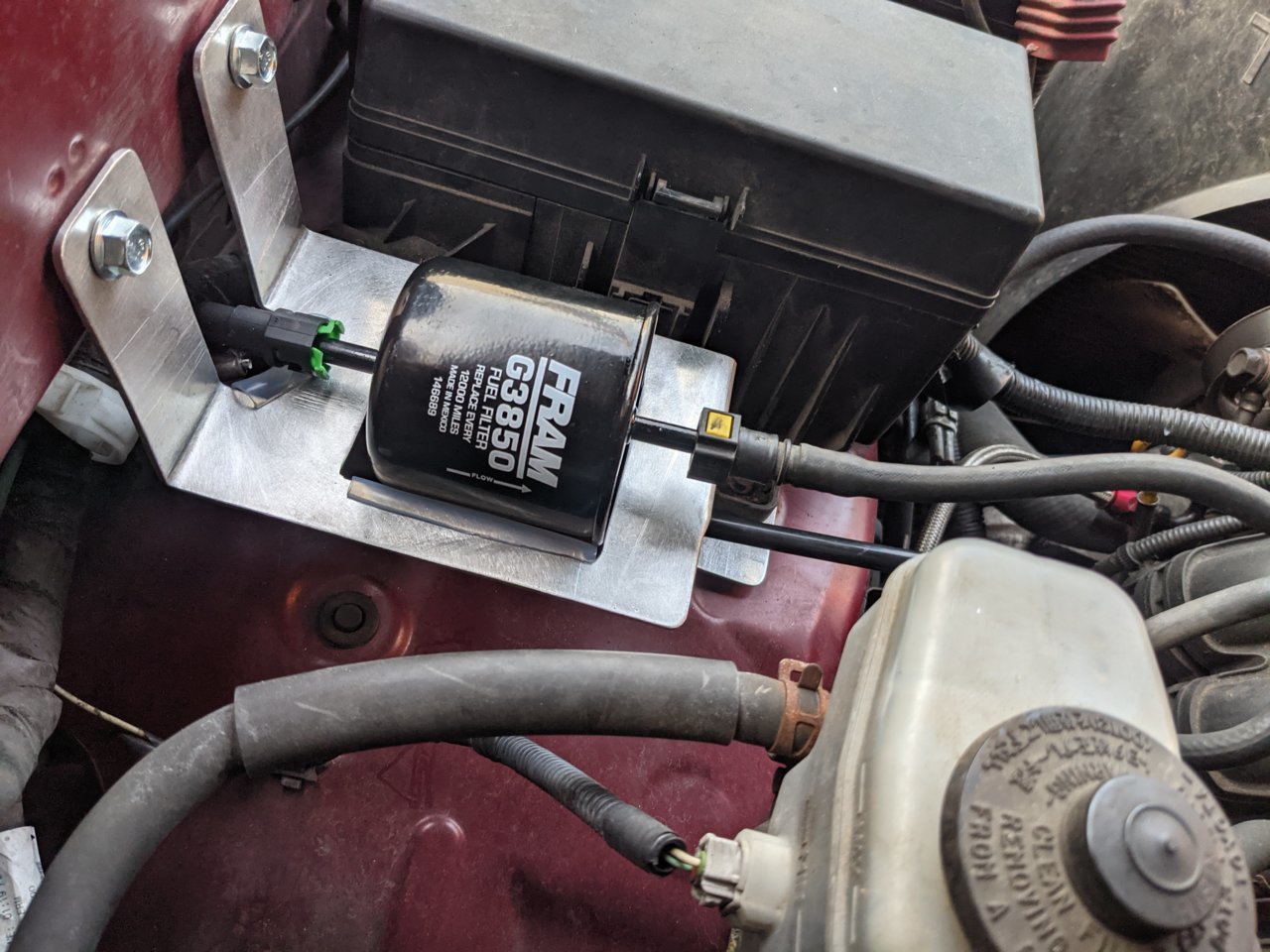

    I've been having some issues on hills, and long term fuel trims looked a bit high, so I figured I'd fit a URD pump upgrade rather than pay for another sealed unit.

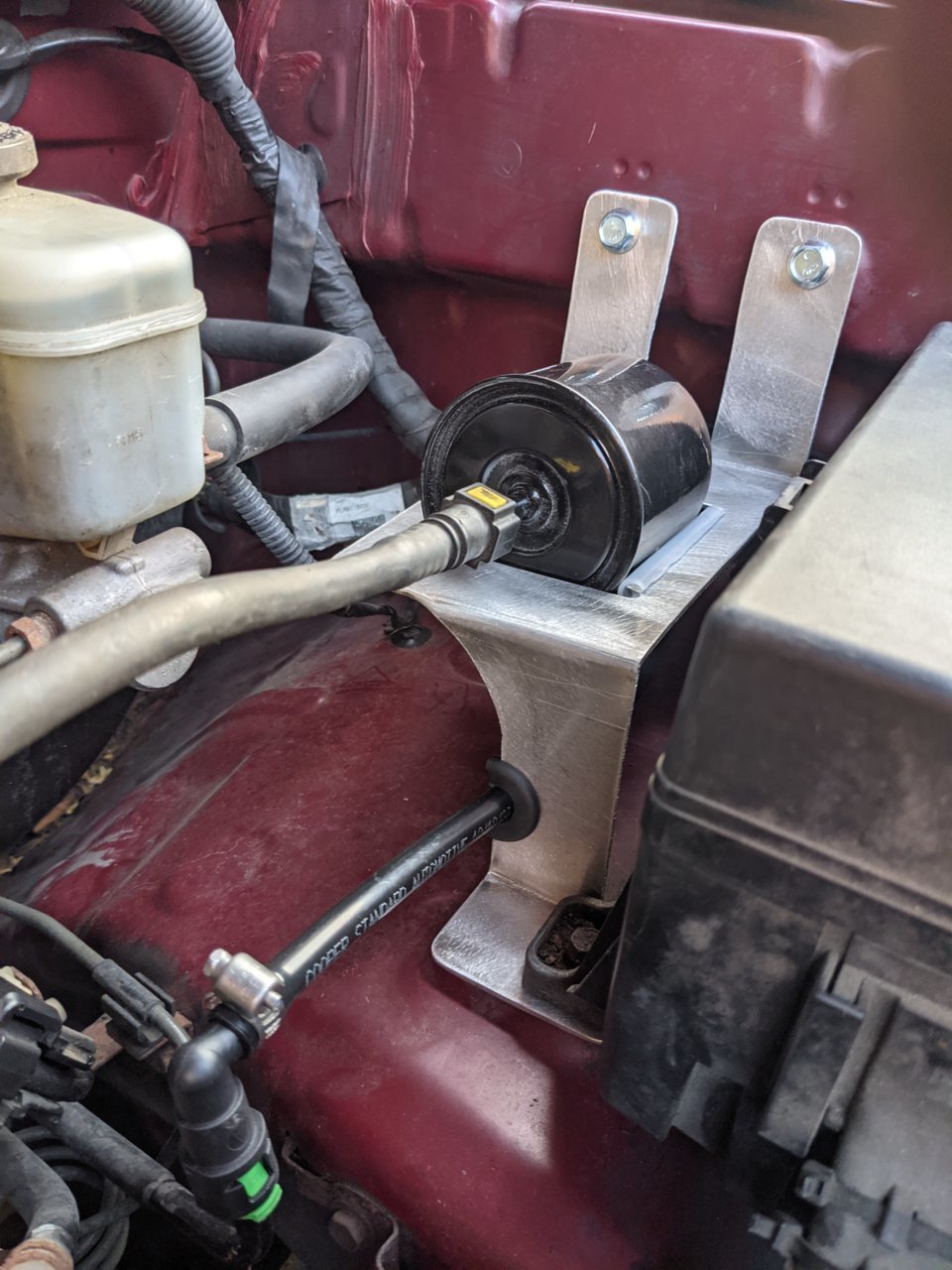

    I didn't like the filter location suggested in the kit, so thought I'd try putting it under the hood, using the existing junctions.

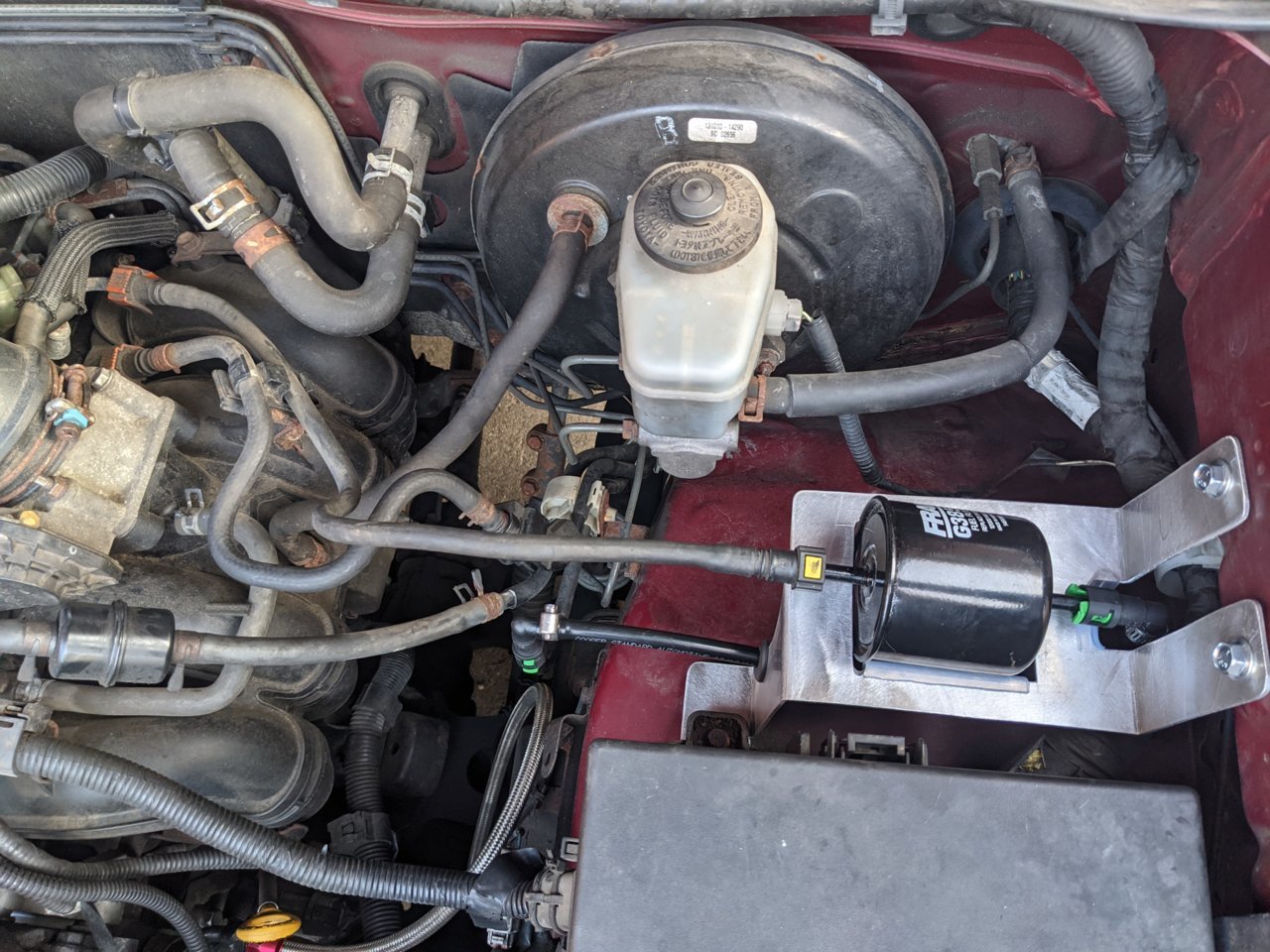

    Thought these shots may be useful to someone and maybe give me a sanity check in case I've done something really dumb.

    I'd like to swap out the fuel feed line to the rail, and the filter needs a strap to hold it down, but this works for now.


    deanosaurus and nudavinci64 like this.
  2. Aug 25, 2021 at 9:48 PM
    #2
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,796
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Not too sure about the worm drive hose clamps on plastic fuel lineo_O but other than that looks good:thumbsup:

    super_white likes this.
  3. Aug 25, 2021 at 11:04 PM
    #3
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,798
    Deep South
    Herculiner Hootus
    I would use fuel line connections vs worm drive, even on the suction side. And personally I’d put the filter under the frame rail it’ll be easier access and less maintenance with the heat under the hood. Other than that, looks decent!

  4. Aug 26, 2021 at 3:09 AM
    #4
    Blackfreighter

    Blackfreighter [OP] Member

    Joined:
    Sep 26, 2018
    Member:
    #267463
    Messages:
    14
    Gender:
    Male
    First Name:
    Ben
    Vehicle:
    2006 4cyl Tacoma AWD extended cab
    I'll swap out that line with crimp on clips as soon as I can.

    Is there a reason the heat under the hood is an issue? There are tons of cars with the filter there, but I had second thoughts, which is why I posted.

  5. Aug 26, 2021 at 3:51 AM
    #5
    ROAD DOG

    ROAD DOG Well-Known Member

    Joined:
    Nov 4, 2019
    Member:
    #309830
    Messages:
    2,212
    Gender:
    Male
    Vehicle:
    2019 I4 WHITE SR PRERUNNER
    FEW


    heat ..................

    the rest of the EFI components are under the hood

    Ur install is NOT close to heat elements under the hood

    just be certain NO leaks

  6. Aug 26, 2021 at 6:02 AM
    #6
    Geeves77

    Geeves77 Well-Known Member

    Joined:
    Feb 16, 2020
    Member:
    #319439
    Messages:
    2,011
    Gender:
    Male
    First Name:
    Mark
    Northeast
    Vehicle:
    2011 Tacoma DCSB
    3 inch Icon lift with UCA’s
    The fuel pump is supposed to PUMP FUEL
    Not PULL FUEL. You will have issues down the road

    sparkystaco and wi_taco like this.
  7. Aug 26, 2021 at 6:18 AM
    #7
    Blackfreighter

    Blackfreighter [OP] Member

    Joined:
    Sep 26, 2018
    Member:
    #267463
    Messages:
    14
    Gender:
    Male
    First Name:
    Ben
    Vehicle:
    2006 4cyl Tacoma AWD extended cab
    The pump is still in the tank where it was, it's just the filter that's under the hood; so the pump is still pushing fuel.

    Thanks for the replies so far. I'm going to switch out both hoses for something close to the original rubber, with crimp on clamps. That should improve the way it all sits too.

    I agree with Road Dogs reasoning. The new filter is no hotter than any of the other fuel components, which are all under the hood.

  8. Aug 26, 2021 at 6:33 AM
    #8
    Knute

    Knute Well-Known Member

    Joined:
    Aug 13, 2020
    Member:
    #337515
    Messages:
    5,148
    Gender:
    Male
    Vehicle:
    '06 4.0L Tacoma TRD Sport
    Stock, 4WD, Access Cab, White,
    FWIW,..... ounce upon a time ago the fuel filter was located inside the carburetor at the fuel inlet.

    Don't just get any ol' rubber hose. Get hoses rated for fuel injector use. Don't wait too long, the fuel and plastic may not like each other.

  9. Aug 26, 2021 at 6:44 AM
    #9
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    26,456
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    The OEM location for the fuel filter, on various older Toyota models, was in the engine bay. Some, right next to the block, under the intake. The recent model Hilux's, 2005 +, have theirs in the engine bay, but closer to the engine than yours. It'll be fine in that location.

    Sandman614 likes this.
  10. Aug 26, 2021 at 7:31 AM
    #10
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,798
    Deep South
    Herculiner Hootus
    It’ll probably be ok there, but if I was putting an aftermarket one in, it would be as close to the pump discharge as possible, as well as away from any external heated sources. Likely won’t do any damage where yours is but just providing an opinion. We all know what those opinions are like, assholes. Everyone has one and they all stink.

  11. Aug 26, 2021 at 12:52 PM
    #11
    DGXR

    DGXR Well-Known Member

    Joined:
    Sep 1, 2009
    Member:
    #22094
    Messages:
    2,204
    Gender:
    Male
    First Name:
    Friend
    Sacramento, CA
    Vehicle:
    2006 2.7L SR5 2-wheel drive
    Looks good. I like the filter padding you put on the bracket. At first I was concerned about the metal filter on the metal bracket with engine vibrations... slowly wearing through one of the two, or both. You have a solution though. Regarding the worm drive clamps, I would remove them and wrap stainless wire a few times around the connections and get a good crimp on the ends. Much more reliable and will not loosen.

  12. Aug 27, 2021 at 3:27 AM
    #12
    ROAD DOG

    ROAD DOG Well-Known Member

    Joined:
    Nov 4, 2019
    Member:
    #309830
    Messages:
    2,212
    Gender:
    Male
    Vehicle:
    2019 I4 WHITE SR PRERUNNER
    FEW



    orig fuel pumps were mounted on the engine 10ft away from the tank ...............pulling fuel

    one is no better than the other
