Fuel sending unit to instrument cluster

Discussion in '3rd Gen. Tacomas (2016-2023)' started by 16toyotaco, Jan 9, 2021.

  1. Jan 9, 2021 at 5:48 PM
    #1
    16toyotaco

    #1
    16toyotaco [OP] Member

    Joined:
    Jun 2, 2019
    Member:
    #295107
    Messages:
    18
    Hello,
    Does anyone know where the green and beige wires from the fuel sending unit connect to the fuel gauge in the instrument cluster?
    2016 tacoma sr
    4 cylinder
    Extended cab

    Thank you for your help.

    16toyotaco, Jan 9, 2021
    #1
  2. Jan 9, 2021 at 7:49 PM
    #2
    caribe makaira

    #2
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    Last edited: Jan 10, 2021
    caribe makaira, Jan 9, 2021
    #2
    TnShooter, Toycoma2021 and Skydvrr like this.
  3. Jan 9, 2021 at 9:07 PM
    #3
    Toycoma2021

    #3
    Toycoma2021 Well-Known Member

    Joined:
    Jan 3, 2021
    Member:
    #351607
    Messages:
    1,723
    Northern California, Temporarily
    Vehicle:
    2021 Access Cab, LB, AT, V6, Off Road

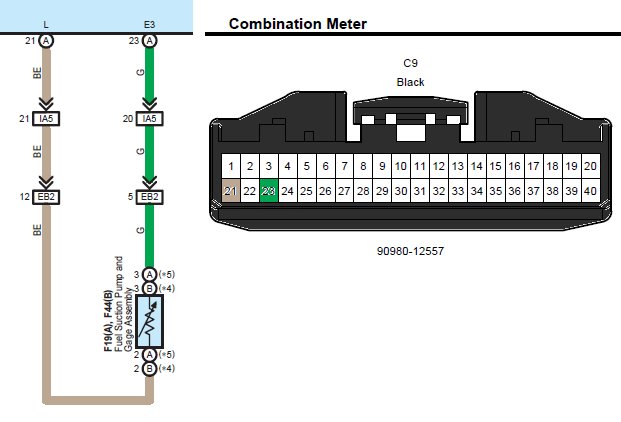

    Well, that was certainly a fast and succinct answer. caribe makaira what program is that wiring diagram from?

    Toycoma2021, Jan 9, 2021
    #3
  4. Jan 10, 2021 at 5:56 AM
    #4
    16toyotaco

    #4
    16toyotaco [OP] Member

    Joined:
    Jun 2, 2019
    Member:
    #295107
    Messages:
    18
    Thank you for your help

    16toyotaco, Jan 10, 2021
    #4
  5. Jan 10, 2021 at 10:04 AM
    #5
    caribe makaira

    #5
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    No problem, what are you working on with the fuel gauge?

    caribe makaira, Jan 10, 2021
    #5
  6. Jan 10, 2021 at 11:00 AM
    #6
    16toyotaco

    #6
    16toyotaco [OP] Member

    Joined:
    Jun 2, 2019
    Member:
    #295107
    Messages:
    18
    Just trying to get the fuel gauge to work. Just stopped working.

    16toyotaco, Jan 10, 2021
    #6
  7. Jan 10, 2021 at 11:16 AM
    #7
    caribe makaira

    #7
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

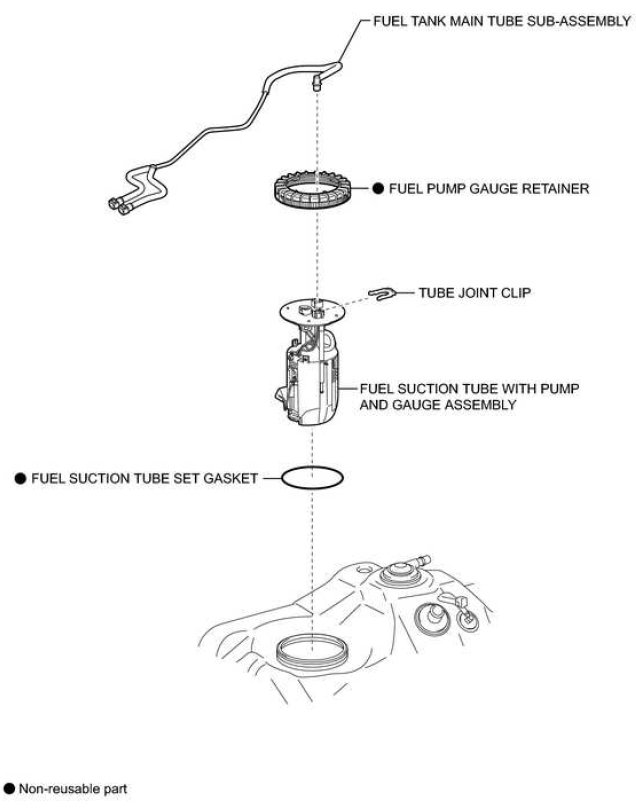

    Damn. The sending unit is part of the fuel pump.

    Last edited: Jan 10, 2021
    caribe makaira, Jan 10, 2021
    #7
  8. Jan 10, 2021 at 12:33 PM
    #8
    16toyotaco

    #8
    16toyotaco [OP] Member

    Joined:
    Jun 2, 2019
    Member:
    #295107
    Messages:
    18
    replaced the snding unit in tank. checked resistence, ok. plugged obdII into dash and fuel guage worked, so i know its not the guage. has to be in wiring. dont know what else to check.

    16toyotaco, Jan 10, 2021
    #8
  9. Jan 10, 2021 at 12:56 PM
    #9
    caribe makaira

    #9
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Maybe Combo Meter is hinting it's about to go...

    caribe makaira, Jan 10, 2021
    #9
  10. Jan 10, 2021 at 3:13 PM
    #10
    16toyotaco

    #10
    16toyotaco [OP] Member

    Joined:
    Jun 2, 2019
    Member:
    #295107
    Messages:
    18
    Don't think so. Worked when obdII was plugged into dash. Checking harness from fuel tank t instrument cluster tomorrow. Really appreciate everything you sent me.

    16toyotaco, Jan 10, 2021
    #10
  11. Jan 10, 2021 at 3:16 PM
    #11
    Chew

    #11
    Chew Not so well known user

    Joined:
    Mar 6, 2019
    Member:
    #285575
    Messages:
    8,436
    Gender:
    Male
    First Name:
    Chewy
    Midwest
    Vehicle:
    19 TRD OR
    Amazon dog poo bed mat mod
    Maybe Captain Obvious, but disconnect any aftermarket doodads if you've add any.

    Chew, Jan 10, 2021
    #11
  12. Jan 10, 2021 at 3:19 PM
    #12
    16toyotaco

    #12
    16toyotaco [OP] Member

    Joined:
    Jun 2, 2019
    Member:
    #295107
    Messages:
    18
    Thanks gonna do that when I check harness. Thanks again for the help.

    16toyotaco, Jan 10, 2021
    #12
  13. Jan 10, 2021 at 3:20 PM
    #13
    caribe makaira

    #13
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,785
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    OBDII reader is indicating fuel amount, but Combination Meter is not showing = Combo Meter AFU.

    caribe makaira, Jan 10, 2021
    #13
