FX-R Retro progress...

Discussion in 'Lighting' started by AsianAnts, Jun 14, 2011.

  1. Jun 14, 2011 at 6:29 PM
    #1
    AsianAnts

    AsianAnts [OP] just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,405
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    edit: i want to thank everyone who helped and gave advice!!!

    So thanks to the shipping company, I am now doing the FX-R Retro Fit for my left headlight... I've been lurking around ElectroMan's, G-Sak's, AzogSS's, Viet2100's pages... Also been PMing or texting wolfpack_5150 many times that he's prolly annoyed of me :eek: :p

    I've got all the pieces on hand and most of the misc items to make this work... i havent gotten the hi temp black silicone or the GE silicone II w/d supreme (heavy duty) nor have i picked up the JB weld or the epoxy.

    if they all accomplish the same job, i will probably go with the hi temp black silicon to cover the gap behind the projector and the bowl... also will it work for mounting the shroud onto the projector? if not, regular epoxy will work right? Also, i want to have my DTRL lens and the signals yellow, what did people use to accomplish that look?

    So my progress so far as follows:
    -Oven set to 300 and turned off
    -Place light on cardboard and insert into oven for minutes
    -Remove light and started to pry the light apart (needed to place in oven again because i r weaksauce)
    -removed the reflector bowl and started to dremel away to make the hole bigger (reviewed the other DIY pictures over and over)

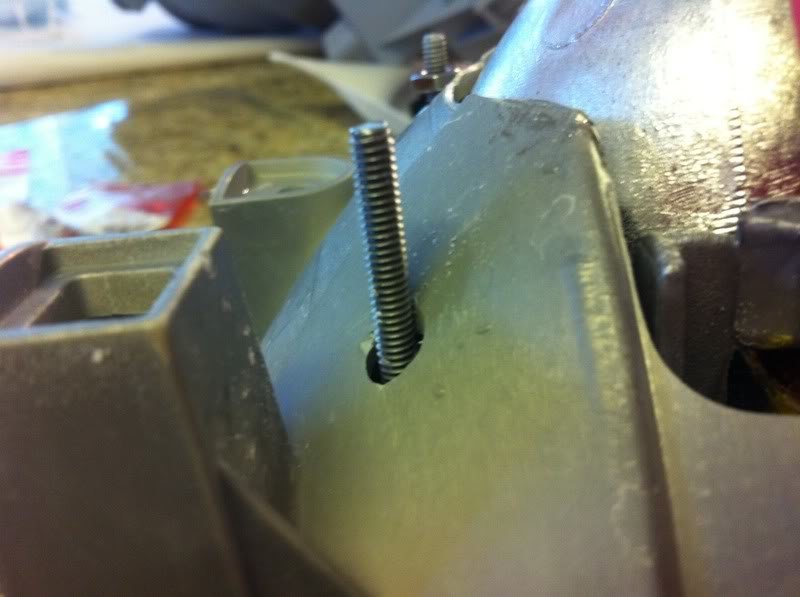

    -Placed the projector in the bowl and marked where to drill holes for screw and then drilled

    thats it for today....tomorrow i might start modifying the gattling shroud to fit over the projector. If you have any advice or suggestions, please do share as i'm a tad bit confused still where i need to shave off.

    thank you all who has helped soo far!!!!

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    2011-06-14 17.24.26.jpg
    2011-06-14 17.24.39.jpg
    2011-06-14 17.25.18.jpg
    2011-06-14 17.25.39.jpg
    2011-06-14 17.56.56.jpg
    2011-06-14 17.57.06.jpg
    2011-06-14 17.57.17.jpg
    2011-06-14 17.57.34.jpg
    2011-06-14 17.57.42.jpg
    2011-06-14 17.57.53.jpg
    2011-06-14 17.58.14.jpg
    2011-06-14 17.58.33.jpg
    2011-06-14 17.58.47.jpg

  2. Jun 14, 2011 at 10:36 PM
    #2
    rossk35

    rossk35 Do Work Son!

    Joined:
    Mar 26, 2009
    Member:
    #15197
    Messages:
    945
    Gender:
    Male
    hawaii
    Vehicle:
    07 TRD Sport Supercharged
    TRD S/C/TRD Intake/TRD Boost Gauge/DT Headers/OEM TL/ZKW retro/Pioneer DVD w/Ipod/Magnaflow/20% Tint/BHLM/JL 10" sub, JL VR components, JL 450/4 amp/Helwig Sway bar/Viper 791/ 18" limited 4runner rims
    Use silicone to attach the shroud, and there is no reason to fill in the gap between the projector and bowl in the back.

  3. Jun 15, 2011 at 10:33 AM
    #3
    AsianAnts

    AsianAnts [OP] just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,405
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    which silicone??

    Also, the gap you are referring to is the 3rd & 2nd to last picture correct??


  4. Jun 15, 2011 at 8:13 PM
    #4
    AsianAnts

    AsianAnts [OP] just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,405
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
  5. Jun 15, 2011 at 8:21 PM
    #5
    08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,071
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
    You dont need to trim the gatling shrouds too much in electroMan's post you can kind of see where you need to trim it. what I also did is dremeled on the inside diameter of the shroud. When you place the shroud on the projector you will see ware you need to trim.

  6. Jun 15, 2011 at 9:59 PM
    #6
    AsianAnts

    AsianAnts [OP] just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,405
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    ahhh ok... anybody use clear coat afterwards when spray painting the bowl or the shroud??

  7. Jun 16, 2011 at 10:08 AM
    #7
    08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,071
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
    I wouldn't worry about clear coat I used krylon fusion for mine and have used it for 3 other BHLM's that I have done and have never had a problem with it. Just make sure you give your self a couple days to let the paint fully cure before you put the lights back together.

    I'm in SD if you need help with any thing or want to check my retro out just let me know.

  8. Jun 16, 2011 at 12:30 PM
    #8
    AsianAnts

    AsianAnts [OP] just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,405
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    yup, thats exactly what i have: krylon fusion satin black...

    i will definitely let the paint cure before putting it back together... Thanks, i might hit you up if i need help or confirmation :)

    -AnT


  9. Jun 16, 2011 at 12:45 PM
    #9
    08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,071
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
    Not a problem man just let me know.

  10. Jun 16, 2011 at 12:51 PM
    #10
    jdmbb6

    jdmbb6 Member

    Joined:
    Apr 19, 2010
    Member:
    #35628
    Messages:
    13
    Gender:
    Male

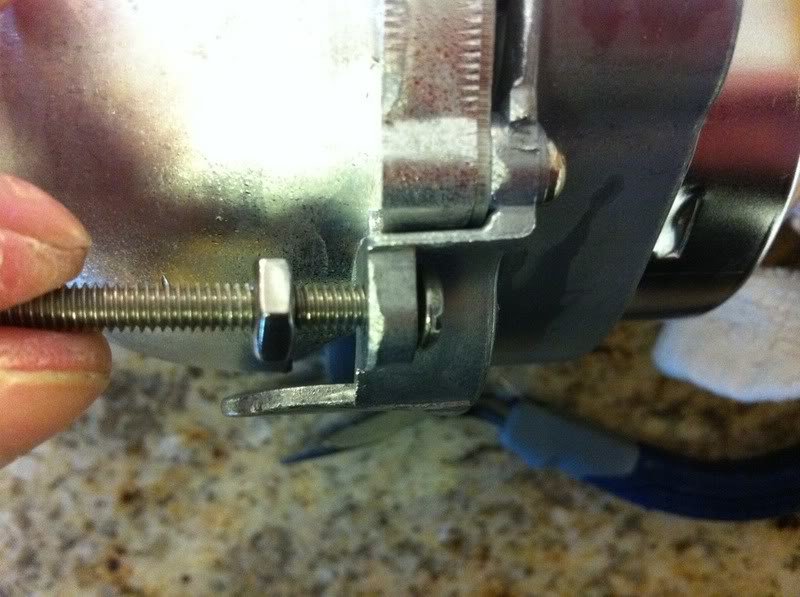

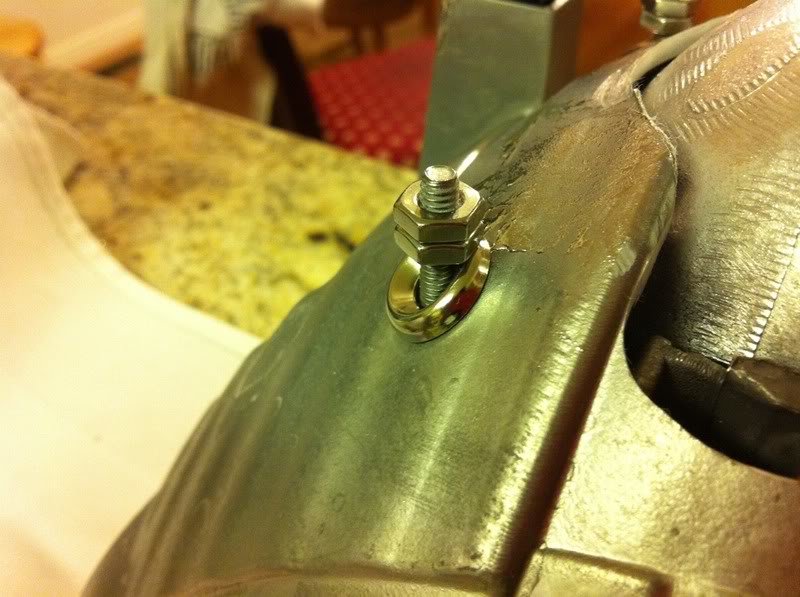

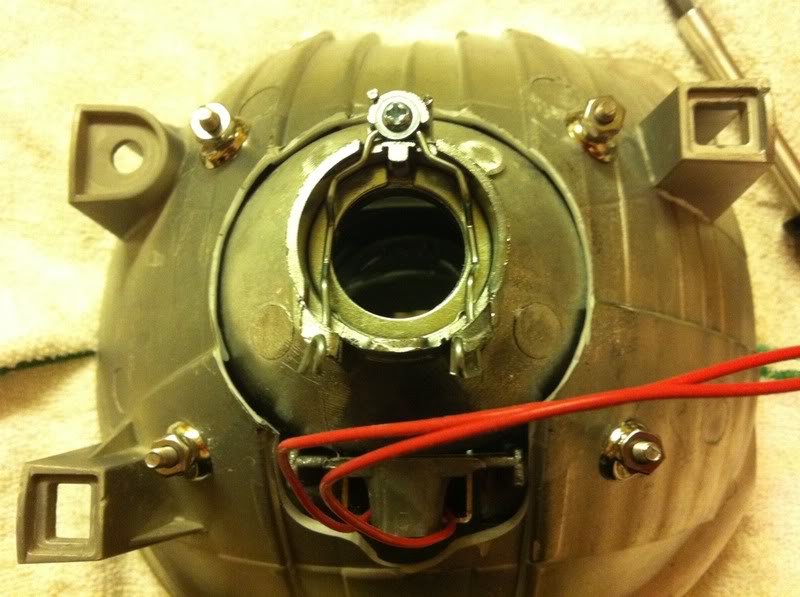

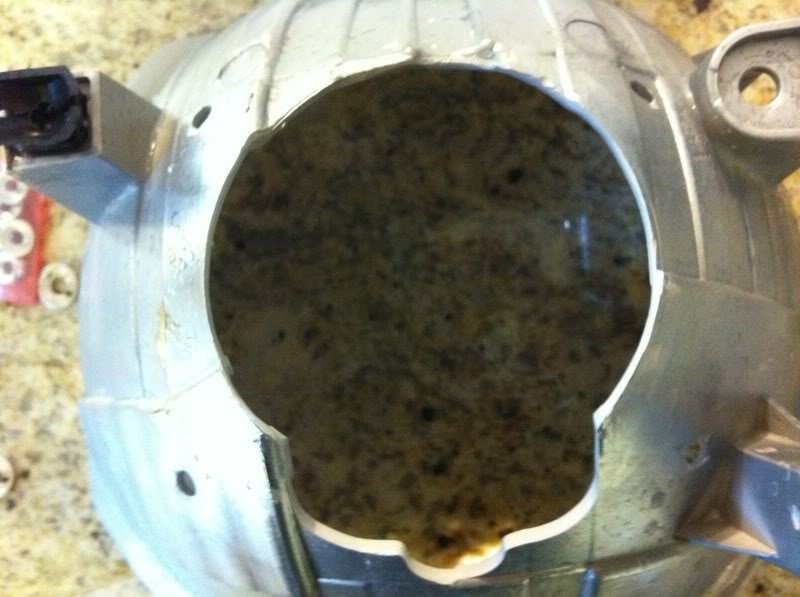

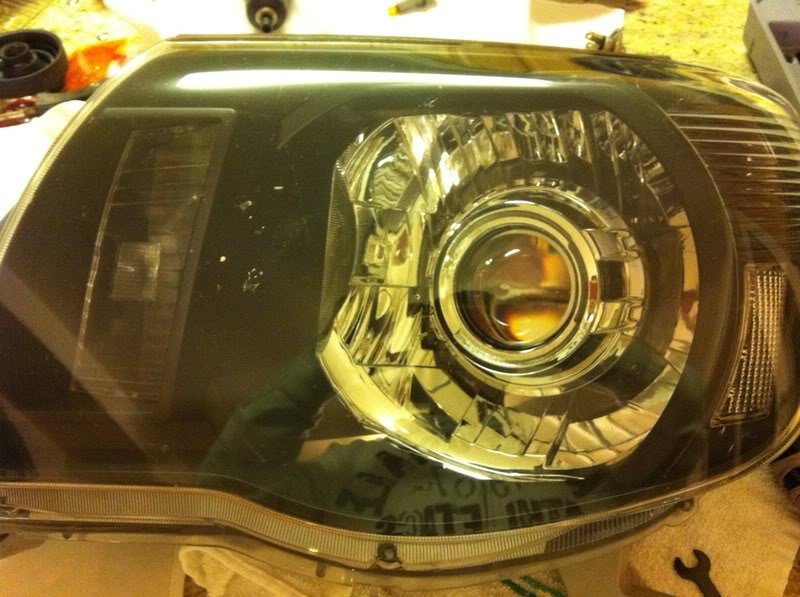

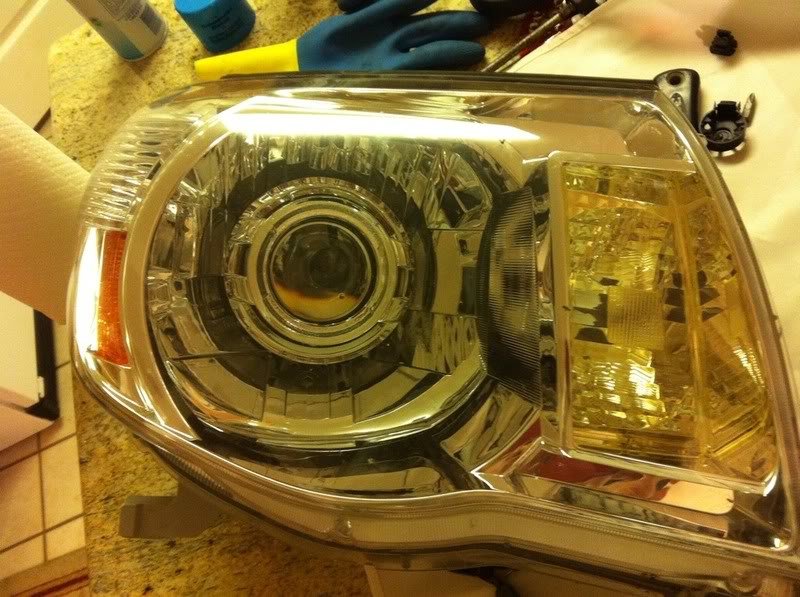

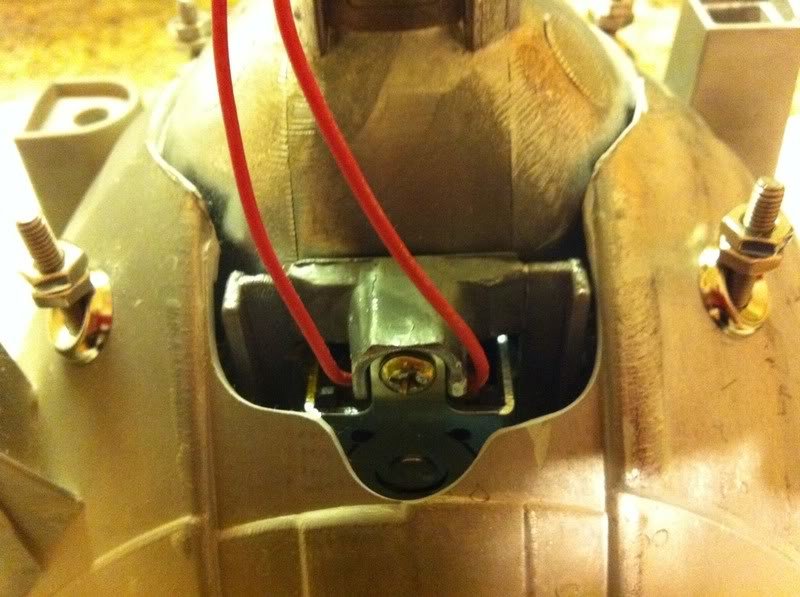

    Here's my setup. I made a bigger cut so the projector would sit further back into the bowl and the shroud would come closer to the reflecting bowl. I just epoxy glue the shroud to the edge of the projector and it fits nice and looks oem.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  11. Jun 16, 2011 at 12:57 PM
    #11
    Ridendirtywhips

    Ridendirtywhips Well-Known Member

    Joined:
    Aug 9, 2010
    Member:
    #41474
    Messages:
    207
    Gender:
    Male
    Sacramento
    Vehicle:
    06 prerunner
    Looks good.

  12. Jun 16, 2011 at 1:37 PM
    #12
    AsianAnts

    AsianAnts [OP] just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,405
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    pic isnt loading for me on this comp... but when i get home ill check it out :) thanks


  13. Jun 16, 2011 at 5:01 PM
    #13
    AsianAnts

    AsianAnts [OP] just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,405
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    i see it now! wow.. big hole.

  14. Jun 16, 2011 at 6:17 PM
    #14
    08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,071
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
    I will say your holes are HUGE but your retro looks awesome. I like the washers that you used those look like they worked perfictly.

  15. Jun 16, 2011 at 6:25 PM
    #15
    AsianAnts

    AsianAnts [OP] just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,405
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.

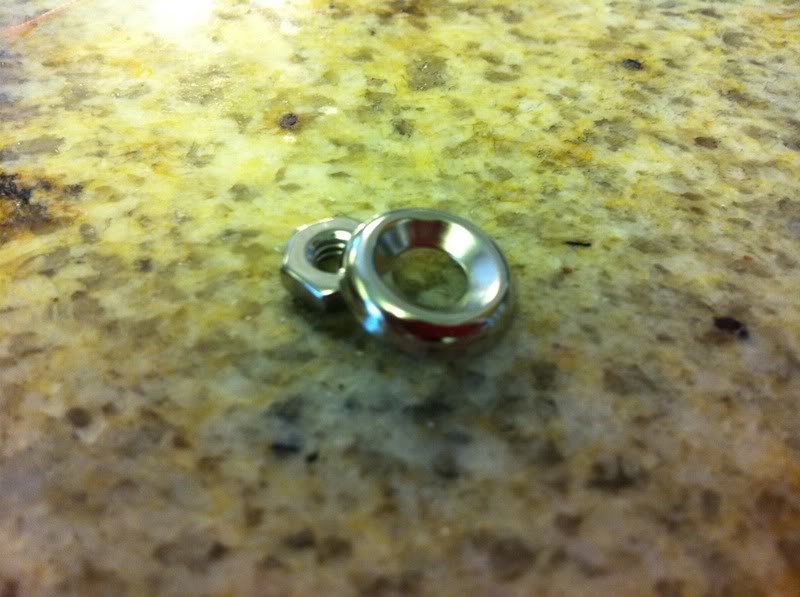

    i like the washers too :)

    been reading alot about the placement of the projector on the bowl... how it can effect the light output?

    my thoughts are:
    place the projector in the middle of the bowl as much as you can... use the screws to adjust the light afterwards...

    correcT?

  16. Jun 16, 2011 at 9:42 PM
    #16
    08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,071
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
    Yes you want to place it in the middle as much as you can use the lines in the reflectior bowl to line them up as much as possable.

    Once mounted in the reflector bowl you want the projector to be aimed just slightly down ward.

    you will do most of your adjustments with the screws on the back of the light housing.

    The most important thing is to get them horizontally levle because you will want your cut off lines to be levle with each other. You will only be able to do this once you have every thing mounted up and installed. After that you will be able to see if you need to rotate one or both of the projectors.

    There is a post on hidplanet.com on how to align your projectors you will need to be 25' form a wall on levle ground. Your cut off should be horzontally levle and have a 2.1" to 2.5" drop in hight from the levle of your head lights on your truck.

    In the end you should end up with something like this:

    [​IMG]

  17. Jun 16, 2011 at 9:45 PM
    #17
    AsianAnts

    AsianAnts [OP] just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,405
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    nice, but the other headlight (right side) is complete and has been adjusted already..... :)... ill work on the shroud trimming/fitting and painting this weekend ... hehe

  18. Jun 18, 2011 at 9:16 AM
    #18
    AsianAnts

    AsianAnts [OP] just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,405
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
  19. Jun 18, 2011 at 9:47 AM
    #19
    08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,071
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
    The red and black wires with the prongs on them are for the projectors they controll the cut off shield for your high and low beam. You are correct there should be two of them. Have your completly unwraped the wireing harness to double check?

  20. Jun 18, 2011 at 9:59 AM
    #20
    AsianAnts

    AsianAnts [OP] just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,405
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    i have checked and there is only that 1 pair of red/black wires with prongs on them.

    The other 2 wires that came with this purchase is the picture attached...

    Just a little background info:

    keep in mind, one headlight is complete. all ready to be plugged and used. It has a male end coming from the projector, I can use 1 of the other wires (female) and attach that to the 1 pair of red/black wires with prongs on them...

    But the other headlight, well obviously, im working from scratch....and there is no other 1 pair of red/black wires with prongs...
