FX-R retrofit Questions

Discussion in 'Lighting' started by Gunmetal, Jan 12, 2012.

  1. Jan 12, 2012 at 8:06 AM
    #1
    Gunmetal

    Gunmetal [OP] Active Member

    Joined:
    Feb 17, 2011
    Member:
    #51340
    Messages:
    36
    Gender:
    Male
    Fairmont, WV
    Vehicle:
    08 TRD Sport Double Cab
    Mostly Stock, FX-R retrofit in progress, AFE pro dry S filter
    Im in the middle of my retrofit and i have a few questions.

    It seems like there is no way to get the shrouds to sit flush with the reflector bowl, is there? I have the gatling guns and they sit about an inch away due to how the projector mounts. Im going to be painting everything black so its not going to be that noticeable, i don't think.

    Also, is the "grid" that the reflector bowls have level? is it safe to align the projector to the horizontal and vertical lines in the bowl?

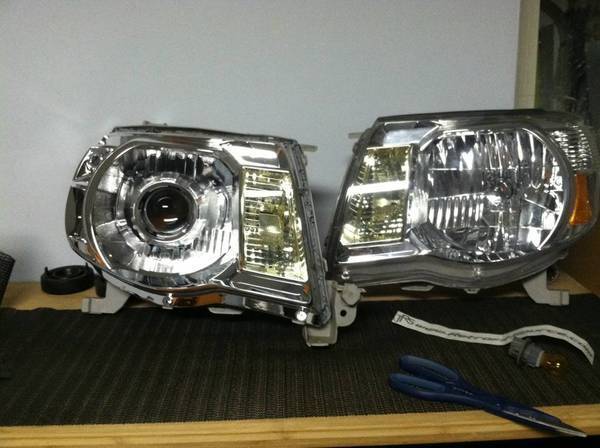

    I don't have any detailed shots, but here is one that is partially done.

    [​IMG]

  2. Jan 12, 2012 at 3:05 PM
    #2
    stunt man hans

    stunt man hans DISPLACED VIKING LIVING IN GEORGIA

    Joined:
    Sep 12, 2010
    Member:
    #43127
    Messages:
    4,639
    Gender:
    Male
    First Name:
    Hans
    LIVE FREE OR DIE
    Vehicle:
    2015 AEV RAM 3500
    FULL AEV PROSPECTOR KIT++
    mount the projector farther back in the reflector bowl trim shrouds.

  3. Jan 12, 2012 at 3:23 PM
    #3
    08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,071
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
    You wont notice the gap once you black every thing out. Yes you can use the lines on the reflector bowl to align the projector but you will still need to check your horizontal alignment on a wall befor you seal them back up.

  4. Jan 14, 2012 at 7:29 AM
    #4
    95SLE

    95SLE Starting to get cold outside

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,861
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
    Do you know the size of the hole needed to make the Gatlin Guns a flush fit?

  5. Jan 14, 2012 at 8:11 AM
    #5
    stunt man hans

    stunt man hans DISPLACED VIKING LIVING IN GEORGIA

    Joined:
    Sep 12, 2010
    Member:
    #43127
    Messages:
    4,639
    Gender:
    Male
    First Name:
    Hans
    LIVE FREE OR DIE
    Vehicle:
    2015 AEV RAM 3500
    FULL AEV PROSPECTOR KIT++
    you don't cut the factory reflector bowl any larger to get the more flush fit for the shroud.

    you need to find a way to mount the projector itself a bit farther back then trim the shroud with a dremel tool with a little sanding thing on the end.

  6. Jan 15, 2012 at 10:24 AM
    #6
    95SLE

    95SLE Starting to get cold outside

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,861
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
    Hans:
    I have not opened my package from TRS yet but I will this week and get back to you. I really need to see what I am dealing with as far as the projector is concerned.

  7. Jan 15, 2012 at 11:52 AM
    #7
    stunt man hans

    stunt man hans DISPLACED VIKING LIVING IN GEORGIA

    Joined:
    Sep 12, 2010
    Member:
    #43127
    Messages:
    4,639
    Gender:
    Male
    First Name:
    Hans
    LIVE FREE OR DIE
    Vehicle:
    2015 AEV RAM 3500
    FULL AEV PROSPECTOR KIT++
    shoot me a pm if you have questions. they are pretty easy there is also some very good write ups on here that if you follow you will be in great shape.

    i like to jb weld things in a certain way to eliminate any chance of any funny business once its all sealed back up.

  8. Jan 15, 2012 at 6:21 PM
    #8
    95SLE

    95SLE Starting to get cold outside

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,861
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
    I was going to use a high temp silicone seal and bolts to secure them to the reflector.

    I have been reading till my head exploded. I did bookmark threads that had a lot of useful information.

To Top
