FX-R retrofit questions.

Discussion in 'Lighting' started by ZMan2k2, Aug 13, 2012.

  1. ZMan2k2

    ZMan2k2 [OP] Well-Known Member

    Joined:
    Aug 28, 2011
    Member:
    #62491
    Messages:
    716
    Gender:
    Male
    First Name:
    Richard
    Calgary, Canada
    Vehicle:
    06 DC LB SR5
    I've been doing some research, and have been using this guide for most questions.
    http://www.tacomaworld.com/forum/lighting/212064-hid-retrofit-2009-tacoma-extended-cab-3.html
    I purchased Depo lights to work on, so I am ready. I was looking at my kit and I have a couple questions.

    One, there are some black rings that seem to clip into the Gatling gun shrouds, I assume to line up the shroud on the projector. This needs to be secured with something like JB Weld, correct?

    Second, the shroud I have seems to stick out much farther than the lens of the projector, is that normal for the Gatling gun shrouds?

    Lastly, if anyone could post up another how-to thread, I'd love the extra advice.

  2. 08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,069
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
    To answer your first question yes the shroud centric rings clip on to the shroud, but year you should still use some JB weld or high temp epoxy.

    Second yes the Gatling shrouds do stick out further than the lens, you can trim them down to make them work a little better. I like to take shroud ring an put it on the shroud, then with a perminant marker draw a line around where the ring sets on the shroud and take the ring back off. You should be left with a even line all the way around the inside of the Gatling shroud. I like to then take my dremmel with a cut off wheel and trim that much off.

    Lastly... Search there are a hand full of good FX-R retro write ups on here.

    I'll post some pics in a sec.

  3. 08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,069
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro

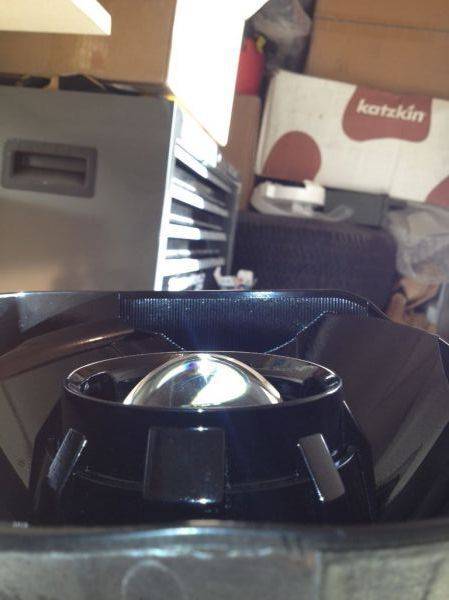

    Here are some pix of the last retro that I did with the trimed Gatling Gun shrouds.

    [​IMG]

    [​IMG]

  4. ZMan2k2

    ZMan2k2 [OP] Well-Known Member

    Joined:
    Aug 28, 2011
    Member:
    #62491
    Messages:
    716
    Gender:
    Male
    First Name:
    Richard
    Calgary, Canada
    Vehicle:
    06 DC LB SR5
    Awesome pics. So some trimming required, I think I can handle that. Sounds too, like JB Weld will be my best friend. I'll try another search, maybe I'm not using the right terms.
    Thanks

  5. 08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,069
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
  6. ZMan2k2

    ZMan2k2 [OP] Well-Known Member

    Joined:
    Aug 28, 2011
    Member:
    #62491
    Messages:
    716
    Gender:
    Male
    First Name:
    Richard
    Calgary, Canada
    Vehicle:
    06 DC LB SR5
    Nice. Thanks.:taco:

  7. ZMan2k2

    ZMan2k2 [OP] Well-Known Member

    Joined:
    Aug 28, 2011
    Member:
    #62491
    Messages:
    716
    Gender:
    Male
    First Name:
    Richard
    Calgary, Canada
    Vehicle:
    06 DC LB SR5
    One more question I'm hoping someone can answer. I know I need a bi-metal hole saw, but what size? I've read 2.75" and 2.5". Anyone with a little experience that can answer that one please?

  8. Nightstr

    Nightstr Well-Known Member

    Joined:
    Dec 24, 2009
    Member:
    #28125
    Messages:
    5,139
    Gender:
    Male
    First Name:
    Felipe
    Sacramento CA
    Vehicle:
    05 prerunner sr5
    BLHM BLWM 3" TOUGH COUNTRY LIFT TRD SEAT COVERS THULE RACK M/T KM2 265/65/16
    I have the 2.5 and works great! I haven't herd of a 2.75 but if you want the projector to sit back further...

  9. benbacher

    benbacher Purveyor of Fun Vendor

    Joined:
    Jun 29, 2011
    Member:
    #59032
    Messages:
    8,140
    Gender:
    Male
    First Name:
    ^
    Anchorage, AK
    Vehicle:
    '10 Tacoma 4x4 LBDC SR5 TRD Sport
    Too many to list now.
    I used the dremel because I didn't have access to a hole saw. Worked pretty well for me. So you've got options.

  10. 08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,069
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro

    Yosh2000 told me a 2" hole saw would work but I have never done it that way. You can save a few bucks by just using your dremel to cut the hole thats what I have done for all the retros that I've completed and I havent had a problem with it yet. It does take a little more time and there will be a lot of dust from it but it can be done.

  11. ZMan2k2

    ZMan2k2 [OP] Well-Known Member

    Joined:
    Aug 28, 2011
    Member:
    #62491
    Messages:
    716
    Gender:
    Male
    First Name:
    Richard
    Calgary, Canada
    Vehicle:
    06 DC LB SR5
    Thanks for the replies. I think I'll go with the hole saw. If you've ever seen my freehand trimming of drywall for outlets, you'd know why:rofl: so 2.5" it is. I'll pick it up this weekend, thanks.

  12. ZMan2k2

    ZMan2k2 [OP] Well-Known Member

    Joined:
    Aug 28, 2011
    Member:
    #62491
    Messages:
    716
    Gender:
    Male
    First Name:
    Richard
    Calgary, Canada
    Vehicle:
    06 DC LB SR5
    Alright, next question.

    I have the big hole cut in the reflector bowl, and I have the notch for the solenoid. My question is how tight does the back of the projector need to fit to the reflector bowl? I used a 2.5" hole saw and a dremel to notch, but the projector doesn't fit real tight to the bowl. There's some space in places. Around an 1/8" in spots. This gets filled in with JB Weld I assume, but is that much space okay? I will be securing with bolts and nylock nuts too. Just want to make sure I don't have any issues with this down the road.

  13. dibble9012

    dibble9012 Well-Known Member

    Joined:
    Mar 22, 2012
    Member:
    #75358
    Messages:
    213
    Gender:
    Male
    Little Rock, AR
    It doesn't matter how much space is there, the bolts should be supporting the light, not the reflector. You can fill the gap with jb weld, or aluminum tape. Below is a link to my retrofit I did back when I had a Tundra. Plan on doing a retrofit on my Tacoma when I get back stateside, definitely a worthwhile upgrade!!! It's been running since 2008 with no issues other than one of my ballasts died. Luckily I had wired everything to be plug and play, so I just bought a new ballast and replaced it.

    http://www.tundrasolutions.com/foru.../146731-2005-tundra-dc-hid-retrofit-progress/

  14. AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,343
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    i used a dremel to smoothen out the bumps on the reflector. that way, the projector can sit snugged onto the bowl. see the pics below, hopefully you get an idea of what im talking about.

    then fill n the gap with JB weld

    2011-11-11 14.01.11.jpg
    2011-11-11 14.01.26.jpg
