FYI on Hella Black Magic 500's

Discussion in 'Lighting' started by txtuffluck, Jan 10, 2012.

  1. Jan 10, 2012 at 12:45 PM
    #1
    txtuffluck

    txtuffluck [OP] Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55543
    Messages:
    128
    Gender:
    Male
    First Name:
    Johnny
    Central Texas
    Vehicle:
    07 TRD OR, V6 4X4
    You may break the lens trying to remove it:(

    Trying the oven method to soften the epoxy...almost had it, and then the heartbreaking sound of breaking glass.

  2. Jan 10, 2012 at 12:46 PM
    #2
    himmie

    himmie Well-Known Member

    Joined:
    Sep 6, 2010
    Member:
    #42841
    Messages:
    3,583
    Gender:
    Female
    First Name:
    Sarah
    AZ-WI
    Vehicle:
    08 TRD Off Road 4x4
    Visit the Build.
    Why were you removing the lenses?

  3. Jan 10, 2012 at 12:56 PM
    #3
    stunt man hans

    stunt man hans DISPLACED VIKING LIVING IN GEORGIA

    Joined:
    Sep 12, 2010
    Member:
    #43127
    Messages:
    4,639
    Gender:
    Male
    First Name:
    Hans
    LIVE FREE OR DIE
    Vehicle:
    2015 AEV RAM 3500
    FULL AEV PROSPECTOR KIT++
    i have the 1000 series black magic and if they are constructed the same as mine there is a ring around the lens that you need to remove first then you can remove the glass and disassemble the light.

    tell me you baked these in the oven to take the glass out :confused:

  4. Jan 10, 2012 at 1:02 PM
    #4
    txtuffluck

    txtuffluck [OP] Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55543
    Messages:
    128
    Gender:
    Male
    First Name:
    Johnny
    Central Texas
    Vehicle:
    07 TRD OR, V6 4X4
    Yep, I baked them, but there's not a ring to remove. The glass is attached to the housing with a black epoxy.

    I'm trying to remove the lens for two reasons...
    1. To cut the center part of the black crosshairs so that the TRS H3C bulb will fit
    2. According to Hella, these aren't suppose to be mounted up side down because of the way it throws the light. So I was also going to rotate the lens 180 degrees to mount on my Elusive Elements light bar.

  5. Jan 10, 2012 at 1:14 PM
    #5
    stunt man hans

    stunt man hans DISPLACED VIKING LIVING IN GEORGIA

    Joined:
    Sep 12, 2010
    Member:
    #43127
    Messages:
    4,639
    Gender:
    Male
    First Name:
    Hans
    LIVE FREE OR DIE
    Vehicle:
    2015 AEV RAM 3500
    FULL AEV PROSPECTOR KIT++
    ok i wasn't sure if they where the same or not lol. for a second i was like wait a minute what the hell just happened :confused:

    what are you going to do now dude? buy a new set or try and order the glass

  6. Jan 10, 2012 at 1:22 PM
    #6
    txtuffluck

    txtuffluck [OP] Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55543
    Messages:
    128
    Gender:
    Male
    First Name:
    Johnny
    Central Texas
    Vehicle:
    07 TRD OR, V6 4X4
    tried to order the glass...but Hella doesn't sell the just the lens, nor can you buy a single BM 500 light(only the kit).

    I got lucky though! I found someone who happened to have 1 laying around and he's shipping it to me no charge. Sometimes I get lucky, I guess.

    Now to decided if I'm going to continue to try this, or if I'm going to give up, sell the BM's, and put HID's in the 500FF.

  7. Jan 10, 2012 at 1:39 PM
    #7
    txtuffluck

    txtuffluck [OP] Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55543
    Messages:
    128
    Gender:
    Male
    First Name:
    Johnny
    Central Texas
    Vehicle:
    07 TRD OR, V6 4X4

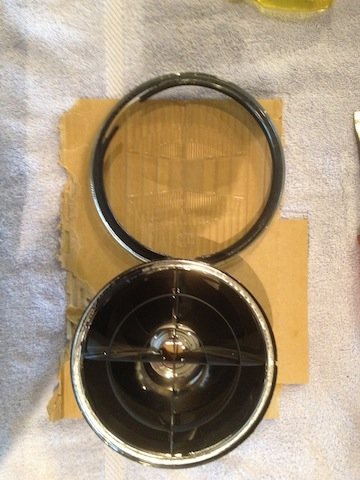

    Got the second one opened pretty easily!!! I cranked up the heat on the oven to 450 and left it in the oven for about 20 minutes.

    I figured I could go hotter with the oven temp, and for a longer period of time since the BM is glass and metal, no plastic!


  8. Jan 10, 2012 at 1:41 PM
    #8
    enjm10

    enjm10 Well-Known Member

    Joined:
    May 2, 2010
    Member:
    #36364
    Messages:
    575
    Gender:
    Male
    First Name:
    Eric
    NM
    Vehicle:
    07 V6 4x4 Silver Streak
    20% tint all around, 5100s all four corners w rear aal, step bars, windshield visors, foglight anytime mod, front black lip, door emblems blacked out, satoshi grill, avid light bar, dash light mod blue, also did my own stereo led mod
    Y cant they be mounted upside down?

  9. Jan 10, 2012 at 1:52 PM
    #9
    himmie

    himmie Well-Known Member

    Joined:
    Sep 6, 2010
    Member:
    #42841
    Messages:
    3,583
    Gender:
    Female
    First Name:
    Sarah
    AZ-WI
    Vehicle:
    08 TRD Off Road 4x4
    Visit the Build.
    I have an extra Hella Black Magic...

  10. Jan 10, 2012 at 2:10 PM
    #10
    txtuffluck

    txtuffluck [OP] Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55543
    Messages:
    128
    Gender:
    Male
    First Name:
    Johnny
    Central Texas
    Vehicle:
    07 TRD OR, V6 4X4
    I'm not sure on the specifics, but I guess some lights are only meant to be mounted one way due to the way they are designed to reflect and throw light. For some reason I thought to ask Hella about it, and they said that the 500's could not be mounted upside down because of the way they're designed.

  11. Jan 10, 2012 at 2:11 PM
    #11
    txtuffluck

    txtuffluck [OP] Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55543
    Messages:
    128
    Gender:
    Male
    First Name:
    Johnny
    Central Texas
    Vehicle:
    07 TRD OR, V6 4X4
    Sarah,

    I appreciate it. If I screw up the second one when it arrives, I'll take you up on the offer, just let me know what you want for it shipped!

  12. Jan 10, 2012 at 2:19 PM
    #12
    dollabill415

    dollabill415 Well-Known Member

    Joined:
    Sep 16, 2011
    Member:
    #63647
    Messages:
    164
    Gender:
    Male
    sorry to be off topic but does anybody know if the 1000 series are bigger(in diameter) than the 500s? or what is the main difference between the 500s and the 1000s...?

  13. Jan 10, 2012 at 2:40 PM
    #13
    txtuffluck

    txtuffluck [OP] Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55543
    Messages:
    128
    Gender:
    Male
    First Name:
    Johnny
    Central Texas
    Vehicle:
    07 TRD OR, V6 4X4
    Brockoli,

    The hole for the bulb is in the back center of the metal housing, the mounting location on the rear/black plastic housing is on the bottom of the plastic housing.

  14. Jan 10, 2012 at 2:43 PM
    #14
    txtuffluck

    txtuffluck [OP] Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55543
    Messages:
    128
    Gender:
    Male
    First Name:
    Johnny
    Central Texas
    Vehicle:
    07 TRD OR, V6 4X4
    The 1000's are larger diameter and depth than the 500's. If you go to myhellalights.com and look at both the BM 500's and the BM 1000's you'll see the measurements in the photos for each light.

  15. Jan 10, 2012 at 3:04 PM
    #15
    txtuffluck

    txtuffluck [OP] Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55543
    Messages:
    128
    Gender:
    Male
    First Name:
    Johnny
    Central Texas
    Vehicle:
    07 TRD OR, V6 4X4
    I don't think so

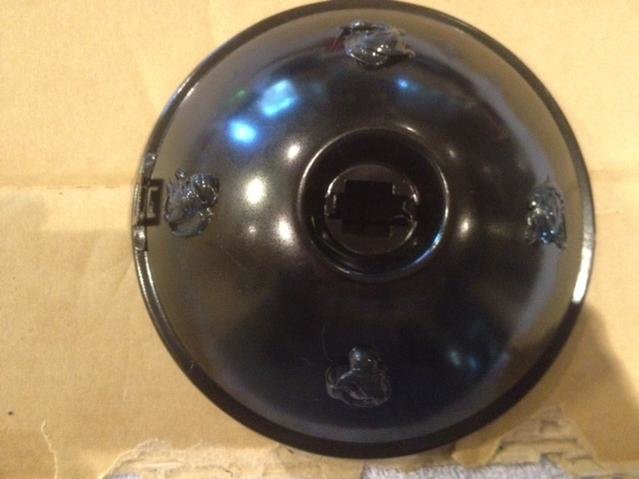

    1st pic is of the metal housing, only hole is for the bulb

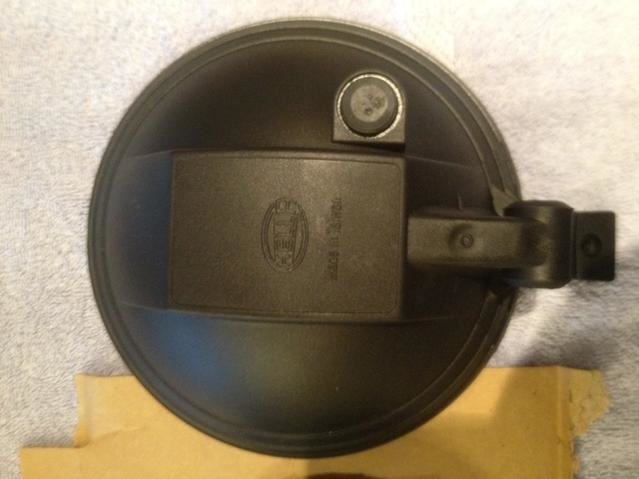

    2nd pic is of the plastic basket which has a hole with a rubber boot for the wires to the bulb


  16. Jan 10, 2012 at 3:12 PM
    #16
    txtuffluck

    txtuffluck [OP] Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55543
    Messages:
    128
    Gender:
    Male
    First Name:
    Johnny
    Central Texas
    Vehicle:
    07 TRD OR, V6 4X4
    I can probably do that...when I get the replacement for the one I broke earlier today:eek:

  17. Jan 10, 2012 at 3:12 PM
    #17
    txtuffluck

    txtuffluck [OP] Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55543
    Messages:
    128
    Gender:
    Male
    First Name:
    Johnny
    Central Texas
    Vehicle:
    07 TRD OR, V6 4X4
    after this, I get to start on the LS460's!:eek:

  18. Jan 10, 2012 at 3:39 PM
    #18
    dollabill415

    dollabill415 Well-Known Member

    Joined:
    Sep 16, 2011
    Member:
    #63647
    Messages:
    164
    Gender:
    Male
    thankyou!

  19. Jan 10, 2012 at 3:50 PM
    #19
    dollabill415

    dollabill415 Well-Known Member

    Joined:
    Sep 16, 2011
    Member:
    #63647
    Messages:
    164
    Gender:
    Male
    for some reason i dont c the measurements... im jus trying to figure out if the 1000s are too big to fit behind the grill... i c people using 500s behind the grill but i dunno bout the 1000s. i was offered a set dirt cheap but only want them if i could fitem behind my satoshi grill...

  20. Jan 10, 2012 at 4:20 PM
    #20
    txtuffluck

    txtuffluck [OP] Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55543
    Messages:
    128
    Gender:
    Male
    First Name:
    Johnny
    Central Texas
    Vehicle:
    07 TRD OR, V6 4X4

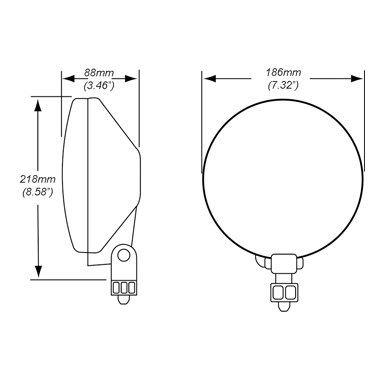

    This is for the 700, but the 700 and 1000 have the same dimensions according to the Hella site.
