Garmin PowerSwitch and Hybrid

Discussion in '4th Gen. Tacomas (2024+)' started by sogtr, Oct 1, 2024.

  1. Oct 1, 2024 at 12:31 PM
    #1
    sogtr

    sogtr [OP] Active Member

    Joined:
    Sep 2, 2023
    Member:
    #432624
    Messages:
    44
    Vehicle:
    2024 Tacoma Trailhunter Ice Cap
    Gents,
    I got my TrailHunter and was wonder if anyone wired Garmin PowerSwitch to Hybrid yet? the battery under the seat is 380LN3-MF and its 70Ah Lead Acid, but the Garmin documentation says to install 125Amp Fuse. I dont think my setup will pull that much power. Anyway as i see there is 2 potential options:
    1. Possibly upgrade 12V AUX battery to 100Ah and run the power cable from that battery to engine bay and wire up garmin powerswitch (i think it would be easier to connect accessories there)

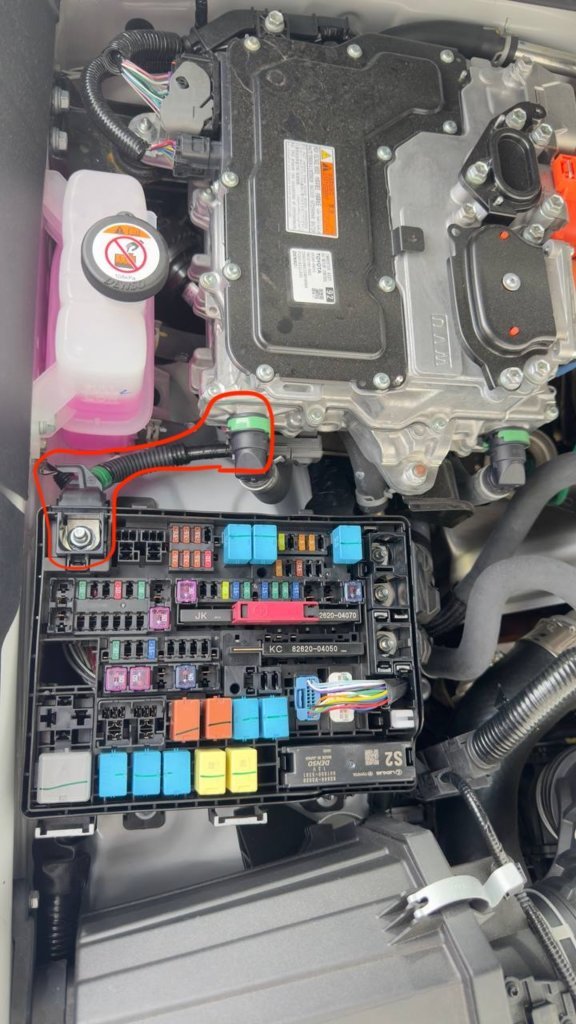

    2. Dont think this option is safe tbh. There is 12V cable that goes to fuse box, so im thinking wire up 125Amp fuse to that cable and then wire up garmin powerswitch.

    As right now i got prisu roof rack coming with rigid 40" led (14.8Amp) planning to wire it to AUX1 (15Amp) should be fine, but i will test and monitor. The AUX2 (10Amp) will have 4-6 Side LED's from baja designs i think S2 and AUX3 (5 Amp) will be 4x rock lights also baja designs.

    There is AUX4, but after pull switch panel i didnt see any extra connectors (i havent looked that hard though), but there is a "D" connector under the bed, which is rated for 20Amp (Manual https://assets.sia.toyota.com/publications/en/om-s/OM04042U/pdf/OM04042U.pdf). I also looked for a fuse for AUX4 but i didnt find anything. Anyway was thinking on adding Garmin PowerSwitch. My first option was to go with Redarc setup, but my calculations got me to $8000.


  2. Oct 1, 2024 at 1:45 PM
    #2
    gmtech

    gmtech Well-Known Member

    Joined:
    Nov 13, 2018
    Member:
    #272524
    Messages:
    359
    Gender:
    Male
    quad cities illinois
    Vehicle:
    2016 trd or. 2024 trd OR iforcemaxx!!
    Stock AF
    is that switch redundant to the aux switches already on your trail hunter?

  3. Oct 1, 2024 at 1:49 PM
    #3
    sogtr

    sogtr [OP] Active Member

    Joined:
    Sep 2, 2023
    Member:
    #432624
    Messages:
    44
    Vehicle:
    2024 Tacoma Trailhunter Ice Cap
    its not, ill be using all 3 AUX switches, but i need more :) and garmin provides Bluetooth as well.

    So those 3 AUX are quick and easy to turn on LED Bar, side and rock lights. Where Garmin PowerSwitch will provide 6 more accessories that i can control from my phone

  4. Oct 1, 2024 at 5:56 PM
    #4
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,333
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    I'd leave it alone...

  5. Oct 1, 2024 at 6:16 PM
    #5
    sogtr

    sogtr [OP] Active Member

    Joined:
    Sep 2, 2023
    Member:
    #432624
    Messages:
    44
    Vehicle:
    2024 Tacoma Trailhunter Ice Cap
    i figured as much, wanted to double check! Thank you for confirming.

  6. Oct 1, 2024 at 6:47 PM
    #6
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,333
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  7. Oct 1, 2024 at 7:08 PM
    #7
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,333
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    Last edited: Oct 1, 2024
  8. Oct 2, 2024 at 2:59 AM
    #8
    sogtr

    sogtr [OP] Active Member

    Joined:
    Sep 2, 2023
    Member:
    #432624
    Messages:
    44
    Vehicle:
    2024 Tacoma Trailhunter Ice Cap

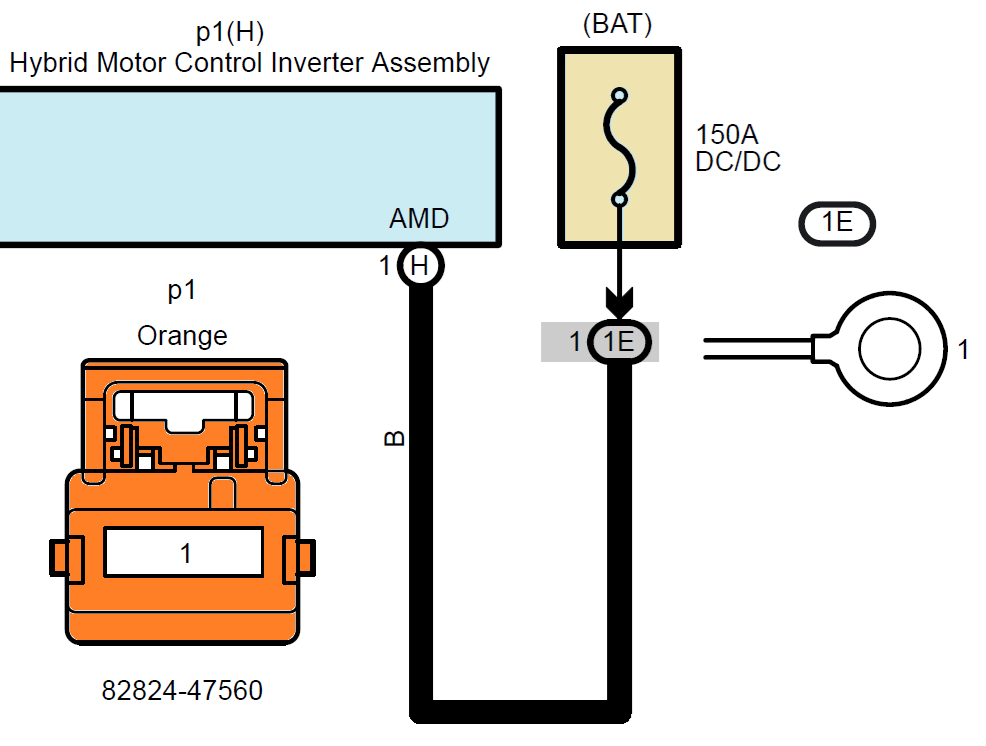

    nice! do you have a full pdf for this? i tried to google but i couldnt find anything

  9. Oct 2, 2024 at 6:04 AM
    #9
    gmtech

    gmtech Well-Known Member

    Joined:
    Nov 13, 2018
    Member:
    #272524
    Messages:
    359
    Gender:
    Male
    quad cities illinois
    Vehicle:
    2016 trd or. 2024 trd OR iforcemaxx!!
    Stock AF
    just use a test light dude. any lug that is hot all the time that is not being used for anything else will work fine. how bout the fuse block on the drivers side under the hood anything open in there?

  10. Oct 2, 2024 at 7:52 AM
    #10
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,333
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :smack:

    Lennyz1 and sogtr[OP] like this.
  11. Oct 2, 2024 at 8:02 AM
    #11
    crazysccrmd

    crazysccrmd Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181592
    Messages:
    8,951
    Gender:
    Male
    Alaska
    Vehicle:
    Aprilia Tuareg 660
    Since you're installing a six circuit bus you should have it wired directly to the battery. That's the correct answer, using an existing connection in the engine bay is a bit half-assed. What is the anticipated load that you will be powering with the Garmin? If you pull power from something in the engine bay you'll need to make sure it is rated for more than that plus whatever it is supposed to be powering from the factory.

    There's no need to replace the battery with a 100AH unless you want more capacity - the AH rating of the battery and the amp rating of the fuse Garmin wants are unrelated. You might not need to fuse it at 125 amps, that is just the maximum current that Garmin rates the PowerSwitch for so it must be protected against a higher draw by that fuse.

  12. Oct 2, 2024 at 8:14 AM
    #12
    sogtr

    sogtr [OP] Active Member

    Joined:
    Sep 2, 2023
    Member:
    #432624
    Messages:
    44
    Vehicle:
    2024 Tacoma Trailhunter Ice Cap
    The other side is not really doable, because all the wires are under the fuse box and not feeling it :)

  13. Oct 2, 2024 at 8:20 AM
    #13
    sogtr

    sogtr [OP] Active Member

    Joined:
    Sep 2, 2023
    Member:
    #432624
    Messages:
    44
    Vehicle:
    2024 Tacoma Trailhunter Ice Cap
    I agree with half assed. The plan is to add reverse lights and I’m drawing a blank on other stuff… I got EcoFlow battery so my fridge will be plugged in there. So don’t need a fridge wire.

    thank you everyone for answers! I think I’ll mount garmin on a drivers side since there is more room there and route positive wire to the battery, with lower fuse cause I can replace it later. The wire thickness I’ll check what can handle ~130A so I don’t have to change the wire later.

  14. Oct 2, 2024 at 8:56 AM
    #14
    gmtech

    gmtech Well-Known Member

    Joined:
    Nov 13, 2018
    Member:
    #272524
    Messages:
    359
    Gender:
    Male
    quad cities illinois
    Vehicle:
    2016 trd or. 2024 trd OR iforcemaxx!!
    Stock AF
    why 130amp fuse??!??! you only have 6 switches... thats 21 amps per switch! how many reverse lights and other lights draw that? what other thing can you imagine using that is 12 volt that uses that much current?
    think about it the trucks entire 12 volt system prolly uses less than 130 amps.. whats the output of the alternator on these 200 amps?

  15. Oct 2, 2024 at 9:11 AM
    #15
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,333
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    sogtr[QUOTED][OP] likes this.
  16. Oct 2, 2024 at 9:27 AM
    #16
    sogtr

    sogtr [OP] Active Member

    Joined:
    Sep 2, 2023
    Member:
    #432624
    Messages:
    44
    Vehicle:
    2024 Tacoma Trailhunter Ice Cap
    You are right, i dont really need to. Perhaps 90-100A rated cable and right fuse to protect the cable (15A per switch is decent). i was planning to get 6 Baja designs S2 which came over just 10amps so i have to make it 4 led's to keep it under 10A to wire it for AUX2. There is no alternator from what i could find online since its hybrid. Heck maybe instead of using AUX2 for 6x Baja S2's ill use that garmin :)
