Gear ratio

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Brazor12, Jan 21, 2020.

  1. Jan 21, 2020 at 9:02 PM
    #1
    Brazor12

    #1
    Brazor12 [OP] Member

    Joined:
    Jan 5, 2020
    Member:
    #315178
    Messages:
    20
    Gender:
    Male
    First Name:
    Brendan
    Vehicle:
    2019 white Tacoma TRD Sport 4x4
    Trd Pro Grille
    Does anyone know the OEM gear ratio for the 2019 Toyota Tacoma trd sport 4x4? I just put 35s on it and want to re-gear to 4.88 or 5.29

    Brazor12, Jan 21, 2020
    #1
  2. Jan 21, 2020 at 9:05 PM
    #2
    Stocklocker

    #2
    Stocklocker Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219125
    Messages:
    12,740
    Gender:
    Male
    Vehicle:
    17TRDORDCSBAT
    It is different between auto and manual. Which do you have?

    Stocklocker, Jan 21, 2020
    #2
  3. Jan 21, 2020 at 9:05 PM
    #3
    Stocklocker

    #3
    Stocklocker Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219125
    Messages:
    12,740
    Gender:
    Male
    Vehicle:
    17TRDORDCSBAT

    Stocklocker, Jan 21, 2020
    #3
    JoshyP likes this.
  4. Jan 21, 2020 at 9:06 PM
    #4
    Cudgel

    #4
    Cudgel “Tonka”

    Joined:
    Mar 28, 2017
    Member:
    #214640
    Messages:
    4,313
    Gender:
    Male
    Live in: An Ocean of Plastic Trash
    Vehicle:
    2017 OR DCLB
    ICON8 Lift -285s. upTOPoverland rack.
    Nitro-gear suggests 5.29 for 35s with AT.

    Cudgel, Jan 21, 2020
    #4
  5. Jan 21, 2020 at 9:16 PM
    #5
    Brazor12

    #5
    Brazor12 [OP] Member

    Joined:
    Jan 5, 2020
    Member:
    #315178
    Messages:
    20
    Gender:
    Male
    First Name:
    Brendan
    Vehicle:
    2019 white Tacoma TRD Sport 4x4
    Trd Pro Grille
    I have an automatic

    Brazor12, Jan 21, 2020
    #5
  6. Jan 21, 2020 at 9:18 PM
    #6
    Brazor12

    #6
    Brazor12 [OP] Member

    Joined:
    Jan 5, 2020
    Member:
    #315178
    Messages:
    20
    Gender:
    Male
    First Name:
    Brendan
    Vehicle:
    2019 white Tacoma TRD Sport 4x4
    Trd Pro Grille
    That’s what I’ve seen a lot but Off road wearhouse that installed the lift and tires said that 5.29 would be too aggressive and said 4.88s but online I’ve only seen 5.29 with the Tacomas

    Brazor12, Jan 21, 2020
    #6
  7. Jan 21, 2020 at 9:19 PM
    #7
    Stocklocker

    #7
    Stocklocker Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219125
    Messages:
    12,740
    Gender:
    Male
    Vehicle:
    17TRDORDCSBAT

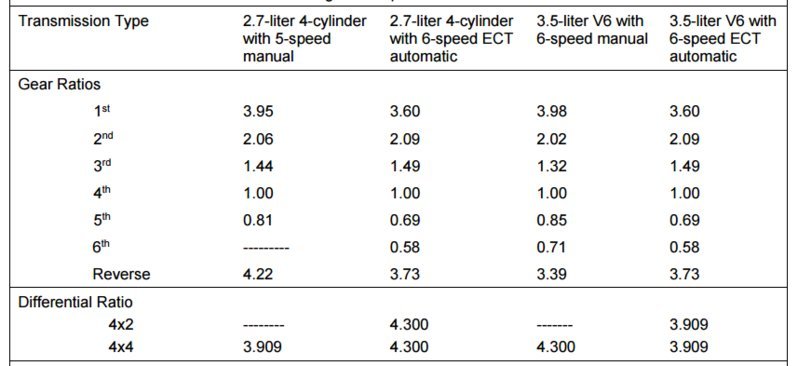

    According to the chart I posted above, your stock rear end with be 3.909.

    hope this helps.

    Stocklocker, Jan 21, 2020
    #7
  8. Jan 21, 2020 at 9:32 PM
    #8
    JoshyP

    #8
    JoshyP Well-Known Member

    Joined:
    Jan 29, 2016
    Member:
    #176510
    Messages:
    479
    Gender:
    Male
    First Name:
    Josh
    Northern California
    Vehicle:
    2016 TRD OR 4x4 DCSB MT
    That chart helped me realize why reverse sucks so bad in my MT, haha. I wish I had that 5 speed 2.7 reverse gear ratio...

    JoshyP, Jan 21, 2020
    #8
    Stocklocker likes this.
  9. Jan 21, 2020 at 10:59 PM
    #9
    Brazor12

    #9
    Brazor12 [OP] Member

    Joined:
    Jan 5, 2020
    Member:
    #315178
    Messages:
    20
    Gender:
    Male
    First Name:
    Brendan
    Vehicle:
    2019 white Tacoma TRD Sport 4x4
    Trd Pro Grille
    Thank you it did

    Brazor12, Jan 21, 2020
    #9
    Stocklocker[QUOTED] likes this.
