Gen 1 front and rear bumpers

i know that there are a lot of custom off-road bumpers out there on the market, but I'm wanting to engineer my own for my truck and a couple others that have Gen 1 trucks. I'm trying to keep from having to remove my stock bumper to get the mounting measurements. Does anyone have any CAD files or PDF's for this info?



I have heard from a few fabricators that each truck is slightly different so it's better to build off the truck itself. I got my bumper from another doublecab and it took some prying to get it on as it didn't line up as seamlessly as I expected.

As far as CAD files, not sure you will find anyone willing to part with their design work for free, but ya never know.



Not looking to get free design work or work off someone else's design. Just looking for the trucks bumper mounting specs so I can create my own design



oh gotcha... i'm sure someone has them noted... one of them will chime in...

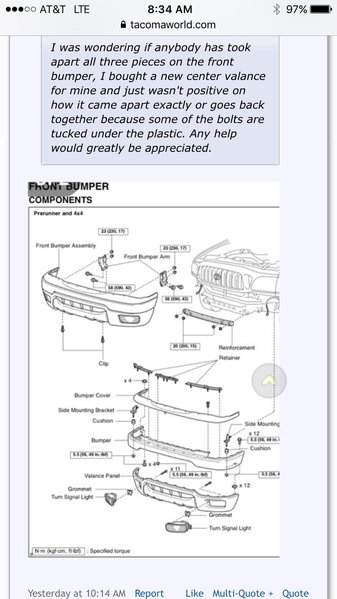

Like this?
