Gen 2 Transfer Case Pump Broken?

Discussion in 'Technical Chat' started by wtp67, Jun 14, 2021.

  1. Jun 14, 2021 at 8:01 AM
    #1
    wtp67

    wtp67 [OP] Member

    Joined:
    Apr 29, 2021
    Member:
    #364244
    Messages:
    16
    Gender:
    Male
    First Name:
    Warren
    Arkansas
    Vehicle:
    2009 Access Cab 4x4
    I just discovered an issue with the 2009 ACLB 4WD truck I bought a month ago. It is a little embarrassing to me to see that I overlooked something this glaring but now I just need to understand the issue and fix it. So I am turning to the TW community for thoughts, guidance....

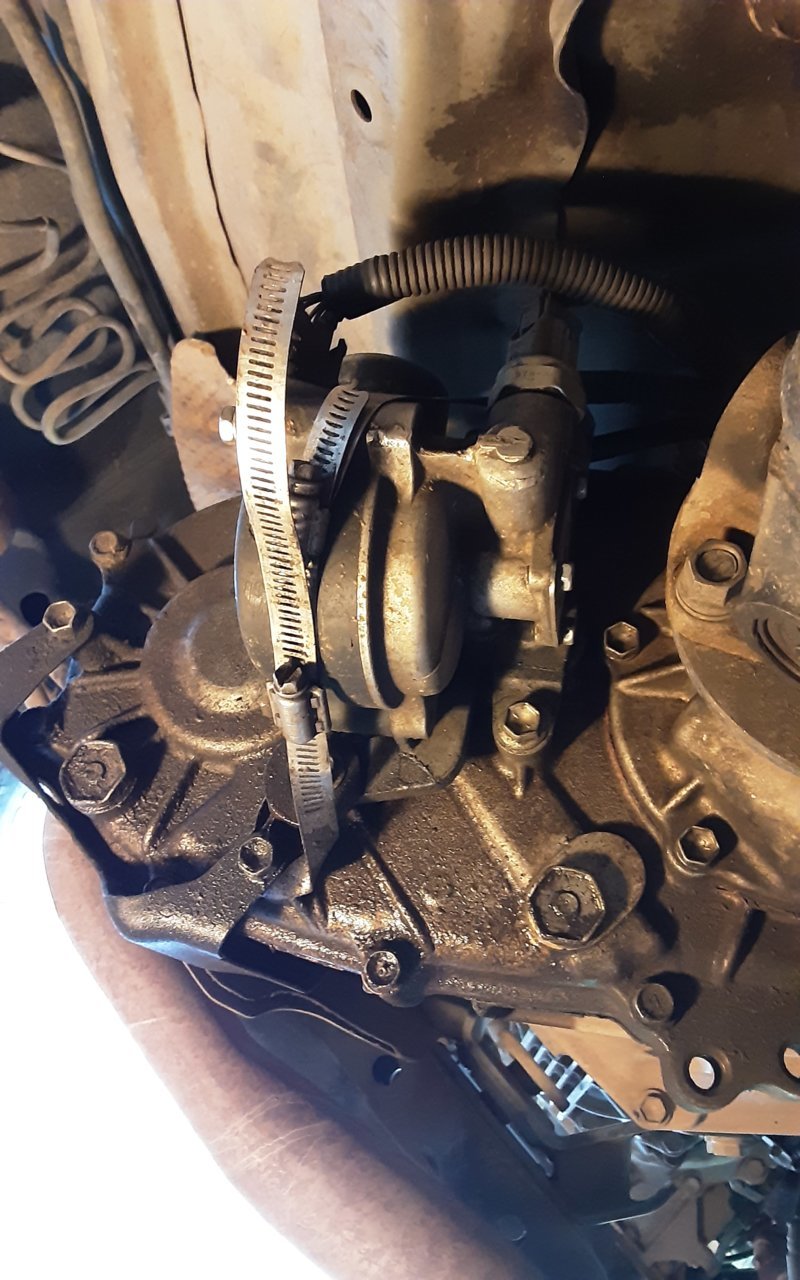

    The transfer case pump mounting tabs are broken and the case has a leak as you can hopefully see from the picture. I have just bought all the Redline gear oil to change out transmission, transfer case, and differentials but don't want to change the transfer case until I do some more research. It's not dripping oil to the point that I see it on the asphalt when I park it but it was not wet when I bought it several weeks ago. I have only used the 4H once for about 15 feet and when I tested both 4L & 4H during the test-drive (~1/4 mile in 4H).

    Questions: is this detrimental to the pump? I have found several new for ~$100 - can a mechanically inclined non-mechanic tackle this with too much worry? I need a service manual; is there any advantage to purchasing a Chilton or Haynes? No way can I afford the FSM.


    Last edited: Jun 14, 2021
  2. Jun 14, 2021 at 12:38 PM
    #2
    GSRON

    GSRON Well-Known Member

    Joined:
    Jan 30, 2010
    Member:
    #30336
    Messages:
    309
    Gender:
    Male
    First Name:
    Ron
    Northern CA
    Vehicle:
    2019 TRD OR Cement
    Quikfix seat risers and lic plate mount, MESO interior and stage 1 tails, glove box and console dividers, shelf for center console, FACTOR 55 hitch link, TC bed stiffeners, OE bed mat,

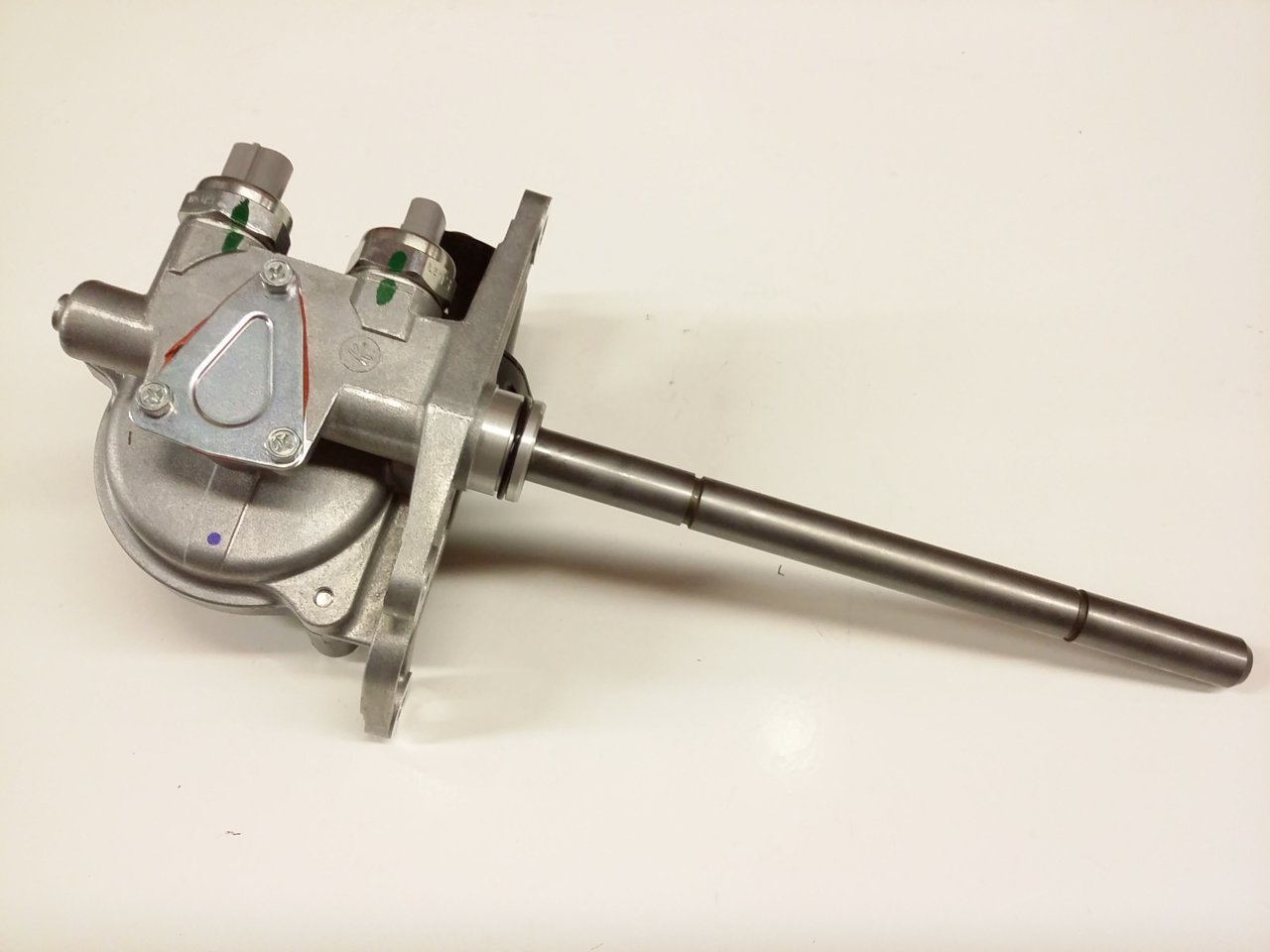

    That's the T-Case Actuator Motor avail as a unit from Toyota for about $900. The Actuator shaft runs into the T-Case and appears to have snap-ring grooves in it. Possible T-Case disassembly req'd.


  3. Jun 14, 2021 at 12:44 PM
    #3
    wtp67

    wtp67 [OP] Member

    Joined:
    Apr 29, 2021
    Member:
    #364244
    Messages:
    16
    Gender:
    Male
    First Name:
    Warren
    Arkansas
    Vehicle:
    2009 Access Cab 4x4
    Well, crap.... that takes out the possibility of me trying to tackle it. Many is the time that I have convinced myself that I can only to end up learning that I shouldn't have.

    Thanks for the info, time, and response, Ron.

  4. Jun 14, 2021 at 12:46 PM
    #4
    TnShooter

    TnShooter Well-Known Member

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    8,481
    Gender:
    Male
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
  5. Jun 14, 2021 at 12:57 PM
    #5
    wtp67

    wtp67 [OP] Member

    Joined:
    Apr 29, 2021
    Member:
    #364244
    Messages:
    16
    Gender:
    Male
    First Name:
    Warren
    Arkansas
    Vehicle:
    2009 Access Cab 4x4
    Actually, I've already found a couple of China-based, flea-bay dealers selling new ones (part no. 36410-34015 according to parts.toyota.com) with a lifetime warranty for $170. I'm thinking that I take a chance with one of those, put it on a shelf while I save pennies, and take it to a reputable mechanic. That is, unless it causes problems soon.

    TnShooter likes this.
  6. Jul 9, 2021 at 12:36 PM
    #6
    AustinM2015

    AustinM2015 Well-Known Member

    Joined:
    Feb 26, 2016
    Member:
    #179465
    Messages:
    259
    Gender:
    Male
    First Name:
    Austin
    New Braunfels Texas
    Vehicle:
    2007 V6 4x4 standard
    I'm having the same issue and saw the same actuators on Amazon for about 160. Did it work pretty well? I can replace it my self but dont want to spend the 1000 bucks on one from Toyota also if I was going to spend 1000 bucks I'd do an FJ swap .

  7. Jul 9, 2021 at 2:45 PM
    #7
    wtp67

    wtp67 [OP] Member

    Joined:
    Apr 29, 2021
    Member:
    #364244
    Messages:
    16
    Gender:
    Male
    First Name:
    Warren
    Arkansas
    Vehicle:
    2009 Access Cab 4x4
    I haven't pulled the trigger yet. Quite frankly, I am not convinced that anything other than OEM is going to last because of the negative experiences I have read about here on TW.

    I changed engine oil and differential grease last weekend and then did transmission and transfer case this weekend all the while pondering if I could replace it. I have watched two related videos and have all the tools - now that I have gotten my head wrapped around the situation - but I am still not convinced that I could replace it myself without a lot of headache or creating more problems.

    The first thing I think I will try is cleaning the points/contacts like this post talks about:


  8. Jul 9, 2021 at 3:29 PM
    #8
    Sprig

    Sprig Well-Known Member

    Joined:
    Sep 28, 2017
    Member:
    #231426
    Messages:
    1,530
    Gender:
    Male
    First Name:
    Ken
    N. Calif. The Twilight Zone
    Vehicle:
    Tacoma TRD double cab 4x4, Barcelona Red
    What are those radiator clamps for in the picture? If they were present when you bought the truck I think lots of alarms would have gone off in my brain.Are those clamps there doing the job of the broken tabs? If so that would definitely been a holy shit I’m outta here moment.

  9. Jul 21, 2021 at 12:30 PM
    #9
    wtp67

    wtp67 [OP] Member

    Joined:
    Apr 29, 2021
    Member:
    #364244
    Messages:
    16
    Gender:
    Male
    First Name:
    Warren
    Arkansas
    Vehicle:
    2009 Access Cab 4x4
    I looked under it specifically on the ground, frame, motor, etc. for leaks, signs of intense cleaning and/or fresh paint (as if covering up for a leak or repair) and, no, didn't have a lie-down-on-the-ground-pull-out-my-creeper moment to do an inspection. It was overlooked just like the fact that the front brakes needed to be replaced. Was it something that could have been found had I taken it to a reputable mechanic? Yes but I didn't. It's one of the things that is possible when buying a used vehicle but I knew that buying a used Tacoma was a much better decision than buying a used any other brand...... been there, regretted that. The ~$6K cash I saved by not financing far outweighs anything I have seen that needs or needed to be done.
