Gentex Mirror install help please.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Ten13, Dec 28, 2022.

  1. Dec 28, 2022 at 4:12 PM
    #1
    Ten13

    Ten13 [OP] Member

    Joined:
    Jan 14, 2015
    Member:
    #146362
    Messages:
    10
    Gender:
    Male
    Vehicle:
    14 PreRunner SR5
    Hello all,

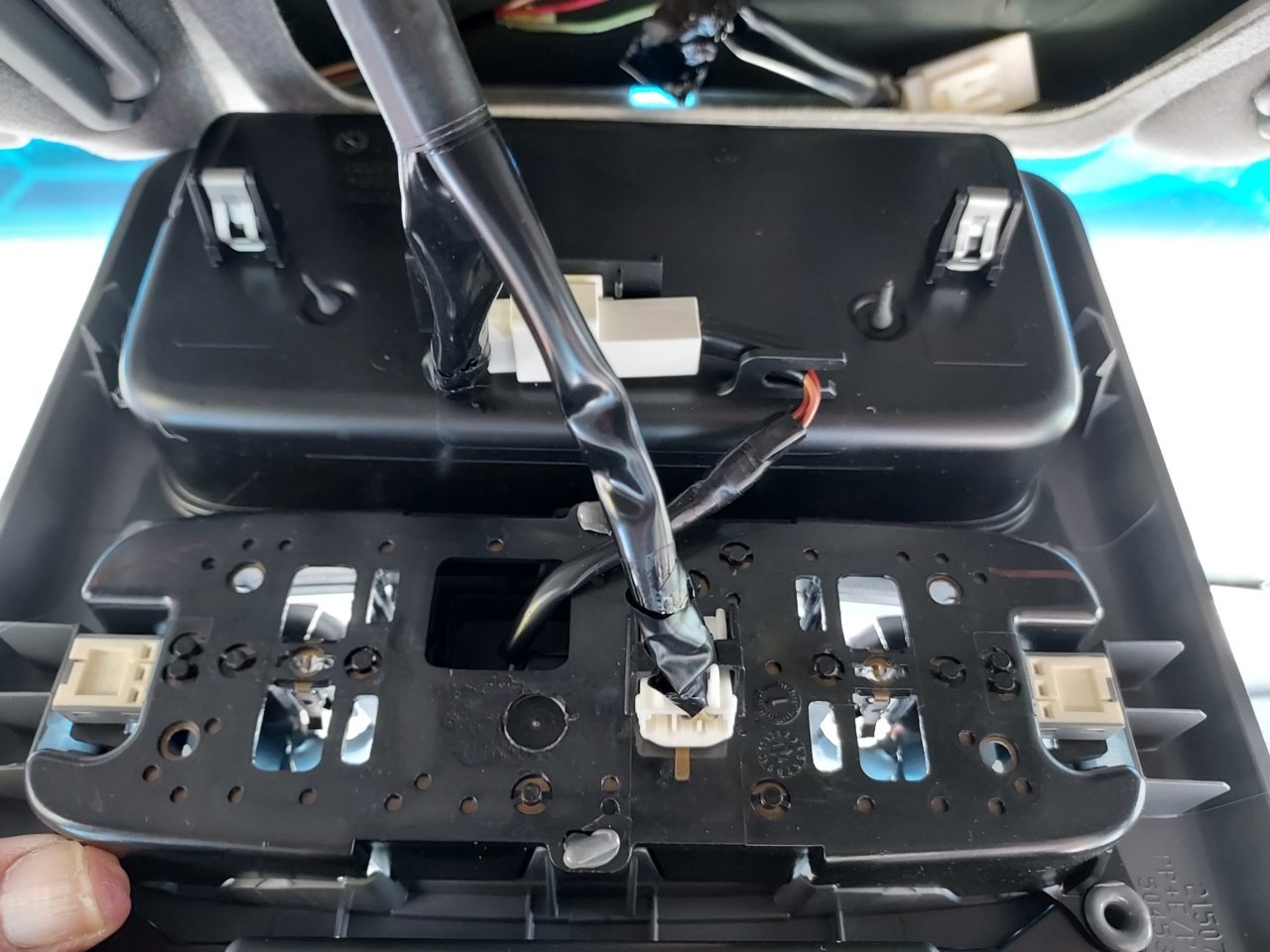

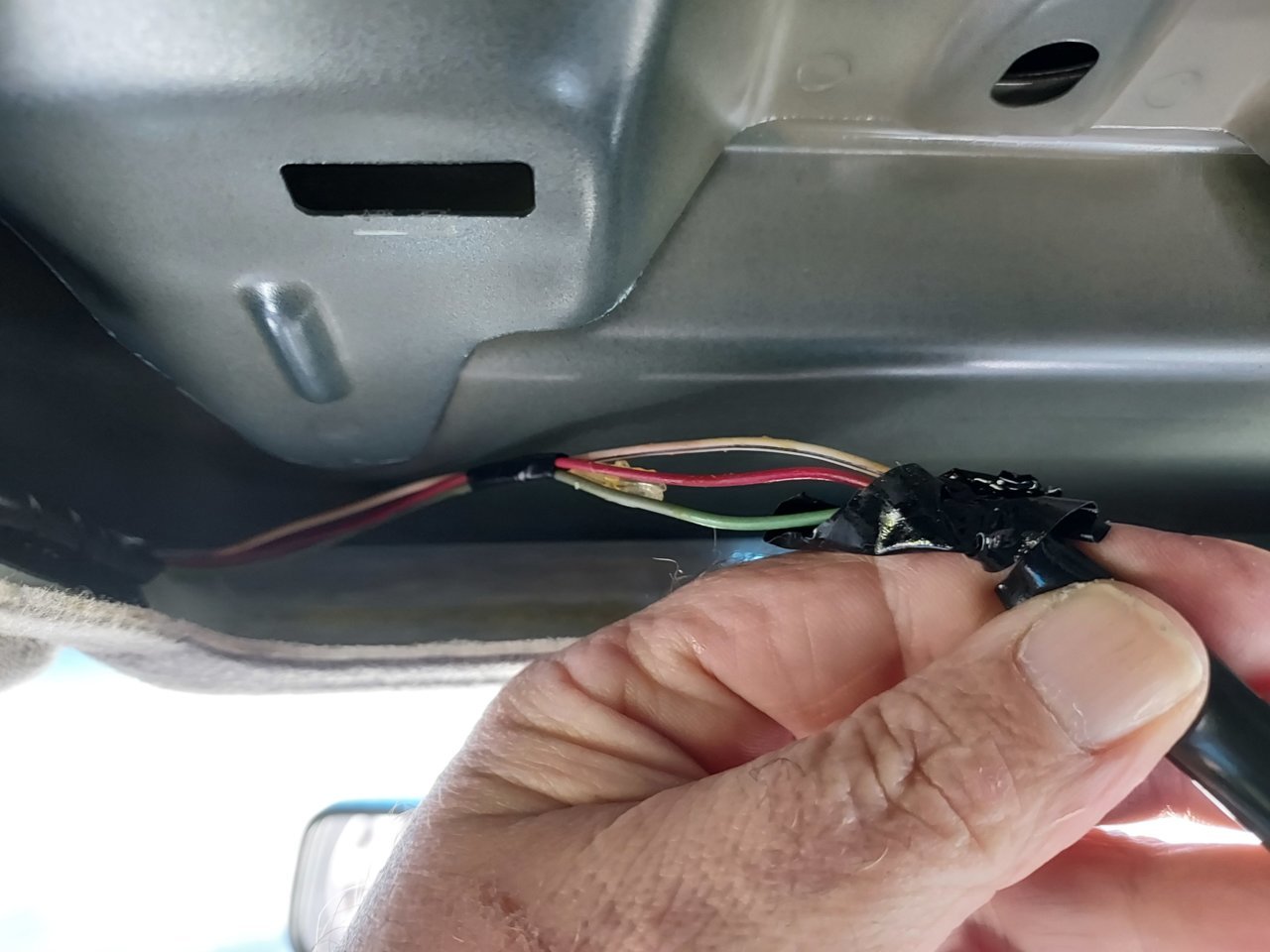

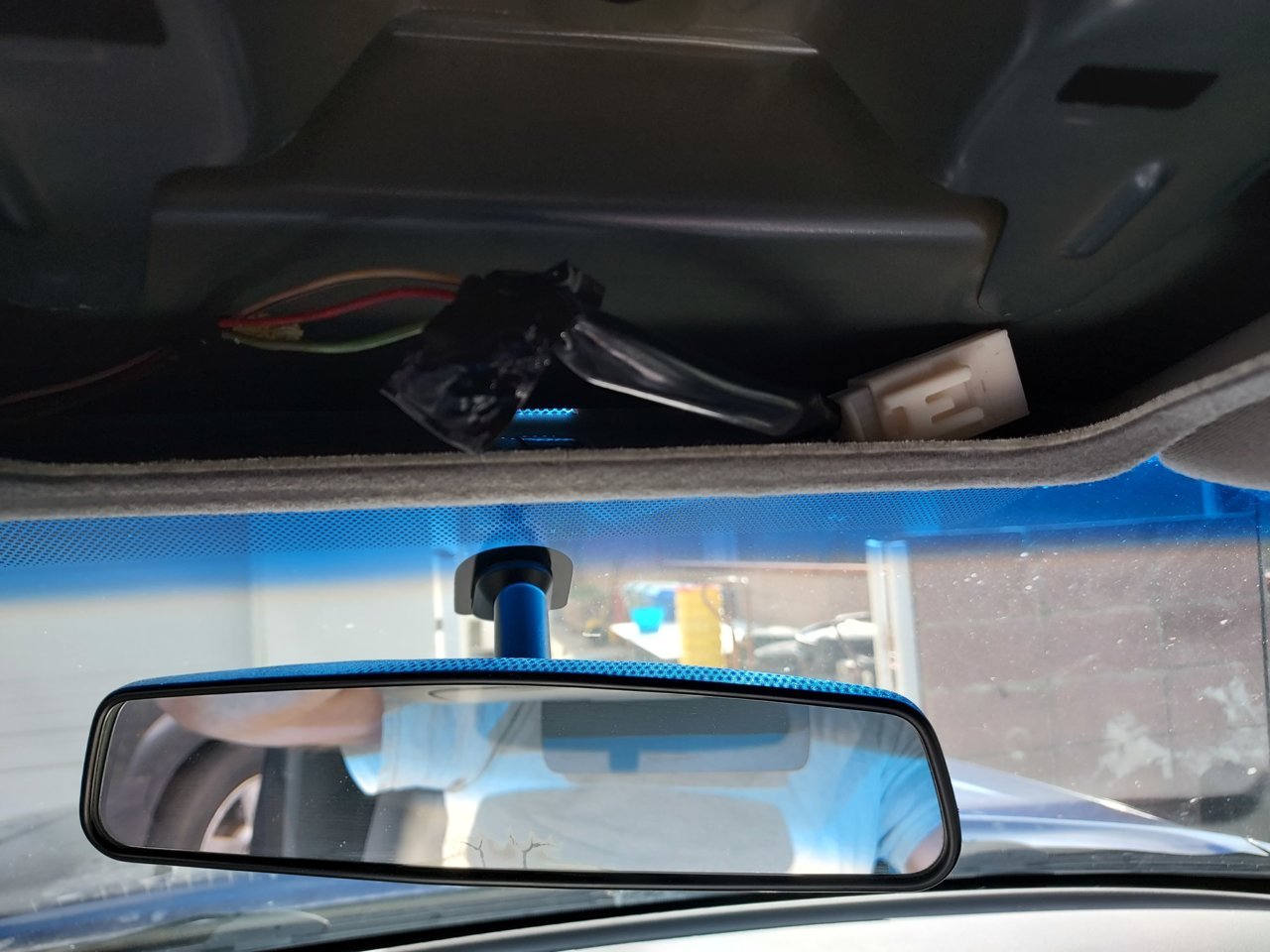

    Just got a Gentex ADVGEN20A Auto Dimming Mirror with Compass and Temperature reading and I am trying to figure out where to wire it. I have a 2014 Tacoma pre-runner with the SR5 package. The stock mirror has no wiring at all. I took the ceiling panel out and can see two possible places that it should be wired too. I am attaching pictures. Any advice would be greatly appreciated! Pic 1.jpg Pic 2.jpg Pic 3.jpg

  2. Dec 28, 2022 at 4:15 PM
    #2
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,054
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    I believe @Dm93 has this done to his truck?

    Dm93 likes this.
  3. Dec 28, 2022 at 6:18 PM
    #3
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,307
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    I have but I got the plug and play kit from Bob's Mirrors.
    You can use the wires at the factory mirror plug.
    Red (Pin 8) is hot at all times (ECU-B Fuse 7.5A)
    Light Green (Pin 1) Is switched ignition power (IG1 No2 Fuse 10A)
    White/Black (Pin 2) is Ground

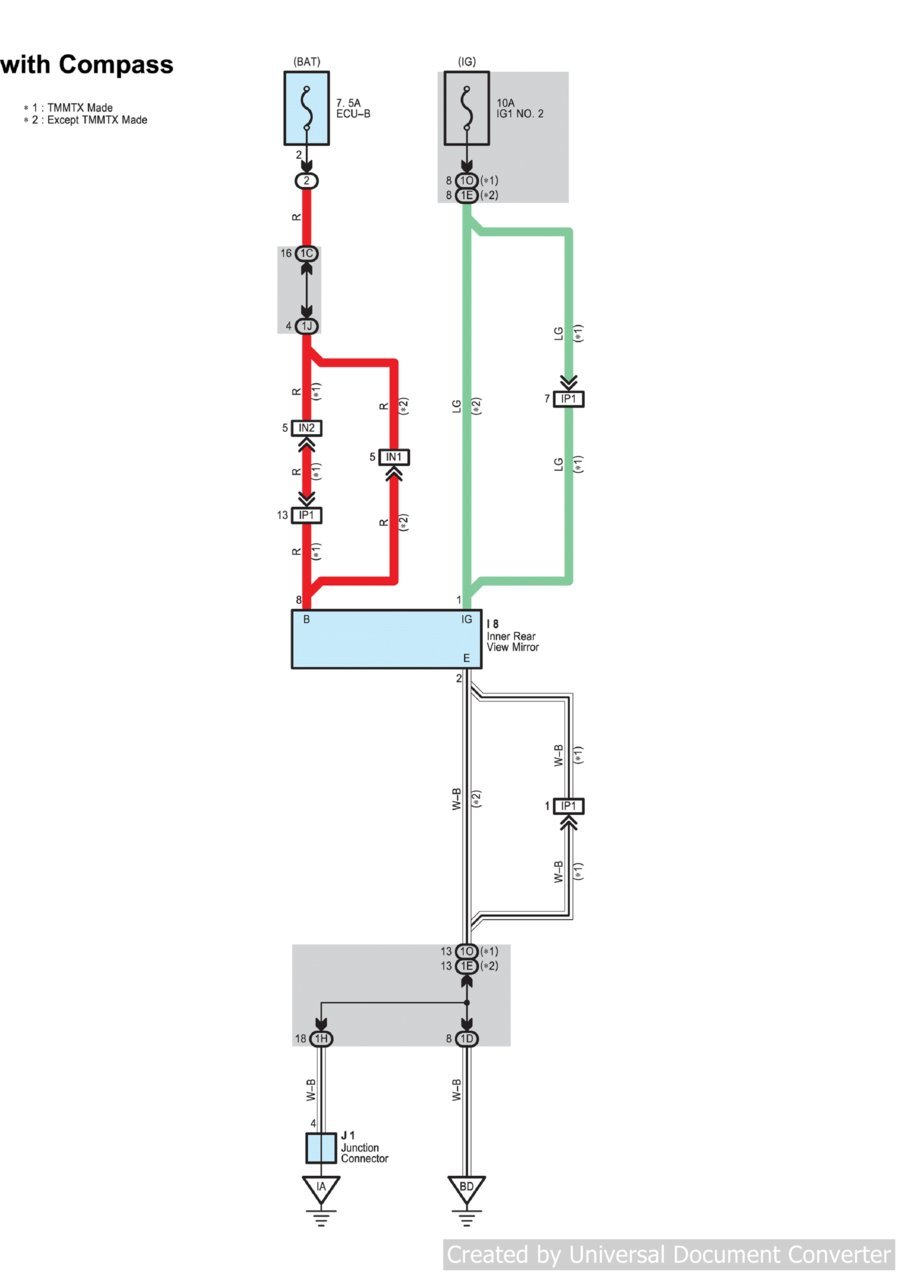

    2014 Rearview Mirror Wiring.jpg

    Ten13[OP] and Norton like this.
  4. Dec 28, 2022 at 7:29 PM
    #4
    Ten13

    Ten13 [OP] Member

    Joined:
    Jan 14, 2015
    Member:
    #146362
    Messages:
    10
    Gender:
    Male
    Vehicle:
    14 PreRunner SR5
    Thanks for the response.

  5. Dec 30, 2022 at 2:08 PM
    #5
    Ten13

    Ten13 [OP] Member

    Joined:
    Jan 14, 2015
    Member:
    #146362
    Messages:
    10
    Gender:
    Male
    Vehicle:
    14 PreRunner SR5
    Thank you Dm93! Did not have time to install the mirror until today and what you wrote was exactly what I needed and worked perfectly. Sorry the previous post was a little underwhelming as a thank you but I hadn't had a chance to look and test it out on my truck.

    Dm93 likes this.
