GMRS Radio Antennas - Ground Plane?

Discussion in 'Technical Chat' started by nartmot, Jul 9, 2020.

  1. Jul 9, 2020 at 6:05 PM
    #1
    nartmot

    nartmot [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196612
    Messages:
    340
    Gender:
    Male
    Hey guys, I am just learning about radios and I decided to purchase a Midland MXT275 GMRS radio. Ideally, I would like to mount the antenna on a Relentless Fabrication Hood Hinge Mount (pictured below). I dont want to drill into my roof or hood and dont like the idea of a magnetic mount. However, I started reading about ground planes and am totally confused now. Do I need a non ground plane antenna to use this as a mounting point? Will a NGP or GP antenna give me better results in this location? Thanks.

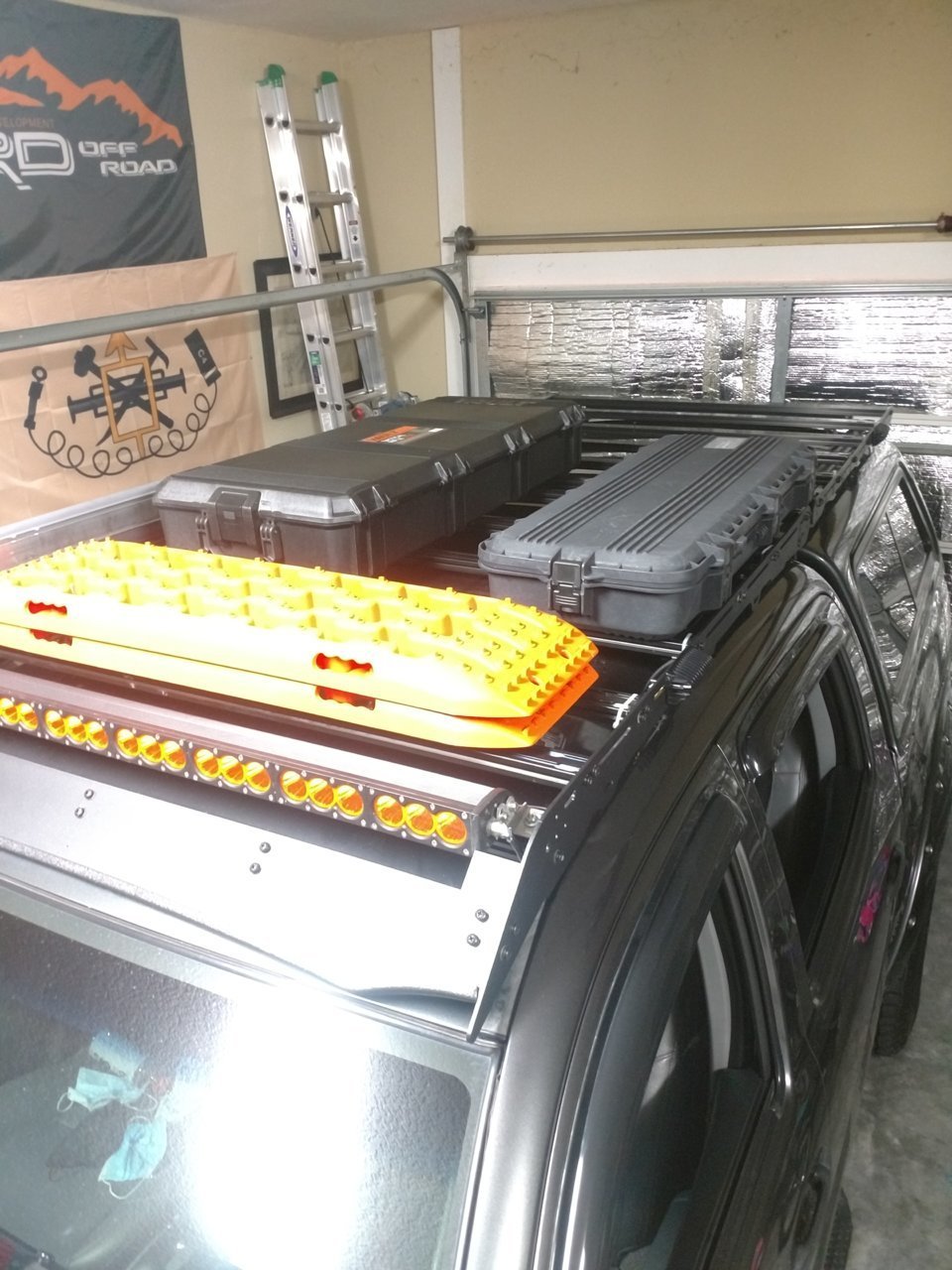

    [​IMG]

    Last edited: Jul 9, 2020
  2. Jul 9, 2020 at 9:11 PM
    #2
    cwadej

    cwadej Ballerina Award winner

    Joined:
    Feb 23, 2018
    Member:
    #245352
    Messages:
    1,086
    Gender:
    Male
    San Diego
    Vehicle:
    2011 Access Cab 4x4
    NON

    synaps3 and nartmot [OP] like this.
  3. Jul 10, 2020 at 7:43 AM
    #3
    Naveronski

    Naveronski Well-Known Member

    Joined:
    Sep 14, 2013
    Member:
    #112501
    Messages:
    7,145
    Gender:
    Male
    First Name:
    Why are you here if you don't drive a Tacoma?
    Fort Worth
    Vehicle:
    2014 MGM DCSB TRD:OR
    Non-ground plane antennas will perform better when you do not have a true ground plane.

    For example, I wanted to put an antenna on my roof rack. Highest point on the truck, but I did not want to cut into the cab.
    This has worked very well for me:
    https://www.arcantenna.com/trab4500n-m2m-400-490-mhz-black-low-profile-omni-antenna.html
    (edit: if you're going to shop around, make sure the model number is still the TRAB4500N. The "N" matters.)

    And it wasn't terribly expensive.

    nartmot [OP] likes this.
  4. Jul 10, 2020 at 11:31 AM
    #4
    nartmot

    nartmot [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196612
    Messages:
    340
    Gender:
    Male
    Thanks, guys. I seem to be getting some mixed answers on this question so still pretty confused. I also reached out to customer support at RFWiz.com and they pretty much told me that a GP antenna would be optimal with this bracket, provided the hood is metal and the bracket makes good contact with it. Any thoughts on this?

    synaps3 likes this.
  5. Jul 10, 2020 at 11:38 AM
    #5
    2013XSPX

    2013XSPX Well-Known Member

    Joined:
    Nov 29, 2015
    Member:
    #170975
    Messages:
    1,367
    Gender:
    Male
    First Name:
    Matt
    GA/FL Border
    Vehicle:
    2013 XSP-X
    Perfectly stock?
    I have a QWB450 antenna on my MTX-400. I have it mounted using the NMO on my Prinsu rails. I think I would benefit from a non-ground plane antenna or putting the 450 on a plane.

    nartmot [OP] likes this.
  6. Jul 11, 2020 at 3:05 PM
    #6
    nartmot

    nartmot [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196612
    Messages:
    340
    Gender:
    Male
    Last edited: Jul 11, 2020
    synaps3 likes this.
  7. Jul 12, 2020 at 5:00 AM
    #7
    synaps3

    synaps3 Wag more bark less

    Joined:
    Feb 27, 2017
    Member:
    #211822
    Messages:
    915
    First Name:
    Dave
    Atlanta, GA
    Vehicle:
    2017 White SR5 4x4 DCLB
    SOS armor, ARE MX walk-in, Fox coils, Dakar leafs, etc
    It's on the truck and the truck is acting as the reflector / ground plane. The hood is a huge half of that ground plane, and the rest of the truck is the other half on the other side. You would have been fine and a bit better with a GP, but the NGP will still work fine - you'll just get a bit less transmission strength.

    An NGP antenna is typically used on top of a non-metallic roof rack or top of a fiberglass camper shell, but you more commonly see them on motorcycles from my experience. I have my CB and HAM antennas both on my (metal) roof rack and I use GP antennas with both with acceptable SWR. My SWR was even better when I had them on a hood mount like yours, but I couldn't stand the wind noise.

    In either case, make sure you tune the antenna for the proper SWR. You definitely want it below 2, the closer to 1 the better.

    Firestik is very reputable - this is a good read for you: http://www.firestik.com/Tech_Docs/GP-or-NGP.htm

    nartmot [OP] and Naveronski like this.
  8. Jul 16, 2020 at 10:30 PM
    #8
    JJ04TACO

    JJ04TACO Well-Known Member

    Joined:
    Oct 12, 2013
    Member:
    #114311
    Messages:
    1,073
    Gender:
    Male
    First Name:
    Jim
    Dallas
    Vehicle:
    04 White DC/TRD
    Fox 2.5 RR front, 2.0 RR rear from AccuTune Offroad, OME Dakar Leafs, Camburg Uniball UCA's, CBI Offroad Bolt on Sliders w/kickout, Scangauge II Uniden Bearcat 880 w/ 3' Firestick on CBI antenna mount B&M Trans Cooler
    I am ditching the CB for GMRS. Probably going with a 50x1 from Btech for the mobile. I have Midland handhelds and love them, but the price of their mobiles are too much for the higher watt units like the MTX400. That said those of you who have them, how have they been?

    I think I'll use Midlands 6db gain GMRS antenna however...and/or their 3db stubby looking one.

  9. Jul 17, 2020 at 12:20 PM
    #9
    nartmot

    nartmot [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196612
    Messages:
    340
    Gender:
    Male
    I read several reports that the 6db Midland antenna is too short to be tuned properly. Look into a quality antenna from Laird, Comtelco, Diamond, or Larsen to get the most out of your radio.

  10. Jul 17, 2020 at 5:37 PM
    #10
    JJ04TACO

    JJ04TACO Well-Known Member

    Joined:
    Oct 12, 2013
    Member:
    #114311
    Messages:
    1,073
    Gender:
    Male
    First Name:
    Jim
    Dallas
    Vehicle:
    04 White DC/TRD
    Fox 2.5 RR front, 2.0 RR rear from AccuTune Offroad, OME Dakar Leafs, Camburg Uniball UCA's, CBI Offroad Bolt on Sliders w/kickout, Scangauge II Uniden Bearcat 880 w/ 3' Firestick on CBI antenna mount B&M Trans Cooler
    Awesome! Thanks. I’ll look into those for sure. I need an SWR meter for tuning as well. I thought that GMRS didn’t require much if any tuning.

    I’ll be mounting it on a front finder mount from CBI. It that makes a difference...

  11. Jul 18, 2020 at 6:31 PM
    #11
    JJ04TACO

    JJ04TACO Well-Known Member

    Joined:
    Oct 12, 2013
    Member:
    #114311
    Messages:
    1,073
    Gender:
    Male
    First Name:
    Jim
    Dallas
    Vehicle:
    04 White DC/TRD
    Fox 2.5 RR front, 2.0 RR rear from AccuTune Offroad, OME Dakar Leafs, Camburg Uniball UCA's, CBI Offroad Bolt on Sliders w/kickout, Scangauge II Uniden Bearcat 880 w/ 3' Firestick on CBI antenna mount B&M Trans Cooler
    So I looked at all those antennas and I have NO clue which is even close to what I need. I saw nothing in the 462-468 MHz range or that was noted for GMRS. If you can point to one directly that would be a start...:facepalm:

  12. Jul 18, 2020 at 6:58 PM
    #12
    nartmot

    nartmot [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196612
    Messages:
    340
    Gender:
    Male
    450 - 470 is what you want for GMRS. The one I linked above would be good for no ground plane. For general use, you will probably want to tune your antenna to about 464.5mhz. Not sure about the other brands but Laird, and I believe Comtelco, come with a chart that tells you how much antenna to trim to get a certain frequency, so you might not even need a SWR meter unless you want to be really precise.

    synaps3 likes this.
  13. Jul 19, 2020 at 6:39 PM
    #13
    JJ04TACO

    JJ04TACO Well-Known Member

    Joined:
    Oct 12, 2013
    Member:
    #114311
    Messages:
    1,073
    Gender:
    Male
    First Name:
    Jim
    Dallas
    Vehicle:
    04 White DC/TRD
    Fox 2.5 RR front, 2.0 RR rear from AccuTune Offroad, OME Dakar Leafs, Camburg Uniball UCA's, CBI Offroad Bolt on Sliders w/kickout, Scangauge II Uniden Bearcat 880 w/ 3' Firestick on CBI antenna mount B&M Trans Cooler
    May I switch gears? So where do you guys find a 20A switched source for wiring your radios? The fuse taps are usually rated for 15A and 14g wire. Should be 12g for 20A. So i'll need a good place to tap into.

  14. Jul 19, 2020 at 9:25 PM
    #14
    nartmot

    nartmot [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196612
    Messages:
    340
    Gender:
    Male
    Its probably better to wire your radio directly to the battery to minimize electrical noise and interference. If you want it switched, you will probably have to add a relay. My MXT275 only draws 3 amps so I don't have to worry about that. Not sure about your setup but the MXT400, which is 40W only draws about 10 amps and comes supplied with a 15 amp fuse.

    synaps3 likes this.
  15. Jul 19, 2020 at 10:50 PM
    #15
    JJ04TACO

    JJ04TACO Well-Known Member

    Joined:
    Oct 12, 2013
    Member:
    #114311
    Messages:
    1,073
    Gender:
    Male
    First Name:
    Jim
    Dallas
    Vehicle:
    04 White DC/TRD
    Fox 2.5 RR front, 2.0 RR rear from AccuTune Offroad, OME Dakar Leafs, Camburg Uniball UCA's, CBI Offroad Bolt on Sliders w/kickout, Scangauge II Uniden Bearcat 880 w/ 3' Firestick on CBI antenna mount B&M Trans Cooler
    The 50X1 instruction manual says it has a 20A max draw. I'd prefer not to do direct to battery because I know it will be left on. My kids can't help but push every damn button imaginable.

    That said, I wouldn't mind doing a Blue Sea or Busman for future stuff, but I just don't want to do all that for this.

    Daves300 likes this.
  16. Jul 20, 2020 at 4:07 PM
    #16
    JJ04TACO

    JJ04TACO Well-Known Member

    Joined:
    Oct 12, 2013
    Member:
    #114311
    Messages:
    1,073
    Gender:
    Male
    First Name:
    Jim
    Dallas
    Vehicle:
    04 White DC/TRD
    Fox 2.5 RR front, 2.0 RR rear from AccuTune Offroad, OME Dakar Leafs, Camburg Uniball UCA's, CBI Offroad Bolt on Sliders w/kickout, Scangauge II Uniden Bearcat 880 w/ 3' Firestick on CBI antenna mount B&M Trans Cooler
    Well, I compromised. I did an AMP-U25 from BTech to boost the power of my GMRS V1 handheld. I did get the antenna you recommended as well as the proper cable. It comes with an adapter that screws into the antenna port of the handheld. Should get 25 watts maybe more plus the benefit of the antenna. A lot cheaper than another radio setup...

    Daves300 likes this.
  17. Jul 20, 2020 at 4:16 PM
    #17
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    5,163
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    There is quite a lot of myths about ground planes and the higher the frequency the less a ground plane becomes it is a return path back to the radio so a good solid mount basically is all you need. I run 6 to 80 meters in my truck with pretty much nothing left out as you well know the late trucks have a plastic bed my 6-80 meter antenna is mounted on the right rear quarter to the support at the rear of the bed not much of a ground plane there but I have worked the world mobile

    nartmot [OP] likes this.
  18. Jul 20, 2020 at 4:20 PM
    #18
    nartmot

    nartmot [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196612
    Messages:
    340
    Gender:
    Male
    Interesting setup. Seems like it will give you a lot of flexibility in terms how you use it (portable vs mobile) and it definitely doesn't hurt that you saved some cash. 25W seems like plenty too. I just want to be able to communicate with my buddies if we get strung out on a trail and I think situations where we are 2+ miles apart would be extremely rare.

    JJ04TACO likes this.
  19. Jul 20, 2020 at 4:26 PM
    #19
    nartmot

    nartmot [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196612
    Messages:
    340
    Gender:
    Male
    You could be right. Maybe it doesnt matter a whole lot. FWIW, I still haven't found a conclusive answer to my question. It has pretty much been a 50/50 split for GP vs NGP and I even posted on the GMRS forums (isn't it cool that there is a forum for any interest you can think of?). @synaps3 's answer was probably the best one since he has experience with the same mount and actually hooked up a SWR meter.

    JJ04TACO likes this.
  20. Jul 20, 2020 at 6:43 PM
    #20
    JJ04TACO

    JJ04TACO Well-Known Member

    Joined:
    Oct 12, 2013
    Member:
    #114311
    Messages:
    1,073
    Gender:
    Male
    First Name:
    Jim
    Dallas
    Vehicle:
    04 White DC/TRD
    Fox 2.5 RR front, 2.0 RR rear from AccuTune Offroad, OME Dakar Leafs, Camburg Uniball UCA's, CBI Offroad Bolt on Sliders w/kickout, Scangauge II Uniden Bearcat 880 w/ 3' Firestick on CBI antenna mount B&M Trans Cooler
    Yeah, I can see people getting into the quest for a perfect setup. I compromised a bit in overall wattage. I wanted to max it out at the full 50. But I feel 20-40 seems really good given the quality antenna and clean signal from the amp.

    I can unscrew the antenna cable to the amp and go back to the original handheld one for walking around. The amp was smaller and had a speaker on it too. Plus I have the option to use a mike plugged into the front if I want. Not too shabby.

    nartmot [OP] likes this.
