Goodbye Axle Wrap Mod

Discussion in '1st Gen. Tacomas' started by iDigTulsa, Aug 14, 2010.

  1. austinramsay

    austinramsay Well-Known Member

    Joined:
    Apr 5, 2012
    Member:
    #76345
    Messages:
    1,417
    Gender:
    Male
    First Name:
    Austin
    Yuma, Arizona
    Vehicle:
    2002 Tacoma TRD SR5
    Mine kinda did the something. Just did this mod yesterday and it stopped 85% of all the shuttering ;) IT WORKS :D

  2. kaymonster

    kaymonster Member

    Joined:
    Sep 17, 2011
    Member:
    #63675
    Messages:
    12
    Gender:
    Male
    Did mine exactly like this tonight and it works perfectly...no more axle wrap.

  3. kaymonster

    kaymonster Member

    Joined:
    Sep 17, 2011
    Member:
    #63675
    Messages:
    12
    Gender:
    Male
    Oh, and thats the same kit i used.

  4. monkeyface

    monkeyface Douchebag, or just douche if we're friends

    Joined:
    May 13, 2012
    Member:
    #78740
    Messages:
    1,412
    Gender:
    Male
    Colorado
    Vehicle:
    2012 4WD AC SR5, 4.0, MT, sold 27k
    Does this mod reduce the articulation off-roading, the drop the rear suspension needs to keep both rear tires on the ground?

  5. austinramsay

    austinramsay Well-Known Member

    Joined:
    Apr 5, 2012
    Member:
    #76345
    Messages:
    1,417
    Gender:
    Male
    First Name:
    Austin
    Yuma, Arizona
    Vehicle:
    2002 Tacoma TRD SR5
    Not sure about how it affects flexing but it does make the back stiffer, so im guessing it will affect it.

  6. Agk007

    Agk007 New Member

    Joined:
    Sep 18, 2012
    Member:
    #87218
    Messages:
    3
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    '12 Tacoma 4x4 TRD Offroad
    Bone stock........for now
    Hey everyone, i have a 2012 Taco that has the 3 leaf set. Since off the lot it squats bad on acceleration and feels kinda weak in the rear. I want to stiffen up the rear with this mod, but i also noticed some guys said it helped with shudder? my truck has the dreaded shudder on acceleration and braking. Would this mod help that as well? i can only think the shudder is exacerbated because of axle wrap since it changes driveline angles. since its mostly on acceleration i feel this vibration, would it be right to put the clamps behind the axle instead of the front since when you accelerate the axle turns up so the springs fan at the back?

  7. kingston73

    kingston73 Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20845
    Messages:
    2,109
    Gender:
    Male
    Here, there, and everywhere
    Vehicle:
    09 SR5 4.0L 4x4
    I know this is the 1st gen section but I have a 2nd gen also and added my old set of under-leaf helper springs to the front and a set of overleaf helpers to the back. It definitely makes a difference without making the ride harsh.

  8. FailRated

    FailRated RTO

    Joined:
    Mar 13, 2012
    Member:
    #74855
    Messages:
    294
    Gender:
    Male
    First Name:
    Evan
    Maryland
    Vehicle:
    03 Double Cab TRD
    5100's w/ Eibachs, Front sway bar in trash mod, Diff drop, 265/75-16 Duratracs or 33x10.50 KM2's on 15x8 wheelers steels, ARB front bumper, Warn VR8000 winch, Trailgear sliders, Allpro rear bumper, Sky Offroad E-Locker guard, Sky Offroad weld on differential guard, Savage skid plates w/ Budbuilt cross member, e-locker rear, ARB air locker front, 4.56 gears, bought it from my mom who bought it new :-D
    I always wondered why I didn't have the horrible axle wrap everyone always talks about and I have 1" lift blocks:eek: on stock springs:eek::eek:

    I installed similar helper springs about 6 years ago when I was pulling a heavy trailer everyday. Only difference is mine seem to be a little more vehicle specific and are mounted behind the axle and on top of the leaf spring(see photo below). They are now loosened up almost completely since I don't really tow much anymore but they are still on there and I still have zero axle wrap.
    [​IMG]

    Mine seems to do pretty well and my shocks are too short as well.

    [​IMG]

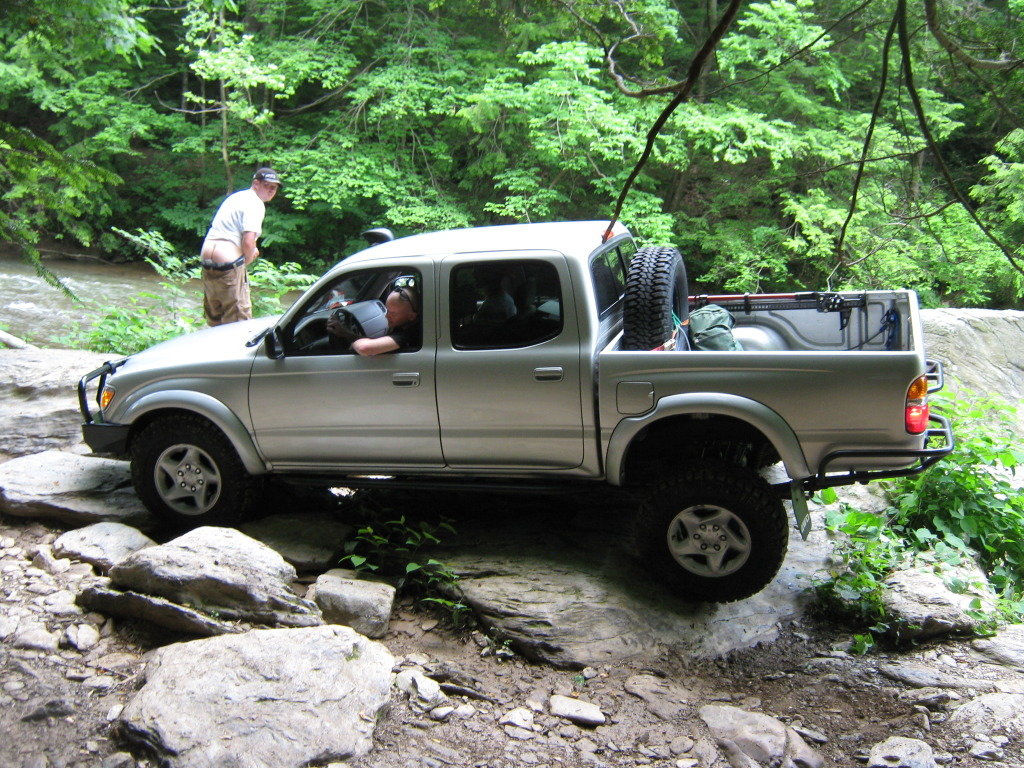

    [​IMG]

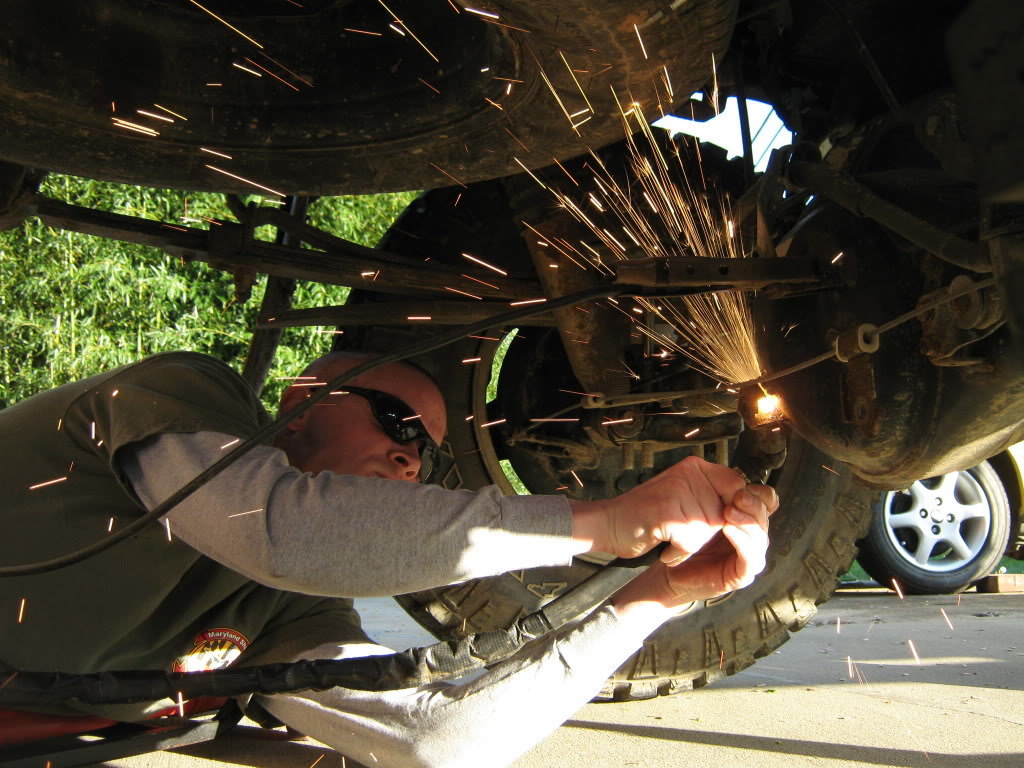

    [​IMG]

  9. BluePearlShark99

    BluePearlShark99 because_minitruck

    Joined:
    Sep 30, 2012
    Member:
    #88031
    Messages:
    13,999
    Gender:
    Male
    First Name:
    Jon
    Republic of Texas
    Vehicle:
    Ichibahn TRD "Misti"
    great write up. I installed the advance auto parts under leaf helpers today behind the axle and I also bought the extra U bolts and mounted before axle. I'm still hearing the THUD when i shift into drive from reverse but i did notice it happens less often and is a little quieter. also my rear suspension is super stiff now so tomorrow i'm going to re-do it. I'm going to take out the rivets for the "medium" load lowering the load capacity to a "small" and adjust the distances between the four U bolts and the axle.

  10. austinramsay

    austinramsay Well-Known Member

    Joined:
    Apr 5, 2012
    Member:
    #76345
    Messages:
    1,417
    Gender:
    Male
    First Name:
    Austin
    Yuma, Arizona
    Vehicle:
    2002 Tacoma TRD SR5
    thats probably your drive shaft

  11. BluePearlShark99

    BluePearlShark99 because_minitruck

    Joined:
    Sep 30, 2012
    Member:
    #88031
    Messages:
    13,999
    Gender:
    Male
    First Name:
    Jon
    Republic of Texas
    Vehicle:
    Ichibahn TRD "Misti"
    so should i grease it? and if so how and what do i use?

    for now i removed the leaf helper, placed the u bolts in front of axle 5in and in rear of axle about 1/4 from break line

  12. BamaToy1997

    BamaToy1997 ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,334
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    Just an FYI, you never should use a flat washer with a lock washer. It defeats the purpose of a lock washer. The lock washer edges are designed to bite into the nut, and the surface you are tightening against. If you put a flat washer under the locking washer, then the lock washer will bite into the nut and the flat washer....which is simply pressed against the surface. This would allow the POTENTIAL (Re-read that word, I did not say guarantee) that a nut installed this way could loosen up.

  13. BluePearlShark99

    BluePearlShark99 because_minitruck

    Joined:
    Sep 30, 2012
    Member:
    #88031
    Messages:
    13,999
    Gender:
    Male
    First Name:
    Jon
    Republic of Texas
    Vehicle:
    Ichibahn TRD "Misti"
    Bamatoy1997: i cant stop watching that blonde in your signature lol

  14. BamaToy1997

    BamaToy1997 ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,334
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    Step 1, move mouse to upper right corner or browser tab
    Step 2, place cursor over little "X"
    Step 3, close eyes
    Step 4, Just say "click!"

    lol

  15. wannabe92z

    wannabe92z Member

    Joined:
    Apr 9, 2012
    Member:
    #76606
    Messages:
    16
    Gender:
    Male
    First Name:
    Mike
    K&N air filter
  16. TacoDell

    TacoDell Truck ~n~ Tow

    Joined:
    Jun 20, 2008
    Member:
    #7448
    Messages:
    969
    Gender:
    Male
    Hemet/SoCal
    Vehicle:
    '00 Tacoma SR5 4X
    Donahoe CO's, Deaver leaf paks, Lockright Locker, All Pro body armor ( sliders, front and rear bumpers ), All Pro under belly skids, Warn M8K w/Masterpull synthetic line, Dual Optima battery system, 4 ea LightForce Striker 170 offroad lights, 8 ea wired rock lights, and plenty more I'm sure
    This U bolt clamping of the leaf spring pak
    is the worst bandaide idea I've read of.
    possibly even unsafe

    mfg'r designed leaf spring u bracket clamps are not U bolt clamps...
    and do not sandwich (clamp) individual leafs together.
    usually the lower U bracket is riveted to a lower leaf in the pack
    and the upper closure of that is a roller (bolt w/roller sleeve)

    individual leafs that are clamped cannot flex properly during compression.
    this can cause a bouncier ride at the rear.
    because the individual leafs in the pak are binding.

    when individual leafs in a pack are compressed...
    not only do they bend (flex)...
    but they also shift outward of the center of the leaf pack.

    installing U bolt clamps to limit leaf spring movement...
    isn't a proper correction for axle wrap.

    I had Deaver custom build me some 9lf paks...
    with consideration of the common axle wrap issue.
    What was engineered, eliminated axle wrap to nearly nonexistent.
    and with minimal compromising of the leaf paks full flexibility.

    Generally most axle wrap occurs at the forward end of the leaf pak.
    There, the leaf pak will twist and arch when under load.
    Stiffening up the forward side of the leaf pak will help
    in combating axle wrap.
    Too stiff tho' and it could degrade compression/droop travel some.

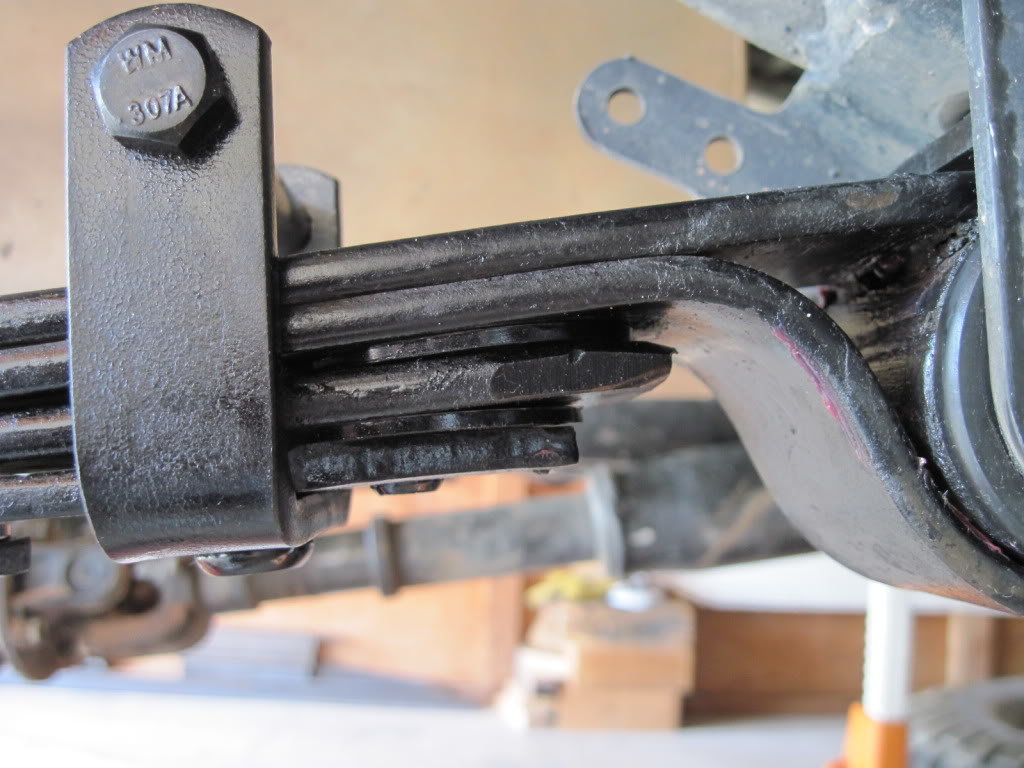

    [​IMG]

  17. jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,249
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    Spring clamps will work. They're not unsafe, they are cheap, and they will likely wear out your spring pack quicker than other options.

    A traction bar is the best fix for the axle wrap issue; understandably many people may not want to go to the cost and trouble of having one done up right. Unless you're working the truck hard offroad or regularly towing heavy loads, it's probably not needed.

  18. TacoDell

    TacoDell Truck ~n~ Tow

    Joined:
    Jun 20, 2008
    Member:
    #7448
    Messages:
    969
    Gender:
    Male
    Hemet/SoCal
    Vehicle:
    '00 Tacoma SR5 4X
    Donahoe CO's, Deaver leaf paks, Lockright Locker, All Pro body armor ( sliders, front and rear bumpers ), All Pro under belly skids, Warn M8K w/Masterpull synthetic line, Dual Optima battery system, 4 ea LightForce Striker 170 offroad lights, 8 ea wired rock lights, and plenty more I'm sure
    ^ X2 ...but not the more common ladder type traction bars.

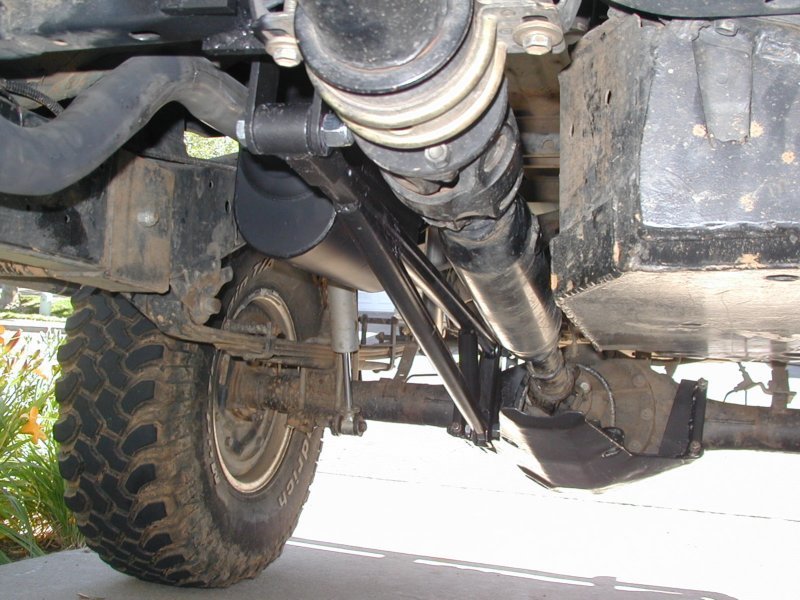

    more similar to this single trac bar...

    [​IMG]

    ^ edited for replacement pictar
    [​IMG]

  19. jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,249
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    Nah...you need the ladder frame type. A single bar heimed at each end won't effectively limit axle housing rotation. Putting one end on a less flexible joint (say, just a bolt and bushing) might be adequate, but will likely bind with suspension articulation.

    Ladder-type bar rigidly mounted to the axle housing with a heim/shackle connection to a frame crossmember is ideal on these trucks.

  20. TacoDell

    TacoDell Truck ~n~ Tow

    Joined:
    Jun 20, 2008
    Member:
    #7448
    Messages:
    969
    Gender:
    Male
    Hemet/SoCal
    Vehicle:
    '00 Tacoma SR5 4X
    Donahoe CO's, Deaver leaf paks, Lockright Locker, All Pro body armor ( sliders, front and rear bumpers ), All Pro under belly skids, Warn M8K w/Masterpull synthetic line, Dual Optima battery system, 4 ea LightForce Striker 170 offroad lights, 8 ea wired rock lights, and plenty more I'm sure
    I typed single... meaning... only one

    Not a single bar (tube)

    yes I suppose a "A" frame could still be considered a ladder bar
    so that was a poor choice in wording on my part.

    that is why I put the picture up.
    tho' maybe not a perfect example... it brings it closer.
