Goodbye Axle Wrap Mod

Discussion in '1st Gen. Tacomas' started by iDigTulsa, Aug 14, 2010.

  1. Apr 10, 2013 at 10:18 PM
    #221
    payrow

    payrow Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20858
    Messages:
    77
    Gender:
    Male
    First Name:
    Pete
    SoCal
    Vehicle:
    09 Tacoma Off Road
    Picked up my spring clamps from Autozone today, gonna get some washers and install them this weekend. I really hope you guys are right and this gets rid of the f-ing bump! I'll let you guys know the results.

  2. Apr 14, 2013 at 9:02 PM
    #222
    payrow

    payrow Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20858
    Messages:
    77
    Gender:
    Male
    First Name:
    Pete
    SoCal
    Vehicle:
    09 Tacoma Off Road

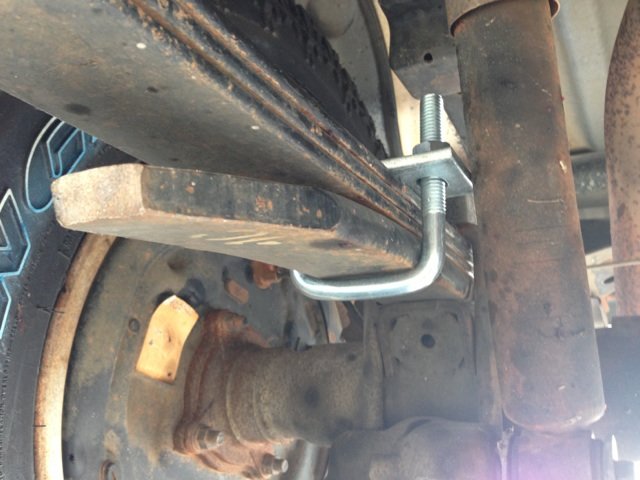

    Well, completed the install and after driving around yesterday and today....NO MORE BUMP!!!!
    Thanks for your help guys!

    Installed the 2.5 in wide (Autozone Part Number: 13-1401A) clamps about 4in in front of the axle and torqued them down to 50ft lbs. That did the trick!

    I am happy happy happy. :D :D :D

    [​IMG]

  3. May 10, 2013 at 3:20 AM
    #223
    bldegle2

    bldegle2 OldPhart

    Joined:
    Apr 16, 2013
    Member:
    #102169
    Messages:
    1,065
    Gender:
    Male
    floyd, VA
    Vehicle:
    2000 Prerunner TRD
    throttle body extension, K&N dropin, custom rear sway bar, bilsteins, 2010 Tacoma 17" alloys w/265's, driveshaft mods, bullbar, .75" Bora hubcentric spacers
    Applied two separate Advance Auto discount coupons, one for 20% and another for 30% (total cost came to $60 @today's prices) at two different stores:woot:, so I got the under leaf fix axle wrap
    fix for the front and the Helwig 550 equivalent for the rear...

    First, if you are not hauling heavy loads, you may find the front underleaf fix enough for the wrap and the bump....

    Instantly got rid of axle wrap, especially nice not to have the "bump" when first releasing brakes after coming to a complete stop, totally kool!!

    The 550 clone I will test in a few days with a huge load of wood..

    Impressions, probably the best $60 I sent on the truck so far, tracks better, actually is smoother feeling, especially on freeway, handles uneven bumps better, the whole rear suspension just feels much tighter and smoother...

    Recommendation, for $60 it is a cheap fix that works with sagging springs....the axle wrap is very disruptive to the driveline as a whole on these trucks, and the CB, rear universal and leafs take the brunt of the abuse, dang truck rides like new, I swear...and smooth from stopped to full speed floored, no driveline shimmy, no axle wrap thump, drives like it is supposed to....

    Update, to OP, I installed with the button in furthest hole, working just fine, will keep an eye on it...

    Last edited: May 11, 2013
  4. May 13, 2013 at 8:28 AM
    #224
    amp3d

    amp3d Well-Known Member

    Joined:
    Aug 26, 2011
    Member:
    #62377
    Messages:
    71
    Gender:
    Male
    First Name:
    Mark
    Toronto
    Vehicle:
    02 Prerunner TRD
    I'm looking around locally (Toronto) for a place that has some ubolt kits but can't find any. If any of you know the size of the ubolts maybe I can locate those individually.

    I'm dying to fix that axle wrap too!

    Anyone in Canada pick up a leaf ubolt kit from any Canadian stores or have a part number for me? :)

  5. May 13, 2013 at 8:29 AM
    #225
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    22,120
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Any spring shop will make them to your specs or Cap-it

  6. May 13, 2013 at 5:24 PM
    #226
    coma09

    coma09 Senior Member. Hey, what's That supposed to mean?

    Joined:
    Jun 22, 2009
    Member:
    #18751
    Messages:
    209
    Gender:
    Male
    BC Canada
    Vehicle:
    2013 taco access cab 4x4
    Putco led map light bulbs, bed mat, Xiang trifecta tonneau, blackout front emblem, paint tow hoop, led bed light strip, scan gauge II, debadge, buff paint, oem fog light kit, 1000w inverter, Viair 300P compressor, Contura V dash switches, chop last L bend from exhaust, remove charcoal air filter, extinguisher, mag light, Ss side steps, kayak rack, tailgate security, bed mat security
    Canadian tire sells u bolts,bar,and nuts at different lengths as hardware. Measure the length you need (height of spring stack) allowing for additional length for nuts and bar.

  7. May 14, 2013 at 12:33 PM
    #227
    amp3d

    amp3d Well-Known Member

    Joined:
    Aug 26, 2011
    Member:
    #62377
    Messages:
    71
    Gender:
    Male
    First Name:
    Mark
    Toronto
    Vehicle:
    02 Prerunner TRD
    I was at CT today but they only had ubolts for trailers, which didn't come with any plates that would be needed for this install. I'll just have to wait until I visit the states and grab some then. Who knew it would be so difficult to find simple u bolts!

    What about these? Would these work?
    http://www.princessauto.com/pal/en/...o-3000-lb-Trailer-Axle-Mounting-Kit/2080076.p

    Last edited: May 14, 2013
  8. May 14, 2013 at 1:33 PM
    #228
    Taco No Baka

    Taco No Baka Interco Tire Snob

    Joined:
    May 9, 2013
    Member:
    #103866
    Messages:
    2,259
    First Name:
    Lee
    Tampa, FL
    Vehicle:
    1998 SR5 Xtra Cab 4WD V6 Spartan Package
    OME 3" lift with Dakar rear leaves, 33x13.50 Super Swamper LTBs on Pro Comp Series 97 15x8 Steelies, Bud Built Front Skid, 4xI rock sliders, Lincoln Locked front diff, LED cab clearance lights, Sway Bar Delete, Rear Diff Breather Mod, Autometer Monster Tach, Cobra 25LTD Classic, Roof-mounted 2' Firestik II, Garmin GPS
    In my experience this statement is wrong--at least the first part anyway. A traction bar has to resist the total rotational force the pinion gear is exerting on the ring gear (less whatever the springs assist with) until the tires break traction.

    I had a '92 YJ with 16x35 Boggers on it. It had axle wrap so bad that in deep sand or mud, the pinion would twist up far enough to lock the yokes together and then it would literally twist the driveshaft in half like a wet paper towel. My solution (the wrong one, I've since learned) was to put a traction bar on it. The result with one traction bar was that it tore the rosette weld out of the axle tubing the bar was mounted on and allow the diff housing to rotate on the tube. I had the tube rewelded and put two bars on...and it started ripping the mounts off the tubing. That's a LOT of force twisting the axle housing to cause that sort of mayhem.

    Having said that, the force at the forward end of the bar is an up and down force, not a push-pull or twisting force, on the end of a three or four foot lever so I would imagine that the crossmember is probably up to it, especially with those brutal spring packs on the truck in the picture. Which, btw, was the solution I should have used on my YJ...thicker, stouter springs that twisted less. Even a relatively cheap AAL probably would have solved 90% of the problem, but I was young and stupid then and just didn't know better.

    FWIW, I definitely like the design of that traction bar though. It looks awesome.

    Last edited: May 14, 2013
  9. May 14, 2013 at 6:21 PM
    #229
    bldegle2

    bldegle2 OldPhart

    Joined:
    Apr 16, 2013
    Member:
    #102169
    Messages:
    1,065
    Gender:
    Male
    floyd, VA
    Vehicle:
    2000 Prerunner TRD
    throttle body extension, K&N dropin, custom rear sway bar, bilsteins, 2010 Tacoma 17" alloys w/265's, driveshaft mods, bullbar, .75" Bora hubcentric spacers
    Here is another benefit to the axle wrap mod, I went to one of the properties today, it is about a 5 mile dirt and gravel road once you get off the pavement with a lot of washout waves and uphill waves, dips and rocks and whatever, before the mod, it was totally annoying going through the wash wave crap, with the mod, the axle isn't dancing the axle wrap bounce with each hit and release, it actually was a really smooth ride, the rear end felt glued to the surface....side benefits are obvious, parts are going to last mucho longer....

    Last edited: May 14, 2013
  10. May 14, 2013 at 7:12 PM
    #230
    wolfgang123

    wolfgang123 Well-Known Member

    Joined:
    Jul 7, 2009
    Member:
    #19369
    Messages:
    1,360
    Gender:
    Male
    First Name:
    Skyler
    Statesboro, GA
    Vehicle:
    1997 TACOMA - 4x4
    exactly were i was coming from with my argument.

  11. May 14, 2013 at 8:55 PM
    #231
    Taco No Baka

    Taco No Baka Interco Tire Snob

    Joined:
    May 9, 2013
    Member:
    #103866
    Messages:
    2,259
    First Name:
    Lee
    Tampa, FL
    Vehicle:
    1998 SR5 Xtra Cab 4WD V6 Spartan Package
    OME 3" lift with Dakar rear leaves, 33x13.50 Super Swamper LTBs on Pro Comp Series 97 15x8 Steelies, Bud Built Front Skid, 4xI rock sliders, Lincoln Locked front diff, LED cab clearance lights, Sway Bar Delete, Rear Diff Breather Mod, Autometer Monster Tach, Cobra 25LTD Classic, Roof-mounted 2' Firestik II, Garmin GPS
    Right, but then you have to consider this was happening with 35 inch tall by 16 inch wide BOGGERS which generate some monstrous grip, well beyond anything a 32x11.50 or even a 33x12.50 BFG KM2 or Goodyear MT/R is capable of. And it didn't get any better when I put the 4.56 gears in it. I think the final tally by the time I traded the YJ in was 9 driveshafts, two sets of ring and pinions, a yoke, and countless u-joints. Although after I had the traction bars on, the damage slacked off since I used them as a warning sign. Once I tore one traction bar off, I knew it was time to shift from participant to spectator mode before any serious damage was done.

    I still agree with JAndrews' conclusion though; your crossmember would be fine. Sure, there's a lot of force twisting the axle, but not only are your springs absorbing some of it, but the traction bar is, in effect, a 3 or 4 foot level attached to the axle. Think of it like a long breaker bar on a stubborn bolt. The amount of force you apply to the end of the bar is far less than what is being applied to the bolt. Now imagine the axle is the bolt and the traction bar is the breaker bar with the end that's attached to the crossmember being where your hand is on the breaker bar. There's a lot less force on the crossmember than there is on the mount on the axle.

    If it was a front-to-back force, I might be a bit worried, but since it's a vertical up and down force, in the direction that the crossmember is the strongest, it should be fine. Especially since the mount looked like it had a fairly wide bearing surface on the crossmember, distributing the load over a wider area than just the width of the shackle.

    FWIW, I never had the front connection on my traction bars fail. It was always on the axle-side that the carnage occurred.

    Edit: Sorry for being off-topic. Just thought what I felt was erroneous information needed to be corrected.

    Last edited: May 14, 2013
  12. Aug 28, 2013 at 6:22 PM
    #232
    2008tacomaowner

    2008tacomaowner Well-Known Member

    Joined:
    Jul 25, 2013
    Member:
    #109032
    Messages:
    73
    Gender:
    Male
    Cleveland, TN
    Vehicle:
    2008 Sr5 4x4
    Bilstien 5100's @ 2.5 up front, 2" add-a-leaf.
    Just did this today on my 08 and holy s*** its a new truck no more weird thumps or any odd noises from anywhere wish I would have found this site long ago. I'm sure it's just temporary but has stop the squeaking as well.

  13. Sep 1, 2013 at 9:30 PM
    #233
    Kurama

    Kurama Member

    Joined:
    Sep 1, 2013
    Member:
    #111652
    Messages:
    14
    Gender:
    Male
    Minnesota
    Vehicle:
    04 TRD 4x4

    So I bought the kit yesterday, installed it yesterday, and test drove it to work today. It's been absolutely awesome in getting rid of that axle-wrap until I get new leaf-springs. Heck, it evens smoothens out my ride too as a added bonus. The BIG question I have is, I installed the U-bolt like SpeedoJosh did. While it may sound like a dumb question, do I need to worry about that bracket hitting the shock? Mine has about 1/3 of a centimeter gap between the bracket and the shock.

  14. Sep 2, 2013 at 3:31 AM
    #234
    bldegle2

    bldegle2 OldPhart

    Joined:
    Apr 16, 2013
    Member:
    #102169
    Messages:
    1,065
    Gender:
    Male
    floyd, VA
    Vehicle:
    2000 Prerunner TRD
    throttle body extension, K&N dropin, custom rear sway bar, bilsteins, 2010 Tacoma 17" alloys w/265's, driveshaft mods, bullbar, .75" Bora hubcentric spacers
    grinder action on end of flat plate, done..

    oh, and yes, it will hit with suspension flex as it stands now...

  15. Sep 2, 2013 at 12:52 PM
    #235
    Kurama

    Kurama Member

    Joined:
    Sep 1, 2013
    Member:
    #111652
    Messages:
    14
    Gender:
    Male
    Minnesota
    Vehicle:
    04 TRD 4x4
    Thanks! No grinder available so i'll get creative. I wasnt comfortable with it that close anyways.

  16. Apr 5, 2014 at 9:55 AM
    #236
    kellydean

    kellydean New Member

    Joined:
    Apr 4, 2014
    Member:
    #126957
    Messages:
    3
    Gender:
    Male
    Keswick,Ontario
    Vehicle:
    05prerunner
    Does this system work on two wheel drive as well.

  17. Apr 5, 2014 at 9:58 AM
    #237
    payrow

    payrow Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20858
    Messages:
    77
    Gender:
    Male
    First Name:
    Pete
    SoCal
    Vehicle:
    09 Tacoma Off Road
    Yep. Worked like a charm on my 2WD. Night and day difference!!!

  18. Apr 19, 2014 at 2:21 PM
    #238
    Tacoma59

    Tacoma59 New Member

    Joined:
    Apr 18, 2014
    Member:
    #127956
    Messages:
    2
    Gender:
    Male
    First Name:
    Steve
    CT
    Rear shackles with a 2.5" front leveling kit
    Will this work if you have the rear shackle set up? I have an o1 regular cab Tacoma 4x4 and a 2.5" front leveling kit. I don't hear a clunk all the time but it is there at times.

    Thanks

  19. Apr 25, 2014 at 12:50 PM
    #239
    Tacoma59

    Tacoma59 New Member

    Joined:
    Apr 18, 2014
    Member:
    #127956
    Messages:
    2
    Gender:
    Male
    First Name:
    Steve
    CT
    Rear shackles with a 2.5" front leveling kit
    Not a bad idea but the way you installed the other end by using the U Bolt spacer under the leaf with no support between the upper top bolts isn't very good. I cut another metal shim and placed it between the top bolts with a piece of rubber on top which eliminated two problems.

    #1 Vibration
    #2 Making it impossible to over tighten the top bolts/squeeze the weak brackets inward.

  20. Jul 19, 2014 at 12:02 PM
    #240
    Logger

    Logger Well-Known Member

    Joined:
    Jun 30, 2014
    Member:
    #133000
    Messages:
    144
    Gender:
    Male
    First Name:
    Sam
    Out for a rip..
    Vehicle:
    04 Tacoma Double 4x4 TRD
    Thought I would add to the thread. I was experiencing a lot of movement and clunking when taking off from a dead stop. I replaced my hanger bearing but it still felt as if the whole rearend was shifting around and acting squirrely.
    One member directed me to this thread and I decided to go and purchase the Ubolt clamps from Autozone, well $16 later the clunk it gone! This is a good temporary fix to what I believe are sacked out leaf springs / shocks. I chased this problem for quite some time and truly can't believe this actually worked, the truck feels way better and solid to drive.
