GPS vs XM Antenna Wires

Discussion in '3rd Gen. Tacomas (2016+)' started by TiredHands, Jan 6, 2020.

  1. Jan 6, 2020 at 8:28 AM
    #1
    TiredHands

    TiredHands [OP] Well-Known Member

    Joined:
    Nov 22, 2019
    Member:
    #311394
    Messages:
    123
    Gender:
    Male
    First Name:
    Sam
    Philadelphia, PA
    Vehicle:
    2017 TRD OR DCSB, Blazing Blue Pearl
    Hi all,

    I recently installed a Pioneer AVH-W4500NEX and wanted to retain the factory GPS antenna. I ordered the idatalink ACC-SAT-TO2 from sonicelectronix and of course it had two XM adapters and no pioneer GPS adapter. Amazon was able to send me the correct wires. The connections for XM and GPS use the same connector and was wondering which is which.

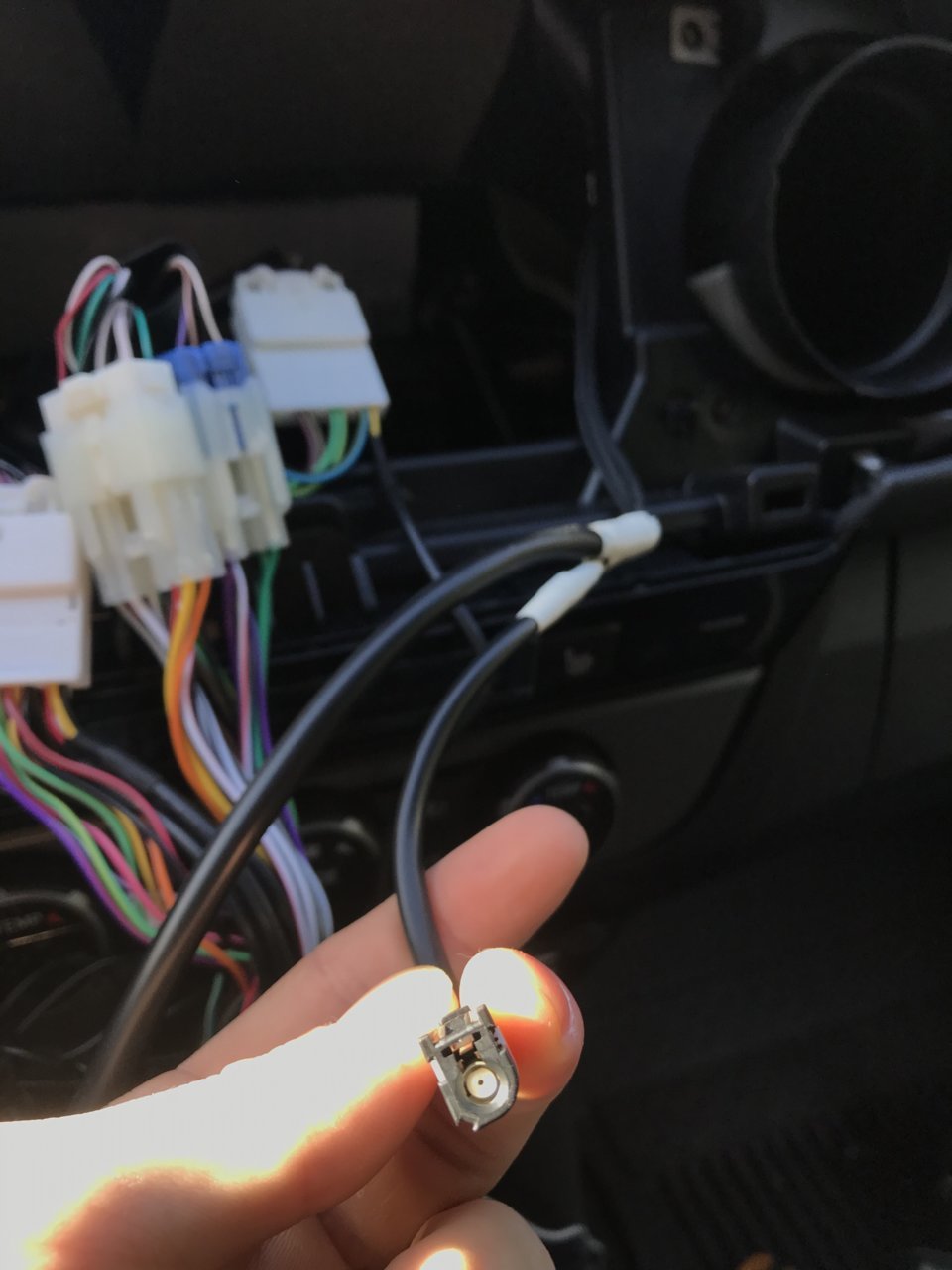

    I think this is GPS:
    and this is XM because it’s in the same harness as the radio antenna (shark fin).

    Thanks in advance!

  2. Jan 6, 2020 at 8:50 AM
    #2
    Tarvis

    Tarvis Well-Known Member

    Joined:
    Aug 12, 2019
    Member:
    #301935
    Messages:
    325
    Gender:
    Male
    First Name:
    Travis
    Bel Air, Maryland
    Vehicle:
    2018 Metallic Gray SR5 Double Cab
    I have an SR5, so I am pretty sure that there is no GPS wire, and my XM radio antenna looks like your picture #1.

    Side note - did that cord from Amazon fit both your XM antenna and gps antenna?

  3. Jan 6, 2020 at 8:58 AM
    #3
    TiredHands

    TiredHands [OP] Well-Known Member

    Joined:
    Nov 22, 2019
    Member:
    #311394
    Messages:
    123
    Gender:
    Male
    First Name:
    Sam
    Philadelphia, PA
    Vehicle:
    2017 TRD OR DCSB, Blazing Blue Pearl
    Well crap that is confusing because I thought for sure the XM used the shark fin and the gps was behind the dash.

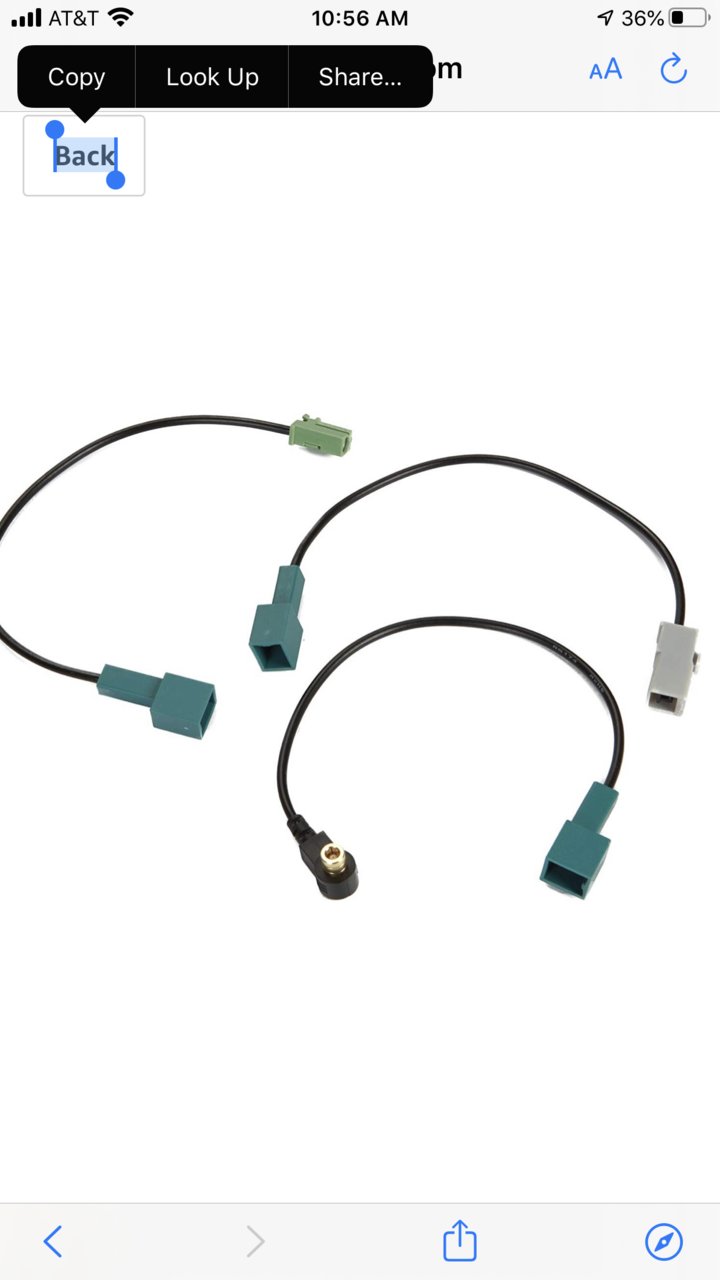

    light green is for pioneer gps. Black connector is for XM. But yes, the teal end fits both connectors in the vehicle.

  4. Jan 6, 2020 at 9:01 AM
    #4
    Tarvis

    Tarvis Well-Known Member

    Joined:
    Aug 12, 2019
    Member:
    #301935
    Messages:
    325
    Gender:
    Male
    First Name:
    Travis
    Bel Air, Maryland
    Vehicle:
    2018 Metallic Gray SR5 Double Cab
    Okay thanks. I'm looking for the XM adapter, but I don't need the other two. Are you able to find a link for just the XM one in your photo? Or the name of the connector type if it isn't proprietary to Maestro?

    I'm 99% sure that my xm radio antenna was a white plastic connector like your photo #1 and not dark like #2. Either way though, it is an easy test. Hook it up to your XM and see if it works.

  5. Jan 6, 2020 at 9:05 AM
    #5
    TiredHands

    TiredHands [OP] Well-Known Member

    Joined:
    Nov 22, 2019
    Member:
    #311394
    Messages:
    123
    Gender:
    Male
    First Name:
    Sam
    Philadelphia, PA
    Vehicle:
    2017 TRD OR DCSB, Blazing Blue Pearl
    I can probably send you mine as I have no plans on using XM since just use the app with carplay. DM me.

    I wish I had an XM box to test it. It’s unclear how the pioneer uses the gps antenna because navigation seems to work fine without it hooked up. I’m guessing it works in conjunction with the phones gps and saves battery. Maybe somebody else knows.

  6. Jan 6, 2020 at 9:14 AM
    #6
    Tarvis

    Tarvis Well-Known Member

    Joined:
    Aug 12, 2019
    Member:
    #301935
    Messages:
    325
    Gender:
    Male
    First Name:
    Travis
    Bel Air, Maryland
    Vehicle:
    2018 Metallic Gray SR5 Double Cab
    Not sure, but if you are using the phone for navigation through carplay, obviously you wouldn't need the GPS antenna at all. If your head unit has built in GPS capabilities then that would use the antenna... Doubt it would help save data on your phone though.

    I'll DM you. That would be sweet, because I have an external XM receiver that I would love to use with the factory antenna!

  7. Jan 6, 2020 at 9:21 AM
    #7
    TXnativeson

    TXnativeson Mmmmm tacos

    Joined:
    Nov 12, 2015
    Member:
    #169431
    Messages:
    143
    Gender:
    Male
    Alabama
    Vehicle:
    2019 TRD Sport DCSB 4X4 MGM
    I’ve read on other forums that the gps traffic data and the weather function is through the HD radio so that might be why it is hooked through the “shark fin”

  8. Jan 6, 2020 at 9:27 AM
    #8
    RyanDCLB

    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    2,113
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    I think you're correct. I remember the GPS going to the left in the dash...

  9. Jan 6, 2020 at 9:49 AM
    #9
    TiredHands

    TiredHands [OP] Well-Known Member

    Joined:
    Nov 22, 2019
    Member:
    #311394
    Messages:
    123
    Gender:
    Male
    First Name:
    Sam
    Philadelphia, PA
    Vehicle:
    2017 TRD OR DCSB, Blazing Blue Pearl
    RyanDCLB likes this.
  10. Jan 6, 2020 at 1:07 PM
    #10
    PhenixFord

    PhenixFord Well-Known Member

    Joined:
    Aug 1, 2019
    Member:
    #300917
    Messages:
    1,215
    Gender:
    Male
    First Name:
    Randy
    Arkansas
    Vehicle:
    2019 MGM SR5 4WD DCSB
    The SR5 "does" have a GPS antenna (and antenna wire) and it "is" the white connector. The XM antenna connector is the Grey.

    I just recently removed my EnTune (+) HU and installed an EnTune Premium HU (with built-in nav) in my SR5.

  11. Jan 6, 2020 at 1:32 PM
    #11
    Tarvis

    Tarvis Well-Known Member

    Joined:
    Aug 12, 2019
    Member:
    #301935
    Messages:
    325
    Gender:
    Male
    First Name:
    Travis
    Bel Air, Maryland
    Vehicle:
    2018 Metallic Gray SR5 Double Cab
    Hmmm I don't remember the 2nd connector. I might have just bundled it up and dropped it down behind the dash though when I realized I didn't need it. Its possible... It has been a while.

    PhenixFord likes this.
  12. Jan 6, 2020 at 1:36 PM
    #12
    PhenixFord

    PhenixFord Well-Known Member

    Joined:
    Aug 1, 2019
    Member:
    #300917
    Messages:
    1,215
    Gender:
    Male
    First Name:
    Randy
    Arkansas
    Vehicle:
    2019 MGM SR5 4WD DCSB
    I don't have a picture of my new HU installed. Guess I need to take one.

    TiredHands [OP] likes this.
