Greasing Dirt King UCAs

Discussion in '2nd Gen. Tacomas (2005-2015)' started by glockner, Nov 19, 2019.

  1. Nov 19, 2019 at 10:30 AM
    #1
    glockner

    glockner [OP] Well-Known Member

    Joined:
    Sep 14, 2018
    Member:
    #266270
    Messages:
    260
    Gender:
    Male
    Scottsdale, AZ
    Vehicle:
    2006 Tacoma TRD Sport 4x4
    I have seen mixed reports on how to properly grease UCA bushings. Some say to grease until you see the bushing and washer move out and then stop, others say to grease until you see a little grease come out between washer and bushing. I called Dirt King and they said that if you let the grease come out between bushing and washer they will not work properly. Last time I greased this happened, and the squeak still persisted but went away eventually. Do I need to have my UCA "rebuilt" because some grease got out? I have only had issues with my driver's side UCA and squeaking. Passenger side has never had issues.

  2. Apr 23, 2021 at 1:38 PM
    #2
    totmacher

    totmacher automotive hypochondriac

    Joined:
    Sep 7, 2009
    Member:
    #22430
    Messages:
    4,720
    Gender:
    Male
    First Name:
    Daniel
    TN (memphis-ish)
    Vehicle:
    Toyotas
    Cut & broke off stuff. Prolific ziptie and tape usage.
    did you ever get an answer?
    I'm thinking I'll just loosen the bolt, do a pump or 2 of grease, jump on the front end a few times so the bouncing smears the grease, then retorque the bolt. Might press the center pin on the zerk to relieve pressure after torqueing, not sure. My assumption is that the grease will eventually work its way around while driving either way and I'd rather not over fill it.

    dk_crew likes this.
  3. Apr 23, 2021 at 3:09 PM
    #3
    dk_crew

    dk_crew Well-Known Member

    Joined:
    May 20, 2019
    Member:
    #293798
    Messages:
    843
    Gender:
    Male
    First Name:
    Dave
    Austin, TX
    Vehicle:
    2005 Tacoma 4x4

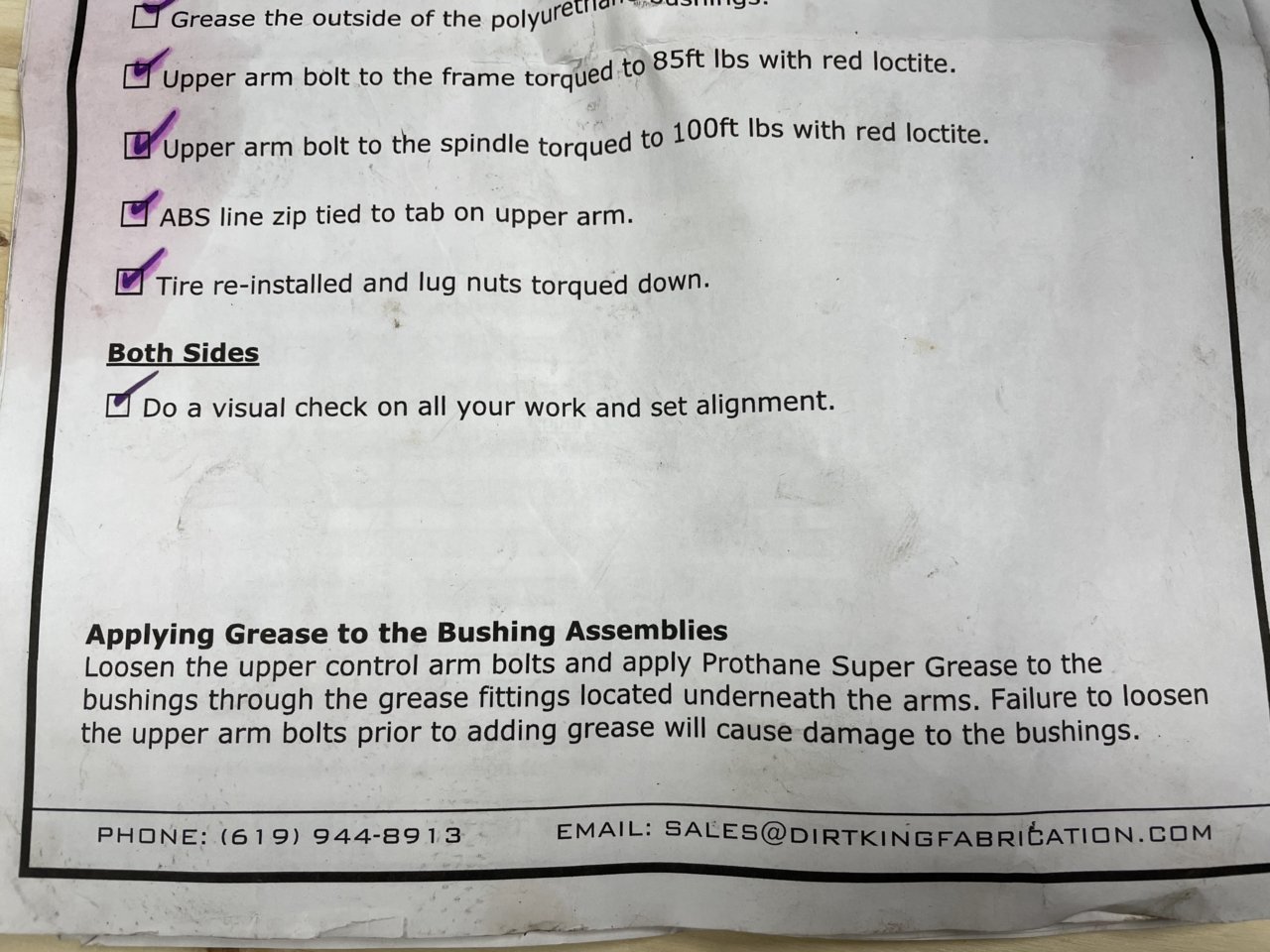

    Loosen the bolts. Apply grease. Tighten. This is from their install sheet for the boxed UCAs. It’s not clear how much grease ... I add until I see it swell and figure if anything seems odd (squeaks) I’ll add more, but never had an issue.


    ready6delta and totmacher like this.
  4. Apr 23, 2021 at 3:09 PM
    #4
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,779
    Deep South
    Herculiner Hootus
    Less is more when it comes to that. One or two pumps and drive around. Add more if you want later. Overfill will do more harm than good.
