Grille Writeup - No bondo/glass required

Discussion in '2nd Gen. Tacomas (2005-2015)' started by TX Tacoma, Jun 12, 2009.

  1. Jun 12, 2009 at 8:19 AM
    #1
    TX Tacoma

    TX Tacoma [OP] Fightin Texas Aggie

    Joined:
    May 29, 2009
    Member:
    #17768
    Messages:
    94
    Gender:
    Male
    I've received a few questions about my grille so thought I'd do a write up on how I made it.

    This is in no way 100% comprehensive, but I'll try to cover all the main steps that I followed.

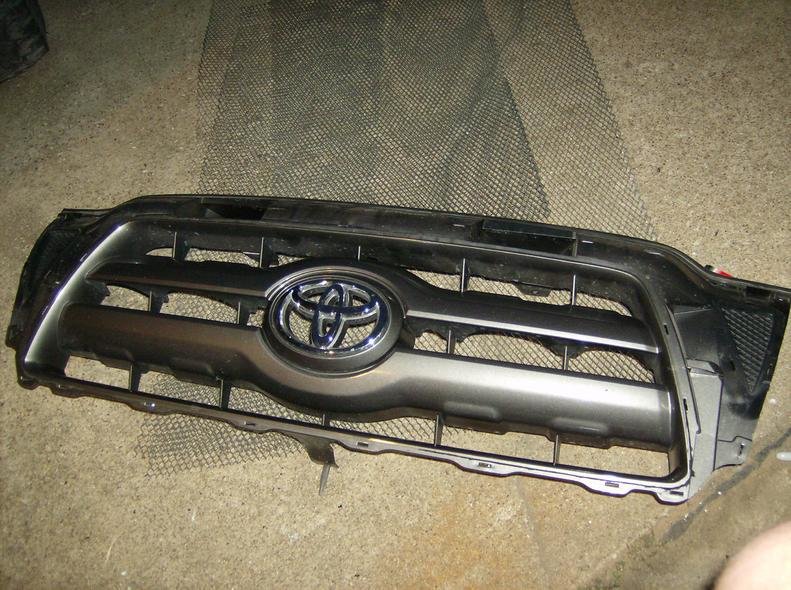

    The grille is compromised of a chrome plastic piece mated to a base plastic piece via 30 or so tabs in slots. I figured out from looking that at the factory they stick the chrome piece tabs through the base piece slots and then hit the back side with a soldering iron to melt the end of the tab so it swages out, kinda like a rivet made of plastic.

    I used a dremel (probably the one tool I'd absolutely insist on having for this job) with a cutting wheel to cut the chrome ends of the tabs off on the backside of the grille. After all of them were cut off I carefully separated the chrome piece and the base plastic piece.

    Step 1 - Chrome Trim Removed.jpg

  2. Jun 12, 2009 at 8:21 AM
    #2
    TX Tacoma

    TX Tacoma [OP] Fightin Texas Aggie

    Joined:
    May 29, 2009
    Member:
    #17768
    Messages:
    94
    Gender:
    Male

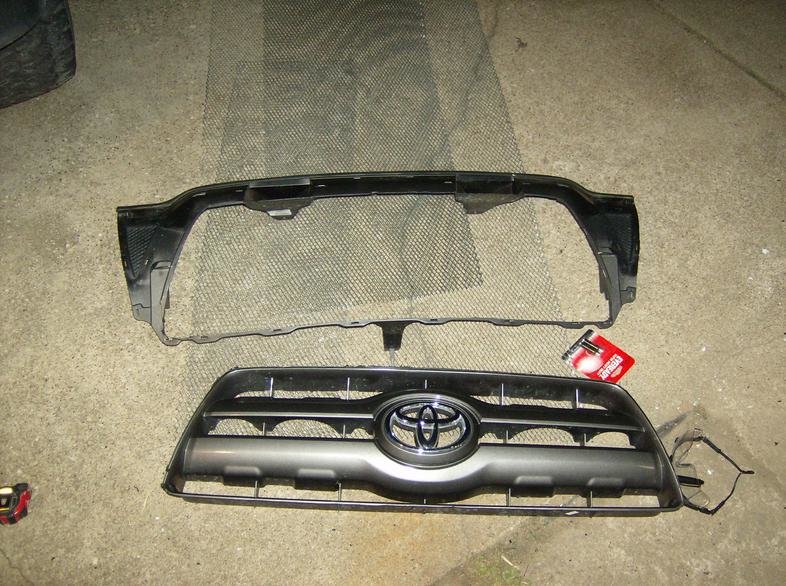

    Next I cut the grill section out with the dremel from the base plastic piece.

    Step 2 - Grille removed.jpg

  3. Jun 12, 2009 at 8:21 AM
    #3
    98tacoma27

    98tacoma27 :POOPCORN: Staff Member

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,163
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
  4. Jun 12, 2009 at 8:23 AM
    #4
    TX Tacoma

    TX Tacoma [OP] Fightin Texas Aggie

    Joined:
    May 29, 2009
    Member:
    #17768
    Messages:
    94
    Gender:
    Male

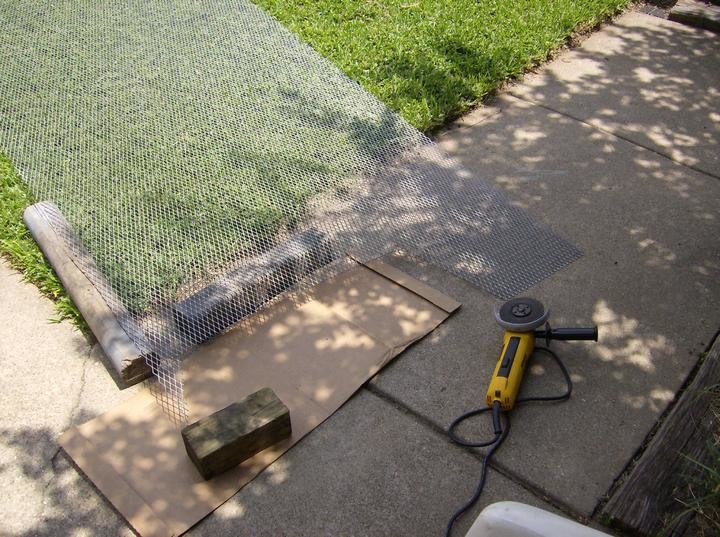

    Next I bought some expanded metal (16 gauge) from a steel yard and trimmed it to fit the opening.

    Step 3 - Expanded Metal cut out and trimmed to fit.jpg

  5. Jun 12, 2009 at 8:28 AM
    #5
    TX Tacoma

    TX Tacoma [OP] Fightin Texas Aggie

    Joined:
    May 29, 2009
    Member:
    #17768
    Messages:
    94
    Gender:
    Male

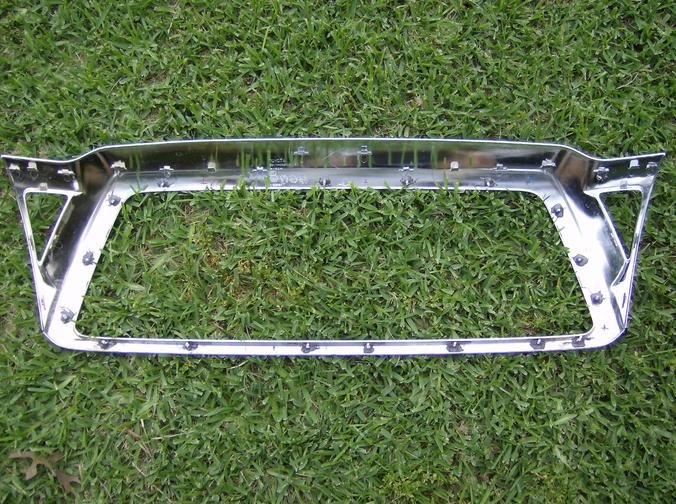

    Next I overlaid the trimmed mesh on the back of the chrome piece and marked the openings at 6" intervals for studs to hold it in place.

    For studs I superglued and then JB Welded bolts in place at the previously marked locations. For good adhesion I recommend using the dremel cutting wheel to rough up the surface before sticking the bolts on.

    Step 4 - Bolts JB Welded in place.jpg

  6. Jun 12, 2009 at 8:29 AM
    #6
    TX Tacoma

    TX Tacoma [OP] Fightin Texas Aggie

    Joined:
    May 29, 2009
    Member:
    #17768
    Messages:
    94
    Gender:
    Male

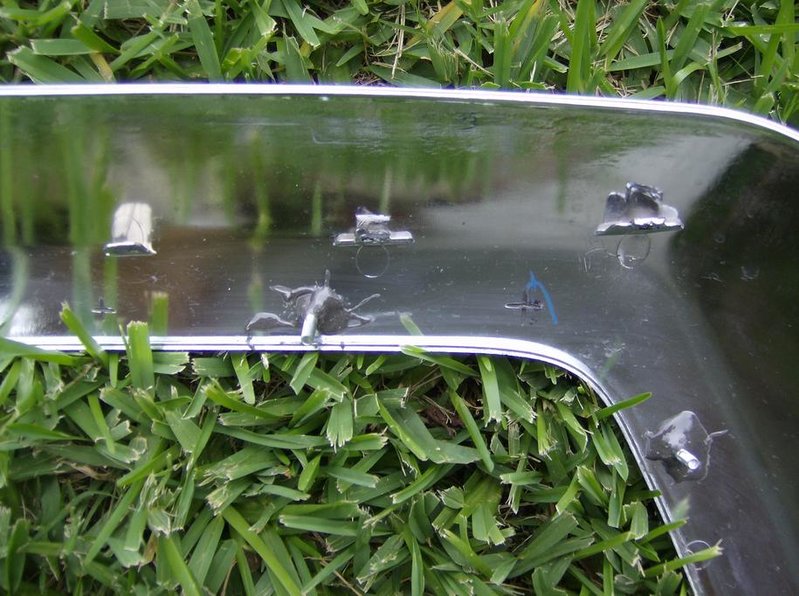

    Detail pic:

    JB Welded Bolts - Close Up.jpg

  7. Jun 12, 2009 at 8:39 AM
    #7
    Padilla1880

    Padilla1880 "Let's Ride!"

    Joined:
    May 18, 2009
    Member:
    #17365
    Messages:
    1,167
    Gender:
    Male
    First Name:
    Daniel
    Temecula, CA
    Vehicle:
    05 TRD OffRoad V6 SR5 PreRunner
    The suspense is killing, I wanna see this all finished!

  8. Jun 12, 2009 at 8:40 AM
    #8
    SaltySteve

    SaltySteve SMO

    Joined:
    Apr 22, 2009
    Member:
    #16293
    Messages:
    903
    Gender:
    Male
    First Name:
    Steve
    Denver
    Vehicle:
    2011 Quicksand FJC
    x2

  9. Jun 12, 2009 at 8:41 AM
    #9
    TX Tacoma

    TX Tacoma [OP] Fightin Texas Aggie

    Joined:
    May 29, 2009
    Member:
    #17768
    Messages:
    94
    Gender:
    Male

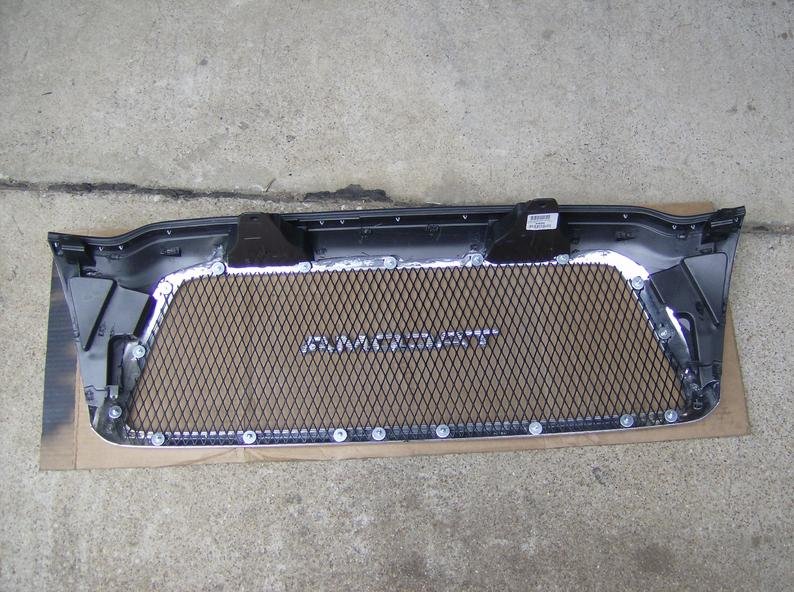

    After letting the studs (glued bolts) set up for 24 hours I put together the assembly with fender washers and nylon insert locknuts.

    Notice that I ended up trimming the bottom portion of the base plastic piece completely away. I also trimmed the expanded metal to only have openings at the attachment points (not required, but saves on weight and helps any possible clearance issues with the chrome and base plastic piece.

    I also did numerous trial and error fit checks during this step, trimming the base plastic piece to not interfere with the grille mesh. Be sure not to trim off the bottom two mounting points from the base plastic piece. They are where your grille snap mounts near your bumper and you'll need them.

    For reassembling the chrome piece to the base plastic piece I used the same factory method of tab in slot and then I hit the backside with a soldering iron. You may have to melt more of the plastic together since you cut the tabs shorter earlier, but it works all the same. I also slathered on JB weld at the top for added structural support.

    The mesh is painted with rustoleum satin black. If it doesn't hold up or I get bored I'll powdercoat it.

    The emblem that I got from my tailgate when I debadged is retained with 3 short pieces of allthread that I installed into bores that I drilled on the backside of it. I wet installed the allthread with superglue. I'm sure red threadlocker would work well also. It's held onto the mesh with locknuts.

    Step 5 - Assembly.jpg

  10. Jun 12, 2009 at 8:44 AM
    #10
    TX Tacoma

    TX Tacoma [OP] Fightin Texas Aggie

    Joined:
    May 29, 2009
    Member:
    #17768
    Messages:
    94
    Gender:
    Male

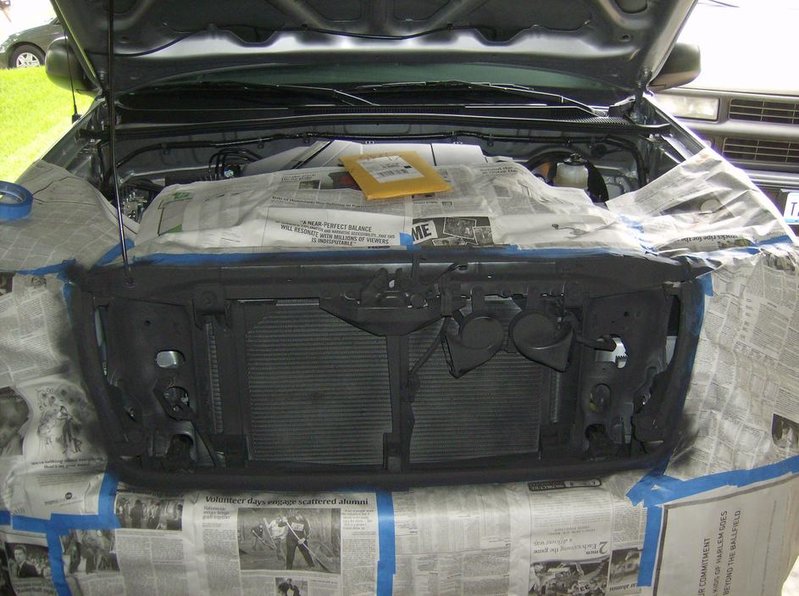

    While I was waiting for the studs / glue / JB Weld to set up, I masked off my front end and shot it with high temp black bbq grill paint.

    Step 6 - Black out behind grille.jpg

  11. Jun 12, 2009 at 8:45 AM
    #11
    TX Tacoma

    TX Tacoma [OP] Fightin Texas Aggie

    Joined:
    May 29, 2009
    Member:
    #17768
    Messages:
    94
    Gender:
    Male

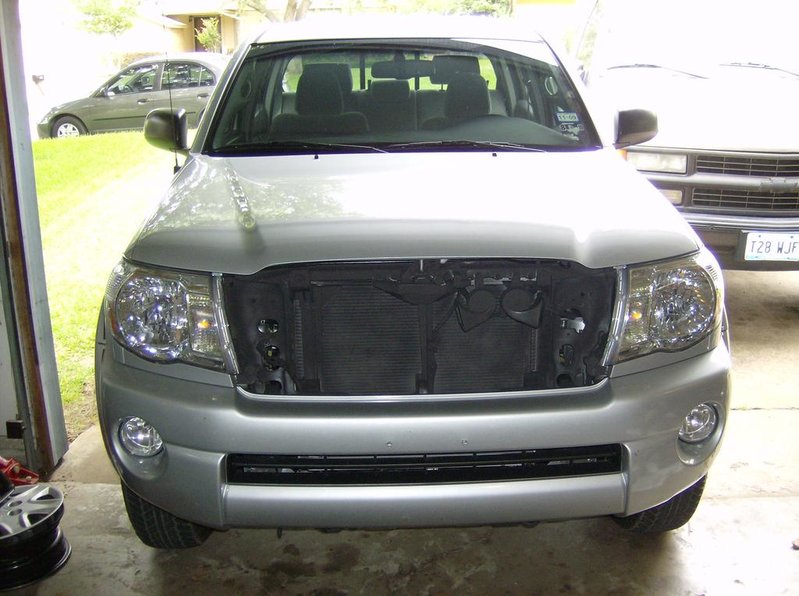

    Masking removed:

    Behind Grille Blacked out, masking removed.jpg

  12. Jun 12, 2009 at 8:46 AM
    #12
    TX Tacoma

    TX Tacoma [OP] Fightin Texas Aggie

    Joined:
    May 29, 2009
    Member:
    #17768
    Messages:
    94
    Gender:
    Male

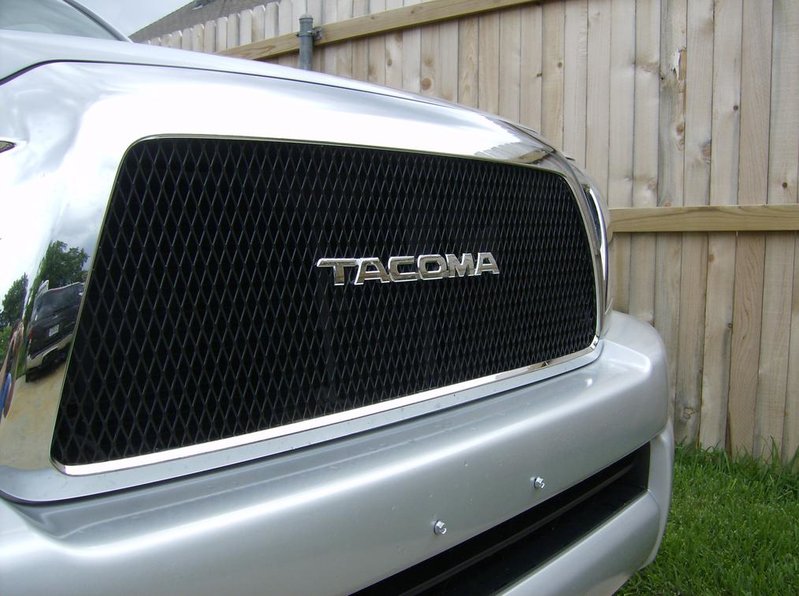

    Final Install:

    Step 7 - Final Assy.jpg

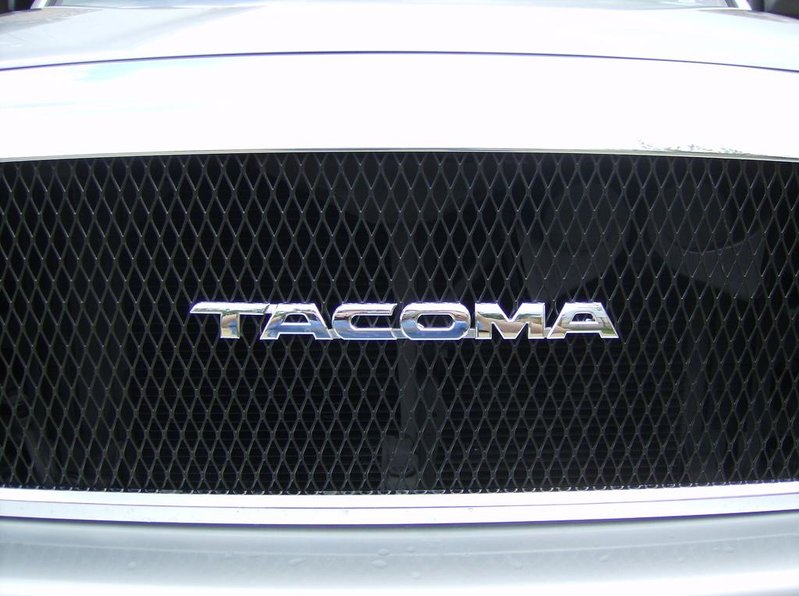

    Grille After 3.jpg

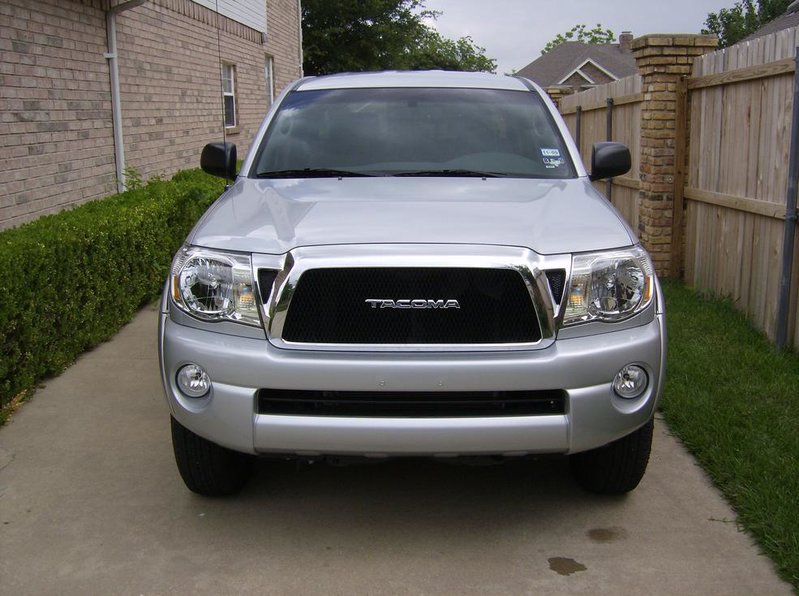

    Grille After.jpg

  13. Jun 12, 2009 at 8:48 AM
    #13
    Padilla1880

    Padilla1880 "Let's Ride!"

    Joined:
    May 18, 2009
    Member:
    #17365
    Messages:
    1,167
    Gender:
    Male
    First Name:
    Daniel
    Temecula, CA
    Vehicle:
    05 TRD OffRoad V6 SR5 PreRunner
    Great write up! Grille looks awesome!:headbang:

  14. Jun 12, 2009 at 8:51 AM
    #14
    phynyx38

    phynyx38 Believe

    Joined:
    May 19, 2009
    Member:
    #17425
    Messages:
    866
    Gender:
    Male
    First Name:
    Mike
    San Antonio, TX
    Vehicle:
    08 Tacoma PreRunner
    Awesome grill.

  15. Jun 12, 2009 at 8:54 AM
    #15
    SaltySteve

    SaltySteve SMO

    Joined:
    Apr 22, 2009
    Member:
    #16293
    Messages:
    903
    Gender:
    Male
    First Name:
    Steve
    Denver
    Vehicle:
    2011 Quicksand FJC
    Killer man. That looks sick! This isn't necessarily a Satoshi right so what's the mod name? It's gotta be something snazzy.

  16. Jun 12, 2009 at 8:57 AM
    #16
    TX Tacoma

    TX Tacoma [OP] Fightin Texas Aggie

    Joined:
    May 29, 2009
    Member:
    #17768
    Messages:
    94
    Gender:
    Male
    Jamesoshi?

    Texoshi?

  17. Jun 12, 2009 at 8:59 AM
    #17
    Padilla1880

    Padilla1880 "Let's Ride!"

    Joined:
    May 18, 2009
    Member:
    #17365
    Messages:
    1,167
    Gender:
    Male
    First Name:
    Daniel
    Temecula, CA
    Vehicle:
    05 TRD OffRoad V6 SR5 PreRunner
    The Jamoshi sounds better!

  18. Jun 12, 2009 at 9:00 AM
    #18
    SaltySteve

    SaltySteve SMO

    Joined:
    Apr 22, 2009
    Member:
    #16293
    Messages:
    903
    Gender:
    Male
    First Name:
    Steve
    Denver
    Vehicle:
    2011 Quicksand FJC
    BAMF-yoshi?

  19. Jun 12, 2009 at 9:01 AM
    #19
    TX Tacoma

    TX Tacoma [OP] Fightin Texas Aggie

    Joined:
    May 29, 2009
    Member:
    #17768
    Messages:
    94
    Gender:
    Male
    Jamoshi works for me. It's good to be immortalized.

  20. Jun 12, 2009 at 9:12 AM
    #20
    Padilla1880

    Padilla1880 "Let's Ride!"

    Joined:
    May 18, 2009
    Member:
    #17365
    Messages:
    1,167
    Gender:
    Male
    First Name:
    Daniel
    Temecula, CA
    Vehicle:
    05 TRD OffRoad V6 SR5 PreRunner
    How long did it take you to complete this?
