HAM & CB antenna ground

Discussion in '2nd Gen. Tacomas (2005-2015)' started by kai38`, Apr 13, 2013.

  1. Apr 13, 2013 at 3:37 PM
    #1
    kai38`

    kai38` [OP] Well-Known Member

    Joined:
    Dec 9, 2007
    Member:
    #3778
    Messages:
    571

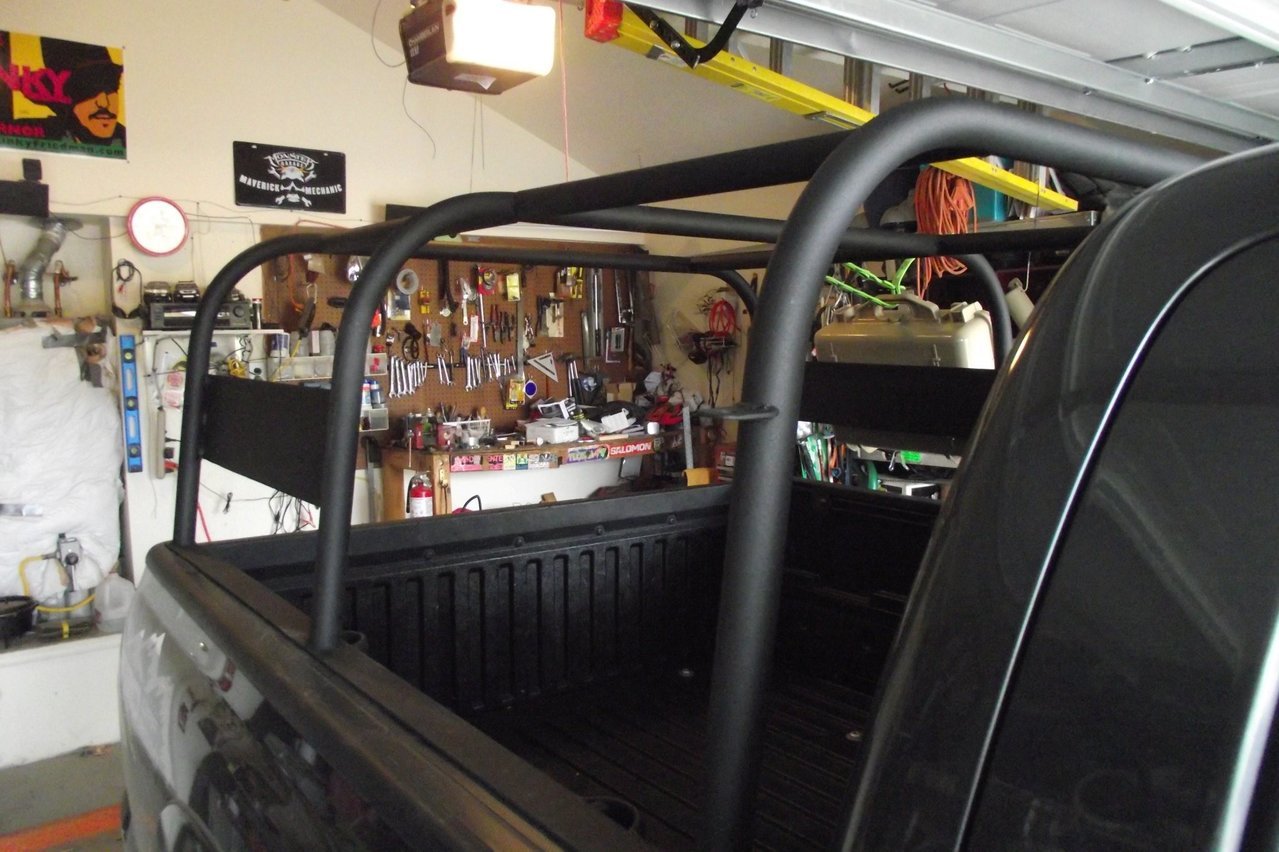

    I'm installing both a HAM & CB this weekend. I have antenna mount tabs on the side of a bed rack
    [​IMG]

    Since the rack sits on the plastic bed rail and is mounted with the OEM tracks in the bed I don't think mounting the antennas will be grounded.
    What do I need to do to install them?
    Thanks for any help

  2. Apr 13, 2013 at 3:52 PM
    #2
    LUSETACO

    LUSETACO Central Scrutinizer

    Joined:
    Jun 27, 2009
    Member:
    #18991
    Messages:
    6,818
    Gender:
    Male
    First Name:
    Dennis
    Aim-ish country PA
    Vehicle:
    08 TRD OFFROAD 6spd
    FM 10 series, K&N 63 series intake, 5100's at 2.5, TSB springs, Connex 3300HP,Fat Boy 2 pill, Wilson 1000, Dual ammo cans, Cue ball shifter, color matched bumper, Homeroshi grill, car seat mod, Hella triple tone air horns, AVS vent visors, Debadged, Deflapped, Custom painted eyelids and third brake light, Custom radio antenna , Rugged Cover, Husky mats, yellow fogs, Warn shackle, 265/75 16 Trail Diggers, American Racing wheels, Rugged T bedside decals, Ultra Gauge, too much homemade stuff to list.
    Some say the bed rails are grounded. You have a lot of metal there so you should be ok. Install them, test them and add a ground wire if need be. Sorry that's all I got.....

  3. Apr 13, 2013 at 4:36 PM
    #3
    kai38`

    kai38` [OP] Well-Known Member

    Joined:
    Dec 9, 2007
    Member:
    #3778
    Messages:
    571
    Thanks, Should I ground under the antenna mount or run a screw into the bed rack and run a ground to the frame from there?
    I don't want to key the mic and maybe fry the radios if its not grounded correctly.

  4. Apr 13, 2013 at 4:43 PM
    #4
    LUSETACO

    LUSETACO Central Scrutinizer

    Joined:
    Jun 27, 2009
    Member:
    #18991
    Messages:
    6,818
    Gender:
    Male
    First Name:
    Dennis
    Aim-ish country PA
    Vehicle:
    08 TRD OFFROAD 6spd
    FM 10 series, K&N 63 series intake, 5100's at 2.5, TSB springs, Connex 3300HP,Fat Boy 2 pill, Wilson 1000, Dual ammo cans, Cue ball shifter, color matched bumper, Homeroshi grill, car seat mod, Hella triple tone air horns, AVS vent visors, Debadged, Deflapped, Custom painted eyelids and third brake light, Custom radio antenna , Rugged Cover, Husky mats, yellow fogs, Warn shackle, 265/75 16 Trail Diggers, American Racing wheels, Rugged T bedside decals, Ultra Gauge, too much homemade stuff to list.
    Ground the mount to the frame with as little wire as possible. I think you will be ok though. You have an SWR meter to check?

  5. Apr 13, 2013 at 4:44 PM
    #5
    kai38`

    kai38` [OP] Well-Known Member

    Joined:
    Dec 9, 2007
    Member:
    #3778
    Messages:
    571
    I have access to a meter

  6. Apr 13, 2013 at 4:47 PM
    #6
    LUSETACO

    LUSETACO Central Scrutinizer

    Joined:
    Jun 27, 2009
    Member:
    #18991
    Messages:
    6,818
    Gender:
    Male
    First Name:
    Dennis
    Aim-ish country PA
    Vehicle:
    08 TRD OFFROAD 6spd
    FM 10 series, K&N 63 series intake, 5100's at 2.5, TSB springs, Connex 3300HP,Fat Boy 2 pill, Wilson 1000, Dual ammo cans, Cue ball shifter, color matched bumper, Homeroshi grill, car seat mod, Hella triple tone air horns, AVS vent visors, Debadged, Deflapped, Custom painted eyelids and third brake light, Custom radio antenna , Rugged Cover, Husky mats, yellow fogs, Warn shackle, 265/75 16 Trail Diggers, American Racing wheels, Rugged T bedside decals, Ultra Gauge, too much homemade stuff to list.
    Hook up the meter, key it up and take it from there. Good luck!

  7. Apr 14, 2013 at 4:05 PM
    #7
    BarefootBandit

    BarefootBandit Well-Known Member

    Joined:
    Jul 12, 2010
    Member:
    #40116
    Messages:
    332
    Gender:
    Male
    Vehicle:
    06 Double-Cab TRD Sport 6-Speed
    Running a ground strap directly to the rack should work.

    Just be sure that the antenna mount touches bare metal and isn't insulated by paint. Same with the connections for the ground strap.

    Best way to check is to take a multi-meter and ohm it out. In the end you should see continuity between the antenna connector's ground and the frame.

  8. Apr 14, 2013 at 4:39 PM
    #8
    charles leandro

    charles leandro Well-Known Member

    Joined:
    Dec 14, 2008
    Member:
    #11566
    Messages:
    50
    Gender:
    Male
    north alabama
    Vehicle:
    08 perrunner dc sr5
    none
    cb or sw lw requiees 208 lin ft ground for signel

  9. Apr 14, 2013 at 5:08 PM
    #9
    LUSETACO

    LUSETACO Central Scrutinizer

    Joined:
    Jun 27, 2009
    Member:
    #18991
    Messages:
    6,818
    Gender:
    Male
    First Name:
    Dennis
    Aim-ish country PA
    Vehicle:
    08 TRD OFFROAD 6spd
    FM 10 series, K&N 63 series intake, 5100's at 2.5, TSB springs, Connex 3300HP,Fat Boy 2 pill, Wilson 1000, Dual ammo cans, Cue ball shifter, color matched bumper, Homeroshi grill, car seat mod, Hella triple tone air horns, AVS vent visors, Debadged, Deflapped, Custom painted eyelids and third brake light, Custom radio antenna , Rugged Cover, Husky mats, yellow fogs, Warn shackle, 265/75 16 Trail Diggers, American Racing wheels, Rugged T bedside decals, Ultra Gauge, too much homemade stuff to list.
    Wut?

  10. Apr 14, 2013 at 5:12 PM
    #10
    blake5995

    blake5995 Well-Known Member

    Joined:
    Aug 12, 2012
    Member:
    #84632
    Messages:
    2,217
    Gender:
    Male
    First Name:
    Blake
    Truckee, CA
    Vehicle:
    98 Tacoma SR5 4x4 2.7L
    X2

  11. Apr 14, 2013 at 6:59 PM
    #11
    TXPROMAN

    TXPROMAN Well-Known Member

    Joined:
    Sep 5, 2012
    Member:
    #86308
    Messages:
    198
    Gender:
    Male
    First Name:
    Martin
    NY
    Vehicle:
    2012 TX PRO TACOMA
    Use a MFJ-259b antenna analyzer. It attaches to pl259 at the end of your coax. If your ground is bad. You see it on the analyzer. No need to have the radio in line like with a swr meter.

  12. Apr 14, 2013 at 7:10 PM
    #12
    RevAdam

    RevAdam Impressive Member

    Joined:
    Aug 17, 2011
    Member:
    #61854
    Messages:
    1,082
    Gender:
    Male
    First Name:
    Adam
    Upstate SC
    Vehicle:
    11 TRD OR 4x4
    Icom 5100 2M70CM, Baja Rack, Kenwood 6980, ARB Bull Bar, Lightforce HID lights, Warn winch, LED lights, 5100s, Switchbacks.
    Antenna "ground" isn't an electrical ground as most people think of it... Just mount the antenna to the rack and you'll be good.

    Make sure the shield side of the antenna mount has a good connection to the rack and then the rack acts as the counterpoise or image plane (ground plane) for the antenna.

  13. Apr 14, 2013 at 7:12 PM
    #13
    RevAdam

    RevAdam Impressive Member

    Joined:
    Aug 17, 2011
    Member:
    #61854
    Messages:
    1,082
    Gender:
    Male
    First Name:
    Adam
    Upstate SC
    Vehicle:
    11 TRD OR 4x4
    Icom 5100 2M70CM, Baja Rack, Kenwood 6980, ARB Bull Bar, Lightforce HID lights, Warn winch, LED lights, 5100s, Switchbacks.
    ...Looking at where your antenna tabs are, it's going to do interesting things with a U/VHF antenna.... Loading coils don't like being beside metal.

    But it'll work....

  14. May 2, 2013 at 9:08 PM
    #14
    kd8bao

    kd8bao Well-Known Member

    Joined:
    Mar 29, 2011
    Member:
    #53990
    Messages:
    505
    Gender:
    Male
    First Name:
    Henry
    Cleveland
    Vehicle:
    2000 Excursion 7.3L - Ex '11 Taco DCSB
    They do make what's called ground plane independent antennas. The ground on an antenna is the ground plane. Typically the ground plane would be the roof of the vehicle as it helps to direct and radiate the signal. The GPI antenna is designed different.

    Good luck.

  15. Jun 18, 2013 at 6:03 PM
    #15
    ZeroKingCobra

    ZeroKingCobra Member

    Joined:
    Jun 9, 2010
    Member:
    #38679
    Messages:
    5
    Gender:
    Male
    First Name:
    Moises
    San Francisco/Ventura
    Vehicle:
    2002 Tacoma PreRunner Crew Cab
    What's the name of that sweet looking rack? I'm surprised no one commented on it.

  16. Jun 18, 2013 at 6:25 PM
    #16
    kai38`

    kai38` [OP] Well-Known Member

    Joined:
    Dec 9, 2007
    Member:
    #3778
    Messages:
    571
    The bed rack was made by http://anbcustomfabrication.webs.com/apps/webstore/

    They also make one that's shipable
    They will soon be making a rear bumper with dual swing outs for my Tacoma

  17. Jun 18, 2013 at 7:07 PM
    #17
    ZeroKingCobra

    ZeroKingCobra Member

    Joined:
    Jun 9, 2010
    Member:
    #38679
    Messages:
    5
    Gender:
    Male
    First Name:
    Moises
    San Francisco/Ventura
    Vehicle:
    2002 Tacoma PreRunner Crew Cab
    What Version is yours bolts or welded, is the middle vertical pole slightly located more to the rear of the truck, if so I like that.

    I wonder with abit of ingenuity it can be place onto a 2002 Tacoma or fab to it fit it.


    Thanks for The Reply.

  18. Jun 18, 2013 at 8:55 PM
    #18
    kai38`

    kai38` [OP] Well-Known Member

    Joined:
    Dec 9, 2007
    Member:
    #3778
    Messages:
    571
    Mine is the welded version, I had it made a little taller then he usually makes them so my RTT would clear the roof
    The bars are evenly spaced but he can adjust it for your needs
