Hello everyone, I have a recent mod to my truck. I apologize for not detailing this as I normally do; however, we were rushed to finish this all in 2 days before a trip to Coco Beach FL for a wedding. We got there a few days early and toured KSC. I love the real space stuff, and I got a kick ass T-shirt that simply says, “Occupy Mars”.





So, I have had an amateur radio license for several years after some convincing from all my Army Ranger brothers. The Bat boys feel that an alternate form of communication is required in this day and age of terrorism, and I agree. CB does not have the reach and functionality we want, so amateur radio was the logical choice.


For the longest time I have been happy with my handheld radio but where we go camping in North GA it is very mountainous and the desire to work on simplex (line of sight radio to radio with no public repeater) is difficult to do. The solution is to have a vehicle radio that can act as a repeater. Park the truck on a hilltop and have comms for a usable distance in all directions similar to a retrains site in the military. Many of my brothers have such radios and I have been dragging my butt to do the same.

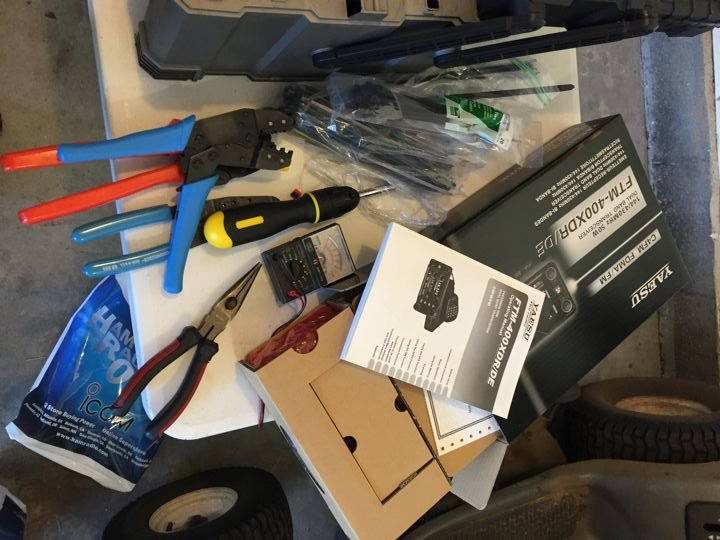

So, I finally decided to bite the bullet. I purchased a Yaesu FTM-400XDR for the hefty price of ~$800.00 with some rebates from Ham Radio Outlet (HRO). This is a C4FM FDMA/ FM 144/440 MHz Dual Ban Transceiver that can pump 50 watts. I also got a ½ wave antenna, wiring, and an aux speaker. The radio specifications are here:


https://www.yaesu.com/indexVS.cfm?c...EFF8482F3367495319&DivisionID=65&isArchived=0

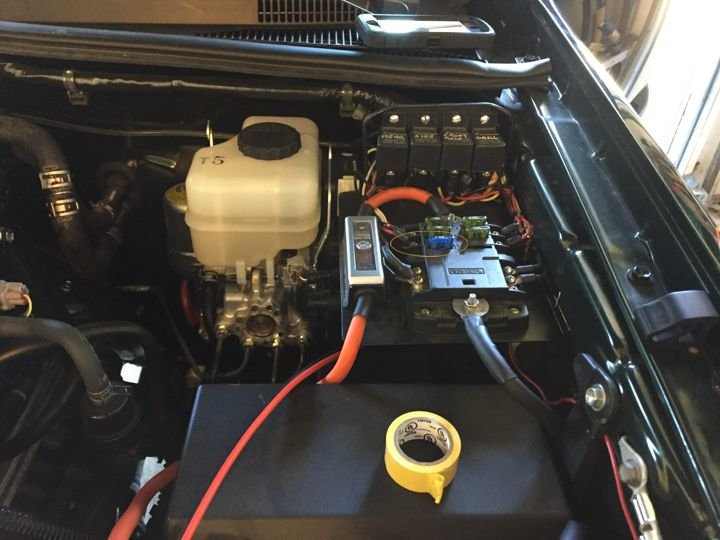

Since I have 2 open slots in the fuse panel, I installed for my lights back in 2012 (see my build) I used one of those slots to power the radio. We ran the wiring from the engine compartment through the fire wall using the existing wire harness boot located under the dash above the parking brake.

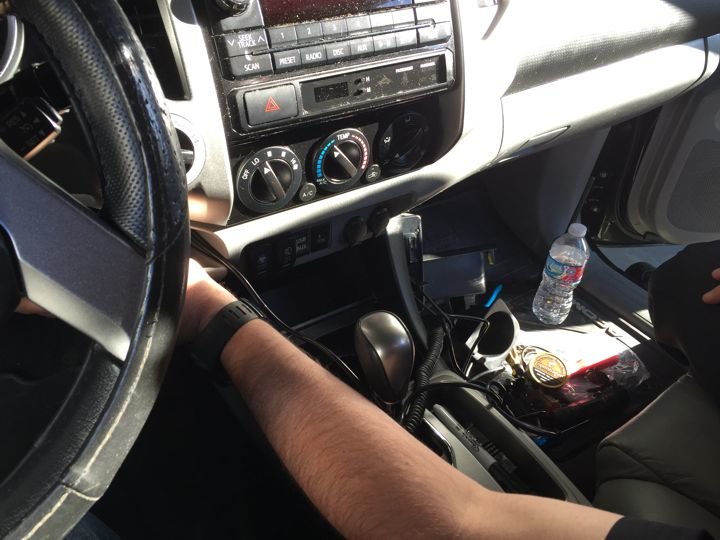

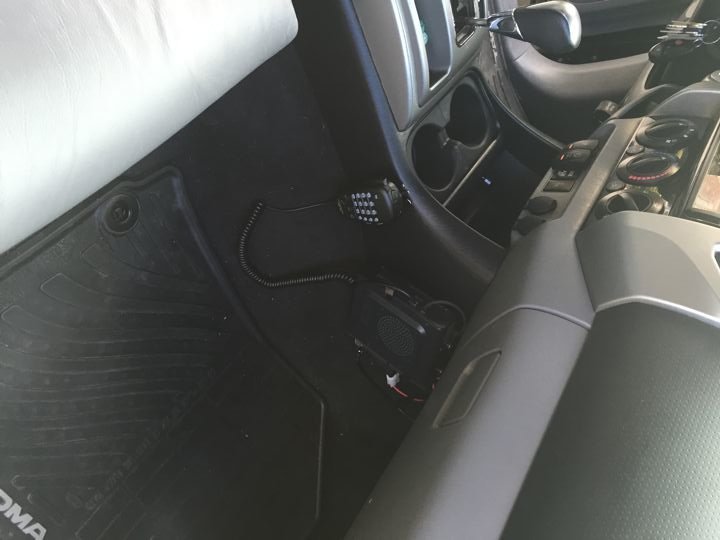

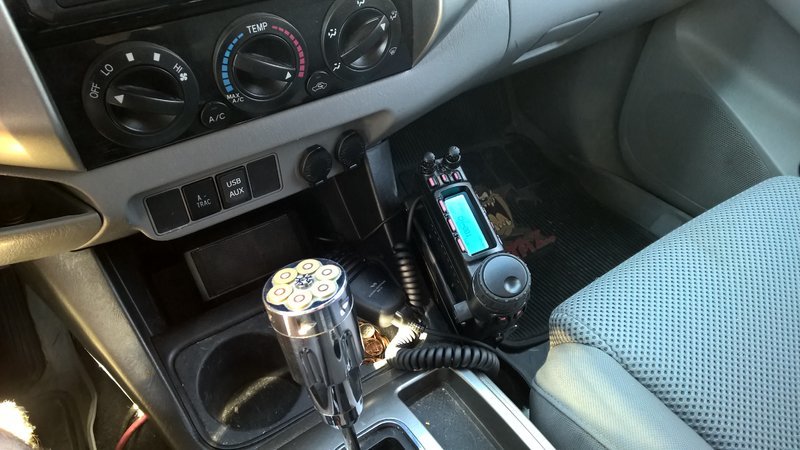

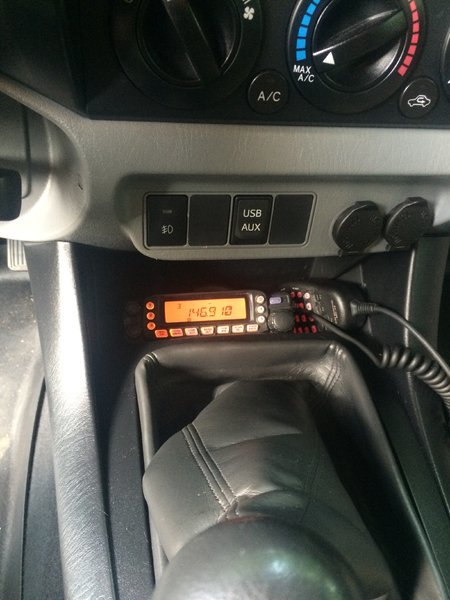

This radio has a main body and a separate head unit. I mounted the main body to the side of the center console on the passenger side. We ran all the wiring under the dash against the firewall and zip tied it in place. I added an auxiliary speaker and mounted it in the cubby to the right of the steering wheel where my arm is.








If the stereo looks dirty, it is, My Rhodesian Ridgeback sheds, and I drive with the windows down so his hair gets everywhere.

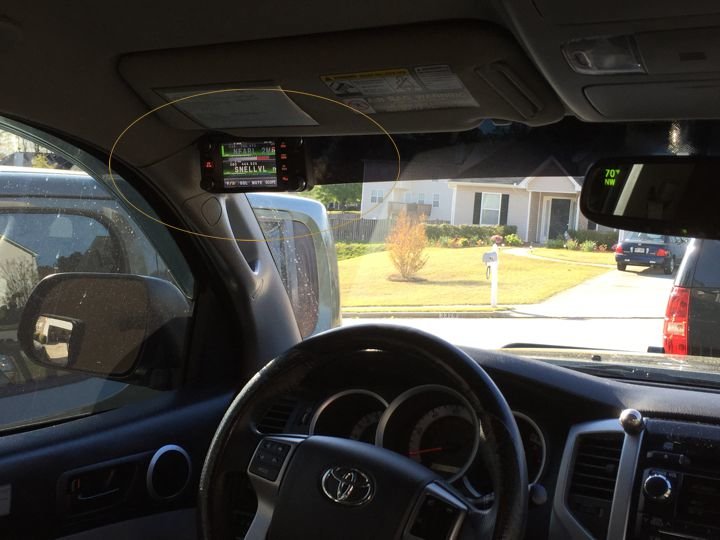

We mounted the head unit next to the driver’s side A pillar. The head unit has an internal GPS, so it needs to be in view of the windshield. It is also touch screen and I did not want it to sit in the sunlight, so the A pillar was the perfect location for it. The mount that it came with was bent and forced into the head liner and it holds the face plate perfectly. It does not interfere with my field of view and is accessible.

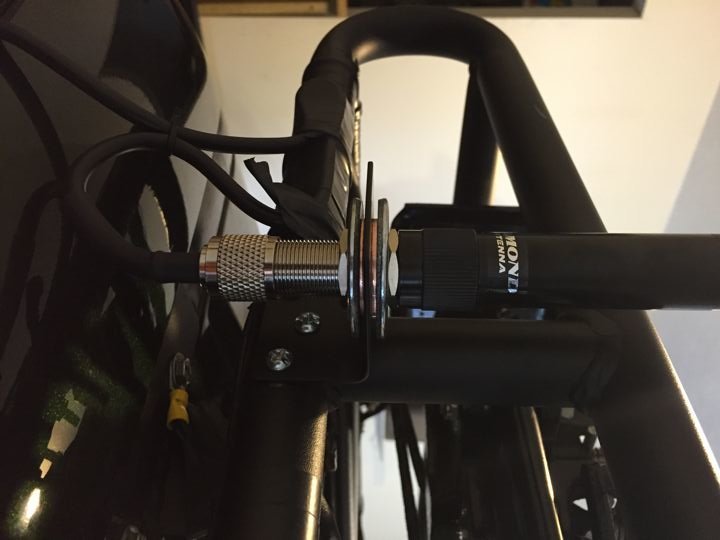

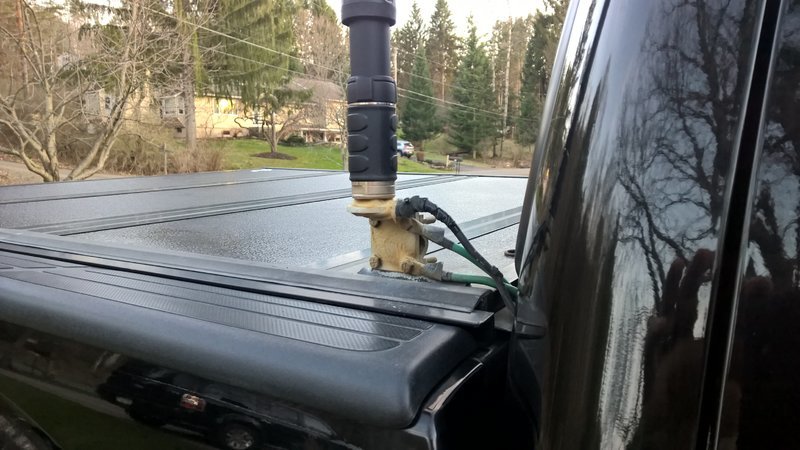

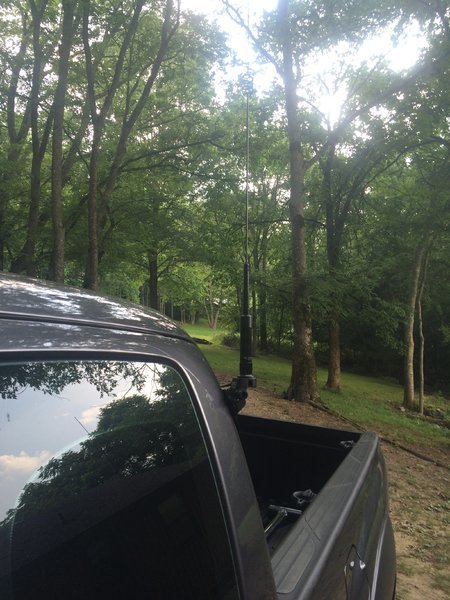

The antenna is 38” tall and I wanted it as high as possible, so I mounted it to the roof rack and ran the wiring under the carpet along the passenger side. The issue with mounting it on the roof rack is that it is susceptible to being broken by a low hanging branch or even in a drive through. I mounted it on the passenger side to minimize some of this and the antenna can fold over when not in use but in the woods, it would only be a matter of time before it broke and $50.00 for a new antenna is not cheap.











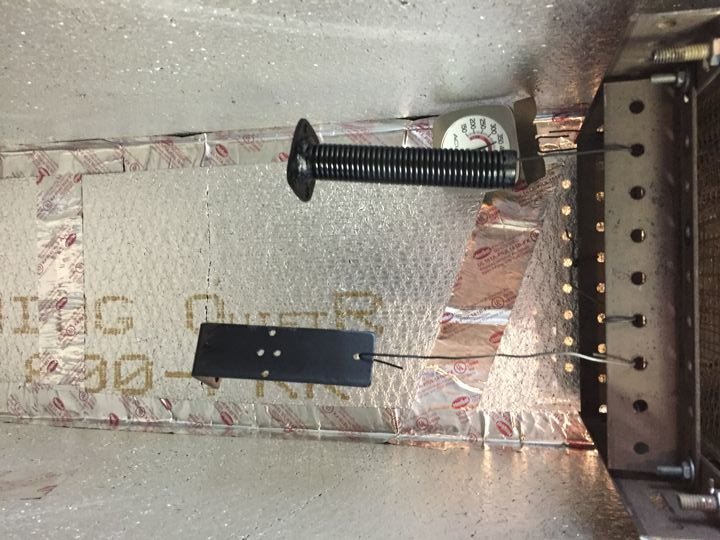

For some reason the ham radio community in the US is not as interested in ruggedized antennas and mounts as they are in Australia. I can get a heavy-duty spring mount from California or Australia for $350.00 but I was not interested in spending that kind of money. So, we welded up a spring mount and painted it with KG metal coating 2400 gun coat and cooked it at 350 for 1 hour.








I really needed the spring mount to keep from snapping the antenna in the woods. Well, that’s it and now I can talk to Germany, the UK, hell even the International Space Station all from my truck.


I look forward to your comments and questions.
