Ham Radio Install

Discussion in 'Audio & Video' started by mparker, Feb 2, 2011.

  1. Feb 2, 2011 at 4:07 AM
    #1
    mparker

    mparker [OP] Member

    Joined:
    Jan 30, 2011
    Member:
    #50225
    Messages:
    9
    Gender:
    Male
    I searched, but everything vie seen was kind of dated..


    What does everyones ham install look like, where did you mount to radio?

  2. Feb 2, 2011 at 4:56 AM
    #2
    MT Madman

    MT Madman Senior Citizen

    Joined:
    Feb 6, 2010
    Member:
    #30831
    Messages:
    478
    Gender:
    Male
    Hawk Point MO
    Vehicle:
    MGM Tundra CrewMax Limited TRD Off Road
    My Kenwood TM-V708 Dual-Bander Westin Step Bars Line X Bedliner ReTrax Pro MX Tonnaeu Cover
    There's several thread both under Ham and CB radio. I've got a Kenwood TM-V708, the transceiver is mounted under the passenger seat (I did raise the seat about 1 1/2") and the control head on the dash above the HU with the control cable routed under the center console and behind the HU. I dropped the dome light and drilled a hole for the antenna and then ran the RF cable over to the passenger side going above the air curtain and down the post and under the carpet to the radio. I ran a battery lead through the firewall where all the truck wiring goes through to the radio which is routed along side the control cable under the center console and it's powered by a delayed relay which is powered by a switched fuse (can't remember which one right now). I'm anal when it comes to installing things and I take my time to enjoy myself but I'm guessing it took me 2 - 3 hours to do it all.

  3. Feb 2, 2011 at 6:40 AM
    #3
    Jimmyjohn

    Jimmyjohn Well-Known Member

    Joined:
    Mar 6, 2010
    Member:
    #32643
    Messages:
    884
    Gender:
    Male
    First Name:
    Jim
    Big Sky Country Montana
    Vehicle:
    06 SR5 4x4 DLB CAB
    Smitty Blt Bull Bar& Skid Plate, PIAA 525SMR lights
    I have an Icom 2720 Dual Dand that I mounted under the Drivers seat with the face plate double side tape just under the heater/air switches. My antenna is mounted on the left front fender and the coax comes in through the fire wall. then under the inner panel the door sill and under the seat. I always try to have as little coax showing as I can. There is nothing like a clean install. My SWR is Flat trrough both bands. Good Luck 73

  4. Feb 2, 2011 at 6:56 AM
    #4
    gfiber

    gfiber Well-Known Member

    Joined:
    Aug 5, 2009
    Member:
    #20680
    Messages:
    138
    Gender:
    Male
    First Name:
    Gary
    Seattle, WA
    Vehicle:
    Silver TRD Sport
    TRD sport pkg, Towing Pkg
    I have 3 rigs so far mounted along with a High Sierra Screwdriver type antenna, 1.2 GHz whip, 900 MHz whip and a 144, 220, 440 MHz whip. The 900 MHz rig is waiting to be installed. Have an IC-7000, Yaesu FTM-350 and Icom ID-1 in the 2009 Toyota Tacoma right now. I removed the plactios behing the seat on the drivers side and replaced it with some 1/4 inch ABS sheet to mount two radios onto.
    I get some photos up loaded by this weekend. I will be changing the control head mounting so its a bit more stable using bit and parts of a laptop mounting system in a few weeks once it arrives the mics need a home too.

  5. Feb 2, 2011 at 12:49 PM
    #5
    barlowrs

    barlowrs Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    596
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
  6. Feb 21, 2011 at 9:43 PM
    #6
    gfiber

    gfiber Well-Known Member

    Joined:
    Aug 5, 2009
    Member:
    #20680
    Messages:
    138
    Gender:
    Male
    First Name:
    Gary
    Seattle, WA
    Vehicle:
    Silver TRD Sport
    TRD sport pkg, Towing Pkg
    mparker,

    I have not forgot you. I just installed a modified RAM laptop mount to hold my radios control heads. Actually bought the floor mounting, telescopic poles and a different pwice other than the laptop tray seems to be pretty sturdy and does not impede my lady friends legs when she rides along. If it did then she would tell me to go play with my radio and not her :( that would be no good.

    I want to change out the ABS the heads are machine screwed onto and dress it up a bit. I'll get some pictures here. One thing I did was to purchase a remote controled relay. Thats way with the press of a key fob i can turn on or off the radios. I have that remote controled relay switch two 40 amp relays which provide power to the rigs. http://www.allelectronics.com/make-a-store/item/RC-10/KEYCHAIN-REMOTE-CONTROL-12VDC-6-AMP//1.html

    More to come.

  7. Feb 21, 2011 at 9:53 PM
    #7
    Ridgerunner

    Ridgerunner Well-Known Member

    Joined:
    Mar 14, 2008
    Member:
    #5269
    Messages:
    3,621
    Gender:
    Male
    First Name:
    Frank
    San Francisco
    Vehicle:
    2001 prerunner doublecab limited
    2001 with; cat-back twin exhaust,elbow mod, Westin bullbar with Hella550's, Snugtop XTR camper shell, TRD off-road 2x4-black beauty.
  8. Feb 22, 2011 at 8:17 AM
    #8
    barlowrs

    barlowrs Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    596
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim

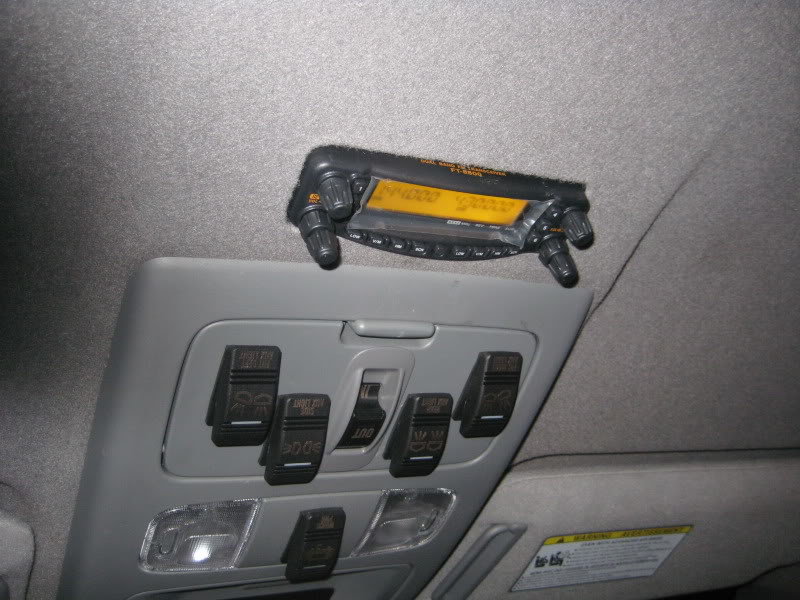

    Take a look at the writeup, that is just the face, it does not produce heat..all the guts are under the seat (now in a sealed box incase I get water in)

  9. Feb 22, 2011 at 9:20 AM
    #9
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,274
    Gender:
    Male
    Apex, NC
    Vehicle:
    15 Black DC OR Prerunner
    I had a remote face system with the main body mounted behind the driver side rear seat. If you search you will find some pictures of my install.

  10. Feb 22, 2011 at 9:31 AM
    #10
    Ridgerunner

    Ridgerunner Well-Known Member

    Joined:
    Mar 14, 2008
    Member:
    #5269
    Messages:
    3,621
    Gender:
    Male
    First Name:
    Frank
    San Francisco
    Vehicle:
    2001 prerunner doublecab limited
    2001 with; cat-back twin exhaust,elbow mod, Westin bullbar with Hella550's, Snugtop XTR camper shell, TRD off-road 2x4-black beauty.
    Yeah I know it's "just the face" that's why I called it "the head"-what I was thinking about is the blazing heat from the sun beating down on the roof just behind that head. I assume you removed some insulation to set it in there. Even if you didn't I would at least try to shield the back of that head from heat. You know how hot that roof can get?

  11. Feb 22, 2011 at 9:36 AM
    #11
    barlowrs

    barlowrs Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    596
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
    Ohh I see what you are saying..ok....essentially, the mount that I made holds the face about an inch and half off the roof, so there is a large void of air between any radiated heat from the roof and the back of the radio. I also did add some insulation between the mount and the roof. This also act so pad the radio if I hit the head line too hard and push it up into the roof (haven’t done it yet, but it was a concern I addressed during the build).

    The radio has been there for quite a while in the so cal sun and still works like a champ, so I think it is ok. Good question though.

  12. Mar 3, 2011 at 2:01 PM
    #12
    MT Madman

    MT Madman Senior Citizen

    Joined:
    Feb 6, 2010
    Member:
    #30831
    Messages:
    478
    Gender:
    Male
    Hawk Point MO
    Vehicle:
    MGM Tundra CrewMax Limited TRD Off Road
    My Kenwood TM-V708 Dual-Bander Westin Step Bars Line X Bedliner ReTrax Pro MX Tonnaeu Cover
    Here's my ham install. The first pic shows the R/T unit under the front passenger seat, the next one is the Head on the dash (the cable is to the GPS, I'll be hiding that cable soon), I've got a short 1/4 VHF/ 1/2 UHF wave antenna on for around town driving, and the last shows my longer 1/2 VHF / 1 5/8 UHF wave antenna I store under the back seat for my drives.

    Kenwood TM-V708 RT.jpg
    Dash install.jpg
    Diamond NR72BNMO.jpg
    Diamond NR73BNMO.jpg

  13. Mar 3, 2011 at 5:27 PM
    #13
    Ridgerunner

    Ridgerunner Well-Known Member

    Joined:
    Mar 14, 2008
    Member:
    #5269
    Messages:
    3,621
    Gender:
    Male
    First Name:
    Frank
    San Francisco
    Vehicle:
    2001 prerunner doublecab limited
    2001 with; cat-back twin exhaust,elbow mod, Westin bullbar with Hella550's, Snugtop XTR camper shell, TRD off-road 2x4-black beauty.
    Sweet and clean-and ya manned up and drilled that hole:D I don't have the nerve...yet

  14. Mar 3, 2011 at 6:08 PM
    #14
    DevL

    DevL Well-Known Member

    Joined:
    Feb 23, 2010
    Member:
    #31952
    Messages:
    1,923
    Gender:
    Male
    There is no insualtion behind the head liner. I installed some 1/8 closed cell foam to correct this. Gotta say that install is the cleanest I have ever seen. Hope to copy it one day.

  15. Jun 20, 2014 at 8:03 PM
    #15
    ET2 SW Moose USN

    ET2 SW Moose USN Member

    Joined:
    Jun 20, 2014
    Member:
    #132326
    Messages:
    8
    Gender:
    Male
    First Name:
    Kenny
    Connecticut
    Vehicle:
    2014 Tacoma Sport
    Where do you guys hook in at? my Taco has a 24v battery and my Kenwood TM 281 takes 13.8 at 15 amps. my old ford focus had convenient posts to put some eyelets on but my new truck just has the big ol battery posts.

  16. Jun 20, 2014 at 8:39 PM
    #16
    RND2

    RND2 Well-Known Member

    Joined:
    Apr 20, 2014
    Member:
    #128082
    Messages:
    275
    Gender:
    Male
    In my head swimming around
    Vehicle:
    12 DCSB
    RCD 4"
    24V?

  17. Jun 21, 2014 at 4:16 PM
    #17
    MT Madman

    MT Madman Senior Citizen

    Joined:
    Feb 6, 2010
    Member:
    #30831
    Messages:
    478
    Gender:
    Male
    Hawk Point MO
    Vehicle:
    MGM Tundra CrewMax Limited TRD Off Road
    My Kenwood TM-V708 Dual-Bander Westin Step Bars Line X Bedliner ReTrax Pro MX Tonnaeu Cover
    24VDC?? I'm guessing the lamps and the radio all run on 12VDC so there's gotta be a 12 volt post somewhere.

  18. Jun 21, 2014 at 4:55 PM
    #18
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    4,141
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    Your battery is 12 volts hook it on the bolts that hold the cables on.
