Discussion in 'Archive Garage' started by ARCHIVE, Nov 13, 2017.

  1. Nov 24, 2019 at 2:56 PM
    #1441
    northshore

    northshore Well-Known Member

    Joined:
    Oct 7, 2012
    Member:
    #88518
    Messages:
    57
    Gender:
    Male
    First Name:
    Dave
    Nor Cal
    Vehicle:
    '07 Sport AC
    OME 886 w/Nitros, JBA UCAs, Superbumps, Dakars w/Nitros, FJ Wheels w/ 265/75R16 MT Baja ATZ-P3, Shrockworks Sliders & Bumper w/Skids, URD Y-pipe, AFE Filter.
    Nice video and photo showing that second leaf in the hanger - where it is not supposed to be!

    Stock Dakar leafs will catch in a hanger long before the bp51 shocks limit travel. The cure (as per Eric), is to trim the second & third leafs - just short enough so they cannot contact the hanger. When installing my HH, just hung my rear axle off the nitro shocks - they do limit droop so the stock brake lines are protected. However, they also prevent the droop that the HH provide. Got to modify leafs, install Achive bushings in the shackles, change to a longer shock and extended brake lines for the HH to work fully.

  2. Nov 24, 2019 at 2:58 PM
    #1442
    singletrack_ftw

    singletrack_ftw “I chopped the wrong leaf!”

    Joined:
    Aug 27, 2017
    Member:
    #228223
    Messages:
    3,685
    Gender:
    Male
    First Name:
    Tyler
    AZ
    Vehicle:
    ‘08 TRD OR 4wd
    https://www.tacomaworld.com/threads/singletrack’s-‘dad-shred-build-thread’-i’m-just-doing-it-for-the-kids.619250/ Sos offroad sliders (kickout + filler) Sos offroad full belly skids (steel) Sos offroad front recovery point Sos offroad concepts HC rear bumper with bedside kickout tubes Marlin Crawler LCA frame brace kit Trail Gear rear diff cover Bilstein 5100 + OME 885 Total Chaos UCA BILSTEIN b110 OME Dakar standard pack Wheelers Ubolt flip kit Wheelers Superbump f/r Wheelers SS extended brake lines FN five star 16x8 -25 Milestar Patagonia MT 315/75r16 Custom projector retrofit (acme super h1 + morimoto 4300k) Baja Designs S2 sport ditch pods on CBI ditch pod mounts Amazon AMAK rock lights CMC CB radio hardmount
    Yes most definitely. I second all of that. Maybe this shock thread will help you find a long boi
    https://www.tacomaworld.com/threads/2nd-gen-rear-shock-options-with-lengths.584583/

  3. Nov 24, 2019 at 3:04 PM
    #1443
    northshore

    northshore Well-Known Member

    Joined:
    Oct 7, 2012
    Member:
    #88518
    Messages:
    57
    Gender:
    Male
    First Name:
    Dave
    Nor Cal
    Vehicle:
    '07 Sport AC
    OME 886 w/Nitros, JBA UCAs, Superbumps, Dakars w/Nitros, FJ Wheels w/ 265/75R16 MT Baja ATZ-P3, Shrockworks Sliders & Bumper w/Skids, URD Y-pipe, AFE Filter.
  4. Nov 24, 2019 at 6:03 PM
    #1444
    kasnerd

    kasnerd candied bacon

    Joined:
    Jan 2, 2014
    Member:
    #119695
    Messages:
    2,498
    SoCal Yokel
    Vehicle:
    '14 SC LT Mall Runner
    Mods? Yes, oh yes..
    my springs are limiting my travel by being overloaded. it needs the aal....I'm guessing I'm missing out on about 2.5" because of my bed weight. the down travel is ok, not great... but knew that going in. I'm looking at a more robust/reinforced suspension like a total chaos/camburg fronts and build up the rear on my own since it's not a 'go fast' truck.

  5. Nov 24, 2019 at 7:36 PM
    #1445
    Dave-rass

    Dave-rass Well-Known Member

    Joined:
    Jan 9, 2018
    Member:
    #240797
    Messages:
    129
    Gender:
    Male
    Vehicle:
    2015 Tacoma
    I just put my order in for some Hammer Hangers! I have been eyeing these for a long time!

    su.b.rat and ARCHIVE[OP] like this.
  6. Nov 25, 2019 at 7:42 AM
    #1446
    ARCHIVE

    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,251
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    Thank you Dave!

    Dave-rass[QUOTED] and su.b.rat like this.
  7. Nov 25, 2019 at 8:33 AM
    #1447
    greenEFSI

    greenEFSI TacoSupreme____

    Joined:
    Jun 29, 2016
    Member:
    #190830
    Messages:
    1,564
    Gender:
    Male
    First Name:
    Gio
    West Covina, SoCal
    Vehicle:
    '15 TRD Pro Super White

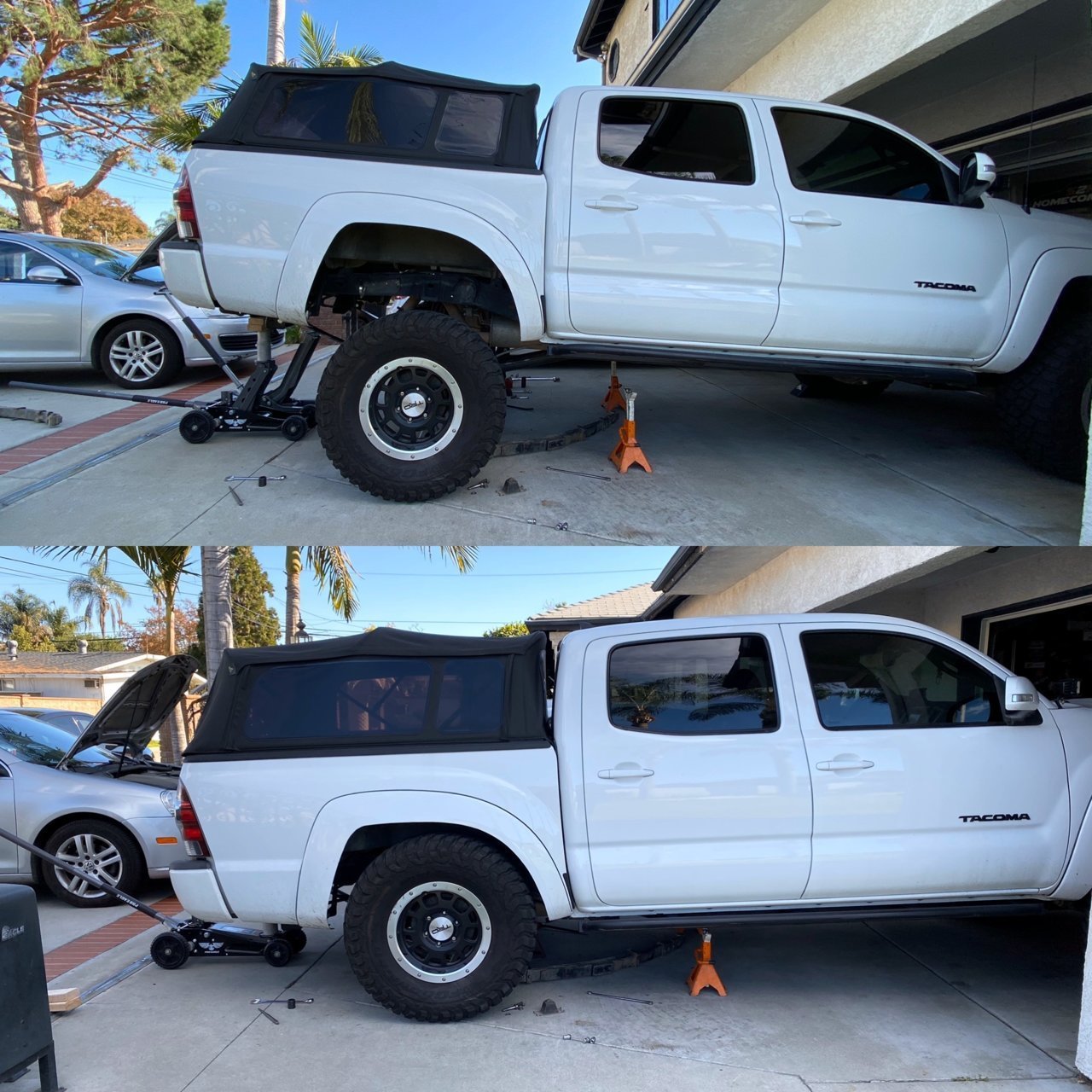

    I'm posting this here to help anyone looking for info. This is a factory leaf spring broken down into a single leaf to test full droop and full bump with hammer hangers installed. The stock leaf spring clamps limit the droop and do not allow for the shackle to totally flatten out like it would with upgraded aftermarket leaf springs. So with that said here are my measurements on stock shock mounting locations with hammer hangers.

    26 3/4" - Fully drooped with factory leaf spring assembled (with clamps intact) and progressive aal
    28 1/2" - Fully drooped with factory leaf spring broken into a single leaf and 2 1/4" wood blocks to simulate the same dimensions as my leaf setup not broken down
    15 1/2" - Fully collapsed u-bolts to frame mount for bumpstop (no actual rubber bump stop in the way)


    ARCHIVE[OP] and FishingInSand like this.
  8. Nov 25, 2019 at 9:28 AM
    #1448
    ARCHIVE

    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,251
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    Thanks for doing this, good info. With a bumpstop compressed to max, the stock leaves are around 10" travel

    greenEFSI[QUOTED] likes this.
  9. Nov 25, 2019 at 9:41 AM
    #1449
    JeffRoyJenkins

    JeffRoyJenkins Essentially Non-Essential

    Joined:
    Dec 18, 2013
    Member:
    #118807
    Messages:
    2,099
    Gender:
    Male
    First Name:
    Jeff
    Lake Stevens, WA
    Vehicle:
    2024 F-150 XLT PowerBoost
    After all the talk about the issues with the Dakars I decided to finally take a look at mine at see what they looked like while changing the oil this weekend.

    Looks like I managed to somehow take a gouge out of the cylinder portion of mine as well as dent up the sides a bit. Looks like hammer hangers and new shackles are in ordered sooner rather than later.


    Edit: Didn't even notice until I posted this but it looks like I might have smacked the hanger itself in the second picture too.

    Last edited: Nov 25, 2019
    ARCHIVE[OP] likes this.
  10. Nov 25, 2019 at 10:57 AM
    #1450
    SpeySquatch

    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,365
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)

    Can you attach or PM the link from where you got these? I cannot locate these without buying the entire kit (bolts, bushings, etc)...which is like $82 per side

  11. Nov 25, 2019 at 11:29 AM
    #1451
    ARCHIVE

    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,251
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    SpeySquatch[QUOTED] likes this.
  12. Nov 25, 2019 at 11:46 AM
    #1452
    SpeySquatch

    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,365
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)
  13. Nov 25, 2019 at 12:49 PM
    #1453
    SpeySquatch

    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,365
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)
    @ARCHIVE
    Are the poly bushings for stock shackles on your website priced per shackle, or for the pair for both sides (complete)?

  14. Nov 25, 2019 at 1:00 PM
    #1454
    '14RC

    '14RC WA State

    Joined:
    May 18, 2016
    Member:
    #187279
    Messages:
    261
    Gender:
    Male
    Seattle
    Vehicle:
    2014 4x4 Regular Cab 5MT
    2" Lift & 32" tires w/ Camping Setup (see details) Suspension: Dobinson 2" Coils (PN: C59-316) 4x Bilstein 5100's (base setting) SPC Upper Control Arms Deaver J66 Leaf Springs Ride-Rite Airbags Archive Garage Hammer Hangers Poly Leaf Spring Bushing Camping: SnugTop Canopy ARB awning Built a Camping Shelf in the Bed Yakima Mega Warrior Roof Basket Interior: Bucket Seat Conversion Acoustically Insulated Interior Added Cruise Control Rear Storage Organizers Traction: Yellow Wire Mod Alloy's with 265/75/16 Towing: Aftermarket Class III Tow Hitch Trailer Wiring Brake Controller (wired, not installed) Misc: ECGS Bearing NH Oil Undercoating
    @ARCHIVE

    With the HH, I'm going to install a U402 Stage II leafpack but it's rated at 3" lift; I am only looking for 2". I can have them re-arched, but would adding longer shackles be a good way to bring the lift height down, instead? Any issues doing it this way?

    Edit: I just read a few pages back that the longer shackles only drop the height by 1/4", so I guess I'll have to re-arch.

    Last edited: Nov 25, 2019
    welderf15 likes this.
  15. Nov 26, 2019 at 6:48 PM
    #1455
    ARCHIVE

    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,251
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    Yeah, I think the U402 stage 2 would be ~3" lift with about 400lbs or so, based on some customers

    '14RC[QUOTED] likes this.
  16. Nov 26, 2019 at 6:50 PM
    #1456
    ARCHIVE

    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,251
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    Priced for both shackle bushings (4) half bushings and (2) sleeves

    SpeySquatch[QUOTED] likes this.
  17. Nov 26, 2019 at 7:25 PM
    #1457
    ARCHIVE

    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,251
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    So I have been getting this question a lot: Can I lower my truck a lot, like 1"+ using longer shackles or can I get a 3" lift leaf only be like 1.5"? The answer is NO, and here is why:
    • Extra long shackles is not ideal as it changes the pinion angle the wrong way, this is a bad idea.
    • But it is also not possible, as the shackles are under the frame rail slightly and can only be so long
    • Remember that adjusting one end of a leaf spring 1" only affects the axle half the difference
    • With stock hangers, the longest shackle you can fit is ~3.6" with stock hanger, any longer will hit the hanger "bump", stock hanger has a bump below the frame (see pic).
    • With Hammer hangers, longest shackle is 4.5", this puts the rear spring eye a little higher than possible with stock hanger, negligible change to pinion angle, ride height would be slightly lower than stock hangers.
    • True Long Travel kits you see with really long shackles is only possible because they move the spring mounts outboard out from under the frame rails


    Last edited: Nov 26, 2019
  18. Nov 30, 2019 at 7:18 AM
    #1458
    Sixthelement

    Sixthelement Ran over a Yeti once, Texas, never again

    Joined:
    Apr 1, 2017
    Member:
    #215083
    Messages:
    2,797
    Gender:
    Male
    Flagstaff
    Vehicle:
    24 F150
    Fox 2.0
    @ARCHIVE Trying to save some money here. I was thinking U402s or RXTs. But I see you have the AAL option.
    '17 with Hybrid front w/winch. Full reinforced Mobtown skids v1, sliders, HC rear. So, armor adds a bit of weight. Plus I run a Decked loaded with tools and recovery equipment. Daily.
    Any trips, adds a easy 200lbs in coolers, camping stuff.
    Stock springs have a Headstrong 3AAL currently.

    Would your AAL be worth it or just get a leaf pack? I get to FSR roads here in Fl about once a month. Try to take good out of state real wheeling trips at least twice a year.

  19. Nov 30, 2019 at 7:40 AM
    #1459
    ARCHIVE

    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,251
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    That sounds like 500-700lbs added to rear axle over stock, so I am thinking a new pack is better, but part of the equation is how much lift you want?

  20. Nov 30, 2019 at 7:48 AM
    #1460
    Sixthelement

    Sixthelement Ran over a Yeti once, Texas, never again

    Joined:
    Apr 1, 2017
    Member:
    #215083
    Messages:
    2,797
    Gender:
    Male
    Flagstaff
    Vehicle:
    24 F150
    Fox 2.0
    Well, if the AAL gave me a inch. Probably lost 1 - 1 1/2" in weight. So, I'd say 2inch or so.
