Have a few questions about supercharging my T100.

So the Magnuson S/C will be here Thursday. I just swapped out my ECU from a 1997 T100 will all the exact same features as my 96 and it fired right up and runs great. So Thursday I'll begin the Supercharger install I also had to buy a complete new throttle body because the one on my 96 is the 4 pin wire on the TPS and I guess it needs to be the 97 and newer 3 wire sensor. I'm gonna install a 170 degree thermostat, 2 step colder Denso iridium tt plugs I've already have a 2.5" cat back exhaust, new high flow cat, headers and a K&N FIPK CAI. Maybe add a URD MAF fuel & timing calibrator which I would think would help a ton with all the extra air being forced in maybe tune in that mass air flow sensor to work properly in turn add some more fuel as well as retard the timing were needed? So anyways is there anything you guys can think of that I might need for this Supercharger to work correctly as my daily driver? Sorry this is so long any feedback would awesome! Hoping someone on this site has done what I'm attempting to do? Thanks in advance!
Scott



Whoops.... I totally forgot to ask my main question sorry. So after I install the new 97 and newer throttle body with the 3 pin TPS but my wire connector coming from my 96 what am I gonna do then? Any ideas, is there an adapter out there somewhere? From what I can see installing the new 97 3 pin TB is pointless when my freaking truck has a 4 wire connector. Any ideas?



You said it started and runs great, does it really need the different tps? If so, maybe get a 97 engine harness.

I was kinda in a similar boat, but different. My 96 Taco needed the 97 ecu to be boosted. I found a matching donor ecu and it runs great.
Where it got weird was I started developing high idle after 2 years. Turns out the throttle body wore out and had a gap around the butterfly.

Finding a Taco throttle body with the 4 pin is fairly difficult. What was frustrating is I have a few 3 pin TBs laying around. The mount and the shaft design are different between 3 and 4 pin. However I think a full disassemble/swap could be done to use the 4 pin shaft in the good 3 pin body.

I actually took the TB off last night and am sending it to MaxBore. They bore it out and make a new butterfly so it seals properly. They also reset all the stops and calibrate the sensors. Return shipping is even included. All this for the same price as a old junk yard TB that could also be in bad shape.

Now back to your question. I dont know how to make the 3 pin work with a 4 pin. The schematic is different and I'm not going to risk a faulty circuit and fry the ecu.

Actually, couldn't you just extend the 3 pin wires to the Ecu with the proper pin out? You could use the old 4 wires and just discard 1.

Good luck, I'm interested to see how this us resolved.



If the T100 blower install requires you to get the ECU flashed at the dealership, then do NOT buy the urd maf calibrator.

I would check if HP Tuner supports the mid 90s T100 platform. If it does, you are golden on the software-side.

(Actually, i would not touch the URD Maf Cal until every other option has been tried .)



t100 ecu's are as locked as the 1st gen tacoma ecu's. I had a friend supercharge his, was a 98. So idk about the tps. But we had a few hiccups getting the fic6 working properly. Huge thanks to Jon64l as he helped me figure that one out and a couple on my truck.



I have a '98 I just pulled a S/C off of, already kind of want to put it back on. Just had to make sure it ran good 1st on it's own IMO, it does thankfully. So, in essence, you're saying it's pretty tough to tune them correctly right?



Easy route is 7th injector kit. Maybe someone in classifieds will separate. Make sure you do a fuel pump at same time.



So it's been awhile since I posted last. I ended up installing the gen2 MP62 Magnuson Supercharger along with an AEM 340LPH pump SnowPerformance water methanol Stage 2 progressive kit. 2" Pulley, Unichip Piggyback. 298hp at the crank at 4,800ft altitude 10psi boost. I swapped the ECU for one out of a '97 T100 and installed a new throttle body for a '97. Everything works perfectly for about 2 years now!



Glad its working out. Did you dyno it? Care to post the graph?



I'm seriously considering selling my gen2 MP62 Supercharger and getting the new tvs1320.

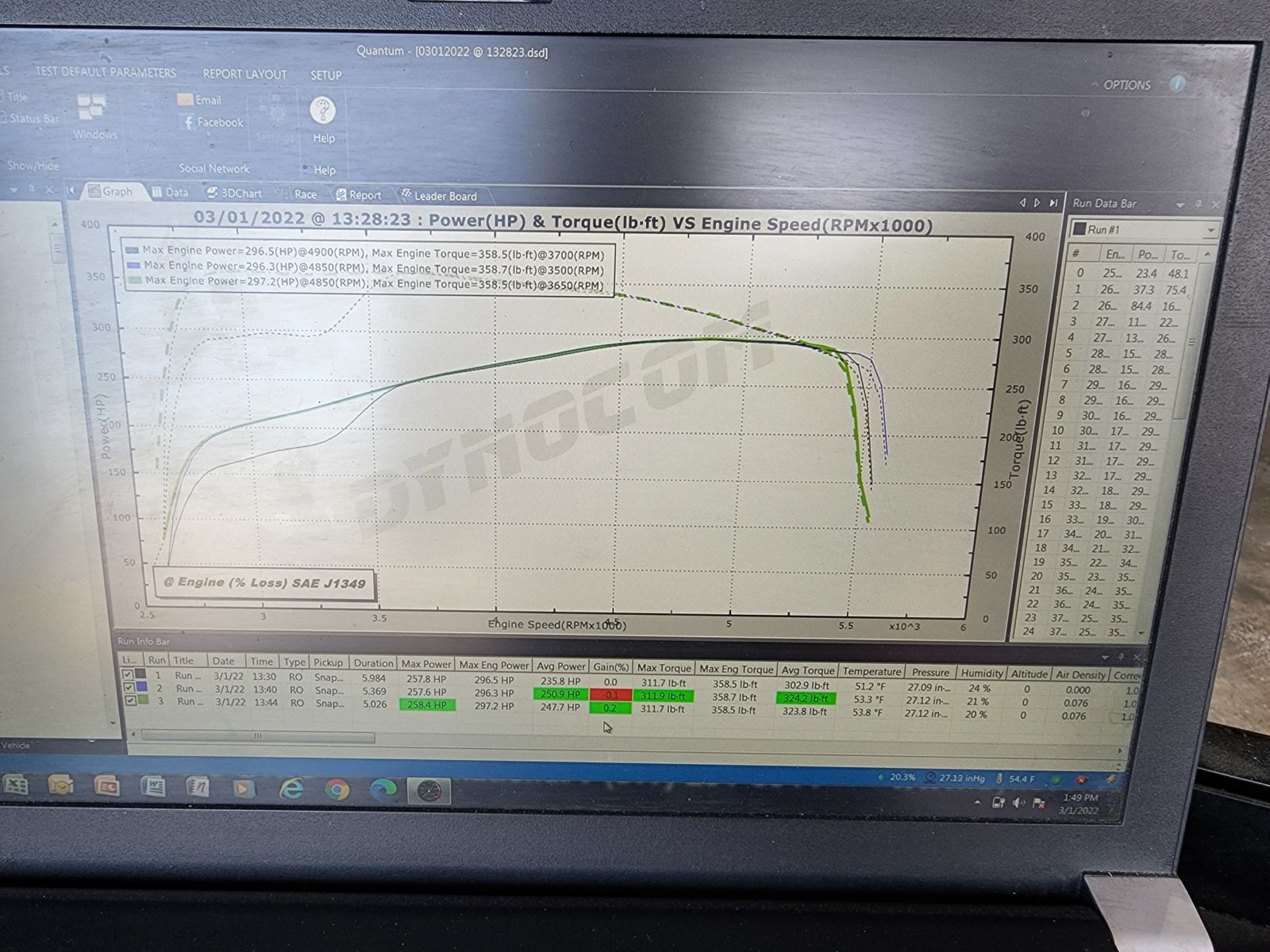

Yes I dynoed back in Mar 2022. Let me see if I can figure out how to post it.



Nice!



Awesome info. jon64l or anyone else I have a 96 taco 3.4 4x4 auto that I’m working on supercharging. Do you recall what your original ecm part number was. Also what 1997 ecm did you replace it with? I currently have the original 89661-04230 “9/1995- 9/1996” in it right now and I bought a 89661-04420 “6/1997- 10/1997” but the pins do not line up. I’m thinking I need a 89661-04321 “01/1997-6/1997” but I’m not sure.



Off hand I don't recall, but you are probably on the right track. The one you bought first might actually be a 98 ecu (since they make the next year vehicle the previous year). The ecu should be a total box, like a Vhs tape. The 98 ecu case has a bump up in it where the connector is, then slims down where the board is. I can try to look around for my old one this week. You do need the same version/style as you have originally. So 96 V6 4x4 Auto would want 97 V6 Auto. Same if it was manual. I moved to Haltech on mine.



Yes, my newly purchased ecu that does not work is a 6/1997 - 10/1997 89661-04420 does have the hump and is a bit shorter than my original 96 Ecu. According to the Toyota parts catalog there are two other ecu’s between my 9/1995-09/1996 89661-04230 . There is a 9/1996-01/1997 89661-03420 and a 01/1997-6/1997 89661-04321. Both are unavailable but have been superseded by 89661-04321-84 which is also unavailable. The is the ecu Im thinking I need, but wanted to reach out see if anyone has experience in this department before I toss some cheddar to the wind.



Mine was the 04321 and purchased off ebay. Just a FYI, doing this ecu swap doesn't make everything perfect. Runs lean at part throttle and has way too much timing.



Good to know about the 04321, I see that your running the haltech now did you ever run the urd 7th with 04321?

I’m a 1996 3.4 4x4 auto - what combo are you?



I didn't. I did aem piggy back. You could definitely do the urd 7th kit.
Truck is a 96 4x4 auto, but the auto died after a couple years of boost. Did a 5 speed swap and has a turbo (Gt3076r) now too.



Oh gotcha. Very cool. IPT built my valve body and torque converter so I’m hoping the trans will hold up for some good times. I’ll keep my eyes peeled on eBay, it’s dry on the 04321s at the moment. If You have yours and want to part with it and make a couple bucks let me know.

Besides running lean did you have any other issues running the 04321? Do I need a 3 wire throttle body or will the 4 wire work ok?
